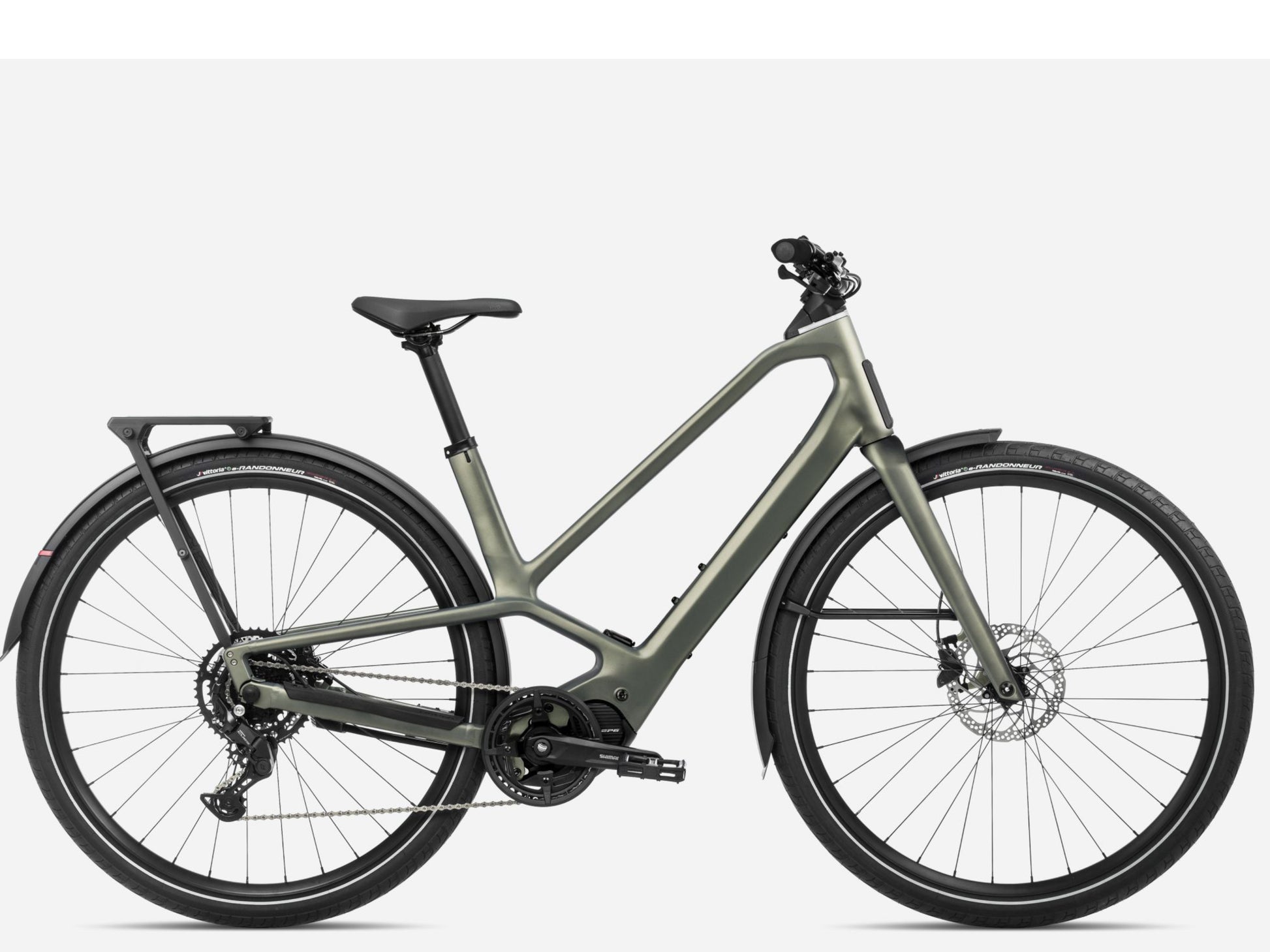

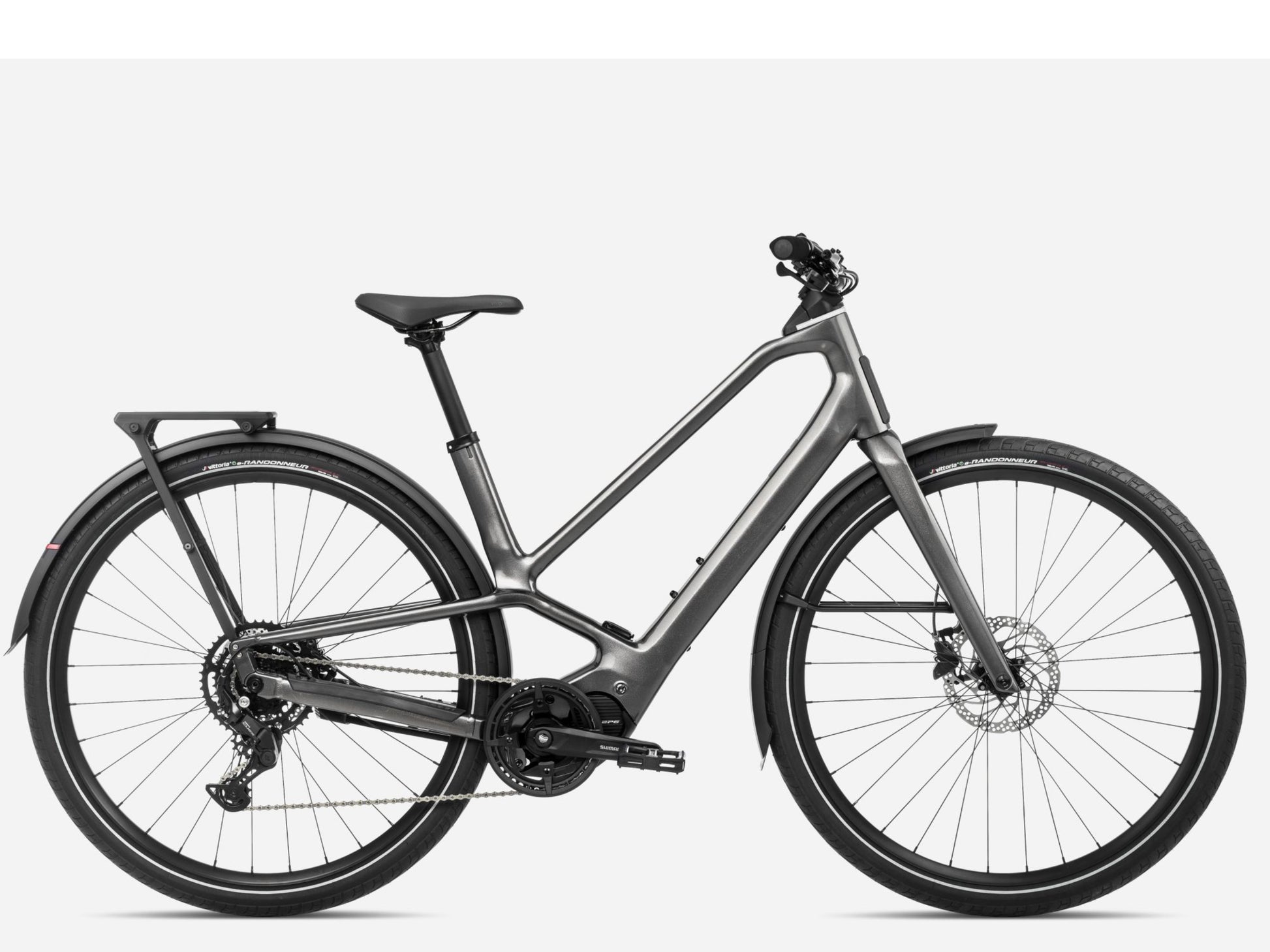

Orbea Diem 30
Orbea Diem 30
Regular price
$3,799.00
Sale price
$3,799.00
Regular price
Unit price
per
Couldn't load pickup availability
The Full Scoop on the Orbea Diem 30
Winner of the most prestigious design award, the Orbea Diem is a powerful urban ebike, making the route from A to B even easier.
*Components subject to manufacture change
| Motor | Shimano EP600 |
| Battery | Orbea Internal 540Wh (Optional 250 Wh Range Extender) |
| Display/remote | EN600-L |
| Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A |
| Frame | Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12, Headset Routing, Custom Kickstand, Orbea Urban Cockpit and equipment compatible |
| Fork | Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5 , post mount disc mount, Thru Axle 12x100mm, thread M12x1. Long mudguards compatible. |
| Rear Shock | Not applicable |
| Front Brake | Shimano MT201 Hydraulic Disc |
| Rear Brake | Shimano MT201 Hydraulic Disc |
| Rear Derailleur | Shimano Cues U4000 GS Shadow |
| Shift Levers | Shimano Cues SL-U4000 |
| Chain | KMC eGlide |
| Cassette | Shimano CS-LG300 11-46t 9-Speed |
| Crankset | Shimano Steps EM600 |
| Chain Ring | Alloy 40t w/chainguard |
| Chain Guard | Spec not provided |
| Rims | Alloy, Tubeless, 25c, 32H |
| Front Hub | Not applicable |
| Rear Hub | Not applicable |
| Front Tire | Vittoria e-Randonneur 50-622, Reflective band |
| Rear Tire | Vittoria e-Randonneur 50-622, Reflective band |
| Handlebars | Orbea Urban, Integrated Light, Rise 54, Width 700 |
| Stem | Spec not provided |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Grips | Spec not provided |
| Saddle | Selle Royal Vivo Ergo |
| Seatpost | Alloy 31.6x300mm Offset 0 |
| Pedals | VP-537 Black |
| Front Light | Supernova Starstream Pro, Low Beam |
| Rear Light | Orbea Fender integrated, with alert light |
| Kickstand | Orbea Diem Integrated |
| Rear Carrier | Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg |
| Fenders | Curana Apollo Orbit 60mm |
| Bell | Knog OI Classic |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on the Orbea Diem 30
Description
Winner of the most prestigious design award, the Orbea Diem is a powerful urban ebike, making the route from A to B even easier.
*Components subject to manufacture change
Motor System
| Motor | Shimano EP600 |
| Battery | Orbea Internal 540Wh (Optional 250 Wh Range Extender) |
| Display/remote | EN600-L |
| Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A |
Components
| Frame | Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12, Headset Routing, Custom Kickstand, Orbea Urban Cockpit and equipment compatible |
| Fork | Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5 , post mount disc mount, Thru Axle 12x100mm, thread M12x1. Long mudguards compatible. |
| Rear Shock | Not applicable |
| Front Brake | Shimano MT201 Hydraulic Disc |
| Rear Brake | Shimano MT201 Hydraulic Disc |
| Rear Derailleur | Shimano Cues U4000 GS Shadow |
| Shift Levers | Shimano Cues SL-U4000 |
| Chain | KMC eGlide |
| Cassette | Shimano CS-LG300 11-46t 9-Speed |
| Crankset | Shimano Steps EM600 |
| Chain Ring | Alloy 40t w/chainguard |
| Chain Guard | Spec not provided |
| Rims | Alloy, Tubeless, 25c, 32H |
| Front Hub | Not applicable |
| Rear Hub | Not applicable |
| Front Tire | Vittoria e-Randonneur 50-622, Reflective band |
| Rear Tire | Vittoria e-Randonneur 50-622, Reflective band |
| Handlebars | Orbea Urban, Integrated Light, Rise 54, Width 700 |
| Stem | Spec not provided |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Grips | Spec not provided |
| Saddle | Selle Royal Vivo Ergo |
| Seatpost | Alloy 31.6x300mm Offset 0 |
Extras
| Pedals | VP-537 Black |
| Front Light | Supernova Starstream Pro, Low Beam |
| Rear Light | Orbea Fender integrated, with alert light |
| Kickstand | Orbea Diem Integrated |
| Rear Carrier | Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg |
| Fenders | Curana Apollo Orbit 60mm |
| Bell | Knog OI Classic |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
