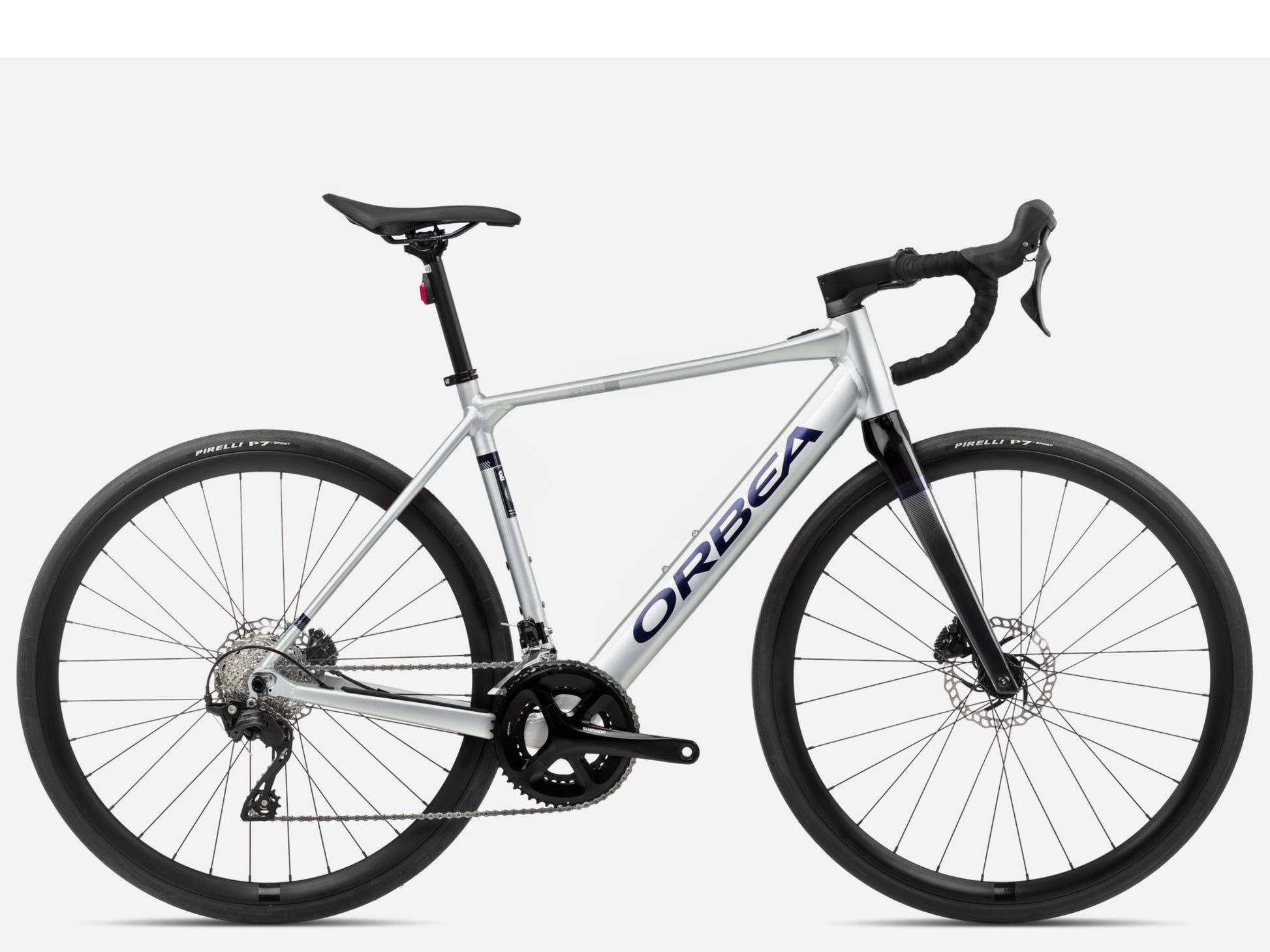

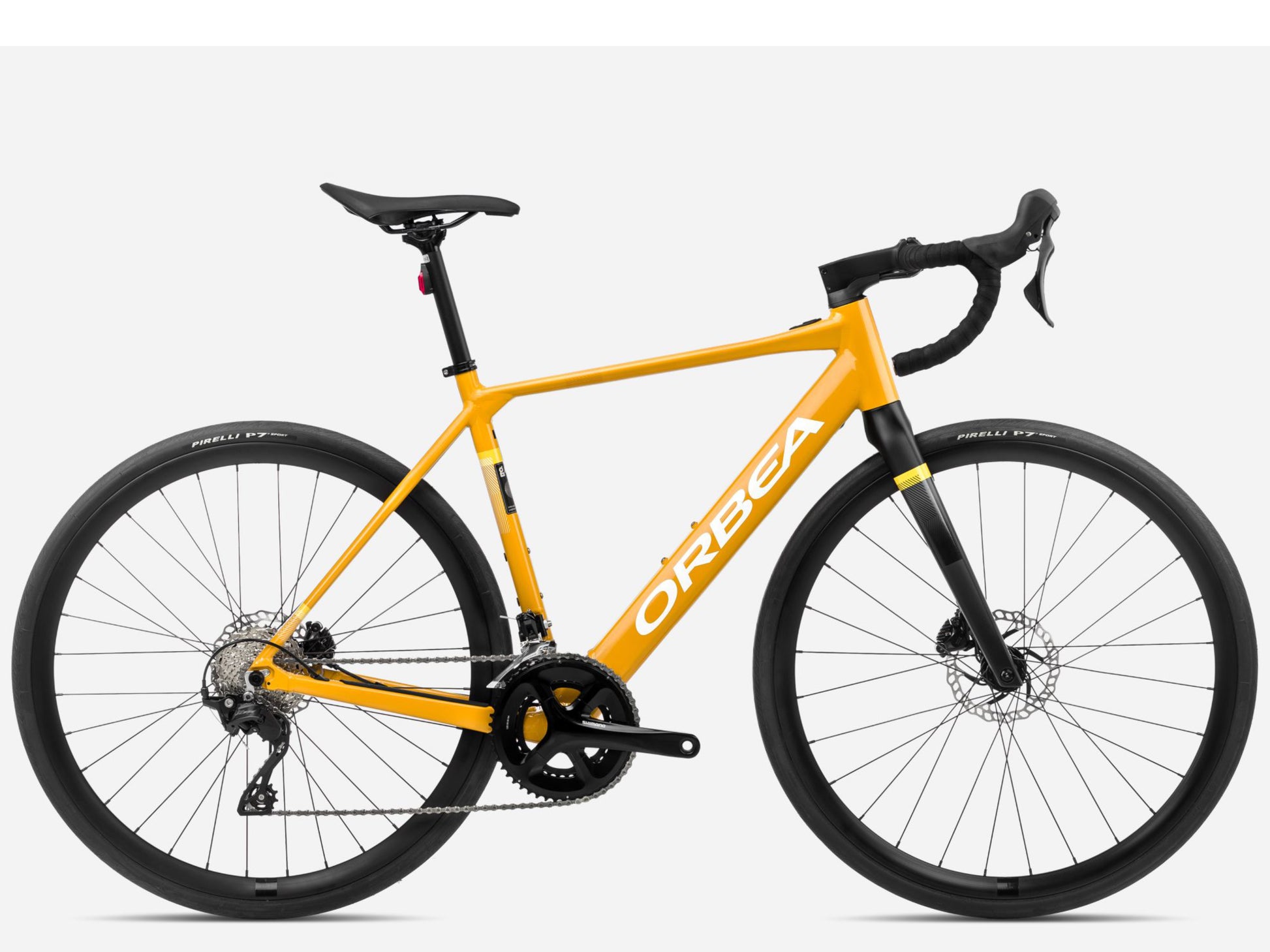

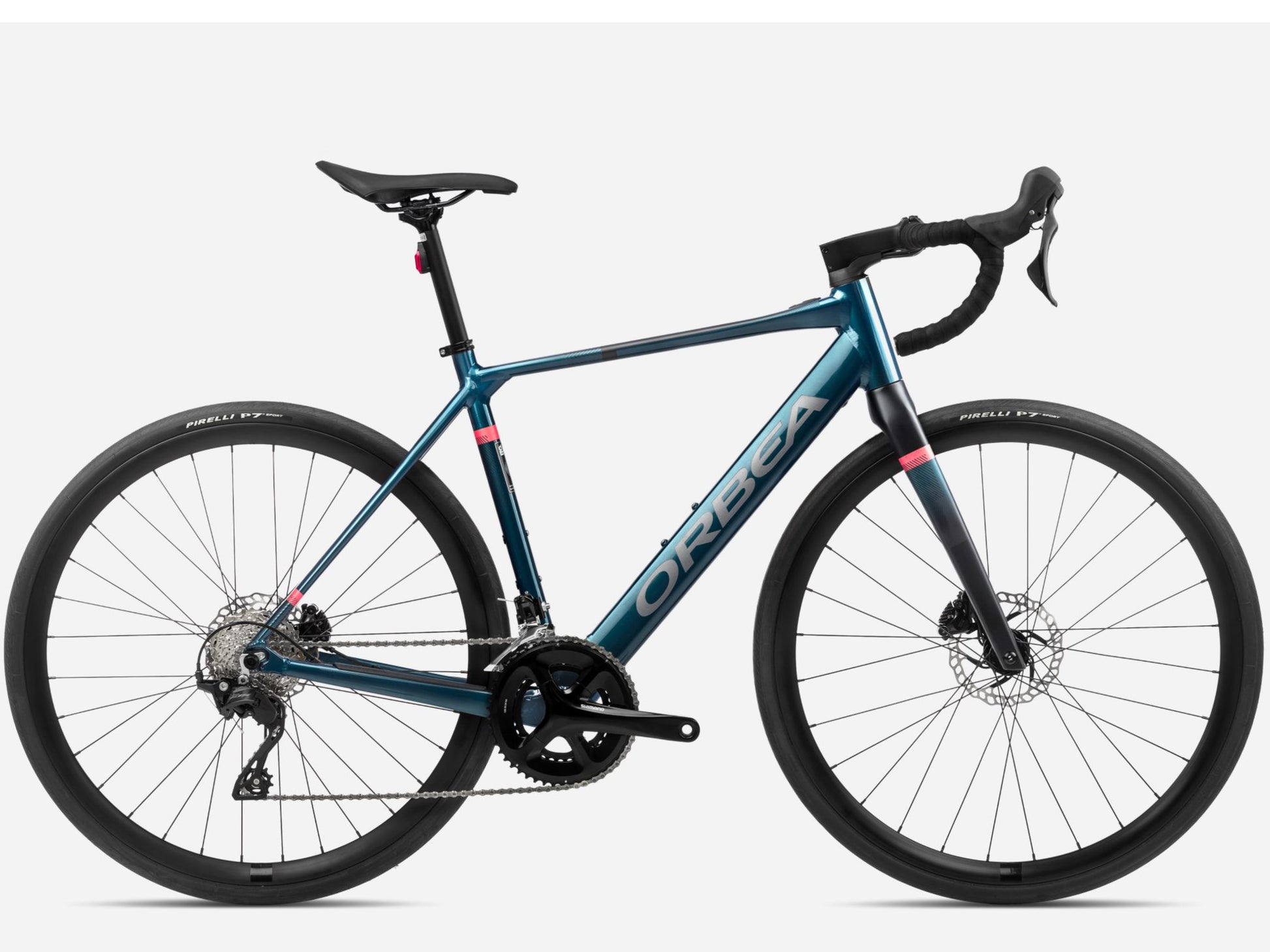

Orbea Gain D30
Orbea Gain D30
Regular price
$3,999.00
Sale price
$3,999.00
Regular price
Unit price
per
Couldn't load pickup availability
The Full Scoop on the Orbea Gain D30
It has never been easier to grab your bike and head out the door. Gain´s huge range means you can pretty much forget about battery limitations. Designed for the road, capable on gravel. The fun doesn't stop where the asphalt ends.
*Components subject to manufacture change
| Motor | Mahle motor hub X35 Plus |
| Battery | Mahle 36V/6.9A 248Wh ANT+ |
| Display/remote | Mahle Pulsar One monochrome ANT+ LEV / Mahle iWoc ONE |
| Charger | Mahle X35 |
| Frame | Orbea Gain Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, safety screw, 135x9 QR, Flat Mount disc mount, 700x40 maximun tyre, 1" 1/2 semiintegrated head set, 41x86,5 Pressfit botton bracket. |
| Fork | Gain Hydro carbon fork, full carbon, 1-1/8" - 1.5" tappered head tube compatible, 700x40 maximun tyre, flat mount disc mount, Thru axle 12x100mm |
| Rear Shock | Not applicable |
| Front Brake | Shimano R7170 Hydraulic Disc |
| Rear Brake | Shimano R7170 Hydraulic Disc |
| Rear Derailleur | Shimano 105 R7100 |
| Shift Levers | Shimano R7120 |
| Chain | Shimano M6100 |
| Cassette | Shimano 105 R7100 11-34t 12-Speed |
| Crankset | Shimano RS520 34x50t |
| Chain Ring | Spec not provided |
| Chain Guard | Spec not provided |
| Rims | Alloy, Tubeless, 700c, 21c, 32H |
| Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Hollow |
| Rear Hub | Spec not provided |
| Front Tire | Pirelli P7â„¢ Sport 700x32c |
| Rear Tire | Pirelli P7â„¢ Sport 700x32c |
| Handlebars | OC Road Performance RP31, Reach 80, Drop 125 |
| Stem | OC Road Performance RP21, -6º |
| Headset | Acros Alloy 1-1/2" Internal Cable Routing |
| Handlebar tape | Orbea Eva |
| Saddle | Fizik Aliante R5 |
| Seatpost | Alloy, 27.2mm, Setback 0, for integrated light |
| Pedals | Not applicable |
| Front Light | Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50. |
| Rear Light | Lezyne FENDER STVZO seatpost mounting 11 lumens |
| Kickstand | Spec not provided |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on the Orbea Gain D30
Description
It has never been easier to grab your bike and head out the door. Gain´s huge range means you can pretty much forget about battery limitations. Designed for the road, capable on gravel. The fun doesn't stop where the asphalt ends.
*Components subject to manufacture change
Motor System
| Motor | Mahle motor hub X35 Plus |
| Battery | Mahle 36V/6.9A 248Wh ANT+ |
| Display/remote | Mahle Pulsar One monochrome ANT+ LEV / Mahle iWoc ONE |
| Charger | Mahle X35 |
Components
| Frame | Orbea Gain Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, safety screw, 135x9 QR, Flat Mount disc mount, 700x40 maximun tyre, 1" 1/2 semiintegrated head set, 41x86,5 Pressfit botton bracket. |
| Fork | Gain Hydro carbon fork, full carbon, 1-1/8" - 1.5" tappered head tube compatible, 700x40 maximun tyre, flat mount disc mount, Thru axle 12x100mm |
| Rear Shock | Not applicable |
| Front Brake | Shimano R7170 Hydraulic Disc |
| Rear Brake | Shimano R7170 Hydraulic Disc |
| Rear Derailleur | Shimano 105 R7100 |
| Shift Levers | Shimano R7120 |
| Chain | Shimano M6100 |
| Cassette | Shimano 105 R7100 11-34t 12-Speed |
| Crankset | Shimano RS520 34x50t |
| Chain Ring | Spec not provided |
| Chain Guard | Spec not provided |
| Rims | Alloy, Tubeless, 700c, 21c, 32H |
| Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Hollow |
| Rear Hub | Spec not provided |
| Front Tire | Pirelli P7â„¢ Sport 700x32c |
| Rear Tire | Pirelli P7â„¢ Sport 700x32c |
| Handlebars | OC Road Performance RP31, Reach 80, Drop 125 |
| Stem | OC Road Performance RP21, -6º |
| Headset | Acros Alloy 1-1/2" Internal Cable Routing |
| Handlebar tape | Orbea Eva |
| Saddle | Fizik Aliante R5 |
| Seatpost | Alloy, 27.2mm, Setback 0, for integrated light |
Extras
| Pedals | Not applicable |
| Front Light | Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50. |
| Rear Light | Lezyne FENDER STVZO seatpost mounting 11 lumens |
| Kickstand | Spec not provided |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
