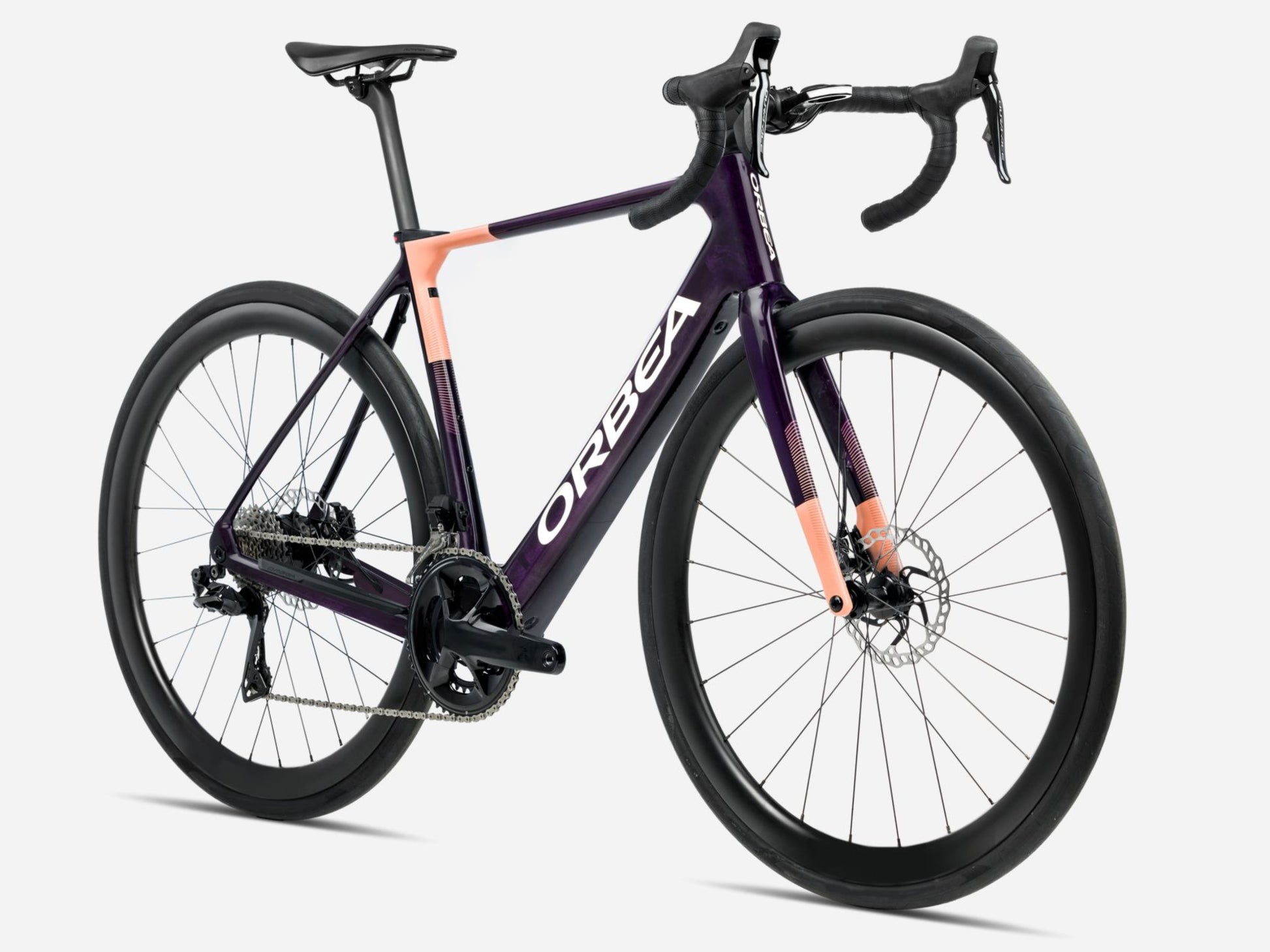

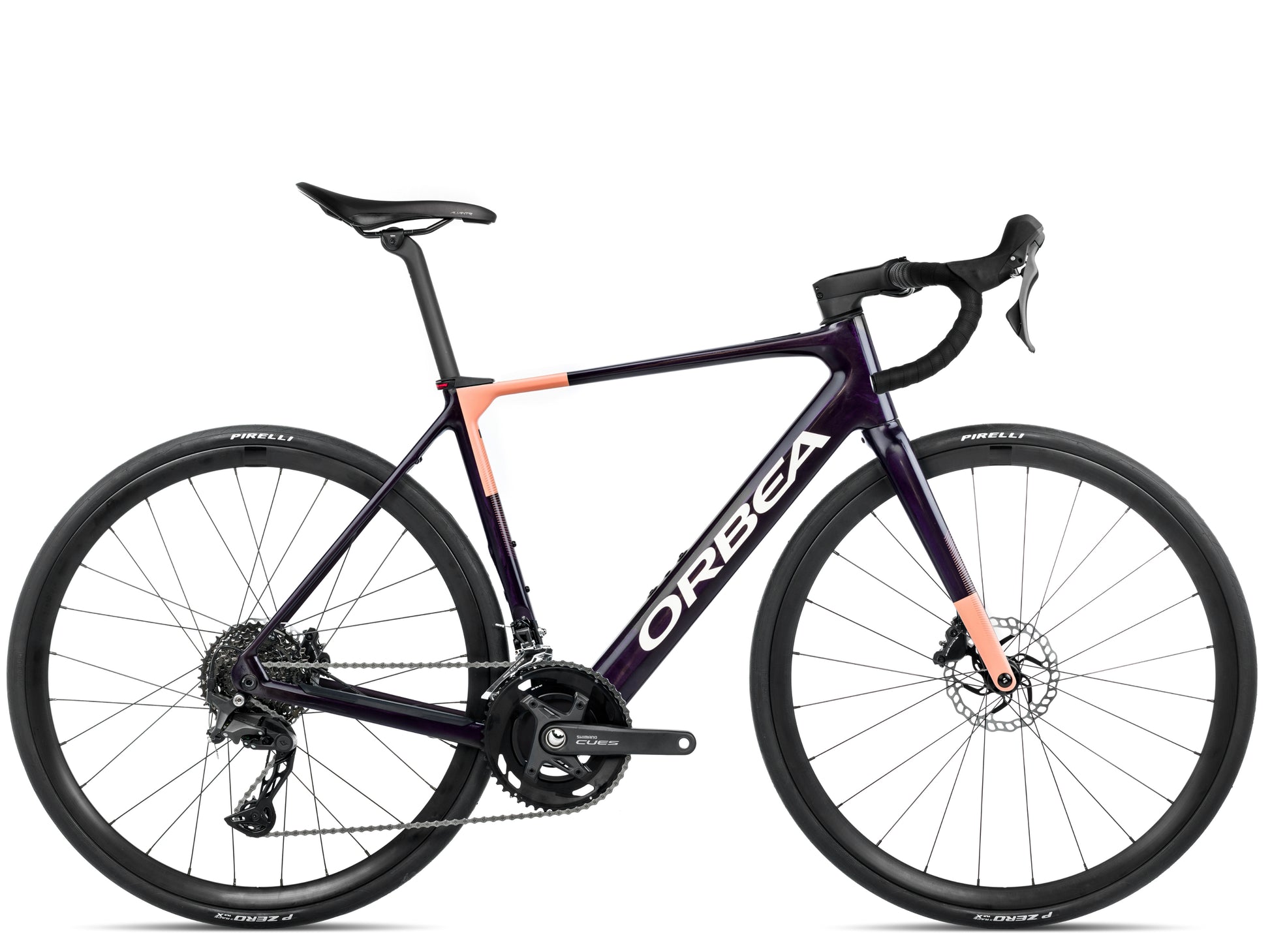

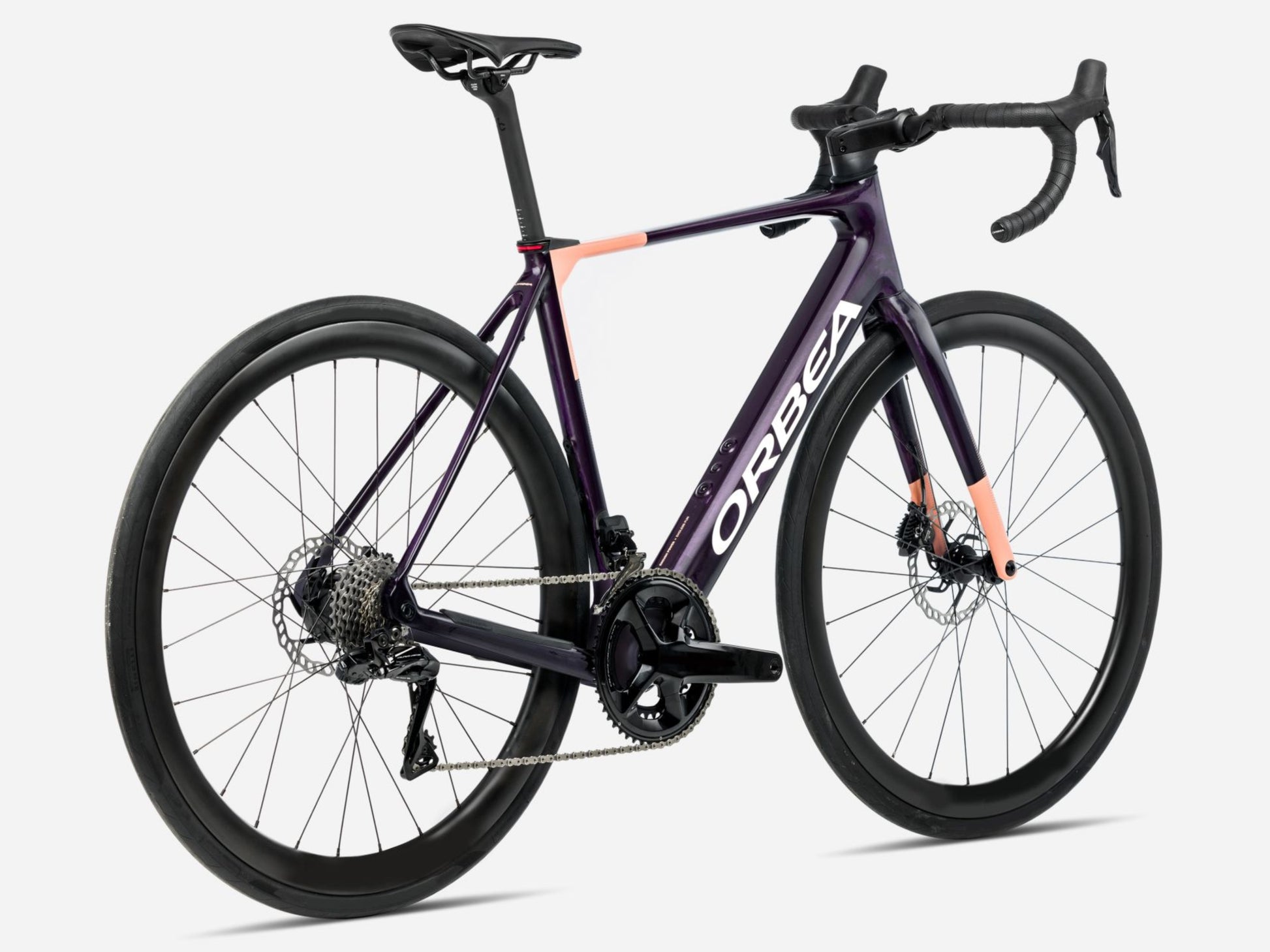

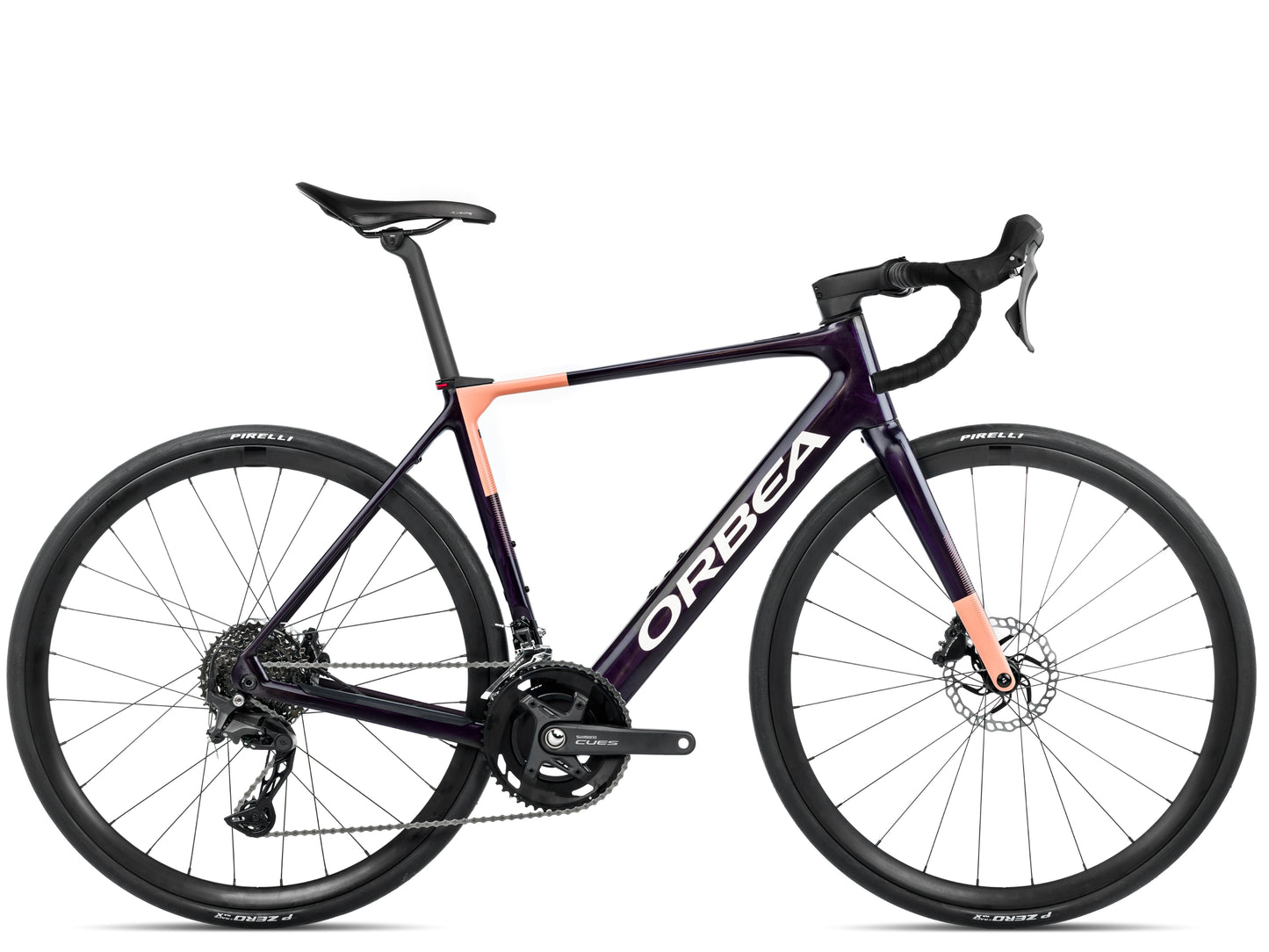

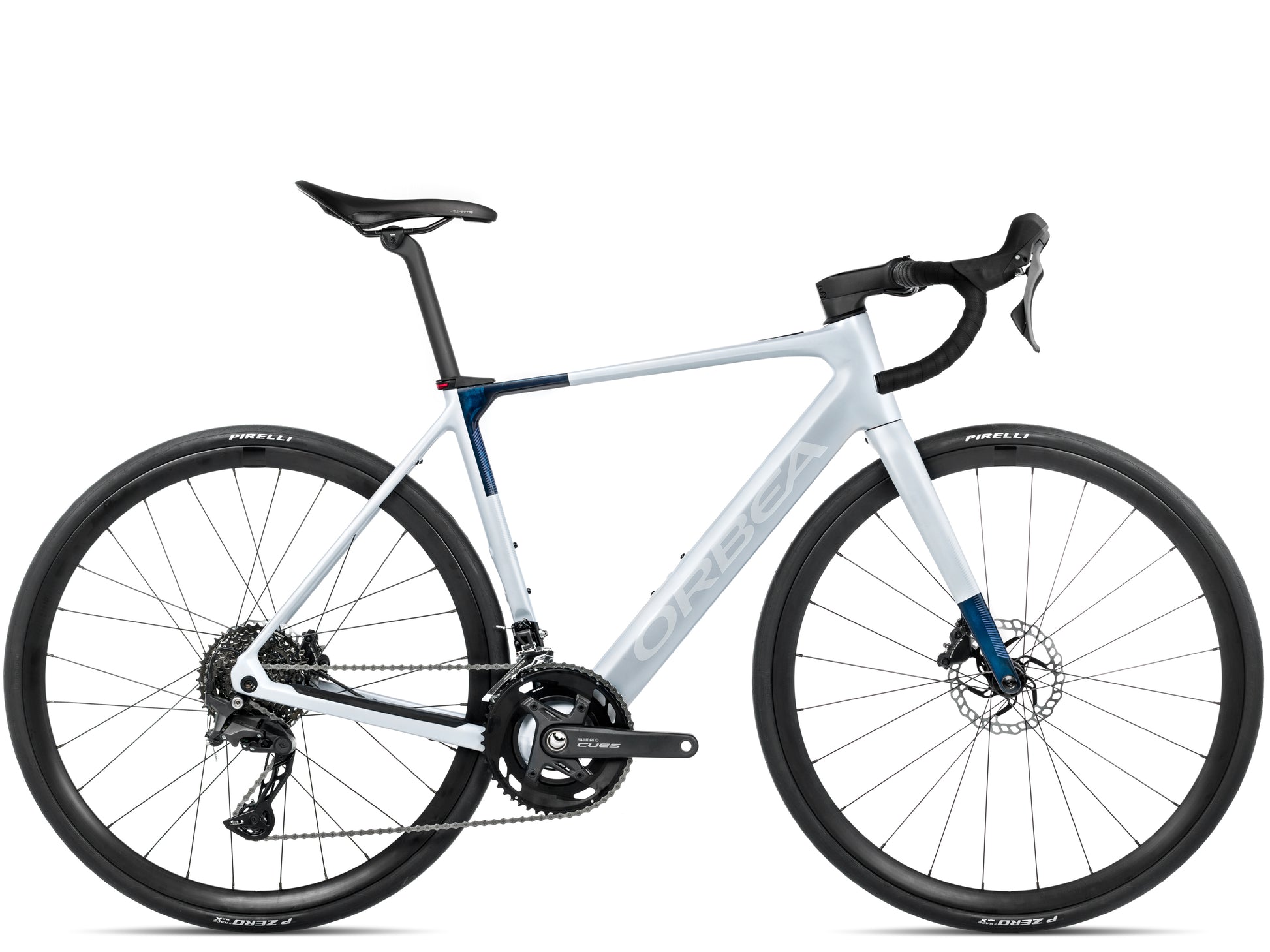

Orbea Gain M40
Orbea Gain M40
Regular price
$5,299.00
Sale price
$5,299.00
Regular price
Unit price
per
Shipping calculated at checkout.
The Full Scoop on the Orbea Gain M40
It has never been easier to grab your bike and head out the door. Gain´s huge range means you can pretty much forget about battery limitations. Designed for the road, capable on gravel. The fun doesn't stop where the asphalt ends.
*Components subject to manufacture change
| Motor | Mahle motor hub X20, ALC |
| Battery | Mahle iX350 36V 353Wh |
| Display/remote | Mahle Pulsar One monochrome ANT+ LEV / Mahle ONE Head Unit (BT/ANT+) |
| Charger | Mahle Active Charger up to 4A |
| Frame | Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug. |
| Fork | Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1 |
| Rear Shock | Not applicable |
| Front Brake | Shimano U6030 Hydraulic Disc |
| Rear Brake | Shimano U6030 Hydraulic Disc |
| Rear Derailleur | Shimano Cues U6020 SGS Shadow |
| Shift Levers | Shimano U6030 |
| Chain | Shimano LG500 |
| Cassette | Shimano CS-LG400 11-39t 10-Speed |
| Crankset | Shimano Cues U6040 34x50t |
| Chain Ring | Spec not provided |
| Chain Guard | Spec not provided |
| Rims | Alloy, Tubeless, 700c, 21c |
| Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Lite |
| Rear Hub | Orbea Thru Axle 12x142mm M12x2 P1 Lite |
| Front Tire | Pirelli P ZERO™ Race SmartEVO TLR 700x30c |
| Rear Tire | Pirelli P ZERO™ Race SmartEVO TLR 700x30c |
| Handlebars | OC Road Performance RP21 Alu SL, Reach 80, Drop 125 |
| Stem | OC Road Performance RP10, -8º |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Handlebar tape | Orbea Anti-Slippery/Shock Proof |
| Saddle | Fizik Aliante R5 |
| Seatpost | OC Performance XP10-S Carbon, 27.2mm, Setback 20 |
| Pedals | Not applicable |
| Front Light | Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50. |
| Rear Light | Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO |
| Kickstand | Spec not provided |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on the Orbea Gain M40
Description
It has never been easier to grab your bike and head out the door. Gain´s huge range means you can pretty much forget about battery limitations. Designed for the road, capable on gravel. The fun doesn't stop where the asphalt ends.
*Components subject to manufacture change
Motor System
| Motor | Mahle motor hub X20, ALC |
| Battery | Mahle iX350 36V 353Wh |
| Display/remote | Mahle Pulsar One monochrome ANT+ LEV / Mahle ONE Head Unit (BT/ANT+) |
| Charger | Mahle Active Charger up to 4A |
Components
| Frame | Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug. |
| Fork | Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1 |
| Rear Shock | Not applicable |
| Front Brake | Shimano U6030 Hydraulic Disc |
| Rear Brake | Shimano U6030 Hydraulic Disc |
| Rear Derailleur | Shimano Cues U6020 SGS Shadow |
| Shift Levers | Shimano U6030 |
| Chain | Shimano LG500 |
| Cassette | Shimano CS-LG400 11-39t 10-Speed |
| Crankset | Shimano Cues U6040 34x50t |
| Chain Ring | Spec not provided |
| Chain Guard | Spec not provided |
| Rims | Alloy, Tubeless, 700c, 21c |
| Front Hub | Orbea Thru Axle 12x100mm M12x2 P1 Lite |
| Rear Hub | Orbea Thru Axle 12x142mm M12x2 P1 Lite |
| Front Tire | Pirelli P ZERO™ Race SmartEVO TLR 700x30c |
| Rear Tire | Pirelli P ZERO™ Race SmartEVO TLR 700x30c |
| Handlebars | OC Road Performance RP21 Alu SL, Reach 80, Drop 125 |
| Stem | OC Road Performance RP10, -8º |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Handlebar tape | Orbea Anti-Slippery/Shock Proof |
| Saddle | Fizik Aliante R5 |
| Seatpost | OC Performance XP10-S Carbon, 27.2mm, Setback 20 |
Extras
| Pedals | Not applicable |
| Front Light | Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50. |
| Rear Light | Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO |
| Kickstand | Spec not provided |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
