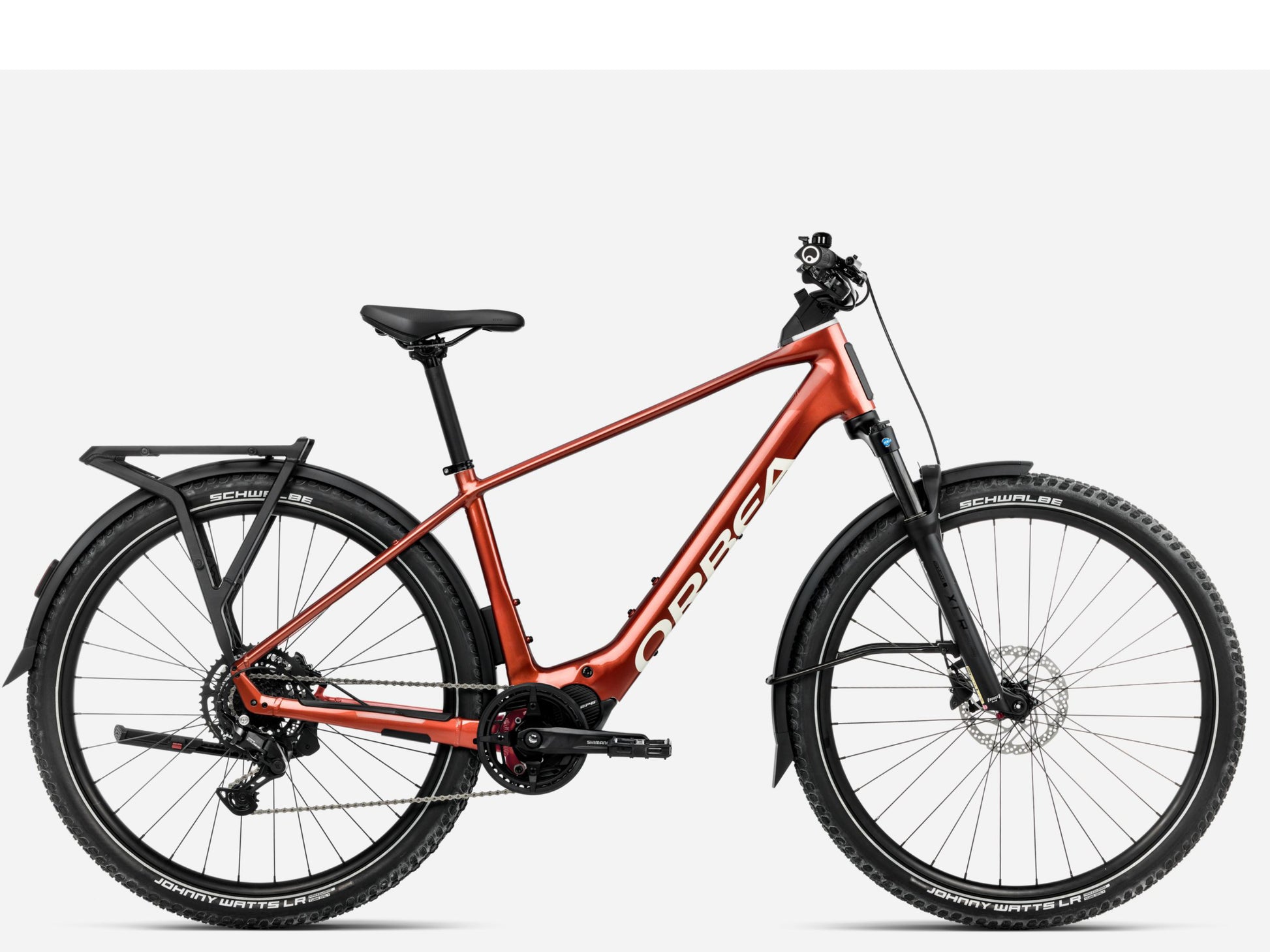

Orbea Kemen ADV 30
Orbea Kemen ADV 30
Regular price
$3,899.00
Sale price
$3,899.00
Regular price
Unit price
per
Couldn't load pickup availability
The Full Scoop on the Orbea Kemen ADV 30
Kemen Adv is equally at home cutting through the city or exploring the hills. Kemen goes beyond simple utility by turning ebike rides into delightful mini-adventures.
*Components subject to manufacture change
| Motor | Shimano EP600 |
| Battery | Orbea Internal 540Wh (Optional 252 Wh Range Extender) |
| Display/remote | EN600-L |
| Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A |
| Frame | Orbea Kemen Top bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible |
| Fork | SR Suntour XCR34 100mm Coil Q15x110 |
| Rear Shock | Not applicable |
| Front Brake | Shimano MT200 Hydraulic Disc |
| Rear Brake | Shimano MT200 Hydraulic Disc |
| Rear Derailleur | Shimano Cues U4000 GS Shadow |
| Shift Levers | Shimano Cues SL-U4000 |
| Chain | KMC eGlide |
| Cassette | Shimano CS-LG300 11-46t 9-Speed |
| Crankset | Shimano Steps EM600 |
| Chain Ring | Alloy 40t w/chainguard |
| Chain Guard | Spec not provided |
| Rims | Alloy, Tubeless, 29", 29c, 32H |
| Front Hub | Spec not provided |
| Rear Hub | Spec not provided |
| Front Tire | Schwalbe Johnny Watts LR, 60-622, Reflective Tape |
| Rear Tire | Schwalbe Johnny Watts LR, 60-622, Reflective Tape |
| Handlebars | Orbea Urban, Integrated Light, Rise 50, Width 760 |
| Stem | Spec not provided |
| Headset | FSA 1-1/2" Integrated Aluminum Cup |
| Grips | Spec not provided |
| Saddle | Selle Royal Vivo Ergo |
| Seatpost | Alloy, 31.6mm, Setback 0 |
| Pedals | VP-537 Black |
| Front Light | Supernova Starstream Pure, Low Beam |
| Rear Light | Supernova TL3 Z |
| Kickstand | Massload rear adjustable |
| Rear Carrier | Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 30Kg |
| Fenders | CURANA Apollo Orbit 70mm |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE | S | M | L | XL |
|---|---|---|---|---|
| 1 Seattube length | 428mm | 442.7mm | 457.3mm | 472mm |
| 2 Toptube length | 585.5mm | 613.8mm | 643mm | 671.5mm |
| 3 Headtube length | 129.5mm | 138.6mm | 150.6mm | 170.2mm |
| 4 Chainstay length | 450mm | 450mm | 450mm | 450mm |
| 5 Bottom bracket height | 303mm | 303mm | 303mm | 303mm |
| 6 Bottom bracket drop | 59.8mm | 59.8mm | 59.8mm | 59.8mm |
| 7 Wheelbase | 1175mm | 1198mm | 1233mm | 1266mm |
| 8 Head angle | 66.5 | 66.6 | 66.6 | 66.6 |
| 9 Seat tube angle | 74° | 74° | 74° | 74° |
| 10 Standover | - | - | - | - |
| 11 Reach | 450mm | 470mm | 490mm | 510mm |
| 12 Stack | 622mm | 622mm | 640mm | 640mm |
| 13 Fork length | 523.8mm | 523.8mm | 523.8mm | 523.8mm |
| 14 Rake | 47.5mm | 47.5mm | 47.5mm | 47.5mm |
The Full Scoop on the Orbea Kemen ADV 30
Description
Kemen Adv is equally at home cutting through the city or exploring the hills. Kemen goes beyond simple utility by turning ebike rides into delightful mini-adventures.
*Components subject to manufacture change
Motor System
| Motor | Shimano EP600 |
| Battery | Orbea Internal 540Wh (Optional 252 Wh Range Extender) |
| Display/remote | EN600-L |
| Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A |
Components
| Frame | Orbea Kemen Top bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible |
| Fork | SR Suntour XCR34 100mm Coil Q15x110 |
| Rear Shock | Not applicable |
| Front Brake | Shimano MT200 Hydraulic Disc |
| Rear Brake | Shimano MT200 Hydraulic Disc |
| Rear Derailleur | Shimano Cues U4000 GS Shadow |
| Shift Levers | Shimano Cues SL-U4000 |
| Chain | KMC eGlide |
| Cassette | Shimano CS-LG300 11-46t 9-Speed |
| Crankset | Shimano Steps EM600 |
| Chain Ring | Alloy 40t w/chainguard |
| Chain Guard | Spec not provided |
| Rims | Alloy, Tubeless, 29", 29c, 32H |
| Front Hub | Spec not provided |
| Rear Hub | Spec not provided |
| Front Tire | Schwalbe Johnny Watts LR, 60-622, Reflective Tape |
| Rear Tire | Schwalbe Johnny Watts LR, 60-622, Reflective Tape |
| Handlebars | Orbea Urban, Integrated Light, Rise 50, Width 760 |
| Stem | Spec not provided |
| Headset | FSA 1-1/2" Integrated Aluminum Cup |
| Grips | Spec not provided |
| Saddle | Selle Royal Vivo Ergo |
| Seatpost | Alloy, 31.6mm, Setback 0 |
Extras
| Pedals | VP-537 Black |
| Front Light | Supernova Starstream Pure, Low Beam |
| Rear Light | Supernova TL3 Z |
| Kickstand | Massload rear adjustable |
| Rear Carrier | Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 30Kg |
| Fenders | CURANA Apollo Orbit 70mm |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
| FRAME SIZE | S | M | L | XL |
|---|---|---|---|---|
| 1 Seattube length | 428mm | 442.7mm | 457.3mm | 472mm |
| 2 Toptube length | 585.5mm | 613.8mm | 643mm | 671.5mm |
| 3 Headtube length | 129.5mm | 138.6mm | 150.6mm | 170.2mm |
| 4 Chainstay length | 450mm | 450mm | 450mm | 450mm |
| 5 Bottom bracket height | 303mm | 303mm | 303mm | 303mm |
| 6 Bottom bracket drop | 59.8mm | 59.8mm | 59.8mm | 59.8mm |
| 7 Wheelbase | 1175mm | 1198mm | 1233mm | 1266mm |
| 8 Head angle | 66.5 | 66.6 | 66.6 | 66.6 |
| 9 Seat tube angle | 74° | 74° | 74° | 74° |
| 10 Standover | - | - | - | - |
| 11 Reach | 450mm | 470mm | 490mm | 510mm |
| 12 Stack | 622mm | 622mm | 640mm | 640mm |
| 13 Fork length | 523.8mm | 523.8mm | 523.8mm | 523.8mm |
| 14 Rake | 47.5mm | 47.5mm | 47.5mm | 47.5mm |
