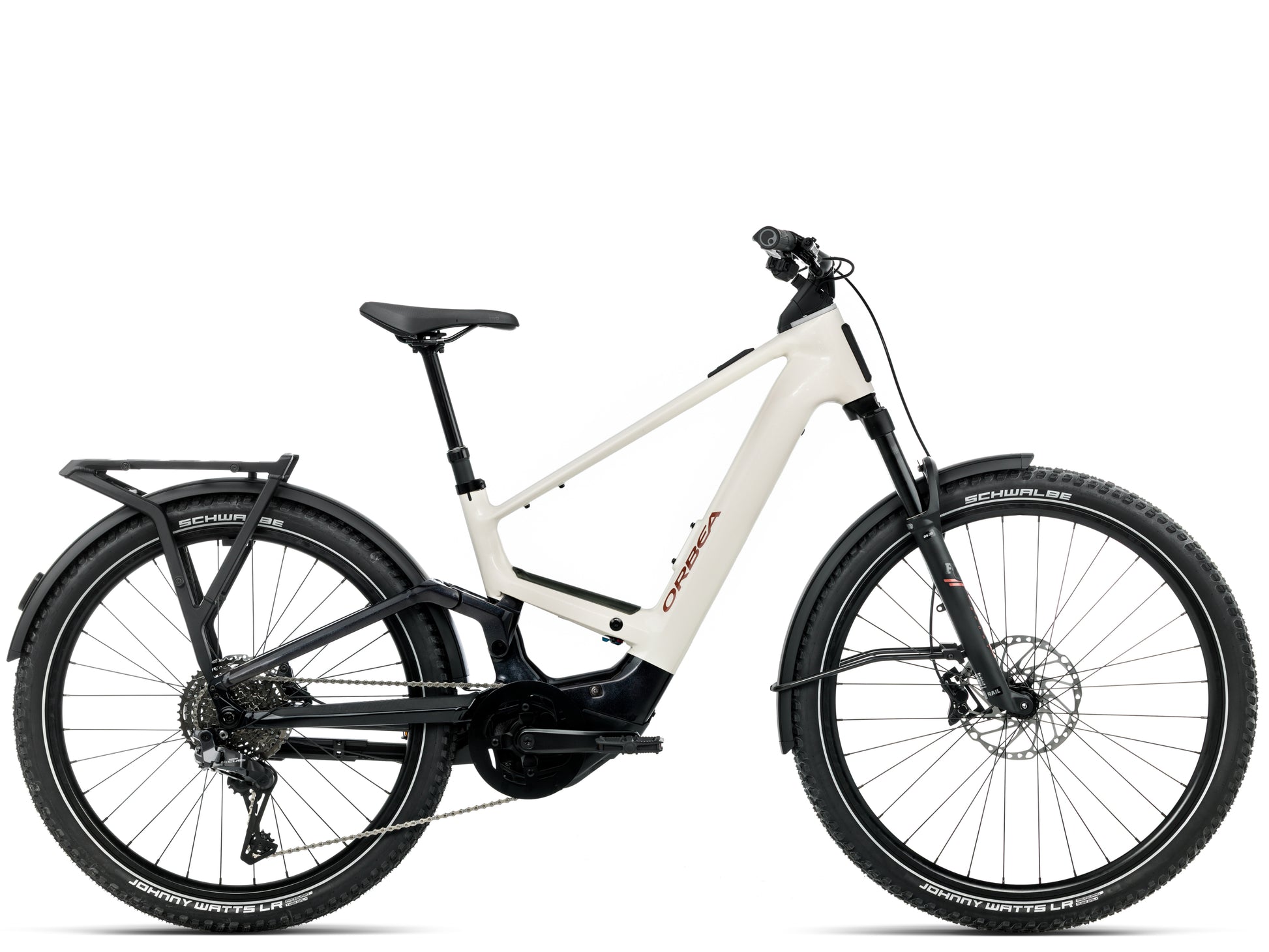

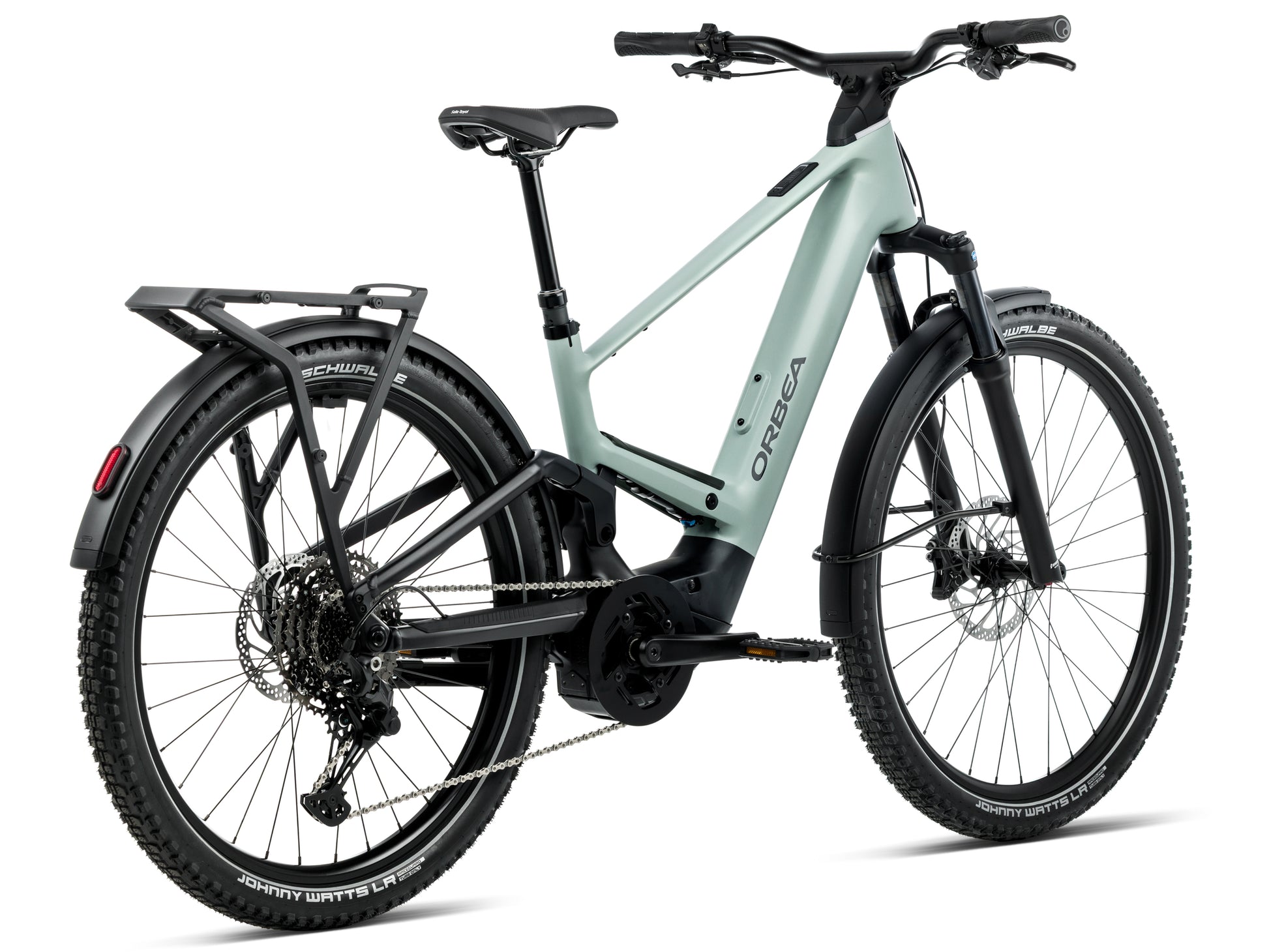

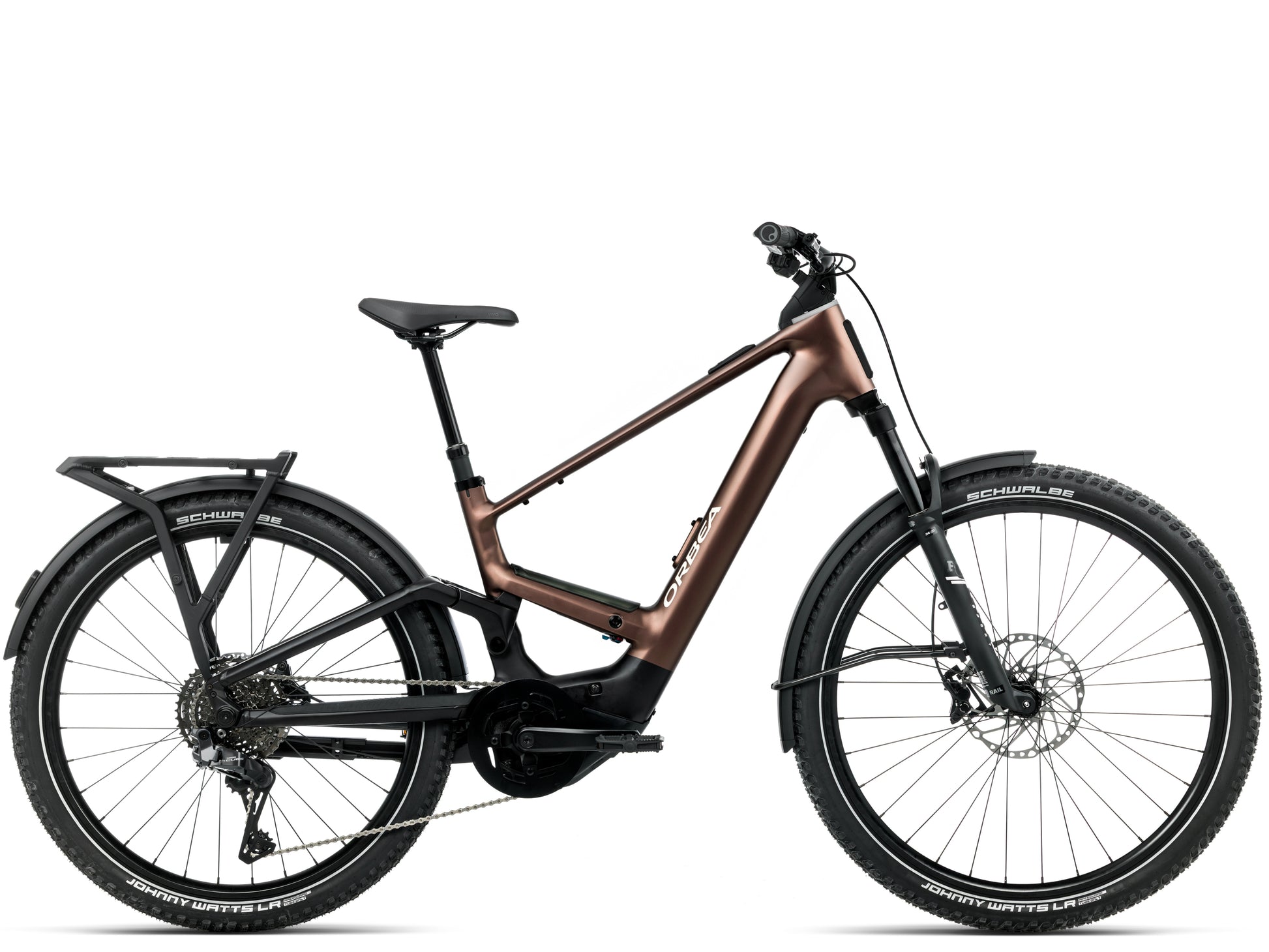

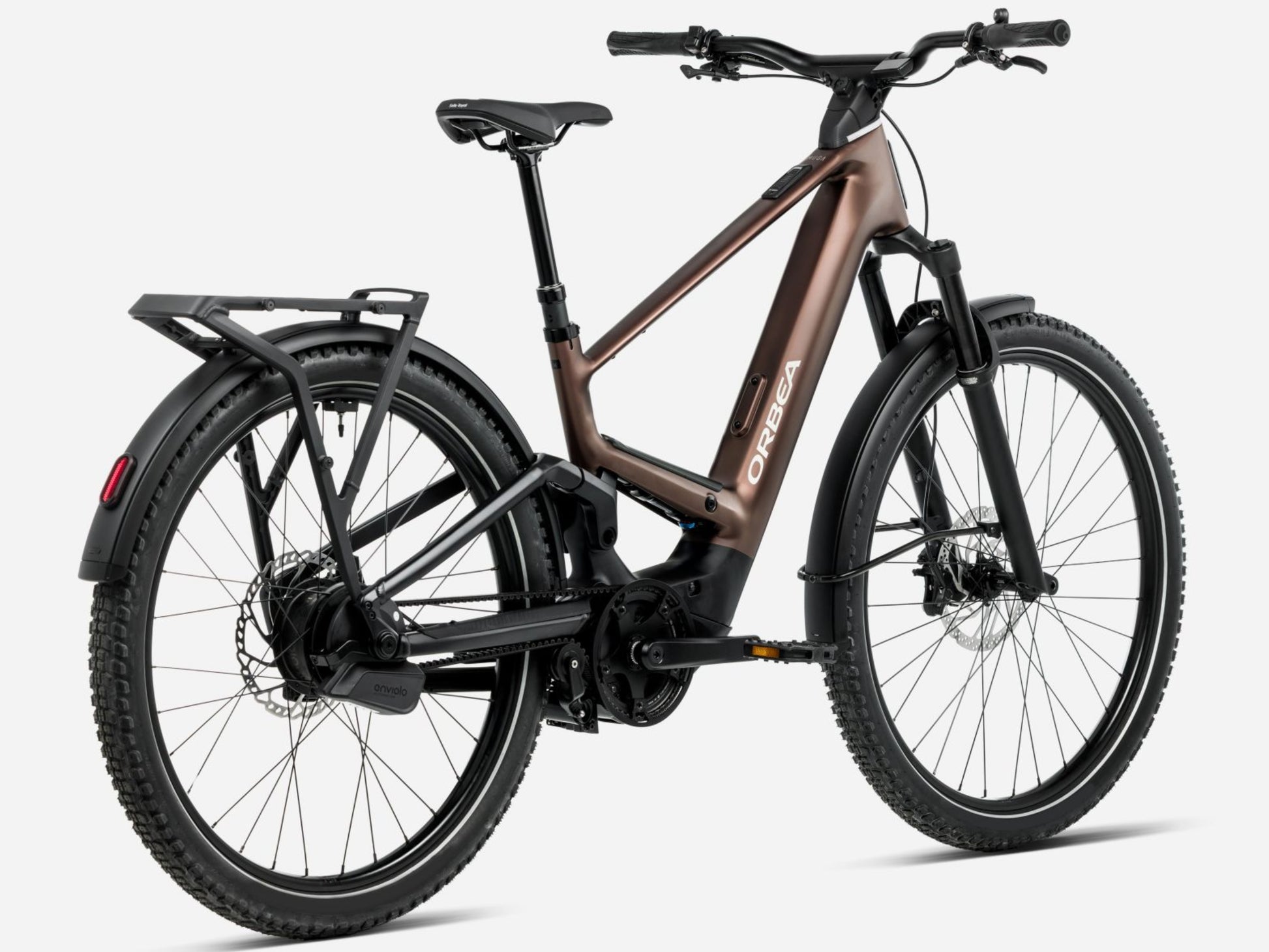

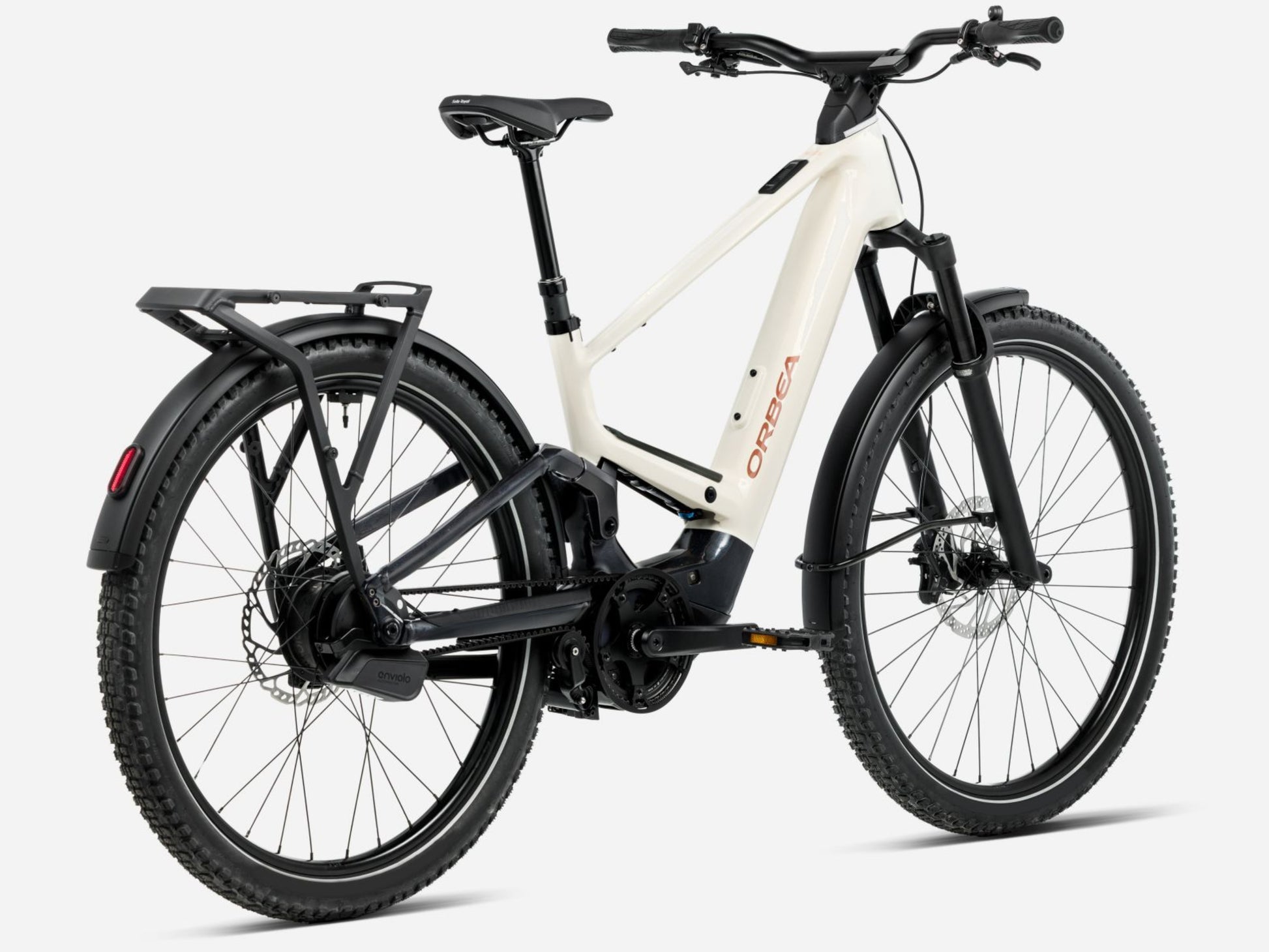

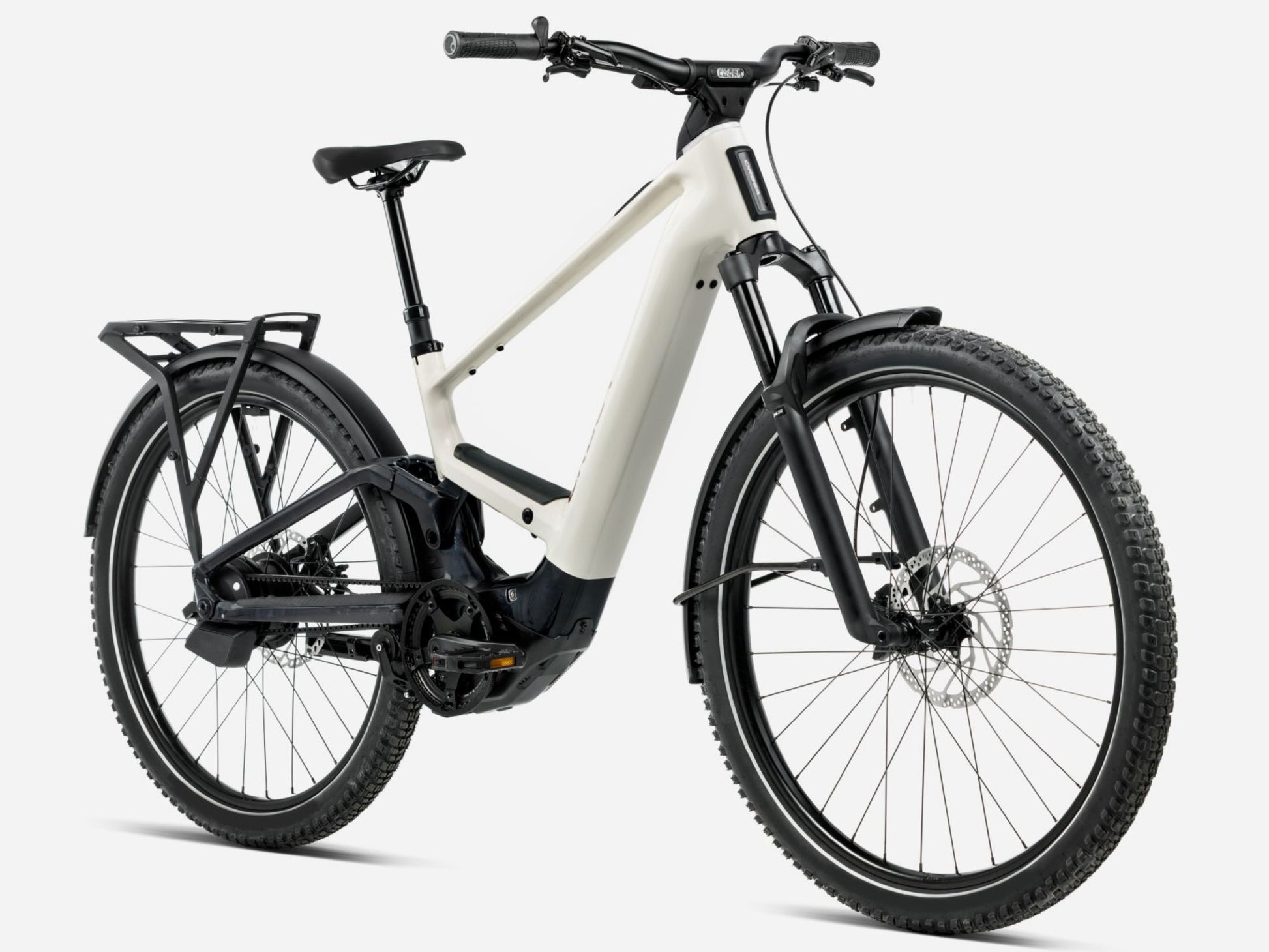

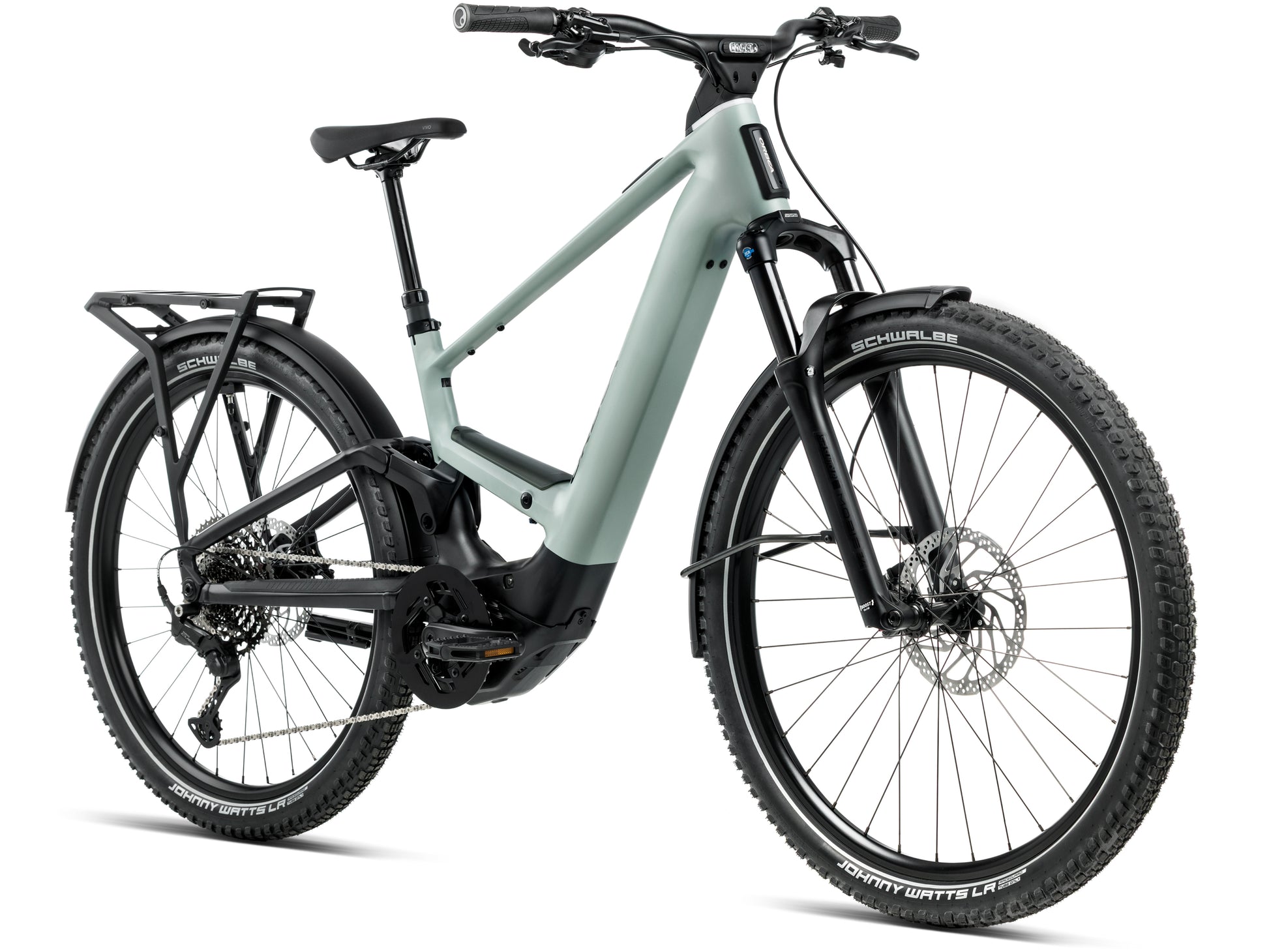

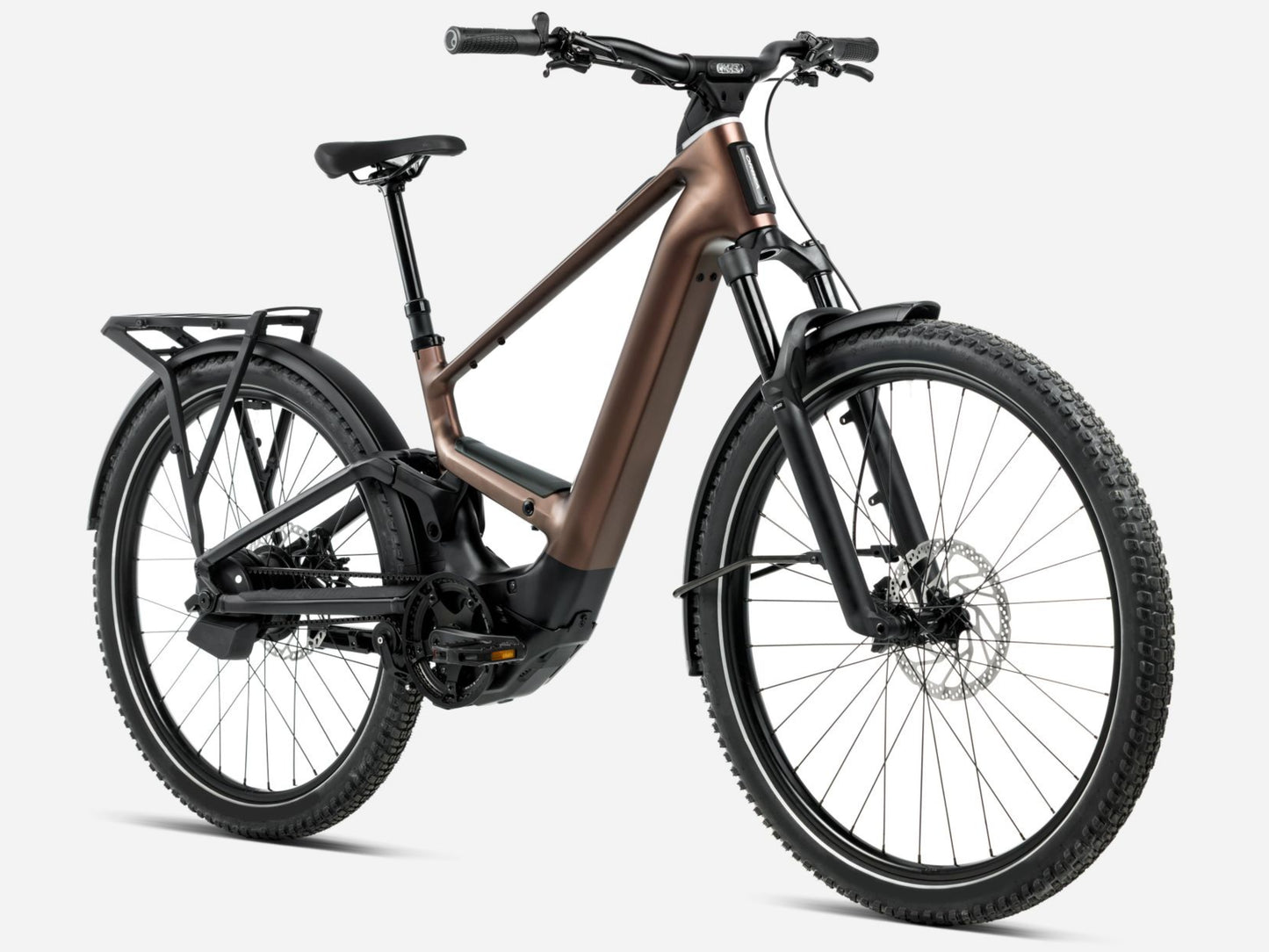

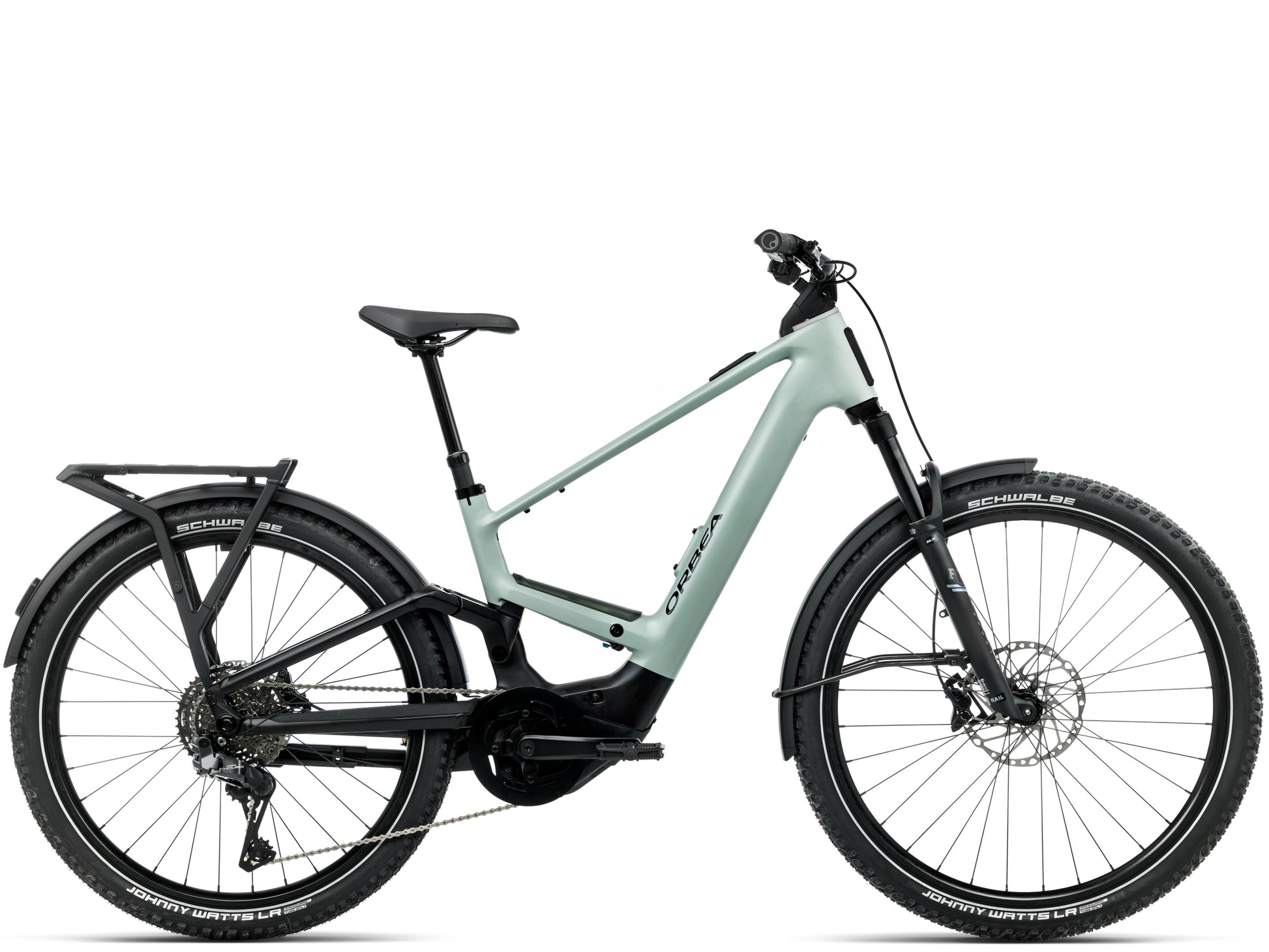

Orbea Muga 20 28MPF
Orbea Muga 20 28MPF
Regular price
$5,999.00
Sale price
$5,999.00
Regular price
Unit price
per
Shipping calculated at checkout.
The Full Scoop on the Orbea Muga 20 28MPH
Whether you're commuting to work or on a weekend stroll, Muga is designed to take you farther, offering powerful assistance, extended range, and a capable suspension system.
*Components subject to manufacture change
| Motor | Bosch Performance Line CX BDU3883 |
| Battery | Bosch Powertube 750Wh Horizontal BBP3775 |
| Display / remote | Bosch Purion 400 / Bosch Mini Remote BRC3300 |
| Charger | Bosch Charger 4A (110V) BPC3410 |
| Frame | Orbea Muga 2026, Hydroformed Alloy 6061, OLD 148, Orbea cockpit and equipment ecosystem, w/ Custom Kickstand, Carrier compatible. |
| Fork | Fox 34 Float AWL Sport 120 Rail 2.0, Kabolt 15x110, Fender and ABS Mts |
| Rear Shock | Fox Float Performance Trunnion 2-Pos custom tune 165x42.5mm |
| Front Brake | Shimano MT420 Hydraulic Disc |
| Rear Brake | Shimano MT420 Hydraulic Disc |
| Rear Derailleur | Shimano Cues Di2 U8050 11s SGS Shadow Plus |
| Shift Levers | Shimano EN605-R |
| Chain | KMC eGlide |
| Cassette | Shimano CS-LG400 11-52t 11-Speed |
| Crankset | Prowheel EB03 alloy |
| Chain Ring | Alloy BDU37/38 46t |
| Chain Guard | Spec not provided |
| Rims | Alloy, 26c, 32H |
| Front Hub | Not applicable |
| Rear Hub | Not applicable |
| Front Tire | Schwalbe Johnny Watts LR, 60-622, Reflective Tape |
| Rear Tire | Schwalbe Johnny Watts LR, 60-622, Reflective Tape |
| Handlebars | Orbea Urban, Integ. light, Backsweep 9, Rise 30, Width 760 |
| Stem | Spec not provided |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Grips | Spec not provided |
| Saddle | Selle Royal Vivo Ergo |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Pedals | VP-892 Black with reflectors |
| Front Light | Supernova Starstream Pro, High Beam |
| Rear Light | Supernova TL3 Z |
| Kickstand | Orbea Integrated |
| Rear Carrier | Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 66lbs |
| Fenders | Curana Apollo Orbit 70mm |
| Bell | Spec not provided |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on the Orbea Muga 20 28MPH
Description
Whether you're commuting to work or on a weekend stroll, Muga is designed to take you farther, offering powerful assistance, extended range, and a capable suspension system.
*Components subject to manufacture change
Motor System
| Motor | Bosch Performance Line CX BDU3883 |
| Battery | Bosch Powertube 750Wh Horizontal BBP3775 |
| Display / remote | Bosch Purion 400 / Bosch Mini Remote BRC3300 |
| Charger | Bosch Charger 4A (110V) BPC3410 |
Components
| Frame | Orbea Muga 2026, Hydroformed Alloy 6061, OLD 148, Orbea cockpit and equipment ecosystem, w/ Custom Kickstand, Carrier compatible. |
| Fork | Fox 34 Float AWL Sport 120 Rail 2.0, Kabolt 15x110, Fender and ABS Mts |
| Rear Shock | Fox Float Performance Trunnion 2-Pos custom tune 165x42.5mm |
| Front Brake | Shimano MT420 Hydraulic Disc |
| Rear Brake | Shimano MT420 Hydraulic Disc |
| Rear Derailleur | Shimano Cues Di2 U8050 11s SGS Shadow Plus |
| Shift Levers | Shimano EN605-R |
| Chain | KMC eGlide |
| Cassette | Shimano CS-LG400 11-52t 11-Speed |
| Crankset | Prowheel EB03 alloy |
| Chain Ring | Alloy BDU37/38 46t |
| Chain Guard | Spec not provided |
| Rims | Alloy, 26c, 32H |
| Front Hub | Not applicable |
| Rear Hub | Not applicable |
| Front Tire | Schwalbe Johnny Watts LR, 60-622, Reflective Tape |
| Rear Tire | Schwalbe Johnny Watts LR, 60-622, Reflective Tape |
| Handlebars | Orbea Urban, Integ. light, Backsweep 9, Rise 30, Width 760 |
| Stem | Spec not provided |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Grips | Spec not provided |
| Saddle | Selle Royal Vivo Ergo |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
Extras
| Pedals | VP-892 Black with reflectors |
| Front Light | Supernova Starstream Pro, High Beam |
| Rear Light | Supernova TL3 Z |
| Kickstand | Orbea Integrated |
| Rear Carrier | Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 66lbs |
| Fenders | Curana Apollo Orbit 70mm |
| Bell | Spec not provided |
| Lock | Not applicable |
| Mirror | Not applicable |
