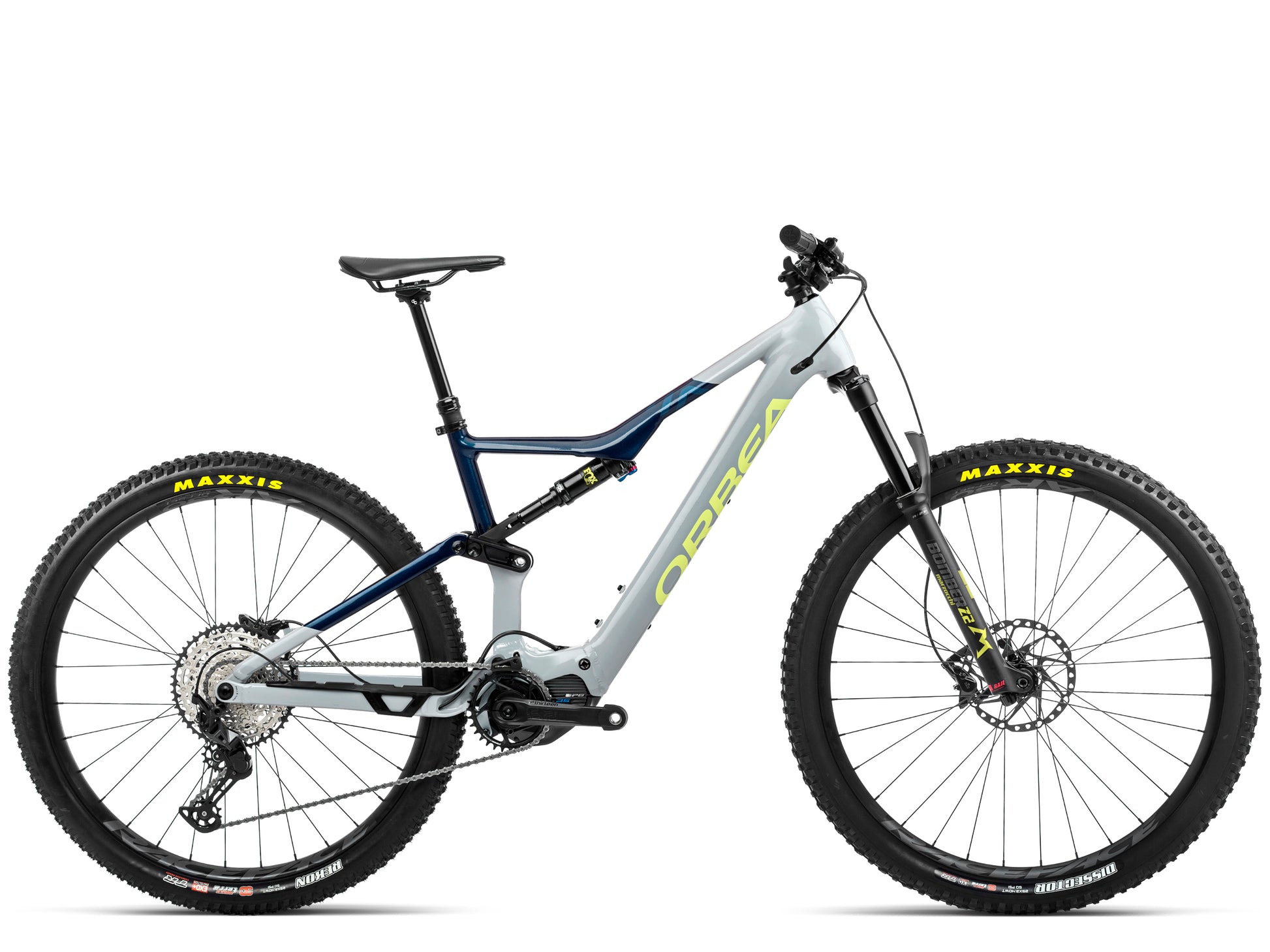

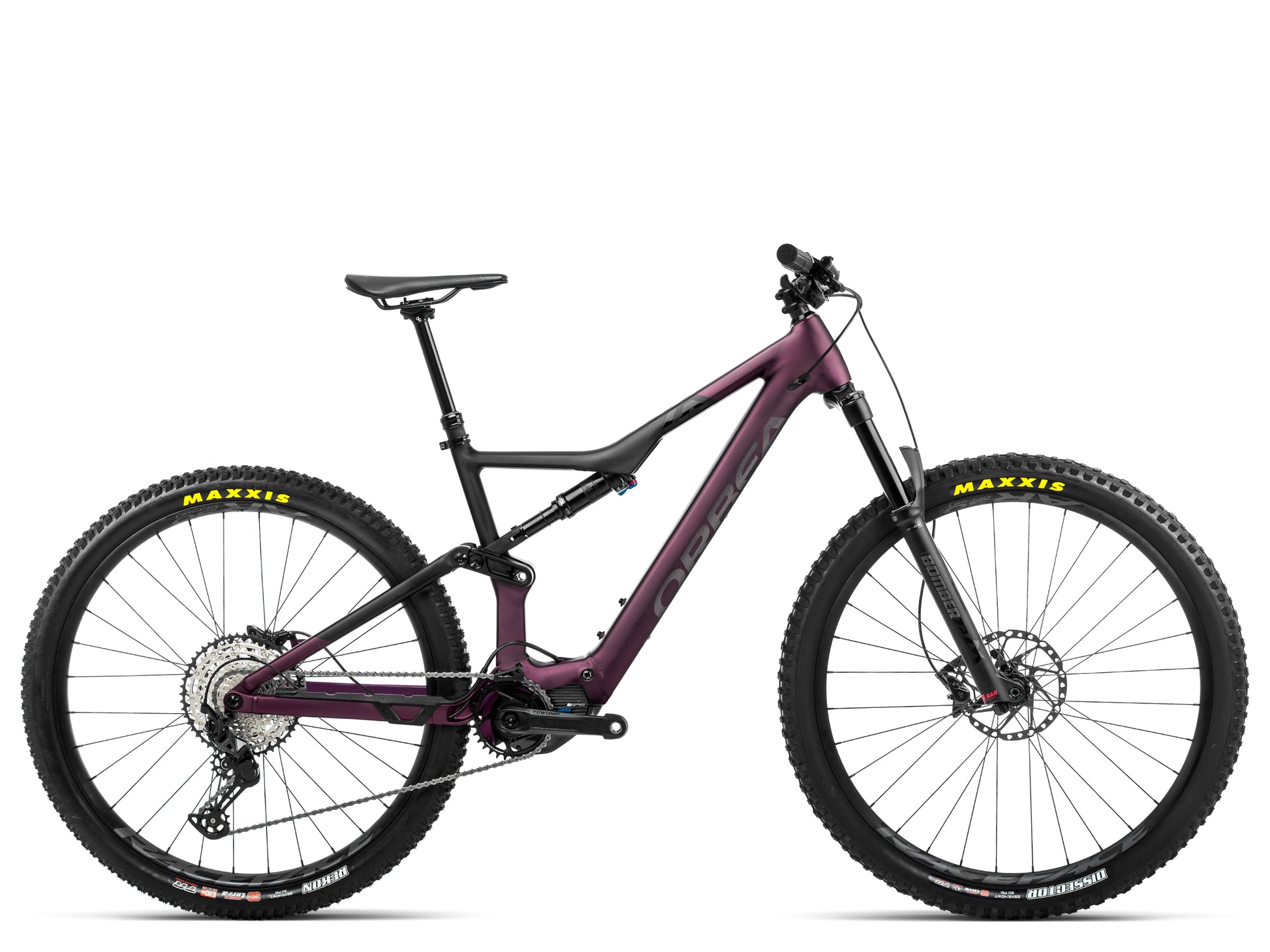

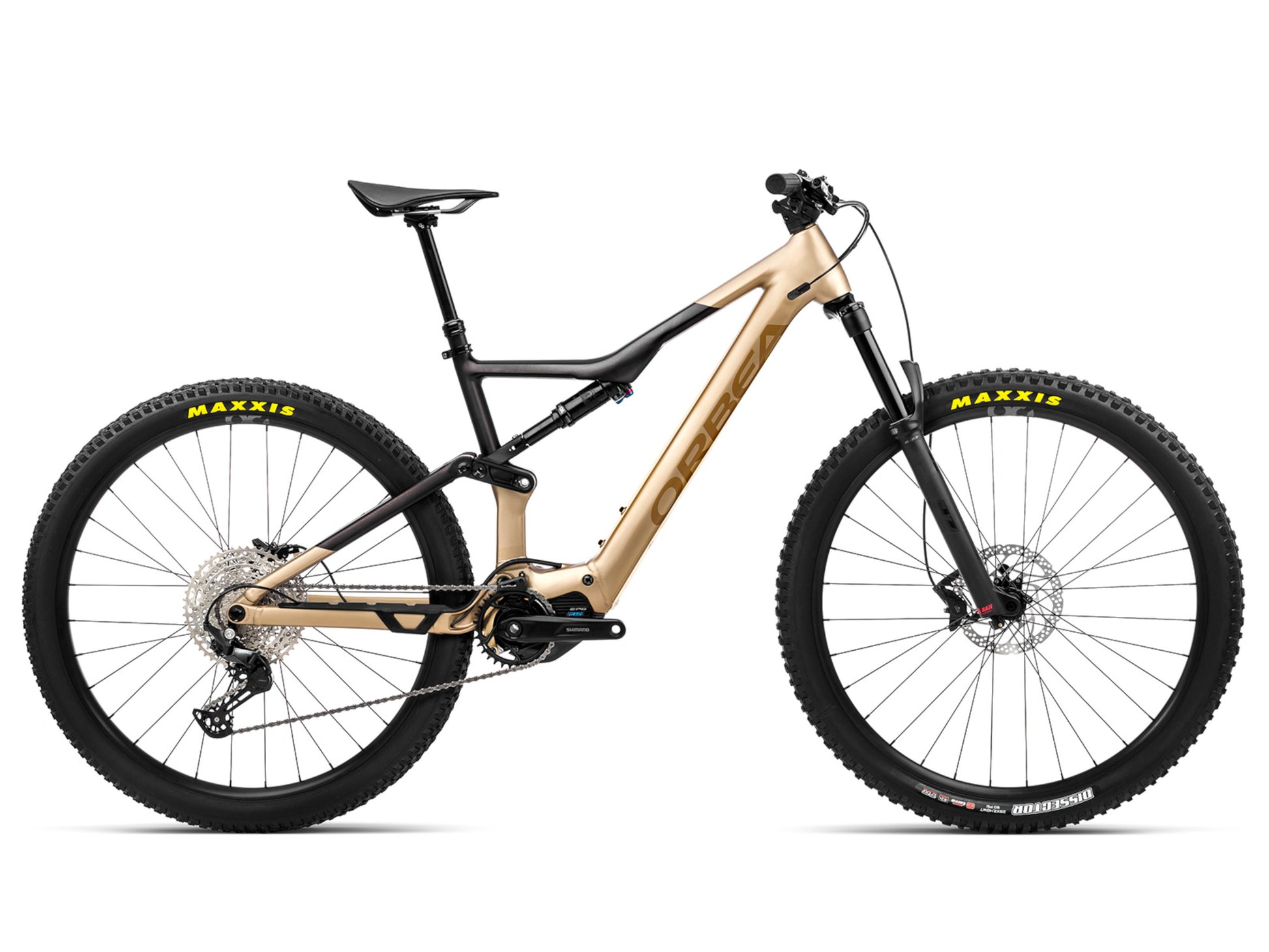

Orbea Rise Hydro H30

Sizing Guide


The Full Scoop on the Orbea Rise Hydro H30


  • The Orbea Rise H30 just might be one of the best eMTB's we've come across.  The Rise stands out with an incredible build, value, power all in one of the lightest eMTB's available!   We've become huge fans of the Orbea Rise as it's one of the most nimble electric mountain bikes we've ridden.

  • *Components subject to manufacturer changes
  • Motor Shimano EP6-RS
    Battery Orbea Internal 540Wh
    Display ( Optional Shimano EN600 Cycle Computer)
    Charger  Orbea 2.Generation eBike Smart charger 42V/2-4A
  • Frame Orbea Rise Hydro 140mm travel 29”, Boost 12x148
    Fork Marzocchi Bomber Z2 140 QR15x110
    Rear Shock Fox Float DPS Performance 3-Position Evol custom tune 210x55mm
    Front Brake Shimano MT410 Hydraulic Disc, 180mm
    Rear Brake Shimano MT410 Hydraulic Disc, 180mm
    Rear Derailleur

     Shimano Deore M6100 SGS Shadow Plus

    Shift Levers Shimano Deore M6100
    Chain Shimano M6100
    Cassette Shimano CS-M6100 10-51t 12-Speed
    Crankset Shimano Steps EM600
    Chain Ring e*thirteen e*spec Direct mount 32T Boost
    Chain Guard Orbea Rise chainguide
    Rims Alloy, Tubeless, 29", 29c, 32H
    Front Hub Spec not provided
    Rear Hub Spec not provided
    Front Tire Maxxis Dissector 2.40” 60 TPI 3CMaxxTerra Exo TLR
    Rear Tire

     Maxxis Rekon 2.40” 120 TPI 3CMaxxTerra Exo+ TLR

    Handlebar  OC Mountain Control MC31, Rise20, Width 800
    Stem  OC Mountain Control MC20, 0º
    Headset Acros Alloy 1-1/8 - 1-1/2” Integrated
    Grips Spec not provided
    Saddle Selle Italia Model X FecAlloy Rail 145x248mm
    Seatpost OC MC20 Mountain Control Dropper, 31,6mm
  • Pedals Not applicable
    Front Light Not applicable
    Rear Light Not applicable
    Kickstand Not applicable
    Rear Carrier Not applicable
    Fenders Not applicable
    Bell Not applicable
    Lock Not applicable
    Mirror Not applicable


  • S M L XL
    Seattube length
    A
    381mm
    419mm
    457mm
    508mm
    Toptube length B
    565mm
    592mm 619mm
    649mm
    Bottom bracket drop C
    35/32mm 35/32mm
    35/32mm
    35/32mm
    Bottom bracket height D
    336mm
    336mm
    336mm
    336mm
    Chainstay length E
    455mm 455mm 455mm 455mm
    Seat tube angle F
    77/76.5°
    77/76.5° 77/76.5° 77/76.5°
    Effective seattube angle G
    - - - -
    Headtube angle H
    65.5°
    65.5°
    65.5°
    65.5°
    Fork Offset I
    - - - -
    Wheelbase J
    1180mm 1205mm 1229mm 1255mm
    Headtube length K
    95mm
    105mm
    120mm
    140mm
    Reach L
    425mm
    450mm 474mm
    500mm
    Stack M
    604mm 613mm 627mm 646mm
  • Motor Shimano EP8-RS
    Battery Orbea RS Internal 540Wh
    Display Shimano SC-E7000
    Charger Orbea Smart Charger (42V-4A)
    Frame Orbea Rise Hydro 2022 140mm travel 29”, Boost 12x148
    Fork Marzocchi Bomber Z2 140 QR15x110
    Rear Shock Fox Float DPS Performance 3-Position Evol custom tune 210x55mm
    Front Brake Shimano MT410 Hydraulic Disc, 180mm
    Rear Brake Shimano MT410 Hydraulic Disc, 180mm
    Rear Derailleur

    Shimano SLX M7100 SGS Shadow Plus

    Shift Levers Shimano Deore M6100
    Chain Shimano M6100
    Cassette Shimano CS-M7100 10-51t 12-Speed
    Crankset e*thirteen e*spec Direct Mount 32T Boost
    Chain Ring Spec not provided
    Chain Guard Orbea Rise chainguide
    Rims Race Face AR 30c Tubeless Ready
    Front Hub Spec not provided
    Rear Hub Spec not provided
    Front Tire Maxxis Dissector 2.40” 60 TPI 3CMaxxTerra Exo TLR
    Rear Tire

    Maxxis Rekon 2.40” 120 TPI 3CMaxxTerra Exo+ TLR

    Handlebar OC1 35mm 12mm Rise 780mm
    Stem OC1 3D Forged 35mm interface 7o
    Headset Acros Alloy 1-1/8 - 1-1/2” Integrated
    Grips Spec not provided
    Saddle Fizik Taiga S-alloy rail
    Seatpost OC MC20 Mountain Control Dropper, 31,6mm
