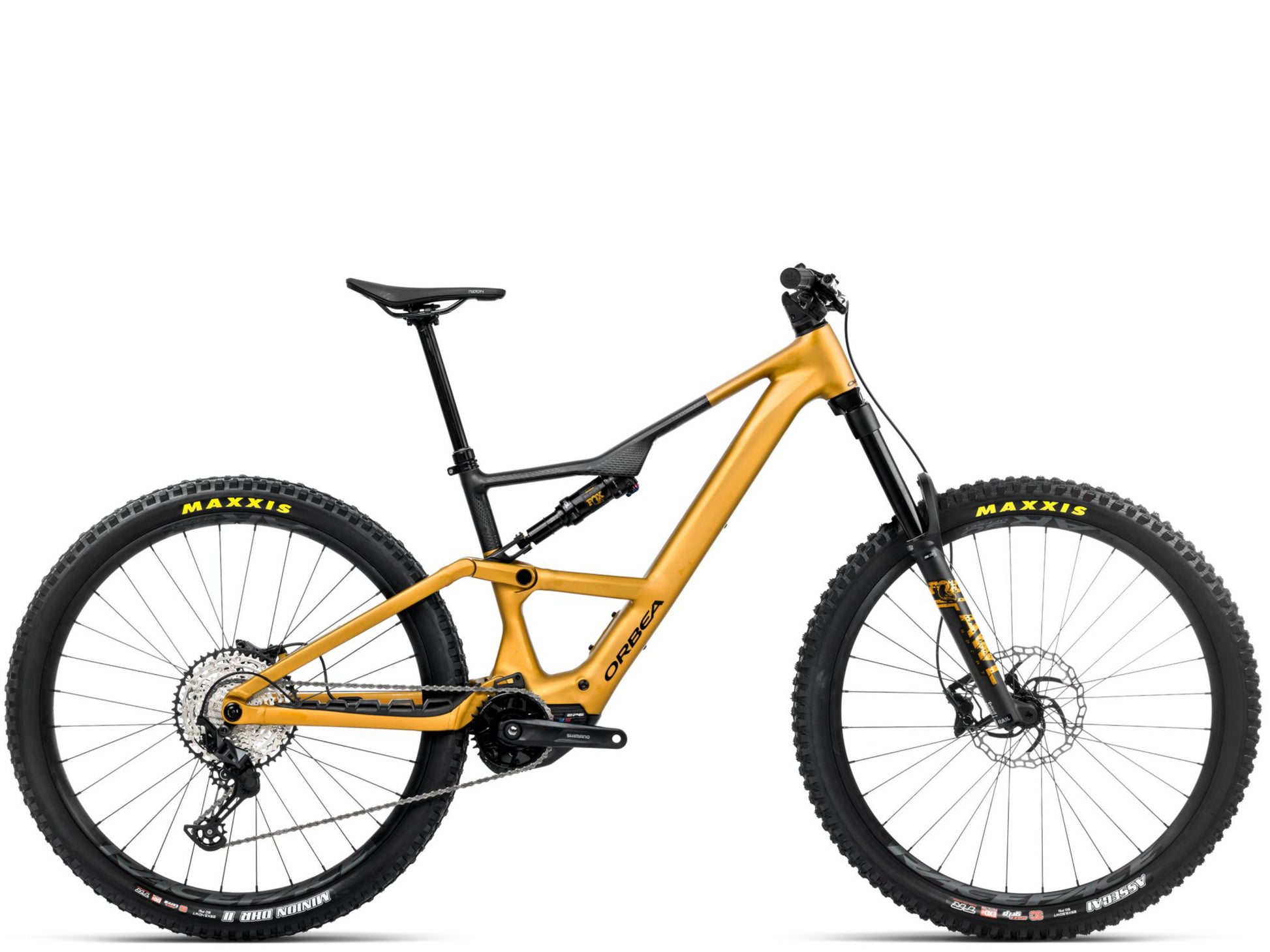

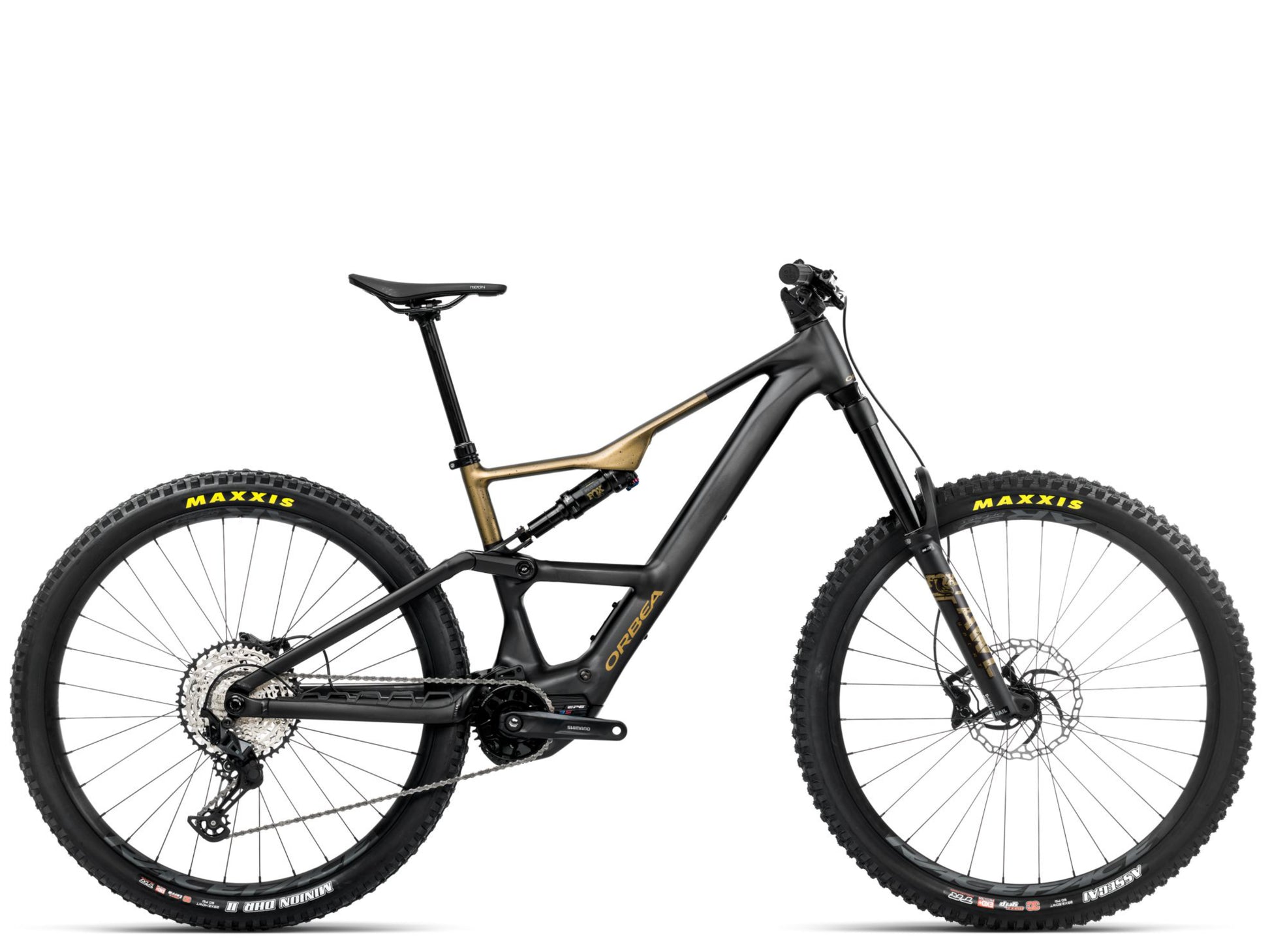

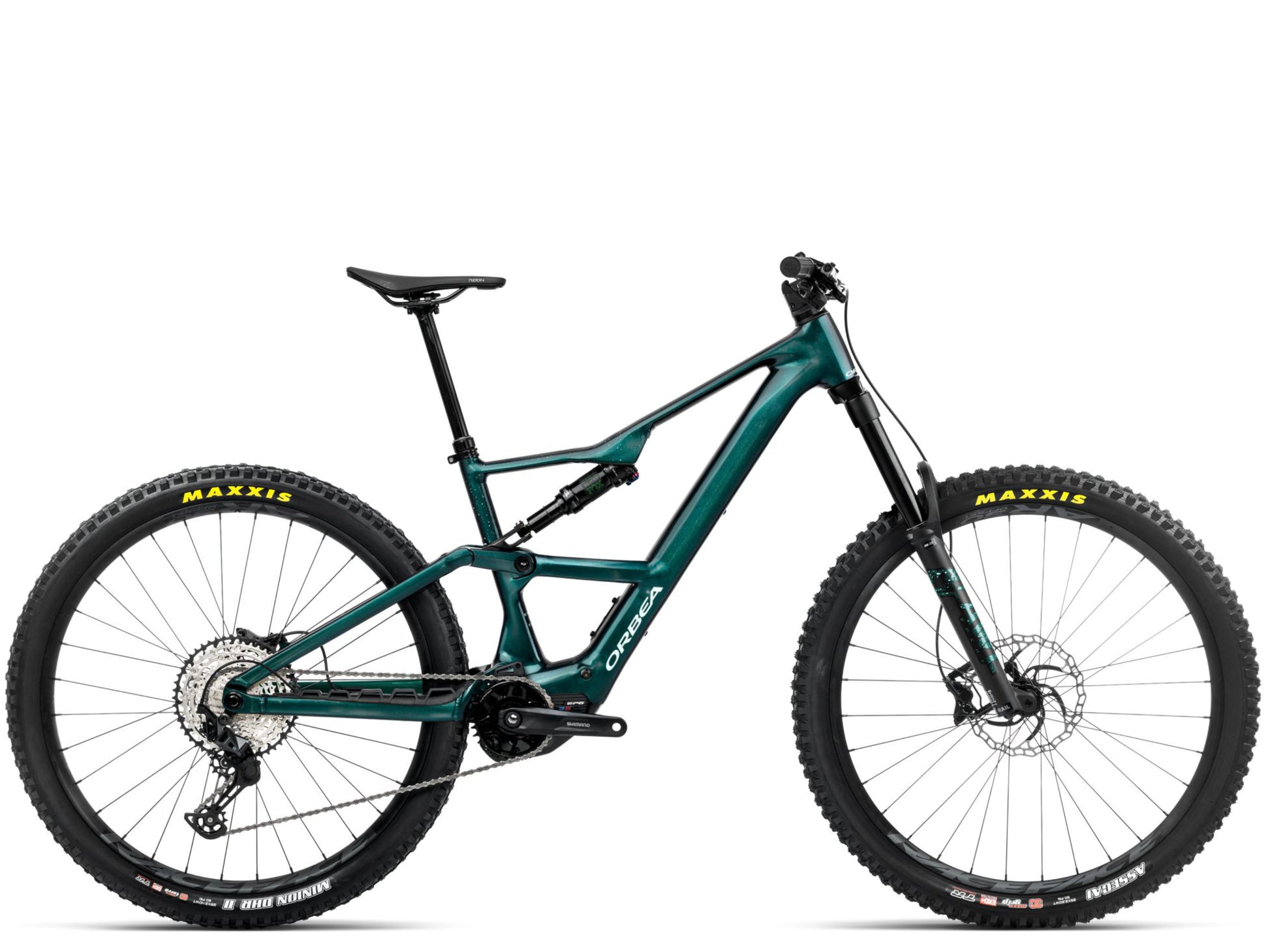

Orbea Rise LT H20
Orbea Rise LT H20
Regular price
$5,100.00
Sale price
$5,100.00
Regular price
$5,999.00
Unit price
per
Shipping calculated at checkout.
The Full Scoop on the Orbea Rise SL H20
The Orbea Rise LT just might be one of the best eMTB's we've come across. The Rise stands out with an incredible build, value, power all in one of the lightest eMTB's available! We've become huge fans of the Orbea Rise as it's one of the most nimble electric mountain bikes we've ridden.
*Components subject to manufacturer changes
| Motor | Shimano EP600 |
| Battery | Orbea Internal 630Wh |
| Display/Remote | EN600-L |
| Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A |
| Frame | Orbea Rise Hydro 150mm travel 29”, Boost 12x148 |
| Fork | Fox 36 Float AWL HD Sport 160 Rail QR15x110 |
| Rear Shock | Fox Float Performance 2-Pos Evol LV custom tune 210x55mm |
| Front Brake | Shimano MT420 Hydraulic Disc |
| Rear Brake | Shimano MT420 Hydraulic Disc |
| Rear Derailleur | Shimano SLX M7100 SGS Shadow Plus |
| Shift Levers | Shimano Deore M6100 I-Spec EV |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Crankset | Shimano Steps EM600 |
| Chain Ring | e*thirteen e*spec Direct Mount 32T Boost |
| Chain Guard | Orbea Rise chainguide |
| Rims | Race Face AR 30c Tubeless ready |
| Front Hub | Spec not provided |
| Rear Hub | Spec not provided |
| Front Tire | Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip |
| Rear Tire | Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip |
| Handlebar | OC Mountain Control MC31, Rise20, Width 800 |
| Stem | OC Mountain Control MC20, 0º |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Grips | OC Lock On |
| Saddle | Fizik Terra Ridon X5 145mm |
| Seatpost | OC MC21 Mountain Control Dropper, 31.6mm |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE | S | M | L | XL |
|---|---|---|---|---|
| Seattube length | 380mm | 420mm | 450mm | 490mm |
| Toptube length | 605mm | 625mm | 650mm | 670mm |
| Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
| Bottom bracket height | 350mm | 350mm | 350mm | 350mm |
| Chainstay length | 455mm | 455mm | 455mm | 455mm |
| Seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
| Effective seattube angle | 77° | 77° | 77° | 77° |
| Headtube angle | 66° | 66° | 66° | 66° |
| Fork Offset | mm | mm | mm | mm |
| Wheelbase | 1180mm | 1205mm | 1229mm | 1255mm |
| Headtube length | 95mm | 105mm | 120mm | 140mm |
| Reach | 425mm | 450mm | 474mm | 500mm |
| Stack | 604mm | 613mm | 627mm | 646mm |
The Full Scoop on the Orbea Rise SL H20
Description
The Orbea Rise LT just might be one of the best eMTB's we've come across. The Rise stands out with an incredible build, value, power all in one of the lightest eMTB's available! We've become huge fans of the Orbea Rise as it's one of the most nimble electric mountain bikes we've ridden.
*Components subject to manufacturer changes
Motor System
| Motor | Shimano EP600 |
| Battery | Orbea Internal 630Wh |
| Display/Remote | EN600-L |
| Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A |
Components
| Frame | Orbea Rise Hydro 150mm travel 29”, Boost 12x148 |
| Fork | Fox 36 Float AWL HD Sport 160 Rail QR15x110 |
| Rear Shock | Fox Float Performance 2-Pos Evol LV custom tune 210x55mm |
| Front Brake | Shimano MT420 Hydraulic Disc |
| Rear Brake | Shimano MT420 Hydraulic Disc |
| Rear Derailleur | Shimano SLX M7100 SGS Shadow Plus |
| Shift Levers | Shimano Deore M6100 I-Spec EV |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Crankset | Shimano Steps EM600 |
| Chain Ring | e*thirteen e*spec Direct Mount 32T Boost |
| Chain Guard | Orbea Rise chainguide |
| Rims | Race Face AR 30c Tubeless ready |
| Front Hub | Spec not provided |
| Rear Hub | Spec not provided |
| Front Tire | Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip |
| Rear Tire | Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip |
| Handlebar | OC Mountain Control MC31, Rise20, Width 800 |
| Stem | OC Mountain Control MC20, 0º |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Grips | OC Lock On |
| Saddle | Fizik Terra Ridon X5 145mm |
| Seatpost | OC MC21 Mountain Control Dropper, 31.6mm |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
| FRAME SIZE | S | M | L | XL |
|---|---|---|---|---|
| Seattube length | 380mm | 420mm | 450mm | 490mm |
| Toptube length | 605mm | 625mm | 650mm | 670mm |
| Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
| Bottom bracket height | 350mm | 350mm | 350mm | 350mm |
| Chainstay length | 455mm | 455mm | 455mm | 455mm |
| Seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
| Effective seattube angle | 77° | 77° | 77° | 77° |
| Headtube angle | 66° | 66° | 66° | 66° |
| Fork Offset | mm | mm | mm | mm |
| Wheelbase | 1180mm | 1205mm | 1229mm | 1255mm |
| Headtube length | 95mm | 105mm | 120mm | 140mm |
| Reach | 425mm | 450mm | 474mm | 500mm |
| Stack | 604mm | 613mm | 627mm | 646mm |
