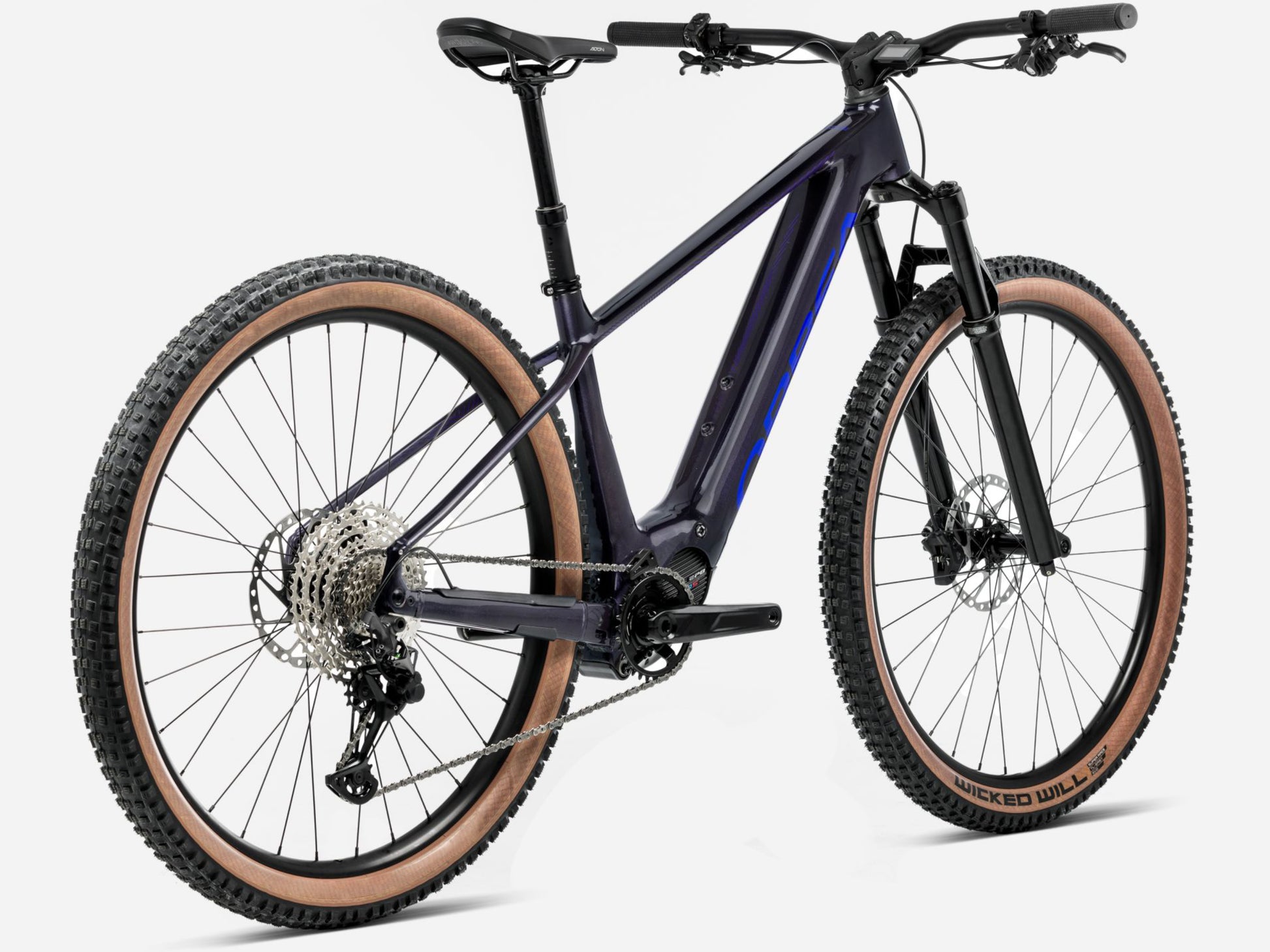

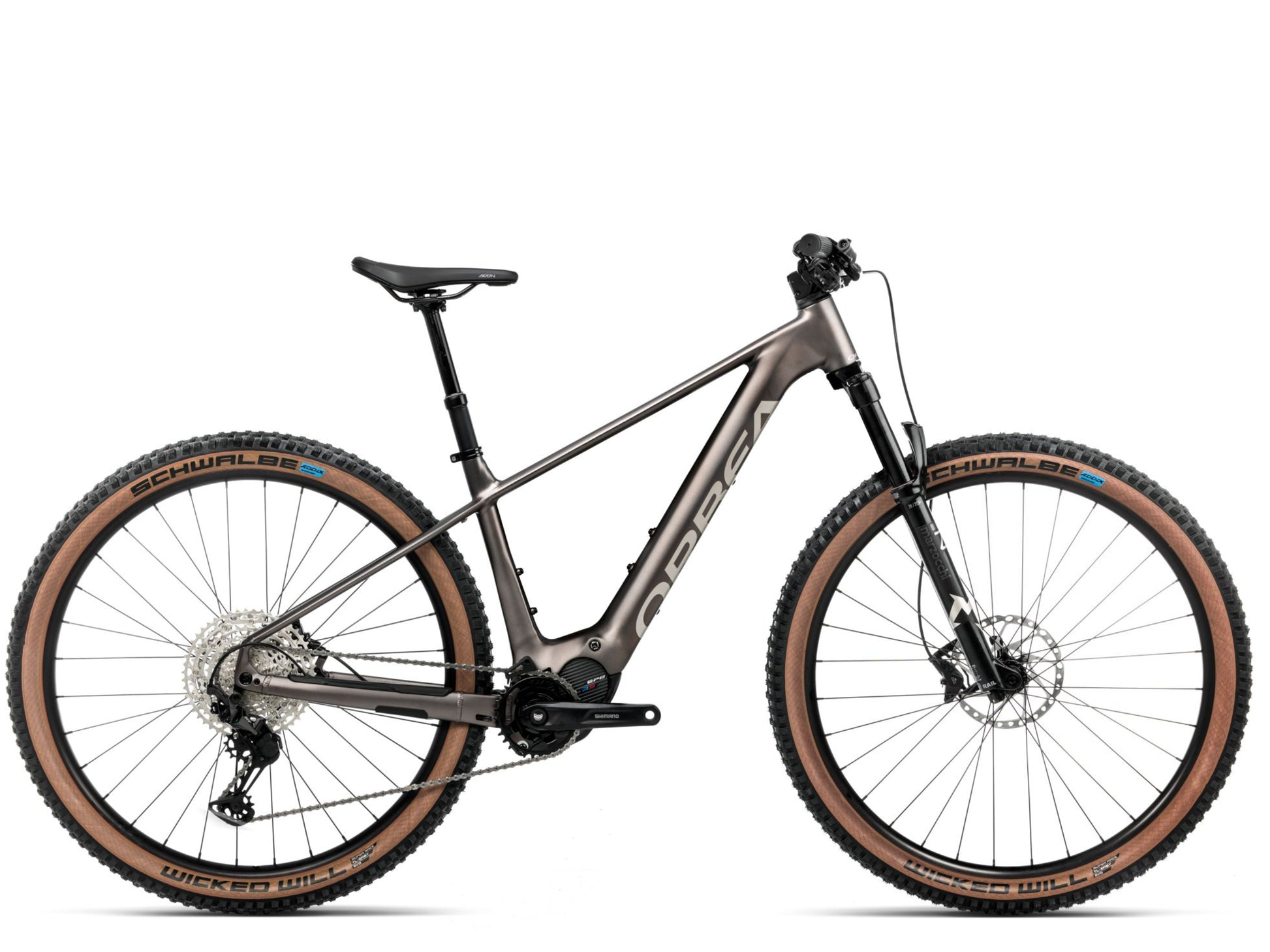

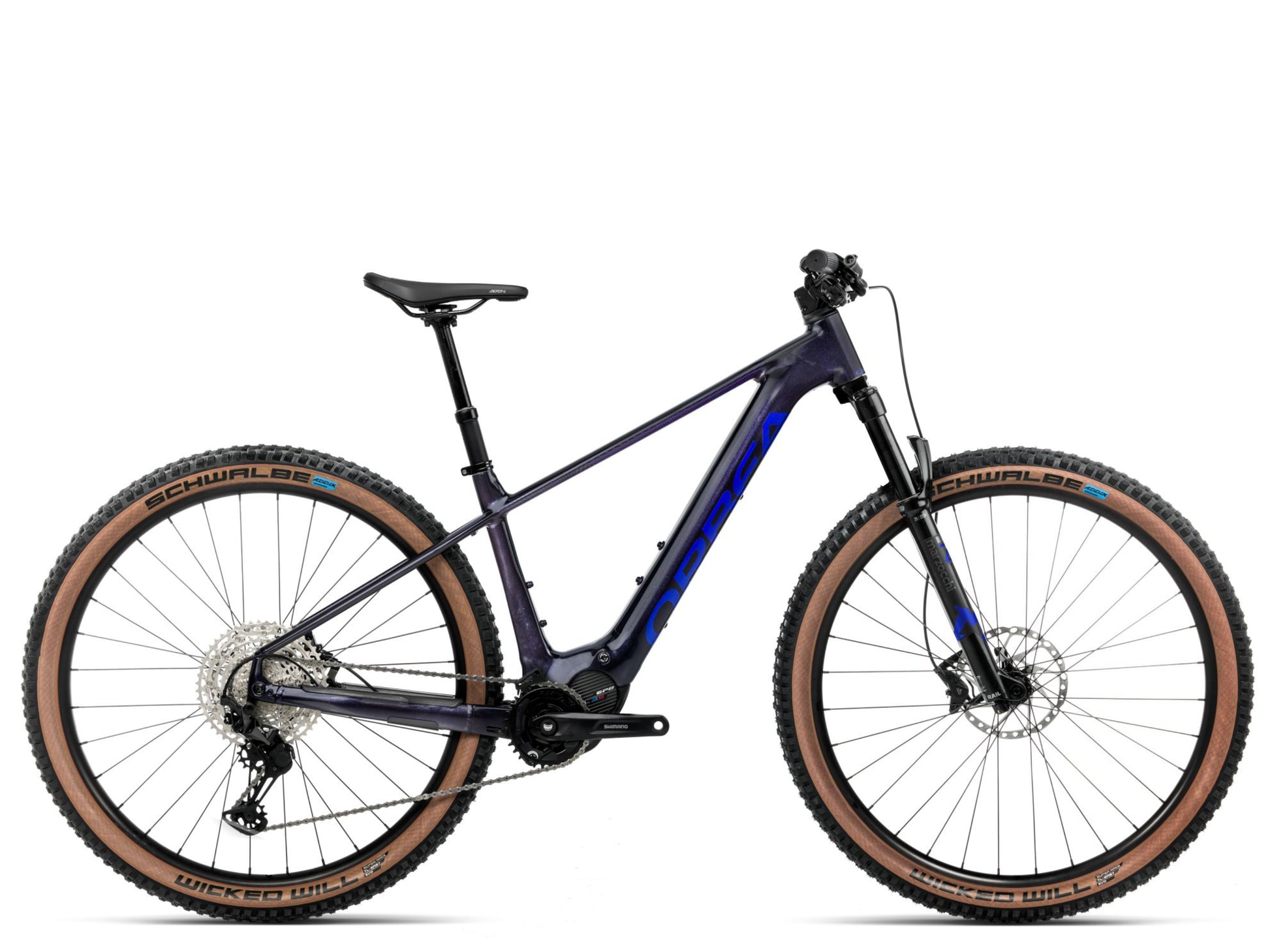

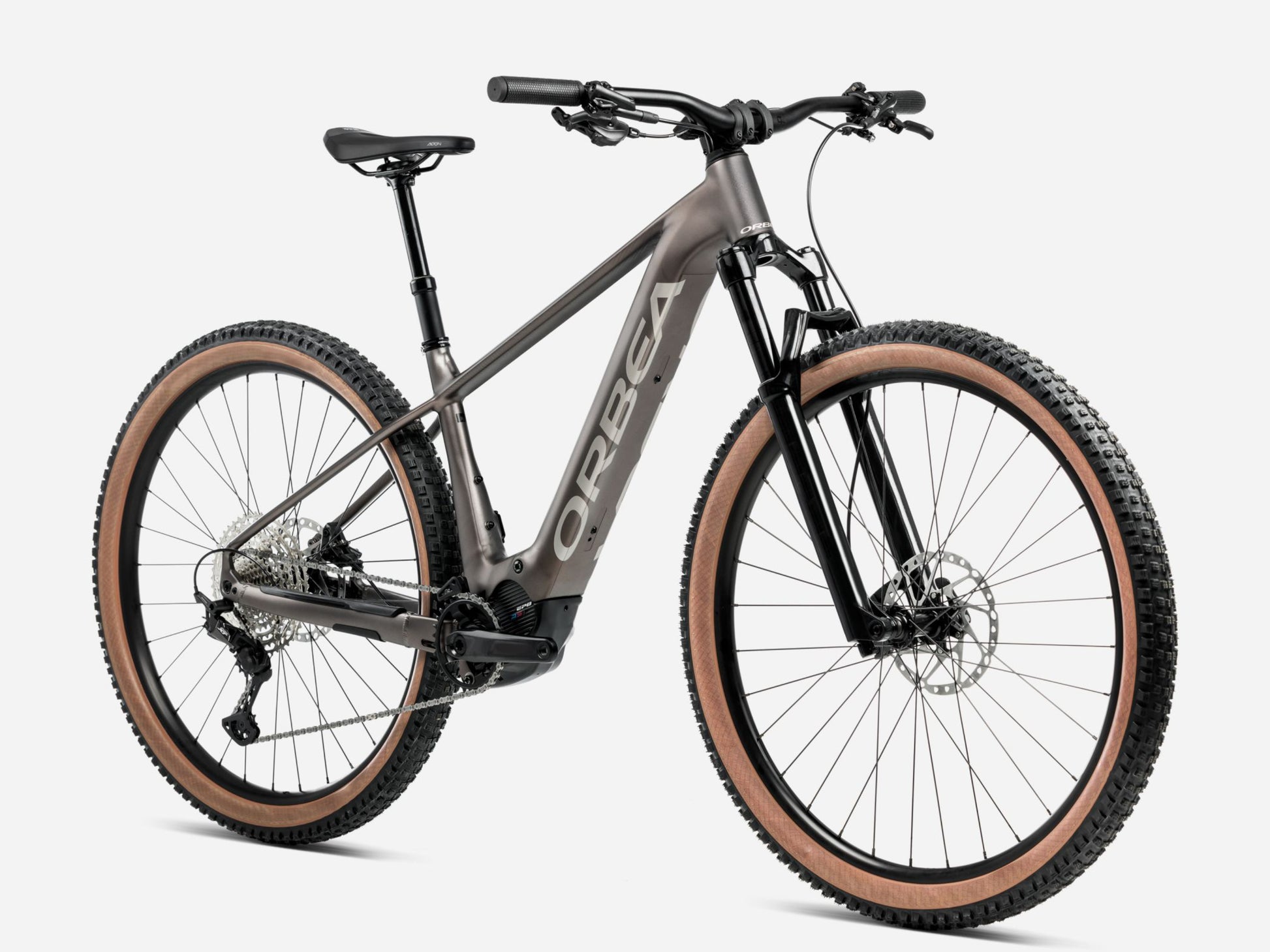

Orbea Urrun 10

The Full Scoop on the Orbea Urrun 10

• Description
• Motor System
• Components
• Extras
• Geometry

•
  Urrun means “far” in the Basque language. Without a doubt, the Orbea Urrun 10 is an ebike to take you far and explore distant horizons, but the name holds more significance to us. Urrun is about the long journey we embarked upon with this bike and how far we have come. With new technologies and innovative integrations, it’s safe to say we are proud to have Orbea Urrun 10 in the family. Escape, enjoy bigger adventures, go further and explore harder. There are no more excuses.

  The Orbea Urrun 10 is ready for life, family and adventure. Our RS Concept with Rise, this is a new riding experience that enhances the joy of biking with smooth assistance that feels as natural and alive as your own body. The lighter weight EP8 RS motor, a 120mm fork and trail ready components mean that Urrun is ready to explore those distant horizons.

  The Orbea Urrun 10 brings with it many cutting edge technologies aimed at simplifying the design and removing unnecessary weight. As beautiful to look at as it is to ride, Urrun hardly even looks like an e-bike.

• *Components subject to manufacturer changes

• Motor	Shimano EP8-RS
  Battery	Orbea Internal 540Wh (Optional 252Wh Range Extender)
  Display	Shimano SC-EM800
  Charger	Orbea Smart Charger (42V-4A)

•


  Frame	Orbea Urrun, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
  Fork	Fox 34 Float Performance 120 Grip 3-Position QR15x110 E-Bike Optimized
  Rear Shock	Not applicable
  Front Brake	Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
  Rear Brake	Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
  Rear Derailleur	Shimano XT M8100 SGS Shadow Plus
  Shift Levers	Shimano XT M8100
  Chain	Shimano M6100
  Cassette	Shimano CS-M7100 10-51t 12-Speed
  Crankset	Shimano Steps EM600
  Chain Ring	Alloy EP8 32t
  Chain Guard	Orbea Chainguide
  Rims	Race Face AR 30c Tubeless Ready
  Front Hub	Spec not provided
  Rear Hub	Spec not provided
  Front Tire	Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
  Rear Tire	Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
  Handlebar	OC 35mm 20mm Rise 780mm
  Stem	OC1 35mm interface -6º
  Headset	FSA 1-1/2" Integrated Aluminum Cup
  Grips	Spec not provided
  Saddle	Selle Royal Vivo
  Seatpost	OC Mountail Control MC20, 31.6mm, Dropper

• Pedals	VP-537 Black
  Front Light	Not applicable
  Rear Light	Not applicable
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Not applicable
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable

•

  		S	M	L	XL
  HEIGHT		61.1"-66.9"	65.0"-70.9"	70.1"-74.8"	72.8"-78.74"
  SEAT TUBE (C-T)	1	400	453	483	533
  TOP TUBE (EFF)	2	565	579	608	645
  HEAD TUBE	3	110	115	132	153
  CHAINSTAY	4	445	445	445	445
  BB HEIGHT	5	322	320	320	320
  BB DROP*	6	54	56	56	56
  WHEELBASE	7	1143	1150	1173	1220
  HEAD ANGLE*	8	65,5º	66º	66º	66º
  SEAT ANGLE*	9	74,8º	74,6º	74,6º	74,5º
  STANDOVER	10	826	854	877	910
  REACH	11	395	405	440	460
  STACK	12	631	628	647	666
  FORK LENGTH	13	533,5	533,5	533,5	533,5
  RAKE		44	44	44	44
