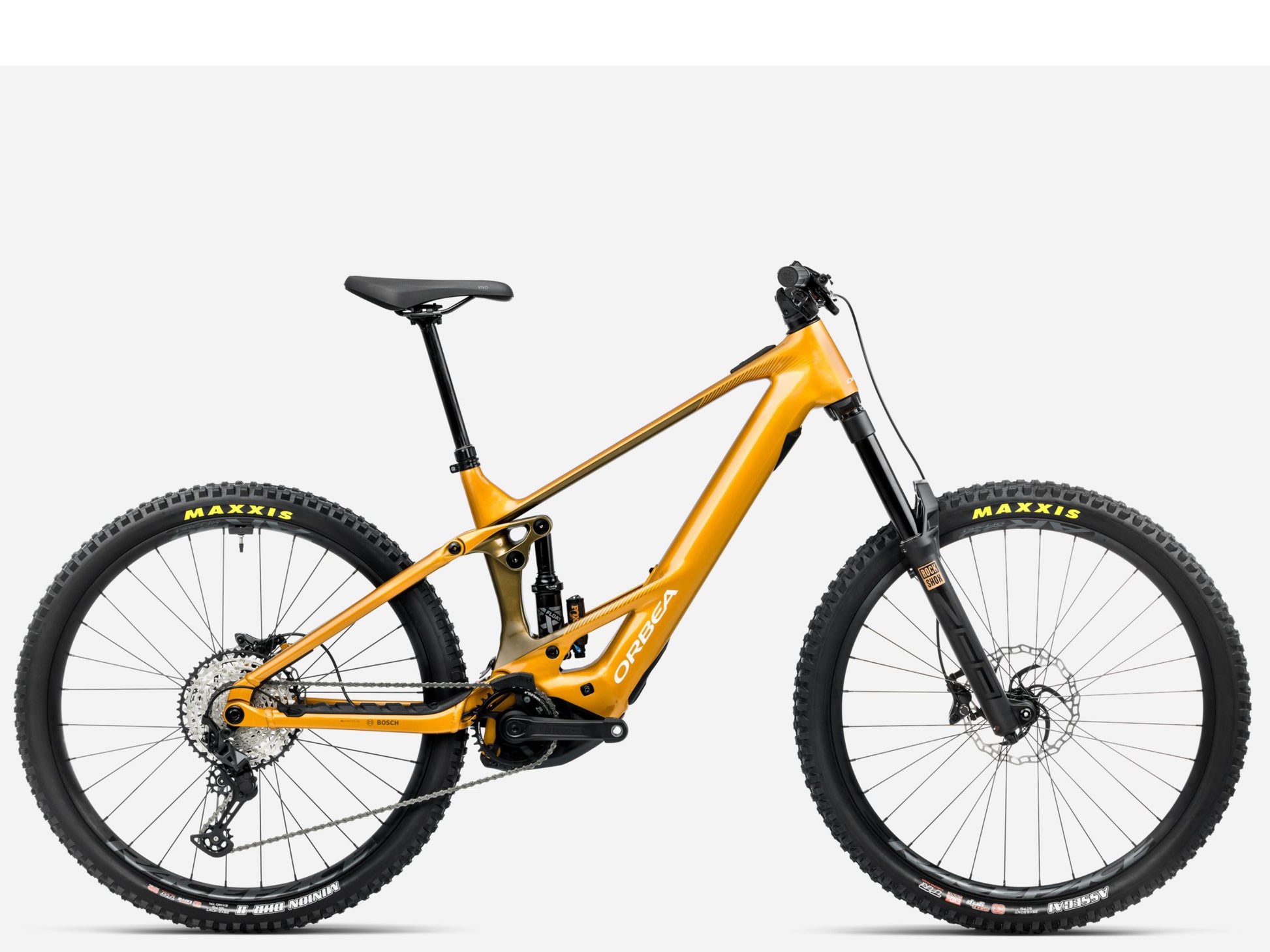

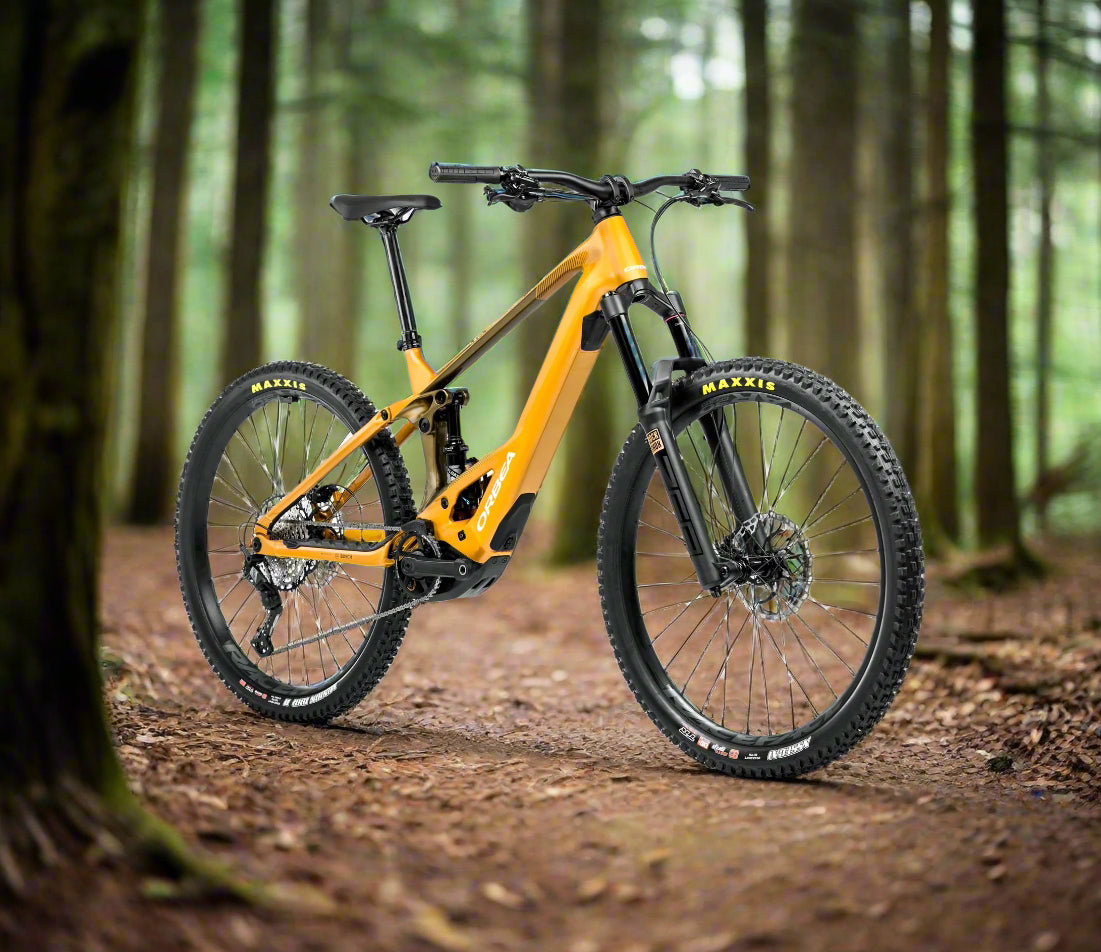

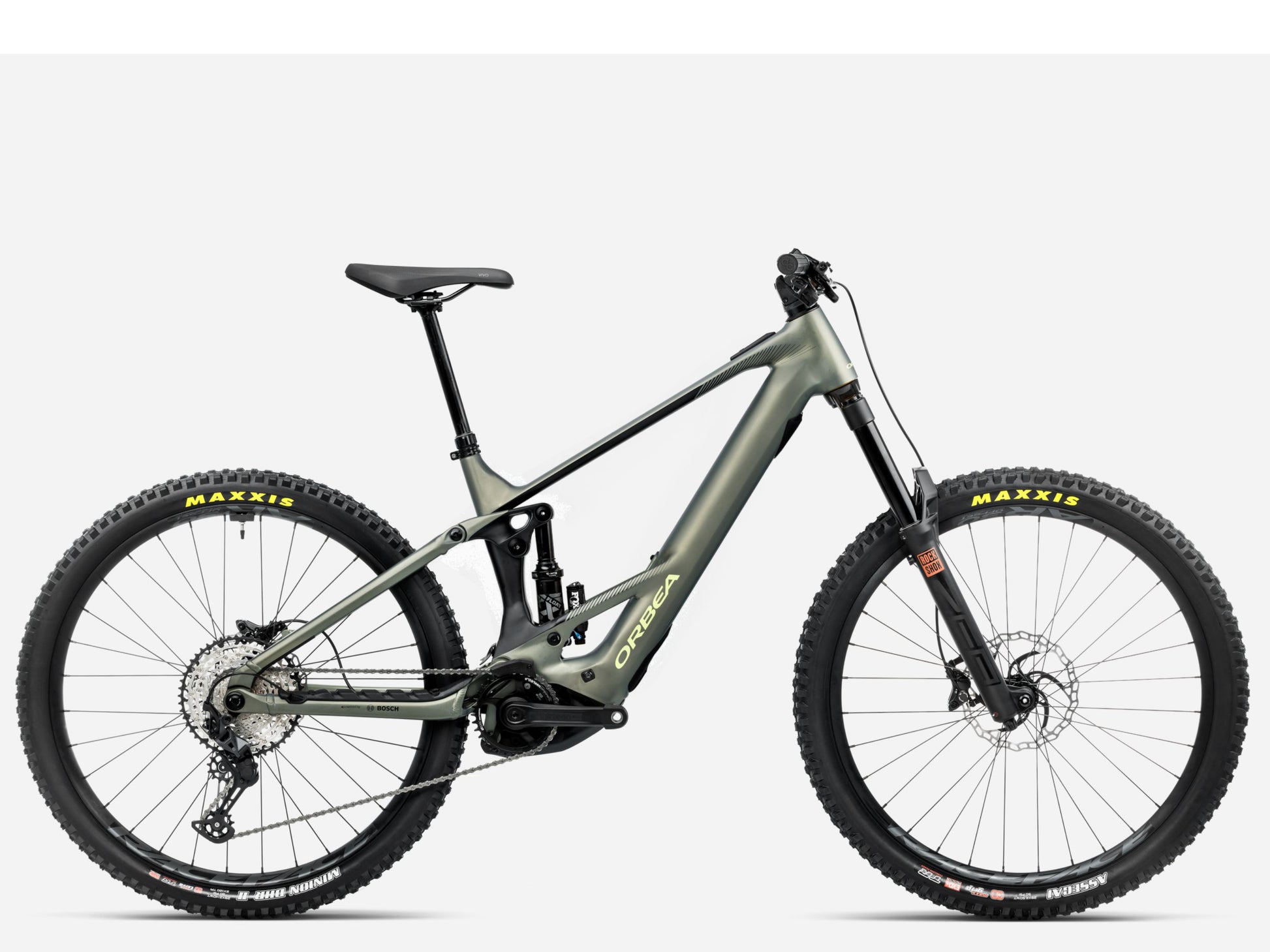

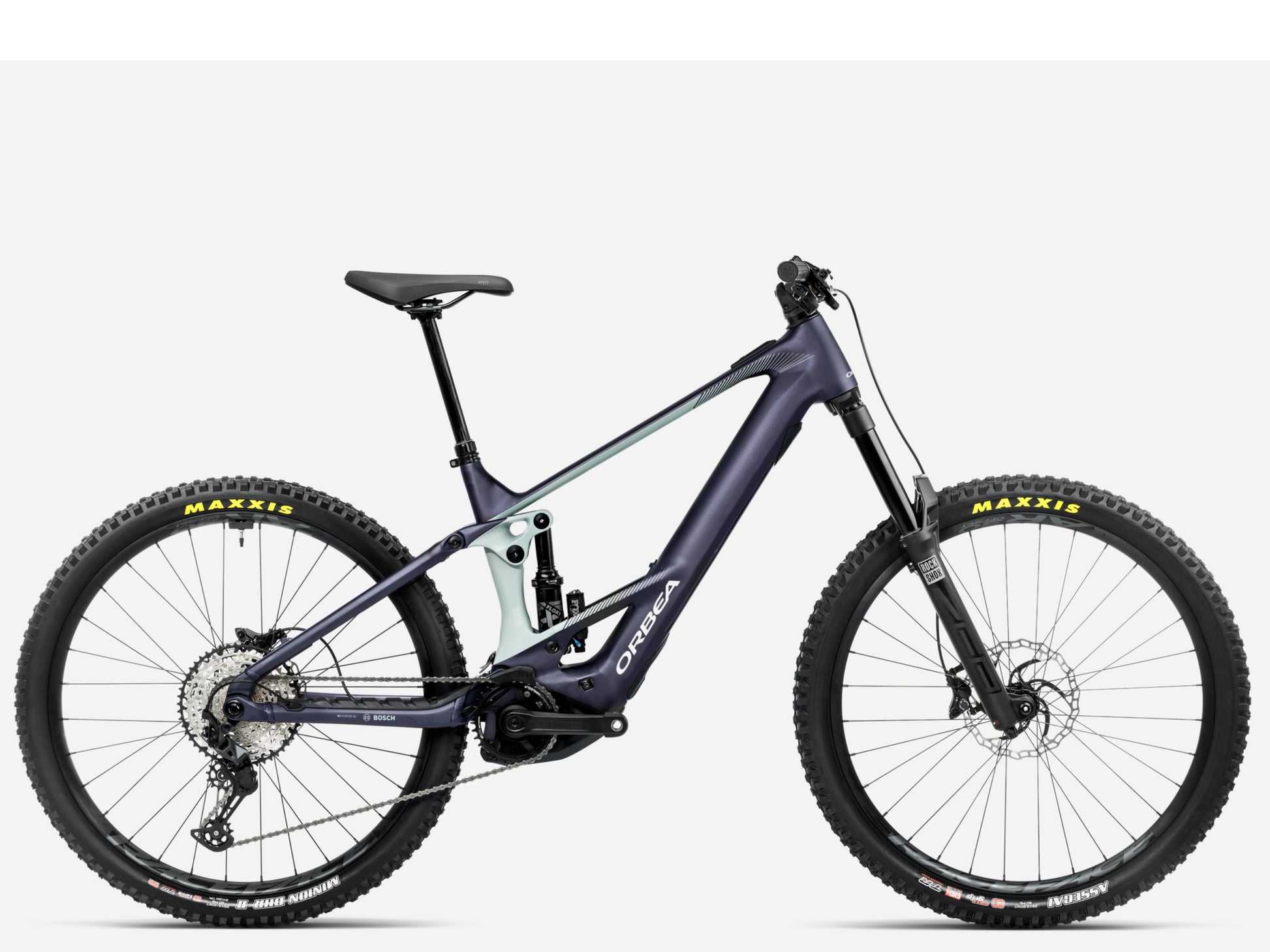

Orbea Wild H20
Orbea Wild H20
Couldn't load pickup availability
The Full Scoop on the Orbea Wild H20
It’s time to get moving. Load up your pack for an afternoon ride and start pedaling. Whatever obstacles exist between you and the trails and your special places, it’s time to run over them with your Orbea Wild H20. Conquer steep climbs and push the limits of traction and good judgment on the way back down. Enjoy clever design and sophisticated suspension kinematics, or simply focus on the trail. Orbea Wild H20 revitalizes your riding and helps you chart new destinations.Â
*Components subject to manufacturer change /
| Motor | Bosch Performance Line CX BDU3840 |
| Battery | Bosch Powertube 750Wh Horizontal BBP3775 |
| Display/Remote | Bosch System Controller BRC3100 / Bosch Mini Remote BRC3300 |
| Charger | Bosch Charger 4A (110V) BPC3410 |
| Frame | Orbea Wild Hydro, 29" wheels, Concentric Boost 12x148 |
| Fork | RockShox ZEB Base-A2 DebonAir+ 170 E-MTB |
| Rear Shock | Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm |
| Front Brake | Shimano M6120 Hydraulic Disc |
| Rear Brake | Shimano M6120 Hydraulic Disc |
| Rear Derailleur | Shimano SLX M7100 SGS Shadow Plus |
| Shift Levers | Shimano Deore M6100 I-Spec EV |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Crankset | e*thirteen Plus Alloy |
| Chain Ring | e*thirteen Plus Bosch CX Gen4 CL 55 32-36t |
| Chain Guard | Spec not provided |
| Rims | Race Face AR 30c Tubeless ready |
| Front Hub | Spec not provided |
| Rear Hub | Spec not provided |
| Front Tire | Maxxis Minion DHF 2.50" FB 60 TPI 3C MaxxTerra Exo TR |
| Rear Tire | Maxxis Minion DHF 2.50" FB 60 TPI 3C MaxxTerra Exo TR |
| Handlebar | OC Mountain Control MC30, Rise20, Width 800 |
| Stem | OC Mountain Control MC20, 0º |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Grips | OC Lock On |
| Saddle | Selle Royal Vivo Sport Men 145 x 269mm |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE | S | M | L | XL |
|---|---|---|---|---|
| 1 Seattube length | 415mm | 415mm | 435mm | 460mm |
| 2 Toptube length | 653mm | 586mm | 612mm | 639mm |
| 3 Headtube | 110mm | 120mm | 130mm | 140mm |
| 4 Chainstay length | 448mm | 448mm | 448mm | 448mm |
| 5 Bottom bracket height | 358mm | 358mm | 358mm | 358mm |
| 6 BB Drop | 22mm | 22mm | 22mm | 22mm |
| 7 Wheelbase | 1228mm | 1252mm | 1282mm | 1311mm |
| 8 Headtube angle | 63.5° | 63.5° | 63.5° | 63.5° |
| 9 Seat tube angle | 77.5° | 77.5° | 77.5° | 77.5° |
| 10 Standover | 730mm | 730mm | 730mm | 730mm |
| 11 Reach | 435mm | 455mm | 480mm | 505mm |
| 12 Stack | 625mm | 634mm | 643mm | 652mm |
| 13 Fork length | 585mm | 585mm | 585mm | 585mm |
| 14 Rake | 44mm | 44mm | 44mm | 44mm |
The Full Scoop on the Orbea Wild H20
Description
It’s time to get moving. Load up your pack for an afternoon ride and start pedaling. Whatever obstacles exist between you and the trails and your special places, it’s time to run over them with your Orbea Wild H20. Conquer steep climbs and push the limits of traction and good judgment on the way back down. Enjoy clever design and sophisticated suspension kinematics, or simply focus on the trail. Orbea Wild H20 revitalizes your riding and helps you chart new destinations.Â
*Components subject to manufacturer change /
Motor System
| Motor | Bosch Performance Line CX BDU3840 |
| Battery | Bosch Powertube 750Wh Horizontal BBP3775 |
| Display/Remote | Bosch System Controller BRC3100 / Bosch Mini Remote BRC3300 |
| Charger | Bosch Charger 4A (110V) BPC3410 |
Components
| Frame | Orbea Wild Hydro, 29" wheels, Concentric Boost 12x148 |
| Fork | RockShox ZEB Base-A2 DebonAir+ 170 E-MTB |
| Rear Shock | Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm |
| Front Brake | Shimano M6120 Hydraulic Disc |
| Rear Brake | Shimano M6120 Hydraulic Disc |
| Rear Derailleur | Shimano SLX M7100 SGS Shadow Plus |
| Shift Levers | Shimano Deore M6100 I-Spec EV |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Crankset | e*thirteen Plus Alloy |
| Chain Ring | e*thirteen Plus Bosch CX Gen4 CL 55 32-36t |
| Chain Guard | Spec not provided |
| Rims | Race Face AR 30c Tubeless ready |
| Front Hub | Spec not provided |
| Rear Hub | Spec not provided |
| Front Tire | Maxxis Minion DHF 2.50" FB 60 TPI 3C MaxxTerra Exo TR |
| Rear Tire | Maxxis Minion DHF 2.50" FB 60 TPI 3C MaxxTerra Exo TR |
| Handlebar | OC Mountain Control MC30, Rise20, Width 800 |
| Stem | OC Mountain Control MC20, 0º |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Grips | OC Lock On |
| Saddle | Selle Royal Vivo Sport Men 145 x 269mm |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
| FRAME SIZE | S | M | L | XL |
|---|---|---|---|---|
| 1 Seattube length | 415mm | 415mm | 435mm | 460mm |
| 2 Toptube length | 653mm | 586mm | 612mm | 639mm |
| 3 Headtube | 110mm | 120mm | 130mm | 140mm |
| 4 Chainstay length | 448mm | 448mm | 448mm | 448mm |
| 5 Bottom bracket height | 358mm | 358mm | 358mm | 358mm |
| 6 BB Drop | 22mm | 22mm | 22mm | 22mm |
| 7 Wheelbase | 1228mm | 1252mm | 1282mm | 1311mm |
| 8 Headtube angle | 63.5° | 63.5° | 63.5° | 63.5° |
| 9 Seat tube angle | 77.5° | 77.5° | 77.5° | 77.5° |
| 10 Standover | 730mm | 730mm | 730mm | 730mm |
| 11 Reach | 435mm | 455mm | 480mm | 505mm |
| 12 Stack | 625mm | 634mm | 643mm | 652mm |
| 13 Fork length | 585mm | 585mm | 585mm | 585mm |
| 14 Rake | 44mm | 44mm | 44mm | 44mm |
