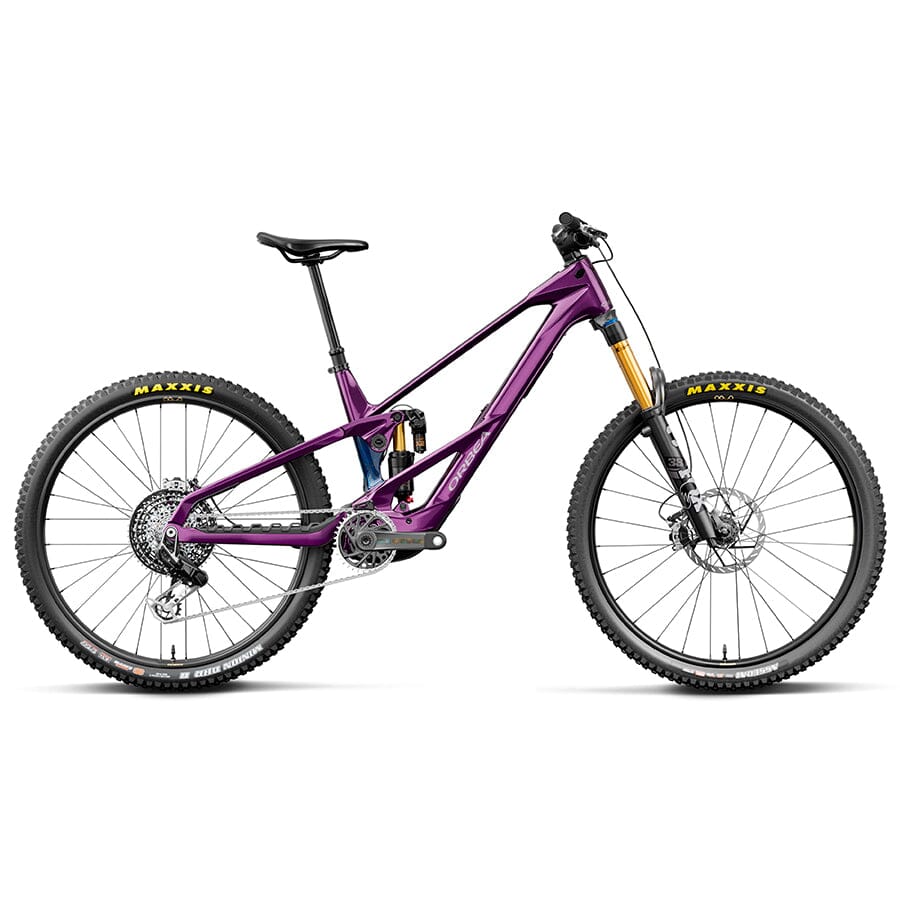

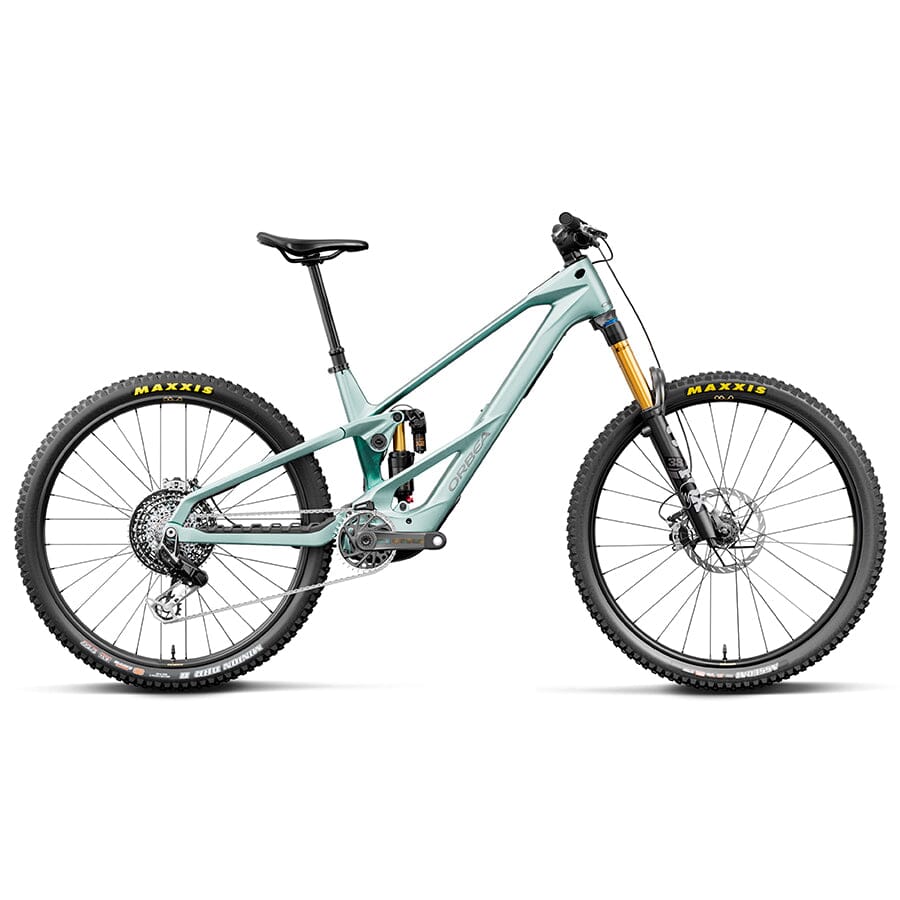

Orbea Wild LT M-LTD RS 20mph
Orbea Wild LT M-LTD RS 20mph
The Full Scoop on the Orbea Wild LT M-LTD RS
The Wild LT M-LTD RS is the apex of Orbea's full-power e-MTB lineup. Built around the DJI Avinox M2S motor with Orbea's exclusive RS-tune algorithm, it delivers 130 Nm of trail-calibrated torque through a carbon OMR frame with 170mm of progressive suspension travel. The RS-tune isn't just more power — it's smarter power, with higher torque at low cadences and sharper pedal response on technical climbs where momentum matters most.
Fox Factory suspension throughout — 38 Float Factory fork and Float X2 Factory rear shock with Kashima — paired with SRAM XX Eagle AXS wireless shifting, Maven Ultimate brakes, and carbon Oquo MC32LTD wheels. The OC MC10 electronic dropper integrates directly with the Orbea RS-HMI remote, so motor modes and post height live on one controller. An 800Wh battery delivers range that matches ambition.
Full 29er configuration. Flip-chip geometry adjustment. Dual-crown fork compatible. 170mm of enduro-bred travel that descends like a gravity bike and climbs like it has something to prove.
| Motor | DJI Avinox M2S with Orbea RS-Tune |
| Torque | 130 Nm standard / 150 Nm Superboost |
| Battery | DJI Avinox 800Wh integrated |
| Display | DJI Avinox DP100 |
| Charger | DJI Avinox 4A |
| Remote | Orbea System Controller with eDropper Remote |
| RS-Tune | Custom calibration for higher torque at low cadence, enhanced reactivity |
| Classification | Class 1 (20 mph pedal assist) |
| Frame | Orbea Wild OMR 2027 Carbon, 29" wheels, Concentric Boost 12x148 |
| Fork | Fox 38 Float Factory 170, Grip X2, QR15x110, Kashima |
| Rear Shock | Fox Float X2 Factory Trunnion 2-Pos Adjust, Kashima, 205x65mm |
| Headset | Acros ZS56 |
| Shifter | SRAM AXS Pod Ultimate |
| Rear Derailleur | SRAM XX Eagle AXS |
| Cassette | SRAM XX-1297 Eagle 10-52T, 12-Speed |
| Chain | SRAM XX Eagle 12-Speed |
| Crankset | e*thirteen Helix Race Carbon e*spec |
| Chainring | SRAM Steel 34T |
| Brakes | SRAM Maven Ultimate 4-Piston Hydraulic Disc |
| Wheels | Oquo Mountain Control MC32LTD POWER |
| Front Tire | Maxxis Assegai 2.50" 60TPI 3C MaxxGrip EXO+ TR |
| Rear Tire | Maxxis Minion 2.40" 120TPI 3C MaxxTerra DD TR |
| Handlebar | OC Mountain Control MC10 Carbon, Rise 35, Width 800mm |
| Stem | OC Mountain Control MC11 Alu SL, 0° |
| Dropper Post | OC Mountain Control MC10, 31.6mm, Electronic Dropper |
| Remote | Orbea System Controller with eDropper Remote |
| Saddle | Fizik Terra Aidon X1, 145mm |
| Computer Mount | OC CM-05, Garmin/Sigma |
| Chainguide | Orbea eBike chainguide |
| Mudguard | Fox Fork, Long |
| Tools | MT-20 FLP Multitool 2/3/4/5mm hex |
| Pedals | Not included |
| Flip Chip | Adjustable geometry (High 63.9° / Low 63.3° head angle) |
| MyO | Custom color + component configuration available |
The Full Scoop on the Orbea Wild LT M-LTD RS
The Wild LT M-LTD RS is the apex of Orbea's full-power e-MTB lineup. Built around the DJI Avinox M2S motor with Orbea's exclusive RS-tune algorithm, it delivers 130 Nm of trail-calibrated torque through a carbon OMR frame with 170mm of progressive suspension travel. The RS-tune isn't just more power — it's smarter power, with higher torque at low cadences and sharper pedal response on technical climbs where momentum matters most.
Fox Factory suspension throughout — 38 Float Factory fork and Float X2 Factory rear shock with Kashima — paired with SRAM XX Eagle AXS wireless shifting, Maven Ultimate brakes, and carbon Oquo MC32LTD wheels. The OC MC10 electronic dropper integrates directly with the Orbea RS-HMI remote, so motor modes and post height live on one controller. An 800Wh battery delivers range that matches ambition.
Full 29er configuration. Flip-chip geometry adjustment. Dual-crown fork compatible. 170mm of enduro-bred travel that descends like a gravity bike and climbs like it has something to prove.
Motor System
| Motor | DJI Avinox M2S with Orbea RS-Tune |
| Torque | 130 Nm standard / 150 Nm Superboost |
| Battery | DJI Avinox 800Wh integrated |
| Display | DJI Avinox DP100 |
| Charger | DJI Avinox 4A |
| Remote | Orbea System Controller with eDropper Remote |
| RS-Tune | Custom calibration for higher torque at low cadence, enhanced reactivity |
| Classification | Class 1 (20 mph pedal assist) |
Components
| Frame | Orbea Wild OMR 2027 Carbon, 29" wheels, Concentric Boost 12x148 |
| Fork | Fox 38 Float Factory 170, Grip X2, QR15x110, Kashima |
| Rear Shock | Fox Float X2 Factory Trunnion 2-Pos Adjust, Kashima, 205x65mm |
| Headset | Acros ZS56 |
| Shifter | SRAM AXS Pod Ultimate |
| Rear Derailleur | SRAM XX Eagle AXS |
| Cassette | SRAM XX-1297 Eagle 10-52T, 12-Speed |
| Chain | SRAM XX Eagle 12-Speed |
| Crankset | e*thirteen Helix Race Carbon e*spec |
| Chainring | SRAM Steel 34T |
| Brakes | SRAM Maven Ultimate 4-Piston Hydraulic Disc |
| Wheels | Oquo Mountain Control MC32LTD POWER |
| Front Tire | Maxxis Assegai 2.50" 60TPI 3C MaxxGrip EXO+ TR |
| Rear Tire | Maxxis Minion 2.40" 120TPI 3C MaxxTerra DD TR |
Extras
| Handlebar | OC Mountain Control MC10 Carbon, Rise 35, Width 800mm |
| Stem | OC Mountain Control MC11 Alu SL, 0° |
| Dropper Post | OC Mountain Control MC10, 31.6mm, Electronic Dropper |
| Remote | Orbea System Controller with eDropper Remote |
| Saddle | Fizik Terra Aidon X1, 145mm |
| Computer Mount | OC CM-05, Garmin/Sigma |
| Chainguide | Orbea eBike chainguide |
| Mudguard | Fox Fork, Long |
| Tools | MT-20 FLP Multitool 2/3/4/5mm hex |
| Pedals | Not included |
| Flip Chip | Adjustable geometry (High 63.9° / Low 63.3° head angle) |
| MyO | Custom color + component configuration available |
