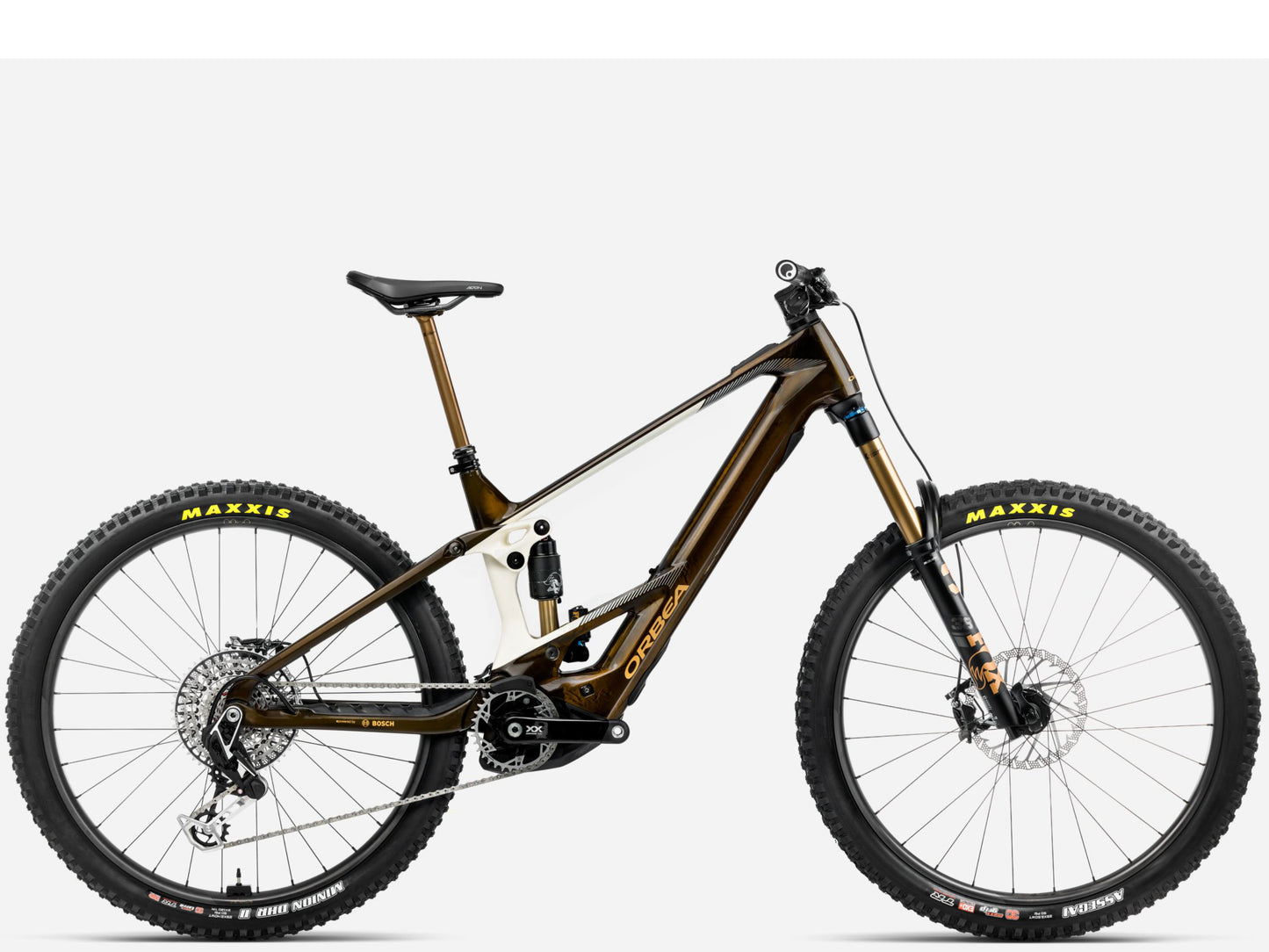

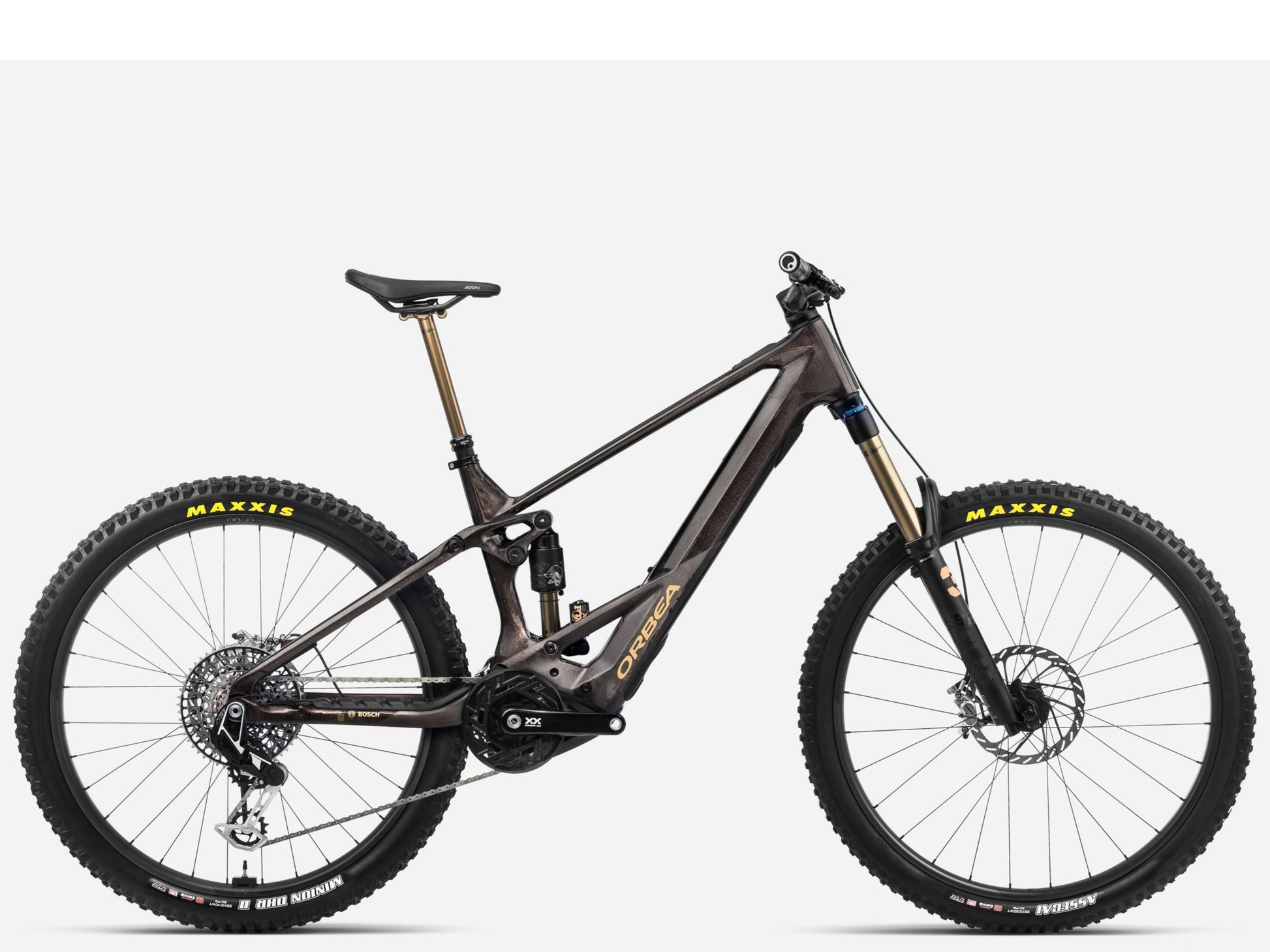

The Full Scoop on the Orbea Wild M-LTD
It’s time to get moving. Load up your pack for an afternoon ride and start pedaling. Whatever obstacles exist between you and the trails and your special places, it’s time to run over them with your Orbea Wild M-LTD. Conquer steep climbs and push the limits of traction and good judgment on the way back down. Enjoy clever design and sophisticated suspension kinematics, or simply focus on the trail. Orbea Wild M-LTD revitalizes your riding and helps you chart new destinations.
*Components subject to manufacturer change / 2025 Specs shown in chart / 2024 Specs
| Motor | Bosch Performance Line CX BDU3840 |
| Battery | Bosch Powertube 600Wh Horizontal BBP3865 |
| Display/Remote | Bosch System Controller BRC3100 / Bosch Mini Remote BRC3300 |
| Charger | Bosch Charger 4A (110V) BPC3410 |
| Frame | Orbea Wild OMR 2025, 29" wheels, Concentric Boost 12x148 |
| Fork | Fox 38 Float Factory 170 Grip X2 QR15x110 Kashima |
| Rear Shock | Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x65mm |
| Front Brake | Shimano XTR Hydraulic Disc |
| Rear Brake | Shimano XTR Hydraulic Disc |
| Rear Derailleur | Shimano XTR M9260 12s |
| Shift Levers | Shimano XTR M9250 |
| Chain | Shimano CN-9100 |
| Cassette | Shimano CS-M9200 10-51t 12-Speed |
| Crankset | e*thirteen Helix Race Carbon |
| Chain Ring | e*thirteen Helix Race e*spec Direct Mount 34T 55mm ChainLine |
| Chain Guard | Spec not provided |
| Rims/Wheels | Oquo Mountain Control MC32LTD POWER |
| Front Hub | Spec not provided |
| Rear Hub | Spec not provided |
| Front Tire | Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip |
| Rear Tire | Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra |
| Handlebar | OC Mountain Control MC10 Carbon, Rise 20, Width 800 |
| Stem | OC Mountain Control MC11 Alu SL, 0º |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Grips | Spec not provided |
| Saddle | Fizik Terra Aidon X1 145mm |
| Seatpost | OC Mountain Control MC10, 31.6mm, Dropper |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE | S | M | L | XL |
|---|---|---|---|---|
| 1 Seattube length | 415mm | 415mm | 435mm | 460mm |
| 2 Toptube length | 653mm | 586mm | 612mm | 639mm |
| 3 Headtube | 110mm | 120mm | 130mm | 140mm |
| 4 Chainstay length | 448mm | 448mm | 448mm | 448mm |
| 5 Bottom bracket height | 358mm | 358mm | 358mm | 358mm |
| 6 BB Drop | 22mm | 22mm | 22mm | 22mm |
| 7 Wheelbase | 1228mm | 1252mm | 1282mm | 1311mm |
| 8 Headtube angle | 63.5° | 63.5° | 63.5° | 63.5° |
| 9 Seat tube angle | 77.5° | 77.5° | 77.5° | 77.5° |
| 10 Standover | 730mm | 730mm | 730mm | 730mm |
| 11 Reach | 435mm | 455mm | 480mm | 505mm |
| 12 Stack | 625mm | 634mm | 643mm | 652mm |
| 13 Fork length | 585mm | 585mm | 585mm | 585mm |
| 14 Rake | 44mm | 44mm | 44mm | 44mm |
The Full Scoop on the Orbea Wild M-LTD
It’s time to get moving. Load up your pack for an afternoon ride and start pedaling. Whatever obstacles exist between you and the trails and your special places, it’s time to run over them with your Orbea Wild M-LTD. Conquer steep climbs and push the limits of traction and good judgment on the way back down. Enjoy clever design and sophisticated suspension kinematics, or simply focus on the trail. Orbea Wild M-LTD revitalizes your riding and helps you chart new destinations.
*Components subject to manufacturer change / 2025 Specs shown in chart / 2024 Specs
Motor System
| Motor | Bosch Performance Line CX BDU3840 |
| Battery | Bosch Powertube 600Wh Horizontal BBP3865 |
| Display/Remote | Bosch System Controller BRC3100 / Bosch Mini Remote BRC3300 |
| Charger | Bosch Charger 4A (110V) BPC3410 |
Components
| Frame | Orbea Wild OMR 2025, 29" wheels, Concentric Boost 12x148 |
| Fork | Fox 38 Float Factory 170 Grip X2 QR15x110 Kashima |
| Rear Shock | Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x65mm |
| Front Brake | Shimano XTR Hydraulic Disc |
| Rear Brake | Shimano XTR Hydraulic Disc |
| Rear Derailleur | Shimano XTR M9260 12s |
| Shift Levers | Shimano XTR M9250 |
| Chain | Shimano CN-9100 |
| Cassette | Shimano CS-M9200 10-51t 12-Speed |
| Crankset | e*thirteen Helix Race Carbon |
| Chain Ring | e*thirteen Helix Race e*spec Direct Mount 34T 55mm ChainLine |
| Chain Guard | Spec not provided |
| Rims/Wheels | Oquo Mountain Control MC32LTD POWER |
| Front Hub | Spec not provided |
| Rear Hub | Spec not provided |
| Front Tire | Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip |
| Rear Tire | Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra |
| Handlebar | OC Mountain Control MC10 Carbon, Rise 20, Width 800 |
| Stem | OC Mountain Control MC11 Alu SL, 0º |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Grips | Spec not provided |
| Saddle | Fizik Terra Aidon X1 145mm |
| Seatpost | OC Mountain Control MC10, 31.6mm, Dropper |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
| FRAME SIZE | S | M | L | XL |
|---|---|---|---|---|
| 1 Seattube length | 415mm | 415mm | 435mm | 460mm |
| 2 Toptube length | 653mm | 586mm | 612mm | 639mm |
| 3 Headtube | 110mm | 120mm | 130mm | 140mm |
| 4 Chainstay length | 448mm | 448mm | 448mm | 448mm |
| 5 Bottom bracket height | 358mm | 358mm | 358mm | 358mm |
| 6 BB Drop | 22mm | 22mm | 22mm | 22mm |
| 7 Wheelbase | 1228mm | 1252mm | 1282mm | 1311mm |
| 8 Headtube angle | 63.5° | 63.5° | 63.5° | 63.5° |
| 9 Seat tube angle | 77.5° | 77.5° | 77.5° | 77.5° |
| 10 Standover | 730mm | 730mm | 730mm | 730mm |
| 11 Reach | 435mm | 455mm | 480mm | 505mm |
| 12 Stack | 625mm | 634mm | 643mm | 652mm |
| 13 Fork length | 585mm | 585mm | 585mm | 585mm |
| 14 Rake | 44mm | 44mm | 44mm | 44mm |
