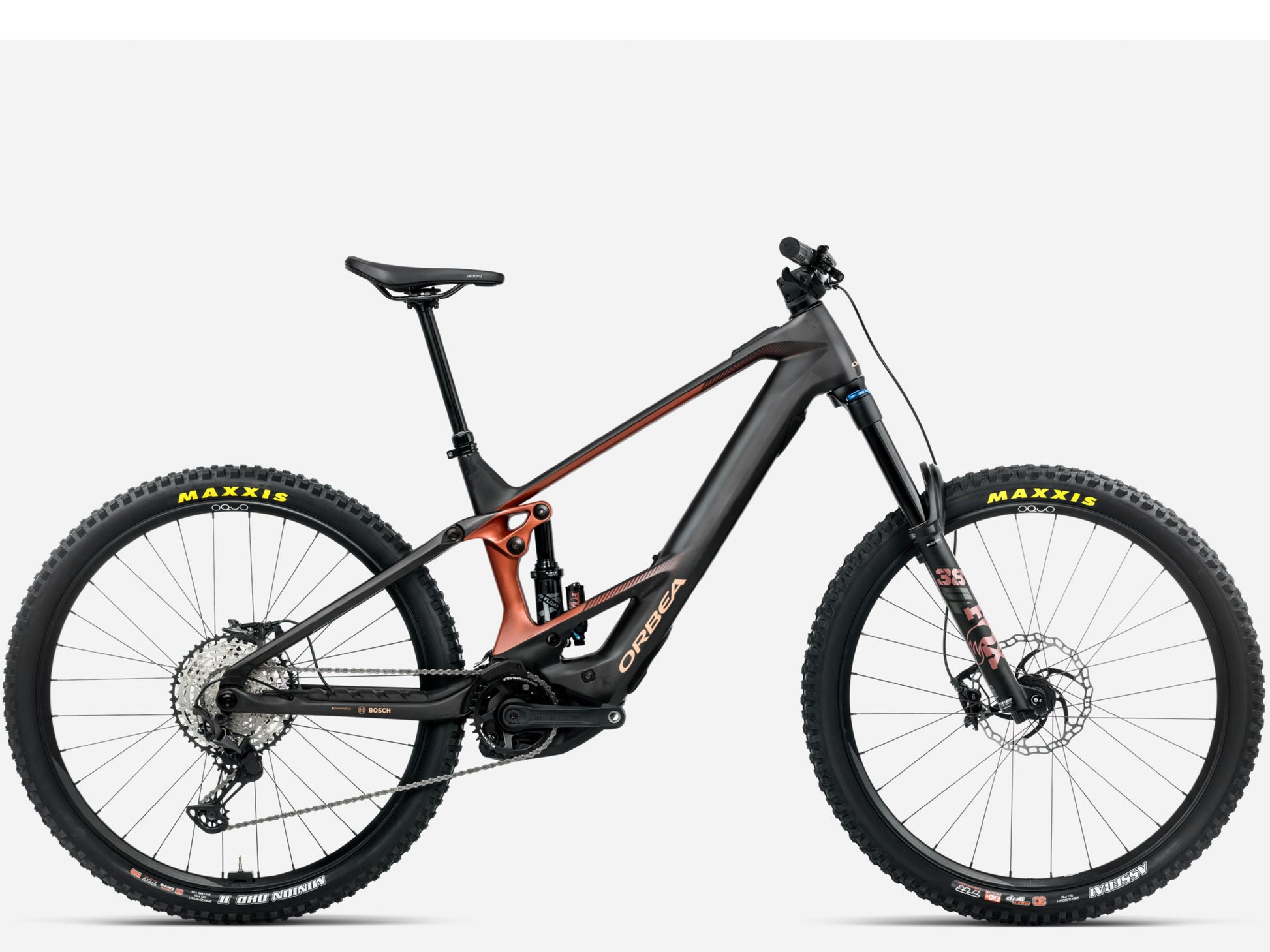

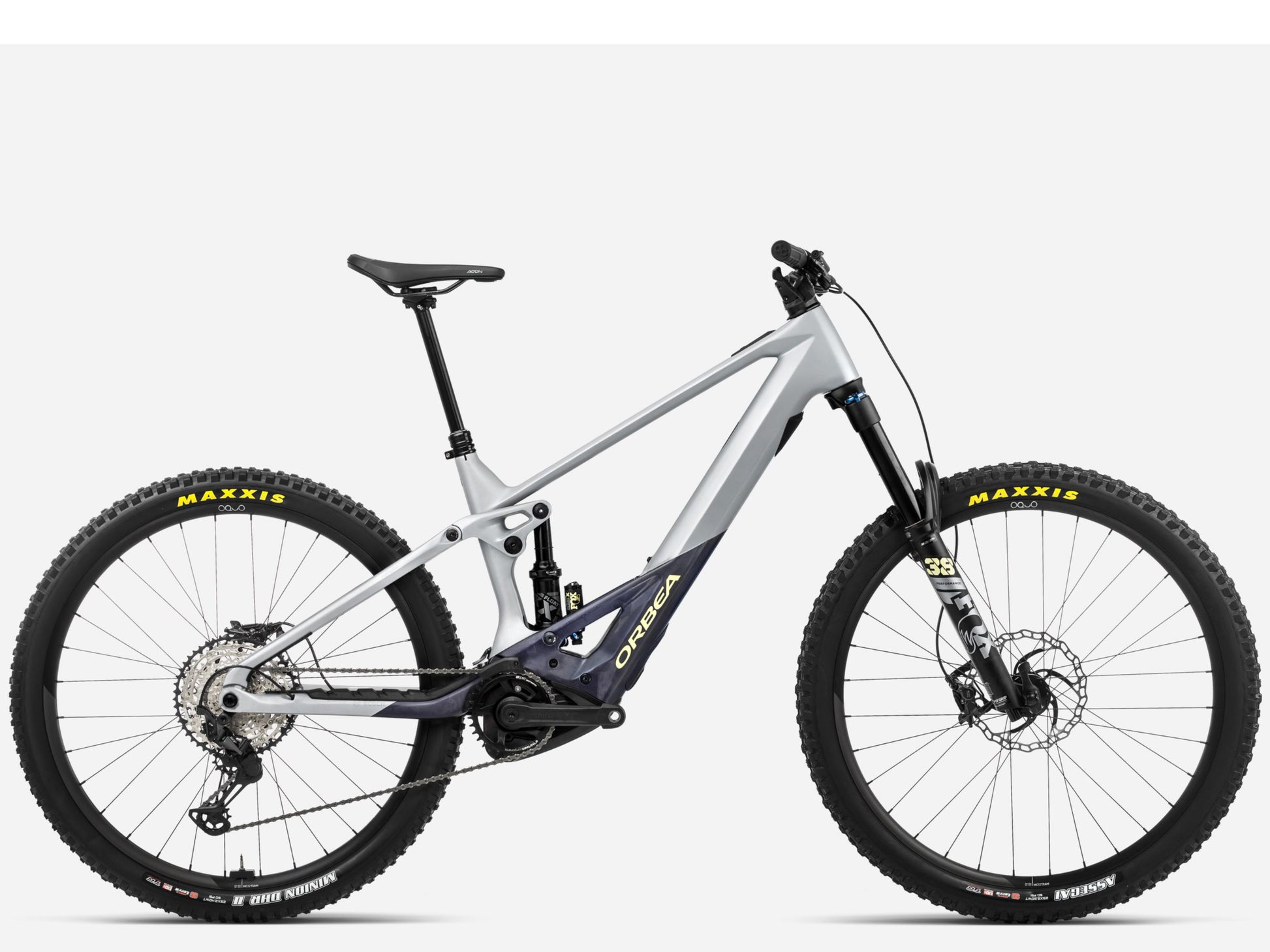

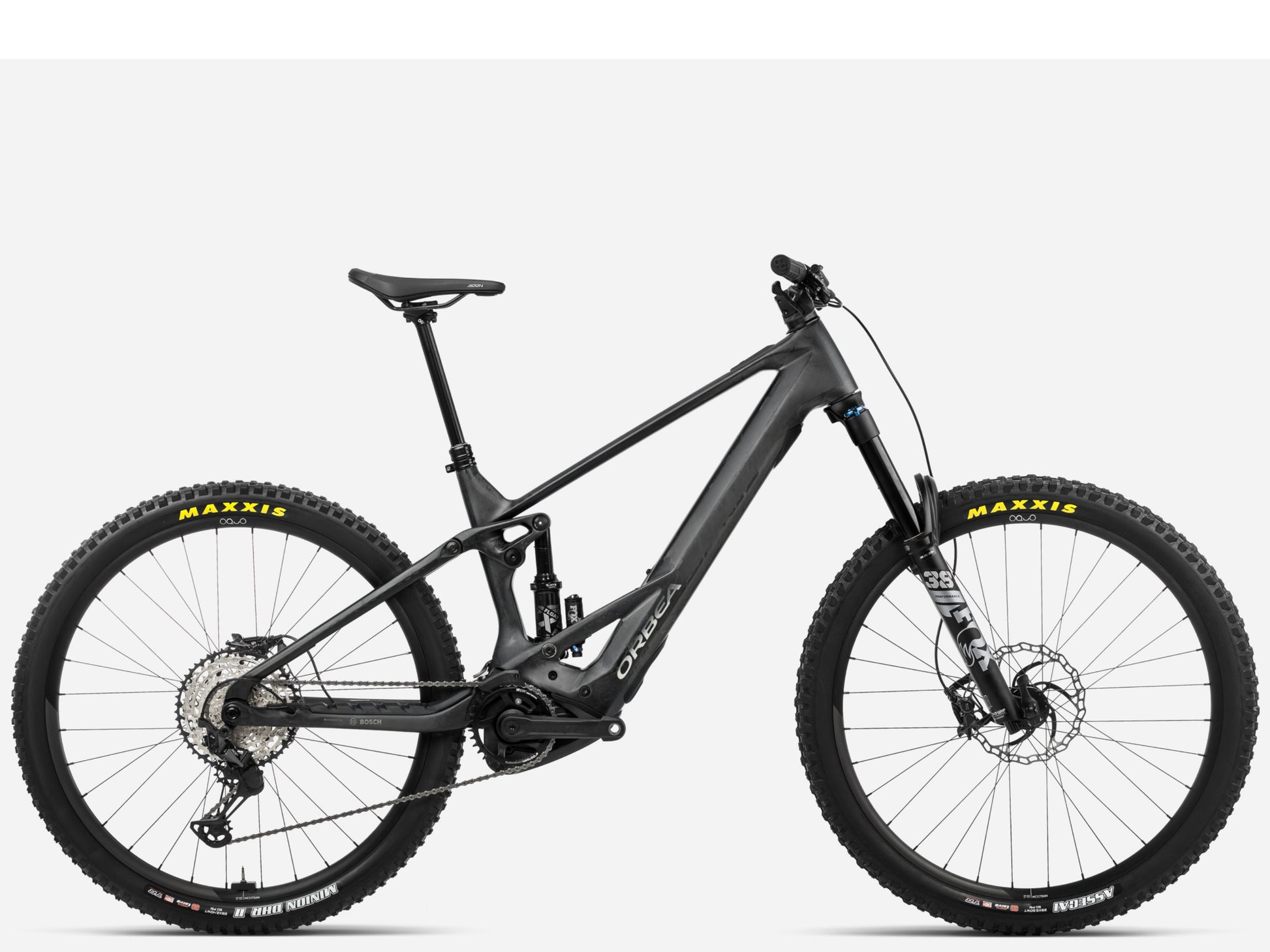

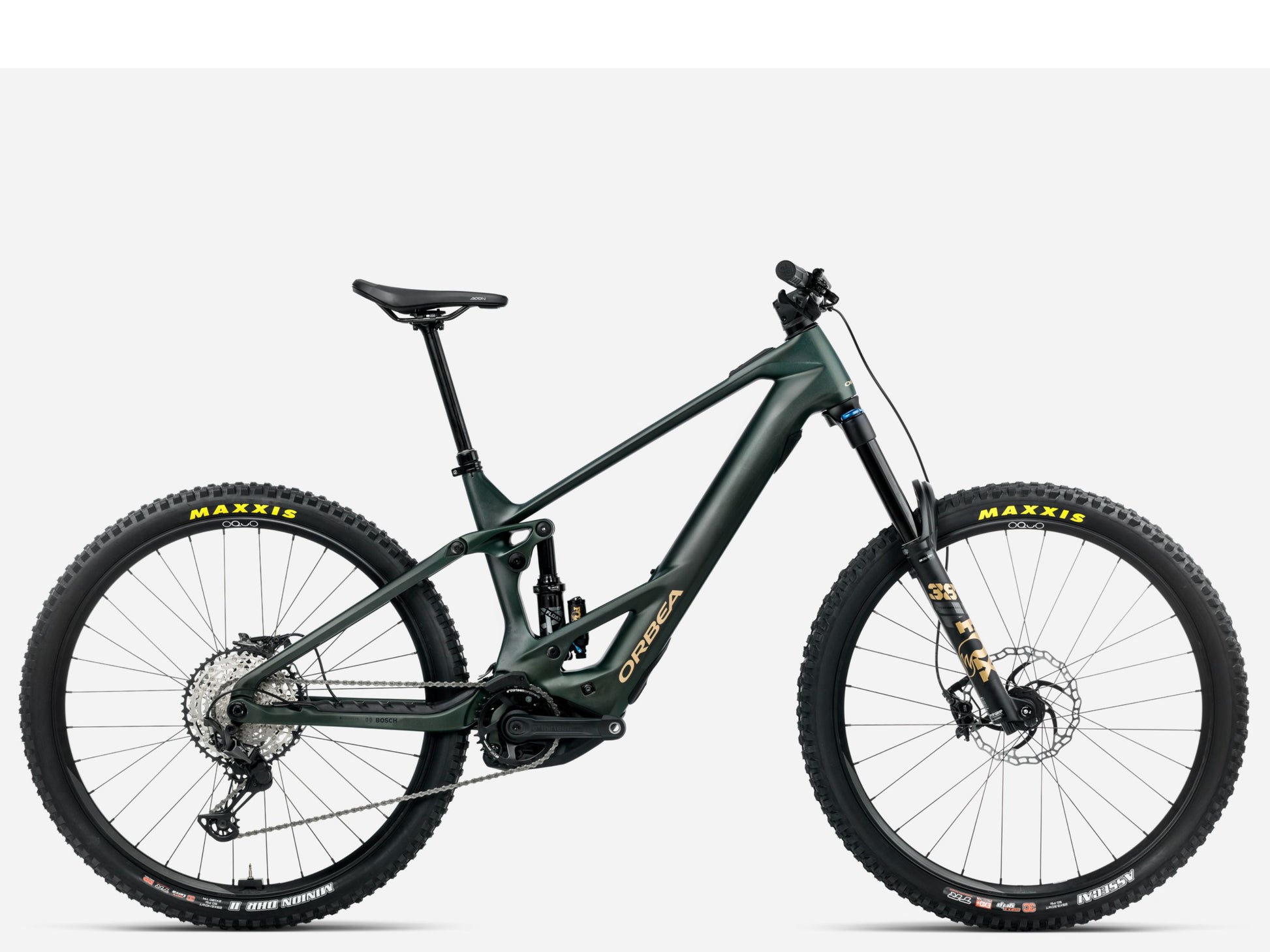

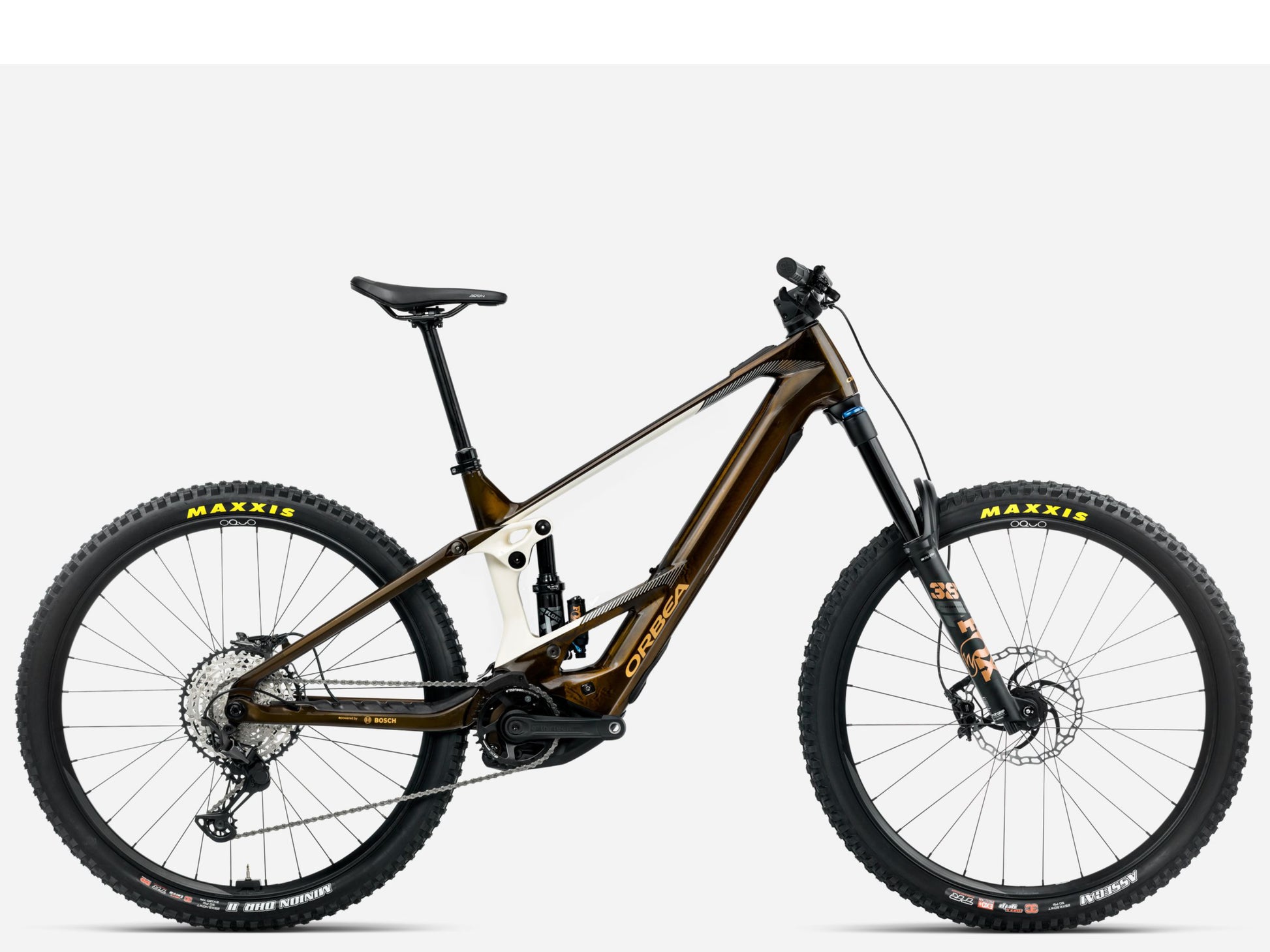

Orbea Wild M10
Orbea Wild M10
Regular price
$8,499.00
Sale price
$8,499.00
Regular price
$0.00
Unit price
per
Couldn't load pickup availability
The Full Scoop on the Orbea Wild M10
| Motor | Bosch Performance Line CX BDU3840 |
| Battery | Bosch Powertube 750Wh Horizontal BBP3775 |
| Display/Remote | Bosch System Controller BRC3100 / Bosch Mini Remote BRC3300 |
| Charger | Bosch Charger 4A (110V) BPC3410 |
| Frame | Orbea Wild OMR 2025, 29" wheels, Concentric Boost 12x148 |
| Fork | Fox 38 Float Performance 170 Grip 3-Pos QR15x110 |
| Rear Shock | Fox Float X Performance Trunnion 2-POS EVOL LV Custom tune 205x65mm |
| Front Brake | Shimano XT M8120 Hydraulic Disc |
| Rear Brake | Shimano XT M8120 Hydraulic Disc |
| Rear Derailleur | Shimano XT M8100 SGS Shadow Plus |
| Shift Levers | Shimano SLX M7100 I-Spec EV |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Crankset | e*thirteen Plus Alloy |
| Chain Ring | e*thirteen Plus Bosch CX Gen4 CL 55 32-36t |
| Chain Guard | Spec not provided |
| Rims/Wheels | Oquo Mountain Control MC32TEAM POWER |
| Front Hub | Spec not provided |
| Rear Hub | Spec not provided |
| Front Tire | Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra |
| Rear Tire | Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra |
| Handlebar | OC Mountain Control MC20 Alu SL, Rise20, Width 800 |
| Stem | OC Mountain Control MC20, 0º |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Grips | OC Lock On |
| Saddle | Fizik Aidon 208x145mm manganese rail |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE | S | M | L | XL |
|---|---|---|---|---|
| 1 Seattube length | 415mm | 415mm | 435mm | 460mm |
| 2 Toptube length | 653mm | 586mm | 612mm | 639mm |
| 3 Headtube | 110mm | 120mm | 130mm | 140mm |
| 4 Chainstay length | 448mm | 448mm | 448mm | 448mm |
| 5 Bottom bracket height | 358mm | 358mm | 358mm | 358mm |
| 6 BB Drop | 22mm | 22mm | 22mm | 22mm |
| 7 Wheelbase | 1228mm | 1252mm | 1282mm | 1311mm |
| 8 Headtube angle | 63.5° | 63.5° | 63.5° | 63.5° |
| 9 Seat tube angle | 77.5° | 77.5° | 77.5° | 77.5° |
| 10 Standover | 730mm | 730mm | 730mm | 730mm |
| 11 Reach | 435mm | 455mm | 480mm | 505mm |
| 12 Stack | 625mm | 634mm | 643mm | 652mm |
| 13 Fork length | 585mm | 585mm | 585mm | 585mm |
| 14 Rake | 44mm | 44mm | 44mm | 44mm |
The Full Scoop on the Orbea Wild M10
Motor System
| Motor | Bosch Performance Line CX BDU3840 |
| Battery | Bosch Powertube 750Wh Horizontal BBP3775 |
| Display/Remote | Bosch System Controller BRC3100 / Bosch Mini Remote BRC3300 |
| Charger | Bosch Charger 4A (110V) BPC3410 |
Components
| Frame | Orbea Wild OMR 2025, 29" wheels, Concentric Boost 12x148 |
| Fork | Fox 38 Float Performance 170 Grip 3-Pos QR15x110 |
| Rear Shock | Fox Float X Performance Trunnion 2-POS EVOL LV Custom tune 205x65mm |
| Front Brake | Shimano XT M8120 Hydraulic Disc |
| Rear Brake | Shimano XT M8120 Hydraulic Disc |
| Rear Derailleur | Shimano XT M8100 SGS Shadow Plus |
| Shift Levers | Shimano SLX M7100 I-Spec EV |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Crankset | e*thirteen Plus Alloy |
| Chain Ring | e*thirteen Plus Bosch CX Gen4 CL 55 32-36t |
| Chain Guard | Spec not provided |
| Rims/Wheels | Oquo Mountain Control MC32TEAM POWER |
| Front Hub | Spec not provided |
| Rear Hub | Spec not provided |
| Front Tire | Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra |
| Rear Tire | Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra |
| Handlebar | OC Mountain Control MC20 Alu SL, Rise20, Width 800 |
| Stem | OC Mountain Control MC20, 0º |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Grips | OC Lock On |
| Saddle | Fizik Aidon 208x145mm manganese rail |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
Geometry
| FRAME SIZE | S | M | L | XL |
|---|---|---|---|---|
| 1 Seattube length | 415mm | 415mm | 435mm | 460mm |
| 2 Toptube length | 653mm | 586mm | 612mm | 639mm |
| 3 Headtube | 110mm | 120mm | 130mm | 140mm |
| 4 Chainstay length | 448mm | 448mm | 448mm | 448mm |
| 5 Bottom bracket height | 358mm | 358mm | 358mm | 358mm |
| 6 BB Drop | 22mm | 22mm | 22mm | 22mm |
| 7 Wheelbase | 1228mm | 1252mm | 1282mm | 1311mm |
| 8 Headtube angle | 63.5° | 63.5° | 63.5° | 63.5° |
| 9 Seat tube angle | 77.5° | 77.5° | 77.5° | 77.5° |
| 10 Standover | 730mm | 730mm | 730mm | 730mm |
| 11 Reach | 435mm | 455mm | 480mm | 505mm |
| 12 Stack | 625mm | 634mm | 643mm | 652mm |
| 13 Fork length | 585mm | 585mm | 585mm | 585mm |
| 14 Rake | 44mm | 44mm | 44mm | 44mm |
