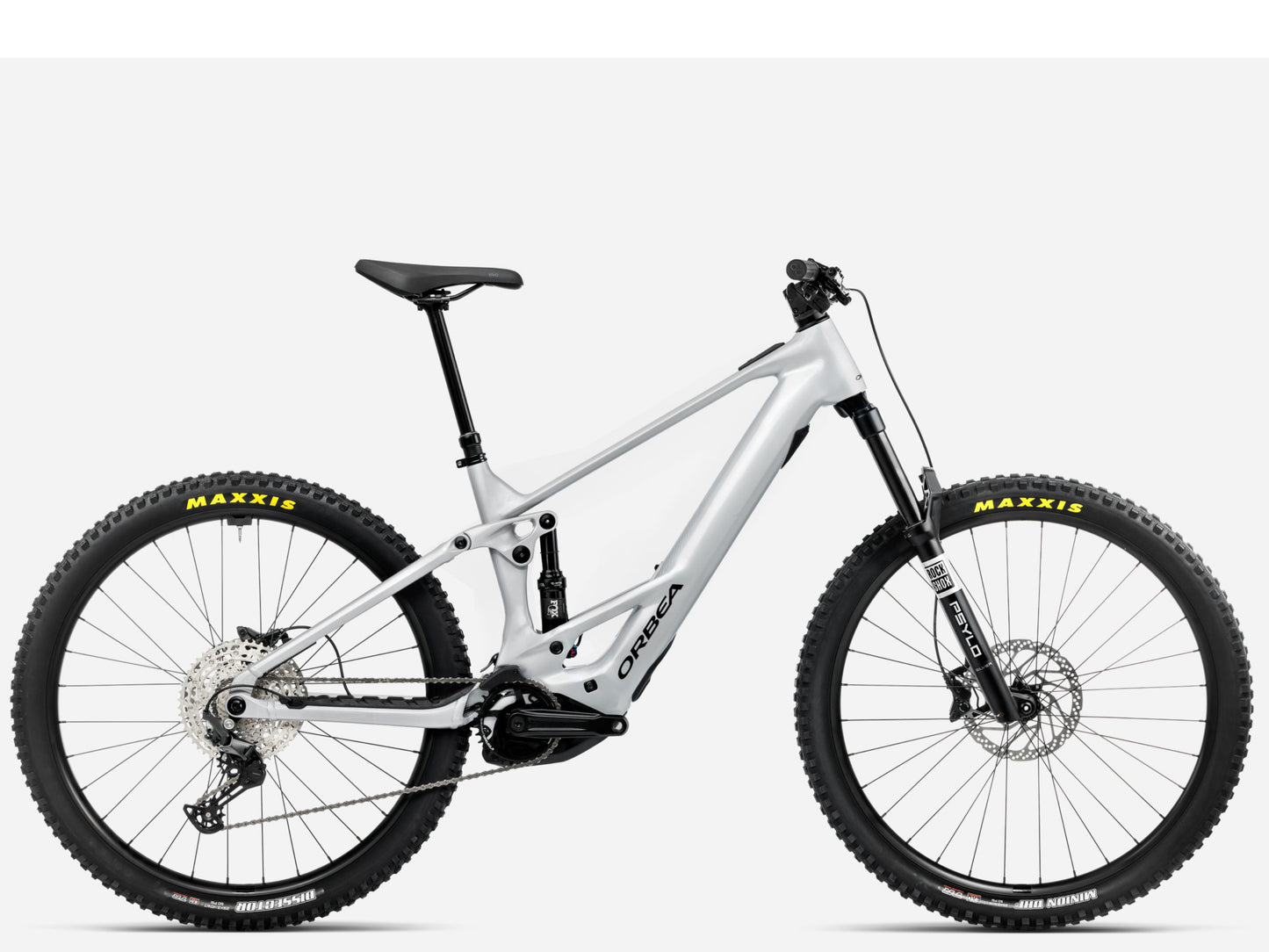

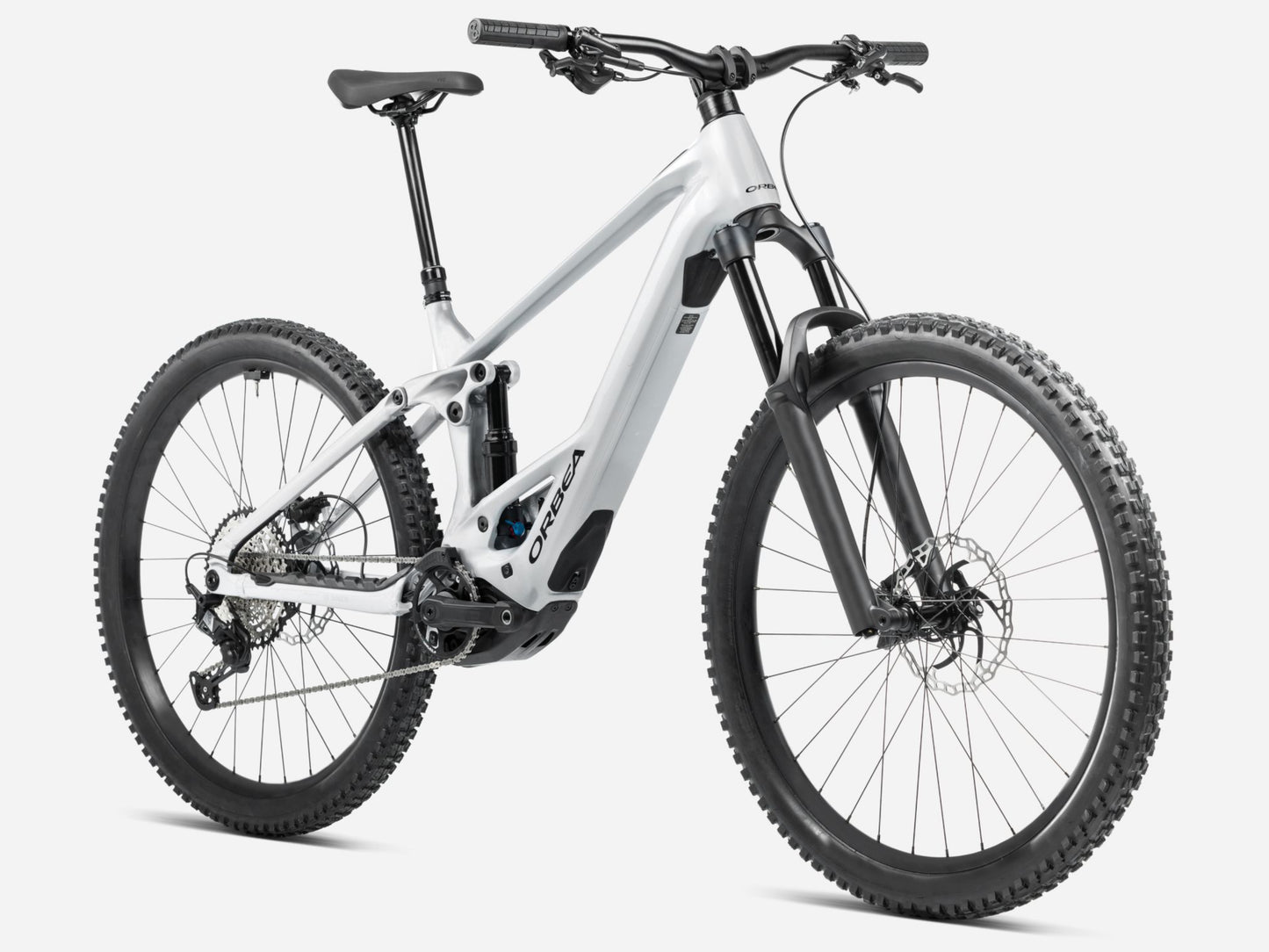

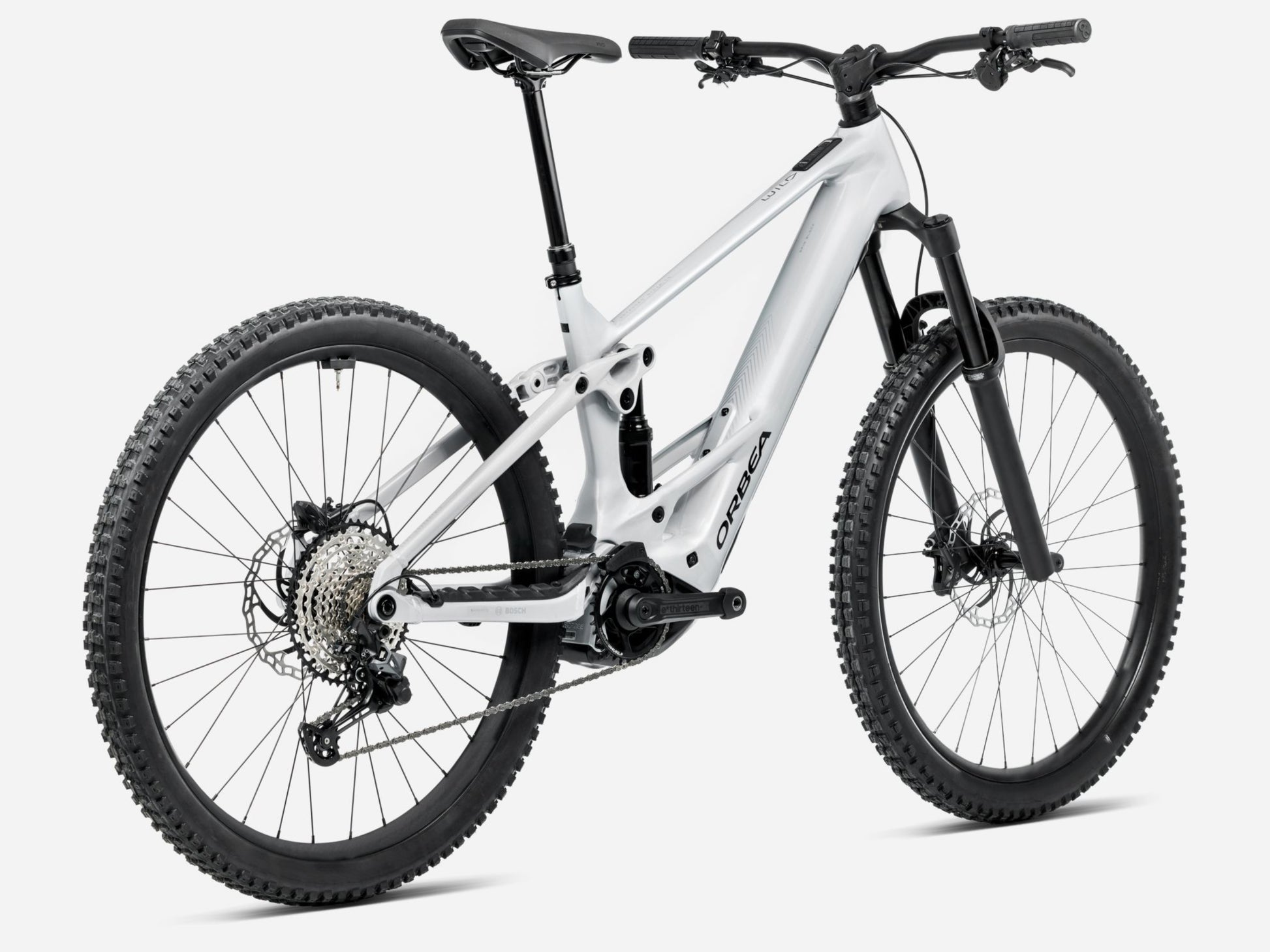

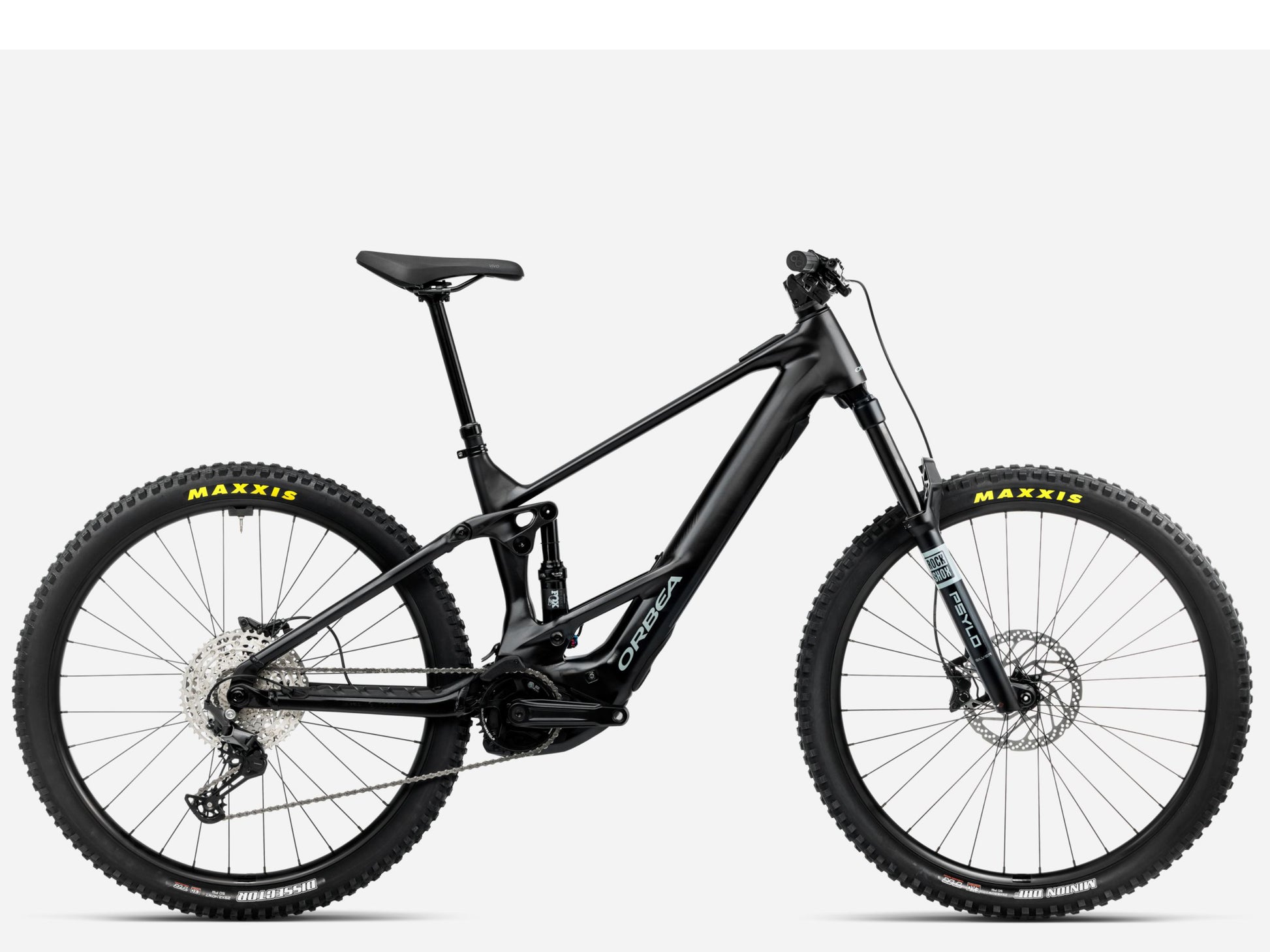

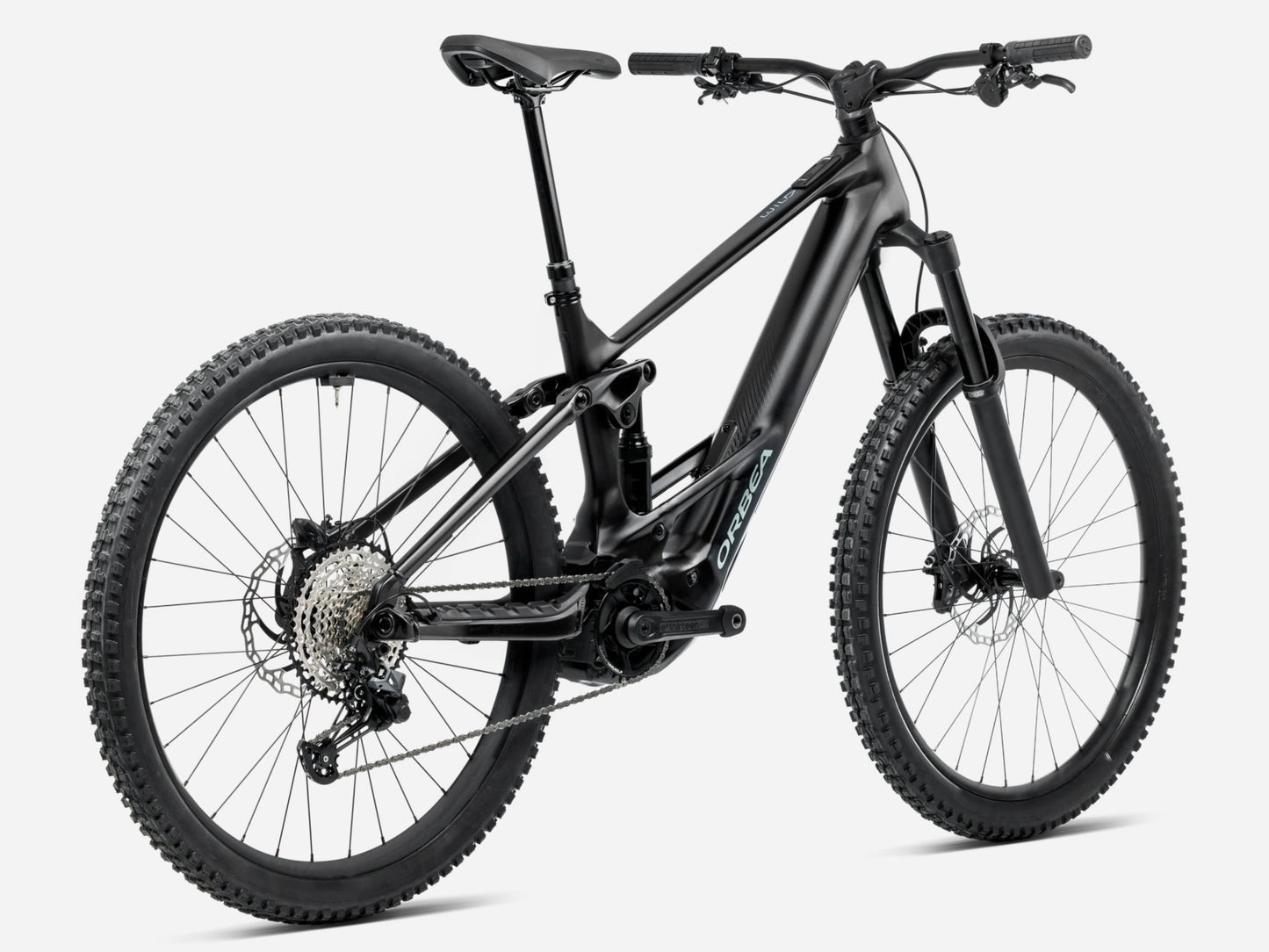

Orbea Wild ST H30
Orbea Wild ST H30
Couldn't load pickup availability
The Full Scoop on the Orbea Wild ST H30
It’s time to get moving. Load up your pack for an afternoon ride and start pedaling. Whatever obstacles exist between you and the trails and your special places, it’s time to run over them with your Orbea Wild ST H20. Conquer steep climbs and push the limits of traction and good judgment on the way back down. Enjoy clever design and sophisticated suspension kinematics, or simply focus on the trail. Orbea Wild ST H20 revitalizes your riding and helps you chart new destinations.
*Components subject to manufacturer change
| Motor | Bosch Performance Line CX BDU3840 |
| Battery | Bosch Powertube600Wh Horizontal BBP3865 |
| Display/Remote | Bosch System Controller BRC3100 / Bosch Mini Remote BRC3300 |
| Charger | Bosch Charger 2A (100-120V) |
| Frame | Orbea Wild Hydro, 29" wheels, Concentric Boost 12x148 |
| Fork | RockShox Psylo Silver RC 15x110 Boost |
| Rear Shock | Fox Float Performance Trunion 2-Pos Evol LV custom tune 205x57.5mm |
| Front Brake | Shimano MT420 Hydraulic Disc; 203mm |
| Rear Brake | Shimano MT420 Hydraulic Disc; 203mm |
| Rear Derailleur | Shimano SLX M6100 SGS Shadow Plus |
| Shift Levers | Shimano Deore M6100 I-Spec EV |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Crankset | Prowheel EB17 alloy |
| Chain Ring | Steel 32t |
| Chain Guard | Spec not provided |
| Rims | Alloy, Tubeless, 29", 29c, 32H |
| Front Hub | Spec not provided |
| Rear Hub | Spec not provided |
| Front Tire | Maxxis Minion |
| Rear Tire | Maxxis Dissector 2.40" 120 TPI 3C MaxxTerra Exo+ TLR |
| Handlebar | OC Mountain Control MC30, Rise20, Width 800 |
| Stem | OC Mountain Control MC20, 0º |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Grips | OC Lock On |
| Saddle | Selle Royal Vivo Sport Men 145 x 269mm |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
| FRAME SIZE | S | M | L | XL |
|---|---|---|---|---|
| 1 Seattube length | 415mm | 415mm | 435mm | 460mm |
| 2 Toptube length | 653mm | 586mm | 612mm | 639mm |
| 3 Headtube | 110mm | 120mm | 130mm | 140mm |
| 4 Chainstay length | 448mm | 448mm | 448mm | 448mm |
| 5 Bottom bracket height | 358mm | 358mm | 358mm | 358mm |
| 6 BB Drop | 22mm | 22mm | 22mm | 22mm |
| 7 Wheelbase | 1228mm | 1252mm | 1282mm | 1311mm |
| 8 Headtube angle | 63.5° | 63.5° | 63.5° | 63.5° |
| 9 Seat tube angle | 77.5° | 77.5° | 77.5° | 77.5° |
| 10 Standover | 730mm | 730mm | 730mm | 730mm |
| 11 Reach | 435mm | 455mm | 480mm | 505mm |
| 12 Stack | 625mm | 634mm | 643mm | 652mm |
| 13 Fork length | 585mm | 585mm | 585mm | 585mm |
| 14 Rake | 44mm | 44mm | 44mm | 44mm |
The Full Scoop on the Orbea Wild ST H30
Description
It’s time to get moving. Load up your pack for an afternoon ride and start pedaling. Whatever obstacles exist between you and the trails and your special places, it’s time to run over them with your Orbea Wild ST H20. Conquer steep climbs and push the limits of traction and good judgment on the way back down. Enjoy clever design and sophisticated suspension kinematics, or simply focus on the trail. Orbea Wild ST H20 revitalizes your riding and helps you chart new destinations.
*Components subject to manufacturer change
Motor System
| Motor | Bosch Performance Line CX BDU3840 |
| Battery | Bosch Powertube600Wh Horizontal BBP3865 |
| Display/Remote | Bosch System Controller BRC3100 / Bosch Mini Remote BRC3300 |
| Charger | Bosch Charger 2A (100-120V) |
Components
| Frame | Orbea Wild Hydro, 29" wheels, Concentric Boost 12x148 |
| Fork | RockShox Psylo Silver RC 15x110 Boost |
| Rear Shock | Fox Float Performance Trunion 2-Pos Evol LV custom tune 205x57.5mm |
| Front Brake | Shimano MT420 Hydraulic Disc; 203mm |
| Rear Brake | Shimano MT420 Hydraulic Disc; 203mm |
| Rear Derailleur | Shimano SLX M6100 SGS Shadow Plus |
| Shift Levers | Shimano Deore M6100 I-Spec EV |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Crankset | Prowheel EB17 alloy |
| Chain Ring | Steel 32t |
| Chain Guard | Spec not provided |
| Rims | Alloy, Tubeless, 29", 29c, 32H |
| Front Hub | Spec not provided |
| Rear Hub | Spec not provided |
| Front Tire | Maxxis Minion |
| Rear Tire | Maxxis Dissector 2.40" 120 TPI 3C MaxxTerra Exo+ TLR |
| Handlebar | OC Mountain Control MC30, Rise20, Width 800 |
| Stem | OC Mountain Control MC20, 0º |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Grips | OC Lock On |
| Saddle | Selle Royal Vivo Sport Men 145 x 269mm |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |

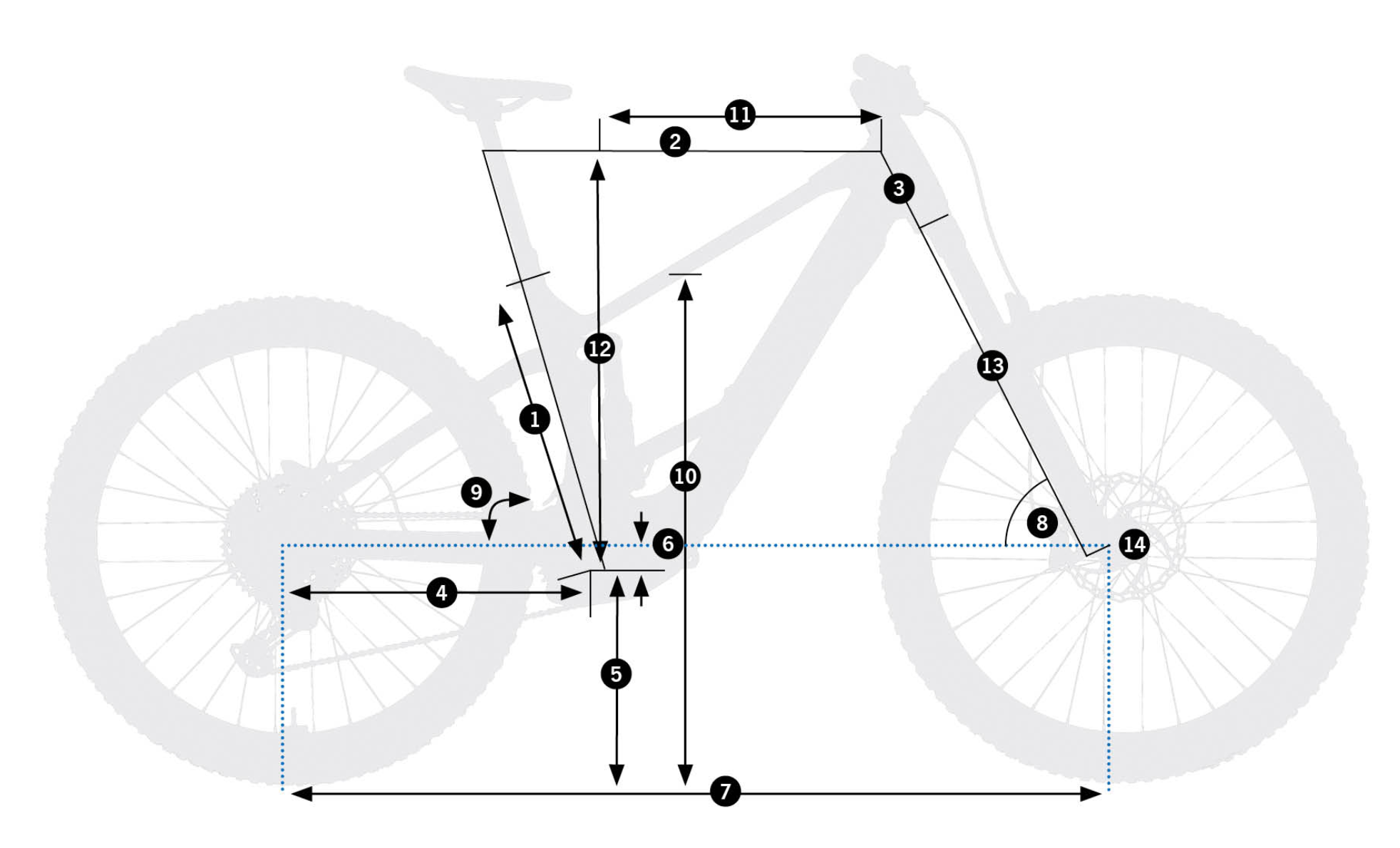

Geometry
| FRAME SIZE | S | M | L | XL |
|---|---|---|---|---|
| 1 Seattube length | 415mm | 415mm | 435mm | 460mm |
| 2 Toptube length | 653mm | 586mm | 612mm | 639mm |
| 3 Headtube | 110mm | 120mm | 130mm | 140mm |
| 4 Chainstay length | 448mm | 448mm | 448mm | 448mm |
| 5 Bottom bracket height | 358mm | 358mm | 358mm | 358mm |
| 6 BB Drop | 22mm | 22mm | 22mm | 22mm |
| 7 Wheelbase | 1228mm | 1252mm | 1282mm | 1311mm |
| 8 Headtube angle | 63.5° | 63.5° | 63.5° | 63.5° |
| 9 Seat tube angle | 77.5° | 77.5° | 77.5° | 77.5° |
| 10 Standover | 730mm | 730mm | 730mm | 730mm |
| 11 Reach | 435mm | 455mm | 480mm | 505mm |
| 12 Stack | 625mm | 634mm | 643mm | 652mm |
| 13 Fork length | 585mm | 585mm | 585mm | 585mm |
| 14 Rake | 44mm | 44mm | 44mm | 44mm |
