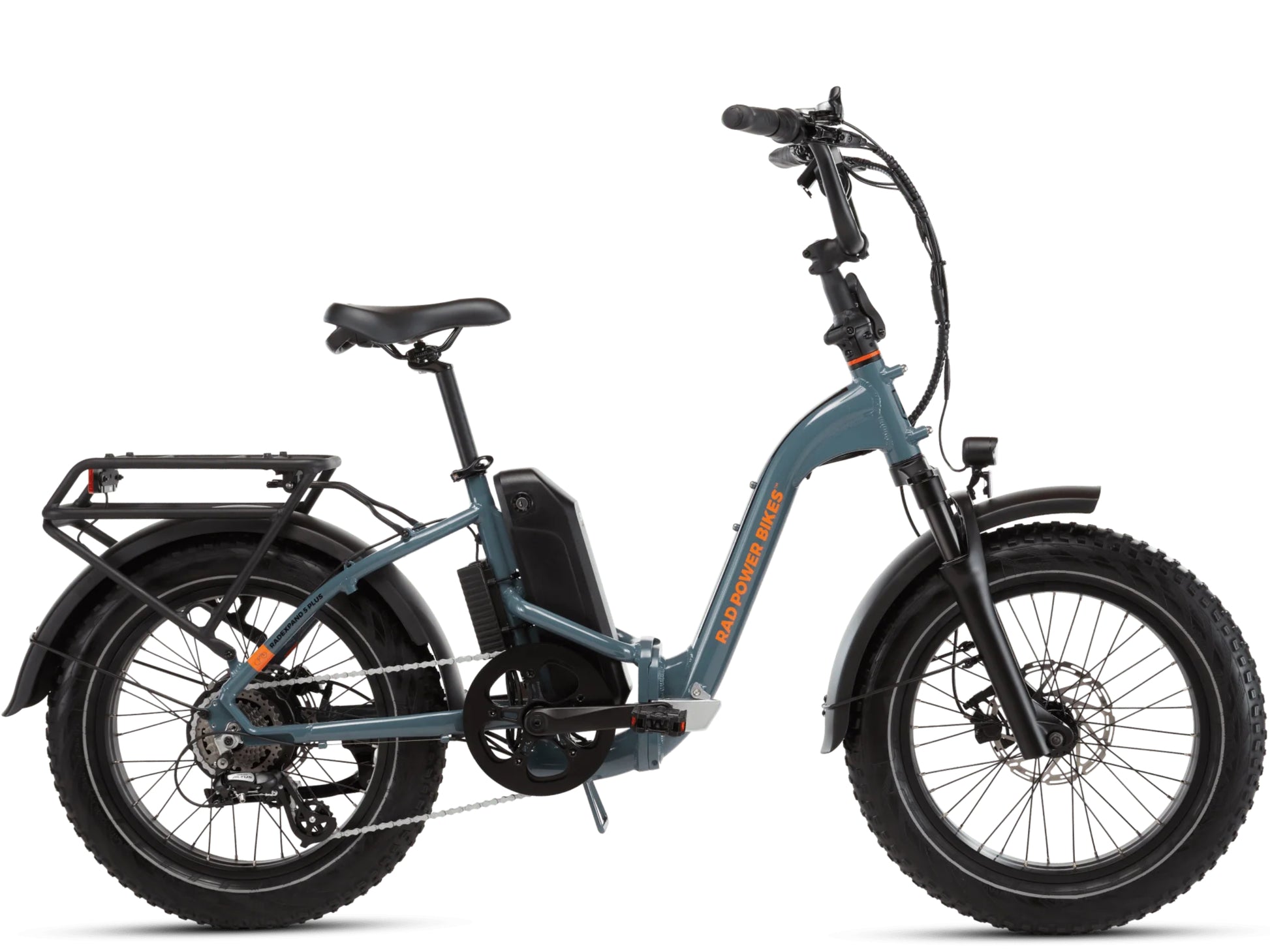

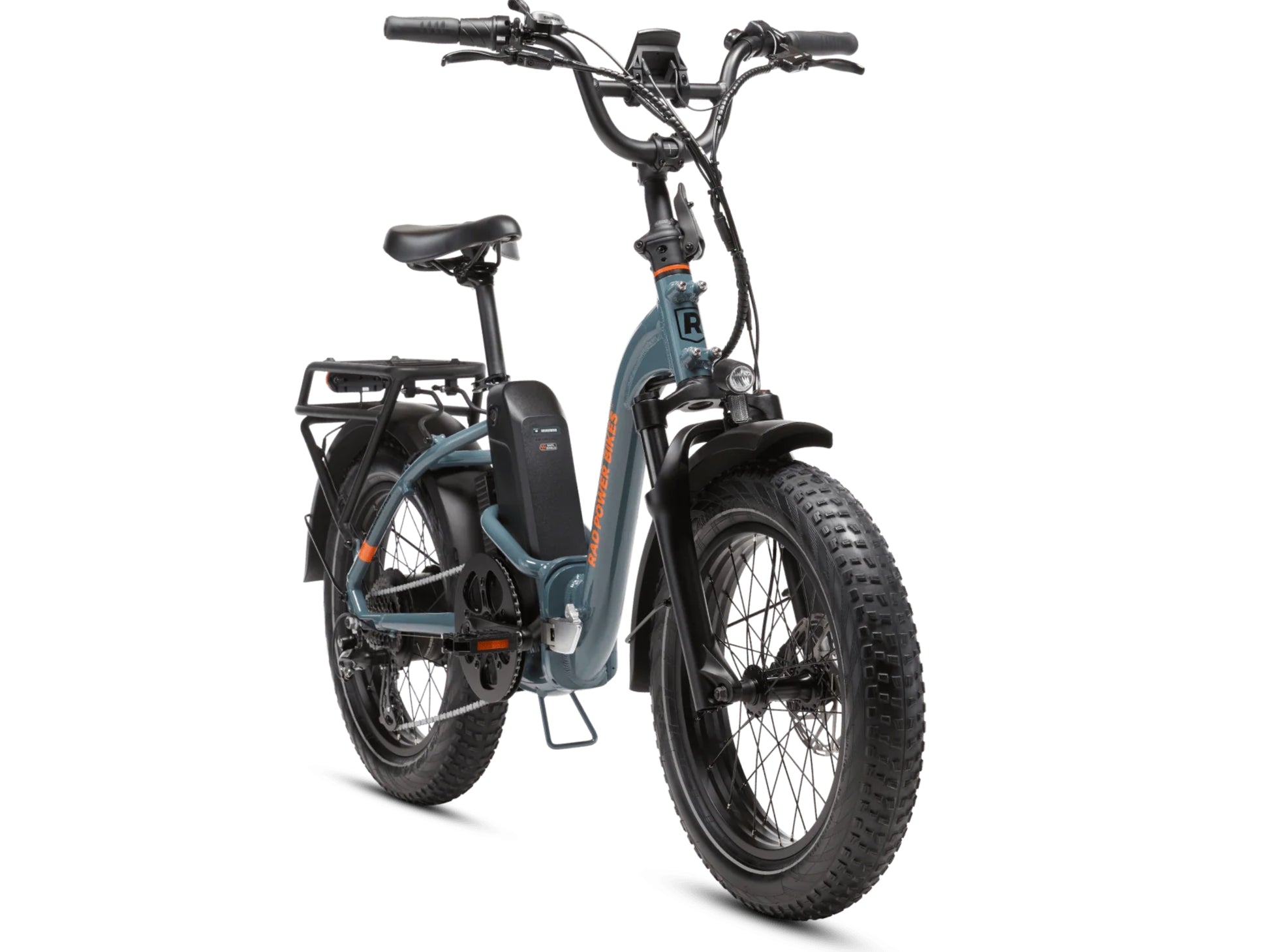

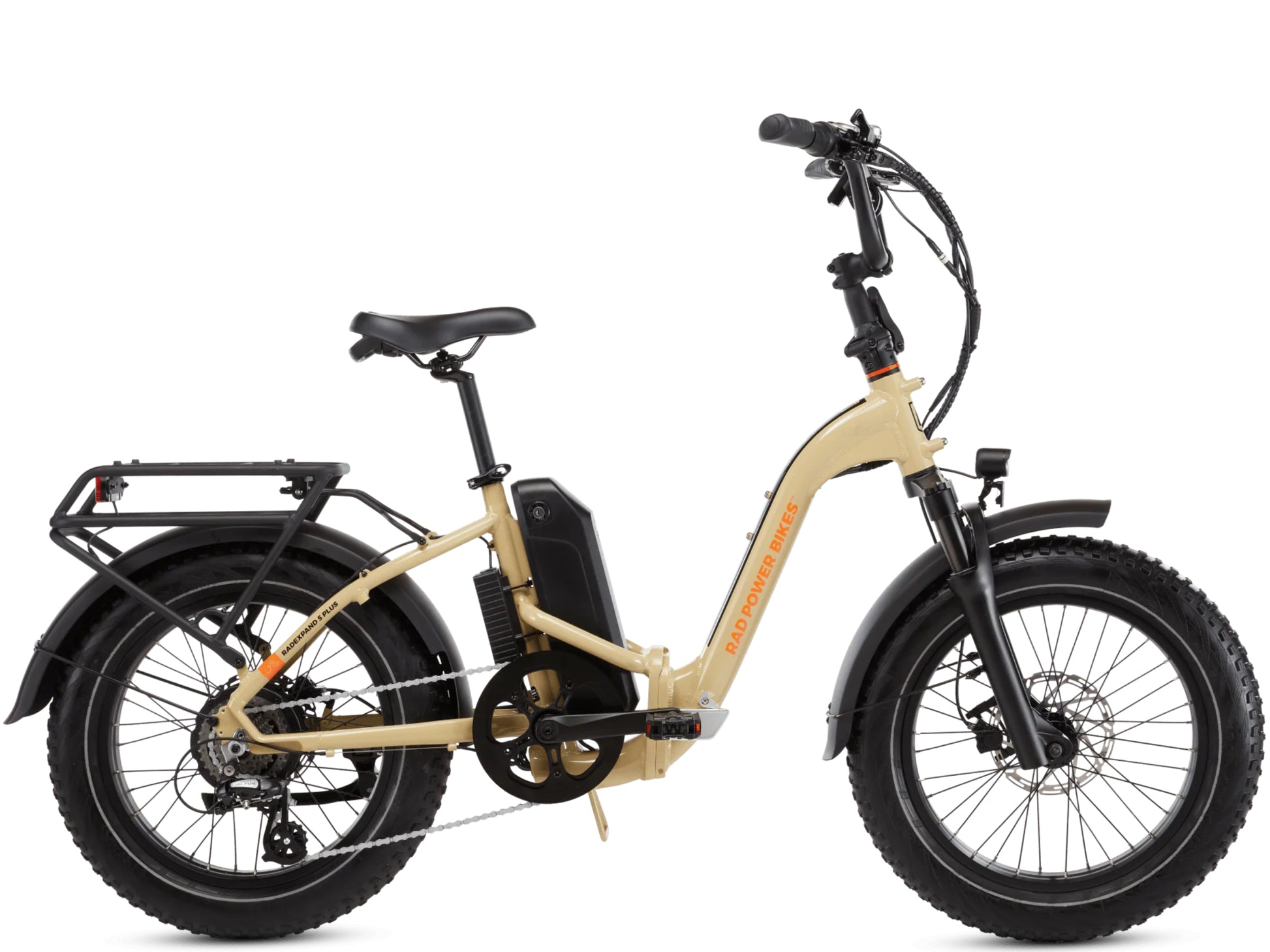

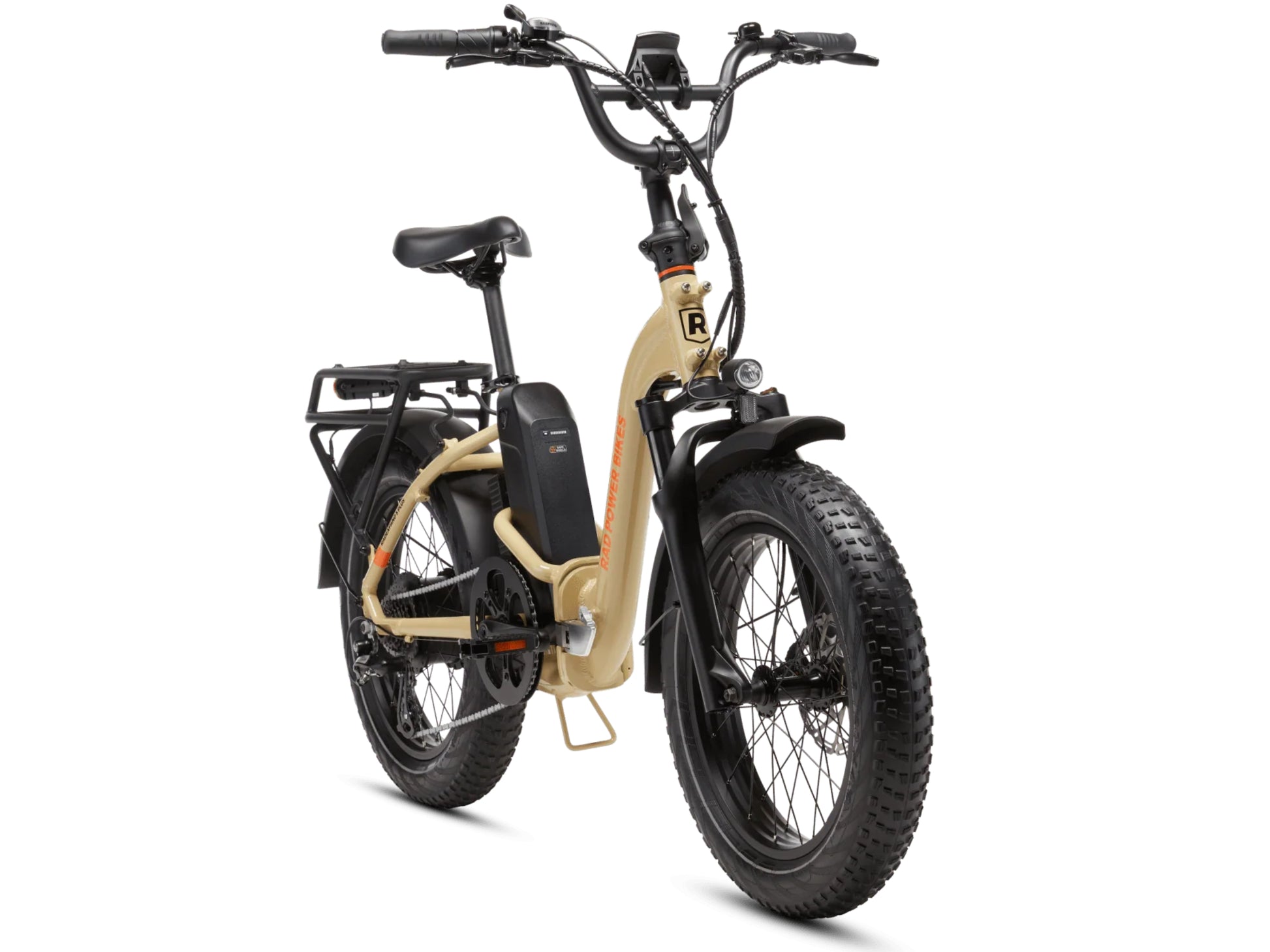

Rad Power RadExpand™ 5 Plus Electric Folding Bike
Rad Power RadExpand™ 5 Plus Electric Folding Bike
Regular price
$1,899.00
Sale price
$1,899.00
Regular price
Unit price
per
Shipping calculated at checkout.
The Full Scoop on RadExpand™ 5 Plus Electric Folding Bike
The RadExpand 5 Plus has been enhanced with all-new tech, impressive range, and a collection of features that make it more comfortable, capable, and unique. Tackle tougher terrain with a hydraulic front suspension fork, and enjoy smoother rides wherever you wander with the all-new torque sensor that responds to the way you ride.
| Motor | Rear hub 750W 64 Nm torque Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions |
| Throttle | Half-twist grip throttle |
| Battery | 15Ah 720 Wh 15Ah Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL certified to UL-2271 |
| Display | Rad custom color display |
| Charger | 48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets |
| Frame | Aluminum |
| Fork | Exsho STRONG-C hydraulic suspension fork, 50mm travel, bolt-on axle |
| Rear Shock | Not applicable |
| Front Brake | Hydraulic Disc, Gemma GA-1000B, 180mm rotors |
| Rear Brake | Hydraulic Disc, Gemma GA-1000B, 180mm rotors |
| Rear Derailleur | 7-Speed Shimano |
| Shift Levers | Shimano 7-speed thumb shifter |
| Chain | Spec not provided |
| Cassette | 7-speed freewheel, 14-32T |
| Crankset | 48T with dual-sided chainring guard, 170 mm crank arms |
| Chain Ring | 32 tooth |
| Chain Guard | Included |
| Rims | Spec not provided |
| Front Hub | Not applicable |
| Rear Hub | Not applicable |
| Front Tire | CST BFT 20" x 4.0", e-bike rated with puncture-resistant liner and reflective strip |
| Rear Tire | CST BFT 20" x 4.0", e-bike rated with puncture-resistant liner and reflective strip |
| Handlebar | Aluminum, 680 mm wide |
| Stem | Folding stem raiser with 45mm A-Head stem |
| Headset | Spec not provided |
| Grips | Ergonomic rubber comfort grips |
| Saddle | Padded flat touring saddle with shallow anatomic cut-out, wide contoured sides |
| Seatpost | 390 mm x 27.2 mm |
| Pedals | Composite platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading, folding |
| Front Light | ~50 lumens LED headlight with built-in reflector |
| Rear Light | Integrated taillight with brake light |
| Kickstand | Side-mounted, adjustable angle kickstand |
| Rear Carrier | Integrated, 59 lb (27 kg) carrying capacity |
| Fenders | Full-coverage front and rear |
| Bell | Included |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on RadExpand™ 5 Plus Electric Folding Bike
The RadExpand 5 Plus has been enhanced with all-new tech, impressive range, and a collection of features that make it more comfortable, capable, and unique. Tackle tougher terrain with a hydraulic front suspension fork, and enjoy smoother rides wherever you wander with the all-new torque sensor that responds to the way you ride.
Motor System
| Motor | Rear hub 750W 64 Nm torque Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions |
| Throttle | Half-twist grip throttle |
| Battery | 15Ah 720 Wh 15Ah Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL certified to UL-2271 |

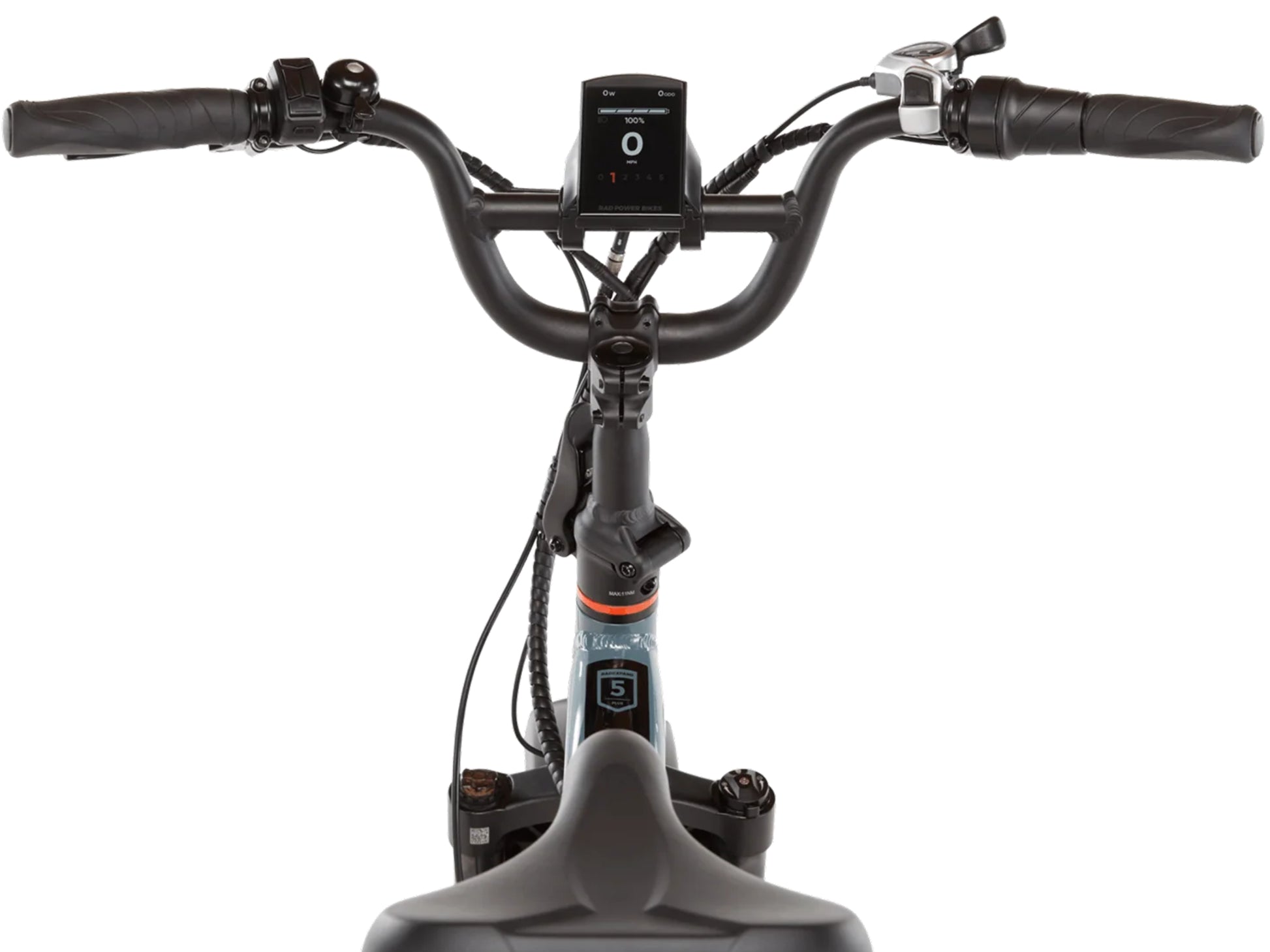

| Display | Rad custom color display |
| Charger | 48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets |
Components
| Frame | Aluminum |
| Fork | Exsho STRONG-C hydraulic suspension fork, 50mm travel, bolt-on axle |
| Rear Shock | Not applicable |
| Front Brake | Hydraulic Disc, Gemma GA-1000B, 180mm rotors |
| Rear Brake | Hydraulic Disc, Gemma GA-1000B, 180mm rotors |
| Rear Derailleur | 7-Speed Shimano |
| Shift Levers | Shimano 7-speed thumb shifter |
| Chain | Spec not provided |
| Cassette | 7-speed freewheel, 14-32T |
| Crankset | 48T with dual-sided chainring guard, 170 mm crank arms |
| Chain Ring | 32 tooth |
| Chain Guard | Included |
| Rims | Spec not provided |
| Front Hub | Not applicable |
| Rear Hub | Not applicable |
| Front Tire | CST BFT 20" x 4.0", e-bike rated with puncture-resistant liner and reflective strip |
| Rear Tire | CST BFT 20" x 4.0", e-bike rated with puncture-resistant liner and reflective strip |
| Handlebar | Aluminum, 680 mm wide |
| Stem | Folding stem raiser with 45mm A-Head stem |
| Headset | Spec not provided |
| Grips | Ergonomic rubber comfort grips |
| Saddle | Padded flat touring saddle with shallow anatomic cut-out, wide contoured sides |
| Seatpost | 390 mm x 27.2 mm |
Extras
| Pedals | Composite platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading, folding |

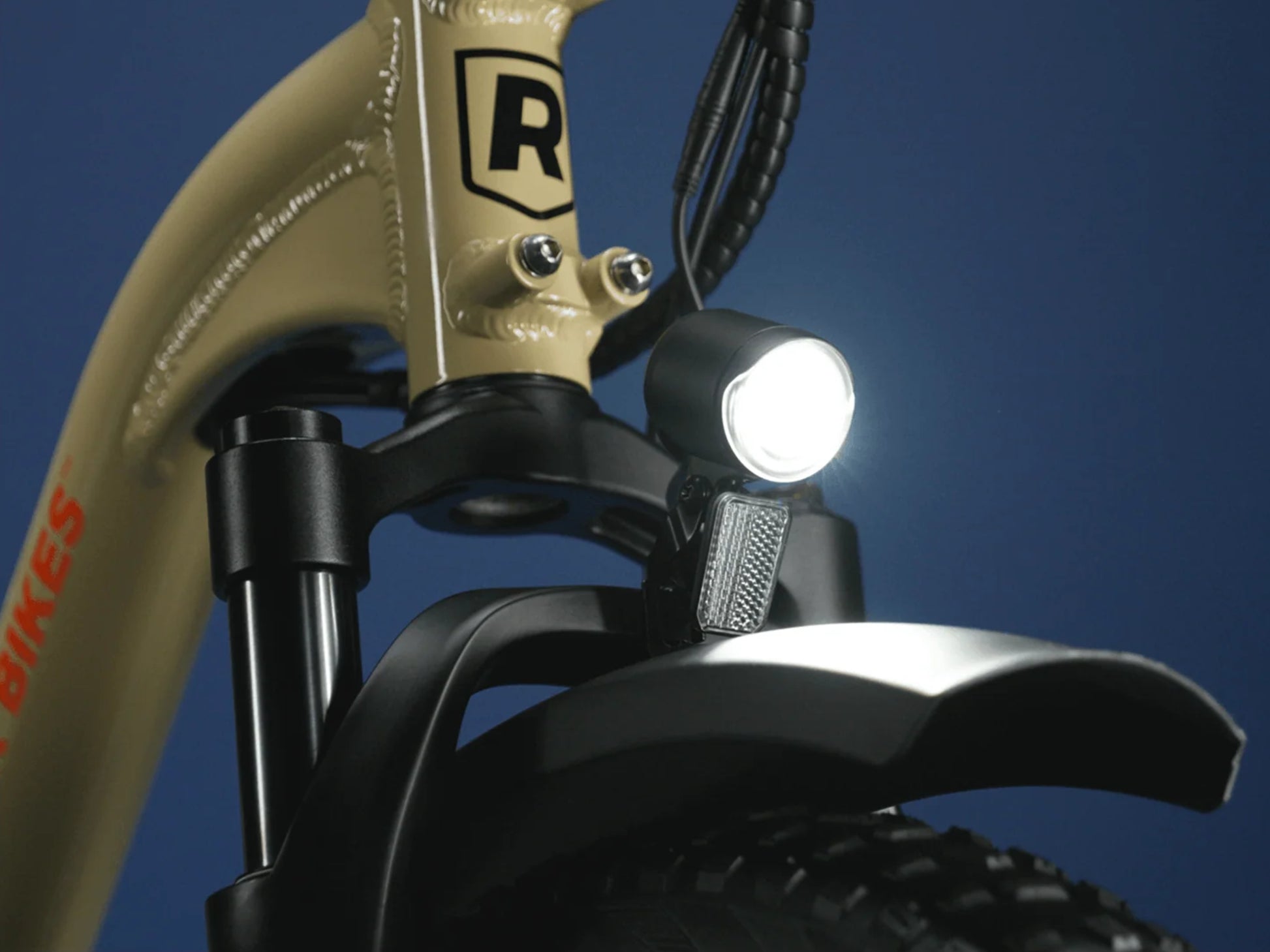

| Front Light | ~50 lumens LED headlight with built-in reflector |

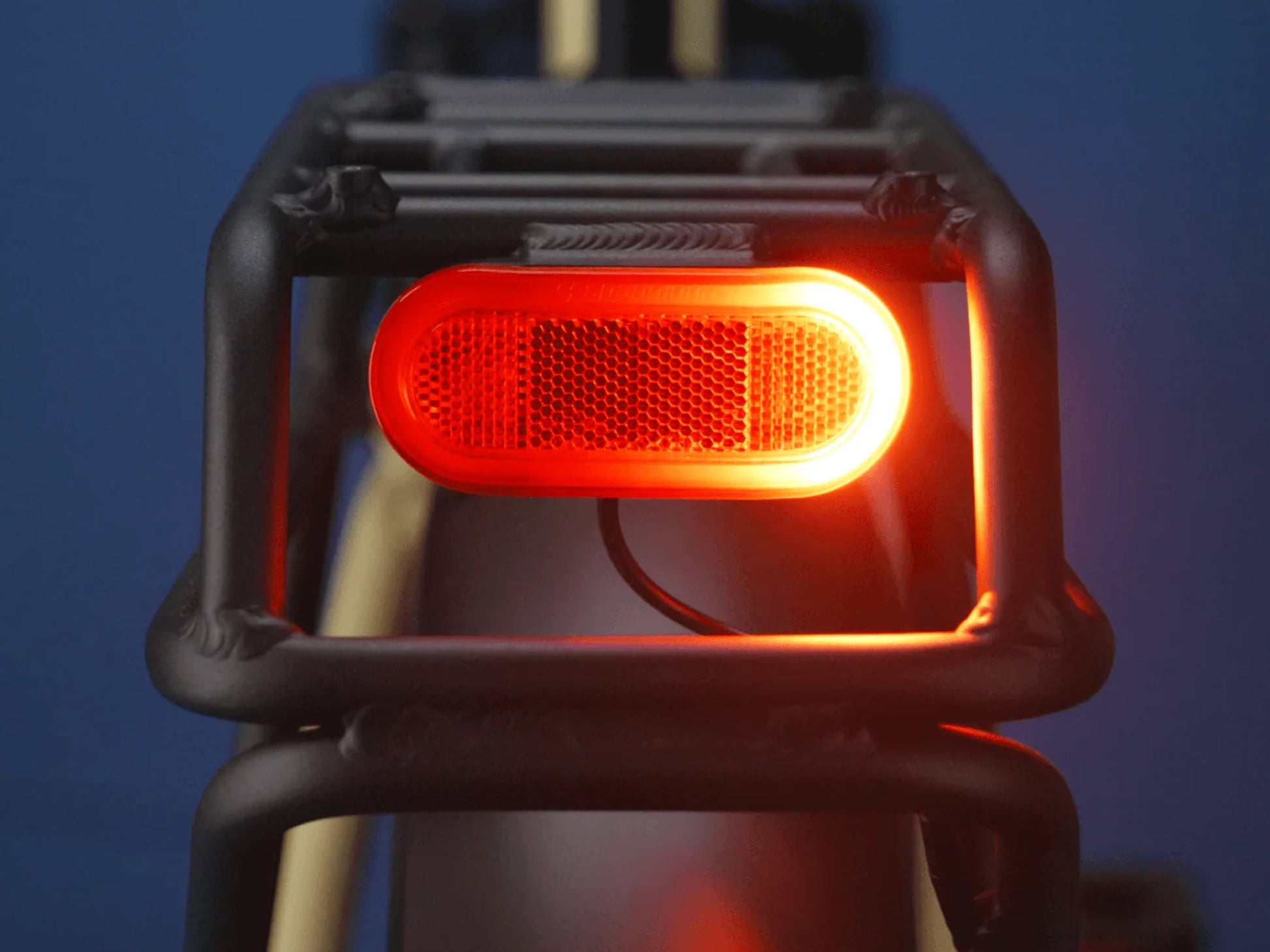

| Rear Light | Integrated taillight with brake light |
| Kickstand | Side-mounted, adjustable angle kickstand |
| Rear Carrier | Integrated, 59 lb (27 kg) carrying capacity |
| Fenders | Full-coverage front and rear |
| Bell | Included |
| Lock | Not applicable |
| Mirror | Not applicable |

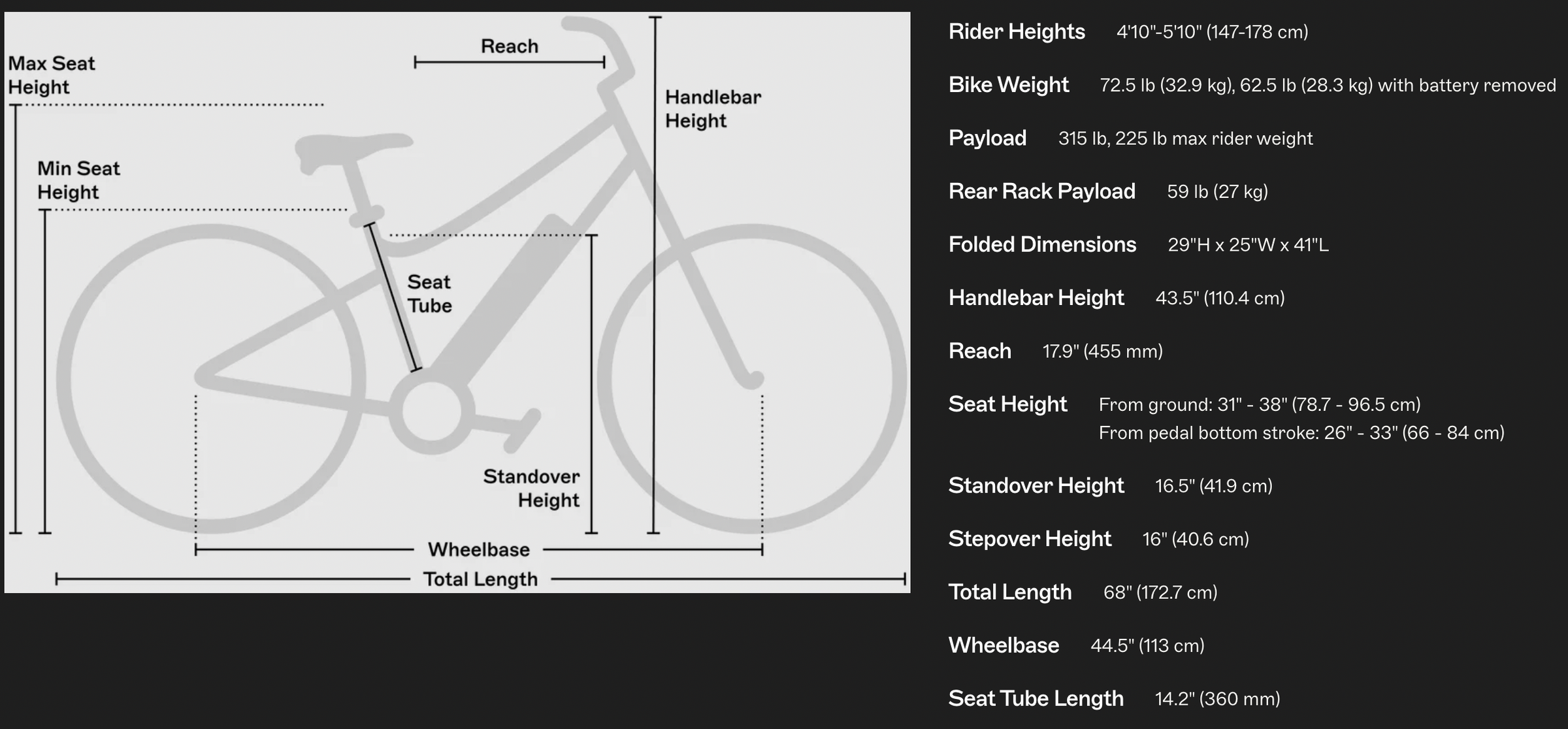

Geometry
