Rad Power RadWagon™ 5 Electric Cargo Bike
Rad Power RadWagon™ 5 Electric Cargo Bike
Regular price
$2,399.00
Sale price
$2,399.00
Regular price
Unit price
per
Shipping calculated at checkout.
The Full Scoop on Rad Power RadWagon™ 5 Electric Cargo Bike
The RadWagon 5 provides a condensed frame for better handling, a plethora of advanced safety features, and more carrying capacity than ever before. But it’s not just better for kids and cargo — it's been revamped to help riders from 4'11" to 6'3" find their fun.
| Motor | Rear hub 750W, 90 Nm Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions. |
| Throttle | Half-twist grip throttle |
| Battery | 15Ah 720 Wh Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL Certified to UL-2271 |
| Display | Rad custom color display |
| Charger | 48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets |
| Frame | Aluminum |
| Fork | RST Guide suspension fork, 45mm travel, tapered steerer tube, thru axle |
| Rear Shock | Not applicable |
| Front Brake | Tektro Hydraulic Disc HD-E395,180mm x 2.3mm |
| Rear Brake | Tektro Hydraulic Disc HD-E395,180mm x 2.3mm |
| Rear Derailleur | 7-speed Shimano |
| Shift Levers | Shimano thumb shifter, 7-speed |
| Chain | Spec not provided |
| Cassette | 7-speed freewheel, 11-34T |
| Crankset | 50T with dual sided chain ring cover, 170mm crank arms |
| Chain Ring | 34 tooth |
| Chain Guard | Included |
| Rims | Spec not provided |
| Front Hub | Not applicable |
| Rear Hub | Not applicable |
| Front Tire | Kenda 20" x 3.3" |
| Rear Tire | Kenda 20" x 3.3" |
| Handlebar | Aluminum, 680 mm wide |
| Stem | 35mm A-head |
| Headset | Spec not provided |
| Grips | Comfort rubber comfort grips |
| Saddle | Padded flat touring saddle with shallow anatomic cut-out, wide contoured sides |
| Seatpost | 390 mm x 27.2 mm |
| Pedals | Composite platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading |
| Front Light | 450 lumens LED headlight with built-in reflector) |
| Rear Light | Integrated taillight with brake light and turn signals |
| Kickstand | Dual leg center stand, spring loaded, steel |
| Rear Carrier | Integrated, 120 lb (54 kg) carrying capacity |
| Fenders | Full coverage front and rear, plus integrated wheel cover |
| Bell | Included |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on Rad Power RadWagon™ 5 Electric Cargo Bike
The RadWagon 5 provides a condensed frame for better handling, a plethora of advanced safety features, and more carrying capacity than ever before. But it’s not just better for kids and cargo — it's been revamped to help riders from 4'11" to 6'3" find their fun.
Motor System
| Motor | Rear hub 750W, 90 Nm Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions. |
| Throttle | Half-twist grip throttle |
| Battery | 15Ah 720 Wh Safe Shield Advanced External Battery, Samsung 50GB or LG M50LT cells, UL Certified to UL-2271 |
| Display | Rad custom color display |
| Charger | 48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets |
Components
| Frame | Aluminum |
| Fork | RST Guide suspension fork, 45mm travel, tapered steerer tube, thru axle |
| Rear Shock | Not applicable |
| Front Brake | Tektro Hydraulic Disc HD-E395,180mm x 2.3mm |
| Rear Brake | Tektro Hydraulic Disc HD-E395,180mm x 2.3mm |
| Rear Derailleur | 7-speed Shimano |
| Shift Levers | Shimano thumb shifter, 7-speed |
| Chain | Spec not provided |
| Cassette | 7-speed freewheel, 11-34T |
| Crankset | 50T with dual sided chain ring cover, 170mm crank arms |
| Chain Ring | 34 tooth |
| Chain Guard | Included |
| Rims | Spec not provided |
| Front Hub | Not applicable |
| Rear Hub | Not applicable |
| Front Tire | Kenda 20" x 3.3" |
| Rear Tire | Kenda 20" x 3.3" |
| Handlebar | Aluminum, 680 mm wide |
| Stem | 35mm A-head |
| Headset | Spec not provided |
| Grips | Comfort rubber comfort grips |
| Saddle | Padded flat touring saddle with shallow anatomic cut-out, wide contoured sides |
| Seatpost | 390 mm x 27.2 mm |
Extras
| Pedals | Composite platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading |

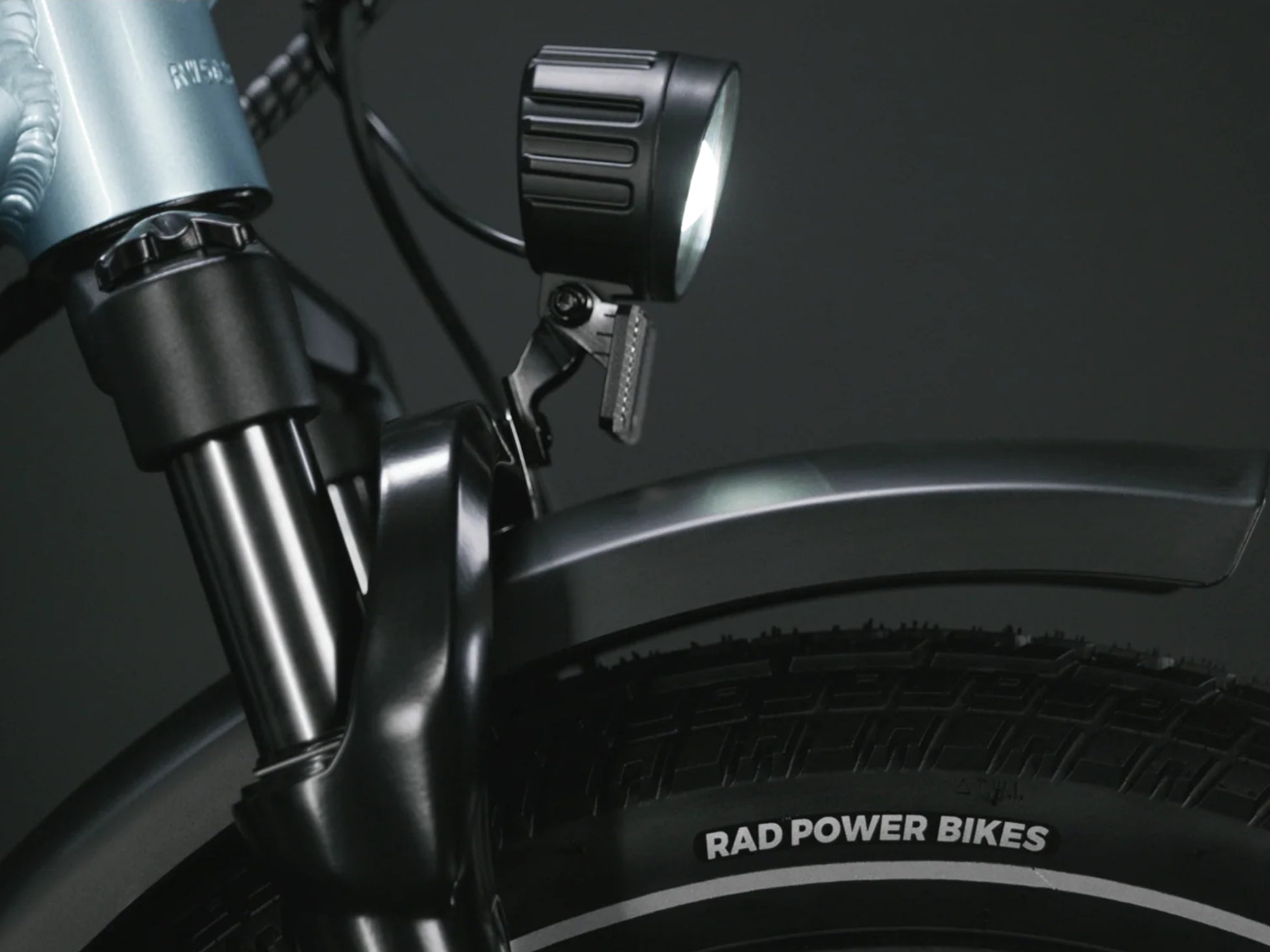

| Front Light | 450 lumens LED headlight with built-in reflector) |
| Rear Light | Integrated taillight with brake light and turn signals |
| Kickstand | Dual leg center stand, spring loaded, steel |
| Rear Carrier | Integrated, 120 lb (54 kg) carrying capacity |
| Fenders | Full coverage front and rear, plus integrated wheel cover |
| Bell | Included |
| Lock | Not applicable |
| Mirror | Not applicable |

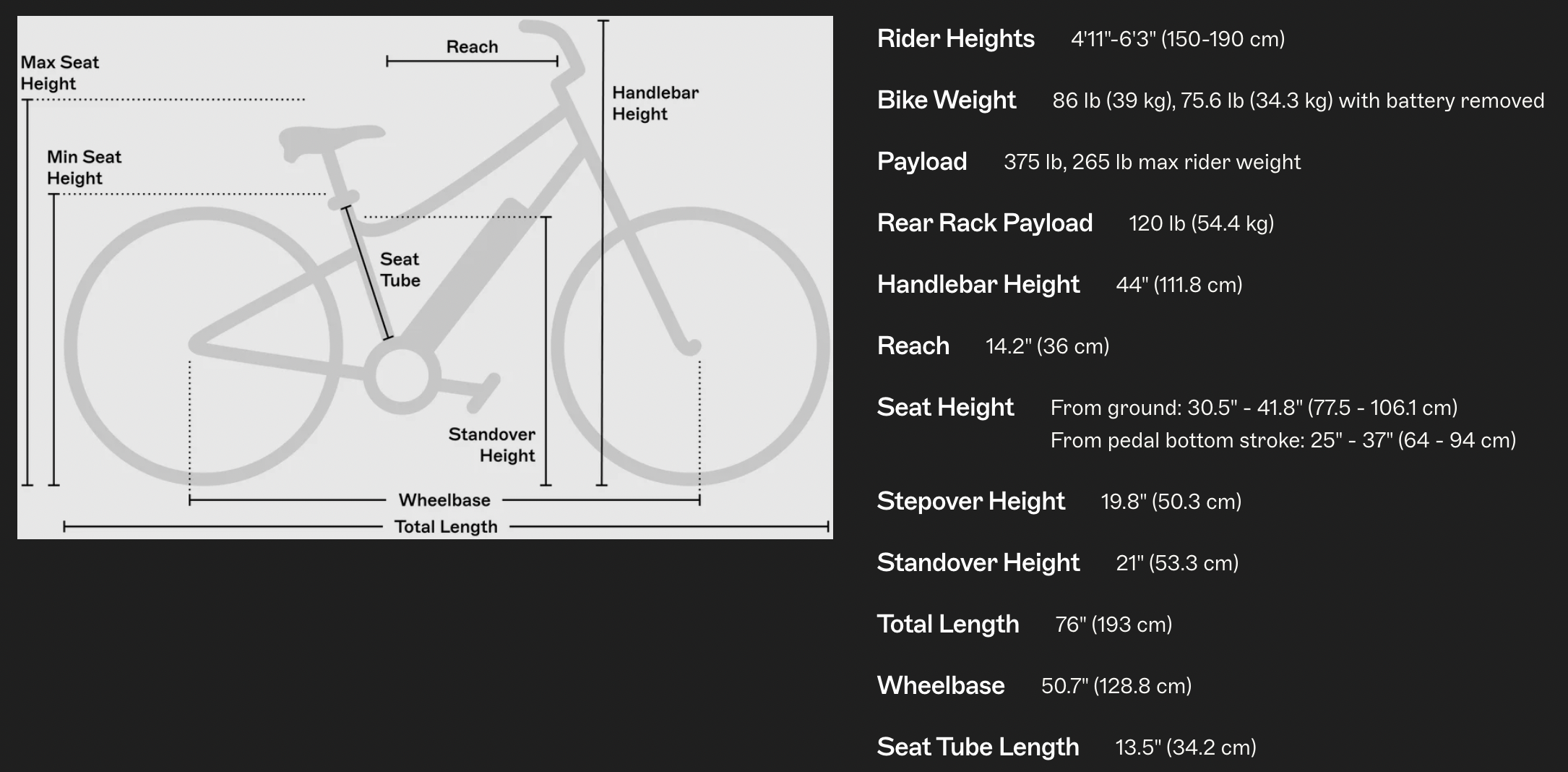

Geometry
