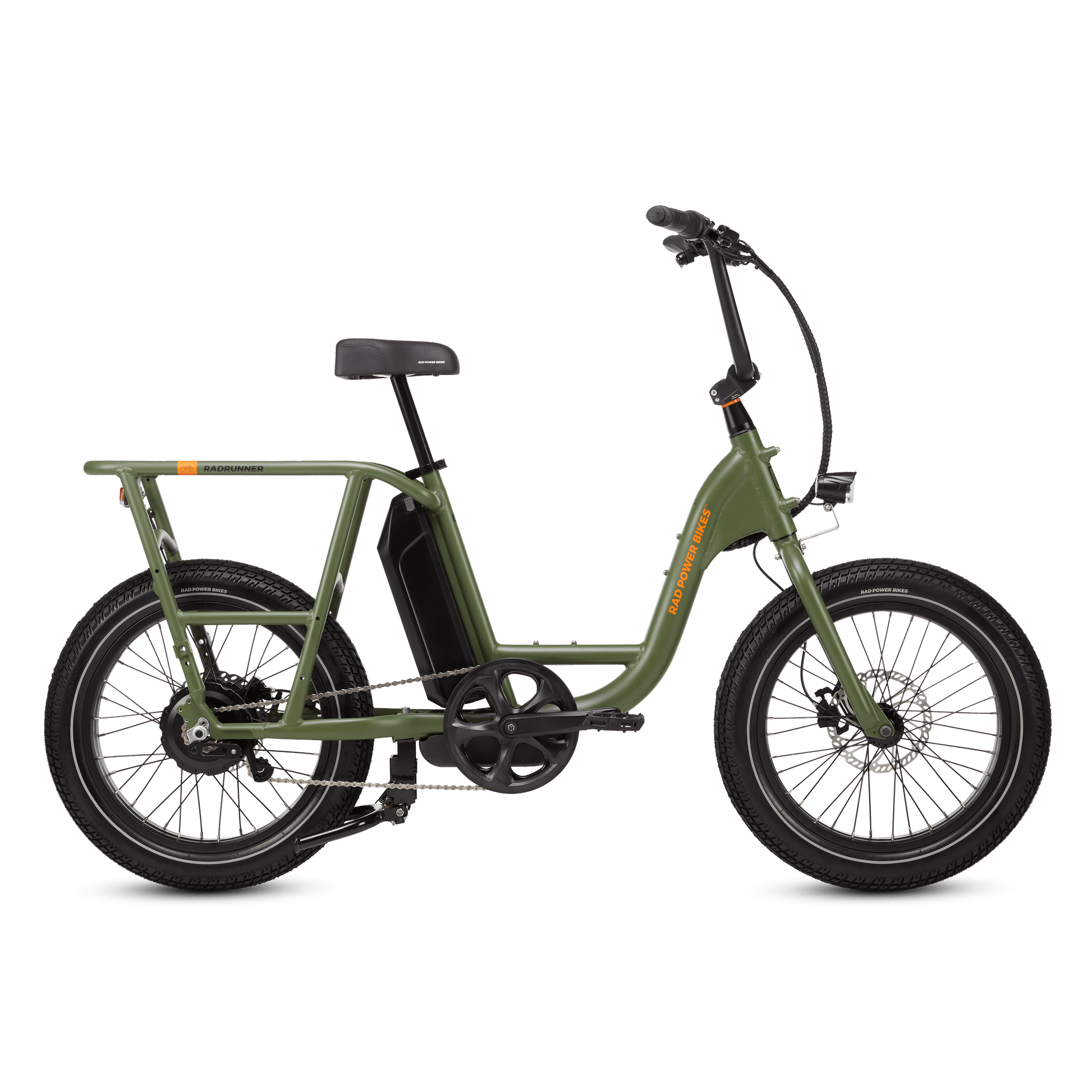

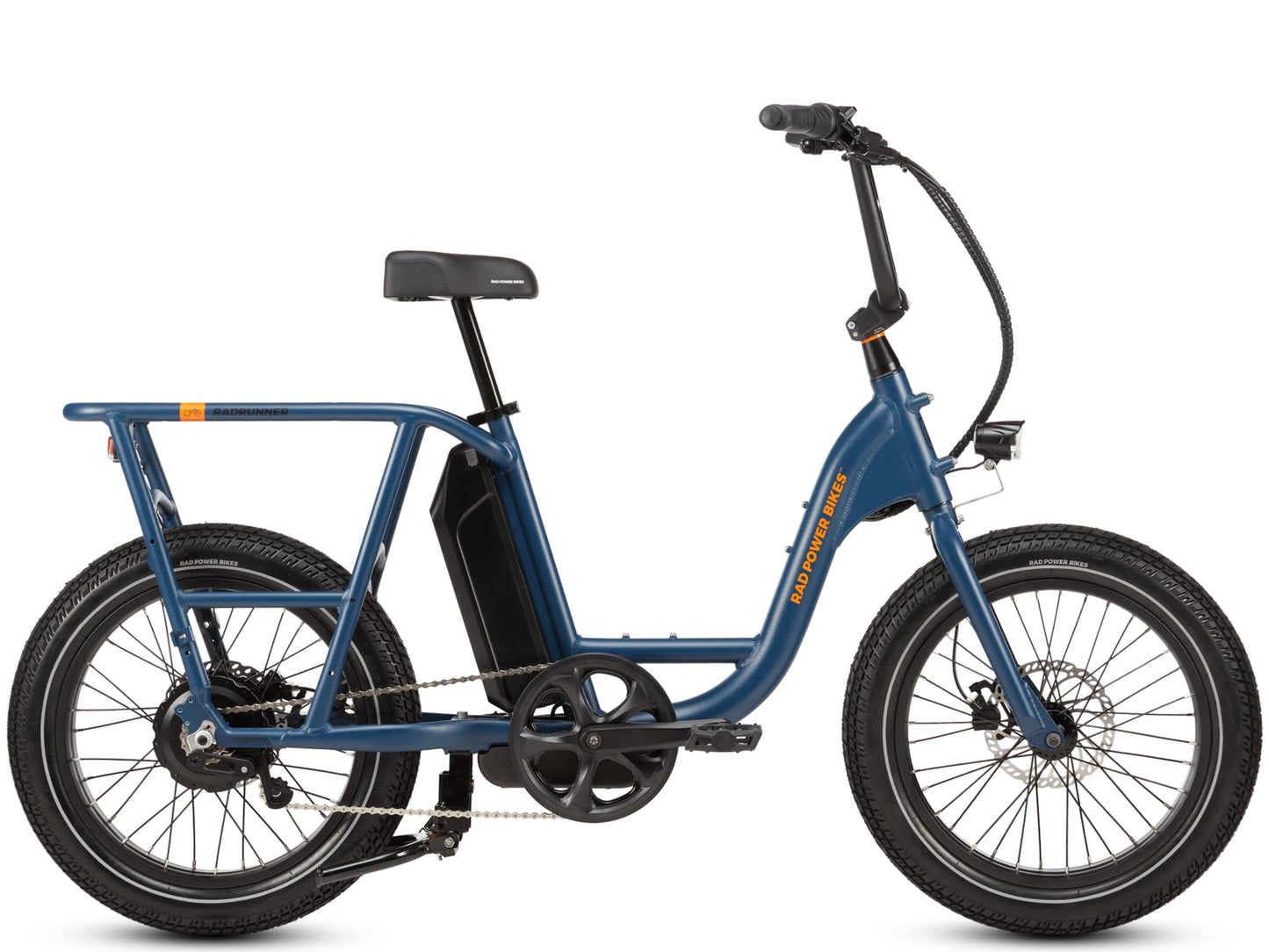

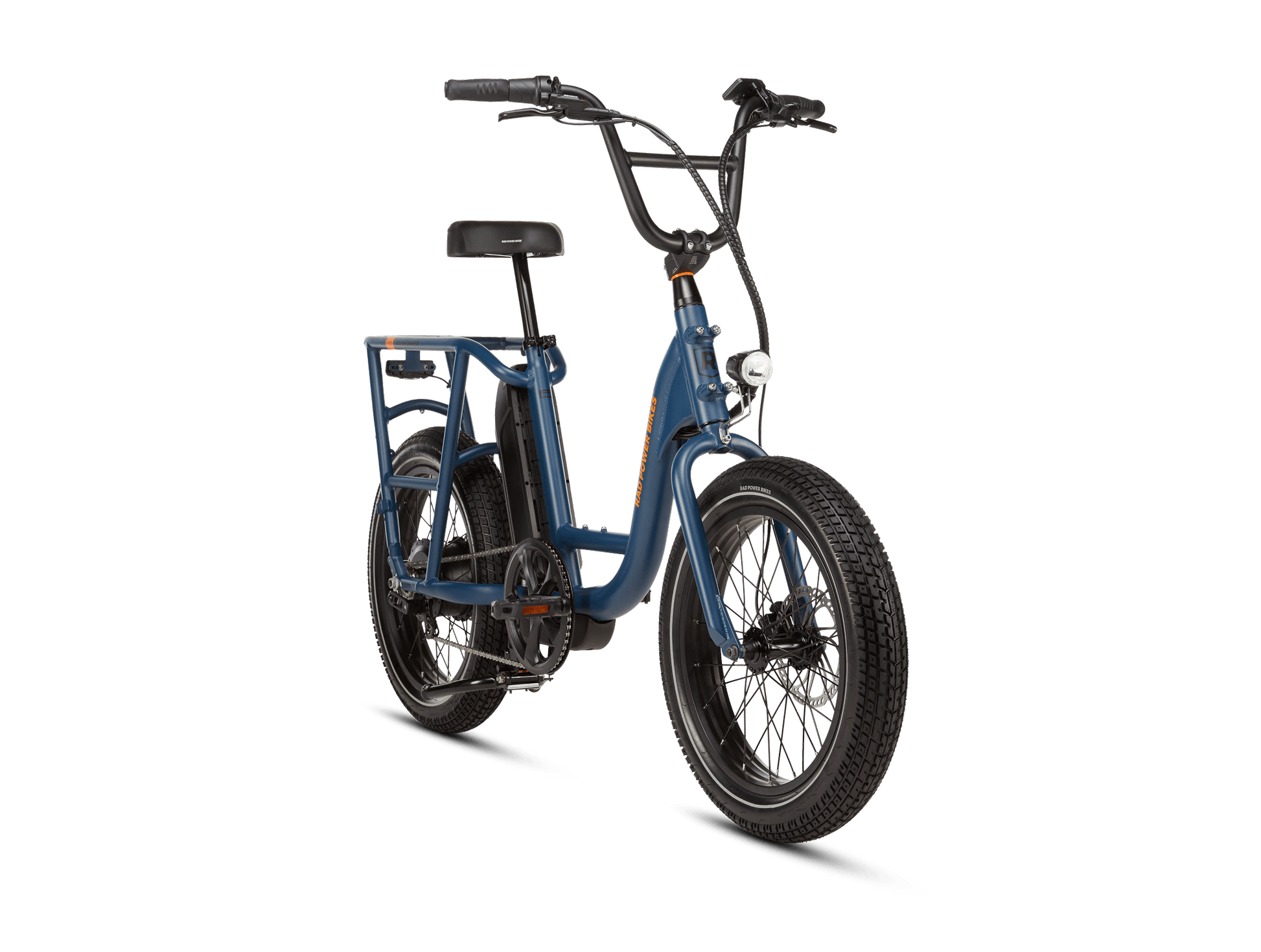

Rad Power RadRunner™ Electric Cargo Utility Bike
Rad Power RadRunner™ Electric Cargo Utility Bike
The Full Scoop on RadRunner™ Electric Cargo Utility Bike
Our enhanced electric cargo bike makes errands unexpectedly enjoyable. Thanks to extended range, silky hydraulic disc brakes, and rugged all-terrain tires, it’s built to handle anything. Conquer hills with ease while the Safe Shield Battery, passcode security, and a hefty 320 lb. capacity turn it into a true powerhouse you’ll love to ride.
Range: Up to 55 miles
Payload: 320 lb. (275 lb. max rider)
Top speed: Class 1 & 2: Up to 20 mph

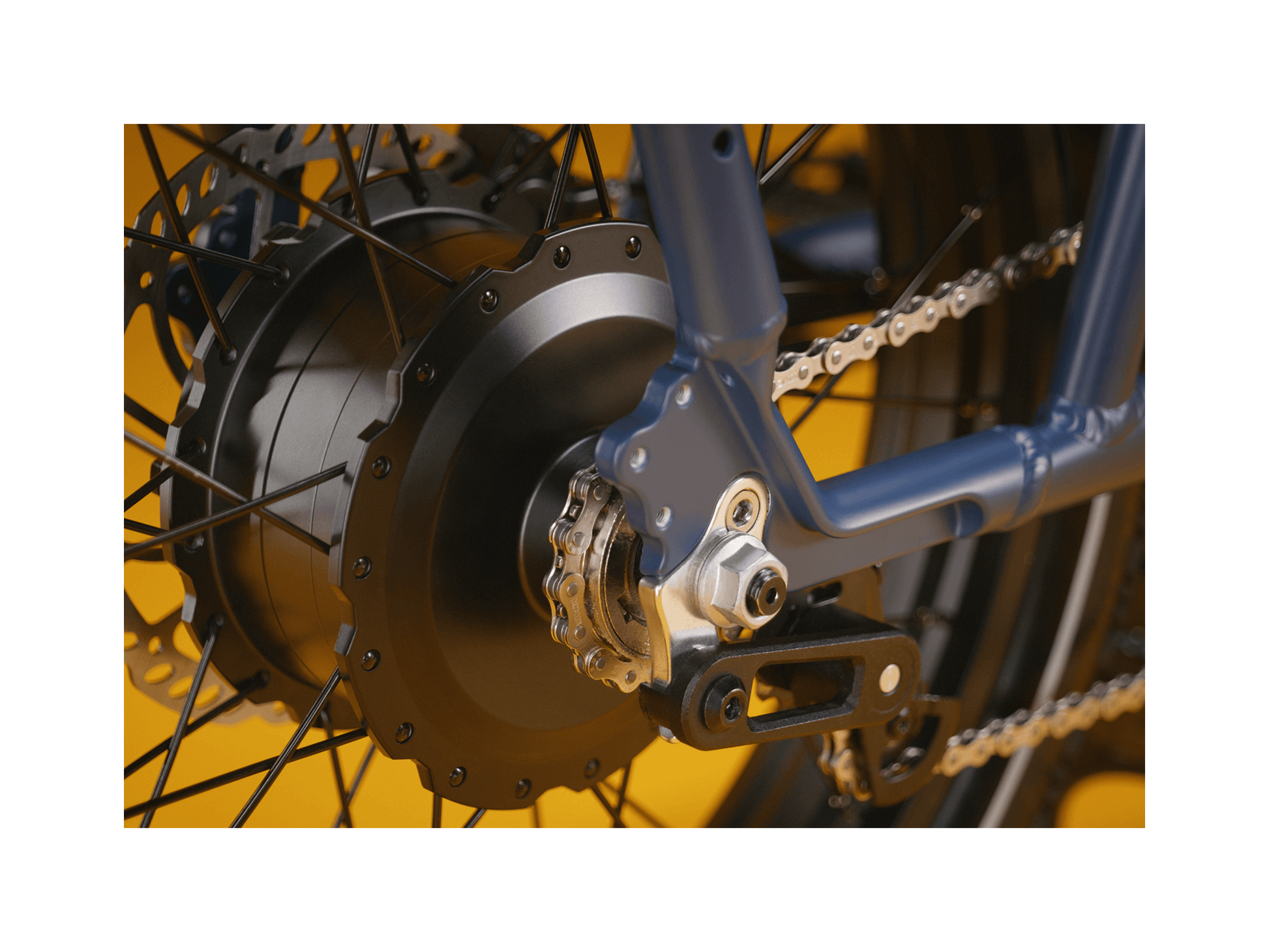

Motor: 750W Rear Hub, 65 Nm torque
UL status: UL Certified to UL 2849 and UL 2271
Battery type: 13 Ah Safe Shield External Battery
| Motor | Rear hub 750W 60 Nm Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions |
| Throttle | Half-twist grip throttle |
| Battery | Safe Shield Advanced External Battery (13 Ah), 624 Wh, UL Certified |
| Display | Rad Power Bikes color display |
| Charger | 48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets |
| Frame | Aluminum |
| Fork | Rigid Steel Fork, straight, bolt on |
| Rear Shock | Not applicable |
| Front Brake | Gemma Hydraulic GA-950E, 180mm x 1.8mm, 6 bolt. |
| Rear Brake | Gemma Hydraulic GA-950E, 180mm x 1.8mm, 6 bolt. |
| Rear Derailleur | Single Speed |
| Shift Levers | Not applicable |
| Chain | Spec not provided |
| Cassette | Single speed 16T |
| Crankset | 52T with dual-sided aluminum chainring guard, 170 mm crank arms |
| Chain Ring | 16 tooth |
| Chain Guard | Included |
| Rims | Spec not provided |
| Front Hub | Not applicable |
| Rear Hub | Not applicable |

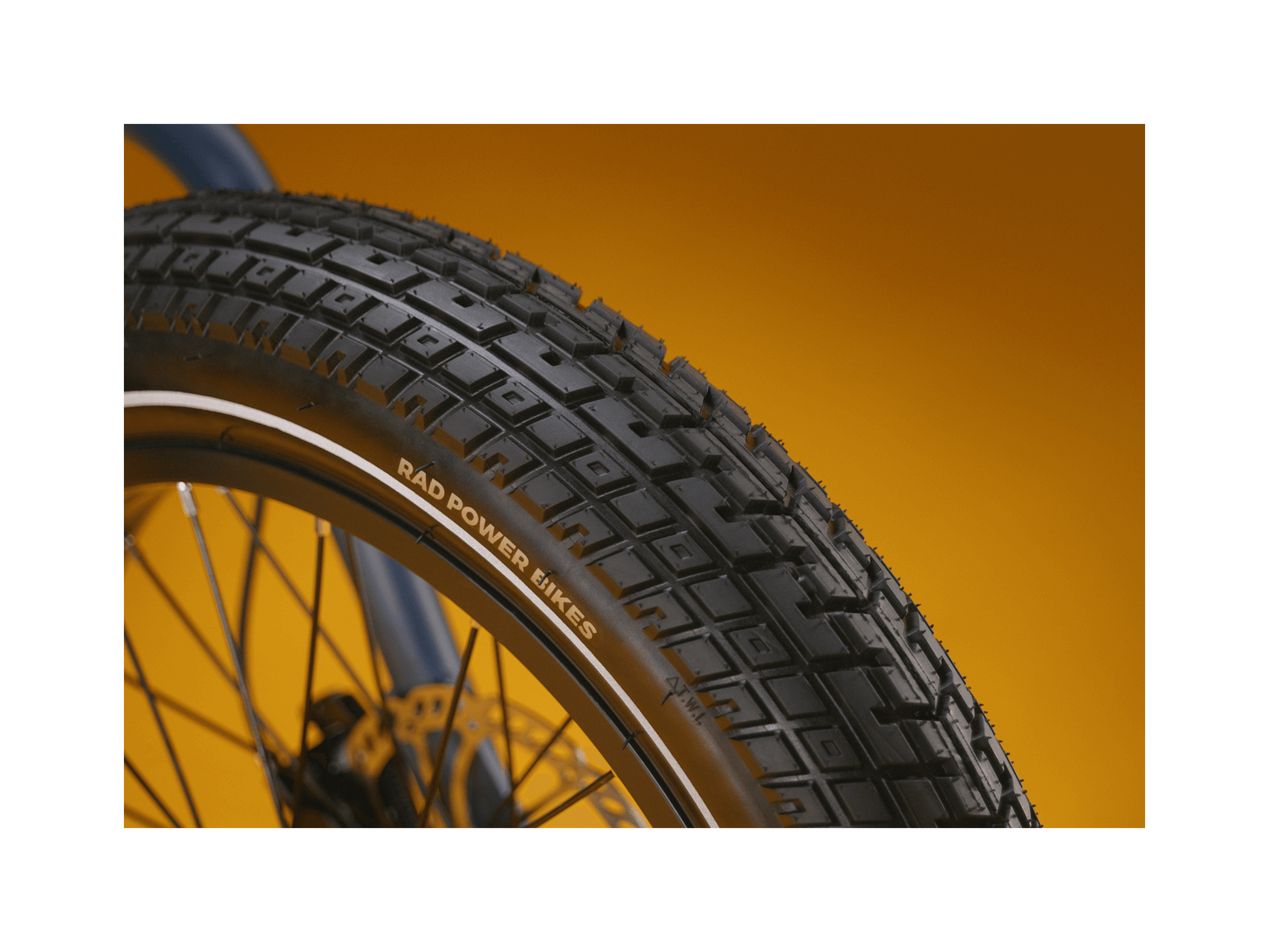

| Front Tire | Custom Rad tire 20" x 3.3" with puncture protection and reflective stripe Multi-surface tread pattern |
| Rear Tire | Custom Rad tire 20" x 3.3" with puncture protection and reflective stripe Multi-surface tread pattern |
| Handlebar | Aluminum, 27" (68.6 cm) wide |
| Stem | 50 mm + 30º (35 mm rise) |
| Headset | Spec not provided |
| Grips | Lock-on ergonomic comfort grips |
| Saddle | Moped-style saddle with extra padding |
| Seatpost | Integrated steel 390 mm x 27.2 mm |
| Pedals | Forged aluminum platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading |
| Front Light | 40 lux 100 lumen LED headlight |
| Rear Light | Integrated taillight with brake light |
| Kickstand | Dual leg, spring loaded, steel |

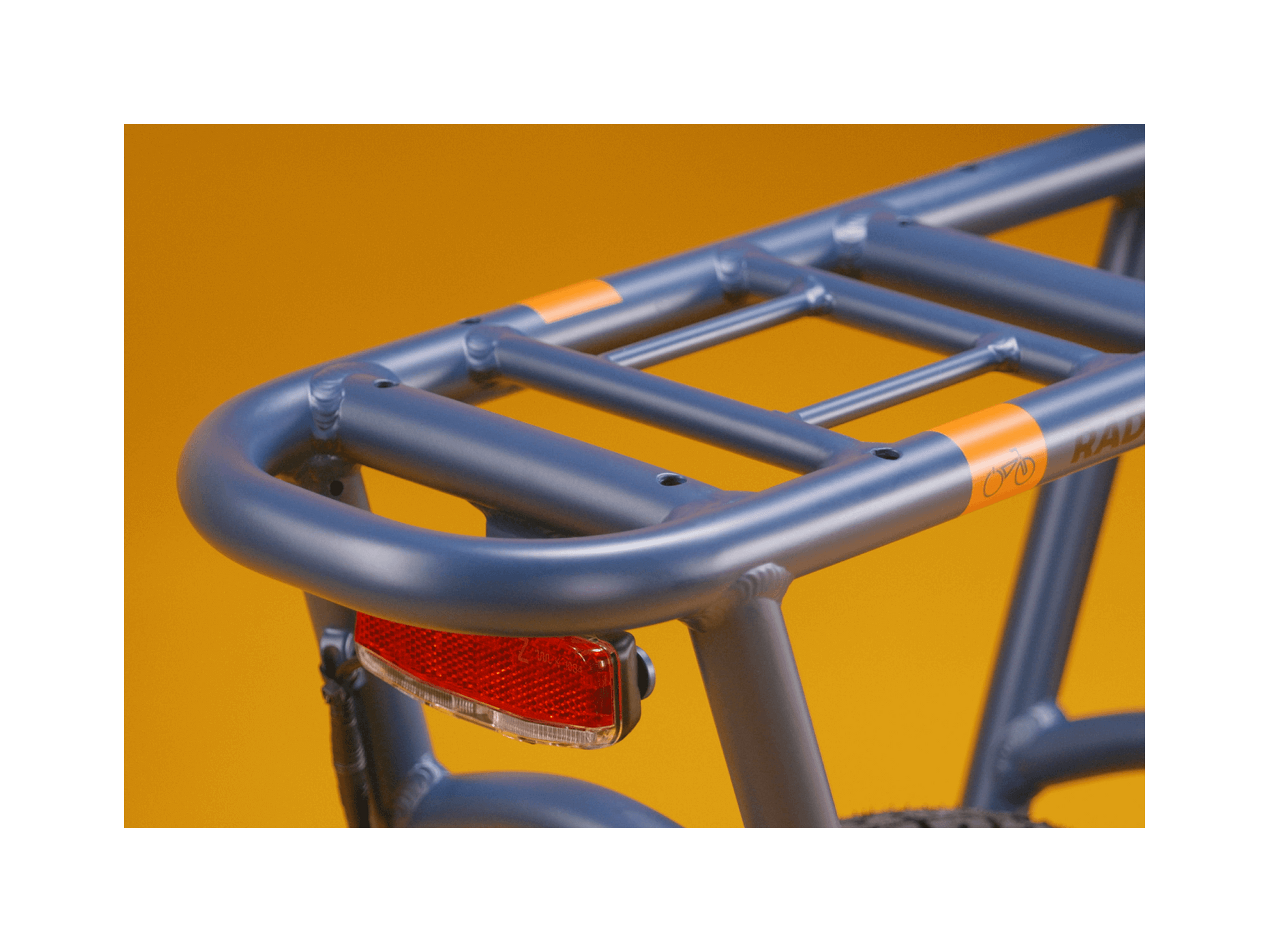

| Rear Carrier | Integrated, 120 lb (54 kg) carrying capacity |
| Fenders | Available to purchase separately |
| Bell | Handlebar mount |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on RadRunner™ Electric Cargo Utility Bike
Our enhanced electric cargo bike makes errands unexpectedly enjoyable. Thanks to extended range, silky hydraulic disc brakes, and rugged all-terrain tires, it’s built to handle anything. Conquer hills with ease while the Safe Shield Battery, passcode security, and a hefty 320 lb. capacity turn it into a true powerhouse you’ll love to ride.
Range: Up to 55 miles
Payload: 320 lb. (275 lb. max rider)
Top speed: Class 1 & 2: Up to 20 mph
Motor: 750W Rear Hub, 65 Nm torque
UL status: UL Certified to UL 2849 and UL 2271
Battery type: 13 Ah Safe Shield External Battery
Motor System
| Motor | Rear hub 750W 60 Nm Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure ebike regulatory compliance and may vary depending on riding conditions |
| Throttle | Half-twist grip throttle |
| Battery | Safe Shield Advanced External Battery (13 Ah), 624 Wh, UL Certified |
| Display | Rad Power Bikes color display |
| Charger | 48VDC, 2 Amp Rad Power Bikes smart charger, operates on 100V-240V AC power outlets |
Components
| Frame | Aluminum |
| Fork | Rigid Steel Fork, straight, bolt on |
| Rear Shock | Not applicable |
| Front Brake | Gemma Hydraulic GA-950E, 180mm x 1.8mm, 6 bolt. |
| Rear Brake | Gemma Hydraulic GA-950E, 180mm x 1.8mm, 6 bolt. |
| Rear Derailleur | Single Speed |
| Shift Levers | Not applicable |
| Chain | Spec not provided |
| Cassette | Single speed 16T |
| Crankset | 52T with dual-sided aluminum chainring guard, 170 mm crank arms |
| Chain Ring | 16 tooth |
| Chain Guard | Included |
| Rims | Spec not provided |
| Front Hub | Not applicable |
| Rear Hub | Not applicable |
| Front Tire | Custom Rad tire 20" x 3.3" with puncture protection and reflective stripe Multi-surface tread pattern |
| Rear Tire | Custom Rad tire 20" x 3.3" with puncture protection and reflective stripe Multi-surface tread pattern |
| Handlebar | Aluminum, 27" (68.6 cm) wide |
| Stem | 50 mm + 30º (35 mm rise) |
| Headset | Spec not provided |
| Grips | Lock-on ergonomic comfort grips |
| Saddle | Moped-style saddle with extra padding |
| Seatpost | Integrated steel 390 mm x 27.2 mm |
Extras
| Pedals | Forged aluminum platform, CrMo axle with reflectors, standard 9/16" x 20 TPI threading |
| Front Light | 40 lux 100 lumen LED headlight |
| Rear Light | Integrated taillight with brake light |
| Kickstand | Dual leg, spring loaded, steel |
| Rear Carrier | Integrated, 120 lb (54 kg) carrying capacity |
| Fenders | Available to purchase separately |
| Bell | Handlebar mount |
| Lock | Not applicable |
| Mirror | Not applicable |

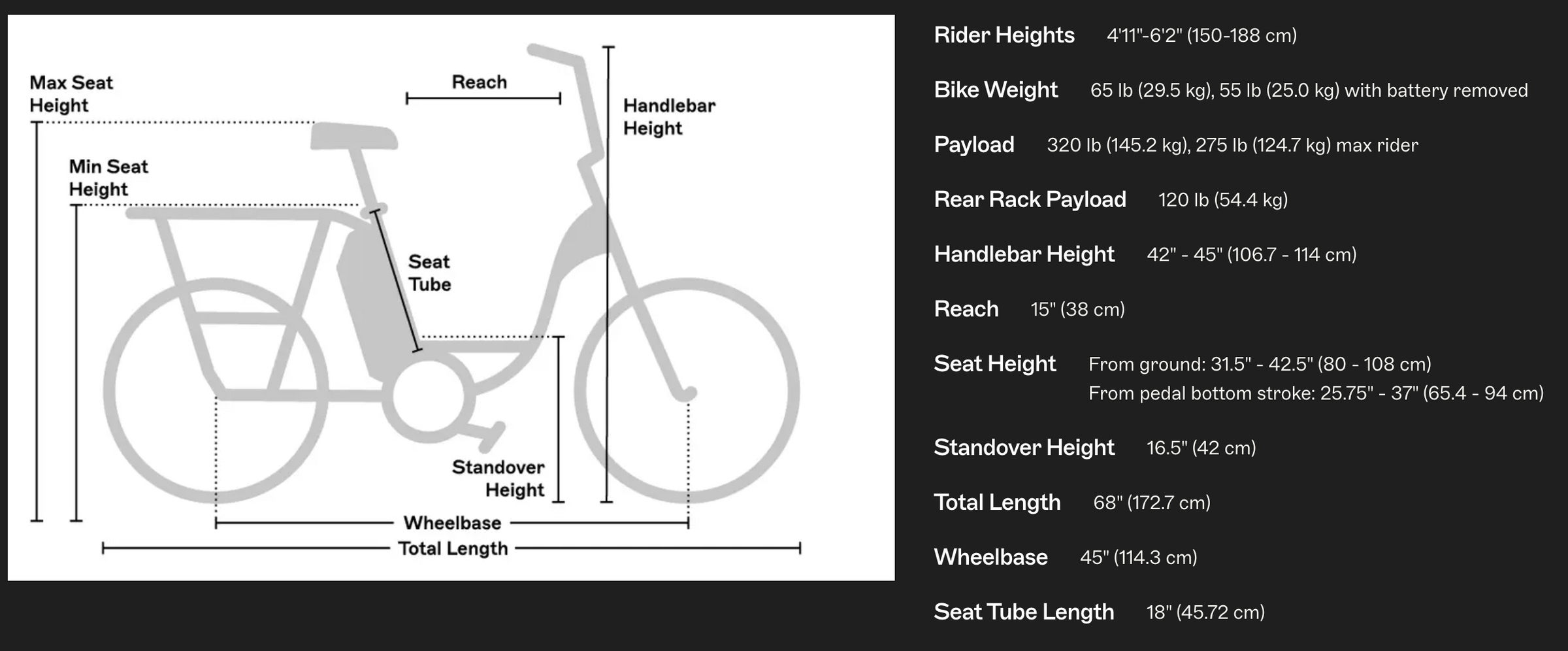

Geometry
