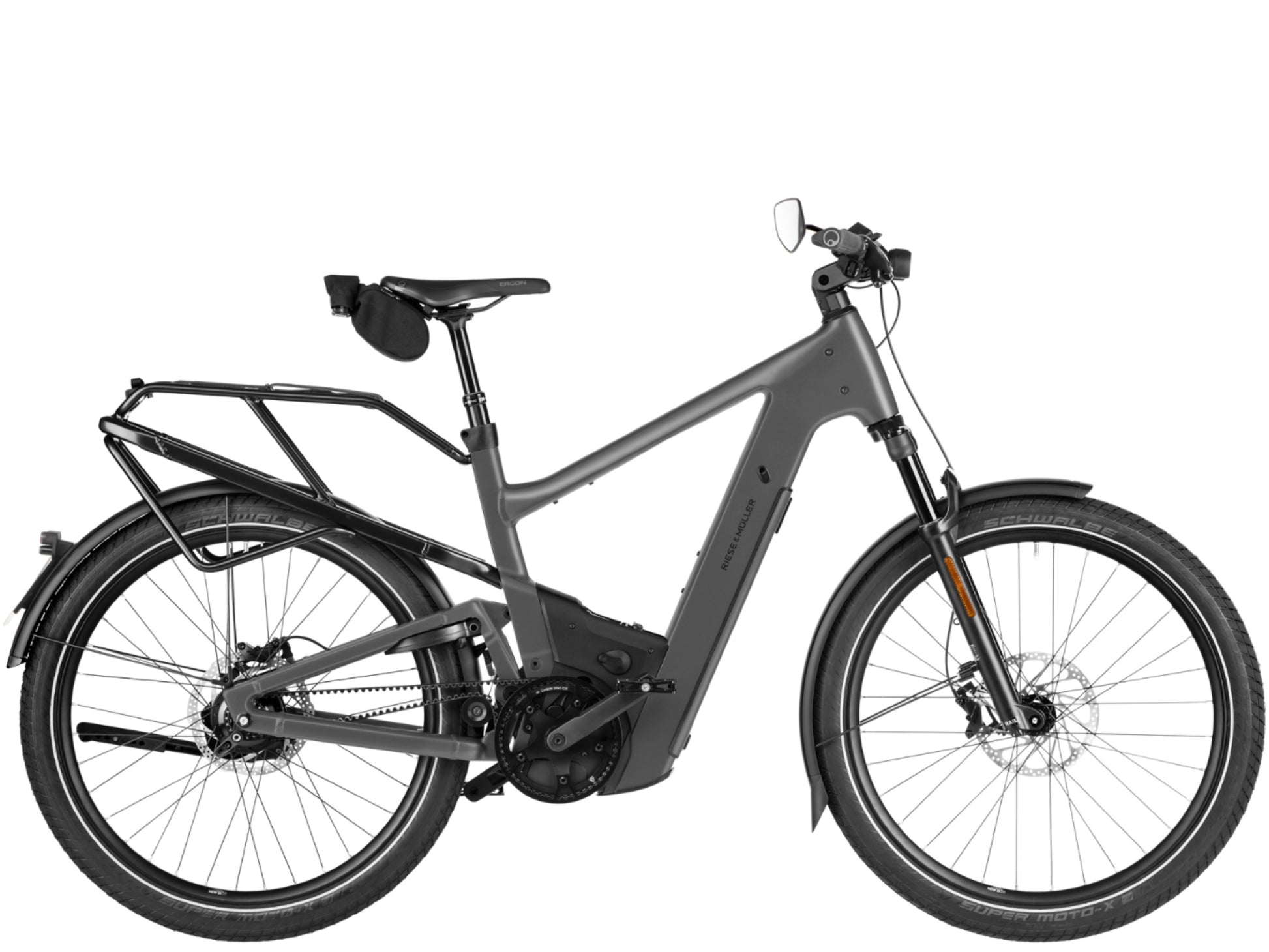

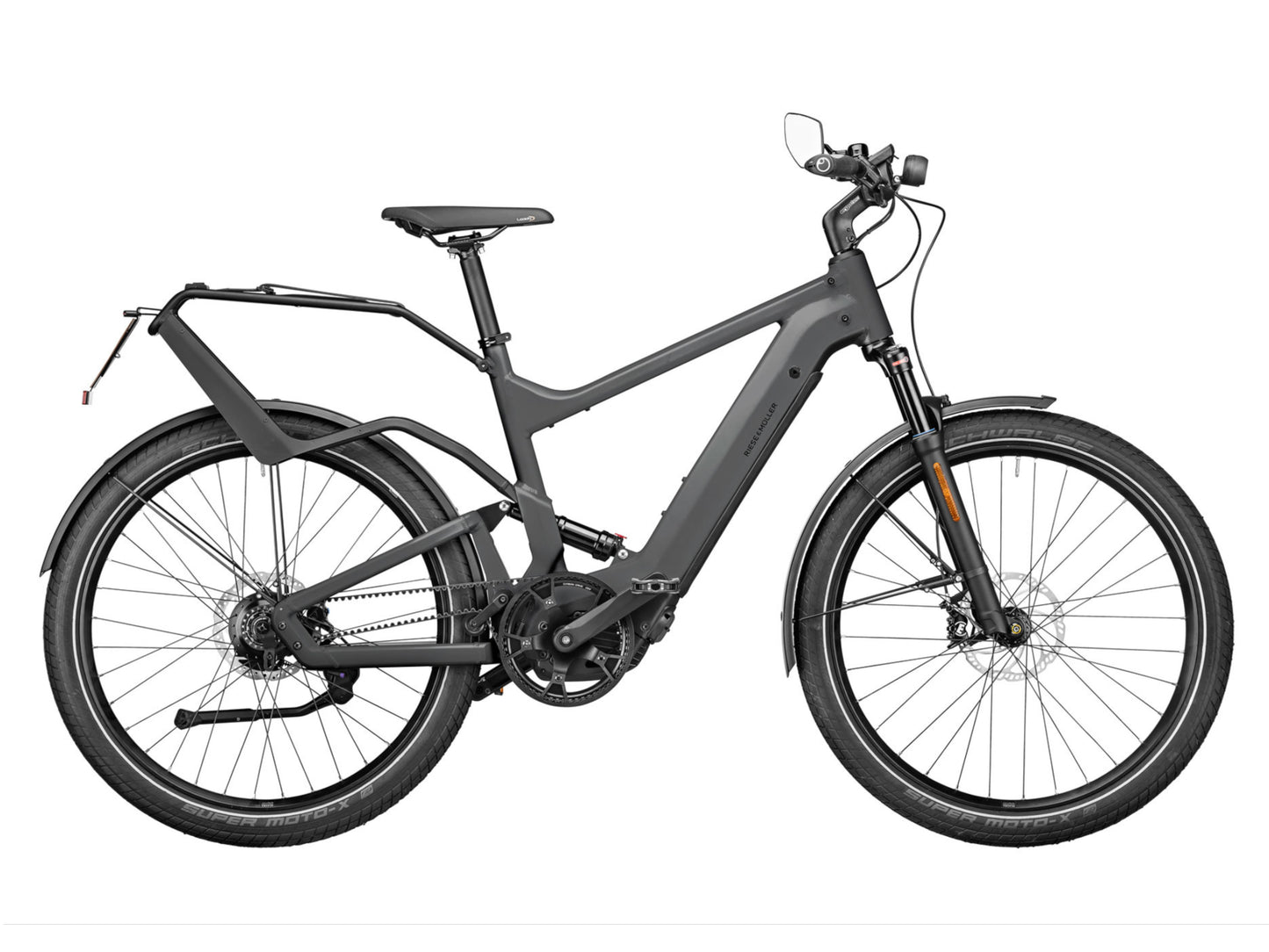

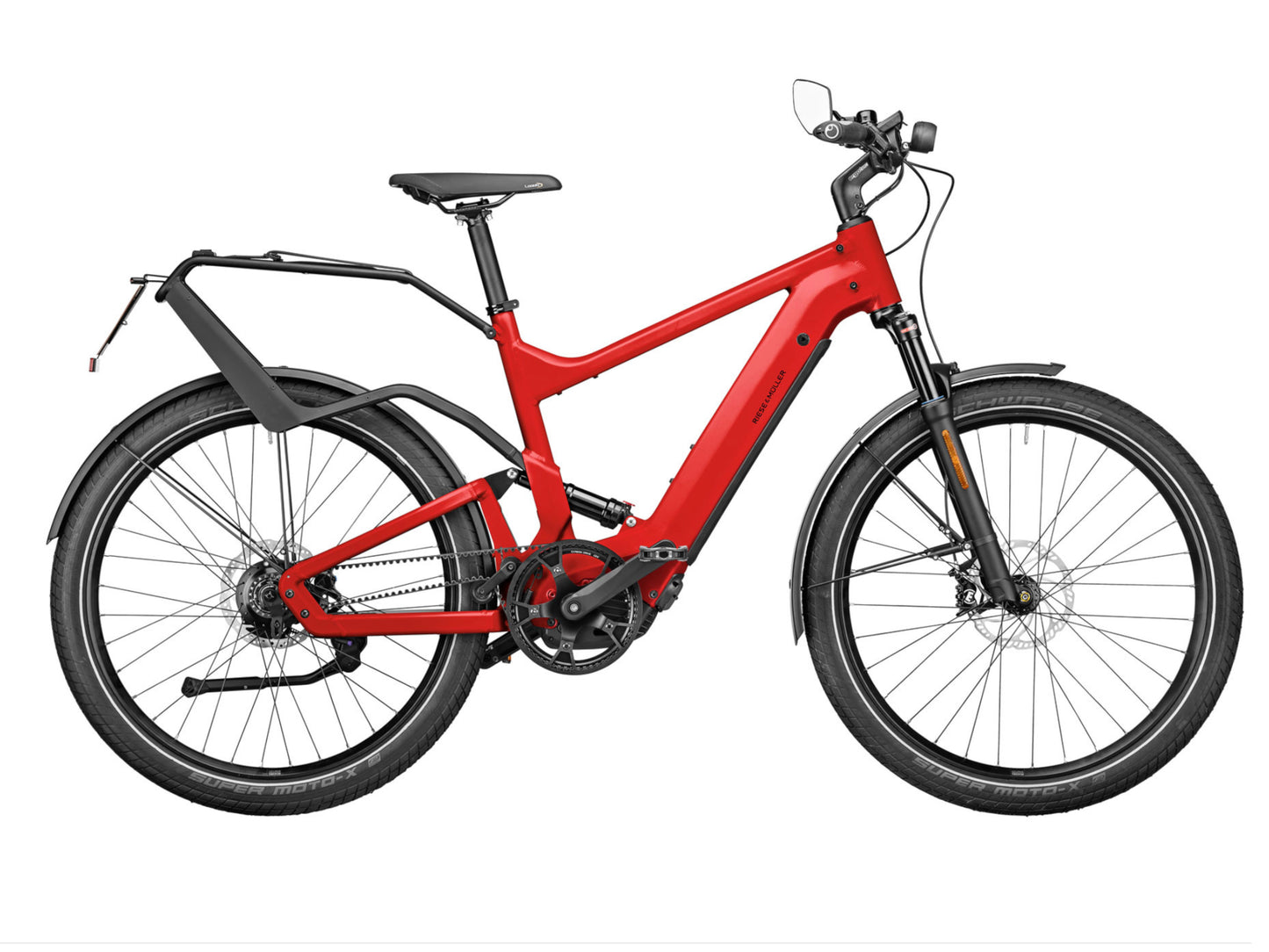

Riese and Muller Delite GT Rohloff HS

The Full Scoop on the Riese and Muller Delite GT Rohloff HS

• Description
• Motor System
• Components
• Extras
• Geometry

•
  The Delite GT Rohloff HS will take you through every challenge – whether long trips, daily commutes, bumpy forest trails or steep ascents. Its exceptional workmanship, Riese & Müller Control Technology and the powerful Bosch Performance Line CX motor, combined with 625 Wh of battery power, offer freedom and absolute flexibility. You set the destinations – the Delite sets the standards.


• Motor	Performance Line Speed (Gen4)

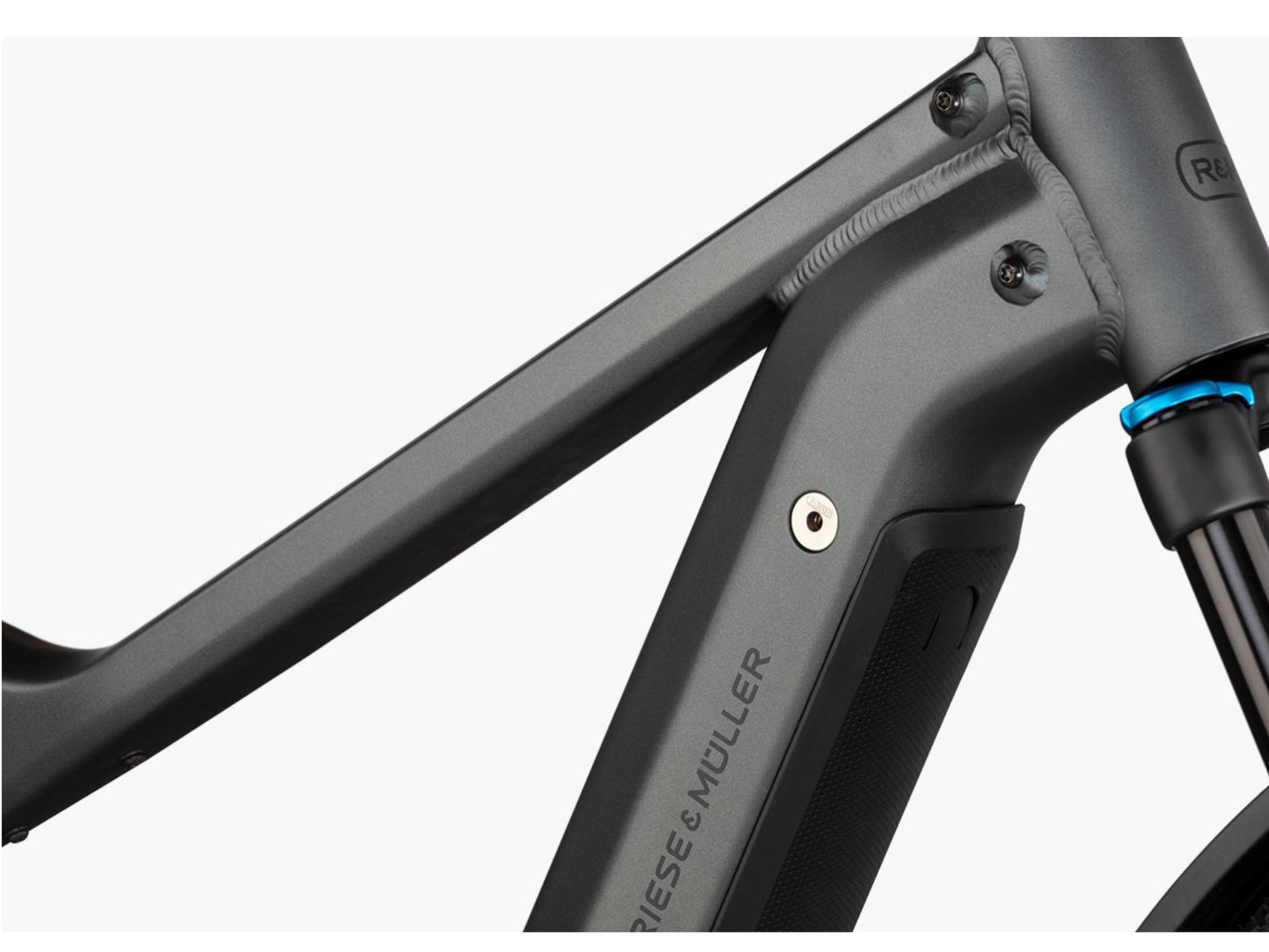

  Battery	Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh*

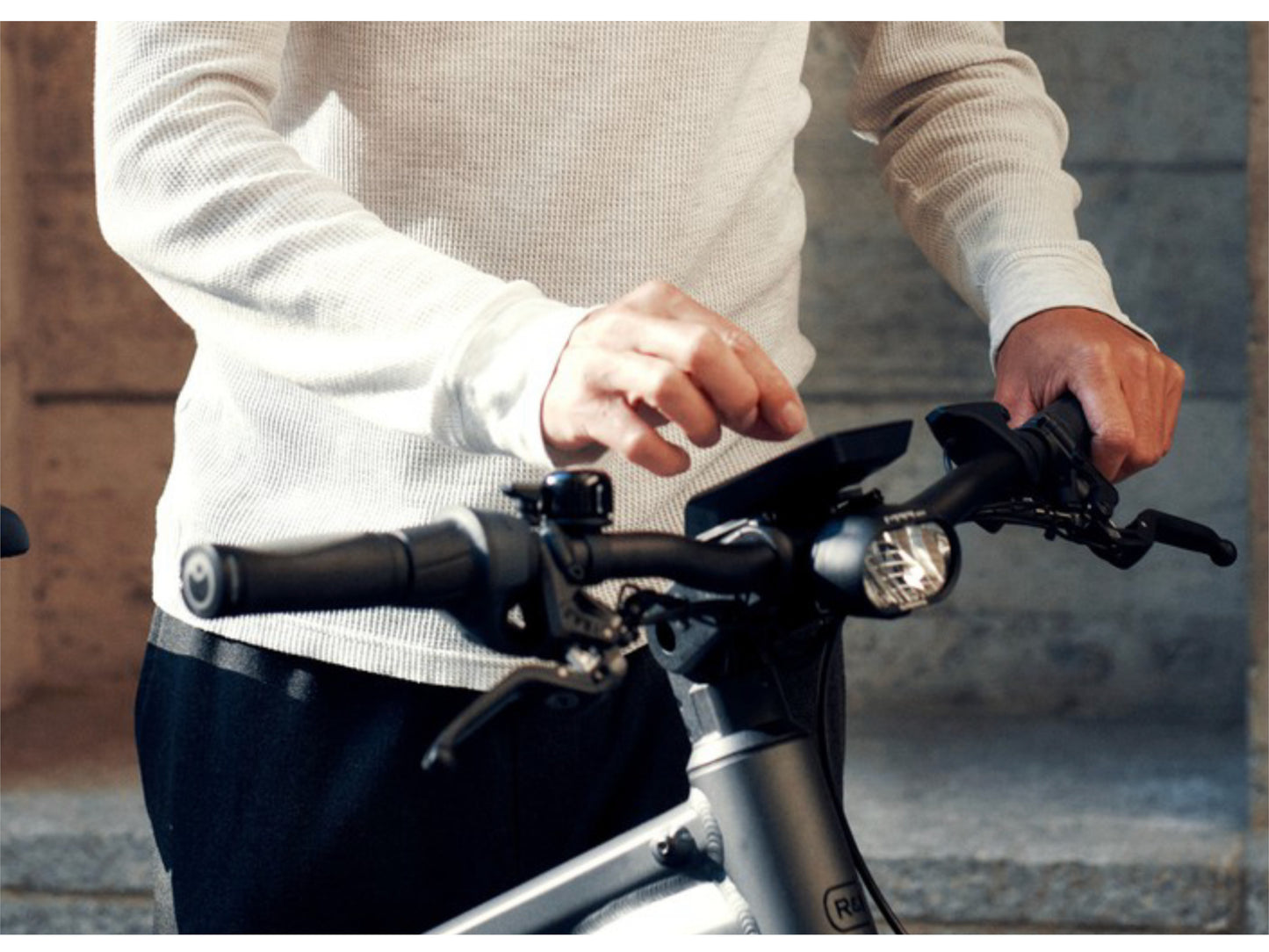

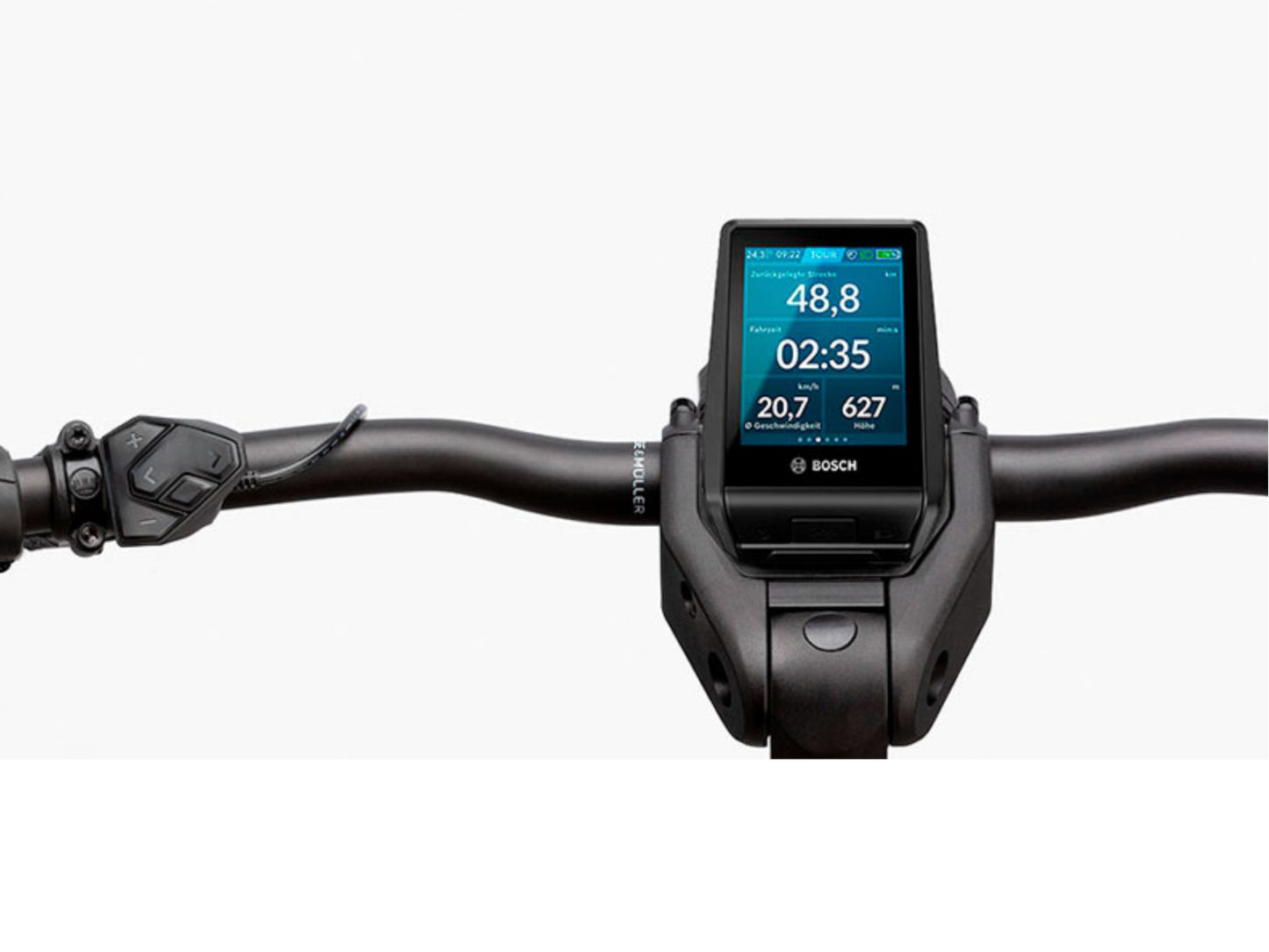

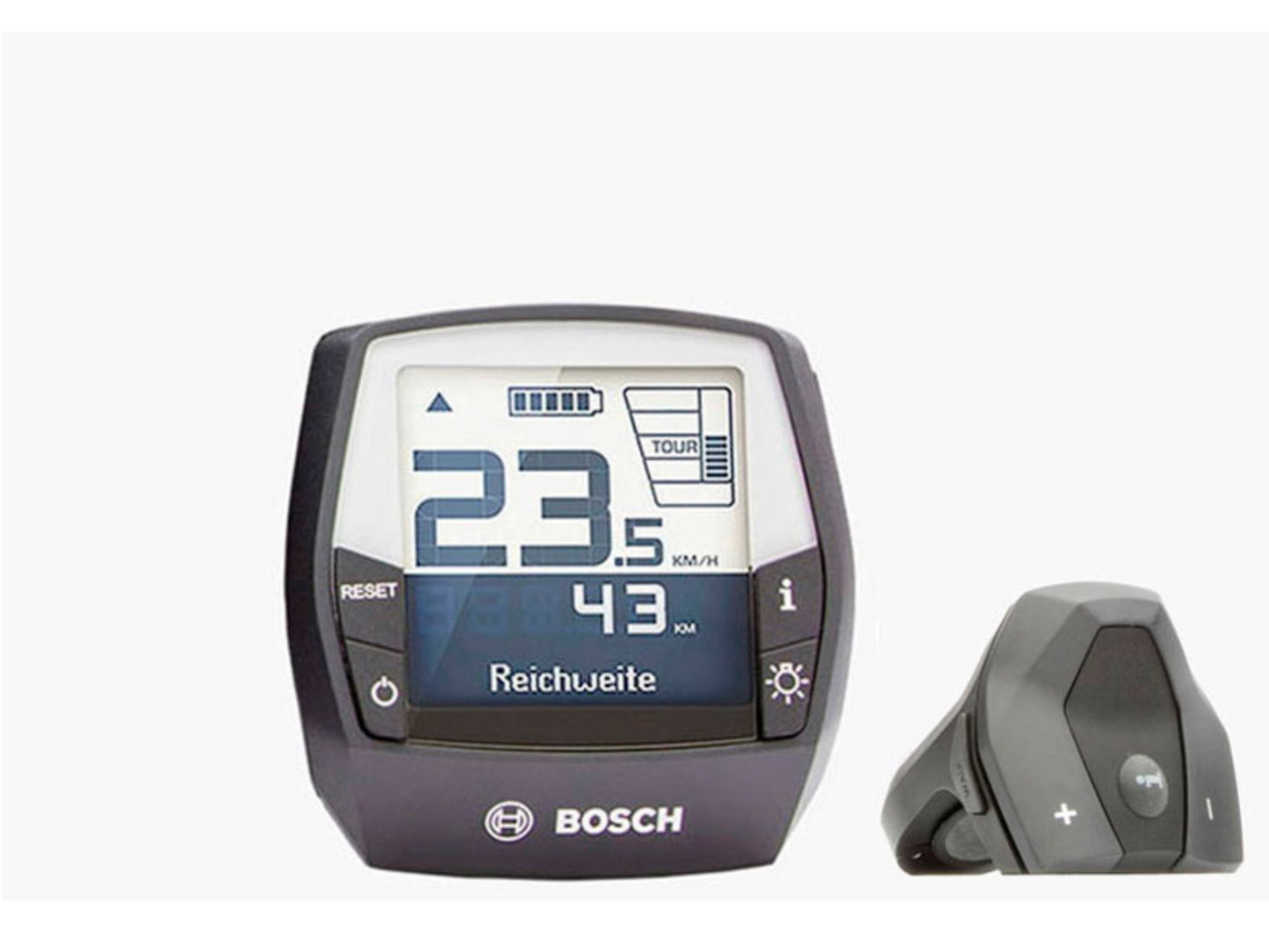

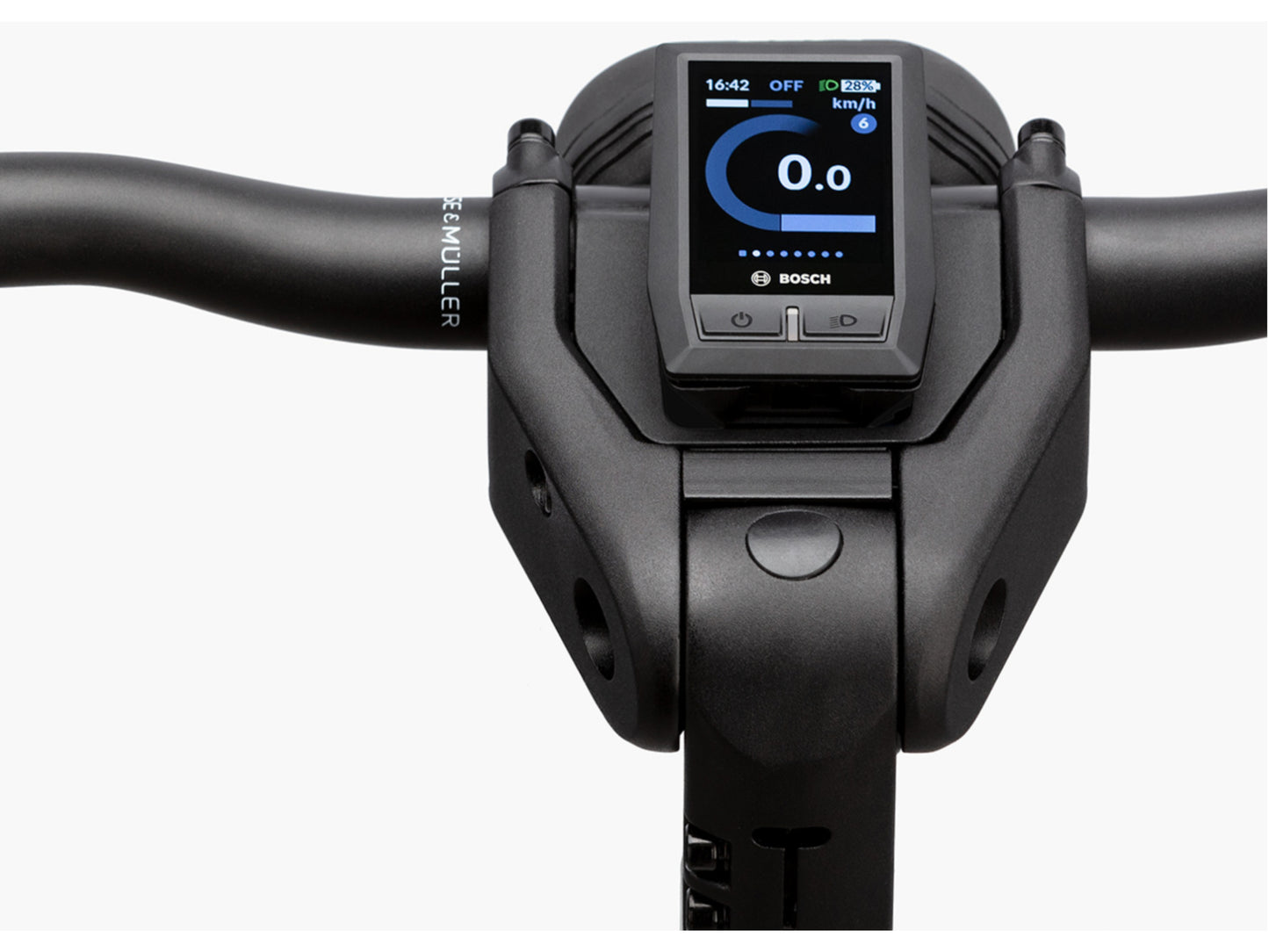

  Display	Bosch Intuvia, Bosch Nyon*; Bosch Kiox
  Charger	Bosch 4a

• Frame	chili matt*; urban grey matt*

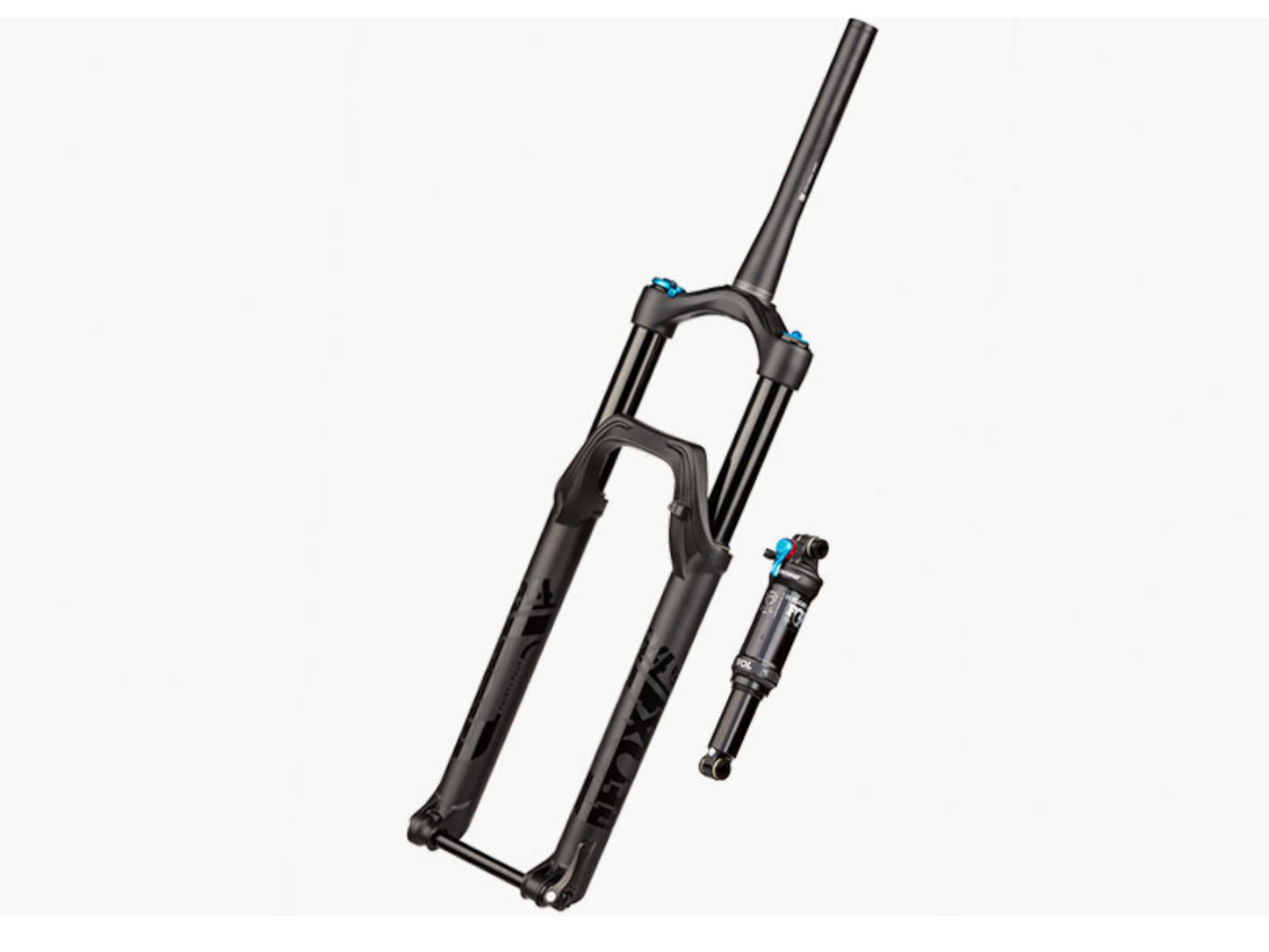

  Fork	Marzocchi Bomber Z2, Air, tapered, 100mm; Fox Float Rhythm, Air, 140mm, Boost*; Suntour Aion, Air, tapered, 140mm, Boost*

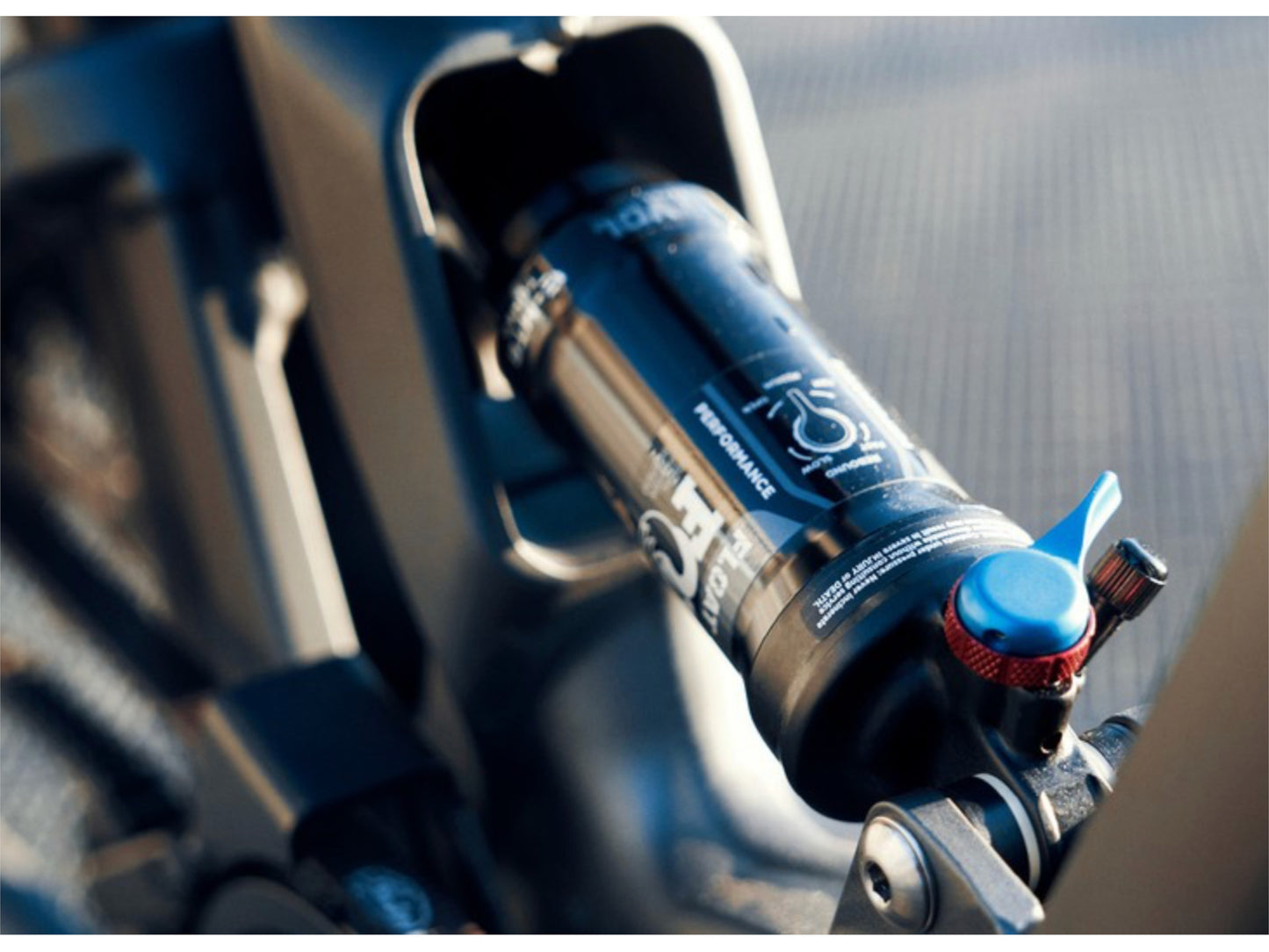

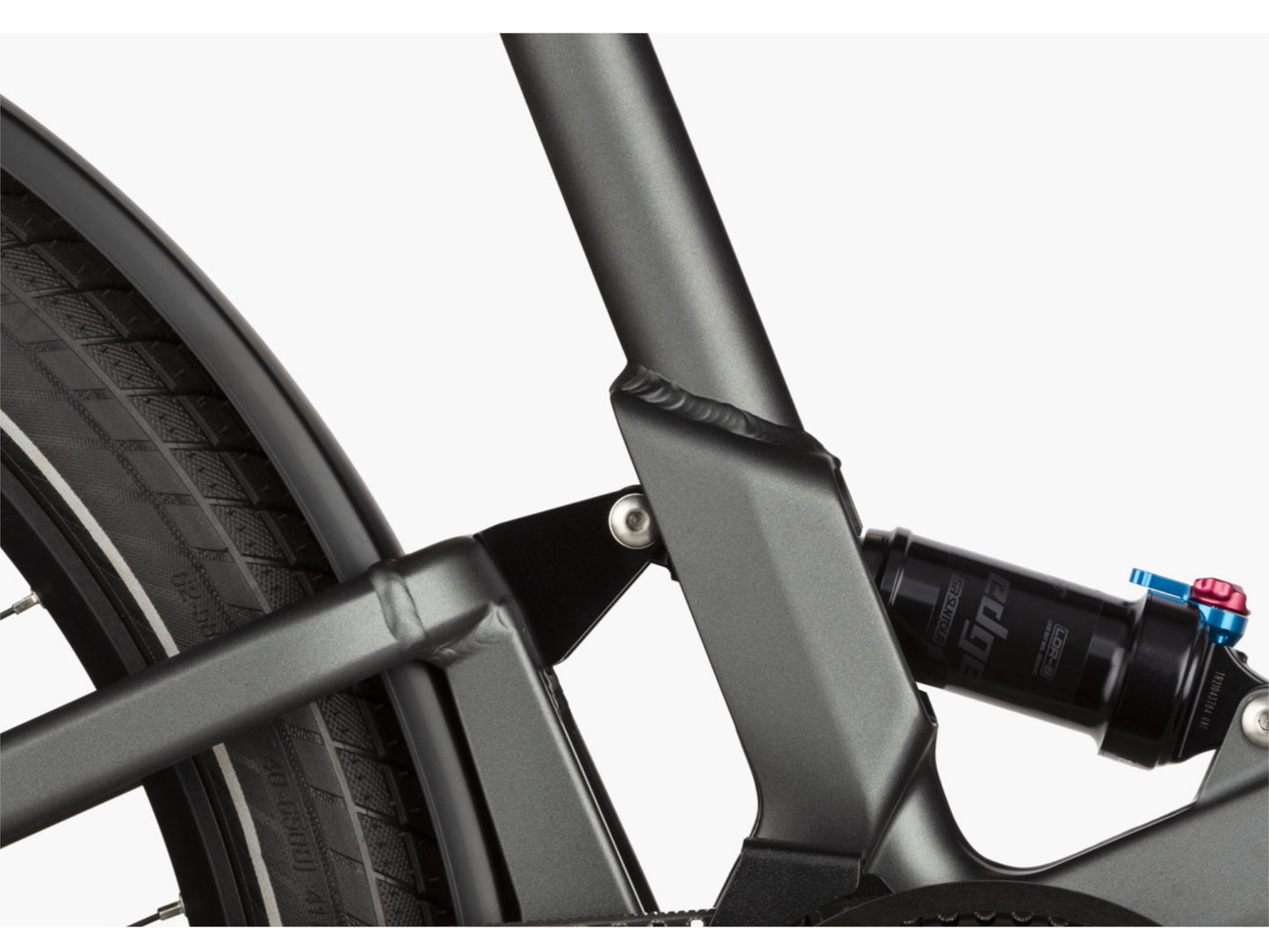

  Rear Shock	Suntour RS-19 190x40; Fox Float DPS Performance 210x50*; Suntour RS-19 210x50*

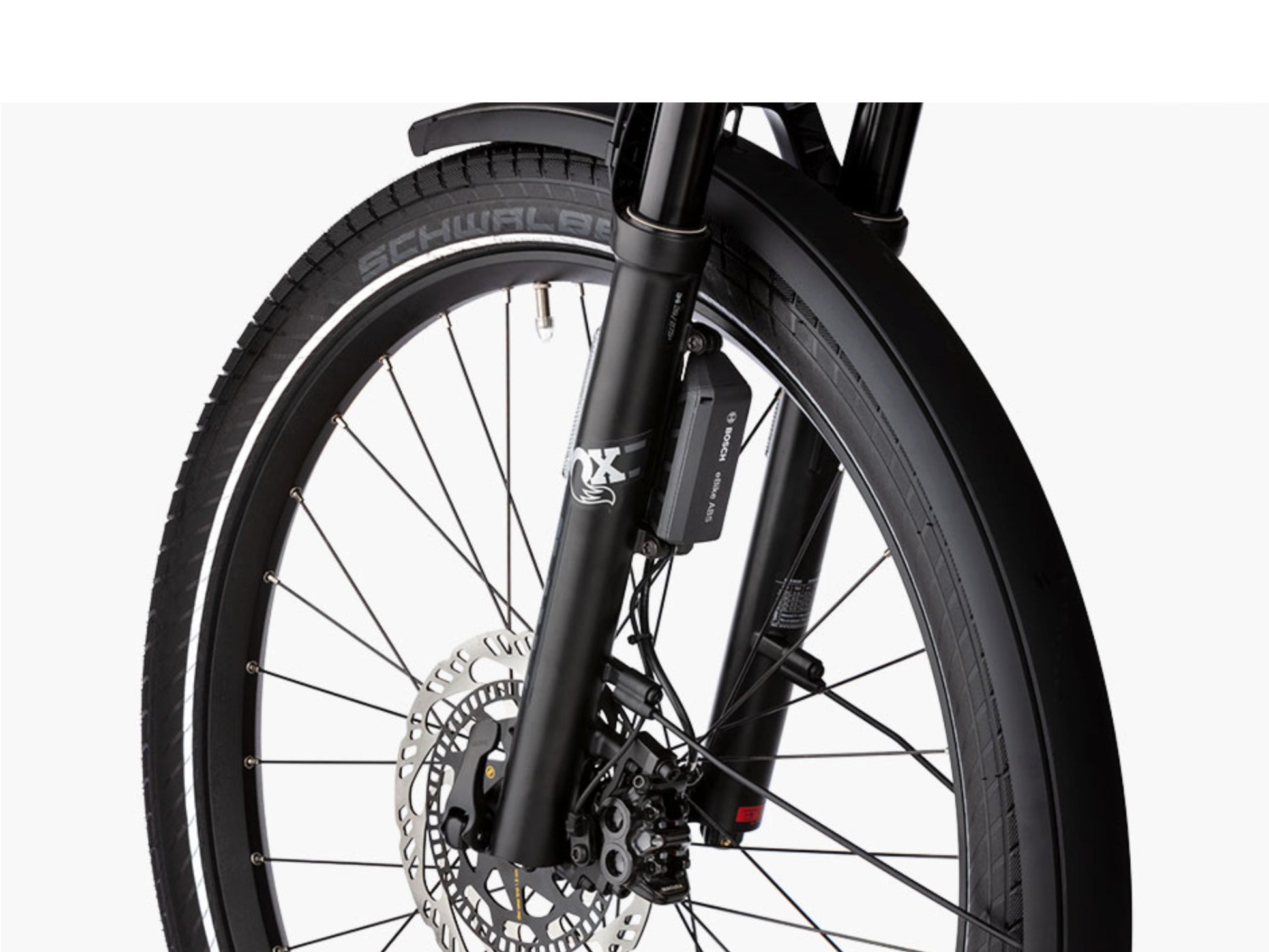

  Front Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Derailleur / Pinion	19T, for Gates drive belt CDX
  Shift Levers	Rohloff E14 electronic shifter

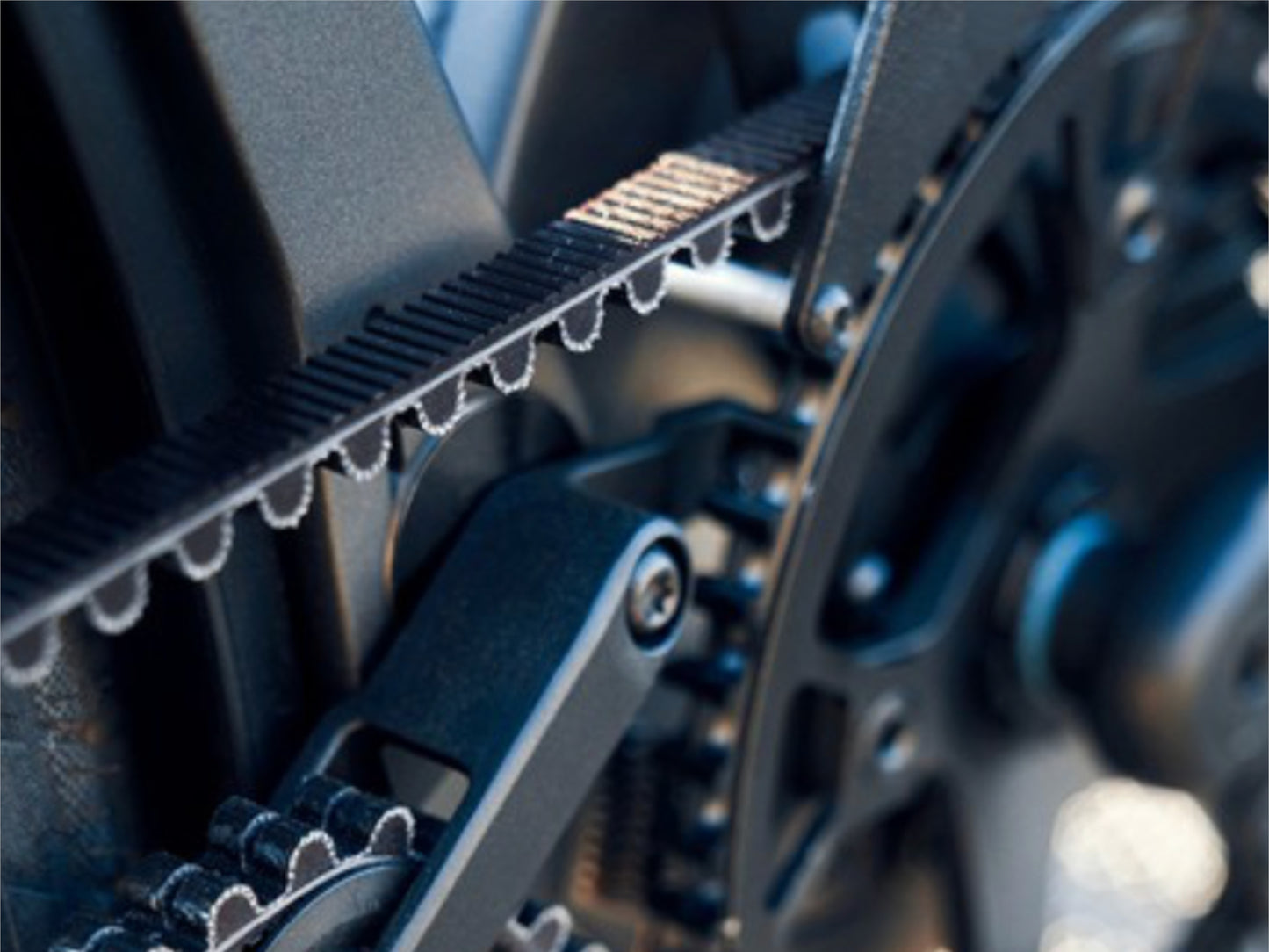

  Chain	Gates drive belt CDX
  Cassette	Spec not provided

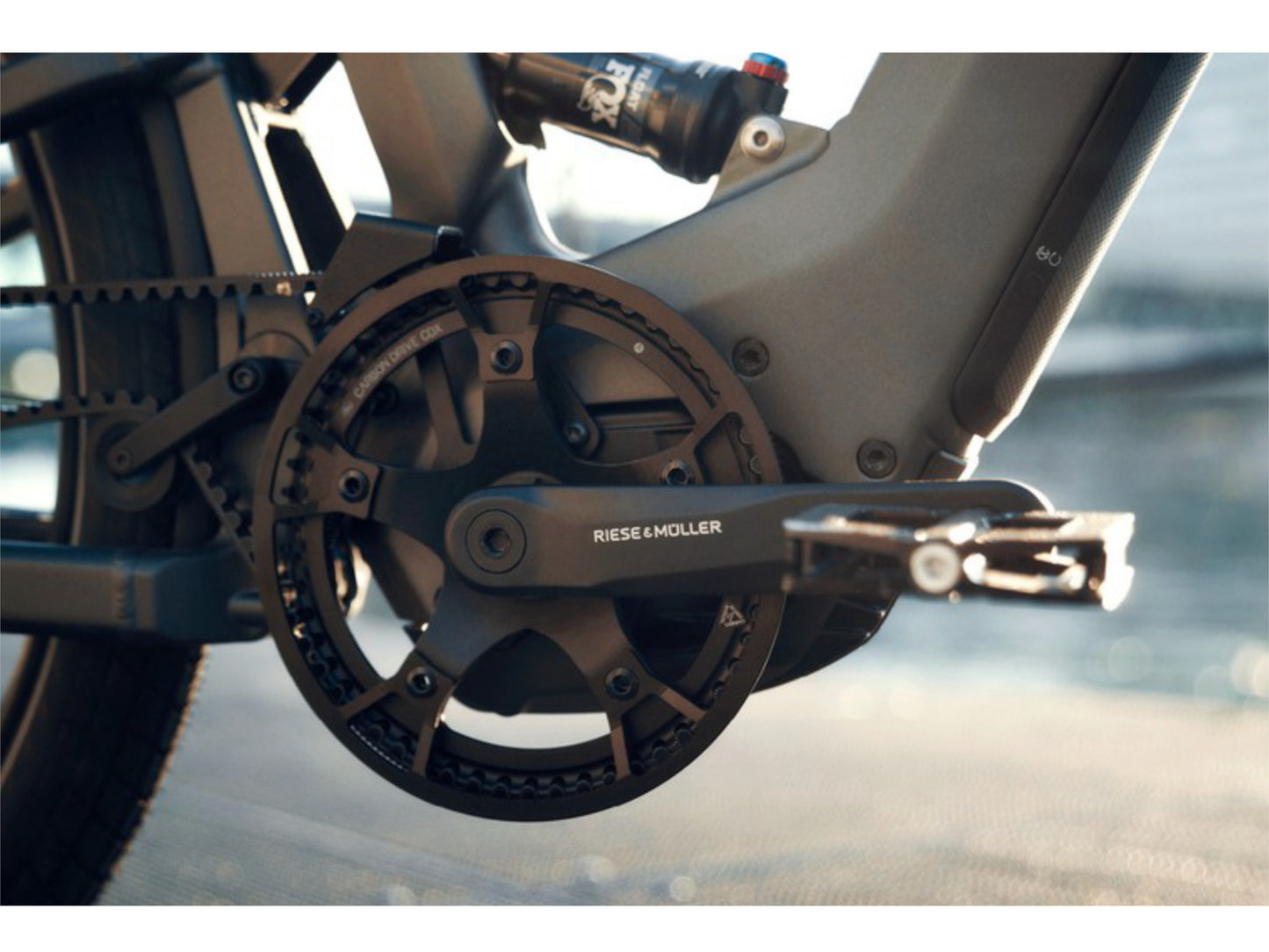

  Crankset	FSA/Riese & Müller, 170 mm
  Chain Ring	60T, for Gates drive belt CDX
  Chain Guard	Chain Guard
  Rims	Rodi Tryp35, 27,5"
  Front Hub	Novatec Boost, QR, 32H

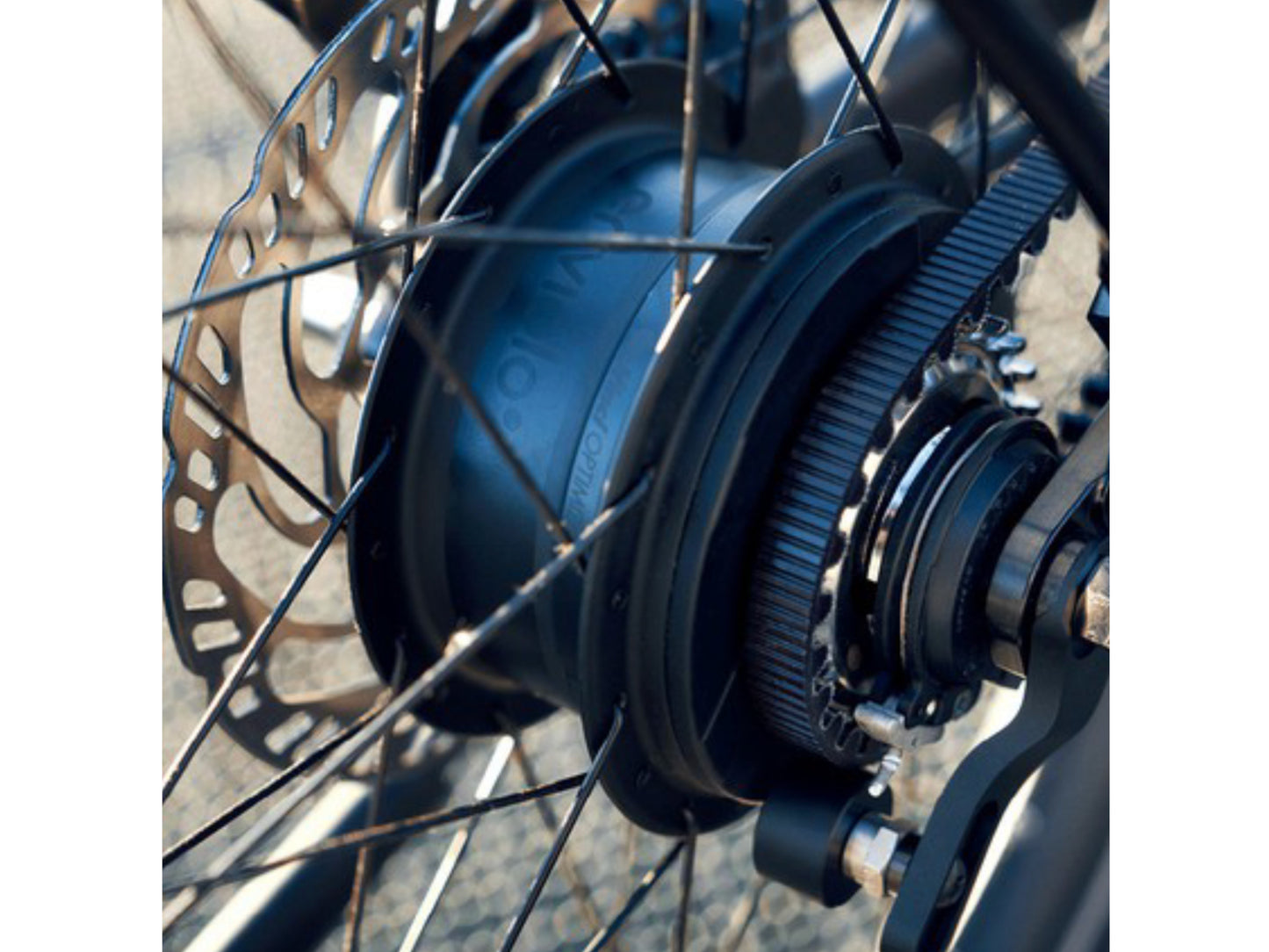

  Rear Hub	Rohloff Speedhub E14, 14-speed, 36H

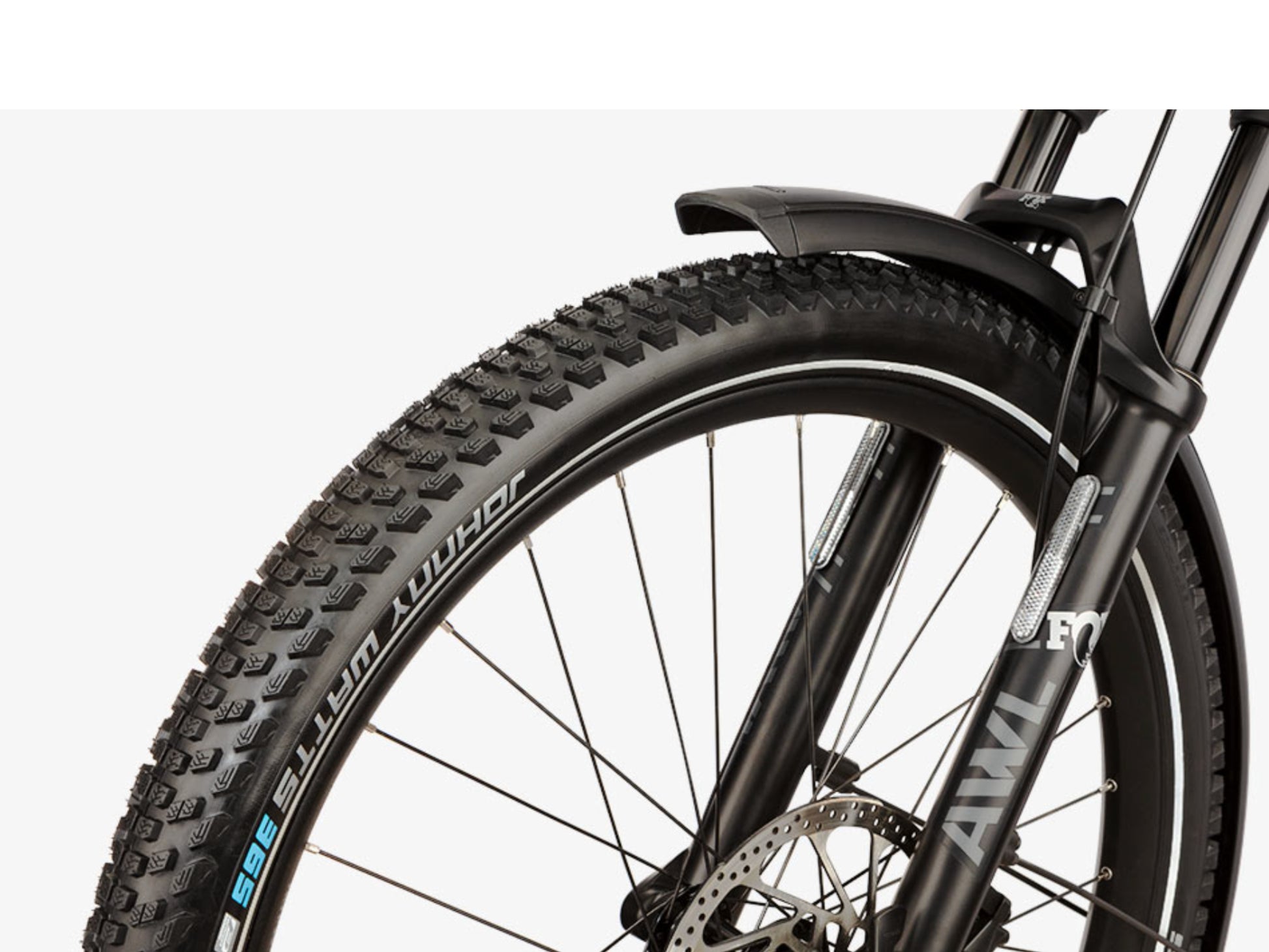

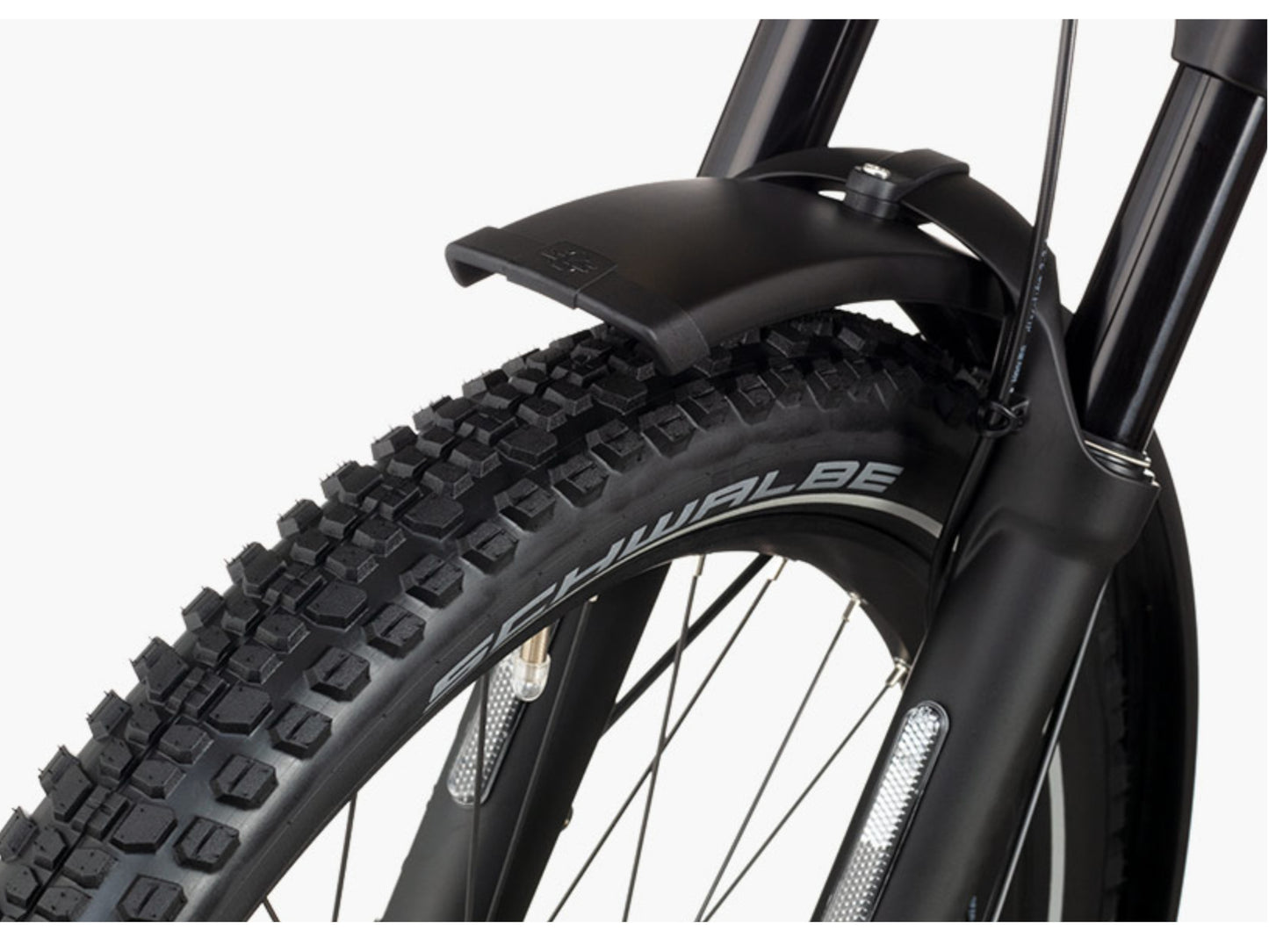

  Front Tire	Schwalbe Super Moto-X 62-584 Reflex; Schwalbe Johnny Watts 60-584*
  Rear Tire	Schwalbe Super Moto-X 62-584 Reflex; Schwalbe Johnny Watts 60-584*
  Handlebar	Humpert Ergo XL*; Humpert ergotec Trekking, 31,8 mm, Alu*; Satori R&M Custom Komfort, 25,4 mm, Alu*; Satori R&M Custom, 25,4mm, Alu*
  Stem	Humpert ergotec Barracuda Evo, 90 mm, 20°; Satori R&M Custom, cable integration, adjustable angle, Alu*
  Headset	Acros IntegrationX, block lock

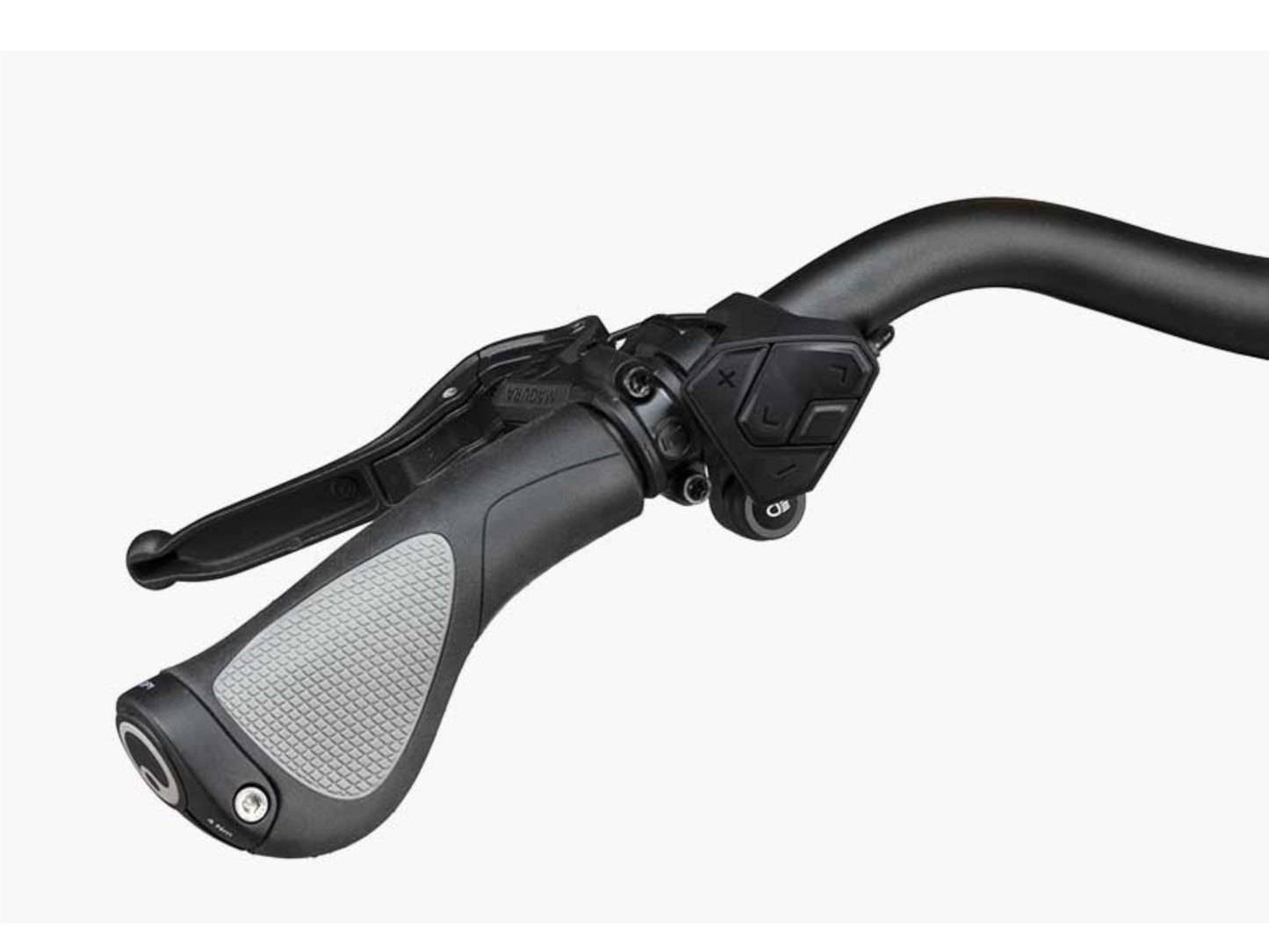

  Grips	Ergon economic
  Saddle	Selle Royal New Lookin Evo R&M; Ergon SMC10 Gel*; Selle Royal New Lookin Female Evo R&M*
  Seatpost	Dropper Post X-Fusion Manic 100

• Pedals	VP R&M Custom

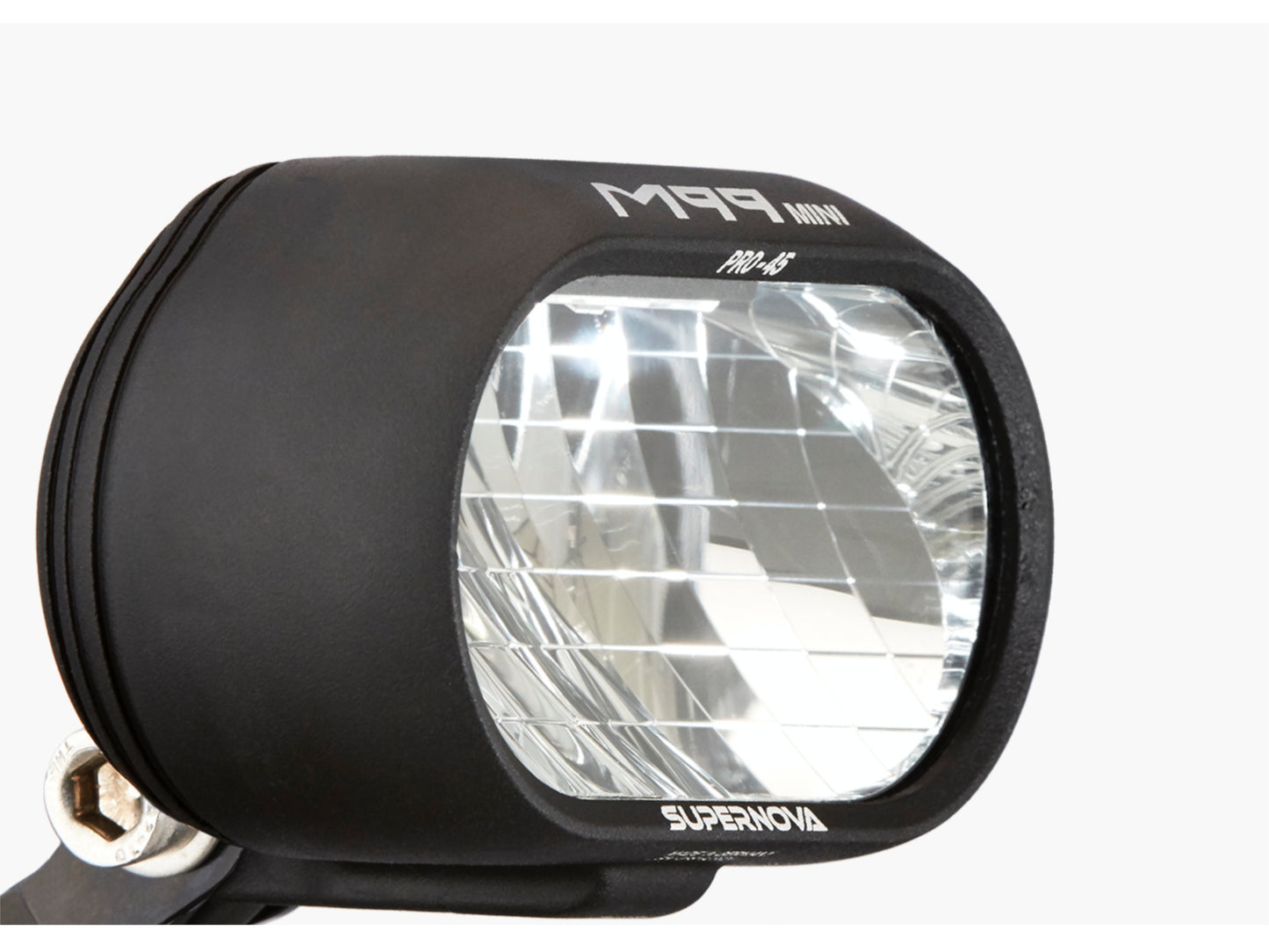

  Front Light	Supernova M99 Mini Pro-45
  Rear Light	Supernova M99, integrated brake light; Supernova M99, integrated plate illumination and brake light
  Kickstand	Pletscher Comp 40 Flex

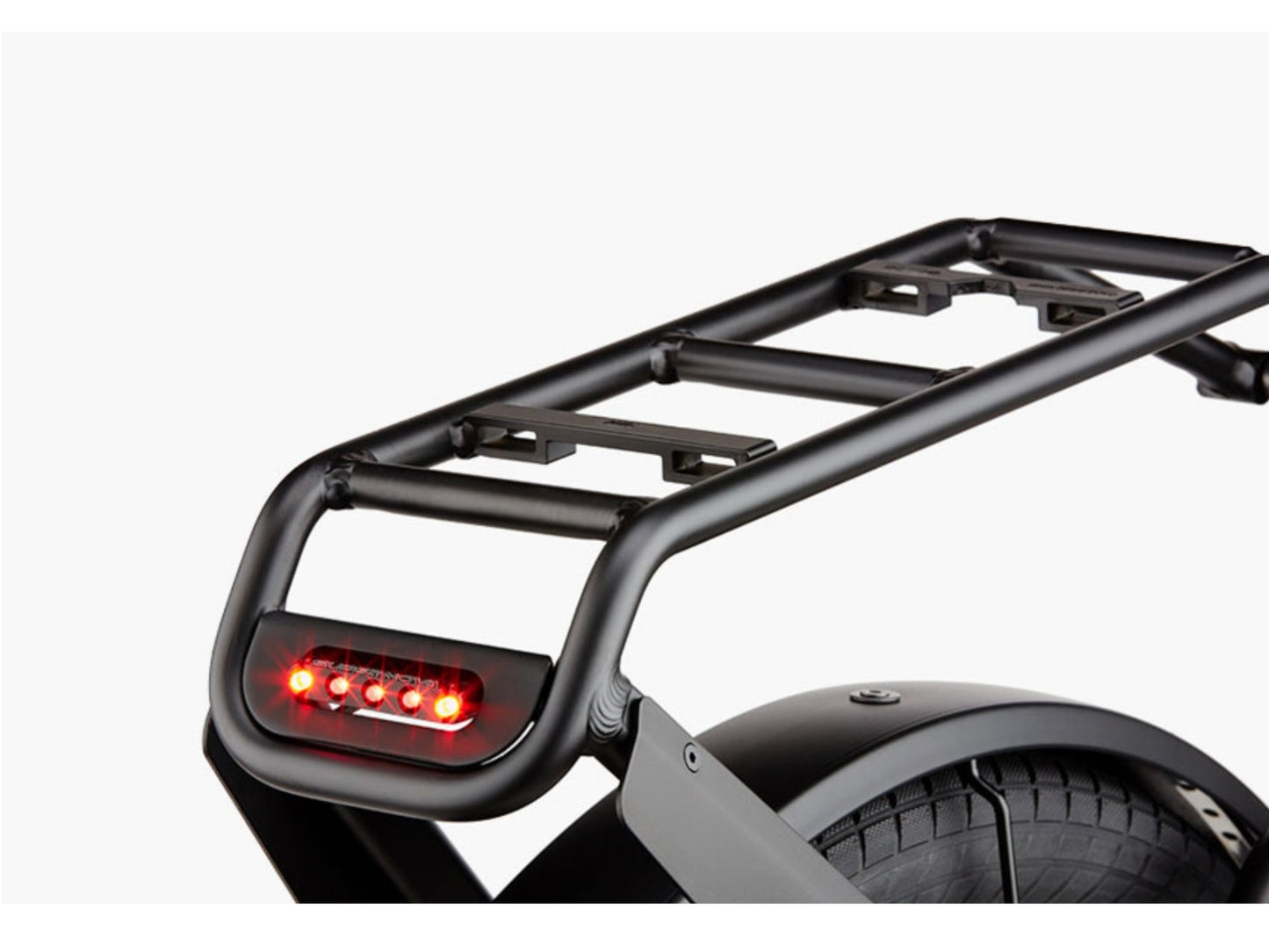

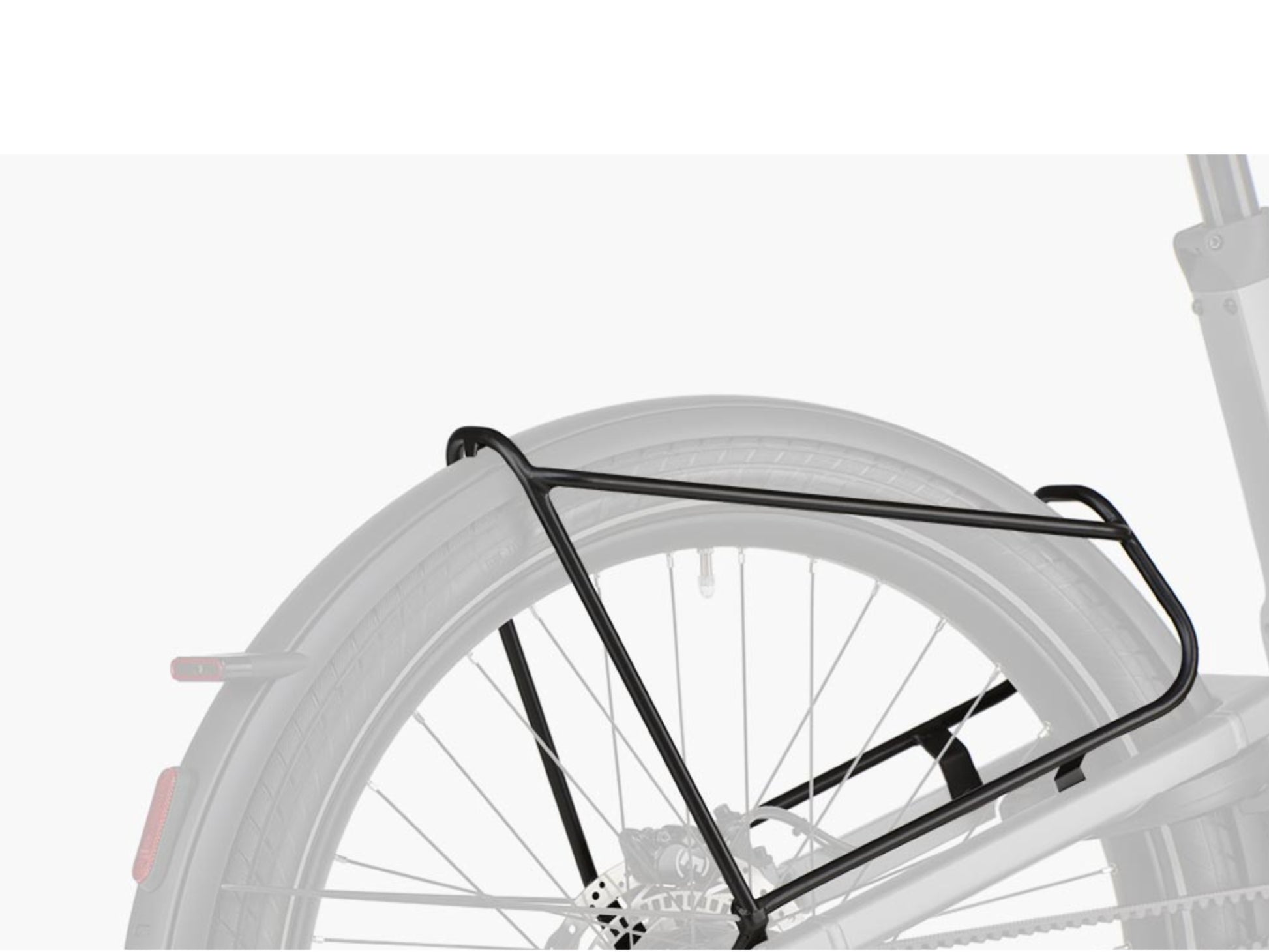

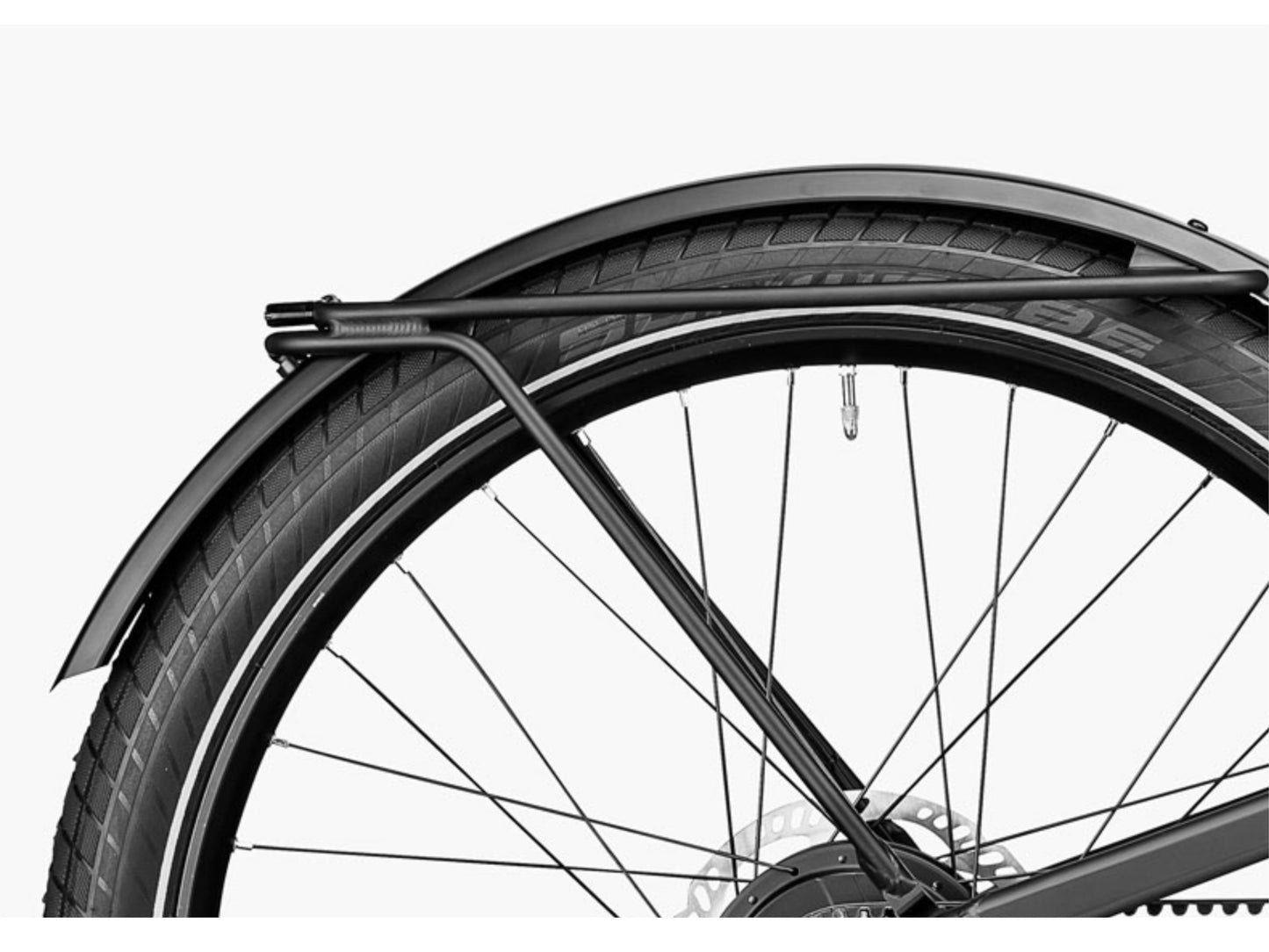

  Rear Carrier	Riese & Müller; pannier holder Riese & Müller*
  Fenders	SKS A69R; SKS A65R*
  Bell	Supernova horn
  Lock	ABUS Bordo X+ 6000/90cm black
  Mirror	Busch & Müller Cycle Star; Humpert ergotec M-99 E4, CNC*

•


  	47	51	56
  Height	5'3" - 5'9"	5'7" - 6'1"	5'11" - 6'7"
  Top tube length [cm]	59	62	65
  Reach [cm]	40	43	46
  Stack [cm]	63,5	63,5	64,5
  Head tube angle [°]	67	67	67
  Seat tube angle [°]	73,5	73,5	73,5
  Trail [mm]	102 / GX: 95	102 / GX: 95	102 / GX: 95
  Wheelbase [cm]	120 / GX: 121,5	123 / GX: 124,5	126 / GX: 127,5
  Bottom bracket height [cm]	30 / GX: 32	30 / GX: 32	30 / GX: 32
  Stand-over height [cm]	80,5 / GX: 82,5	79,5 / GX: 81,5	80 / GX: 82
  Chainstay length [cm]	50,5	50,5	50,5
  Overall length [cm]	192 / GX: 193	195 / GX: 196	198 / GX: 199
  Wheel size ['']	27,5	27,5	27,5
  Head tube length [mm]	140	140	150
  Headset size ['']	1 1/2	1 1/2	1 1/2
  Front suspension travel [mm]	100 / GX: 140	100 / GX: 140	100 / GX: 140
  Effective rear suspension travel [mm]	100 / GX: 140	100 / GX: 140	100 / GX: 140
  Rear shock length [mm]	190 / GX: 210	190 / GX: 210	190 / GX: 210
  Front shock mounting width [mm]	30	30	30
  Rear shock mounting width [mm]	22	22	22
  Front shock locking screw	M8	M8	M8
  Rear shock locking screw	M8	M8	M8
  Rear suspension ratio	2,5 / GX: 2,8	2,5 / GX: 2,8	2,5 / GX: 2,8
  Rear dropout width [mm]	135	135	135
  Gear ratio [m]	1,90-10,15	1,90-10,15	1,90-10,15
  Weight [kg]	29	29,2	29,4
  Weight [lbs]	63,9	64,3	64,8
  Gross vehicle weight rating [kg]	140	140	140
  Weight rating: Rear Luggage rack [kg]	20	20	20

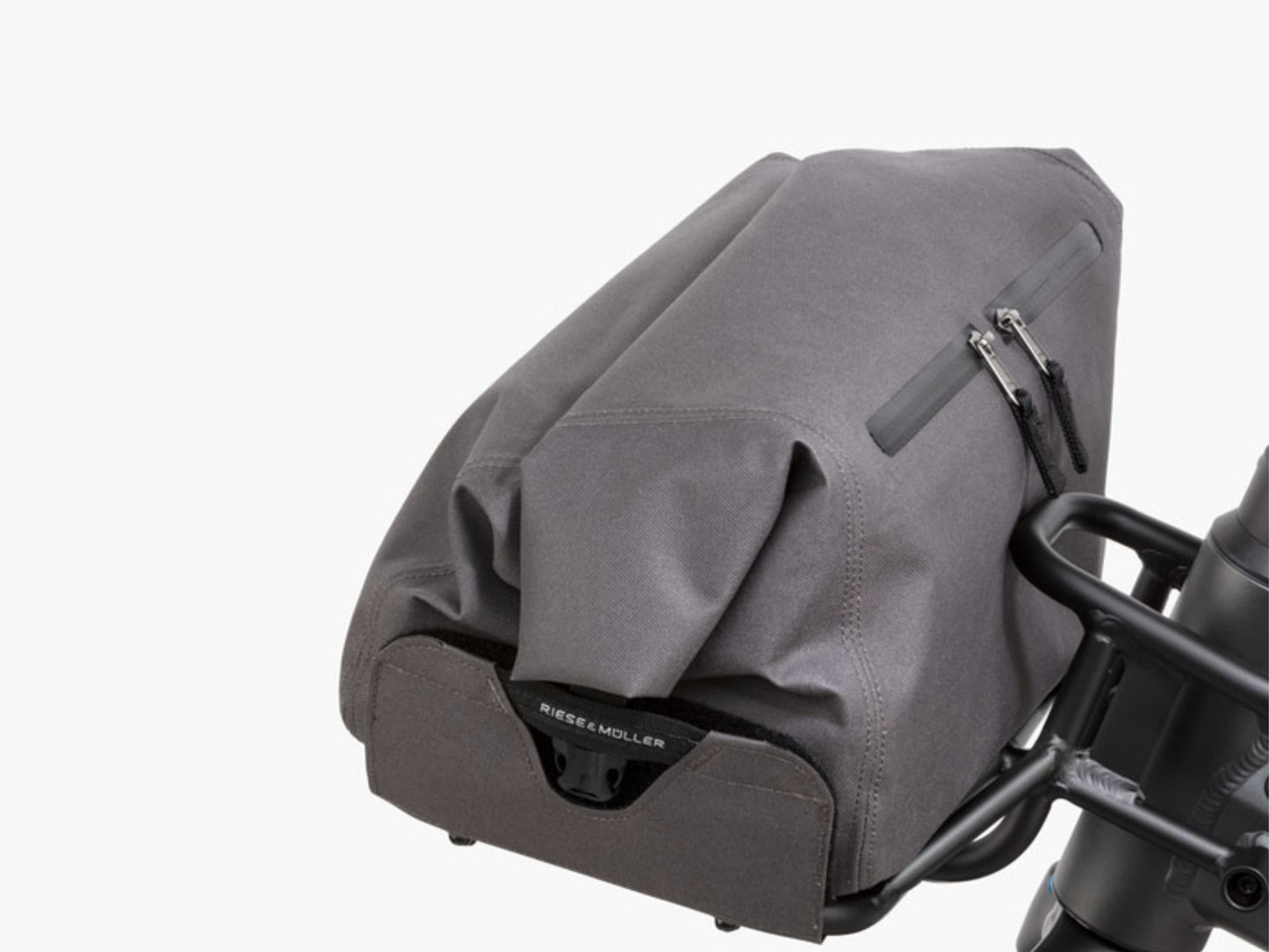

  Weight rating: Handlebar bag/basket [kg]	5	5	5
  Childseat compatibility	Yes	Yes	Yes
  Trailer compatibility: Single wheel/single attachment point	No	No	No
  Trailer compatibility: Two wheel/single attachment point	Yes	Yes	Yes
  Compatibility: Tagalong trailer bike	Yes	Yes	Yes
