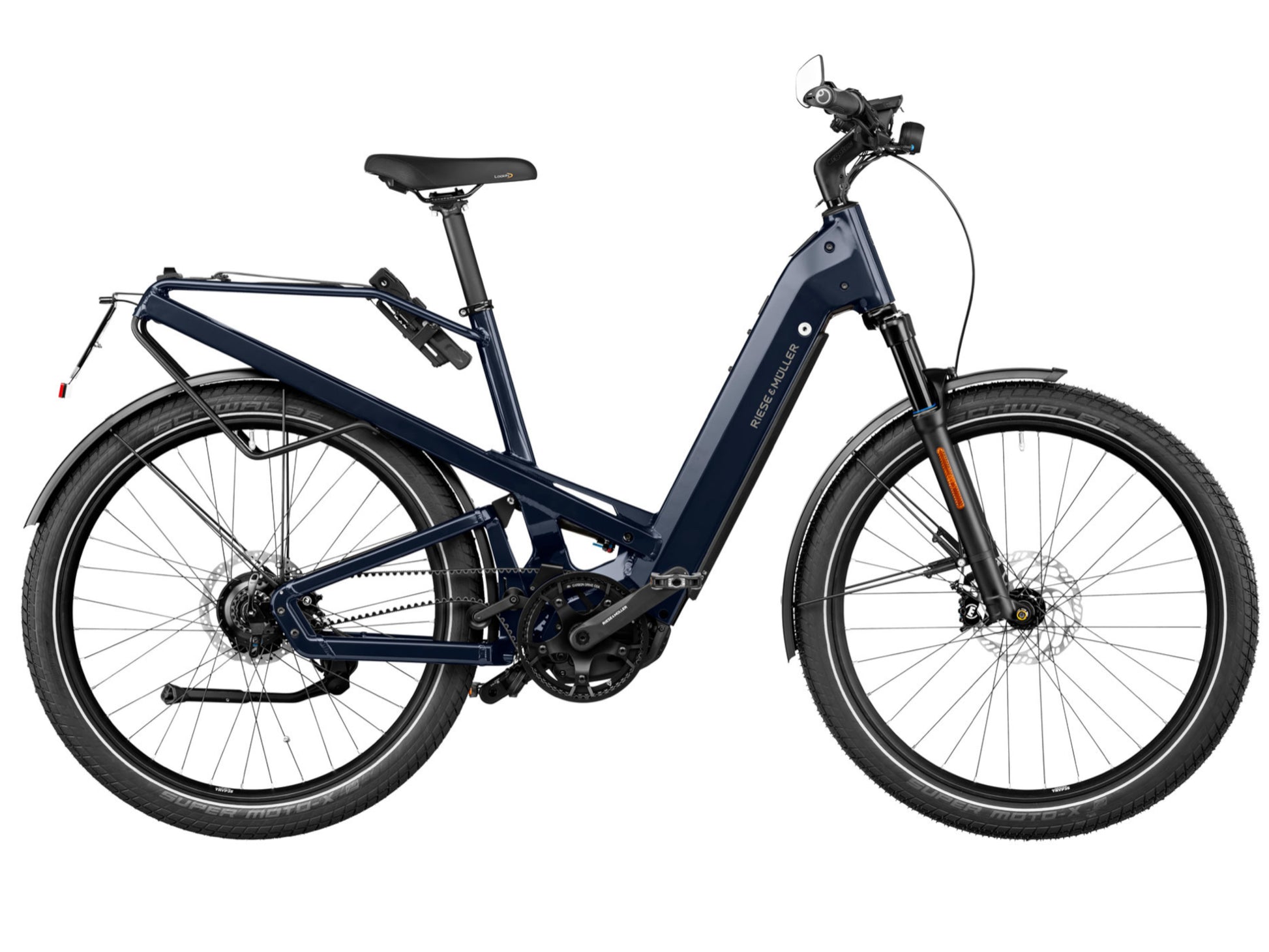

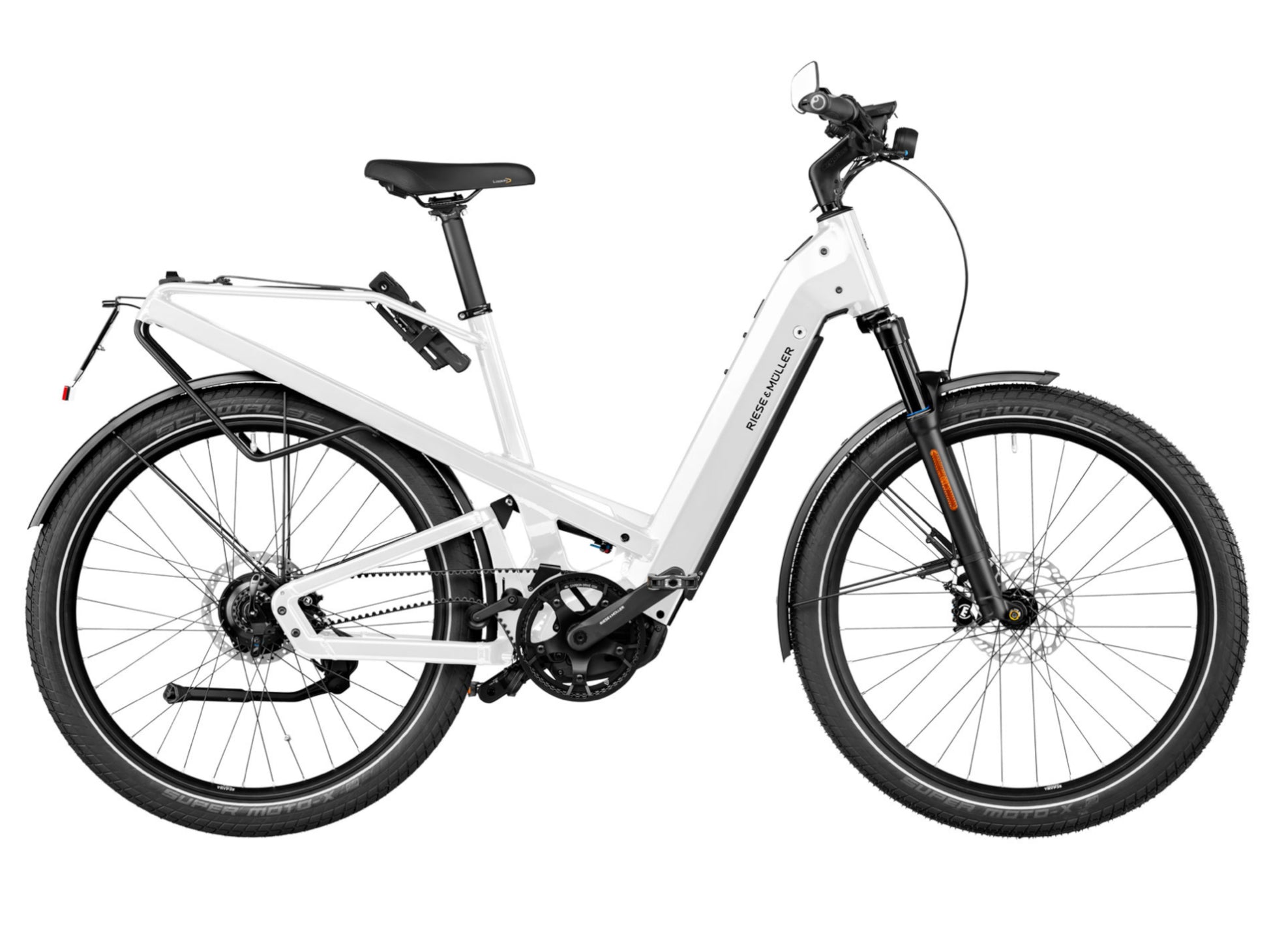

Riese and Muller Homage GT Rohloff HS

The Full Scoop on the Riese and Muller Homage GT Rohloff HS

• Description
• Motor System
• Components
• Extras
• Geometry

•

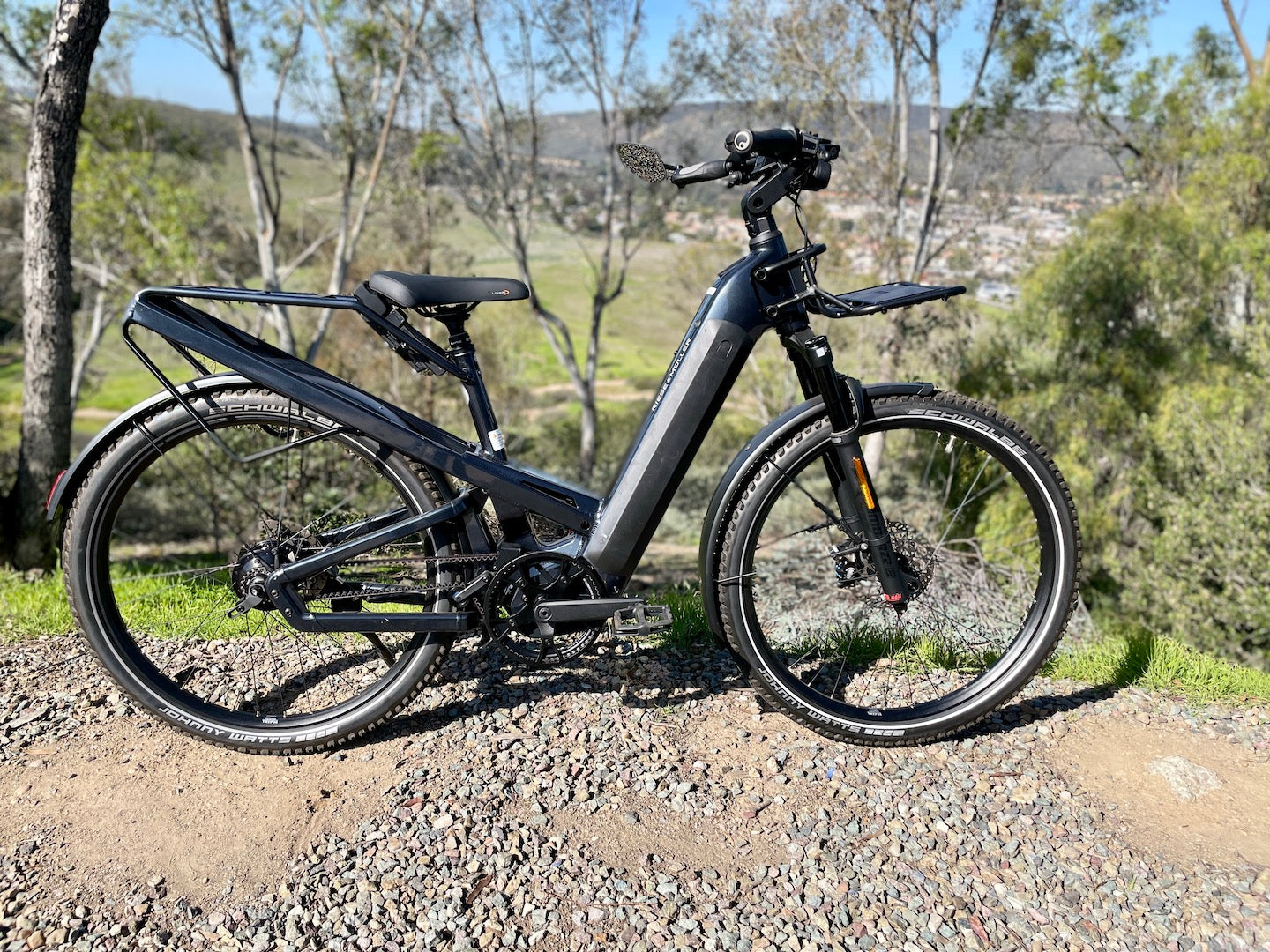

  From its striking lines to its carrier and fully integrated battery and motor – the unique design of the Riese & Muller Homage GT Rohloff HS cannot fail to impress at first sight. Riese & Müller Control Technology with full suspension ensures exceptional riding comfort with top-of-the-line safety. The low step-through allows easy handling in city traffic – and if you want to head out further away or higher up, the DualBattery option with 1,250 Wh capacity boasts a range of up to 160 kilometers.

  Components subject to manufacturer changes.

  * May differ depending on the availability in your country, design or configuration of the model. The specification table indicates all available components for this model – not just the basic equipment. Some of the options listed are only available for a surcharge.

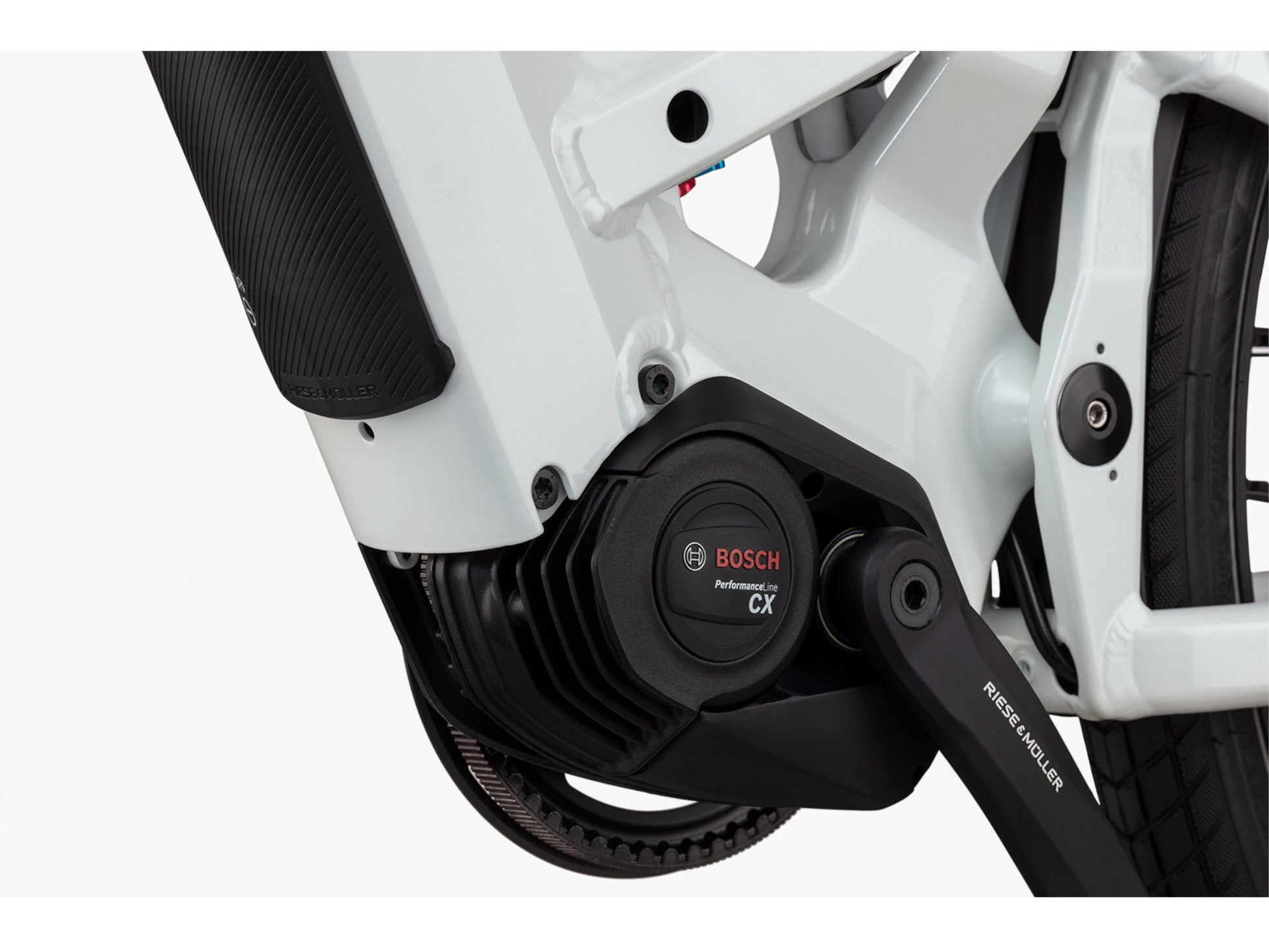

• Motor	Performance Line Speed (Gen4)

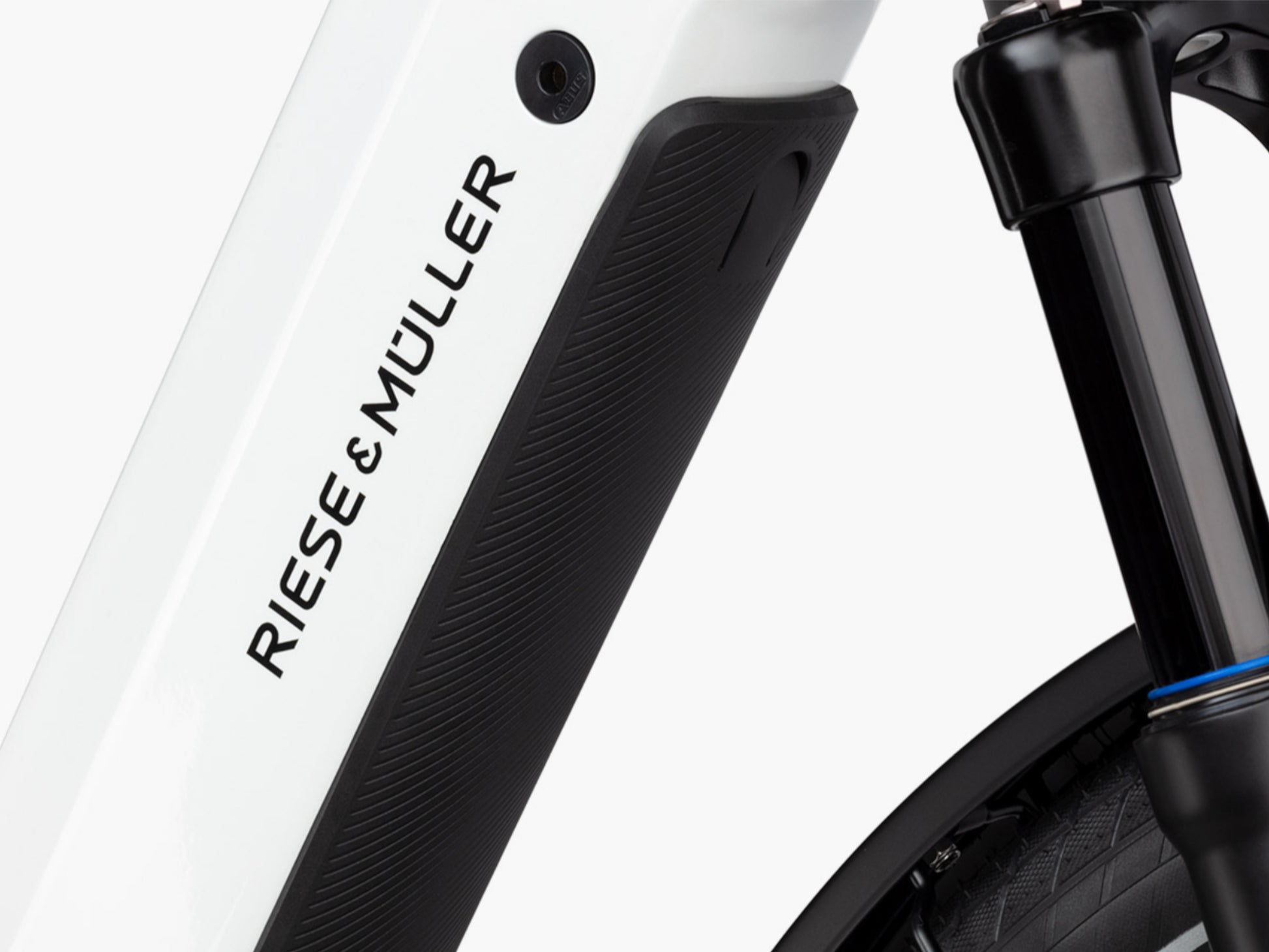

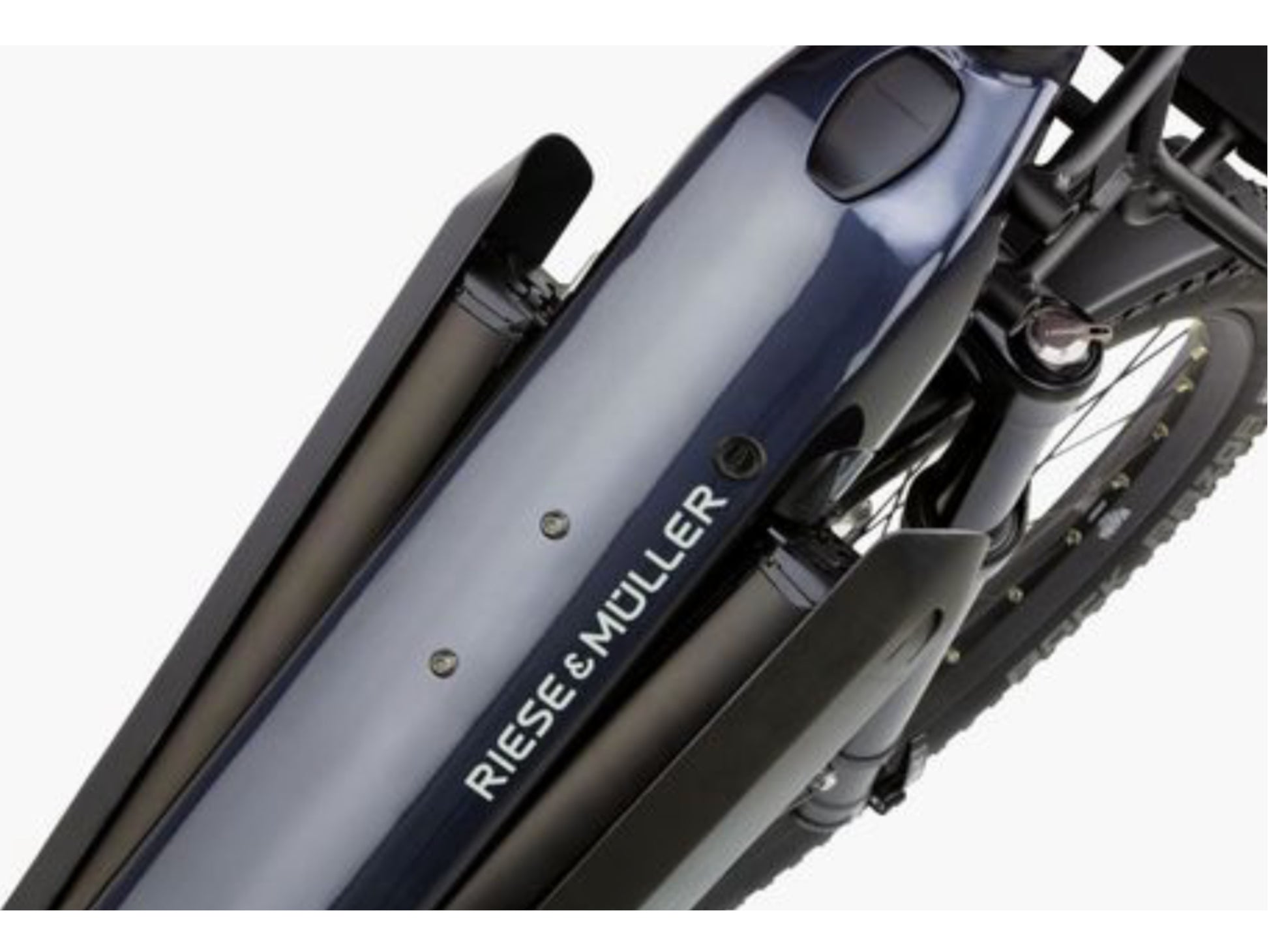

  Battery	Bosch PowerTube 625 Horizontal, 36 V, 13,4 Ah/625Wh; Bosch PowerTube 625 Horizontal, 36 V, 13,4 Ah/625Wh ( 2x )*

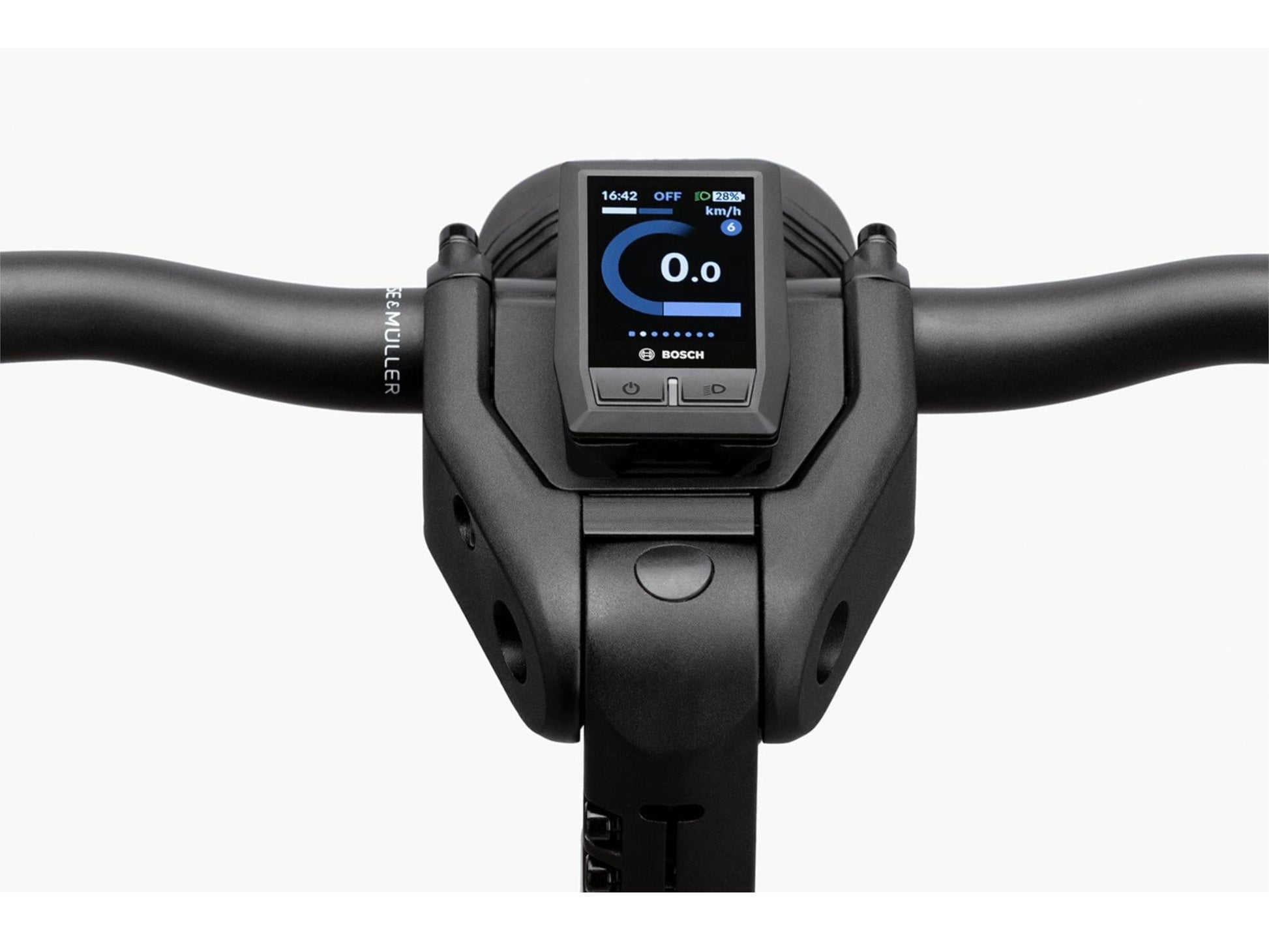

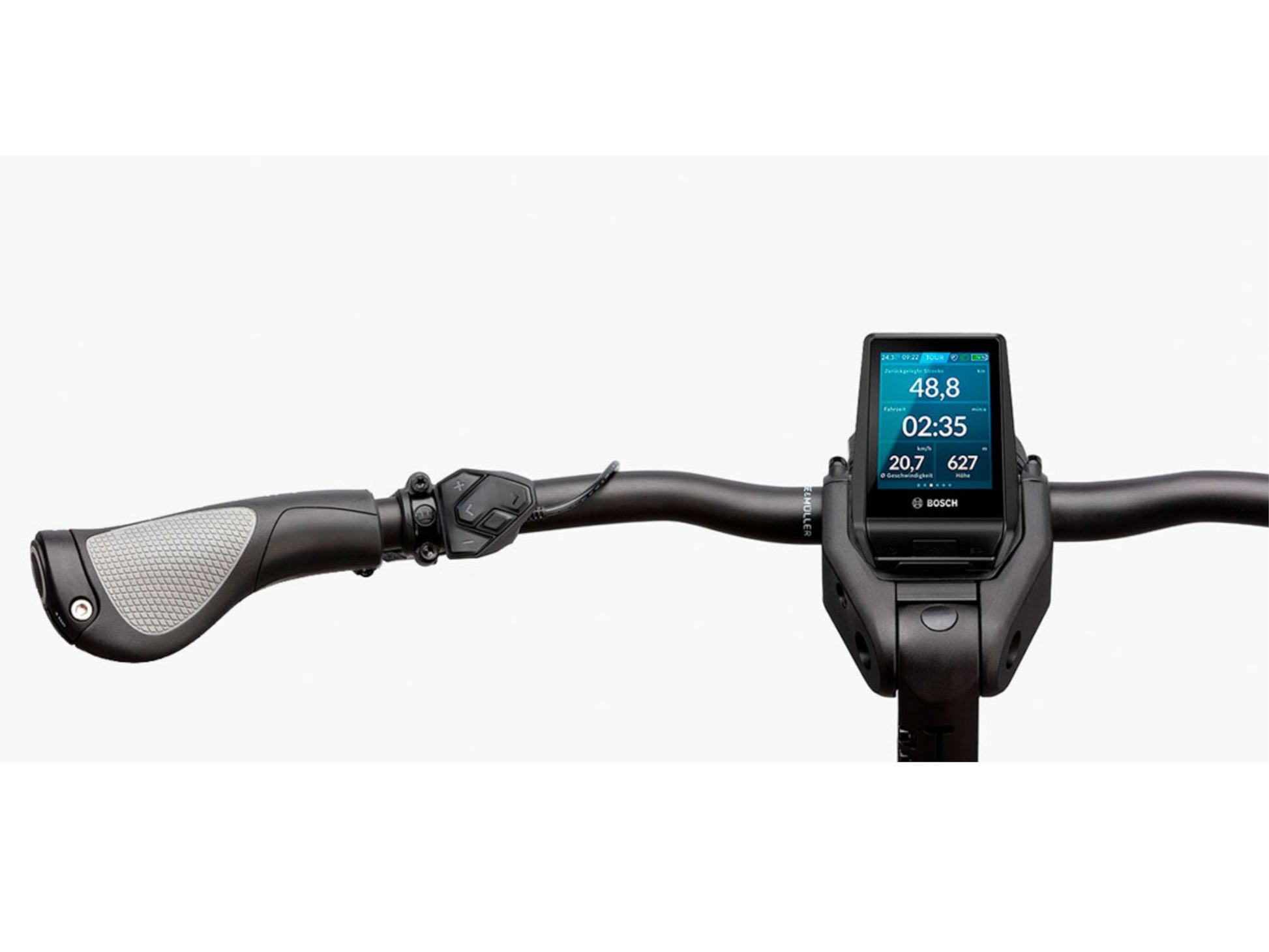

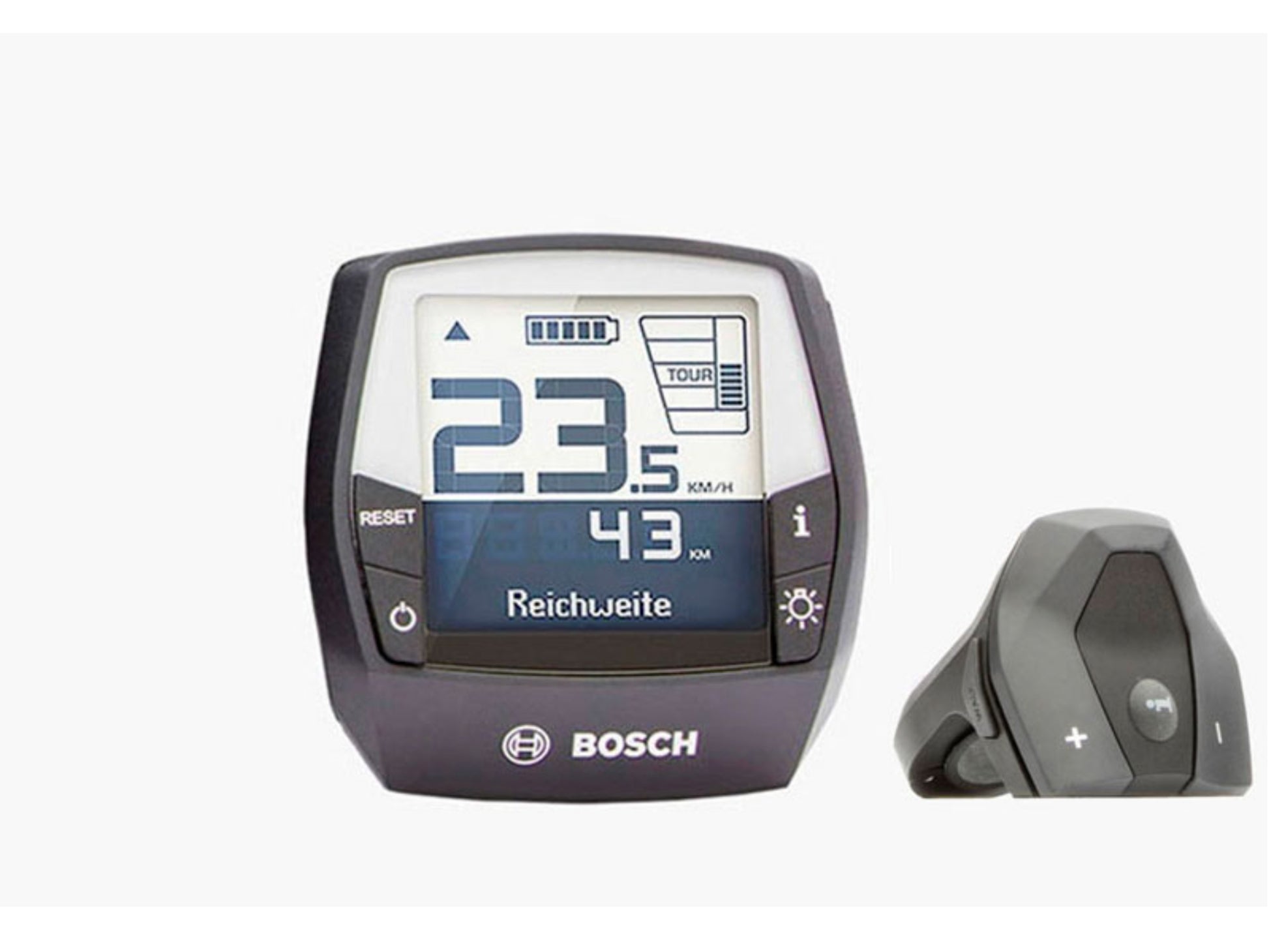

  Display	Bosch Intuvia; Bosch Nyon*; Bosch Kiox*
  Charger	Spec not provided

• Frame	Spec not provided
  Fork	Marzocchi Bomber Z2, Air, tapered, 100mm

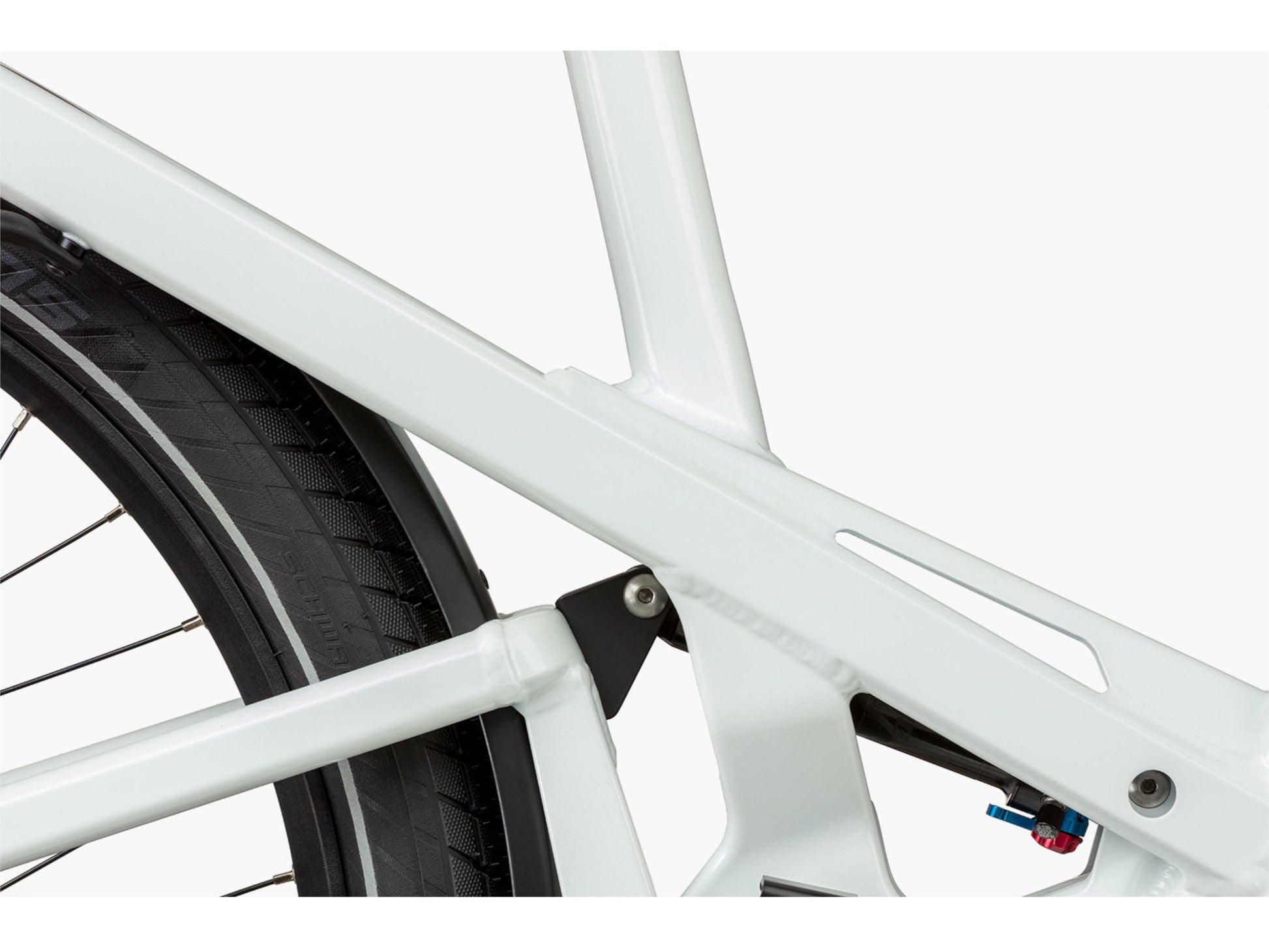

  Rear Shock	Suntour RS-19 190x40
  Front Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Derailleur	Spec not provided
  Shift Levers	Rohloff E14 electronic shifter
  Chain	Gates drive belt CDX
  Cassette	Spec not provided
  Crankset	FSA/Riese & Müller, 170 mm
  Chain Ring	60T, for Gates drive belt CDX
  Chain Guard	Riemenschutzring
  Rims	Rodi Tryp35 27,5"
  Front Hub	Novatec Boost, QR, 32H
  Rear Hub	Rohloff Speedhub E14, 14-speed, 36H

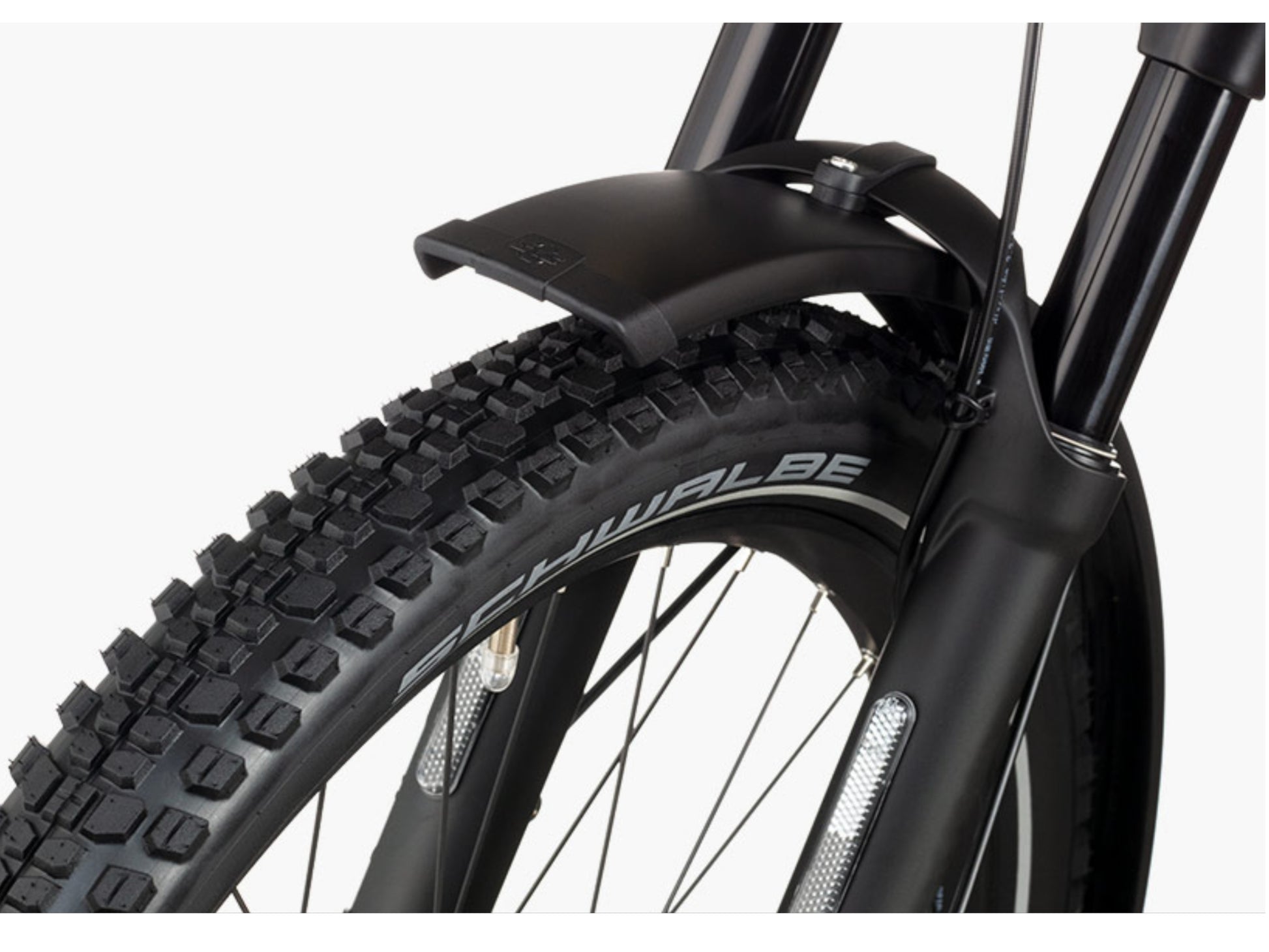

  Front Tire	Schwalbe Johnny Watts 60-584; Schwalbe Super Moto-X 62-584 Reflex
  Rear Tire	Schwalbe Johnny Watts 60-584; Schwalbe Super Moto-X 62-584 Reflex
  Handlebar	Humpert ergotec Ergo XXL, 31,8 mm; Humpert ergotec Trekking, 31,8 mm, Alu*; Satori R&M Custom Komfort, 25,4 mm, Alu*; Satori R&M Custom, 25,4mm, Alu*
  Stem	Humpert ergotec Barracuda Evo, 90 mm, 20°; Satori R&M Custom, cable integration, adjustable angle, Alu*
  Headset	Acros IntegrationX, block lock

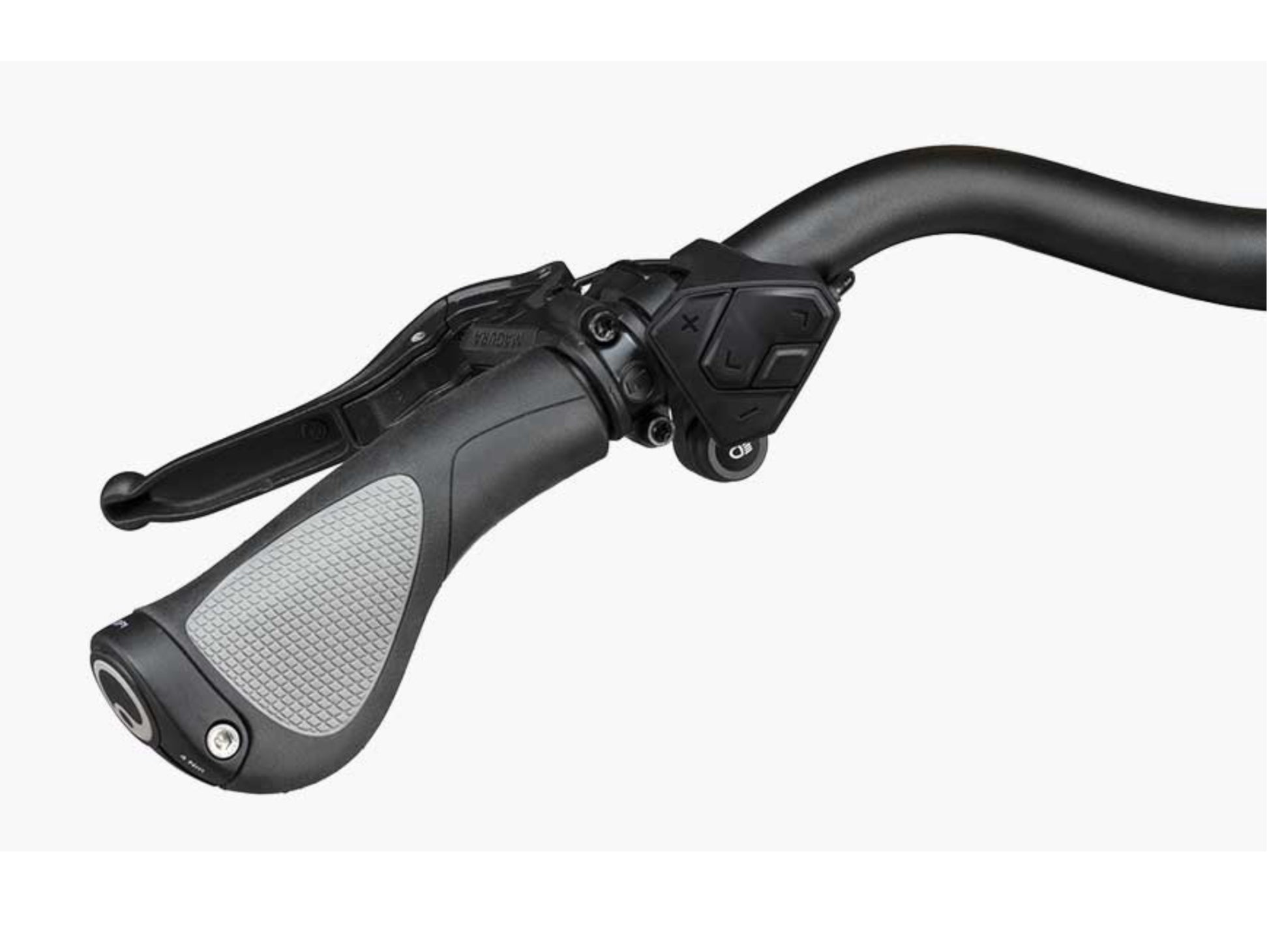

  Grips	Ergon ergonomic
  Saddle	Selle Royal New Lookin Evo R&M; Selle Royal New Lookin Female Evo R&M*

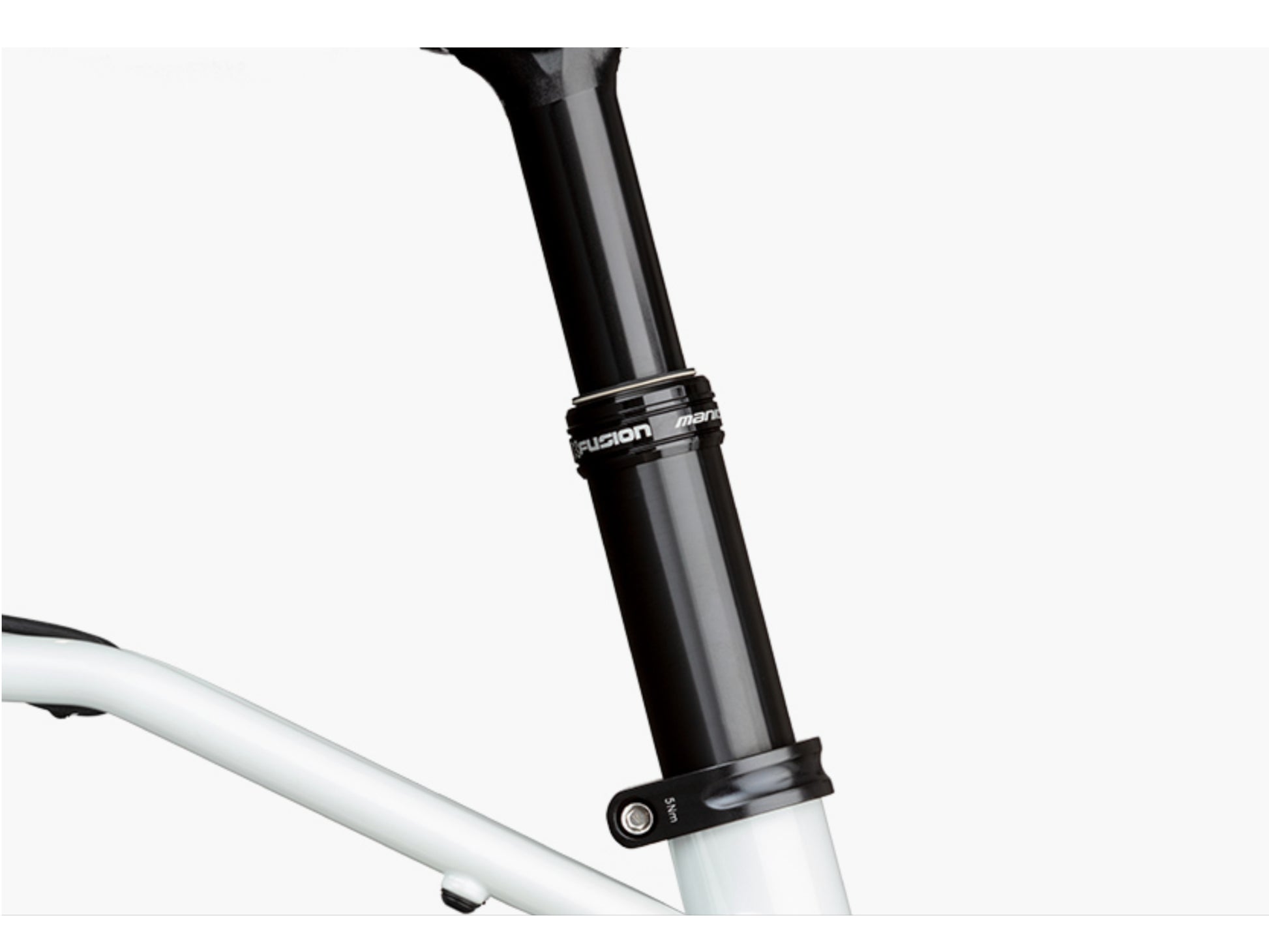

  Seatpost	Satori Trident; Dropper Post X-Fusion Manic 70*; JD/Riese & Müller, Alu, 34,9 x 350mm*

• Pedals	VP R&M Custom
  Front Light	Supernova M99
  Rear Light	Supernova M99, integrated brake light*; Supernova M99, integrated plate illumination and brake light
  Kickstand	Pletscher Comp 40 Flex

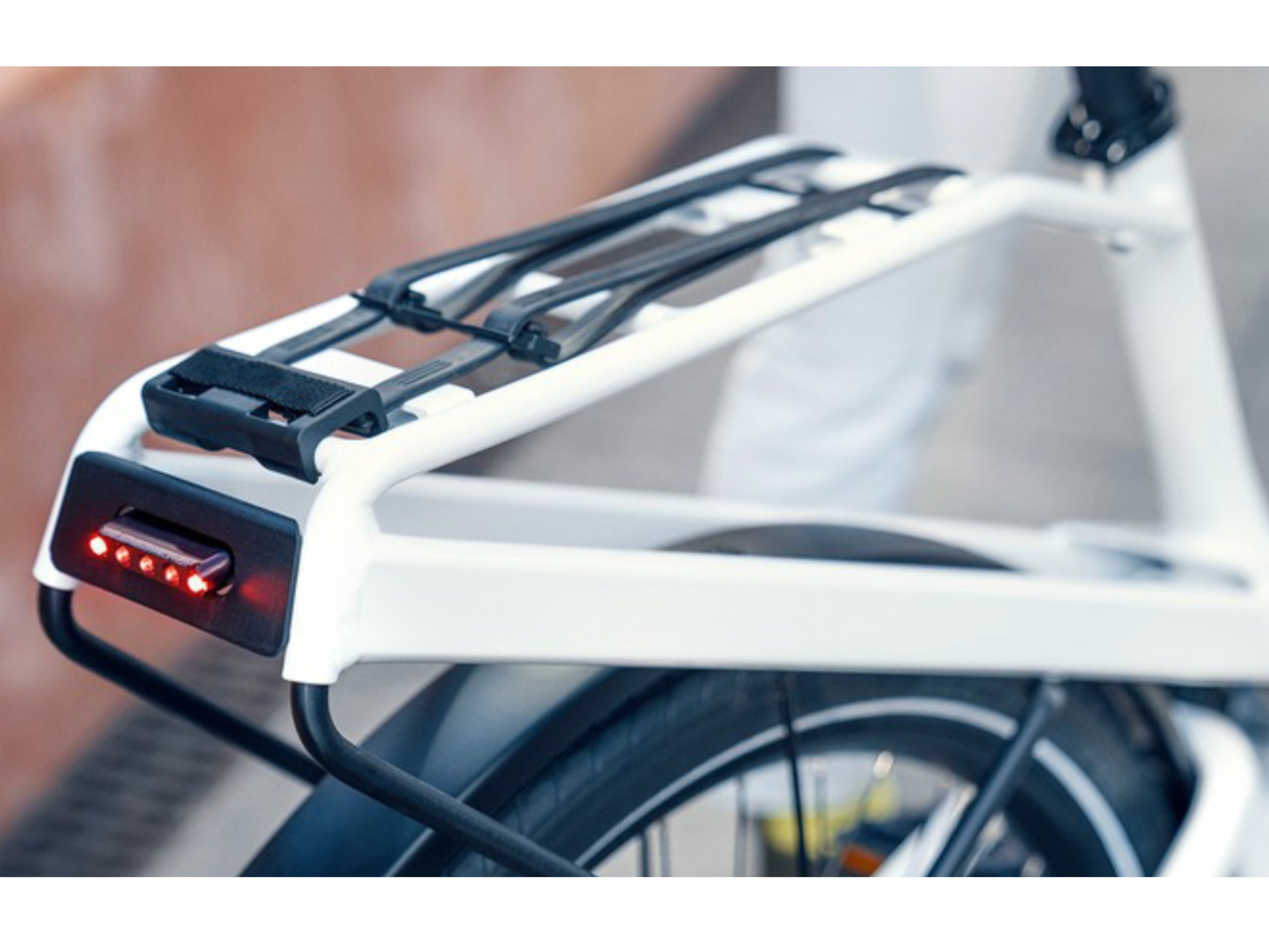

  Rear Carrier	integrated, MIK*; Riese & Müller
  Fenders	SKS A69R
  Bell	Supernova horn
  Lock	Abus Bordo 6000/90cm black
  Mirror	Busch & Müller Cycle Star; Humpert ergotec M-99 E4, CNC*

• 49cm	Height = 1.65 - 1.80 m (5'5" - 5'10")
  54cm	Height = 1.75 - 1.90 m (5'8" - 6'2")
  58cm	Height = 1.80 - 2.0 m (5'10" - 6'6")
  Top tube length [cm]	58,5/61/64
  Reach [cm]	38,5/41/44
  Stack [cm]	66
  Seat tube angle [°]	73
  Trail [mm]	89
  Wheelbase [cm]	117/119/122
  Bottom bracket height [cm]	30,5
  Overall length [cm]	188/190/193
  Head tube length [mm]	160
  Weight [kg]	29,9/30,1/30,3
  Weight rating: Luggage rack [kg]	20
