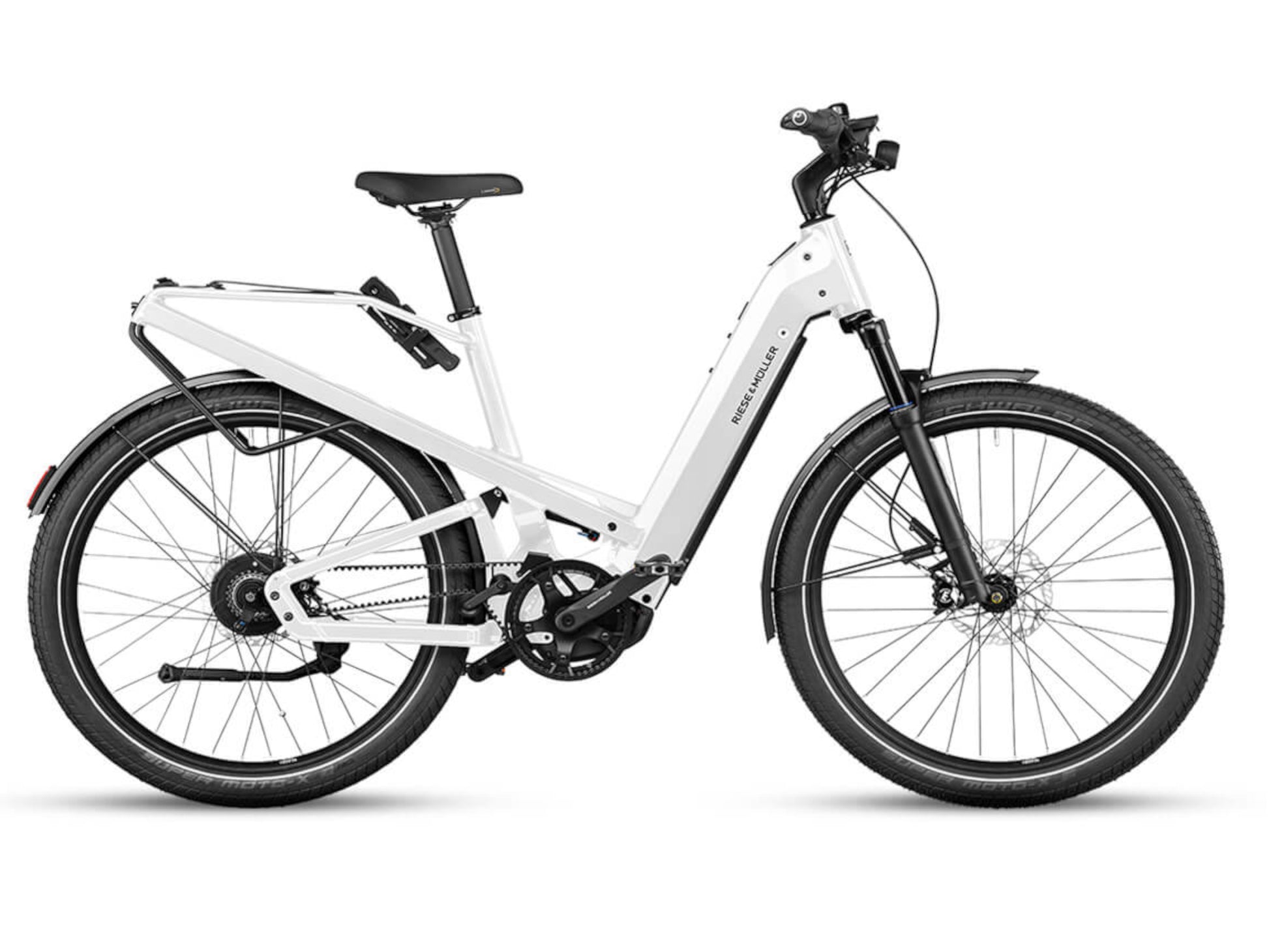

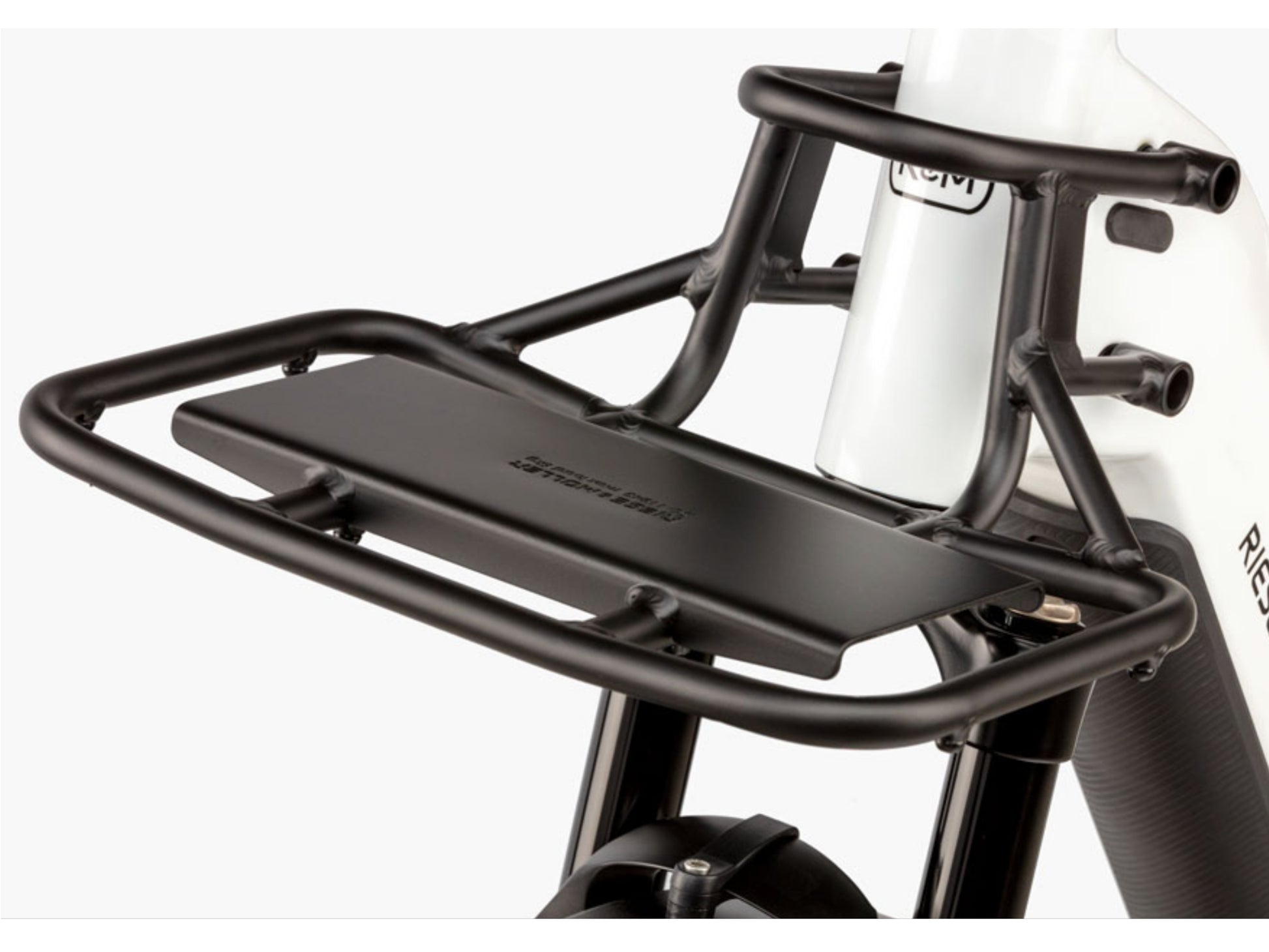

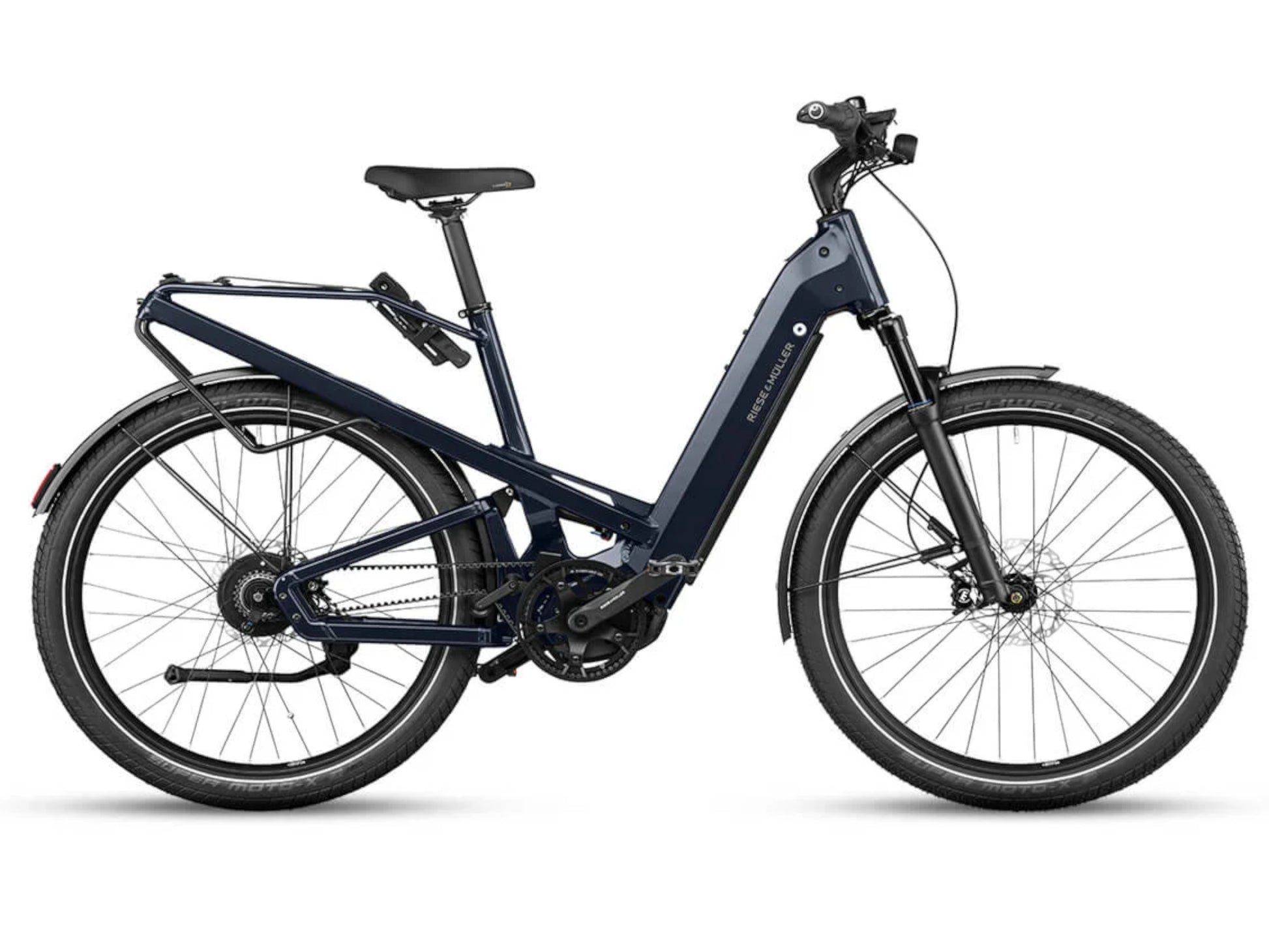

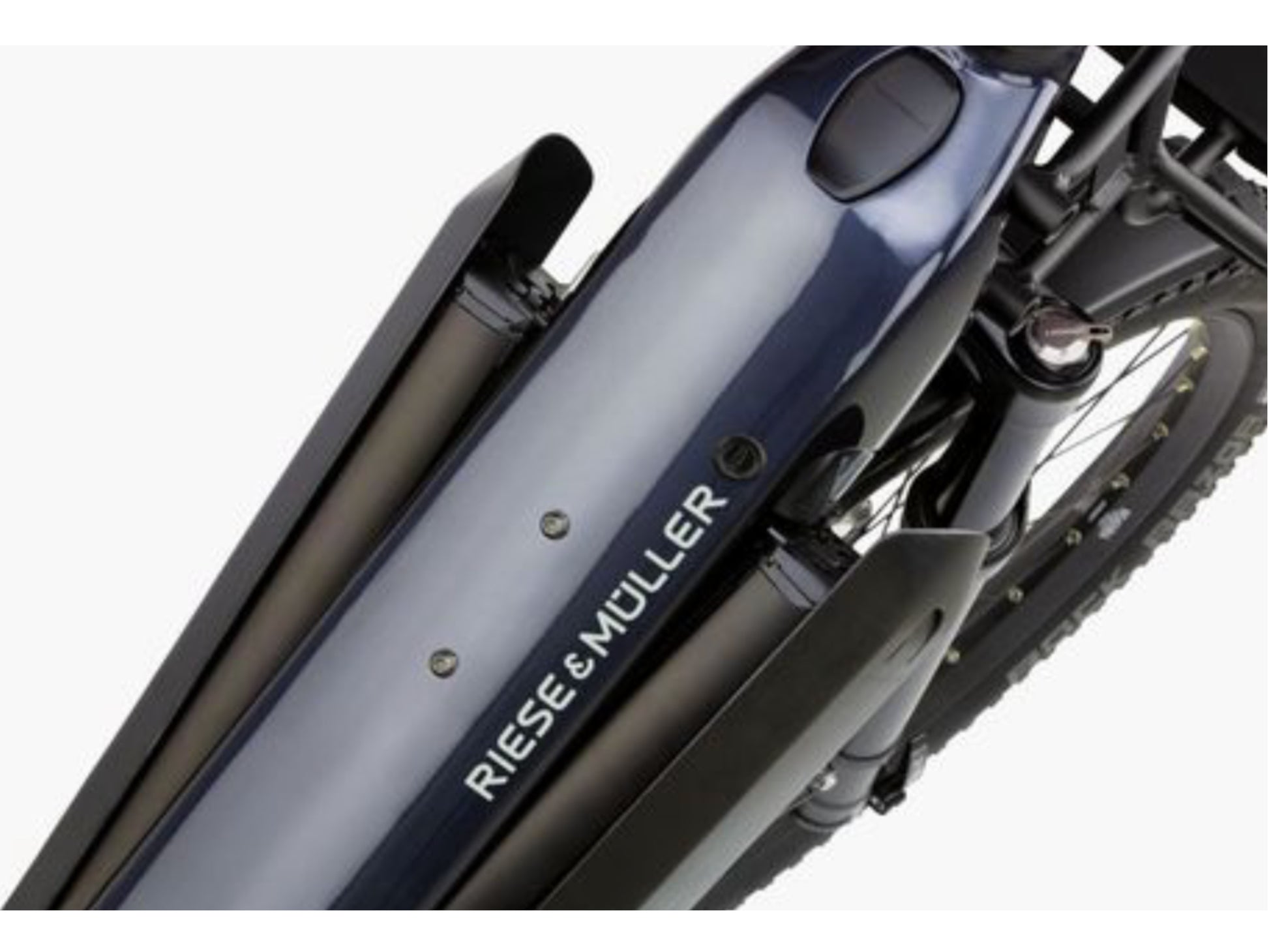

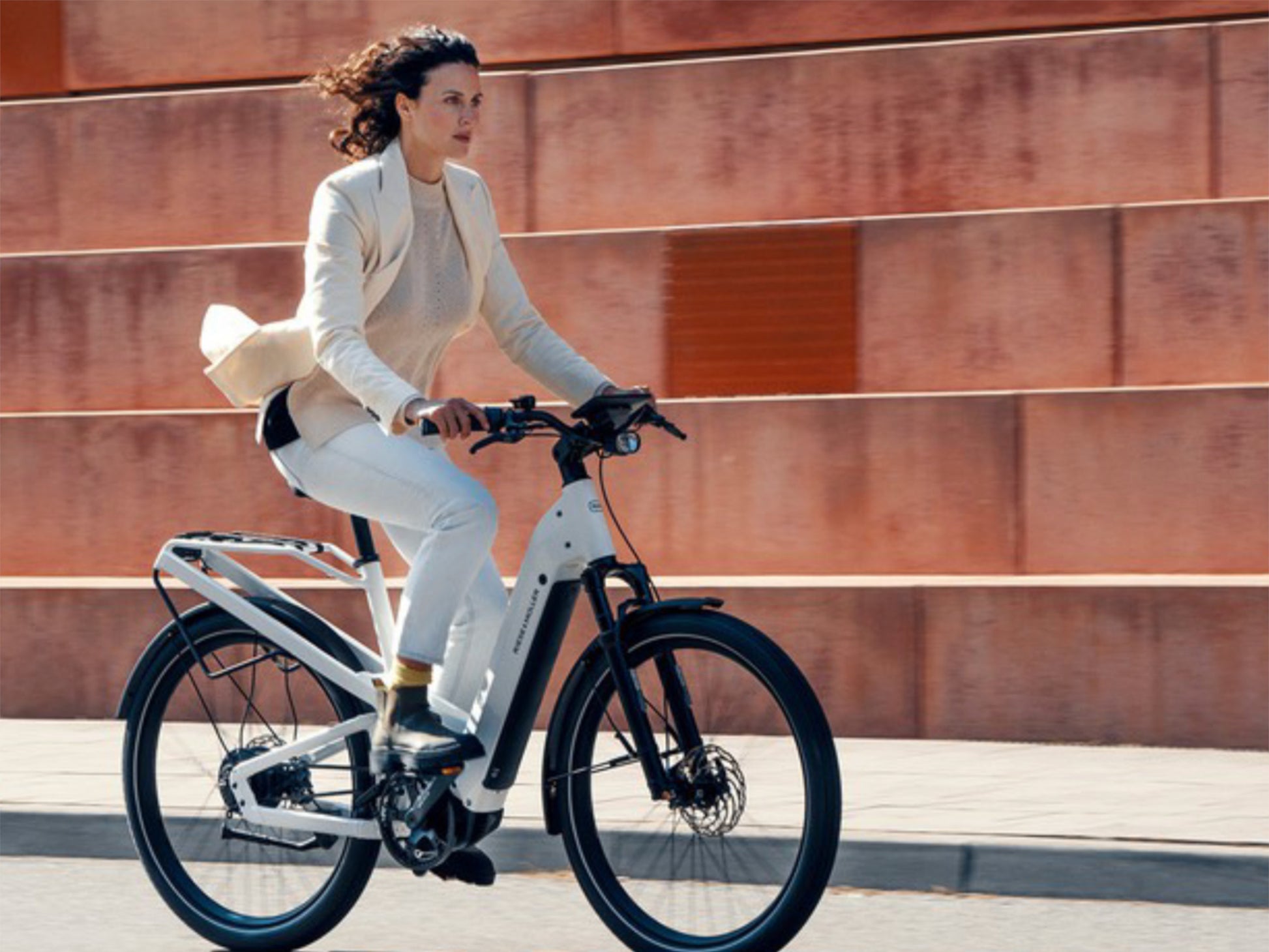

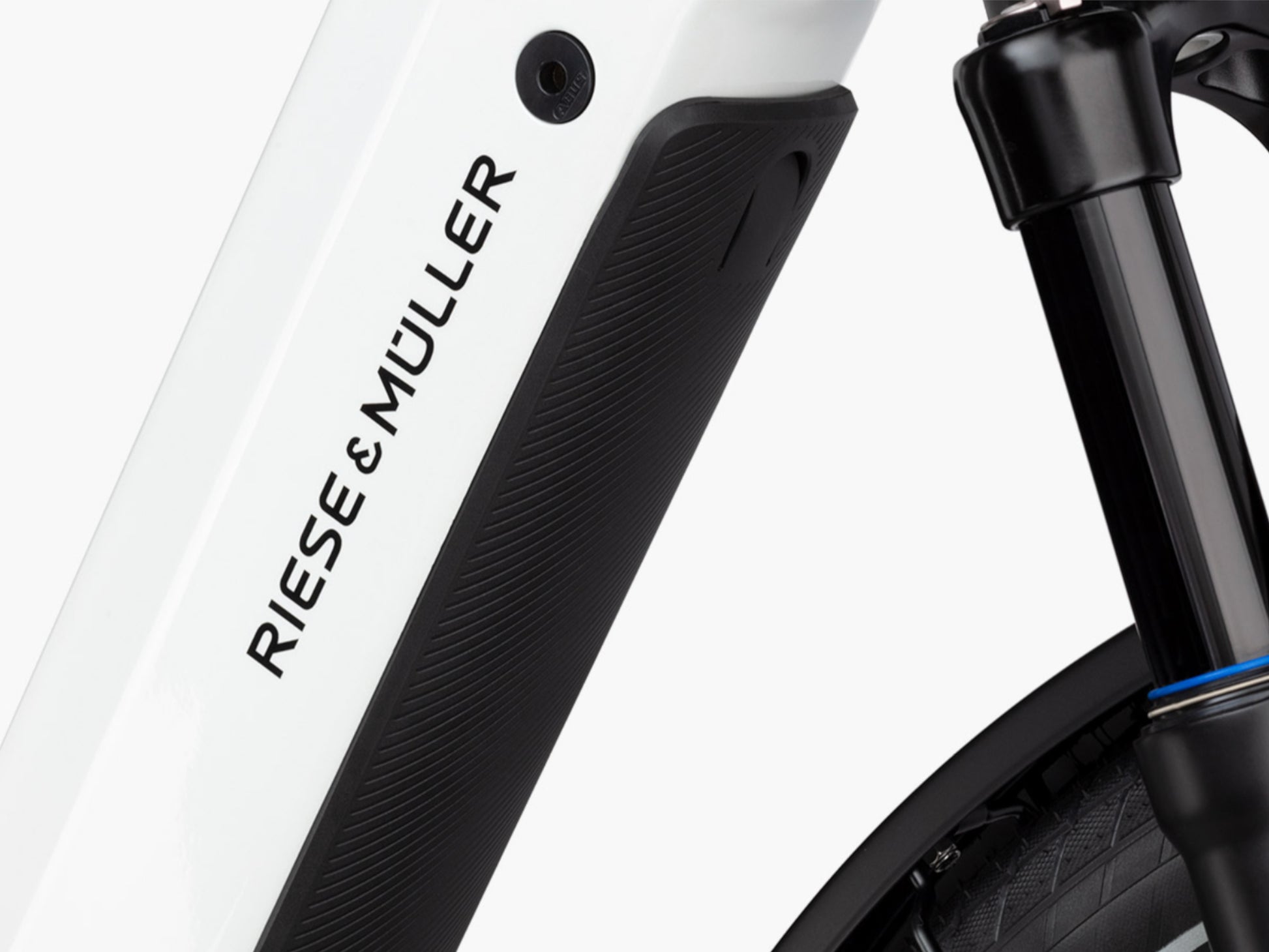

  From its striking lines to its carrier and fully integrated battery and motor – the unique design of the Riese & Muller Homage GT Vario cannot fail to impress at first sight. Riese & Müller Control Technology with full suspension ensures exceptional riding comfort with top-of-the-line safety. The low step-through allows easy handling in city traffic – and if you want to head out further away or higher up, the DualBattery option with 1,250 Wh capacity boasts a range of up to 160 kilometers.

  Components subject to manufacturer changes.

  * May differ depending on the availability in your country, design or configuration of the model. The specification table indicates all available components for this model – not just the basic equipment. Some of the options listed are only available for a surcharge.

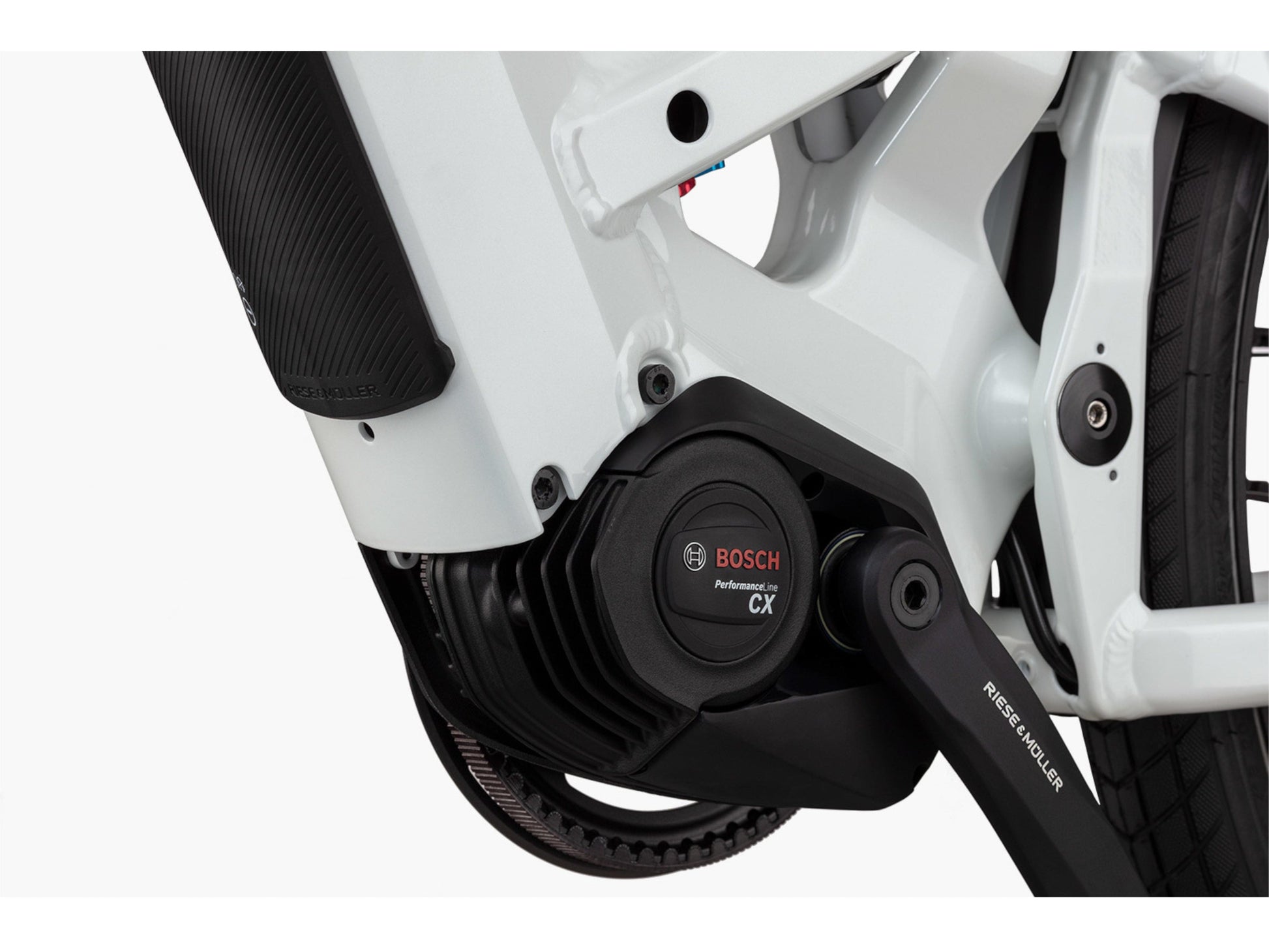

• Motor	Performance Line CX (Gen4)
  Battery	Bosch PowerTube 625 Horizontal, 36 V, 13,4 Ah/625Wh; Bosch PowerTube 625 Horizontal, 36 V, 13,4 Ah/625Wh ( 2x )*

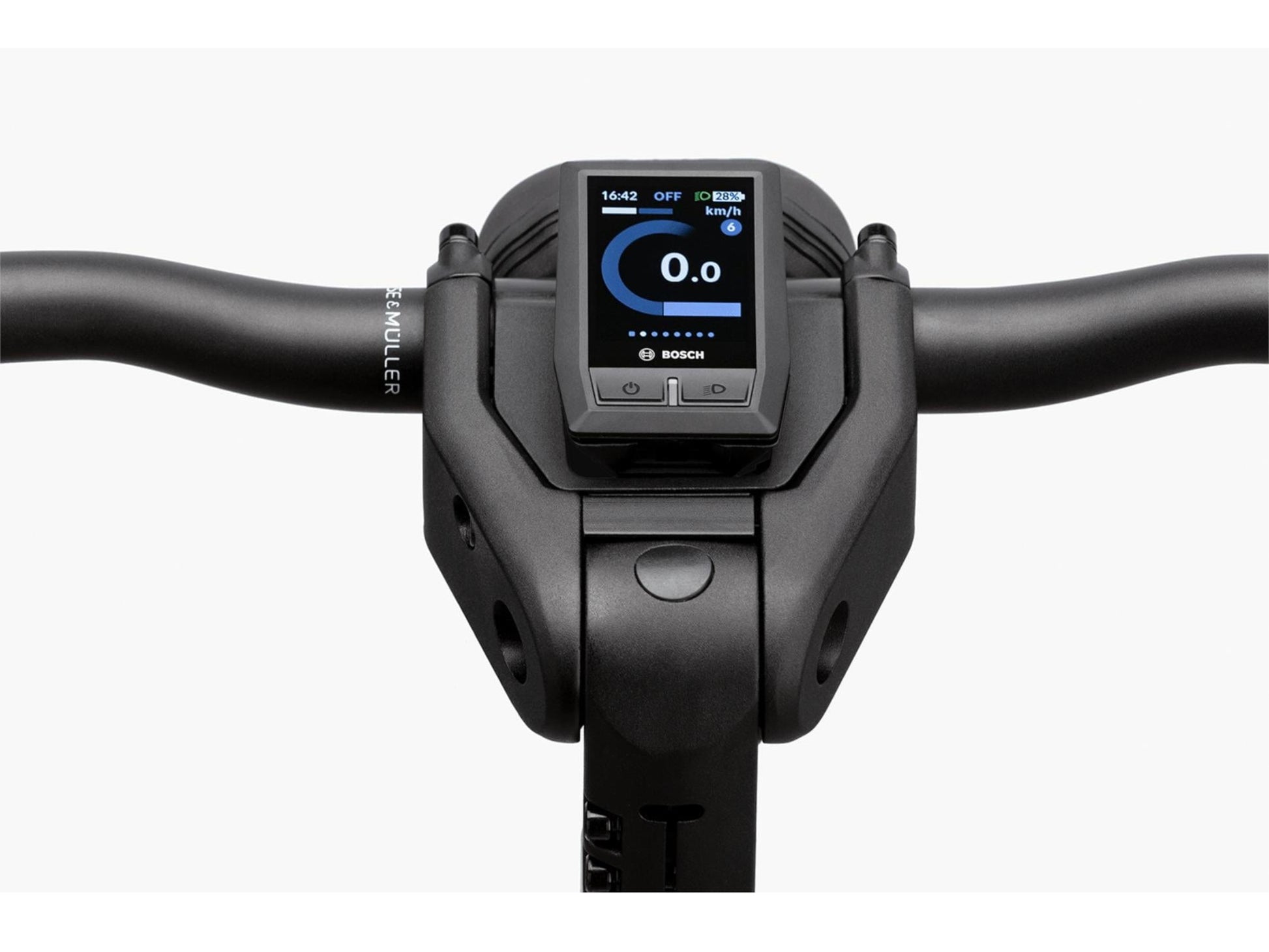

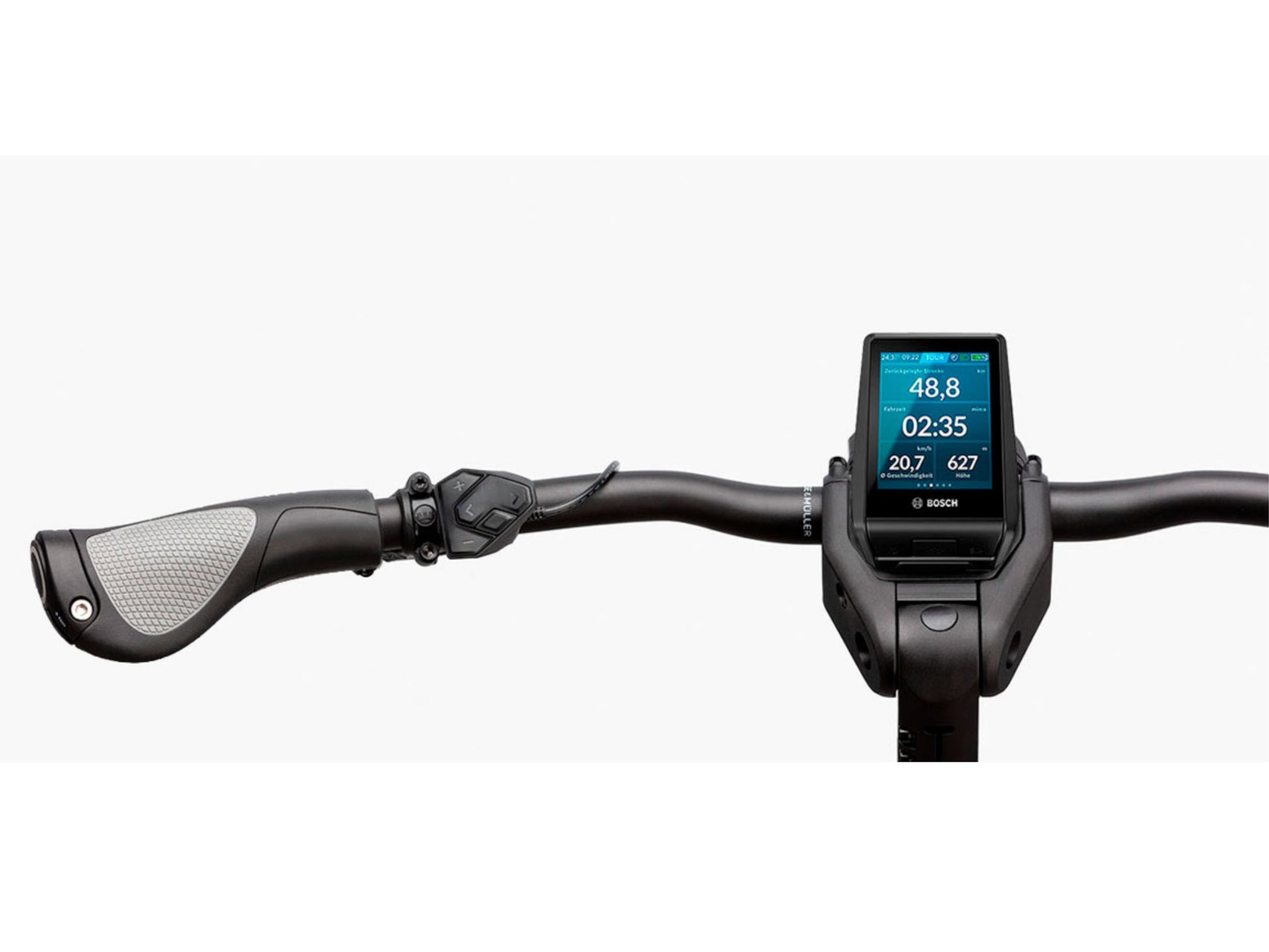

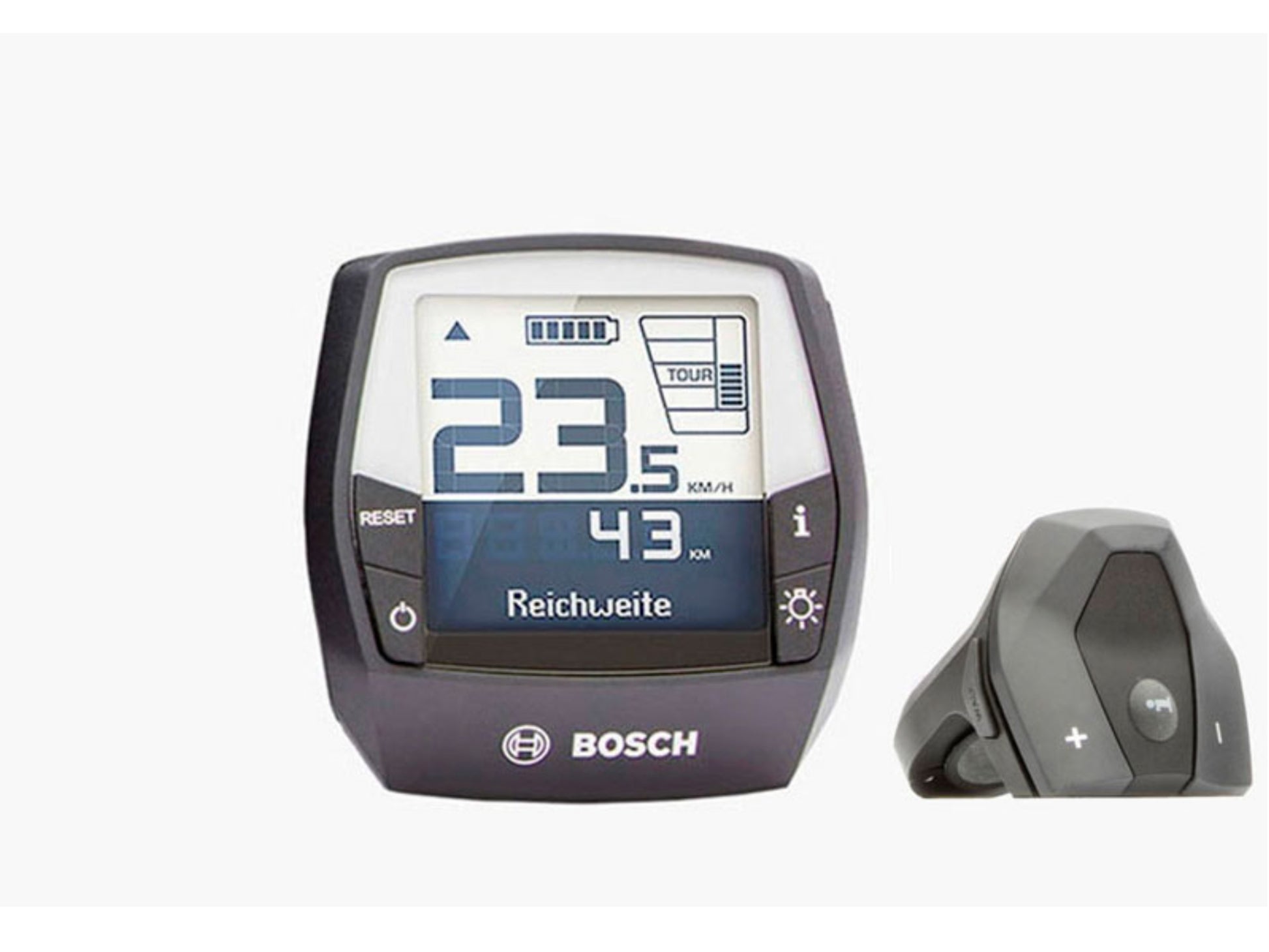

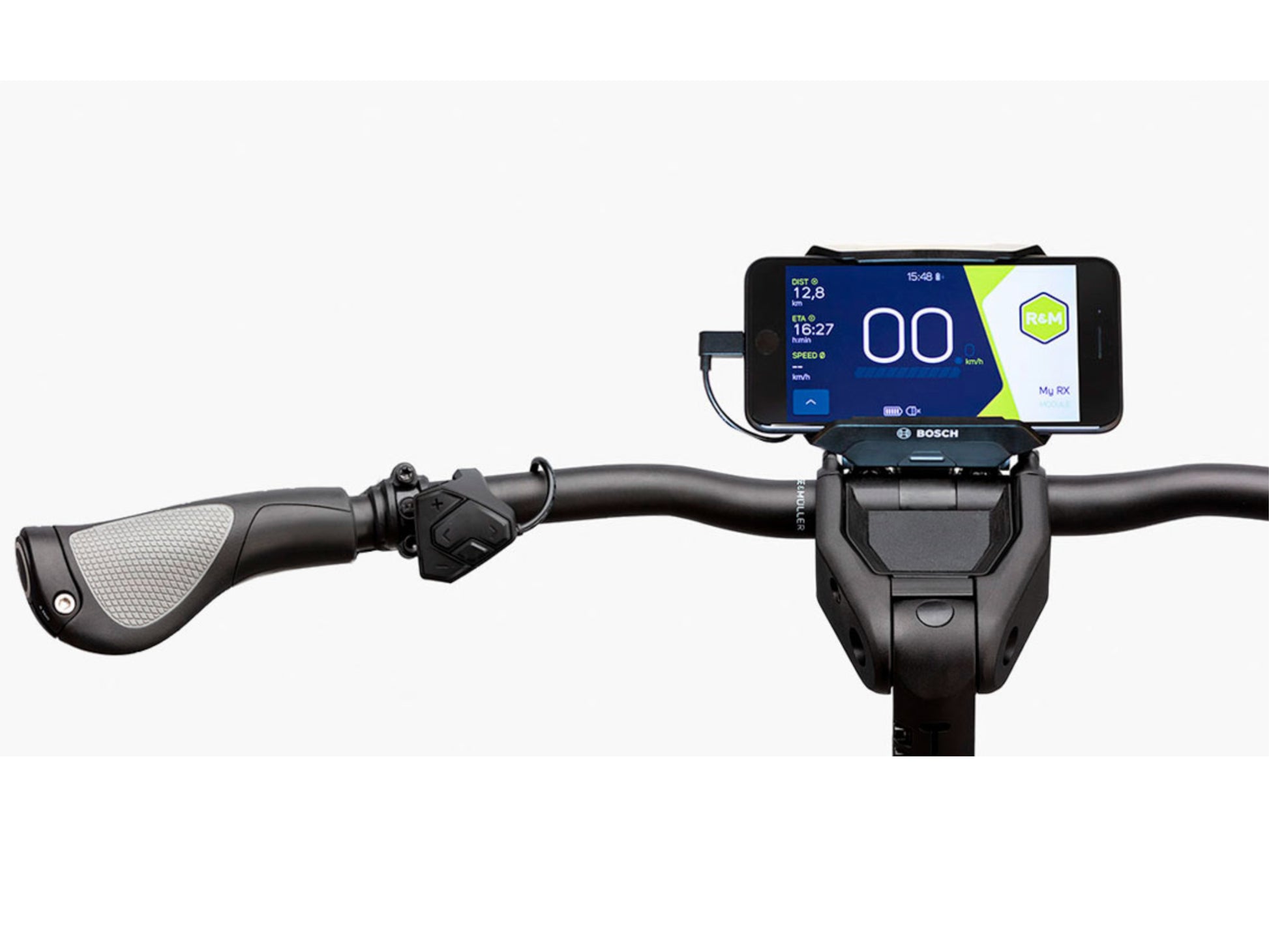

  Display	Bosch Intuvia; Bosch Nyon*; Bosch Kiox*
  Charger	Spec not provided

• Frame	deepsea blue metallic*; pearl white*
  Fork	Marzocchi Bomber Z2, Air, tapered, 100mm
  Rear Shock	Suntour RS-19 190x40
  Front Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Derailleur/ Pinion	24T, for Gates drive belt CDX
  Shift Levers	Enviolo grip shift Twist Display Pure, continuous
  Chain	Gates drive belt CDX
  Cassette	Spec not provided
  Crankset	FSA/Riese & Müller, 170 mm
  Chain Ring	55T, for Gates drive belt CDX
  Chain Guard	Belt Guard
  Rims	Rodi Tryp35 27,5"
  Front Hub	Novatec Boost, QR, 32H; Novatec Disc 32H*
  Rear Hub	Novatec Boost, QR, 36H

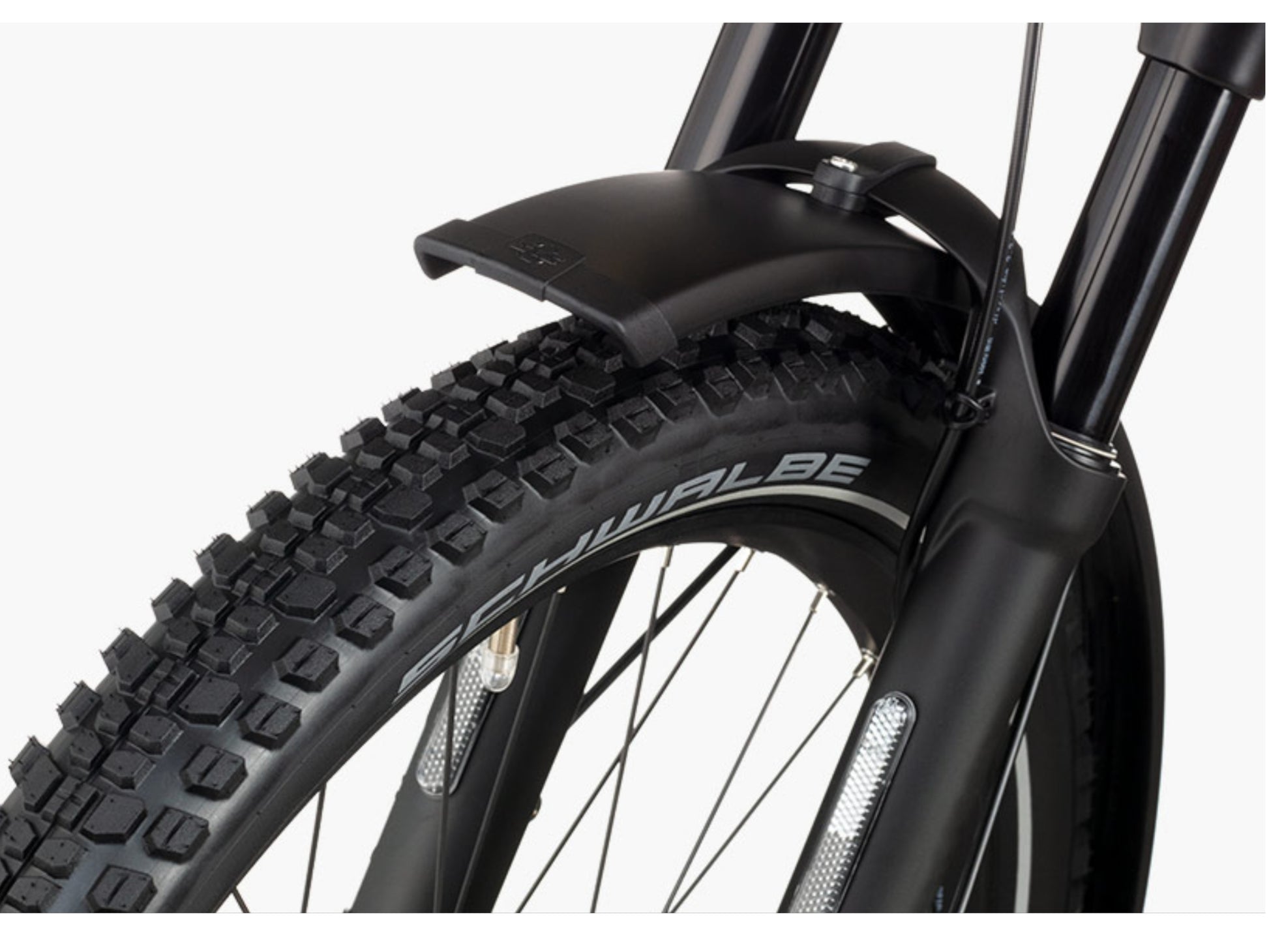

  Front Tire	Schwalbe Johnny Watts 60-584; Schwalbe Super Moto-X 62-584 Reflex
  Rear Tire	Schwalbe Johnny Watts 60-584; Schwalbe Super Moto-X 62-584 Reflex
  Handlebar	Humpert ergotec Ergo XXL, 31,8 mm; Humpert ergotec Trekking, 31,8 mm, Alu*; Satori R&M Custom Komfort, 25,4 mm, Alu*; Satori R&M Custom, 25,4mm, Alu*
  Stem	Humpert ergotec Barracuda Evo, 90 mm, 20°; Satori R&M Custom, cable integration, adjustable angle, Alu*
  Headset	Acros IntegrationX, block lock

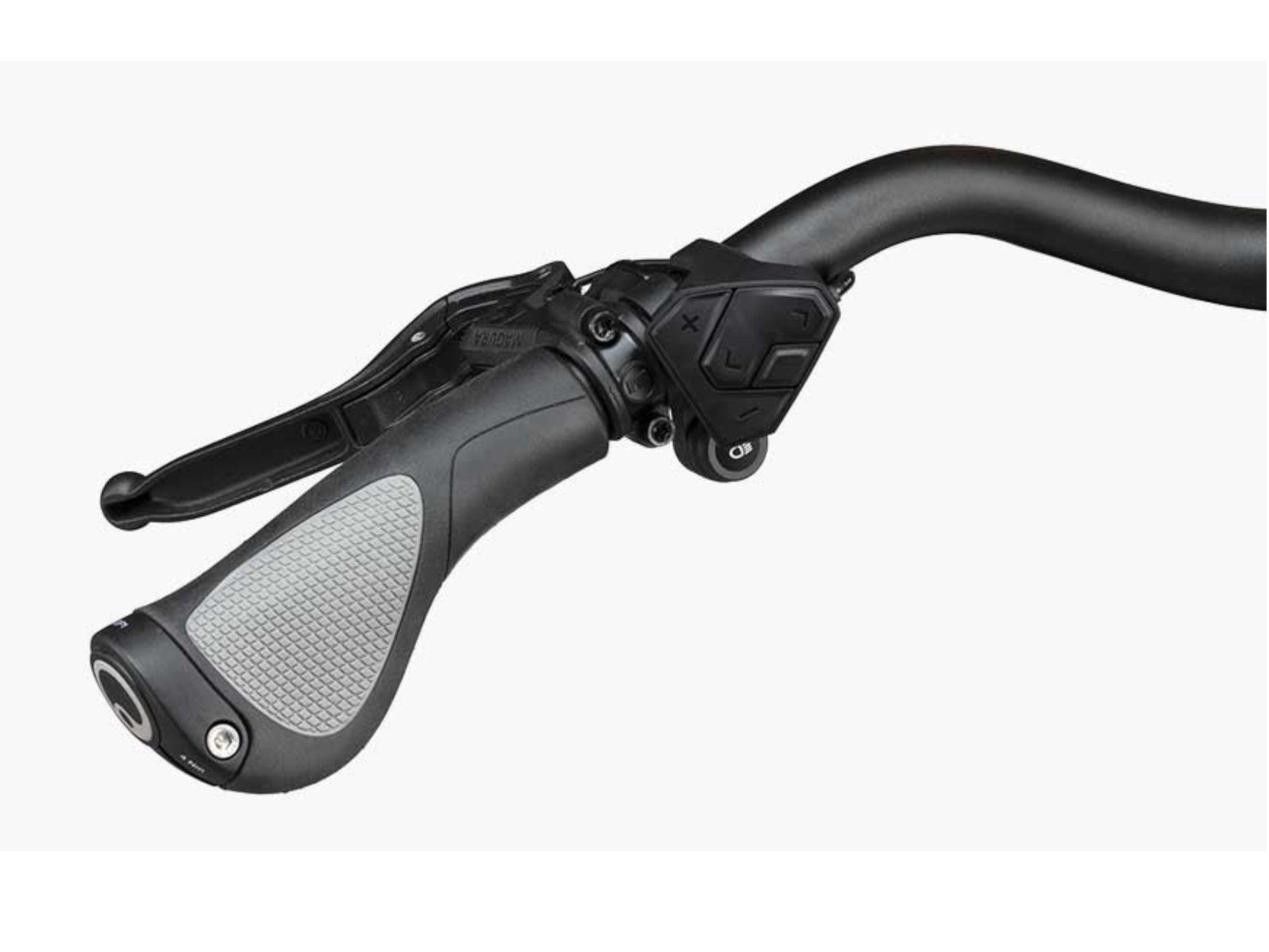

  Grips	Ergon ergonomic
  Saddle	Selle Royal New Lookin Evo R&M; Selle Royal New Lookin Female Evo R&M*

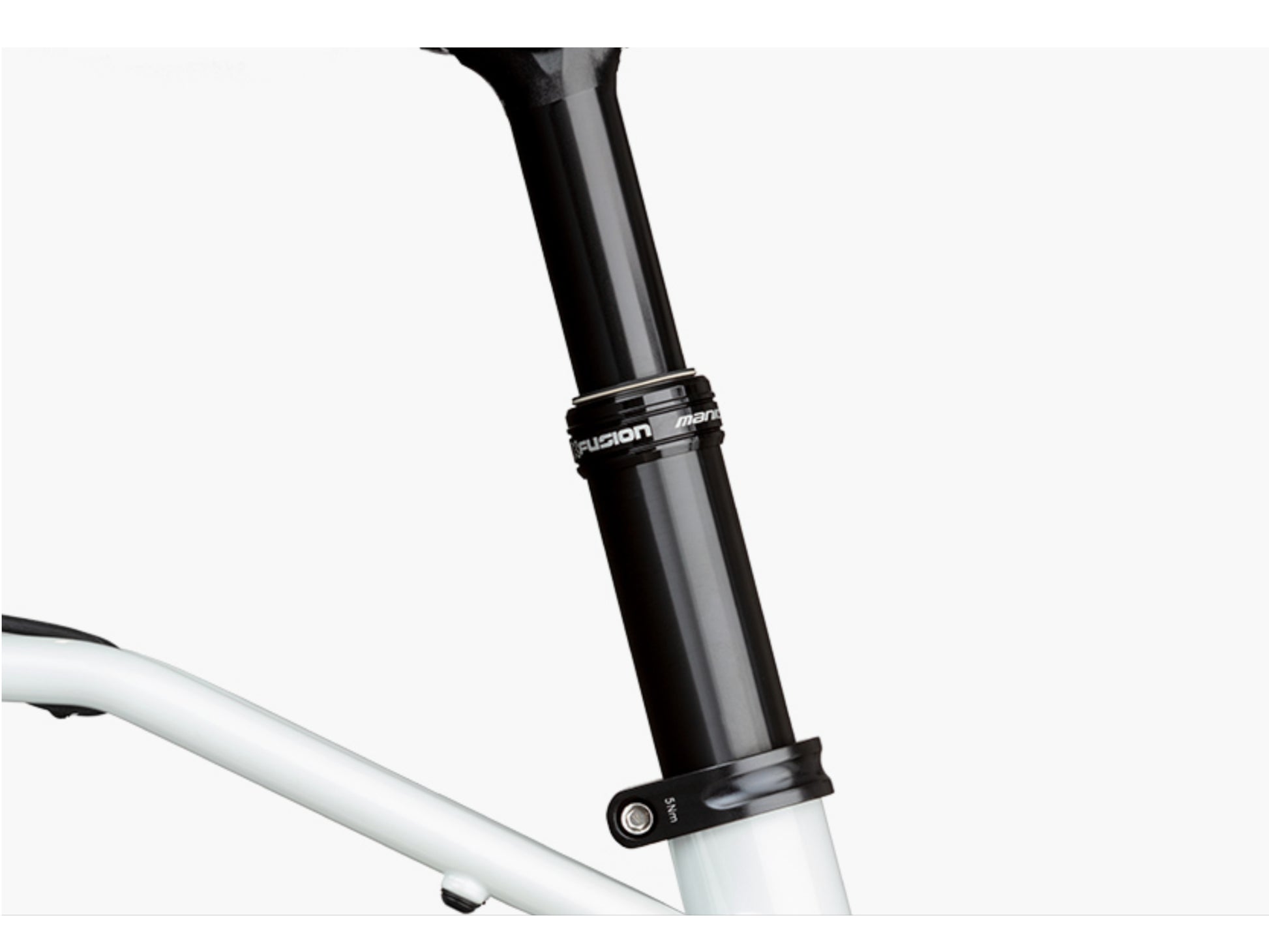

  Seatpost	Satori Trident; Dropper Post X-Fusion Manic 70*

• Pedals	VP R&M Custom
  Front Light	Supernova M99 Mini Pro-25

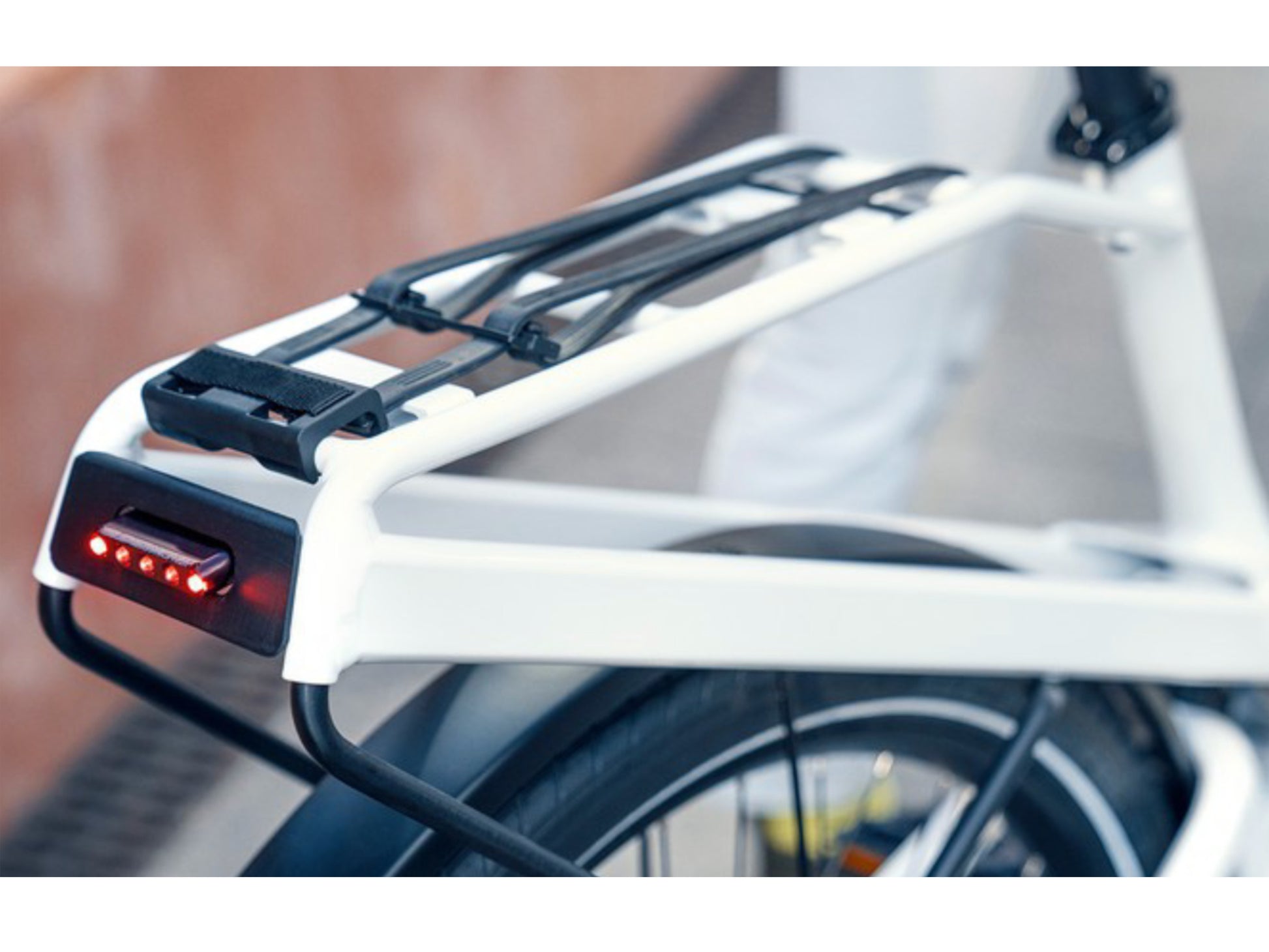

  Rear Light	Supernova M99, integrated brake light
  Kickstand	Pletscher Comp 40 Flex

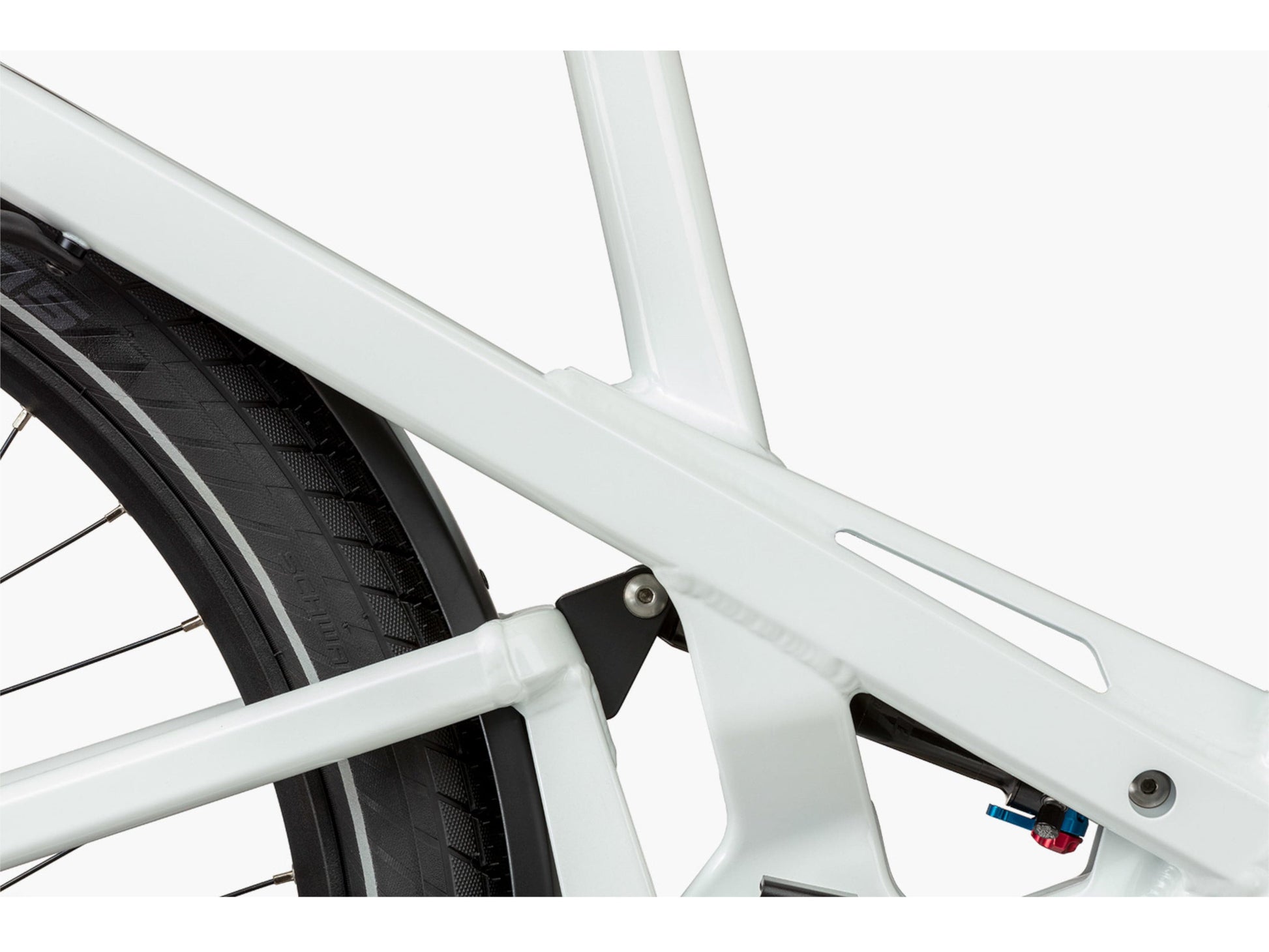

  Rear Carrier	integrated, MIK*; Riese & Müller
  Fenders	SKS A69R
  Bell	Billy
  Lock	Abus Bordo X+ 6000/90cm black

•


  	49	54	58
  Height	5'5" - 5'11"	5'9" - 6'3"	5'11" - 6'7"
  Top tube length [cm]	58,5	61	64
  Reach [cm]	38,5	41	44
  Stack [cm]	66	66	66
  Head tube angle [°]	69	69	69
  Seat tube angle [°]	73	73	73
  Trail [mm]	89	89	89
  Wheelbase [cm]	117	119	122
  Bottom bracket height [cm]	30,5	30,5	30,5
  Top tube height [cm]	50,5	50,5	50
  Chainstay length [cm]	50,5	50,5	50,5
  Overall length [cm]	188	190	193
  Wheel size ['']	27,5	27,5	27,5
  Head tube length [mm]	160	160	160
  Front suspension travel [mm]	100	100	100
  Effective rear suspension travel [mm]	100	100	100
  Rear shock length [mm]	190	190	190
  Front shock mounting width [mm]	30	30	30
  Rear shock mounting width [mm]	22	22	22
  Front shock locking screw	M8	M8	M8
  Rear shock locking screw	M8	M8	M8
  Rear suspension ratio	2,6	2,6	2,6
  Rear dropout width [mm]	135	135	135
  Gear ratio [m]	2,51-9,54	2,51-9,54	2,51-9,54
  Weight [kg]	30,2	30,4	30,6
  Weight [lbs]	66	66	67
  Gross vehicle weight rating [kg]	140	140	140
  Weight rating: Rear Luggage rack [kg]	20	20	20
  Weight rating: Handlebar bag/basket [kg]	5	5	5
  Childseat compatibility	Yes	Yes	Yes
  Trailer compatibility: Single wheel/single attachment point	No	No	No
  Trailer compatibility: Two wheel/single attachment point	Yes	Yes	Yes
  Compatibility: Tagalong trailer bike	Yes	Yes	Yes
