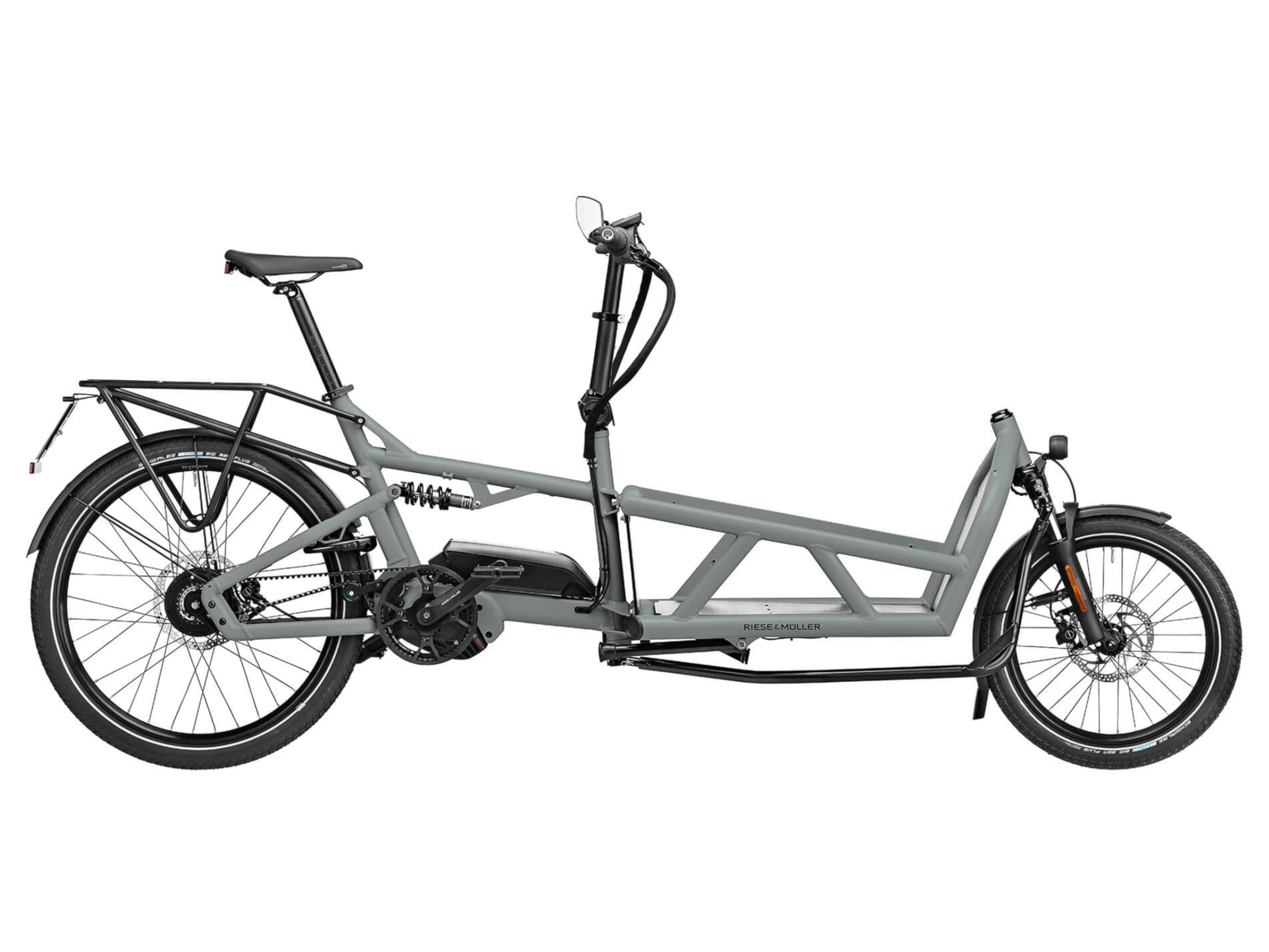

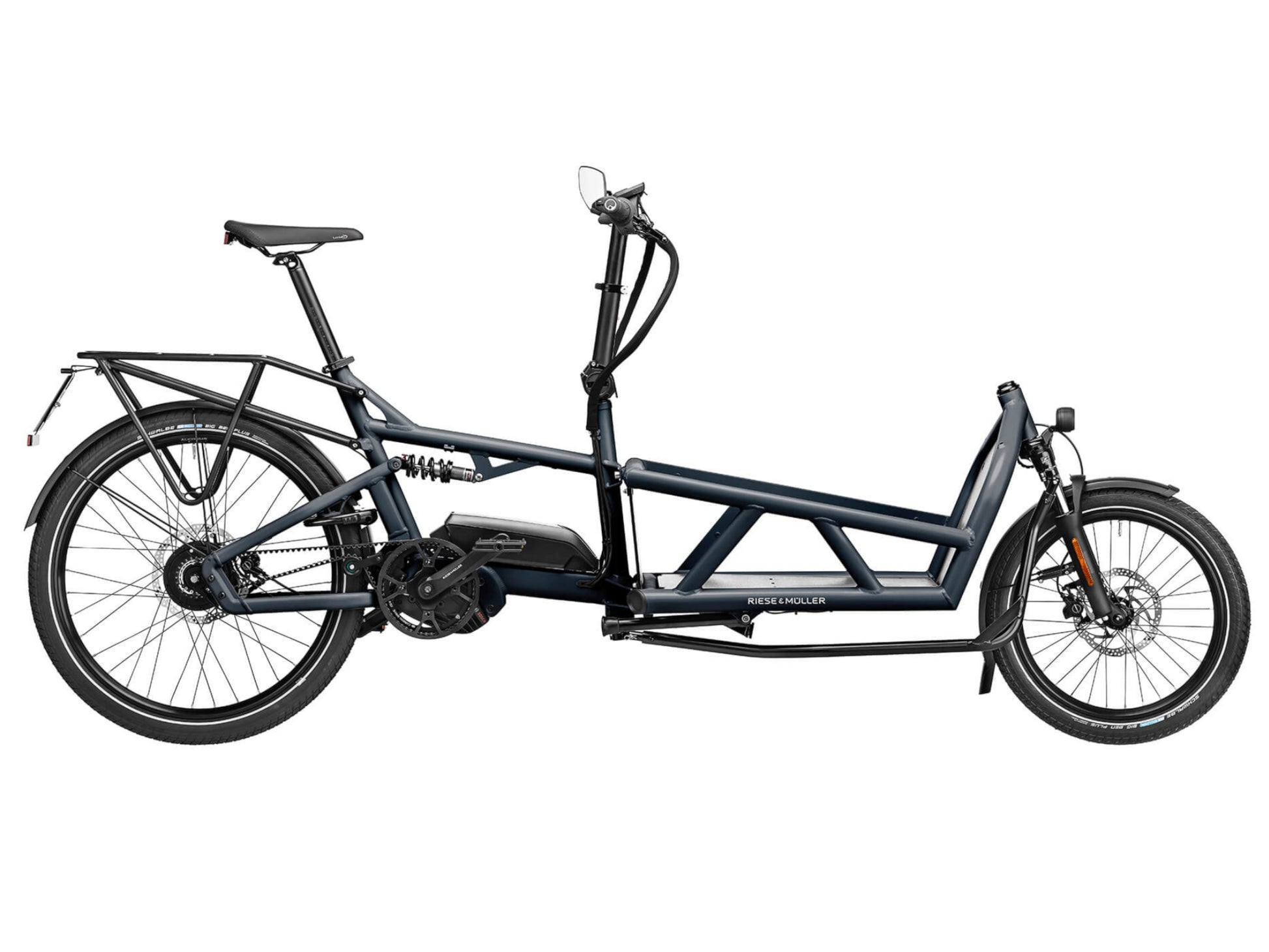

Riese and Muller Load 60 Vario HS

The Full Scoop on the Riese and Muller Load 60 Vario HS

• Description
• Motor System
• Components
• Extras
• Geometry

• Perfect handling in every situation – on tarmac, forest trails or gravel roads: the Load 60 is so maneuverable and agile that you never feel like you’re on an cargo bike. Its low center of gravity, the Bosch Cargo Line Cruise motor and Riese & Müller Control Technology ensure a dynamic and outstanding riding experience.






  • Components subject to manufacturer changes

• Motor	Cargo Line Speed (Gen4)

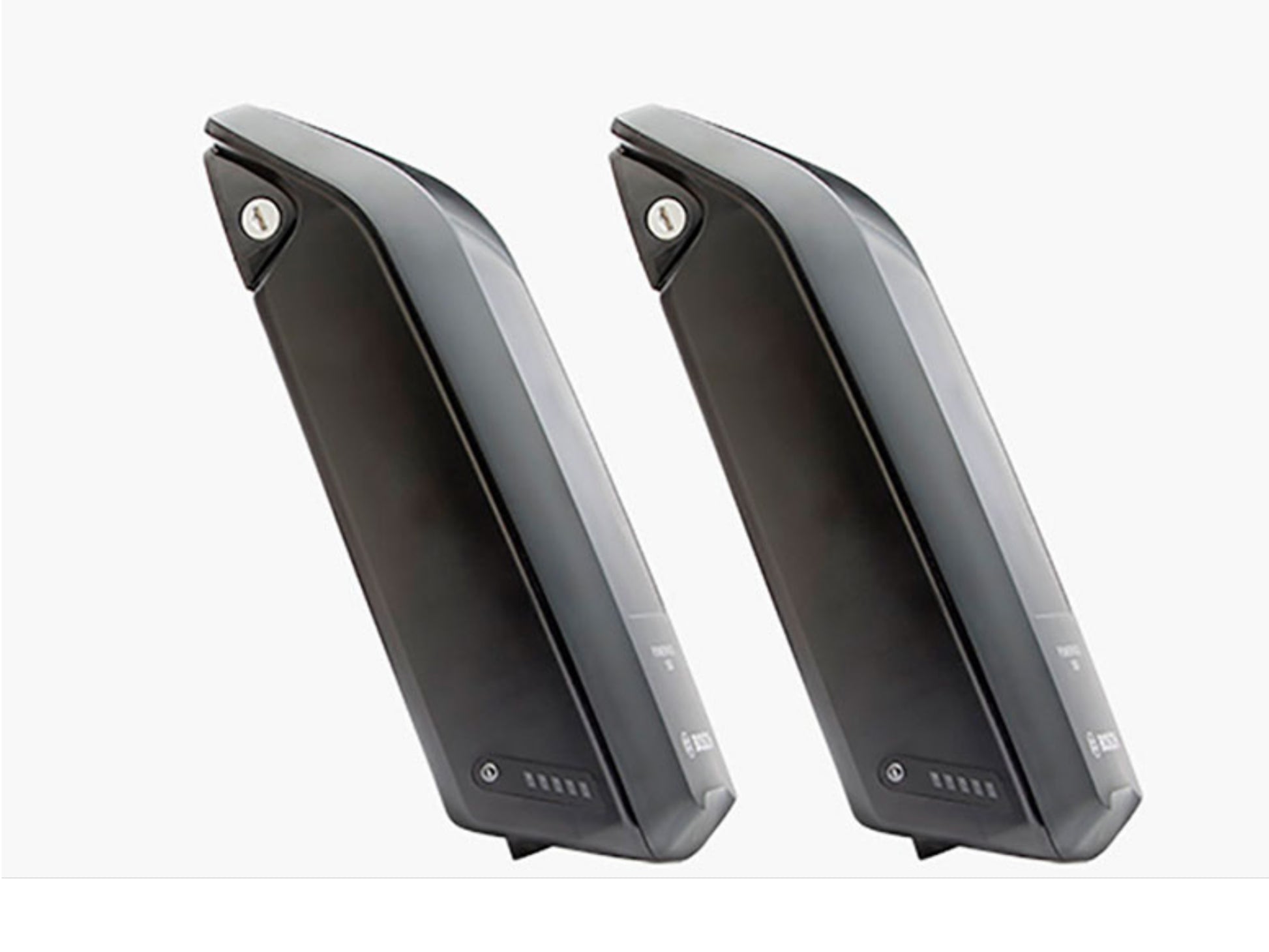

  Battery	Bosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh; Bosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh ( 2x )*

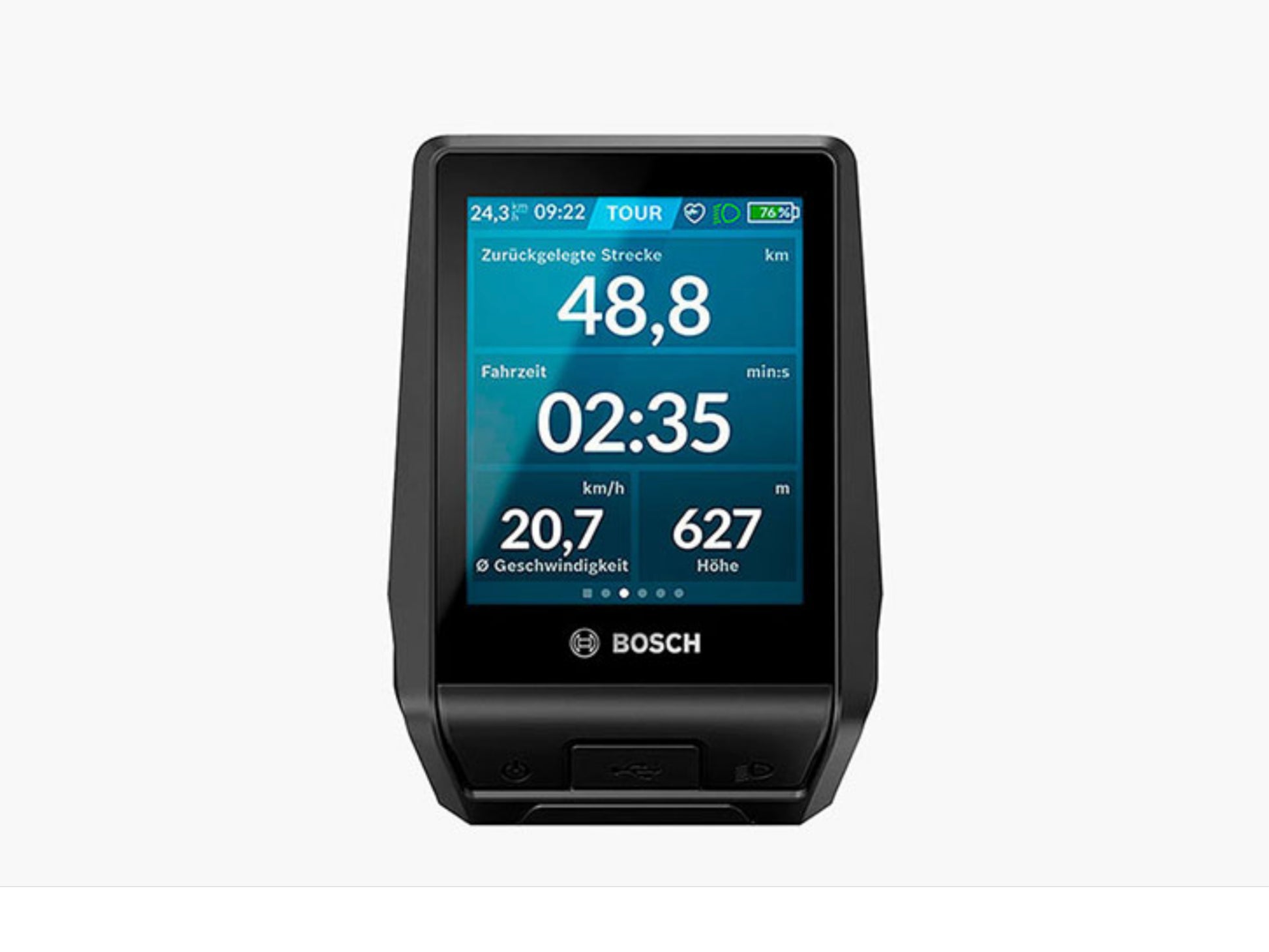

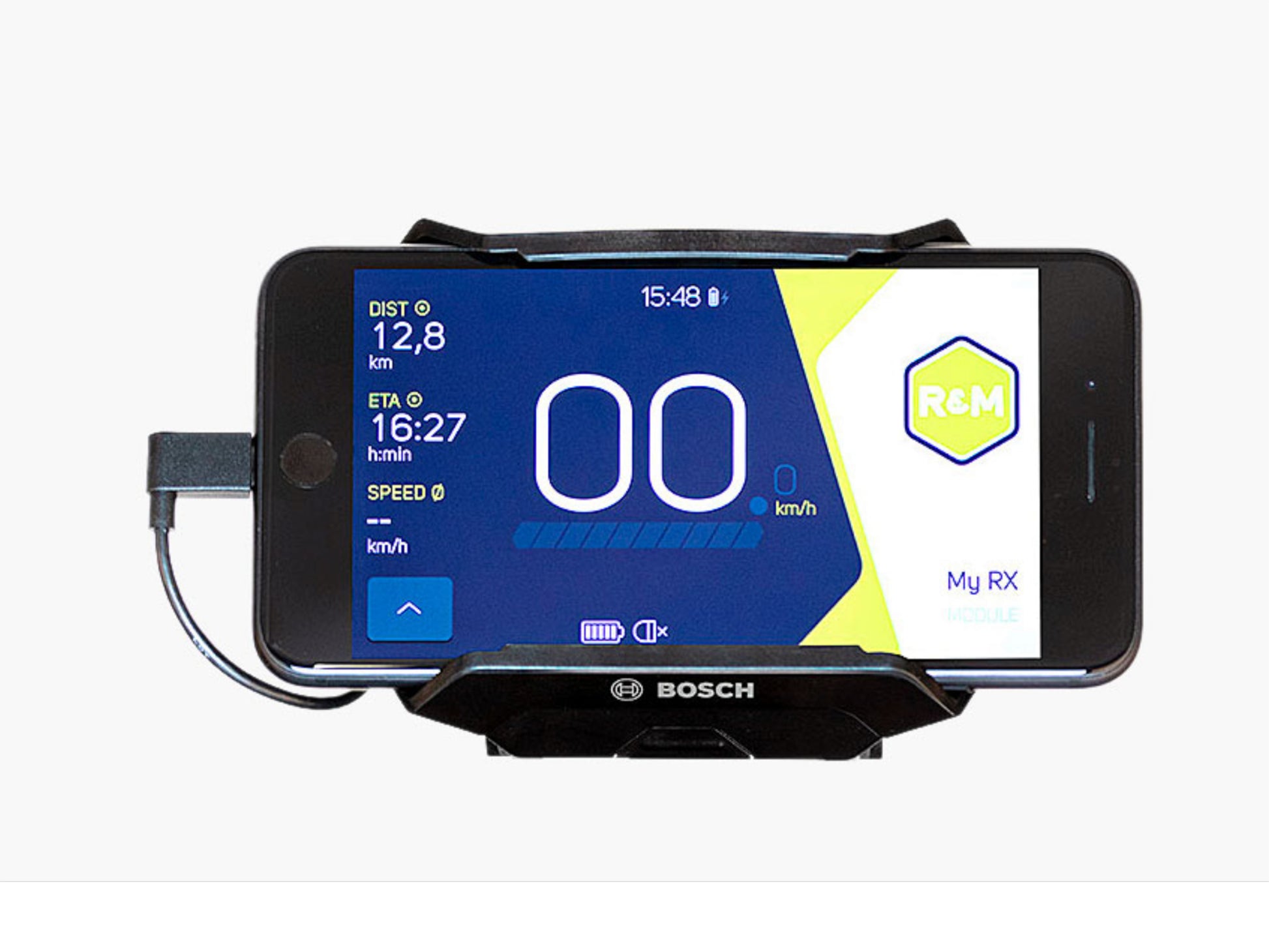

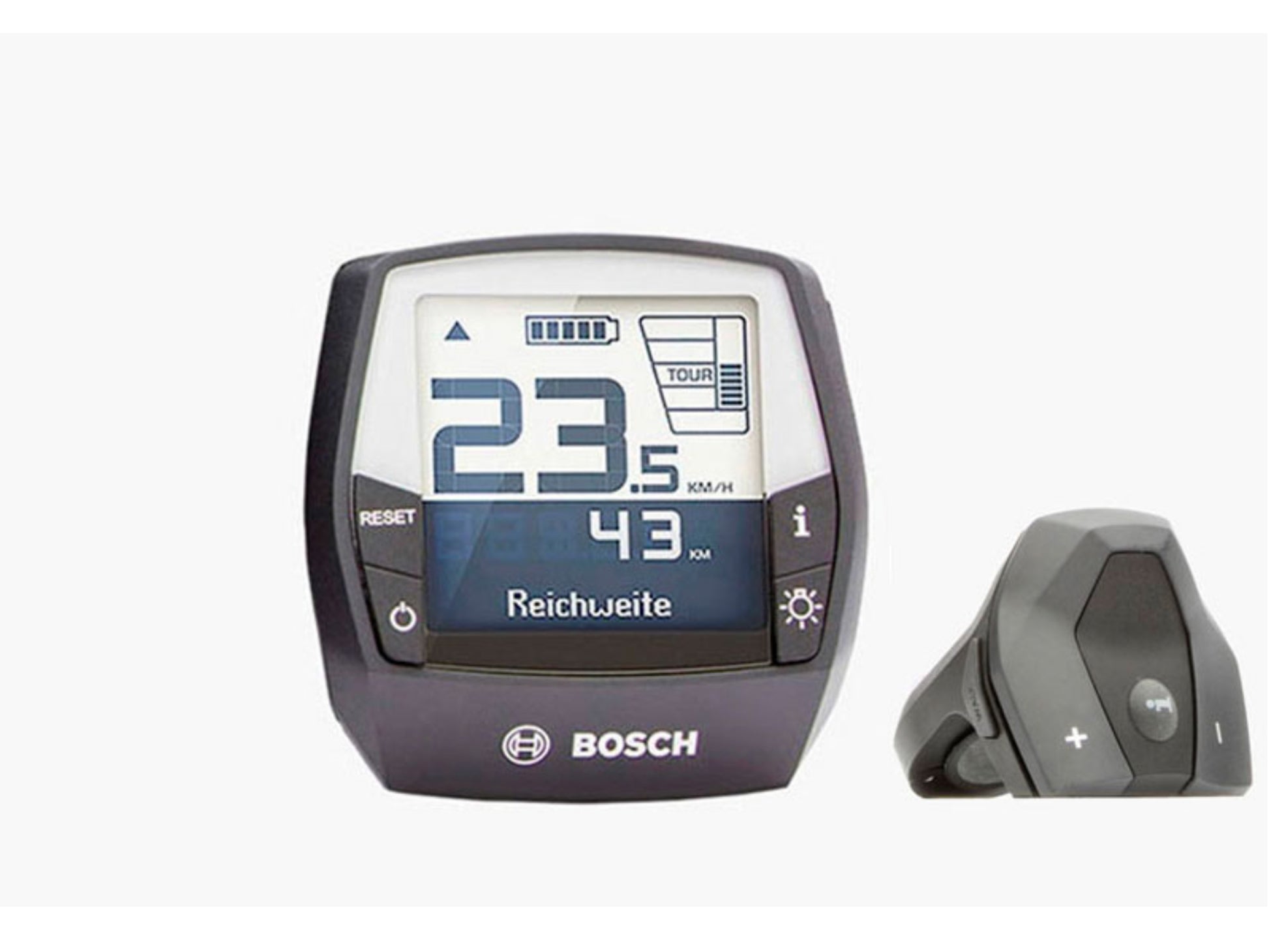

  Display	Bosch Intuvia; Bosch Nyon*; Smartphone Hub
  Charger	Bosch

• Frame	coal grey matt*;  tundra grey matt*
  Fork	Suntour Mobie A32, 20", 70mm

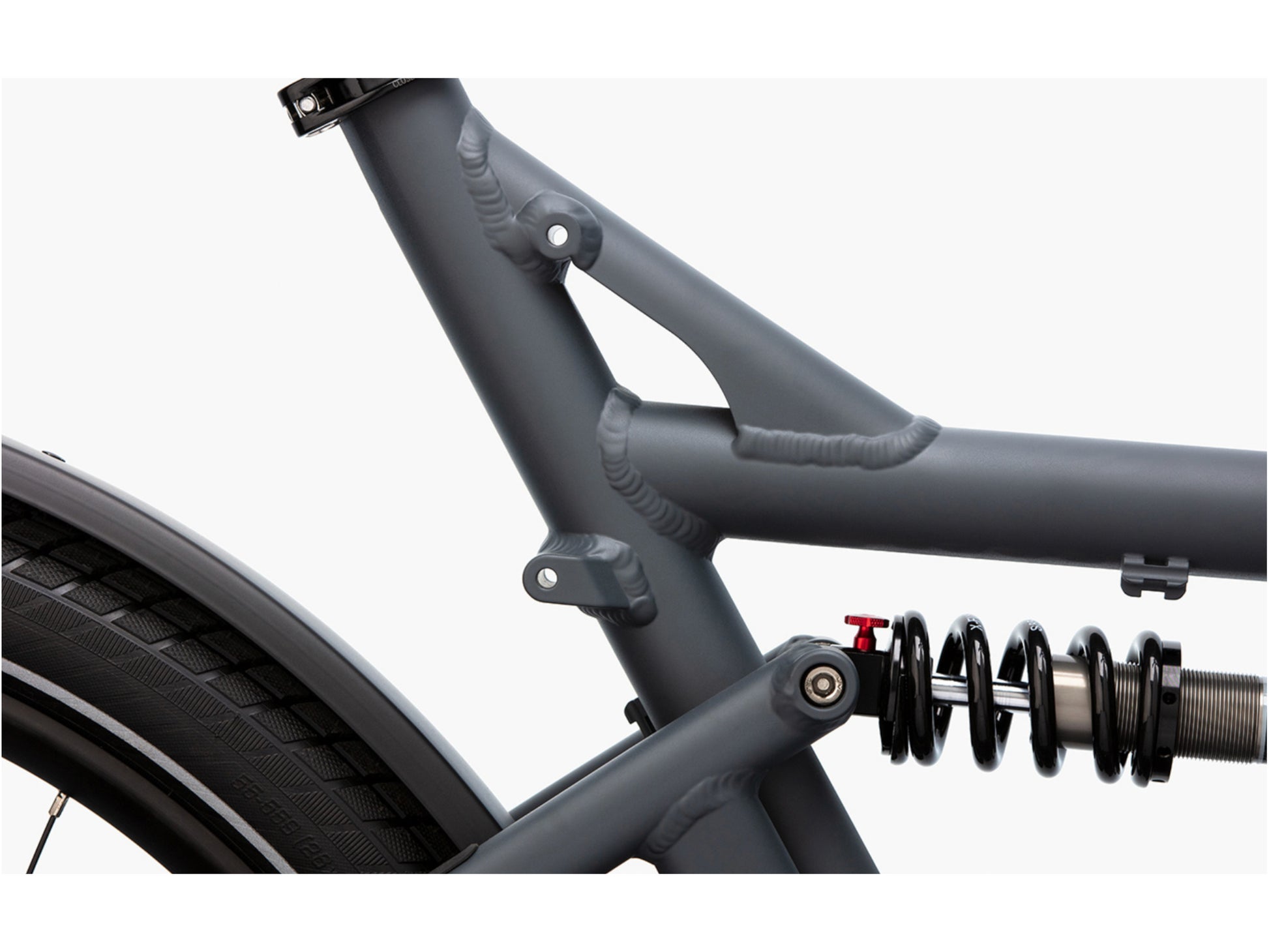

  Rear Shock	X-Fusion Glyde
  Front Brake	Tektro TRP C 2.3 disc brake
  Rear Brake	Tektro TRP C 2.3 disc brake
  Rear Derailluer /Pinion	22T, for Gates drive belt CDX
  Shift Levers	Enviolo grip shift Twist Display Pure, continuous
  Chain	Gates drive belt CDX
  Cassette	Not applicable

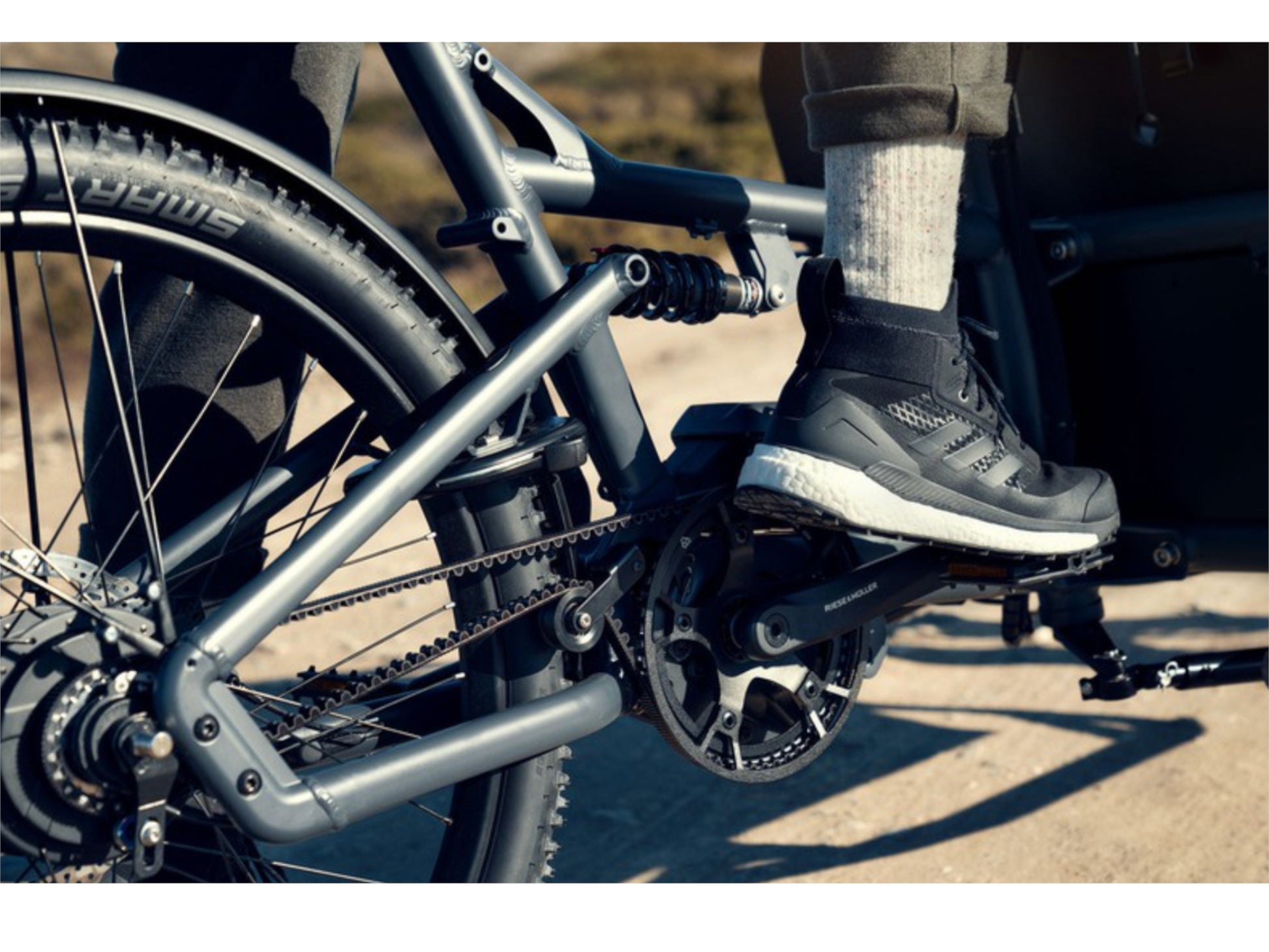

  Crankset	FSA/Riese & Müller, 170 mm
  Chain Ring	55T, for Gates drive belt CDX
  Chain Guard	Belt guard
  Rims	Mach1 Trucky30 20" CNC; Mach1 Trucky30 26" CNC
  Front Hub	Novatec Disc 32H
  Rear Hub	Rohloff Speedhub E14, 14-speed, 36H

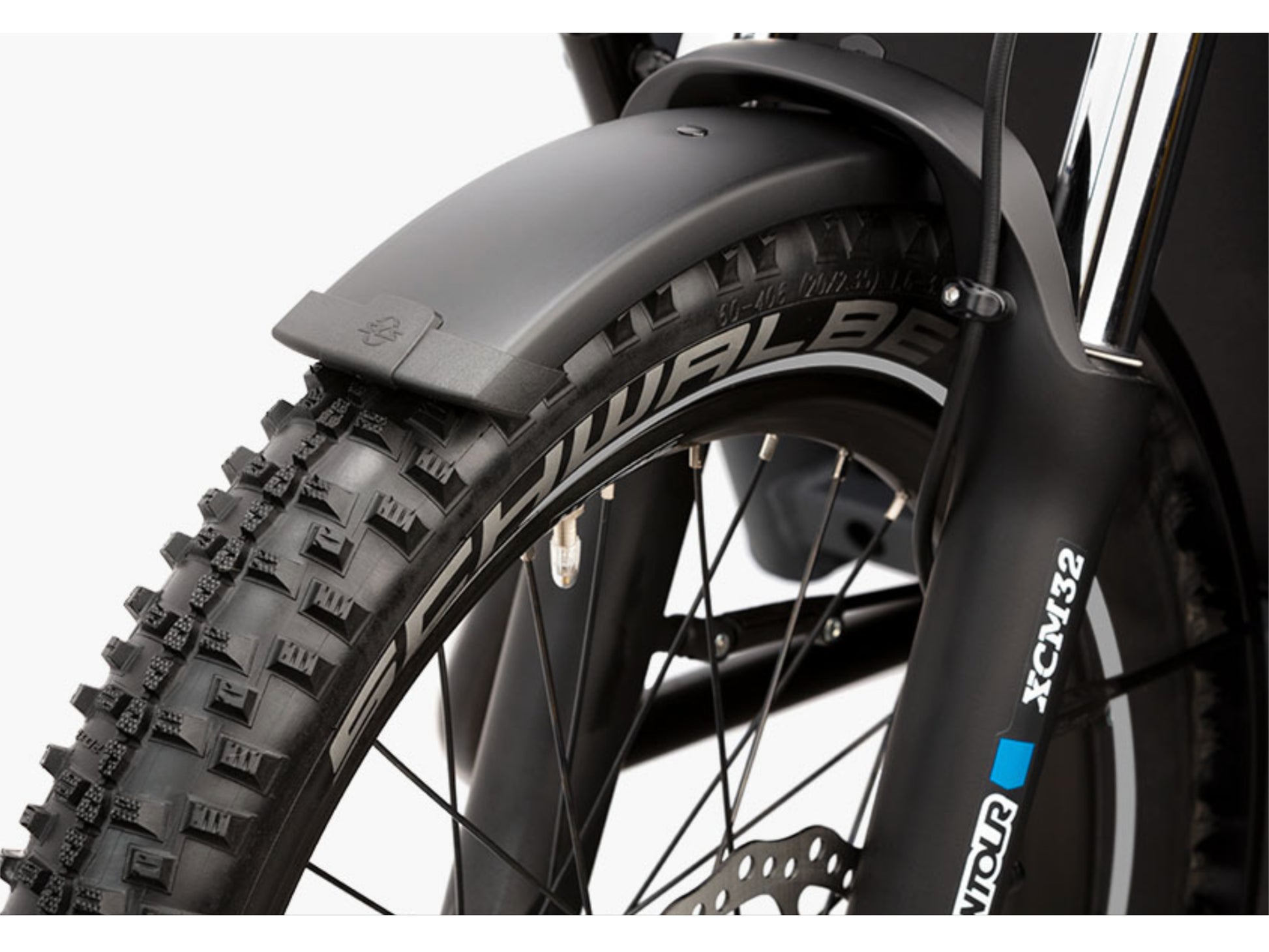

  Front Tire	Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Big Ben Plus 55-559 Reflex; Schwalbe Smart Sam 57-559*; Schwalbe Smart Sam Plus 60-406 Reflex*
  Rear Tire	Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Big Ben Plus 55-559 Reflex; Schwalbe Smart Sam Plus 57-559 Reflex*; Schwalbe Smart Sam Plus 60-406 Reflex*
  Handlebar	FSA V-Drive, 31,8 mm, Alu
  Stem	Riese & Müller, adjustable height and angle
  Headset	Acros AZX-221, block lock; TH No. 9, semi-integrated
  Grips	Hermans Grips Line
  Saddle	Selle Royal New Lookin Evo R&M

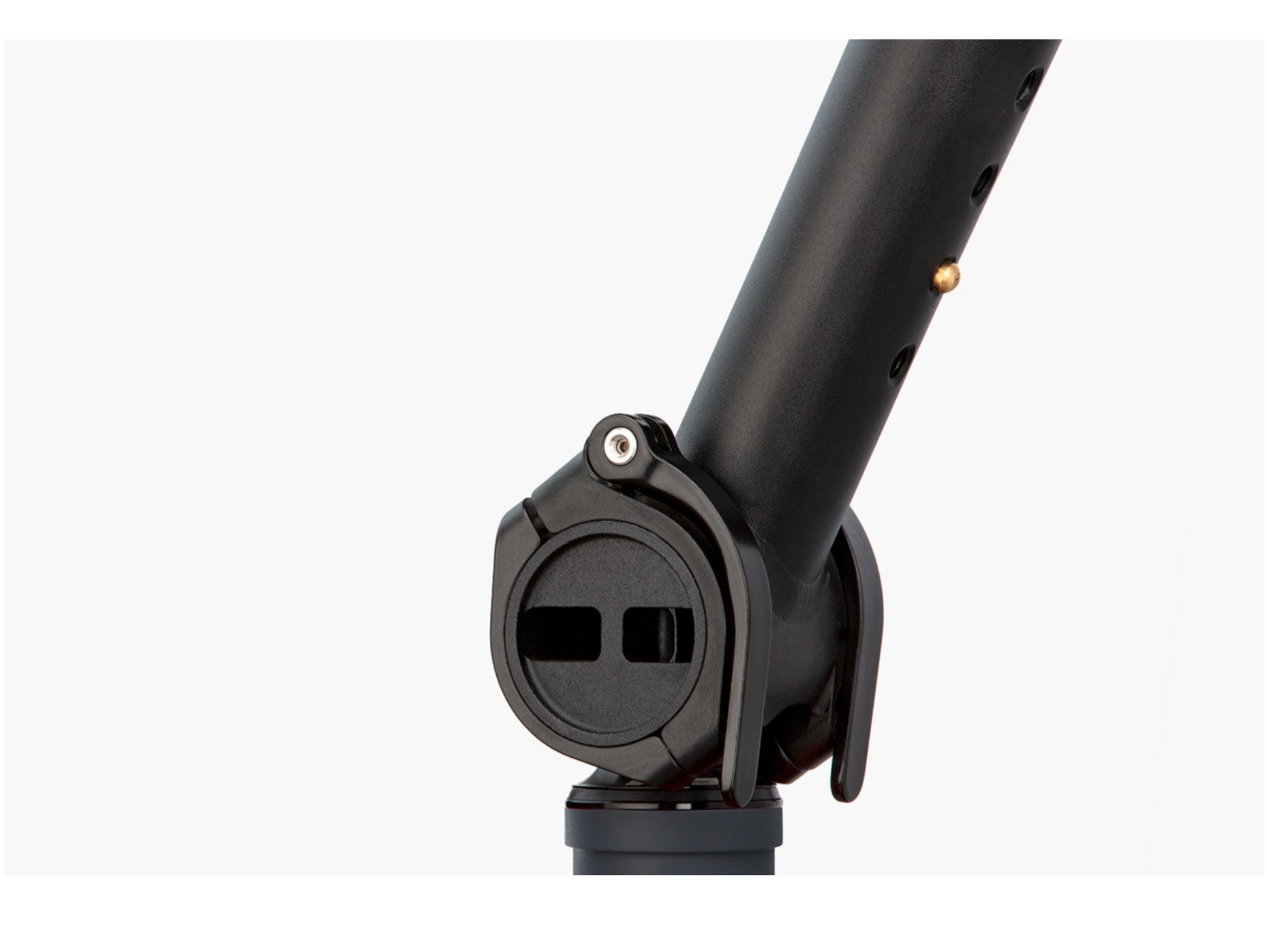

  Seatpost	JD/Riese & Müller, Alu, 34,9 x 430mm

• Pedals	VP R&M Custom

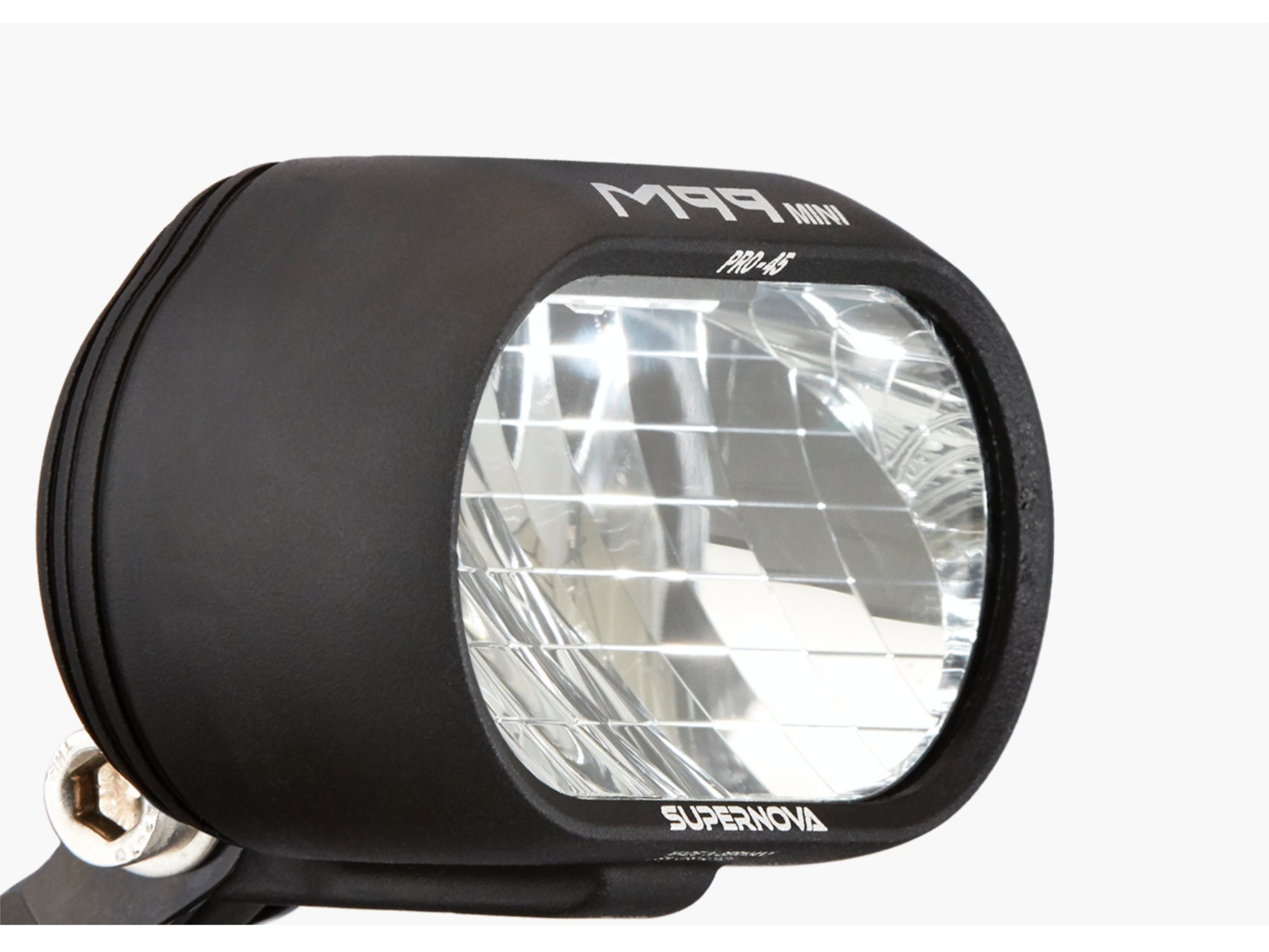

  Front Light	Supernova M99 Mini Pro-45

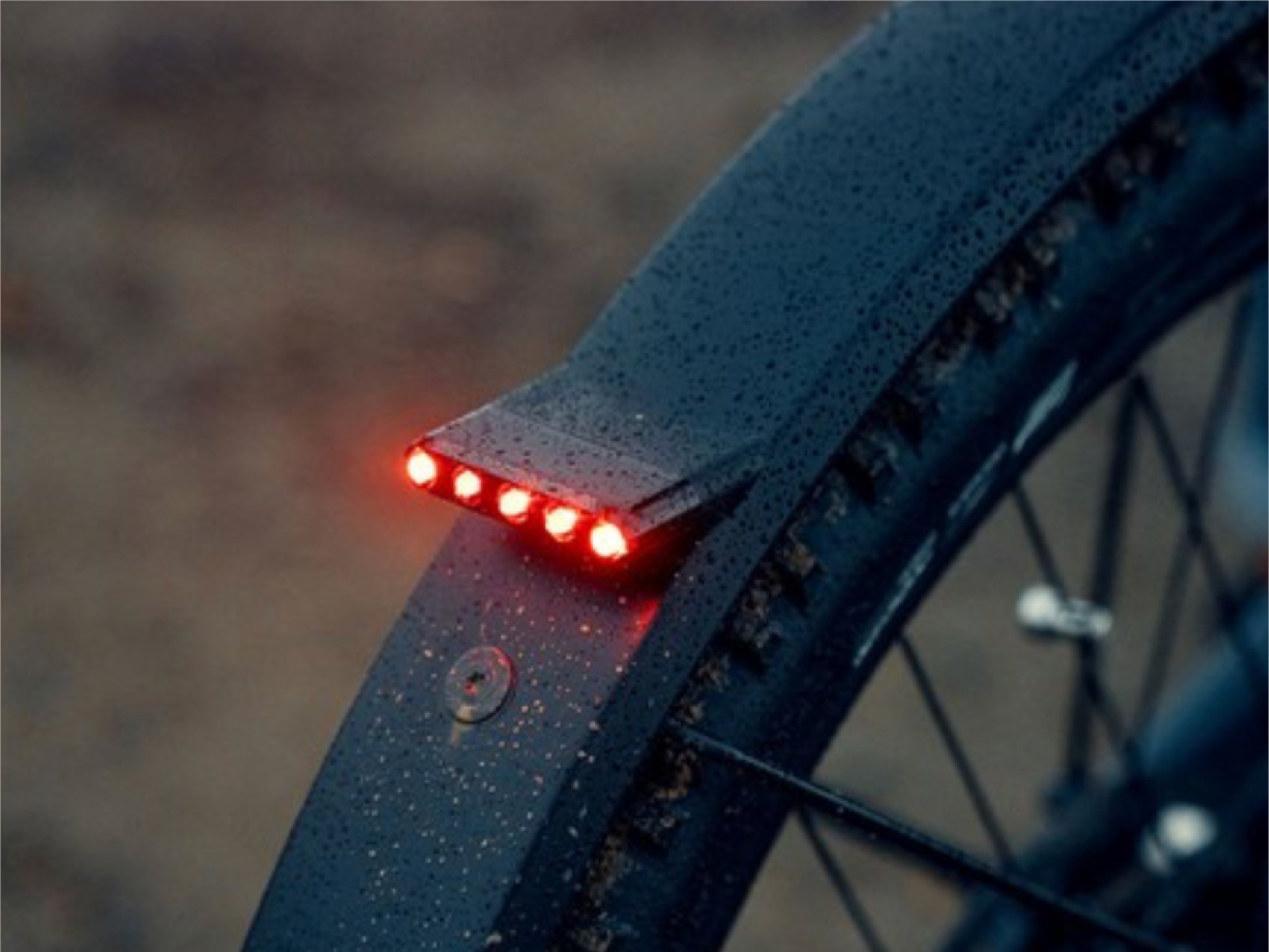

  Rear Light	Supernova M99, integrated plate illumination and brake light; Supernova M99, integrated brake light*

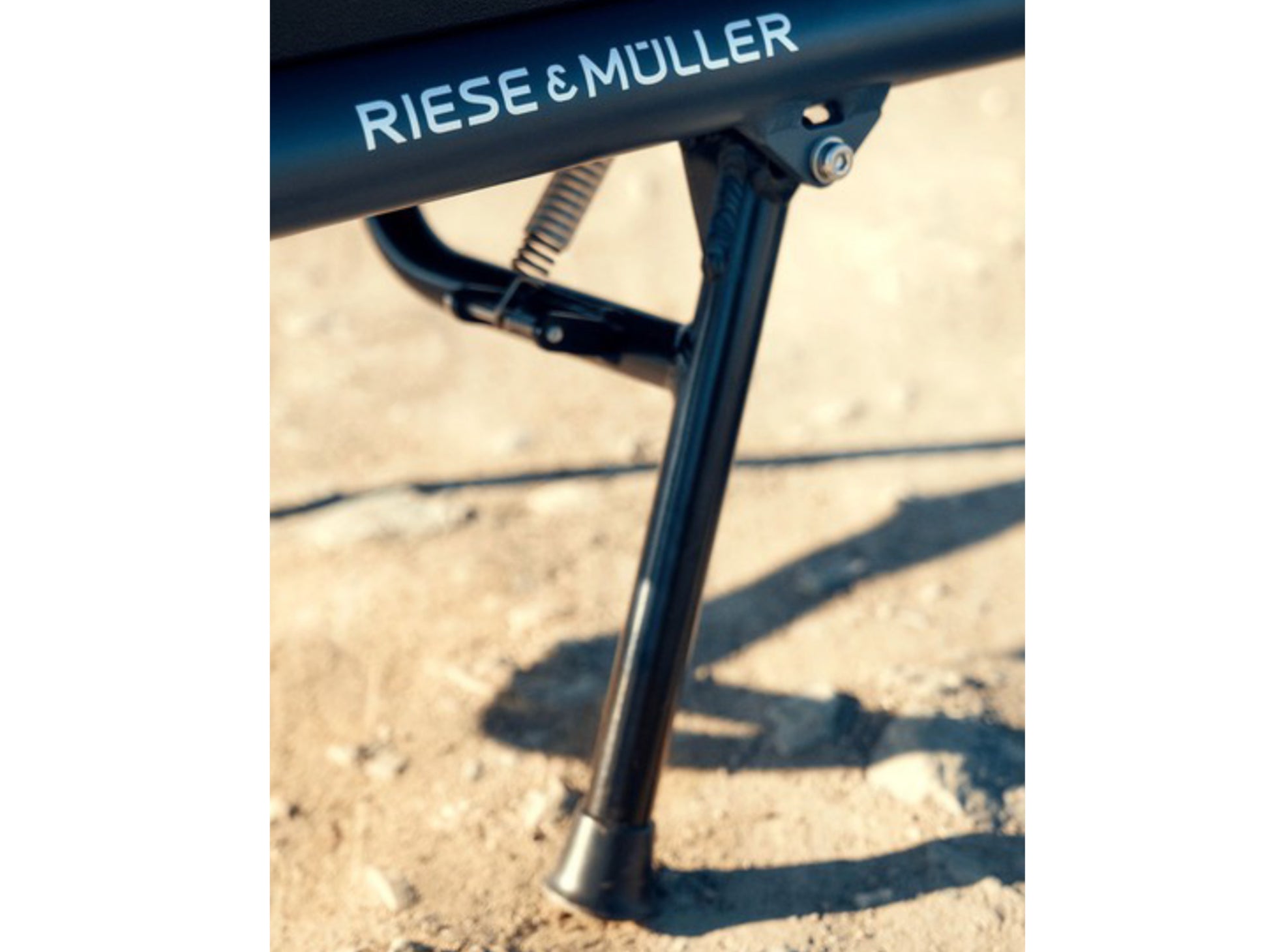

  Kickstand	Riese & Muller

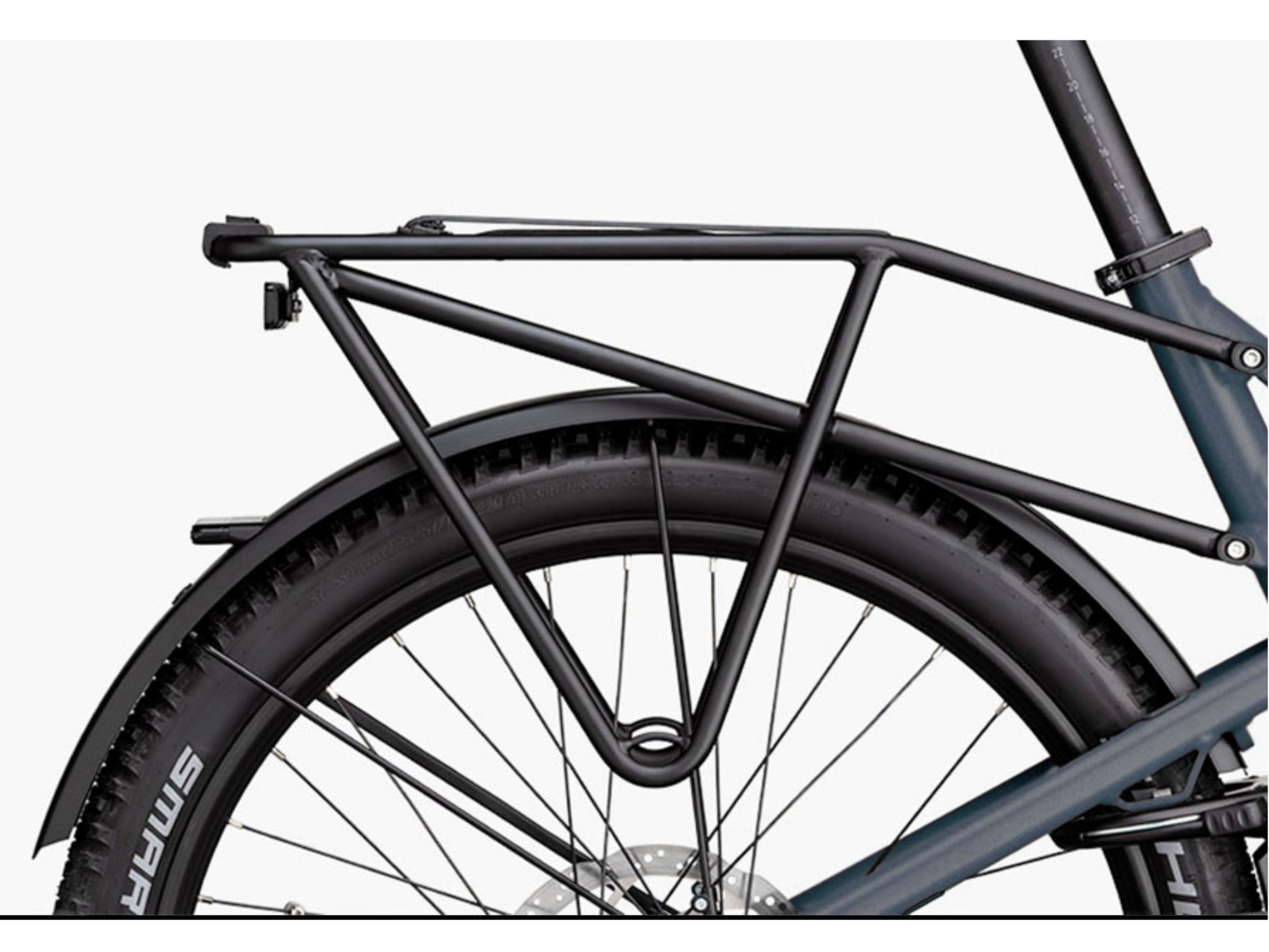

  Rear carrier	Riese & Müller
  Fenders	SKS A65R
  Bell	Supernova horn

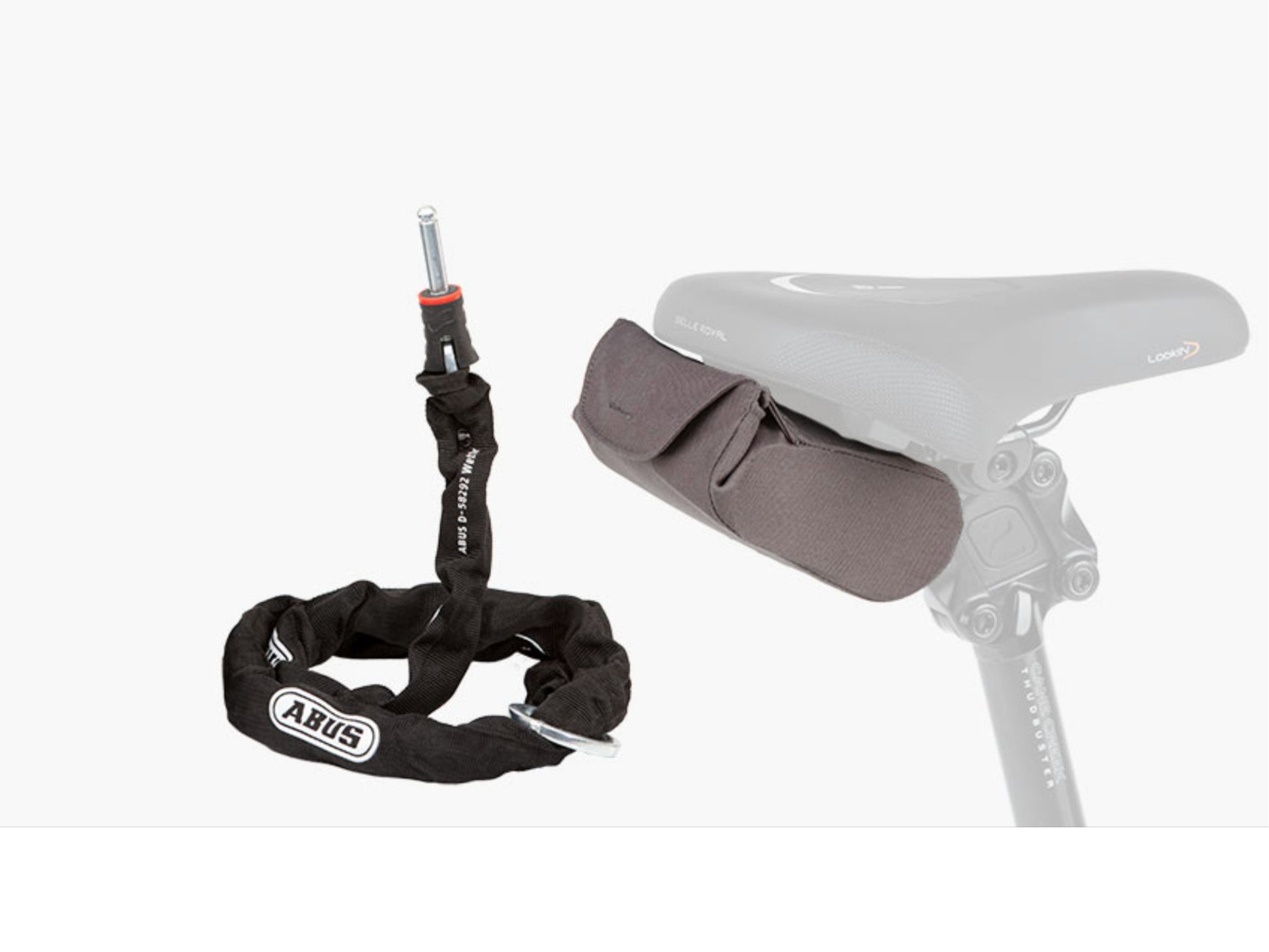

  Lock	ABUS Shield; ABUS Shiled X+
  Mirror	Humpert ergotec M-99 E4, CNC

•


  Frame Size	Universal
  Top tube length [cm]	59-77
  Head tube angle [°]	70
  Seat tube angle [°]	68
  Trail [mm]	54
  Wheelbase [cm]	182,5
  Bottom bracket height [cm]	30,5
  Top tube height [cm]	62,5
  Stand-over height [cm]	59
  Chainstay length [cm]	46,5
  Overall length [cm]	248
  Wheel size ['']	front: 20/rear:26
  Head tube length [mm]	85
  Headset size ['']	1 1/8
  Front suspension travel [mm]	70
  Effective rear suspension travel [mm]	80
  Rear shock length [mm]	165
  Front shock mounting width [mm]	22
  Rear shock mounting width [mm]	22
  Front shock locking screw	8
  Rear shock locking screw	8
  Rear suspension ratio	2,2
  Rear dropout width [mm]	135
  Gear ratio [m]	2,63-9,98
  Weight [kg]	37,6
  Weight [lbs]	83
  Gross vehicle weight rating [kg]	200
  Weight rating: Rear Luggage rack [kg]	15
  Weight rating: Handlebar bag/basket [kg]	No

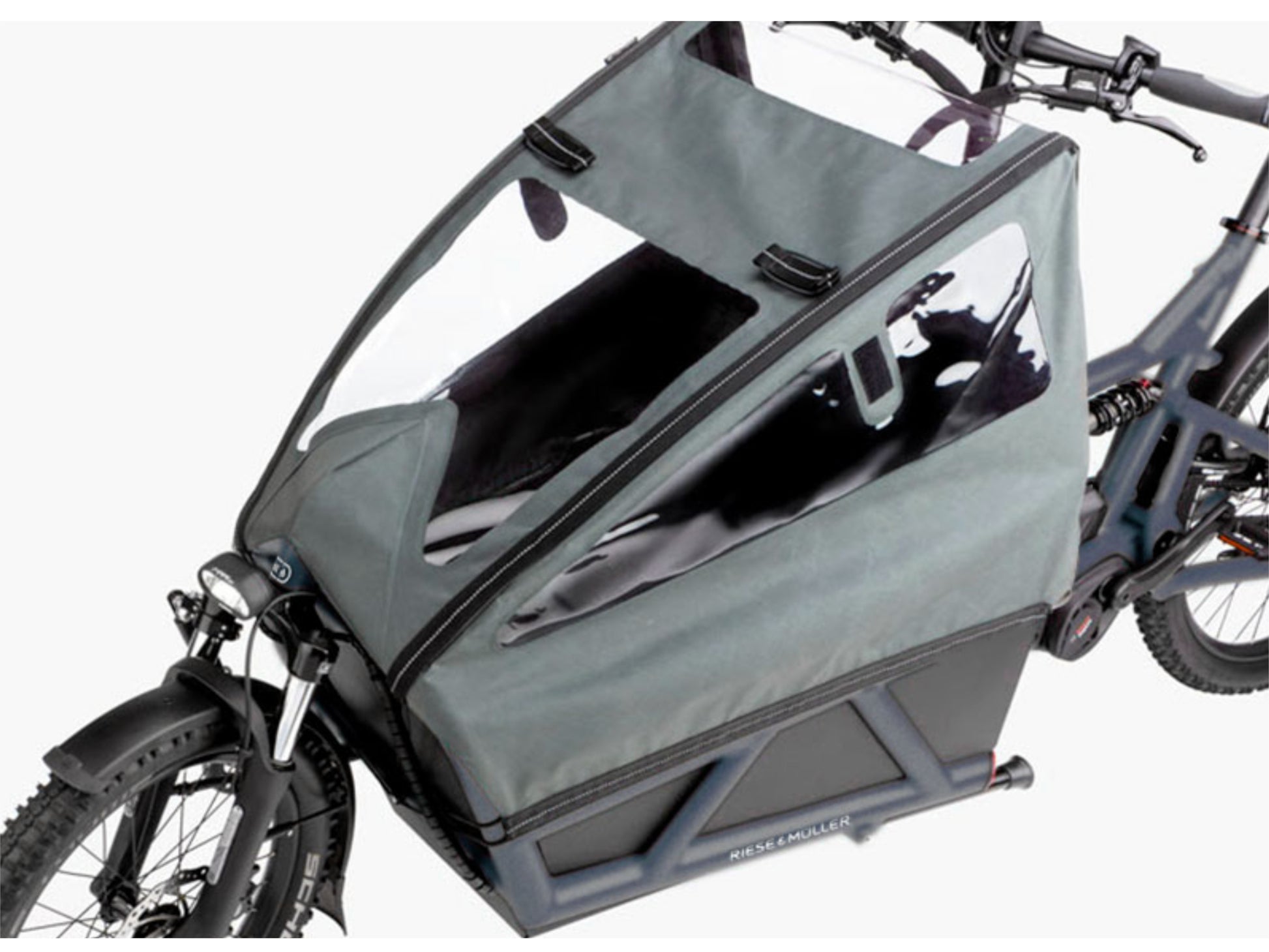

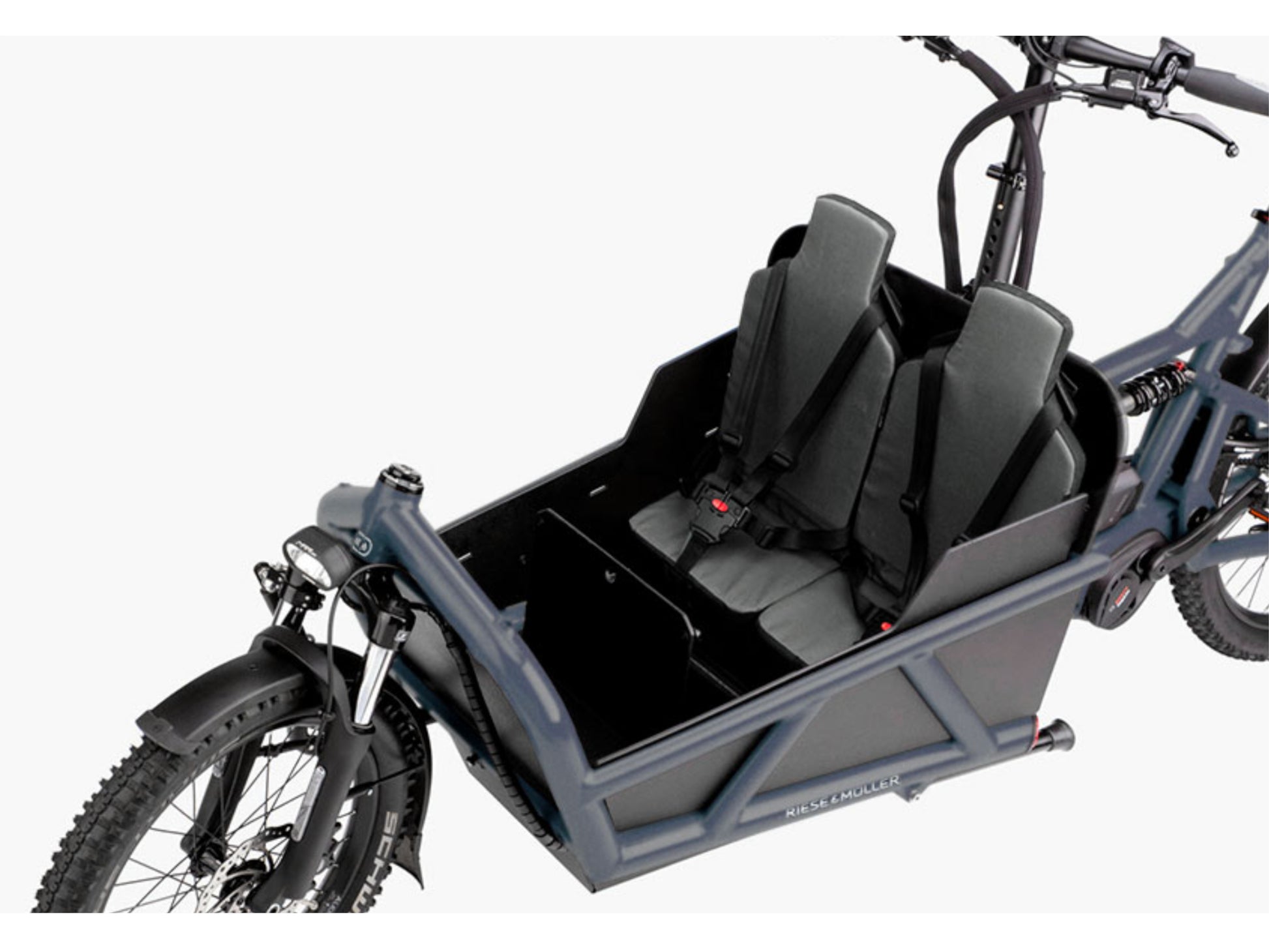

  Childseat compatibility	Yes
  Trailer compatibility: Single wheel/single attachment point	No
  Trailer compatibility: Two wheel/single attachment point	Yes
  Compatibility: Tagalong trailer bike	No
