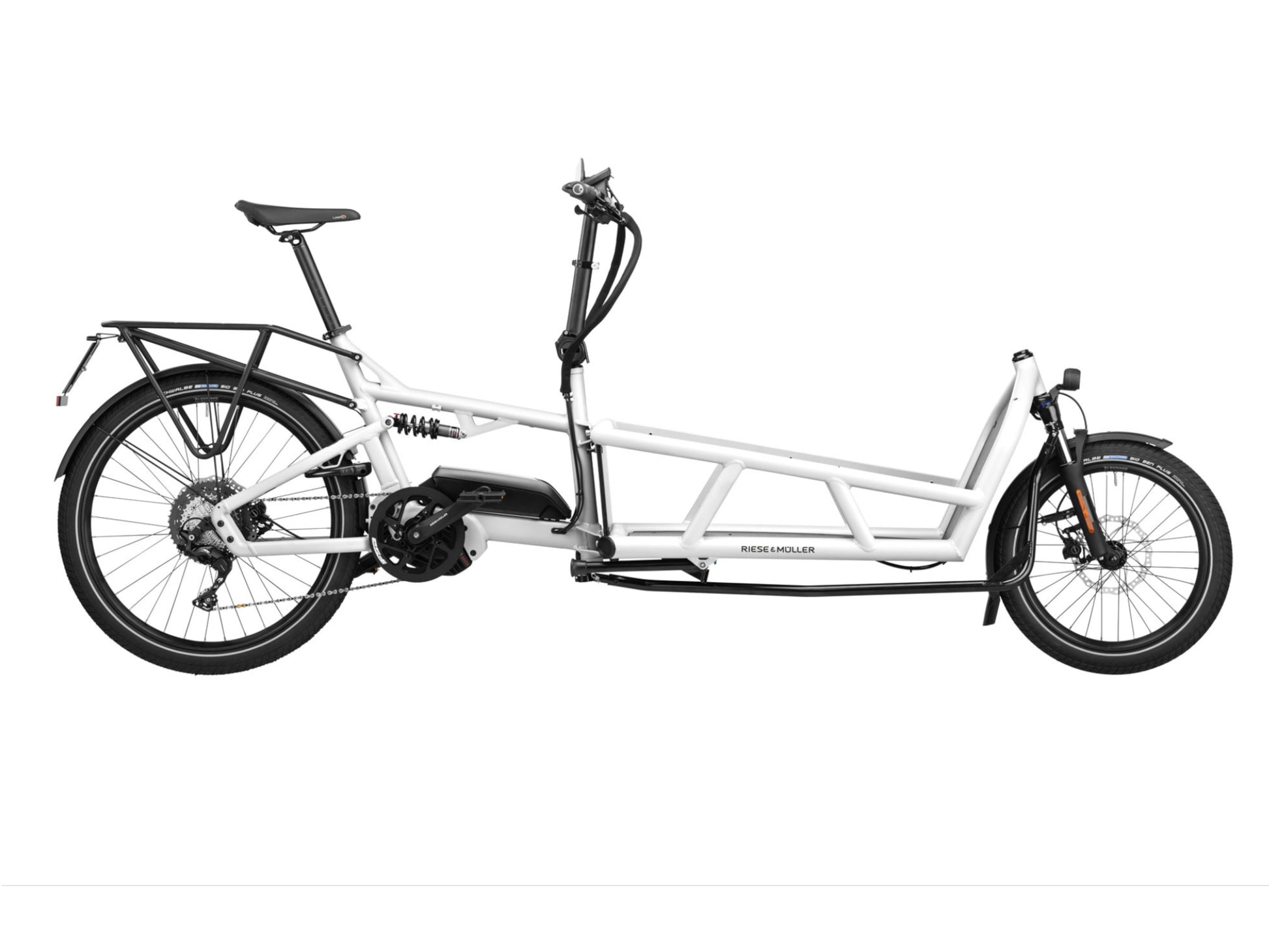

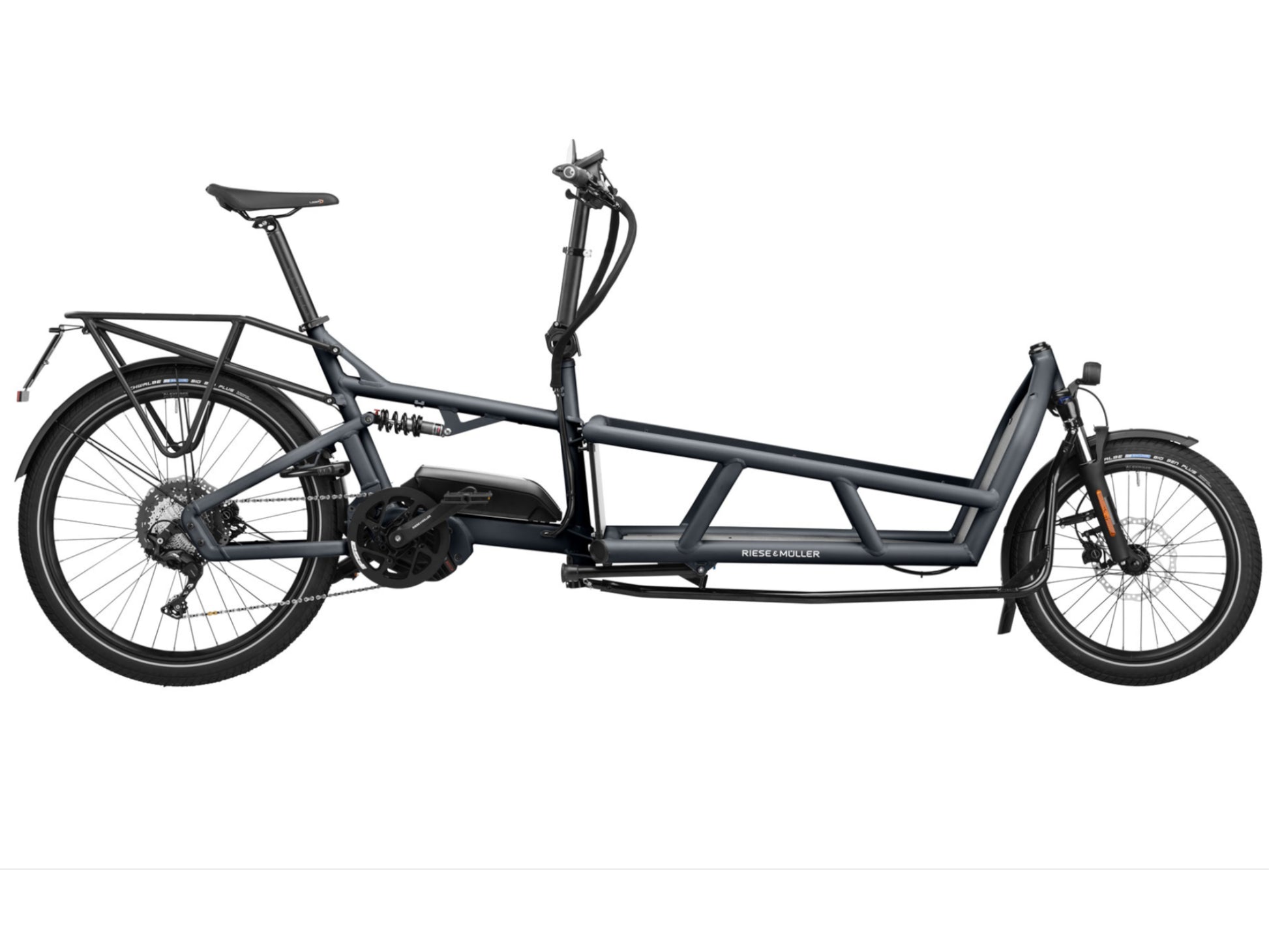

Riese and Muller Load 75 Touring HS

The Full Scoop on the Riese and Muller Load 75 Touring HS

• Description
• Motor System
• Components
• Extras
• Geometry

•

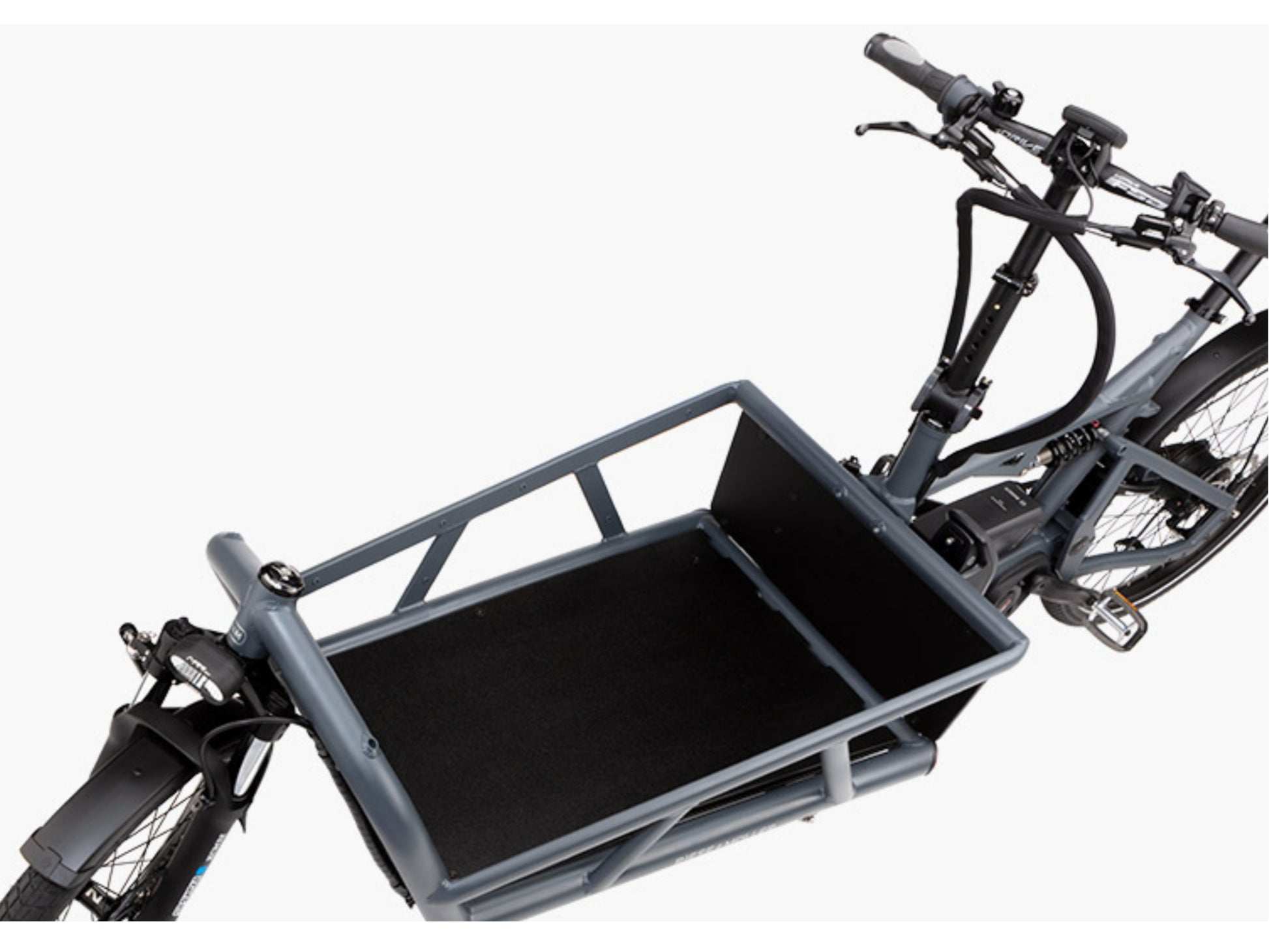

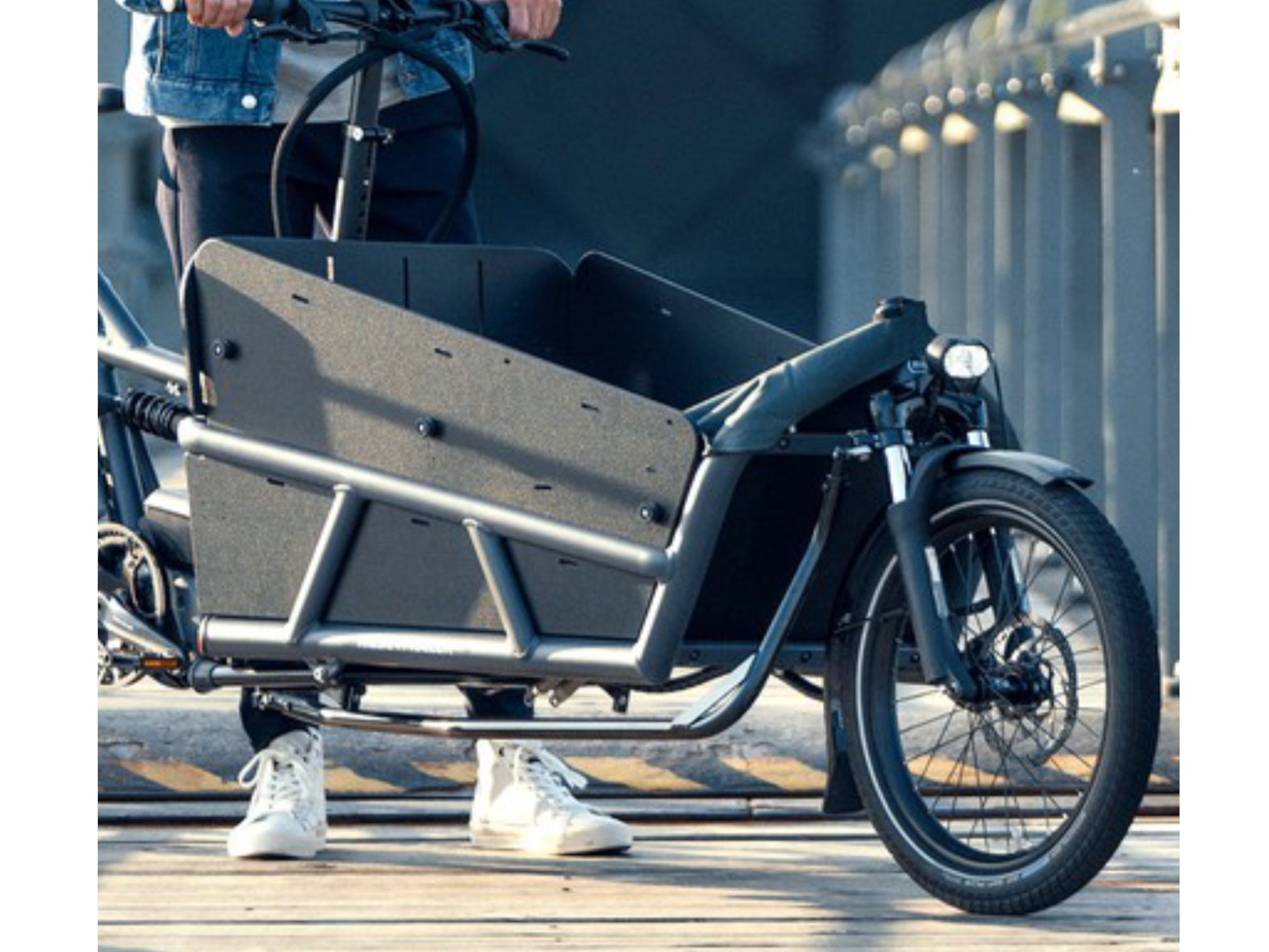

  The Load 75 literally offers limitless transport options with its huge load surface. With its low centre of gravity and full suspension, it also delivers outstanding riding dynamics on the road.Feel the wind in your hair, enjoy the speed, quick stops and fast starting. And take as much with you as you need. This is what freedom feels like. With its low centre of gravity, Riese & Müller Control Technology and a huge loading surface, the Load 75 combines riding dynamics and load options, like no other E-Cargo bike. The latest generation of Bosch Cargo Line Cruise motor provides hitherto unknown power and up to 400% of assistance. And the Load 75 is also extremely reliable, thanks to its high-grade components.

  • Components subject to manufacturer changes

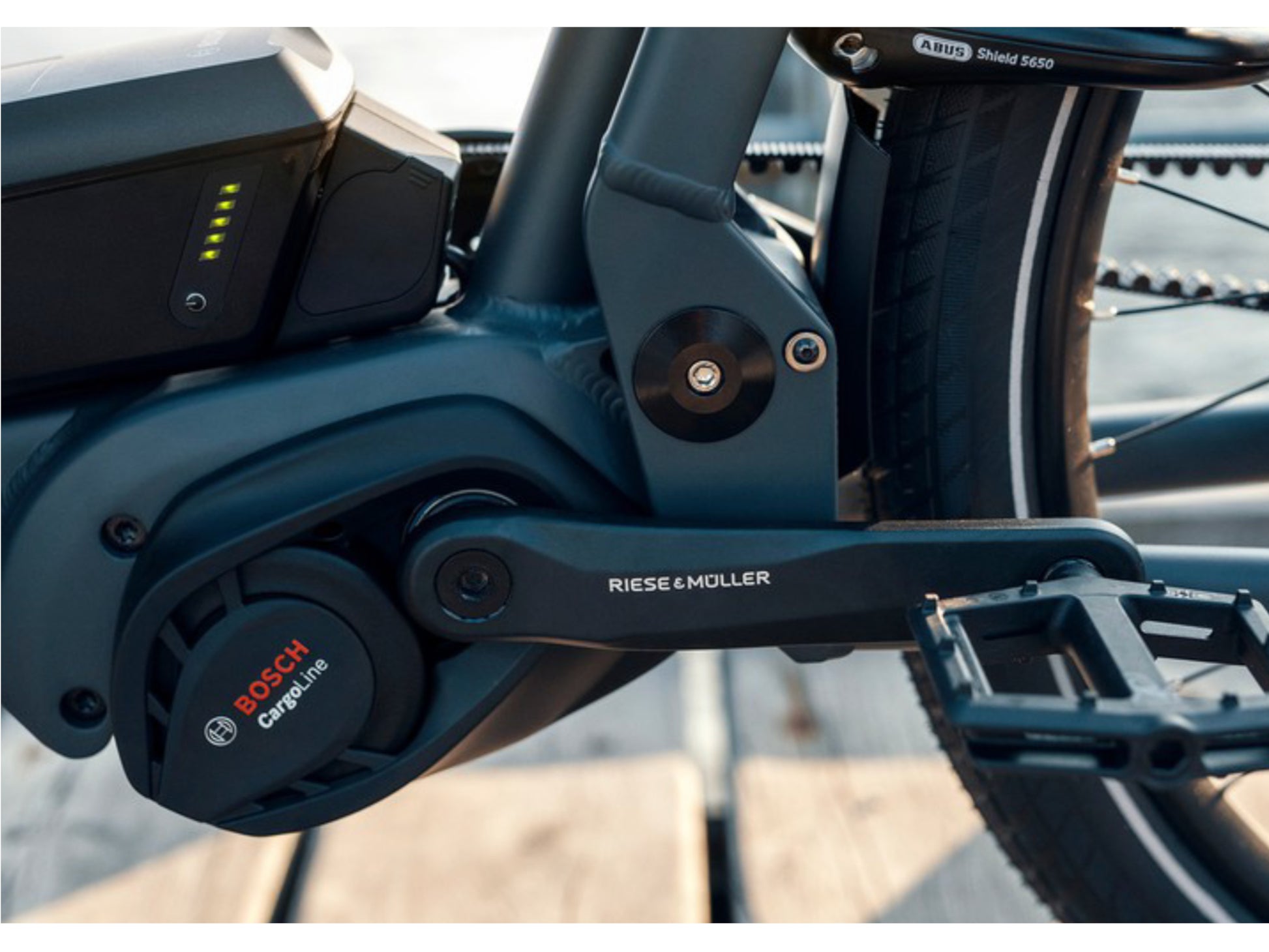

• Motor	Bosch Performance Line Speed (Gen4)

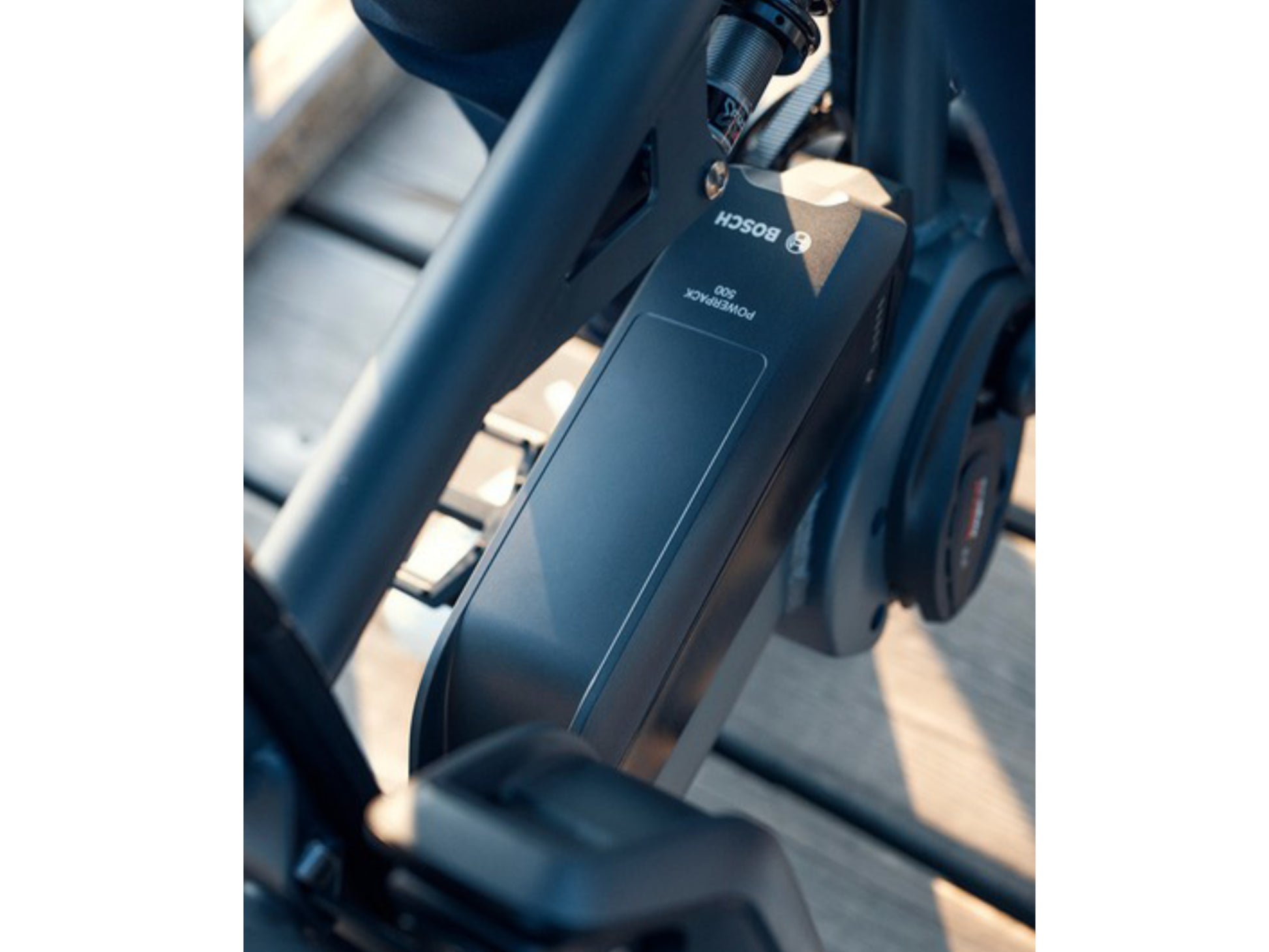

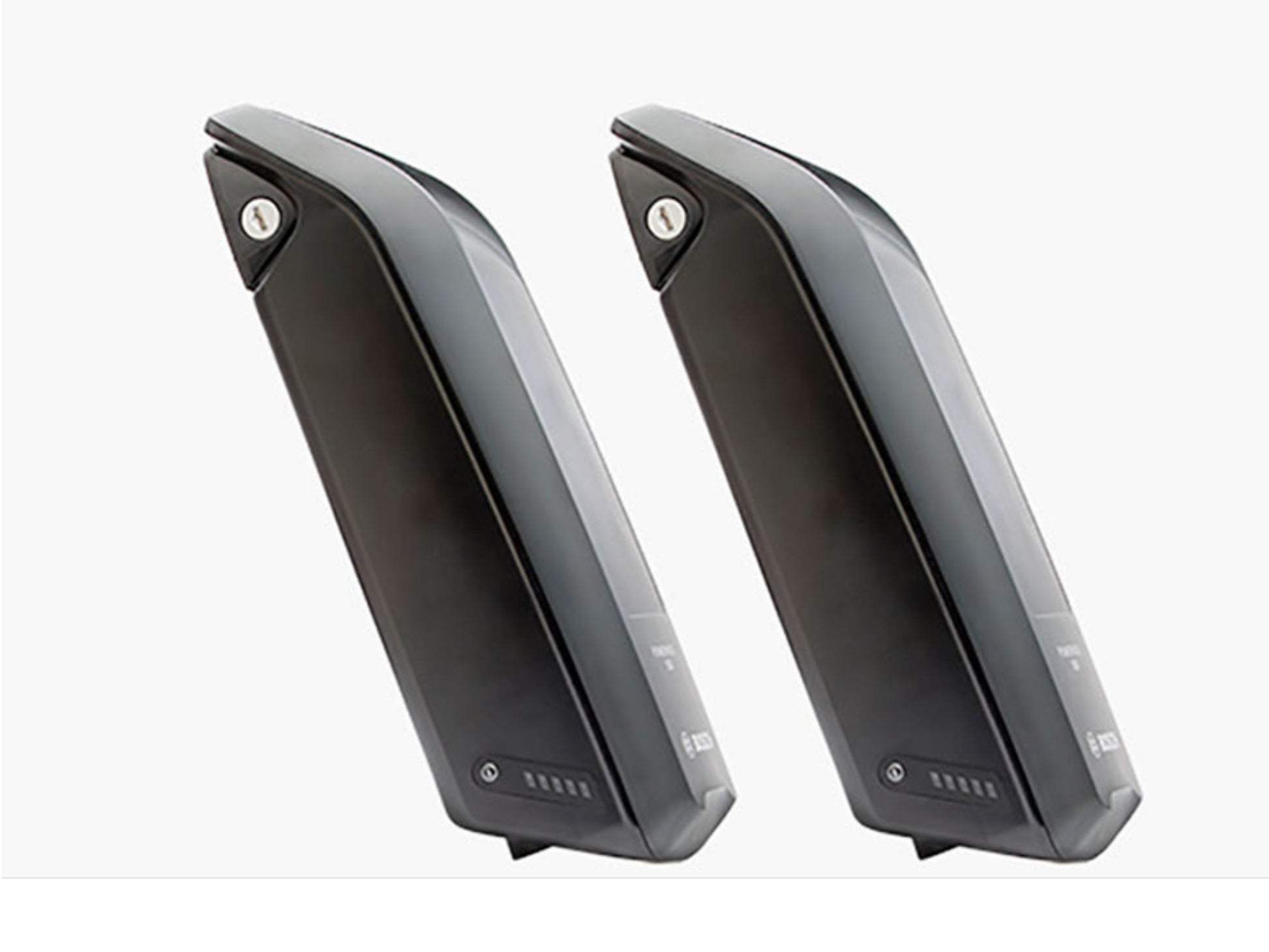

  Battery	Bosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh; Bosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh ( 2x )*

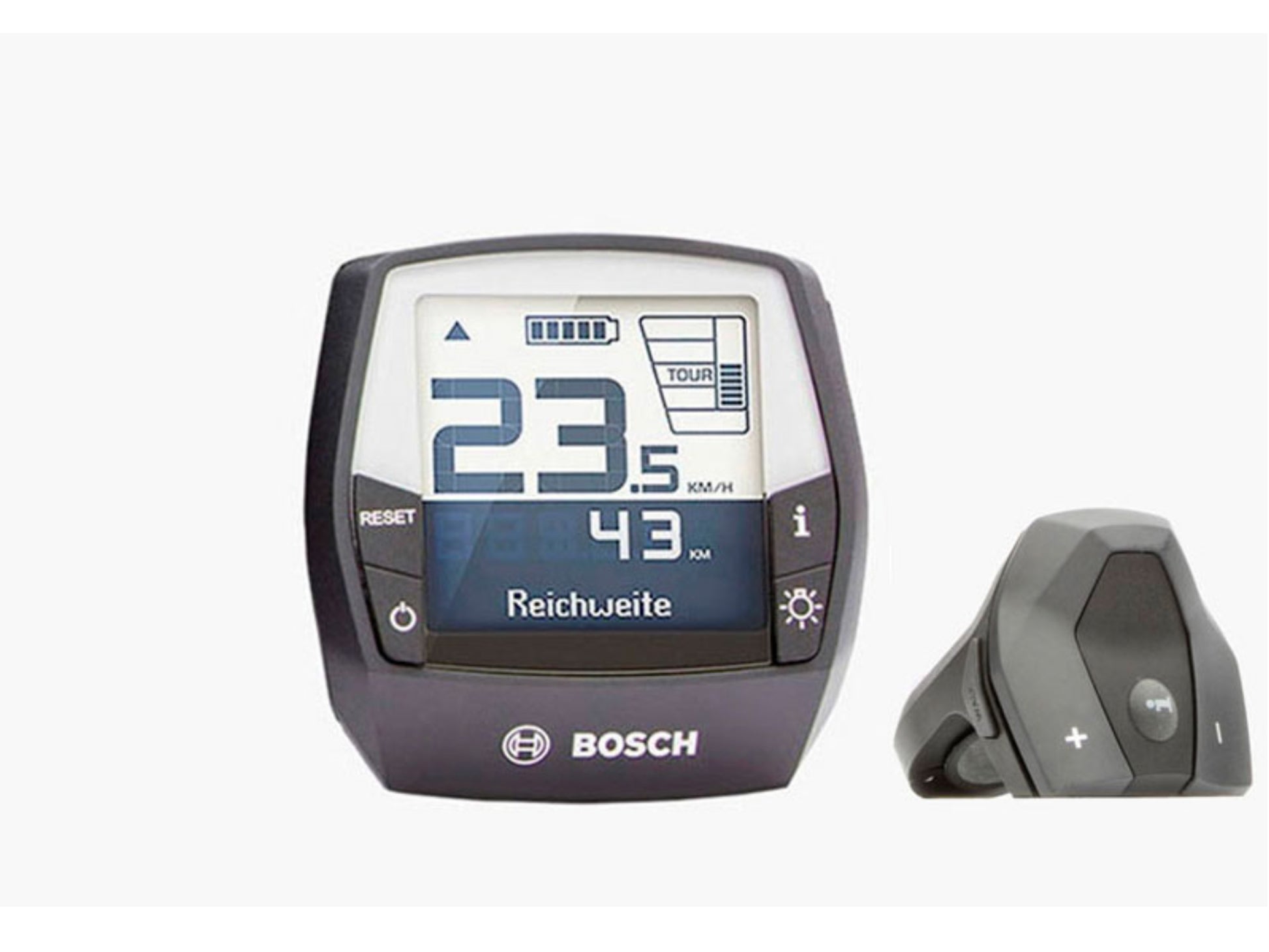

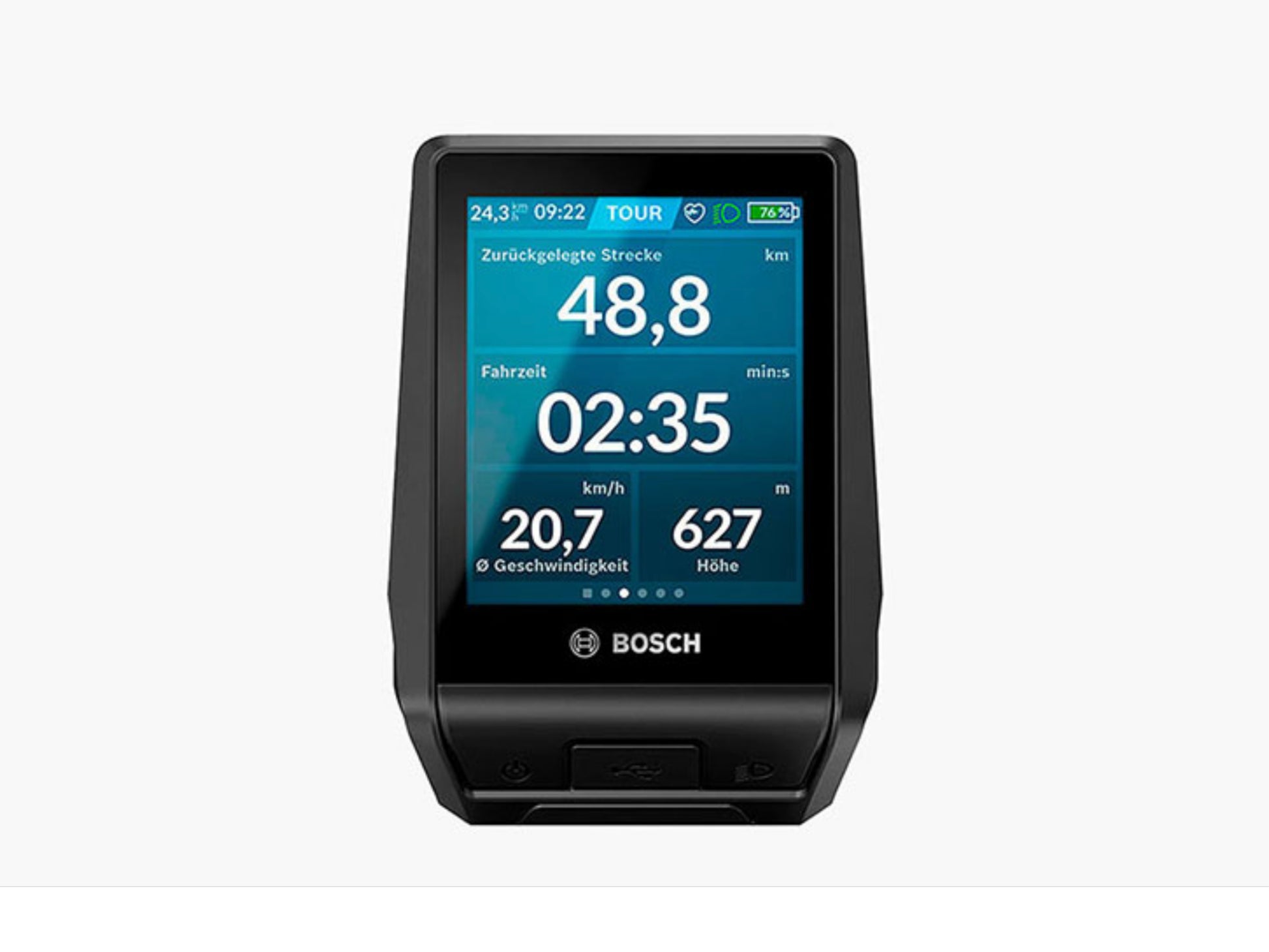

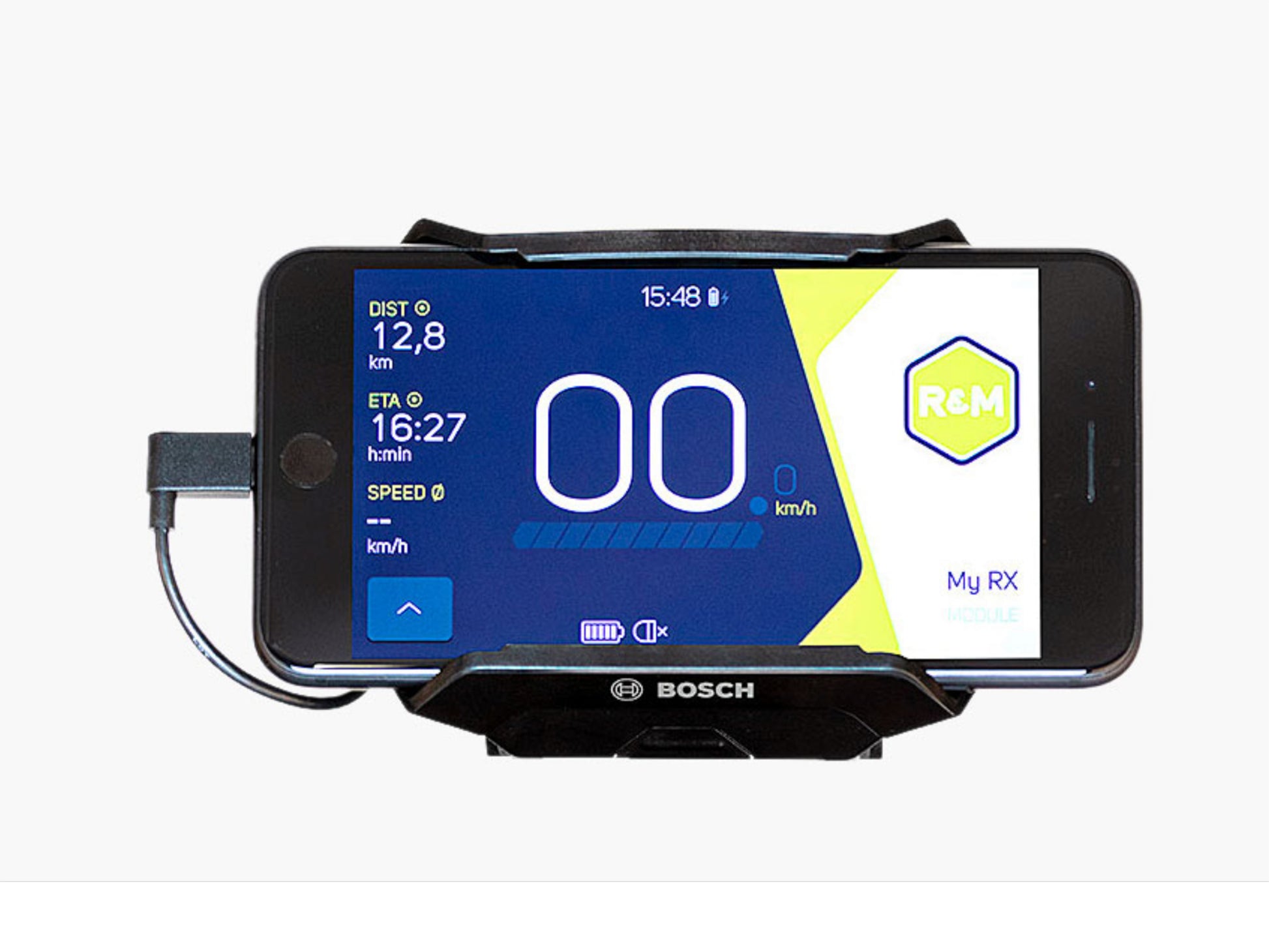

  Display	Bosch Intuvia; Bosch Nyon*; Bosch SmartphoneHub*
  Charger	Bosch

• Frame	coal grey matt*; white*
  Fork	Suntour Mobie A32, 20", 70mm

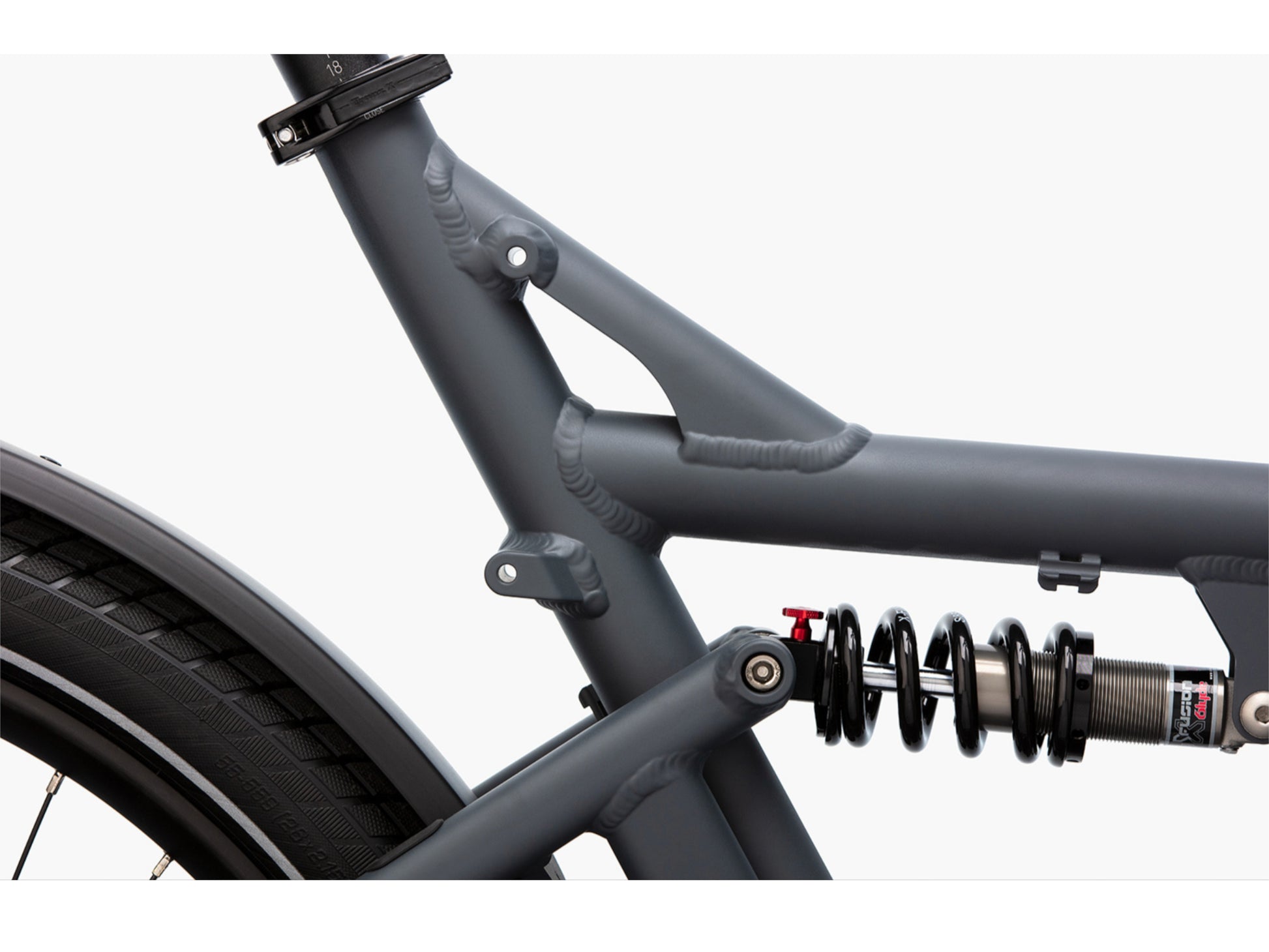

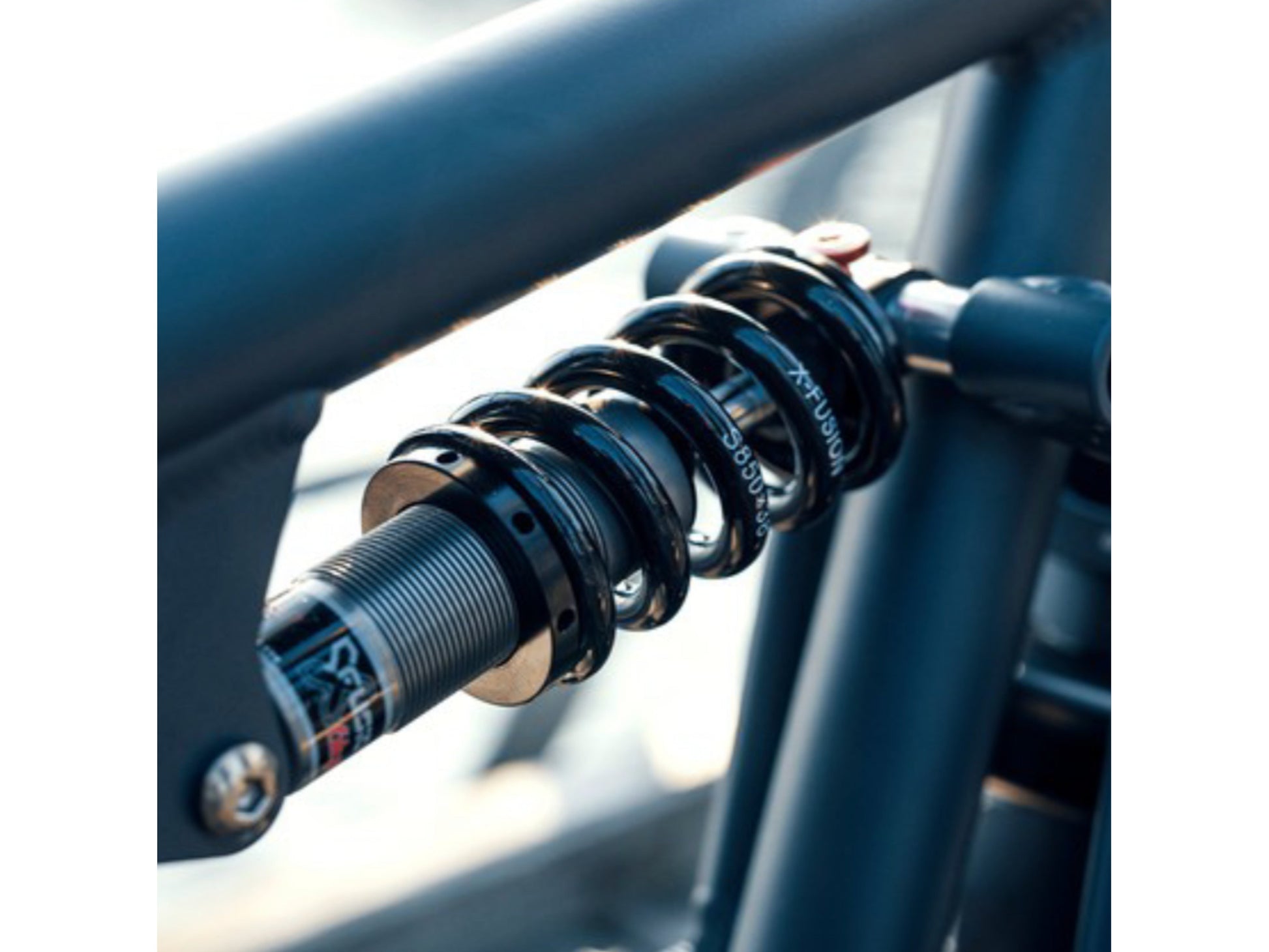

  Rear Shock	X-Fusion Glyde
  Front Brake	Tektro TRP C 2.3 disc brake
  Rear Brake	Tektro TRP C 2.3 disc brake
  Rear Derailluer /Pinion	Shimano Deore XT 11-S Linkglide
  Shift Levers	Shimano Deore XT 11-S Linkglide
  Chain	KMC X11 ( 127x )
  Cassette	Shimano XT 11-S 11-50 Linkglide
  Crankset	FSA/Riese & Müller, 170 mm
  Chain Ring	48T
  Chain Guard	Chain guard
  Rims	Mach1 Trucky30 20" CNC; Mach1 Trucky30 26" CNC
  Front Hub	Novatec Disc 32H
  Rear Hub	Novatec Boost, QR, 36H

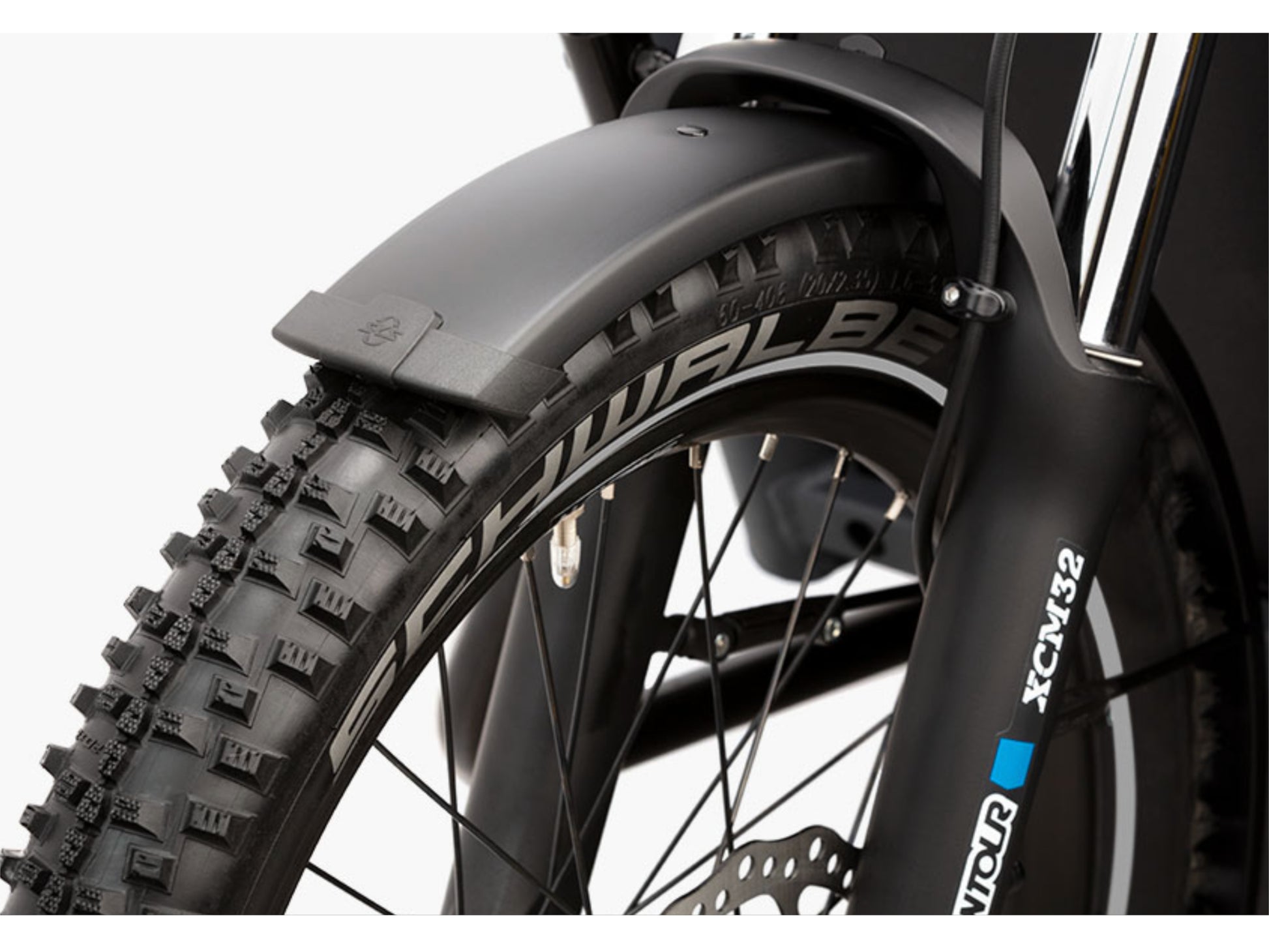

  Front Tire	Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Big Ben Plus 55-559 Reflex; Schwalbe Smart Sam 57-559*; Schwalbe Smart Sam Plus 60-406 Reflex*
  Rear Tire	Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Big Ben Plus 55-559 Reflex; Schwalbe Smart Sam Plus 57-559 Reflex*; Schwalbe Smart Sam Plus 60-406 Reflex*
  Handlebar	FSA V-Drive, 31,8 mm, Alu

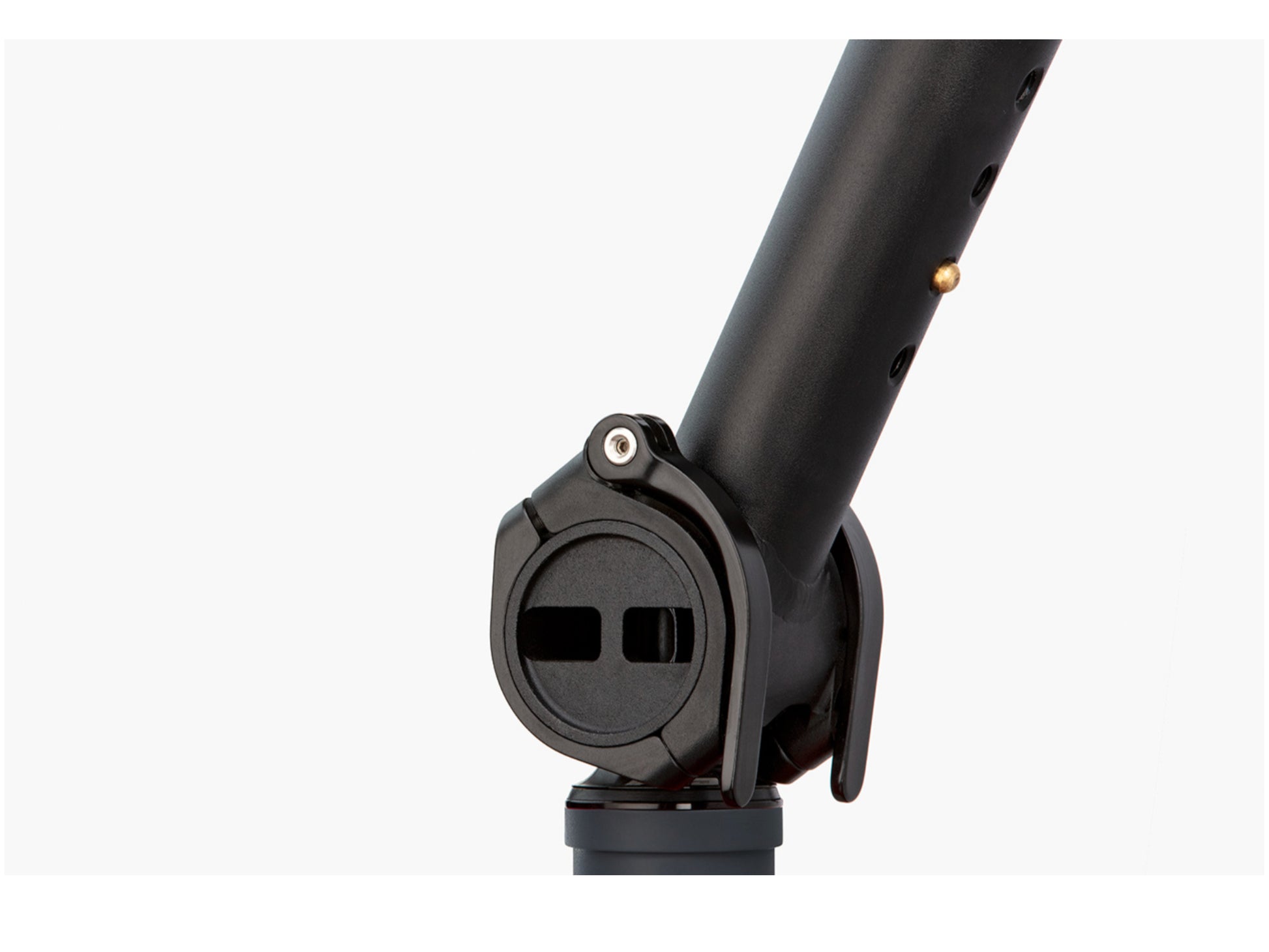

  Stem	Riese & Müller, adjustable height and angle
  Headset	Acros AZX-221, block lock; TH No. 9, semi-integrated
  Grips	Ergon ergonomic; Ergon GP30-L*
  Saddle	Selle Royal New Lookin Evo R&M
  Seatpost	JD/Riese & Müller, Alu, 34,9 x 430mm

• Pedals	VP R&M Custom

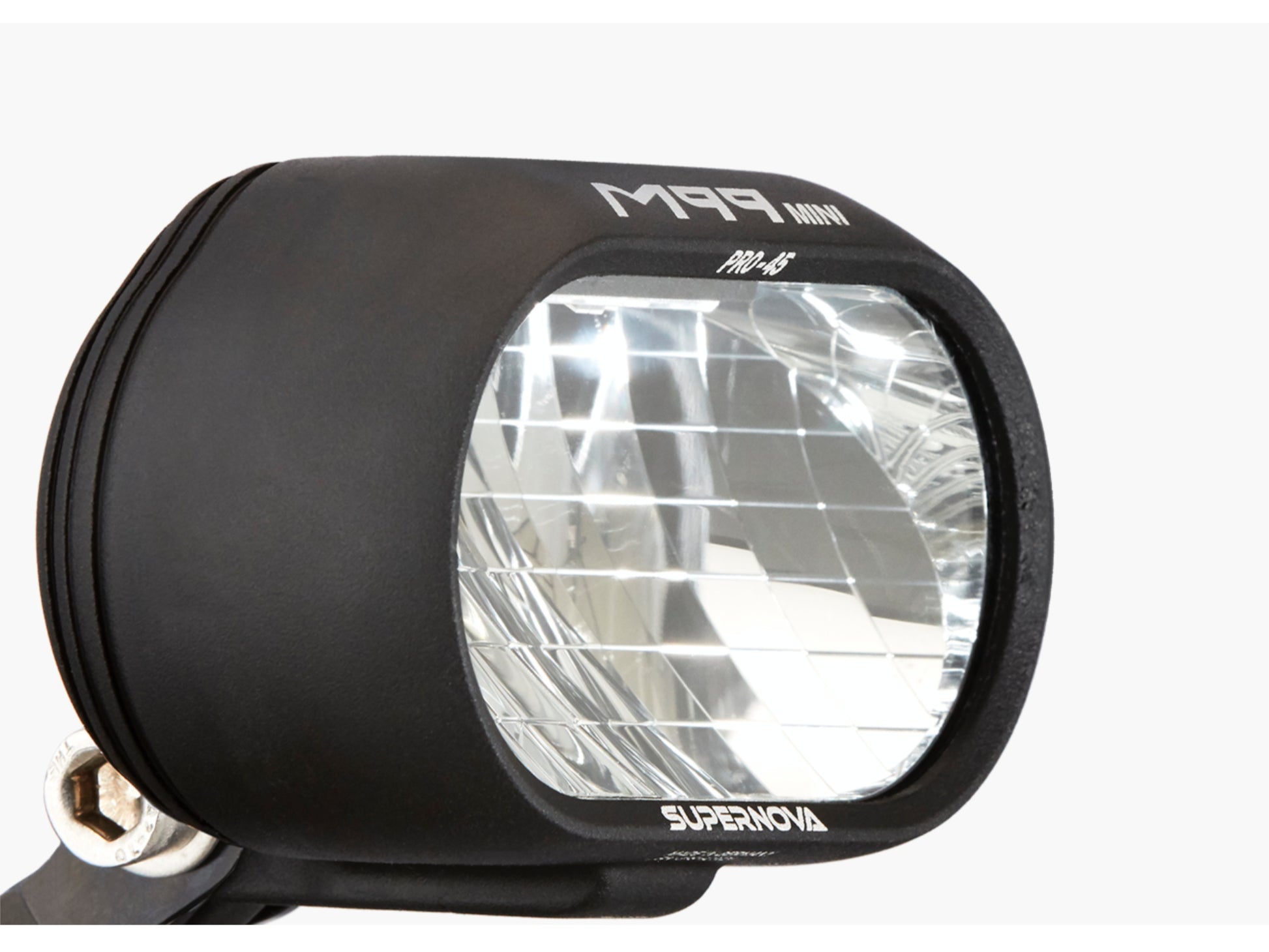

  Front Light	Supernova M99 Mini Pro-45
  Rear Light	Supernova M99, integrated plate illumination and brake light; Supernova M99, integrated brake light*
  Kickstand	Riese & Muller

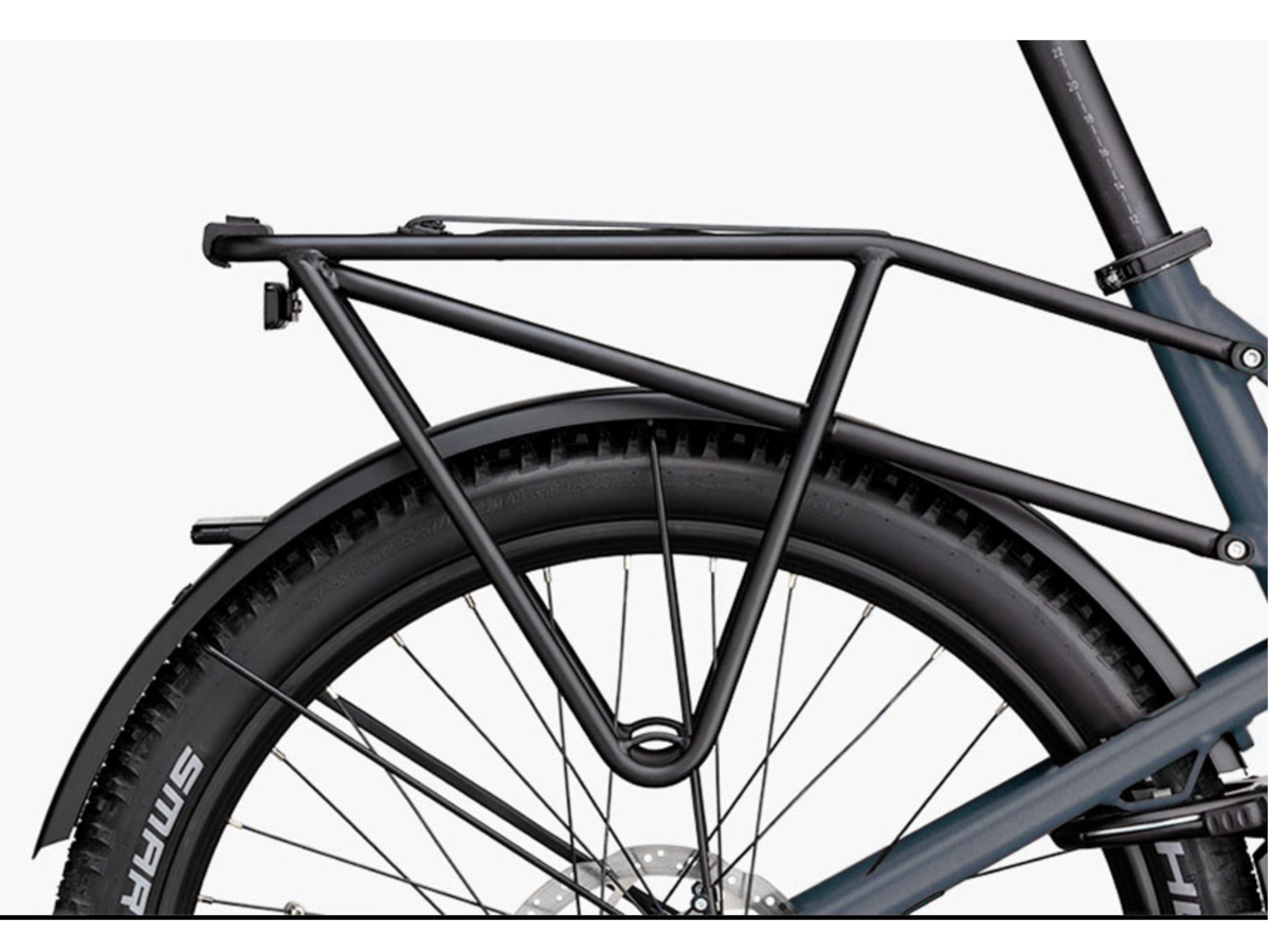

  Rear carrier	Riese & Müller
  Fenders	SKS A65R
  Bell	Supernova Horn

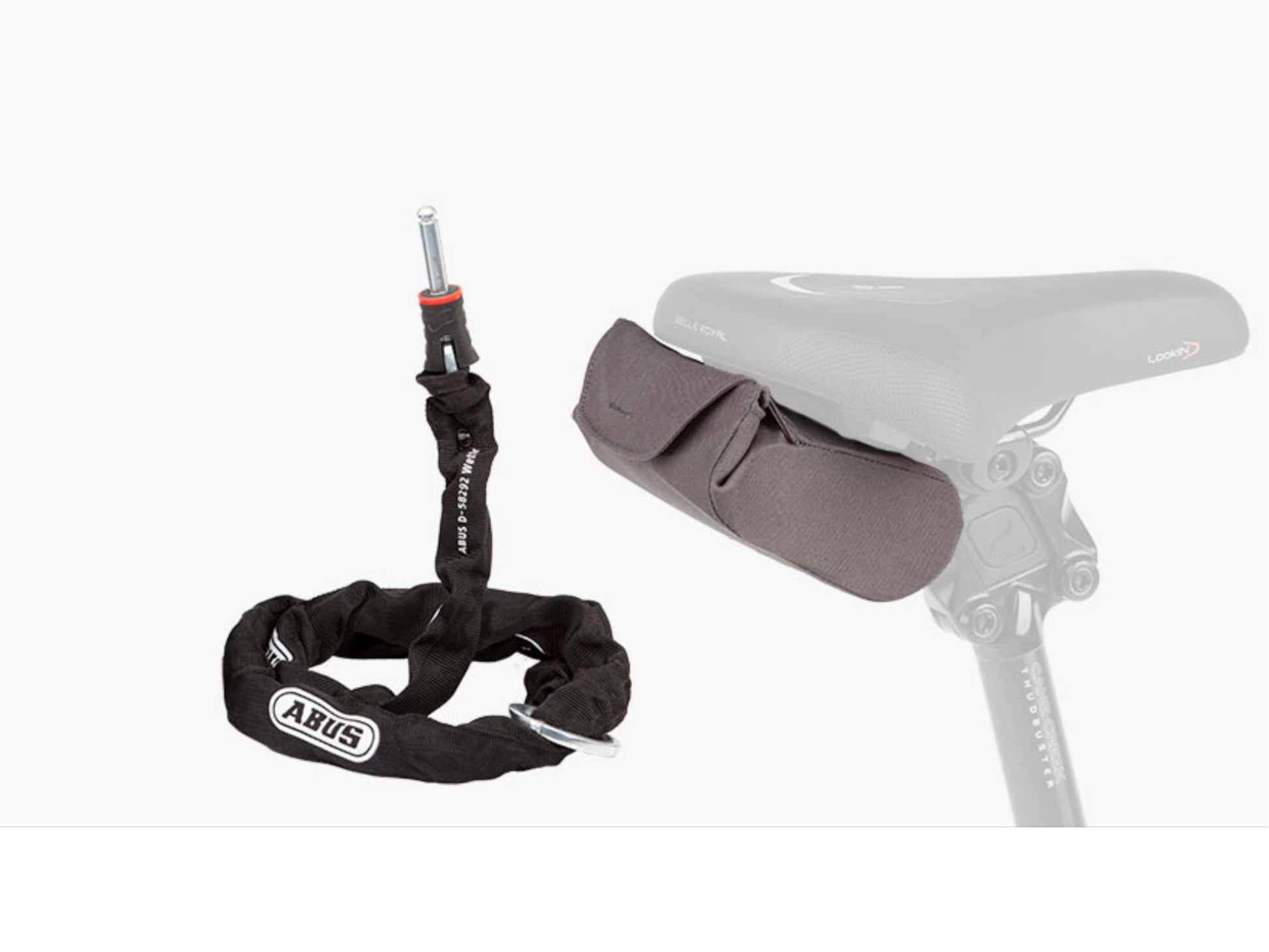

  Lock	ABUS Shield; ABUS Shiled X+
  Mirror	Humpert ergotec M-99 E4, CNC

•


  Frame Size	Universal
  Top tube length [cm]	59-77
  Head tube angle [°]	70
  Seat tube angle [°]	68
  Trail [mm]	54
  Wheelbase [cm]	200,5
  Bottom bracket height [cm]	30,5
  Top tube height [cm]	62,5
  Stand-over height [cm]	59
  Chainstay length [cm]	46,5
  Overall length [cm]	264,5
  Wheel size ['']	front: 20/rear:26
  Head tube length [mm]	85
  Headset size ['']	1 1/8
  Front suspension travel [mm]	70
  Effective rear suspension travel [mm]	80
  Rear shock length [mm]	165
  Front shock mounting width [mm]	22
  Rear shock mounting width [mm]	22
  Front shock locking screw	8
  Rear shock locking screw	8
  Rear suspension ratio	2,2
  Rear dropout width [mm]	148
  Gear ratio [m]	2,02-9,17
  Weight [kg]	38,2
  Weight [lbs]	84.21
  Gross vehicle weight rating [kg]	200
  Weight rating: Rear Luggage rack [kg]	15
  Weight rating: Handlebar bag/basket [kg]	No

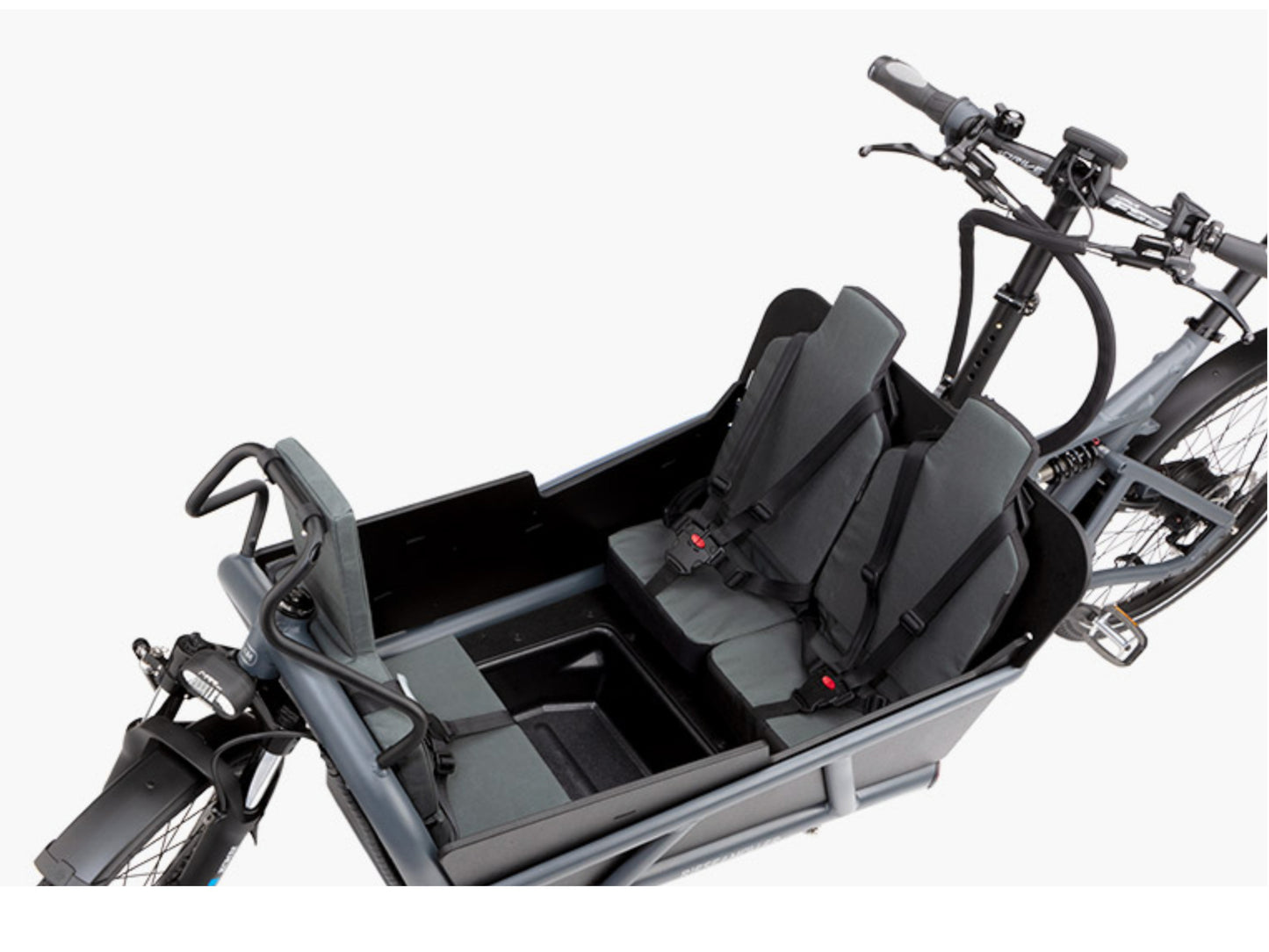

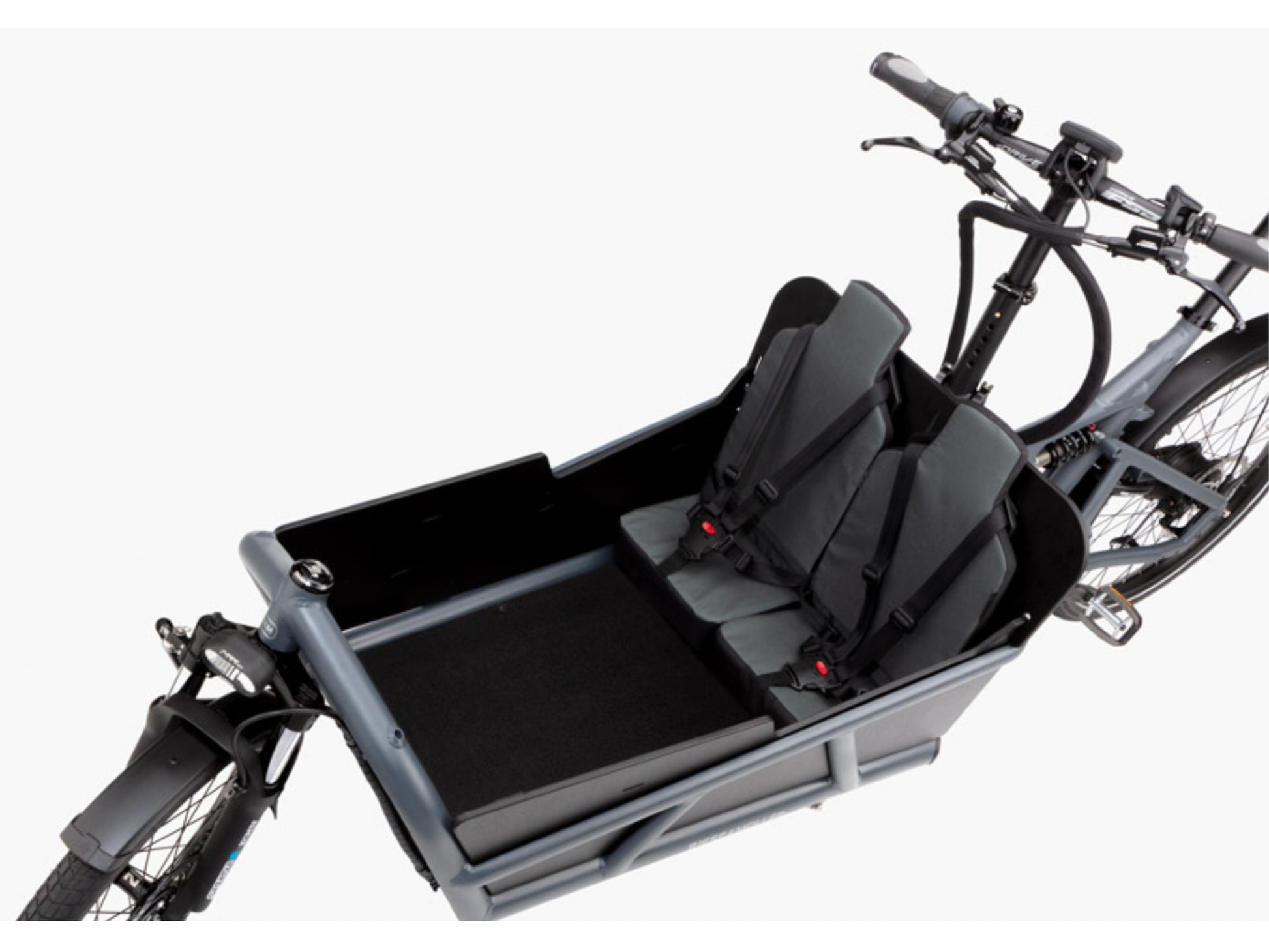

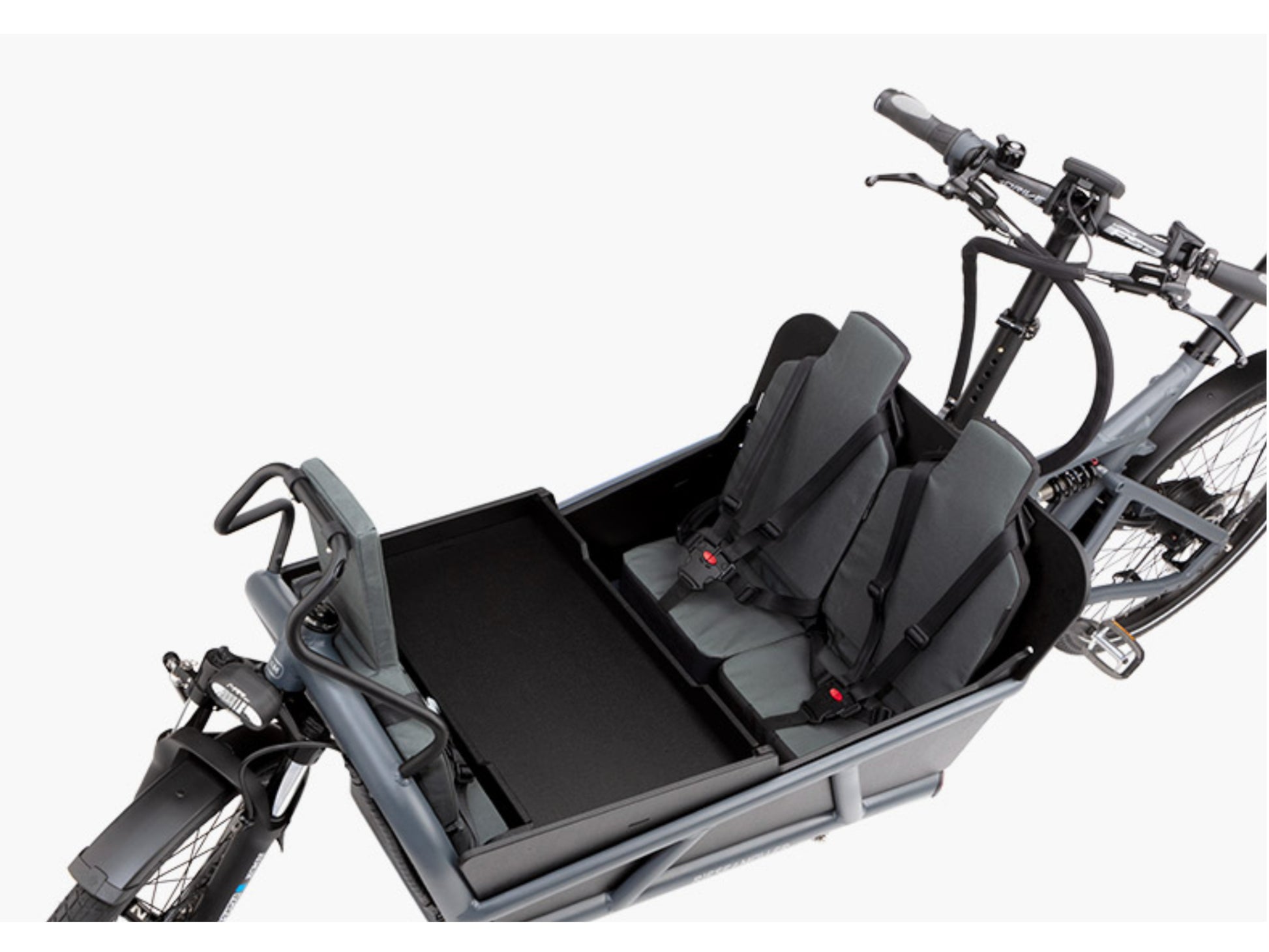

  Childseat compatibility	Yes
  Trailer compatibility: Single wheel/single attachment point	No
  Trailer compatibility: Two wheel/single attachment point	Yes
  Compatibility: Tagalong trailer bike	No
