Riese and Muller Load4 75 Vario HS

The Full Scoop on the Riese and Muller Load4 75 Vario HS

• Description
• Motor System
• Components
• Extras
• Geometry

• With its low center of gravity, Riese & Müller Control Technology and a huge loading surface, the Load4 75 Vario HS combines riding dynamics and load options, like no other cargo bike. The strong Bosch Cargo Line motor delivers hitherto unknown power. And the Load4 75 Vario HS is also extremely reliable, thanks to its high-grade components.





  • Components subject to manufacturer changes

• Motor	Bosch Cargo Line (smart system)
  Battery	Akku Bosch PowerPack Frame 545; Akku Bosch PowerPack Frame 725*

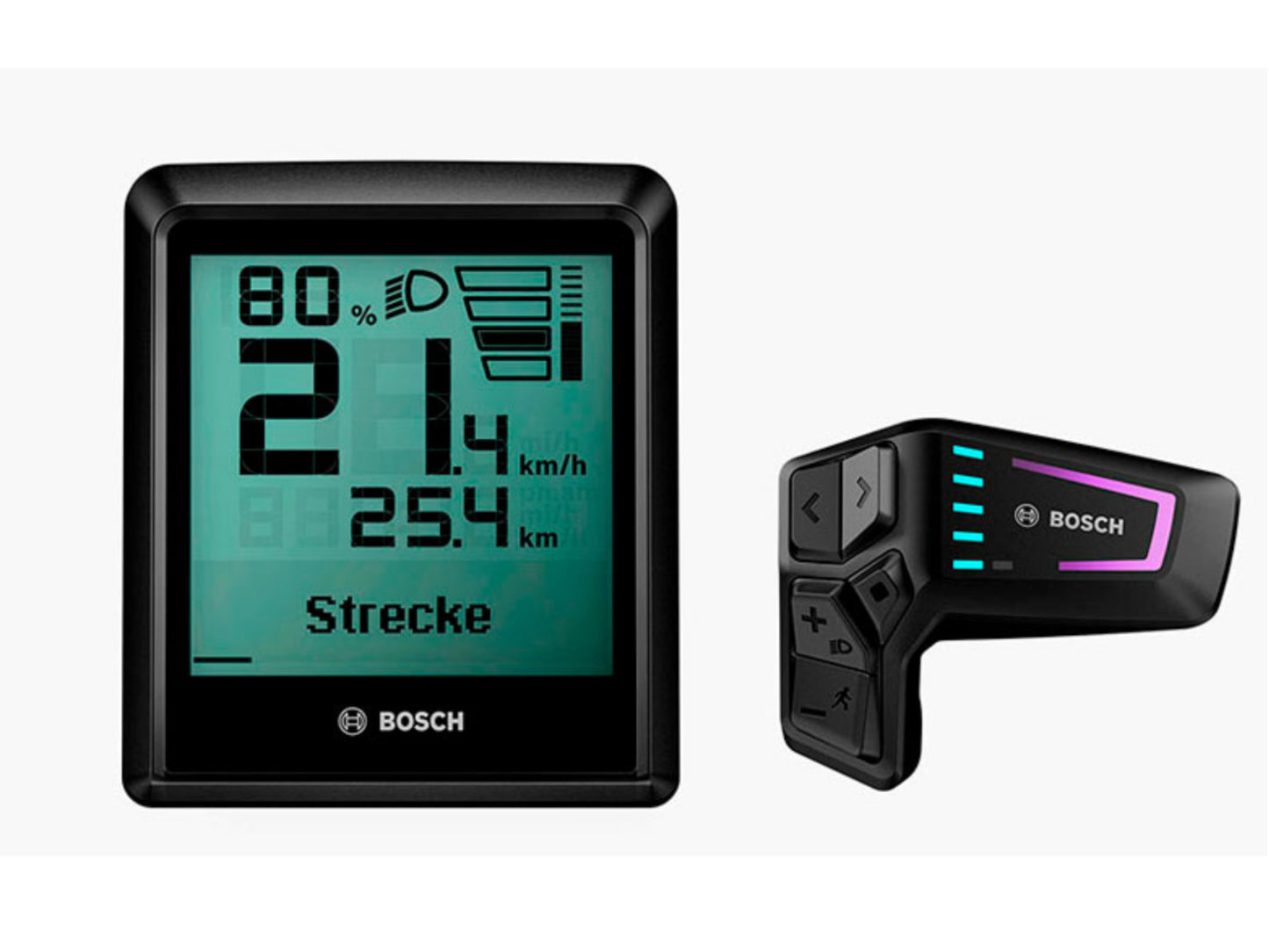

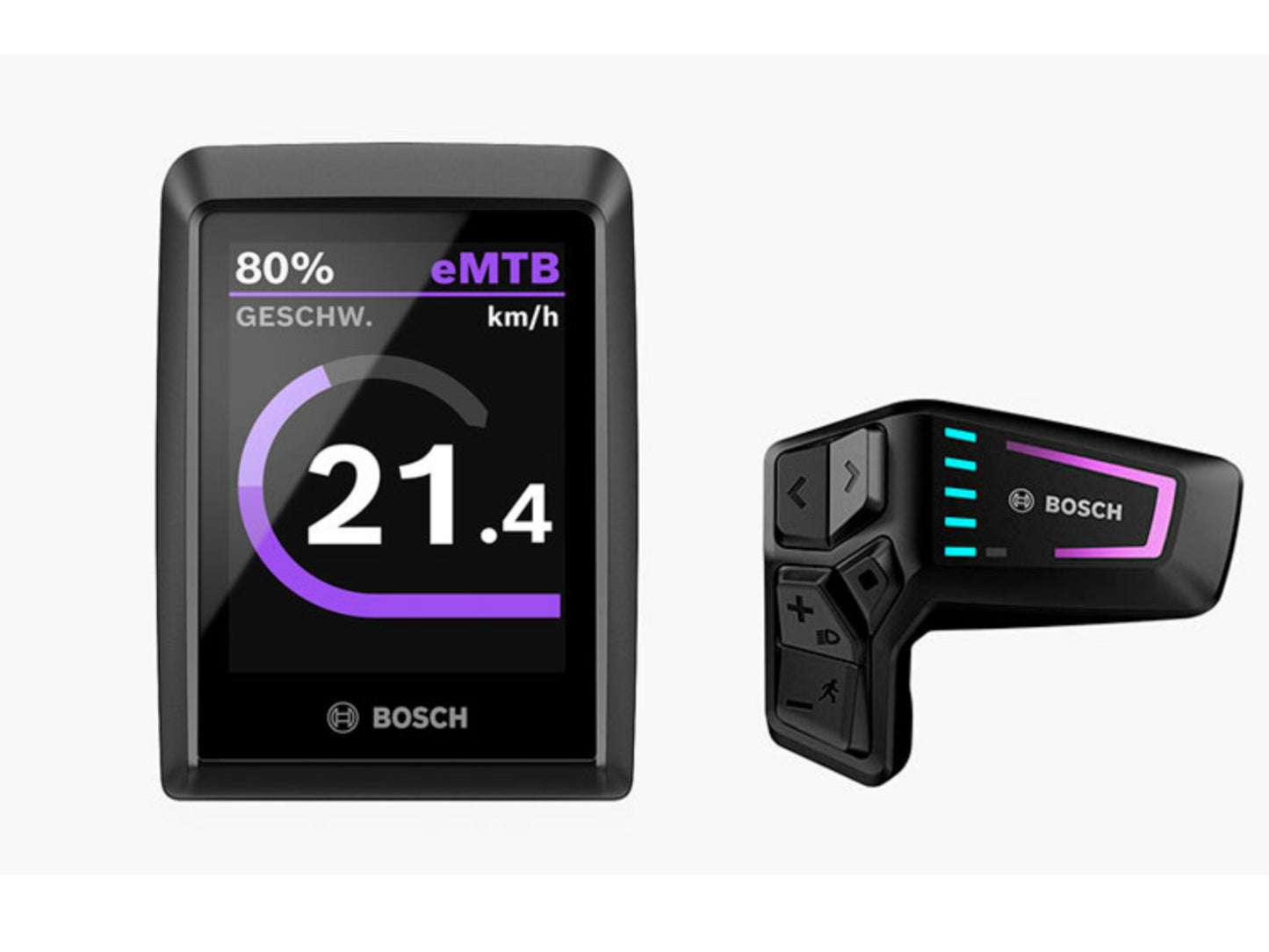

  Display	Bosch Intuvia 100; Bosch Kiox 300*
  Charger	Bosch

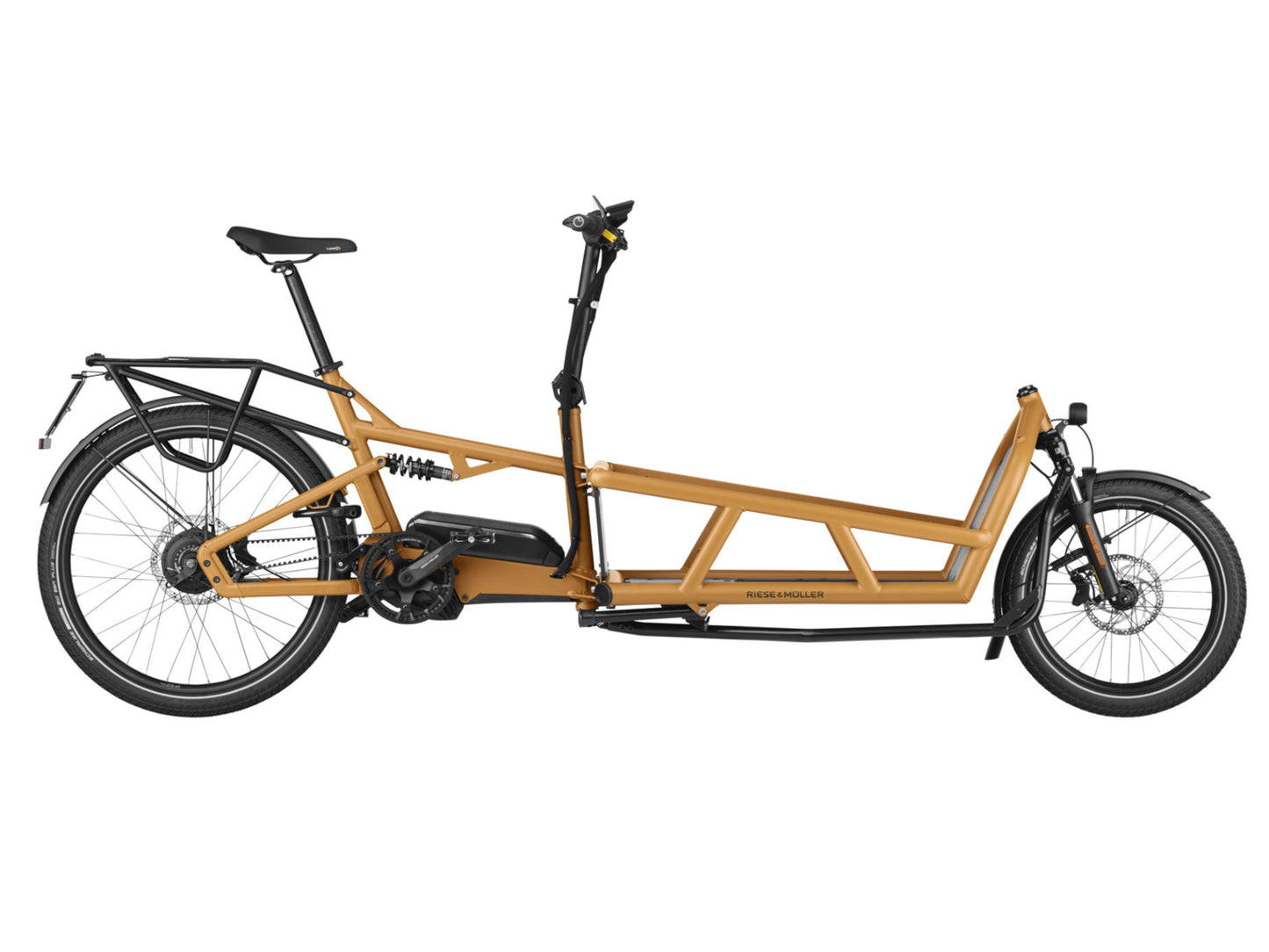

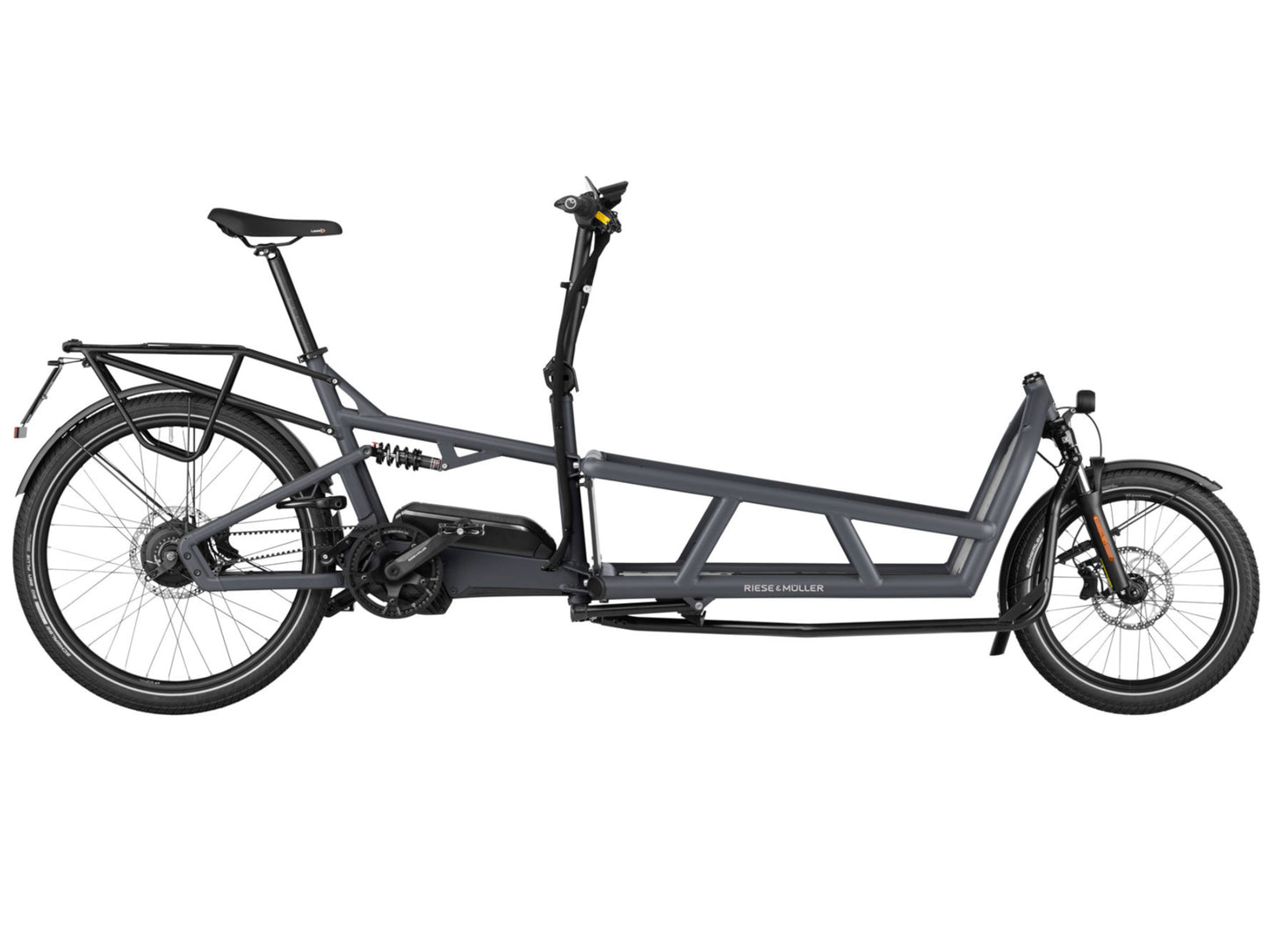

• Frame	coal grey matt*; peanut matt*
  Fork	Suntour Mobie A32, 20", 50mm; Suntour Mobie A34 CGO Boost, 20", 80mm*

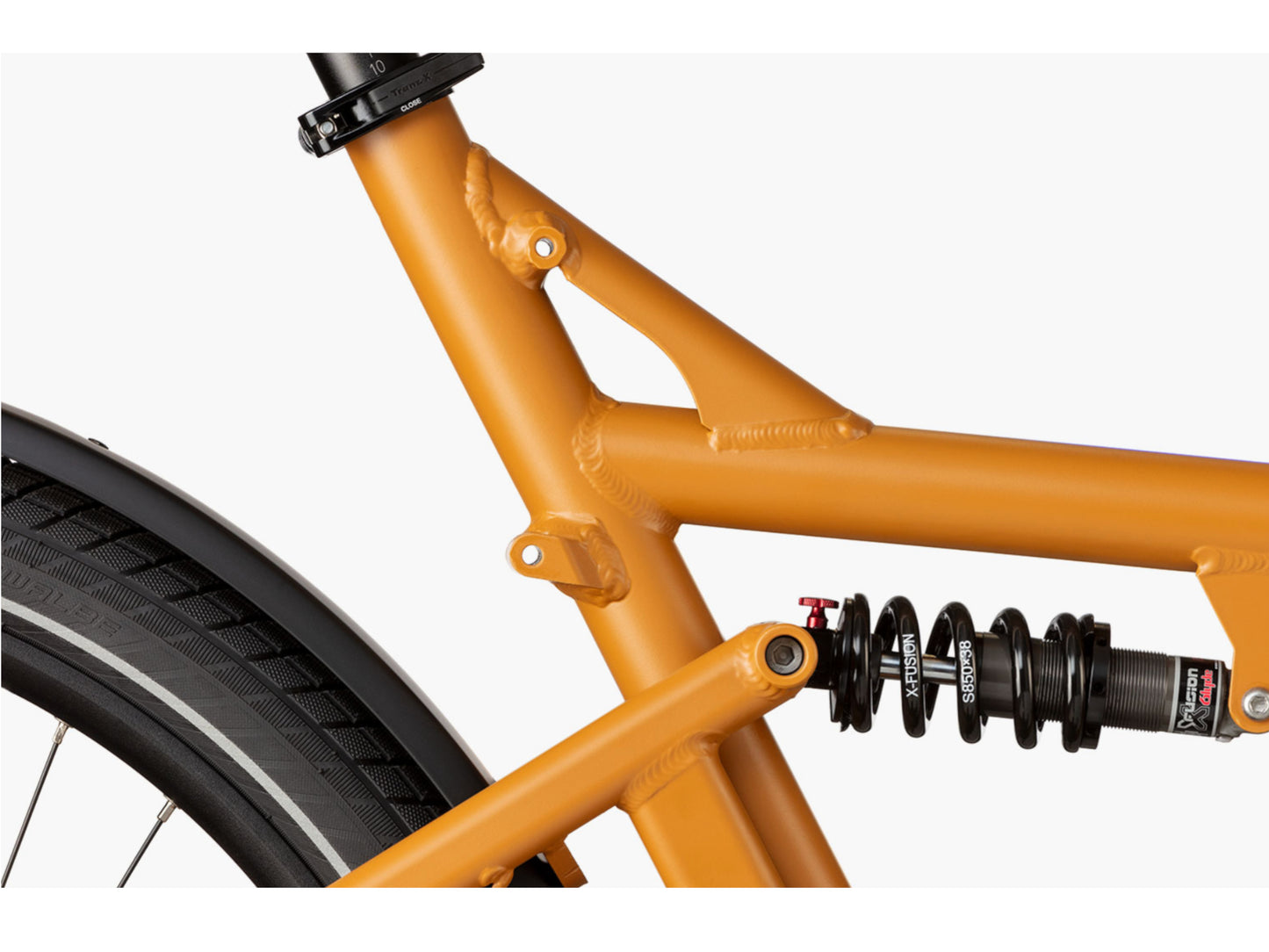

  Rear Shock	X-Fusion Glyde
  Front Brake	Tektro TRP C 2.3 disc brake
  Rear Brake	Tektro TRP C 2.3 disc brake
  Rear Derailluer /Pinion	22T, for Gates drive belt CDX
  Shift Levers	Enviolo grip shift Twist Display Pure, continuous
  Chain	Gates drive belt CDX
  Cassette	Spec not provided
  Crankset	FSA/Riese & Müller, 170 mm
  Chain Ring	55T, for Gates drive belt CDX
  Chain Guard	Belt guard
  Rims	Mach1 Trucky30 20" CNC; Mach1 Trucky30 26" CNC
  Front Hub	Novatec Disc 32H
  Rear Hub	Enviolo 380, 36H

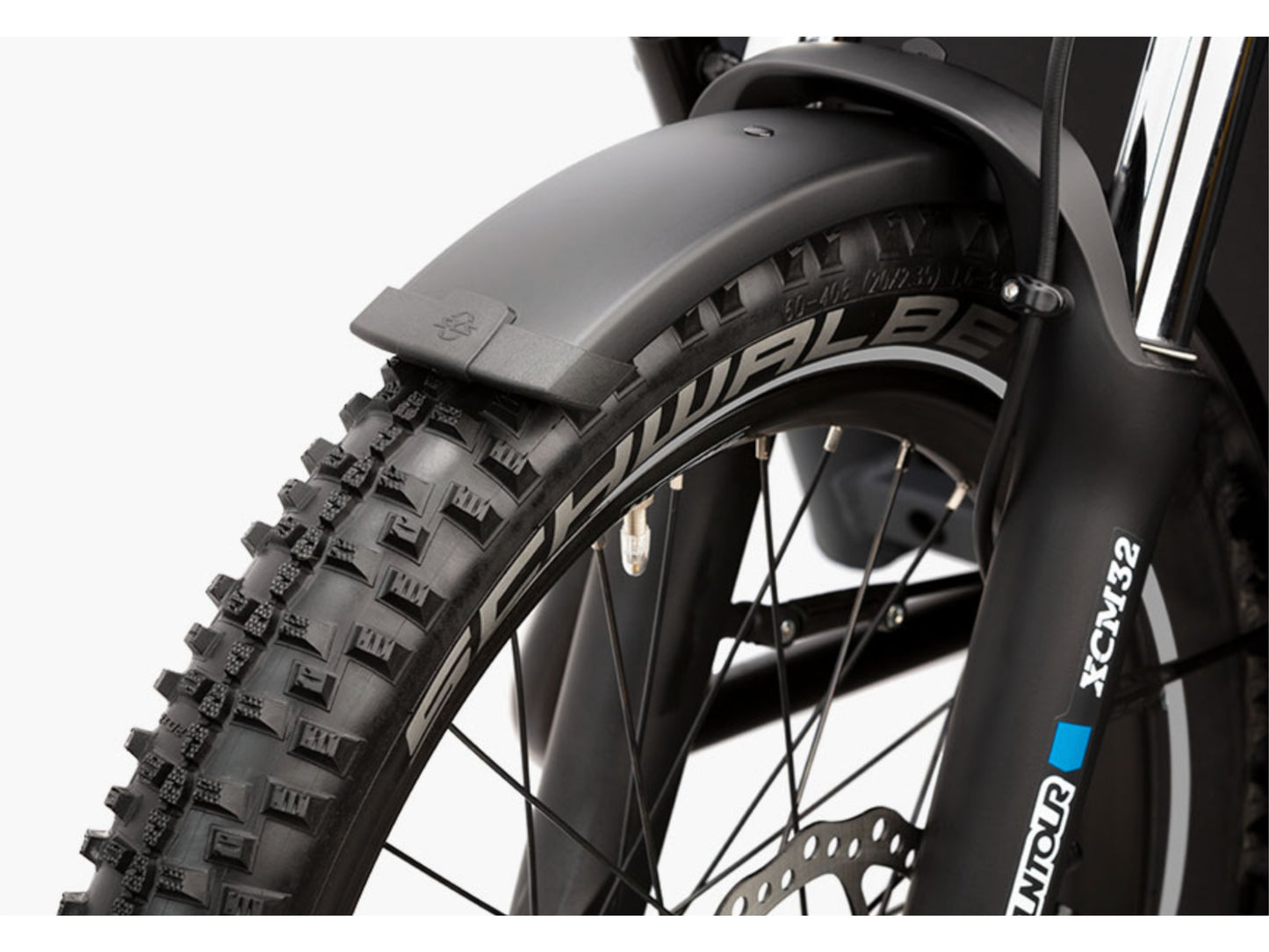

  Front Tire	Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Big Ben Plus 55-559 Reflex; Reifen 20" SmartSamPlus 60-406 ECE-R75*; Schwalbe Smart Sam Plus 57-559 Reflex*
  Rear Tire	Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Big Ben Plus 55-559 Reflex; Reifen 20" SmartSamPlus 60-406 ECE-R75*; Schwalbe Smart Sam Plus 57-559 Reflex*
  Handlebar	FSA V-Drive, 31,8 mm, Alu

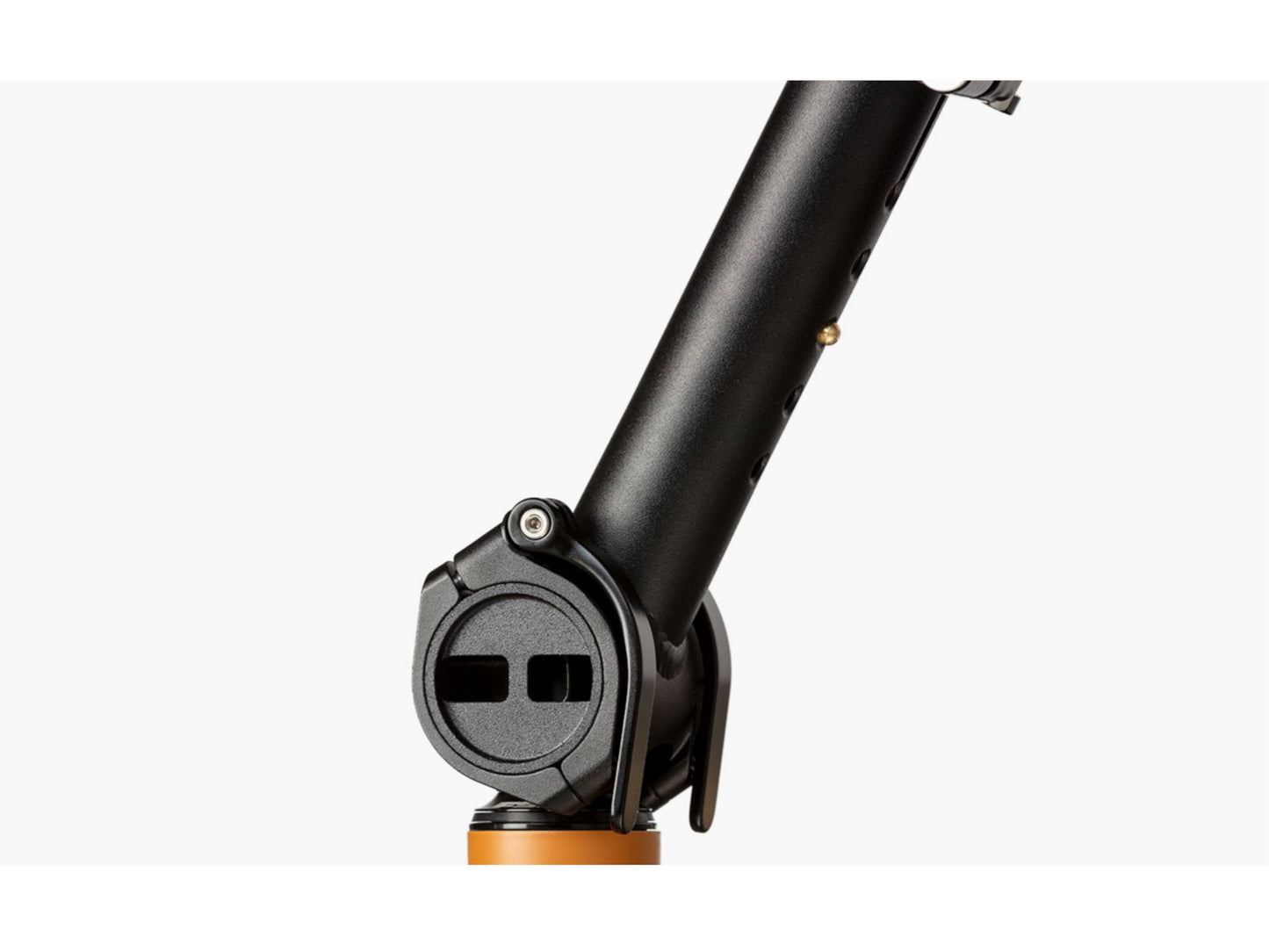

  Stem	Riese & Müller, adjustable height and angle
  Headset	Acros AZX-221, block lock; TH No. 9, semi-integrated (2x)
  Grips	Ergon ergonomic
  Saddle	Selle Royal New Lookin Male Eco
  Seatpost	JD/Riese & Müller, Alu, 34,9 x 430mm

• Pedals	VP R&M Custom

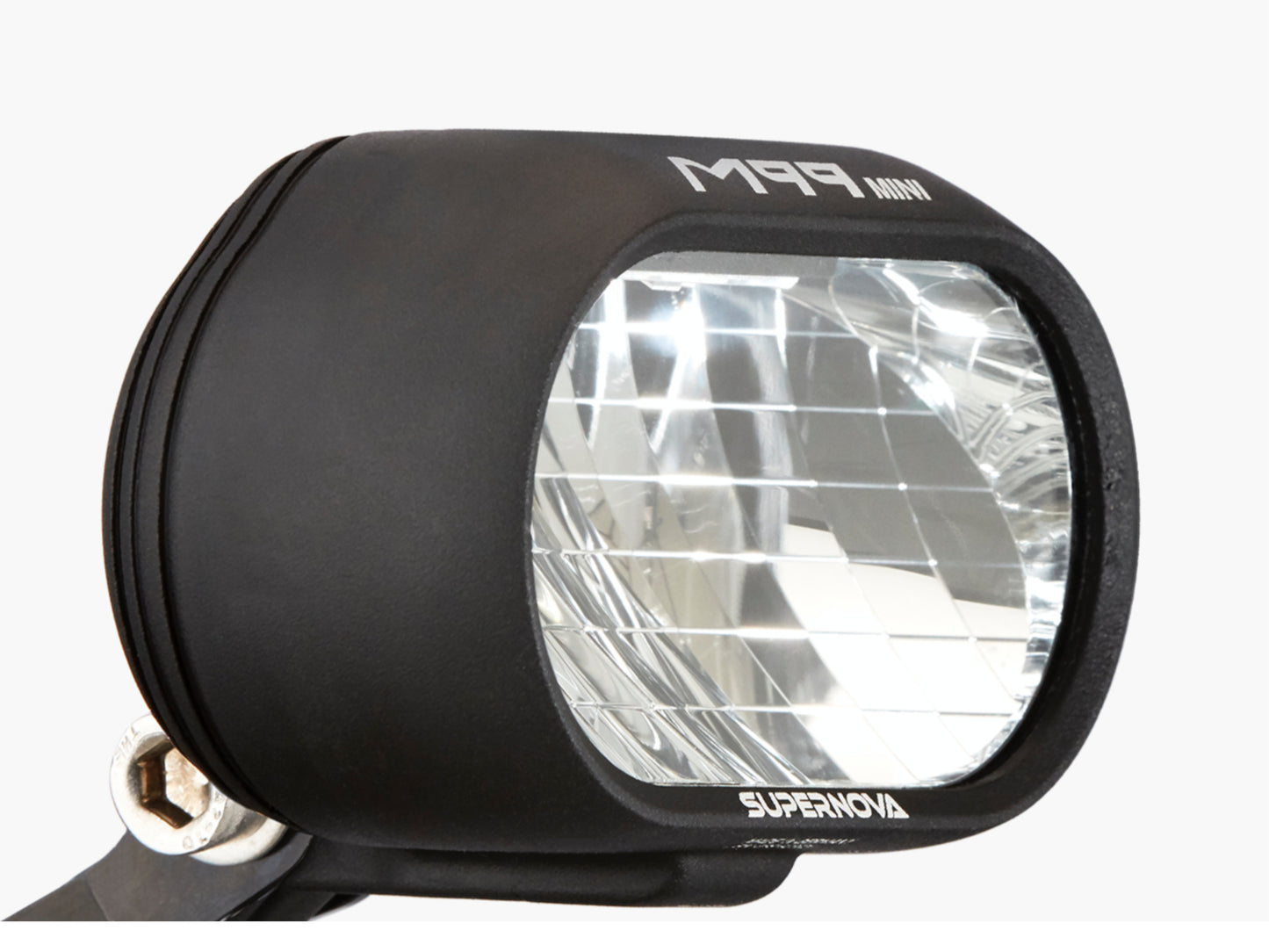

  Front Light	Supernova M99 Mini Pro-45
  Rear Light	Supernova M99, integrated plate illumination and brake light; Supernova M99, integrated brake light*
  Kickstand	Riese & Muller
  Rear carrier	Riese & Müller
  Fenders	SKS A65R
  Bell	Billy
  Lock	ABUS Shield X+

•


  Frame Size	Universal
  Top tube length [cm]	59-77
  Head tube angle [°]	70
  Seat tube angle [°]	68
  Trail [mm]	54
  Wheelbase [cm]	200,5
  Bottom bracket height [cm]	30,5
  Top tube height [cm]	62,5
  Stand-over height [cm]	59
  Chainstay length [cm]	46,5
  Overall length [cm]	264,5
  Wheel size ['']	front: 20/rear:26
  Head tube length [mm]	85
  Headset size ['']	1 1/8
  Front suspension travel [mm]	50
  Effective rear suspension travel [mm]	80
  Rear shock length [mm]	165
  Front shock mounting width [mm]	22
  Rear shock mounting width [mm]	22
  Front shock locking screw	8
  Rear shock locking screw	8
  Rear suspension ratio	2,2
  Rear dropout width [mm]	135
  Gear ratio [m]	2,63-9,98
  Weight [kg]	38,2
  Weight [lbs]	84.2
  Gross vehicle weight rating [kg]	200
  Weight rating: Rear Luggage rack [kg]	15
  Weight rating: Handlebar bag/basket [kg]	No

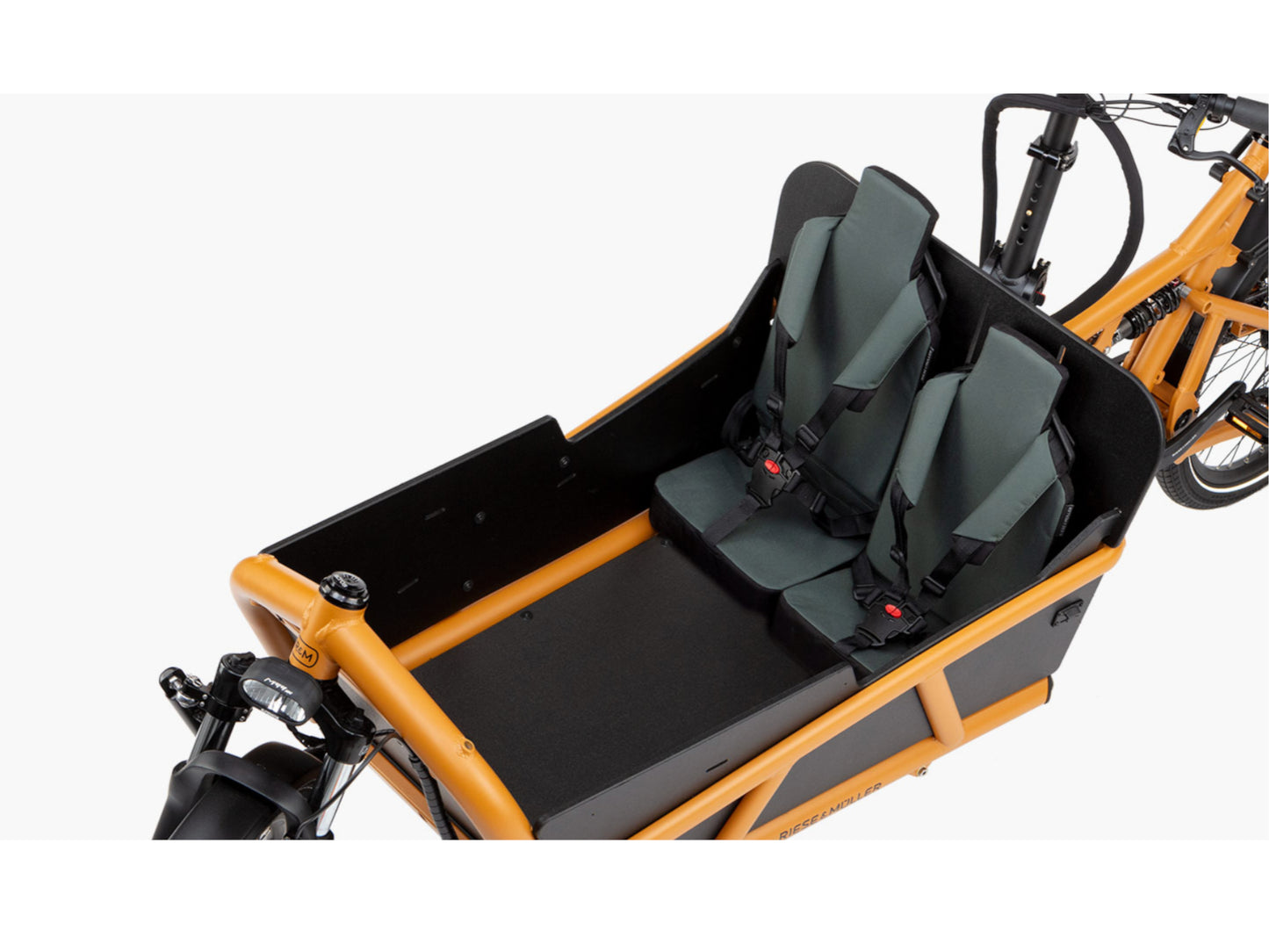

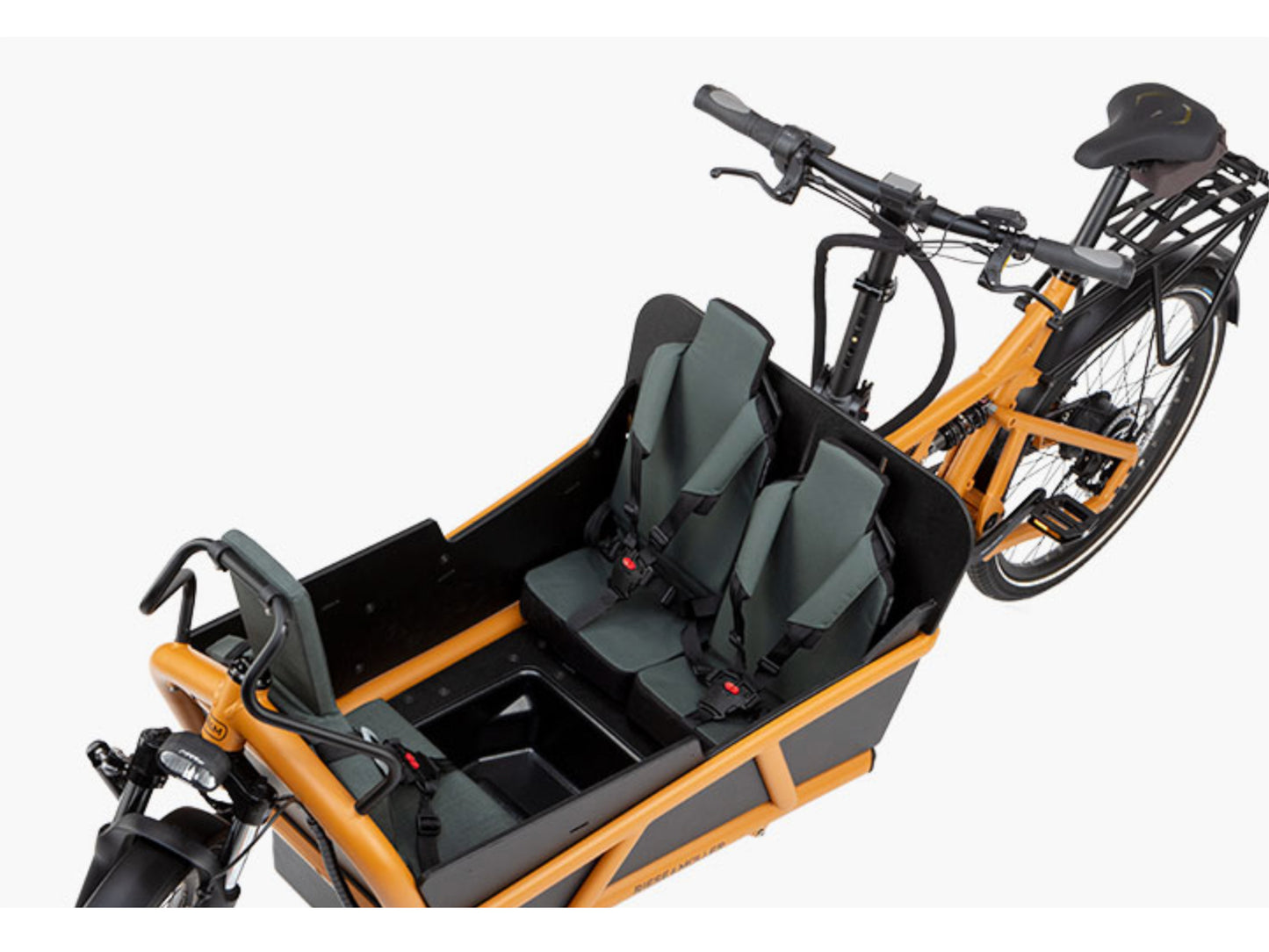

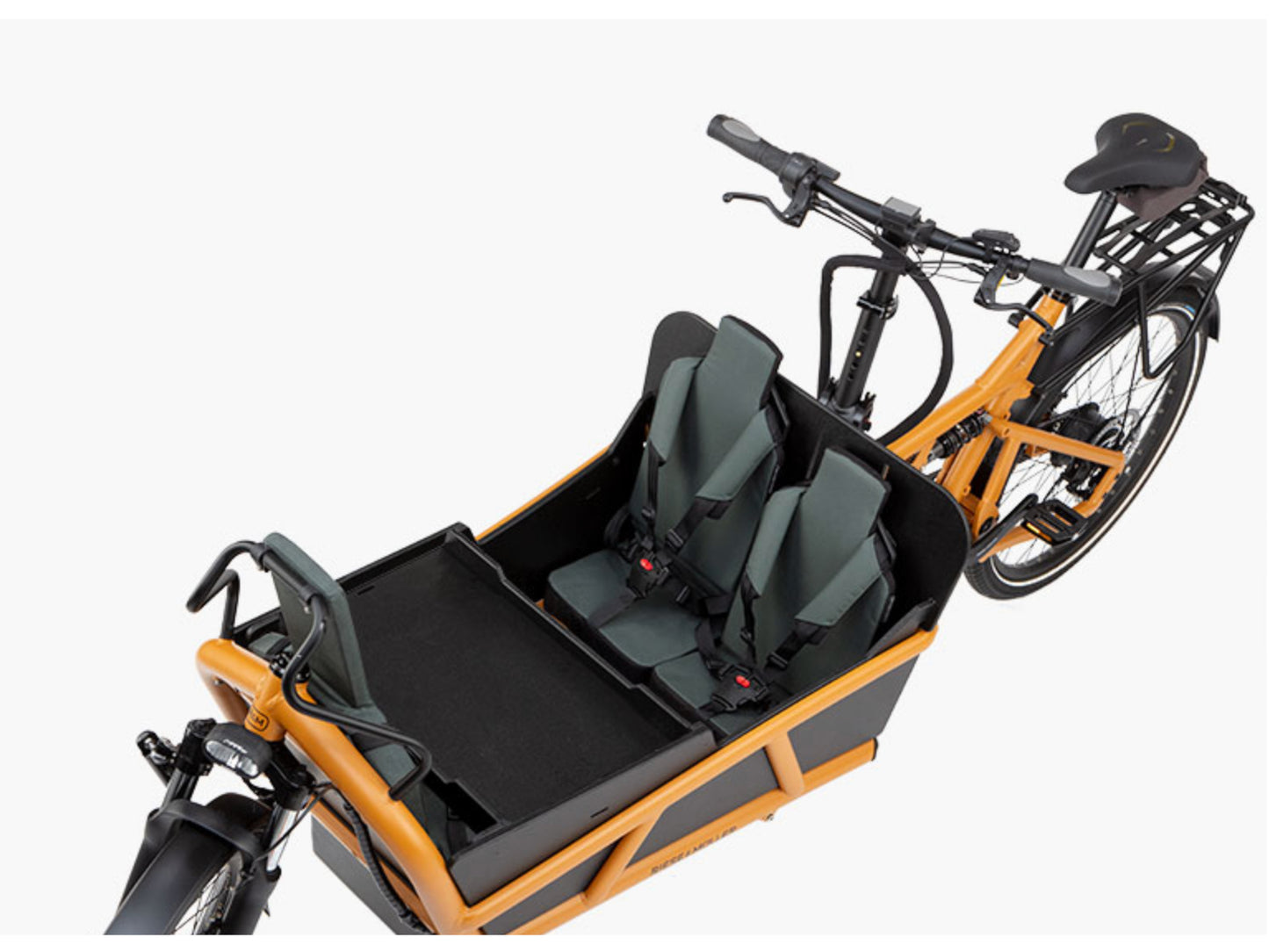

  Childseat compatibility	Yes
  Trailer compatibility: Single wheel/single attachment point	No
  Trailer compatibility: Two wheel/single attachment point	Yes
  Compatibility: Tagalong trailer bike	No
