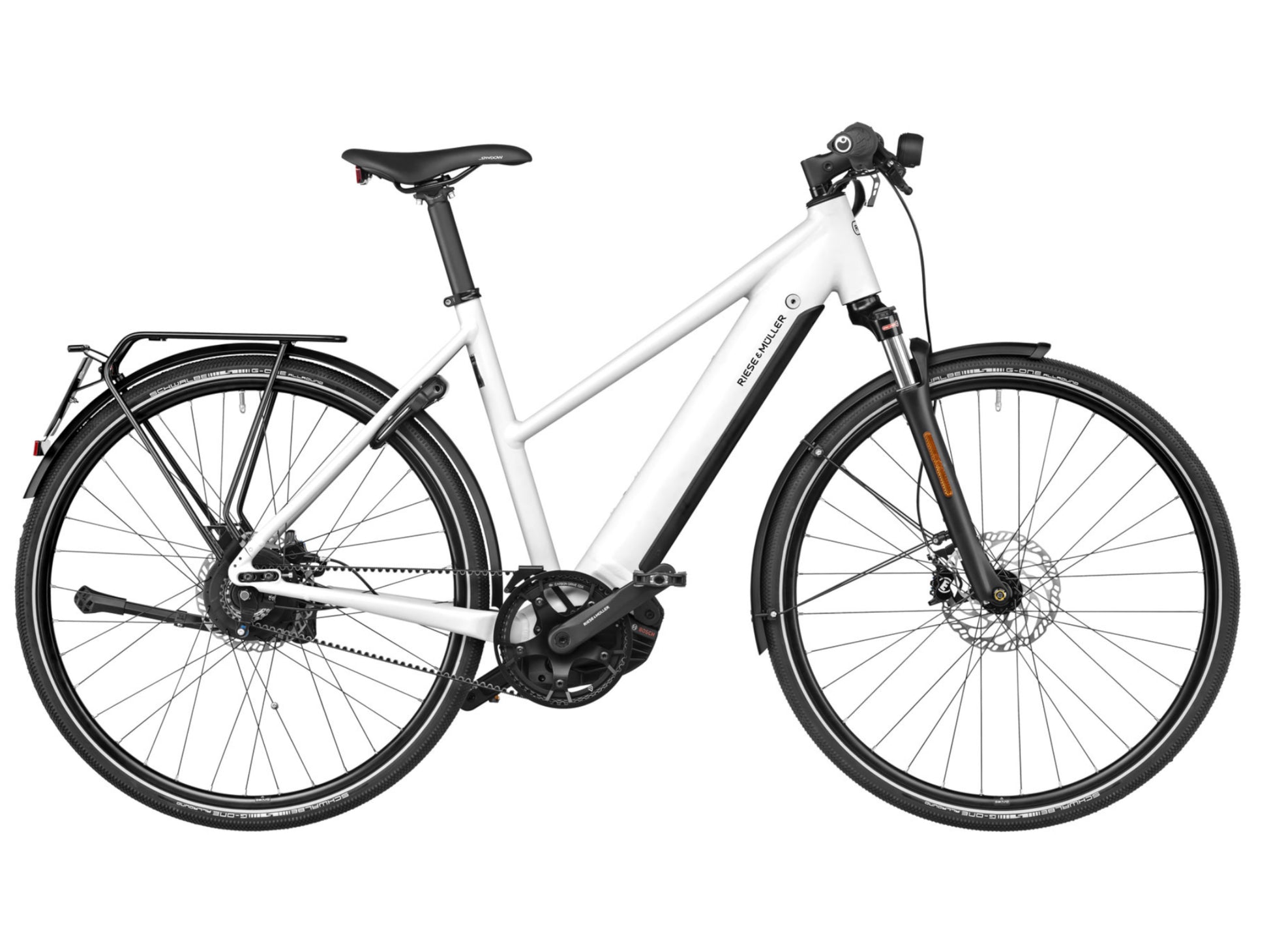

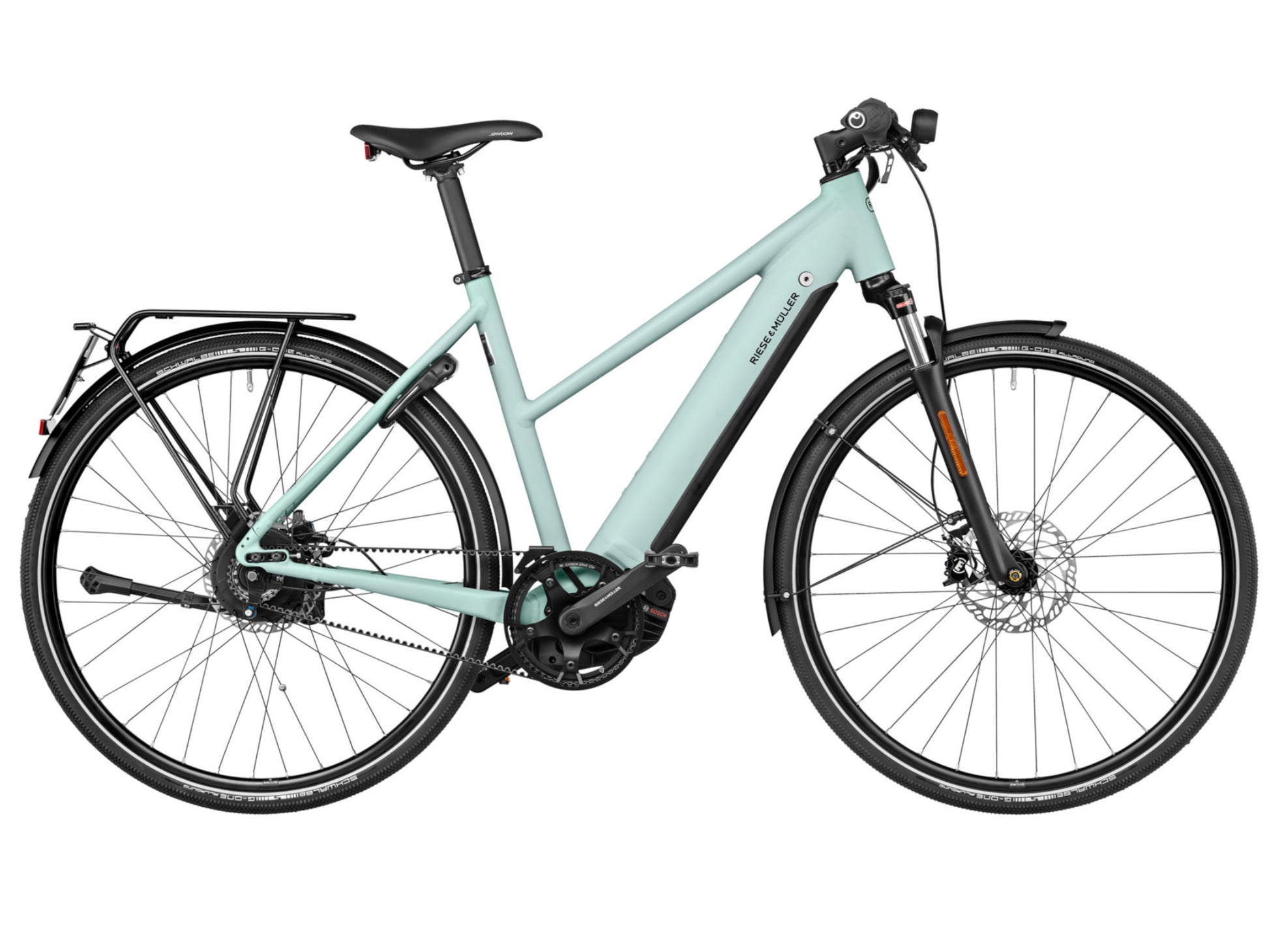

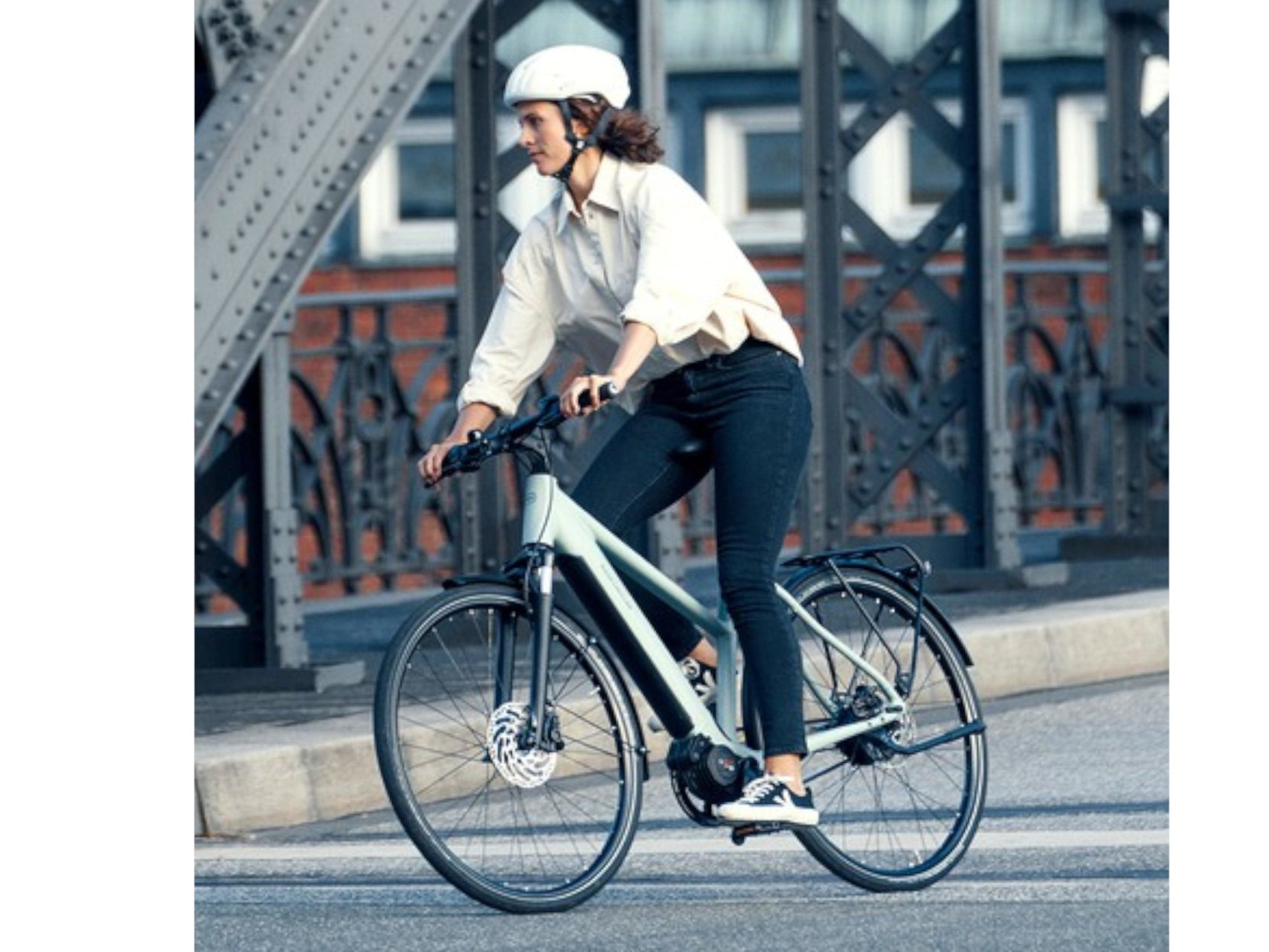

  The Riese and Muller Roadster Mixte Vario HS was made to tackle fast-paced city life. Thanks to the slightly lowered top tube, you can swing easily onto your eBike and ride past everyone effortlessly with a battery capacity of 625 Wh. Riese and Muller Roadster Mixte Vario HS's optimum weight distribution also makes it extremely agile and safe to handle. This sportiness, combined with comfortable features, makes the Riese and Muller Roadster Mixte Vario HS the ideal urban bike.

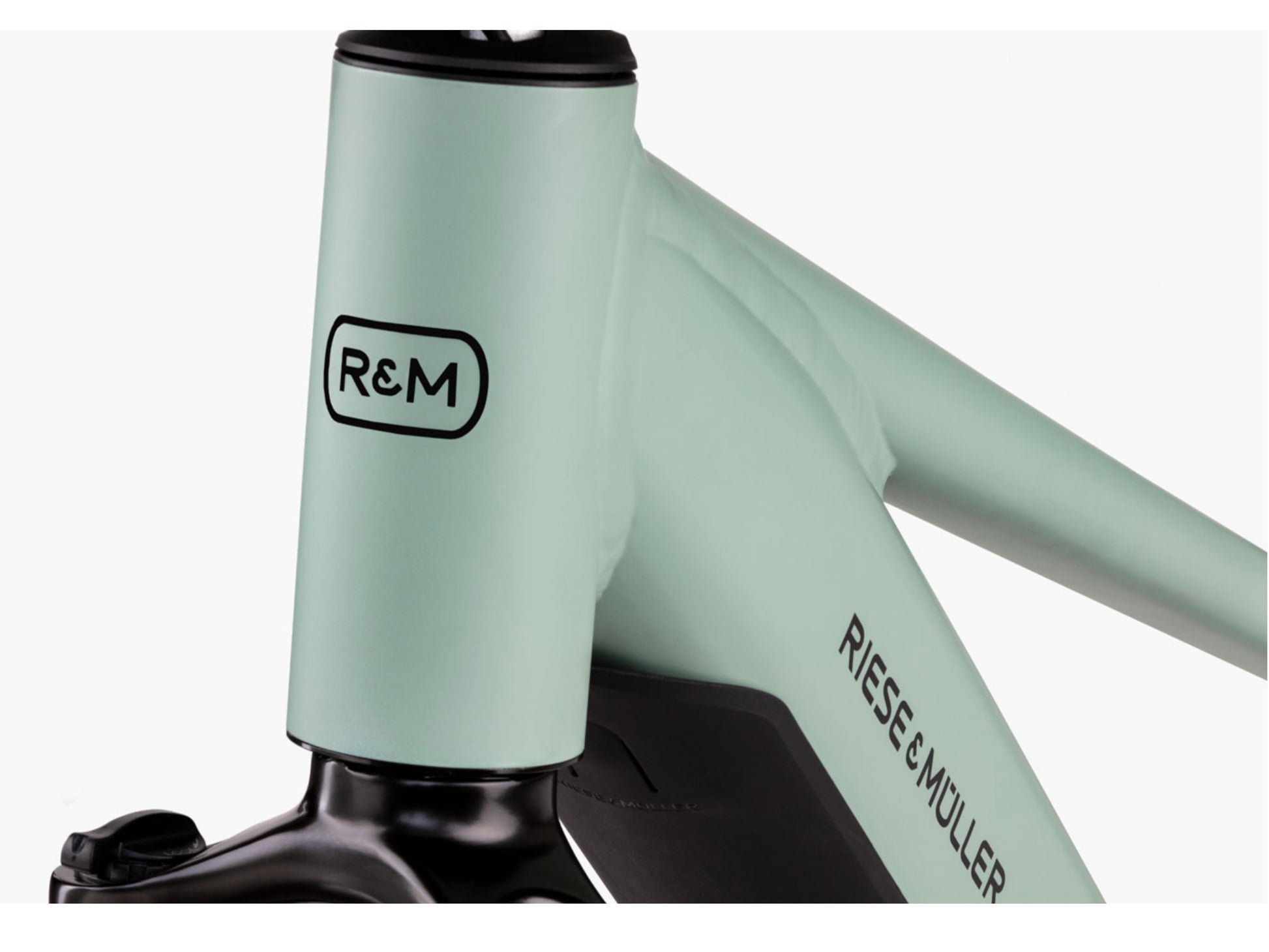

  Mixte Vario HS's slim frame design gives it a sporty character: the frame’s sleek design is reminiscent of conventional bikes, while it meets the highest standards of outstanding German engineering. The Riese and Muller Roadster Mixte Vario HS's Bosch Performance Line CX motor, boasting 85 Nm, and the integrated battery with 625 Wh are installed in a balanced position for top agility and riding enjoyment. The integrated cabling accentuates the linear appearance.

  Components subject to manufacturer changes..

  * May differ depending on the availability in your country, design or configuration of the model. The specification table indicates all available components for this model – not just the basic equipment. Some of the options listed are only available for a surcharge.

• Motor	Performance Line Speed (Gen4)
  Battery	Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh*

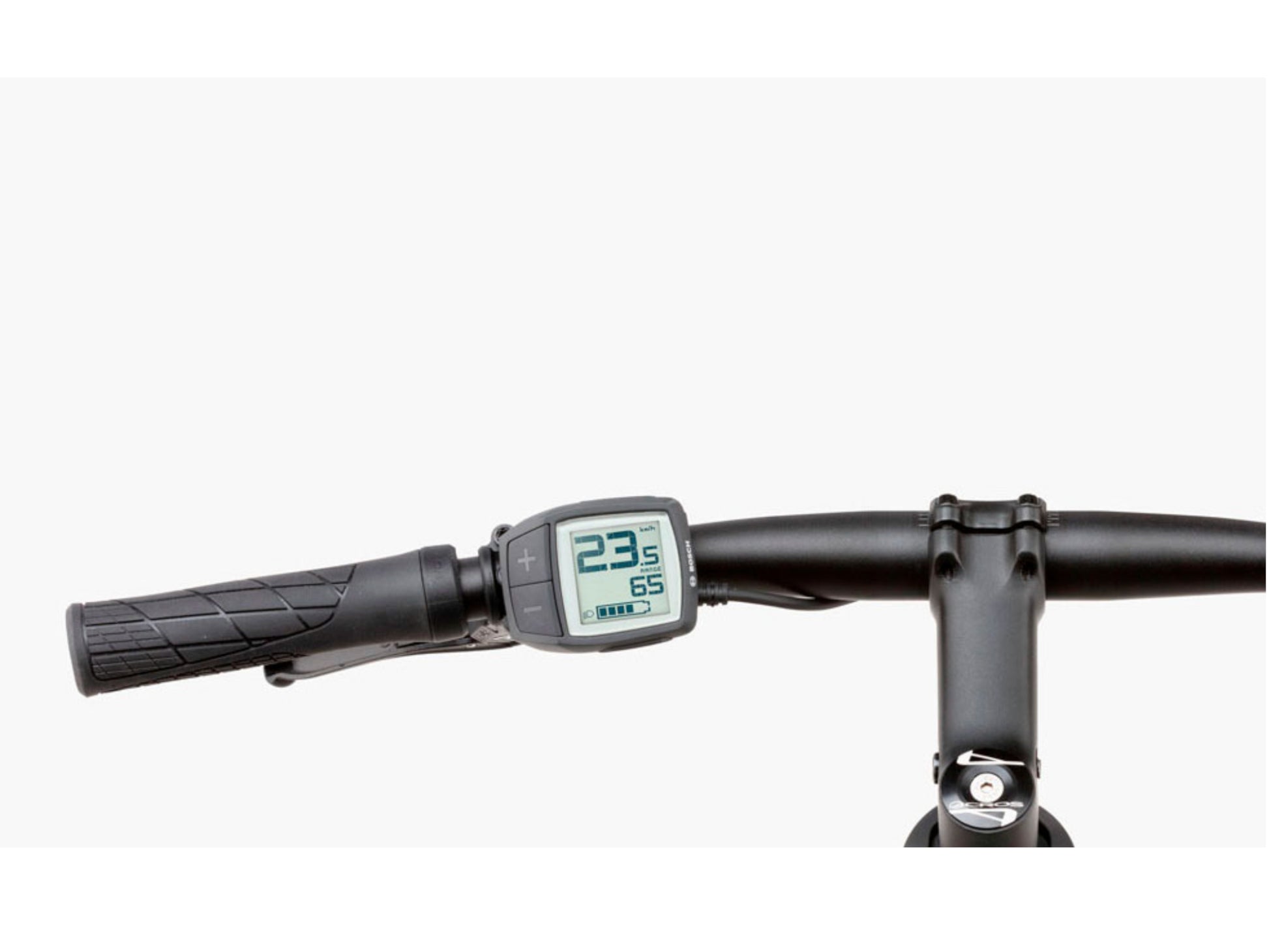

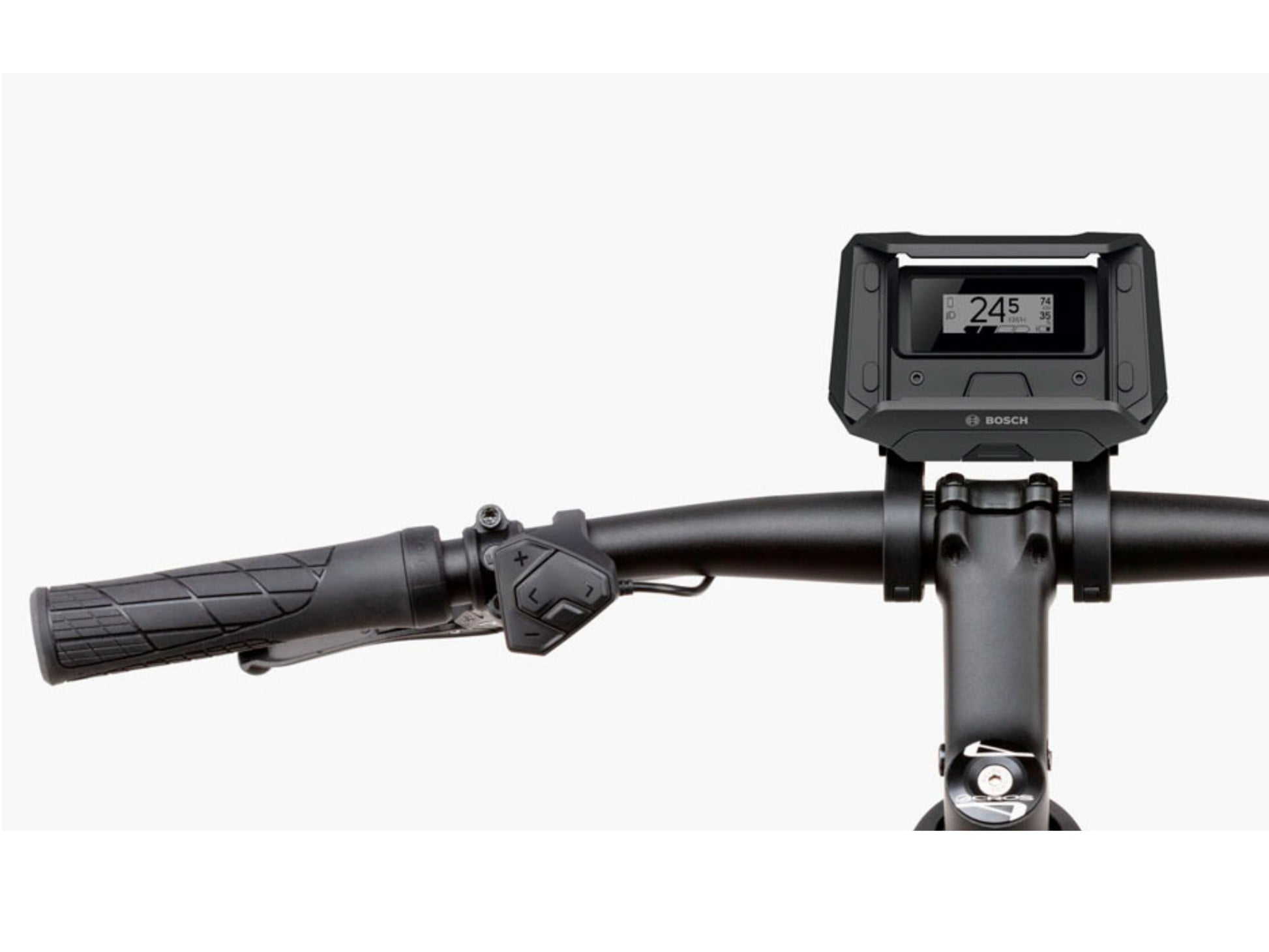

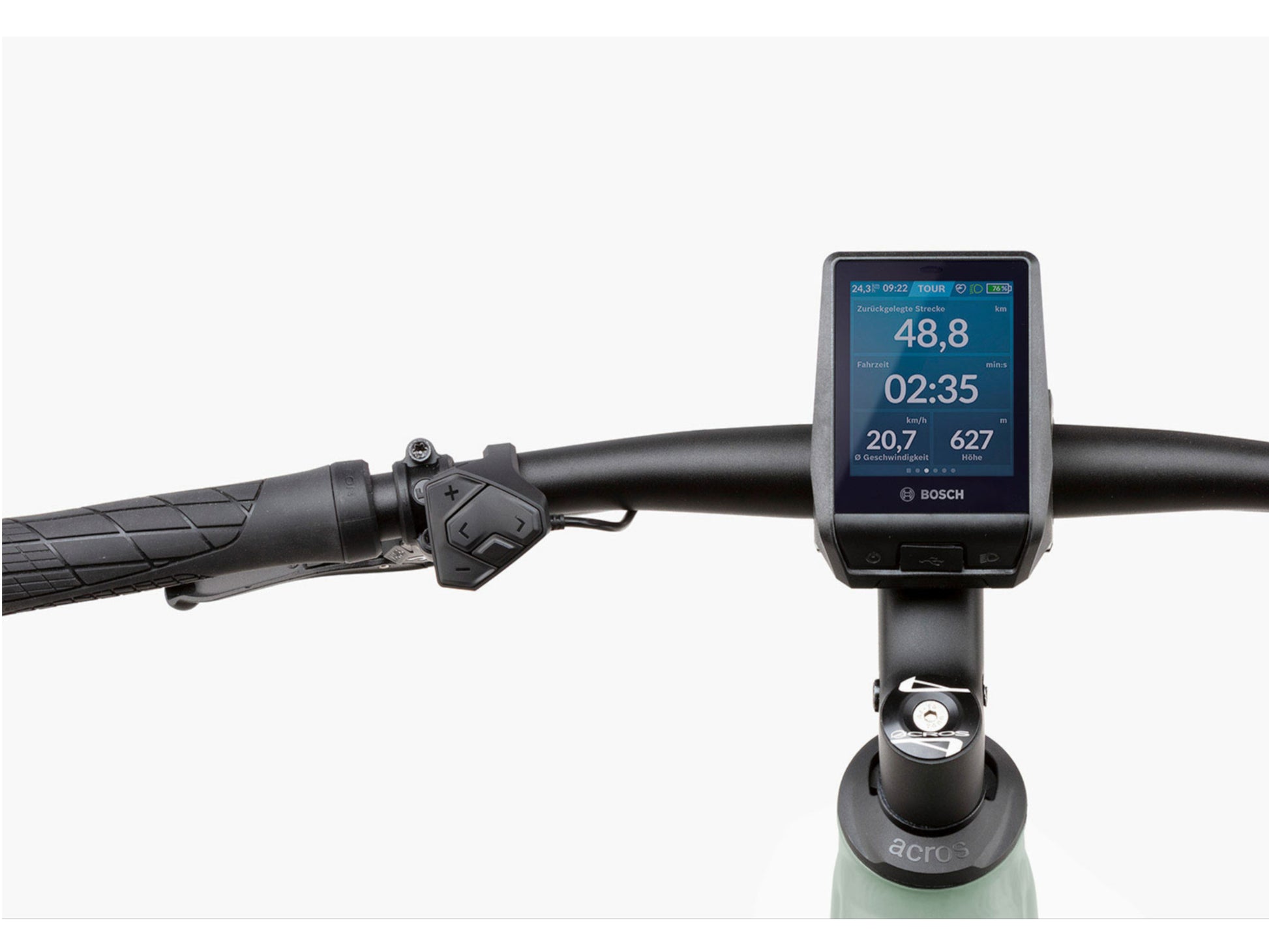

  Display	Bosch Purion; Bosch Nyon*; Bosch SmartphoneHub*
  Charger	Bosch 4a

• Frame	Spec not provided
  Fork	Suntour NCX 28", tapered
  Rear Shock	Not applicable
  Front Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Derailleur / Pinion	24T, Gates drive belt CDX
  Shift Levers	Enviolo grip shift Twist Display Pure, continuous
  Chain	Gates drive belt CDX
  Cassette	Spec not provided

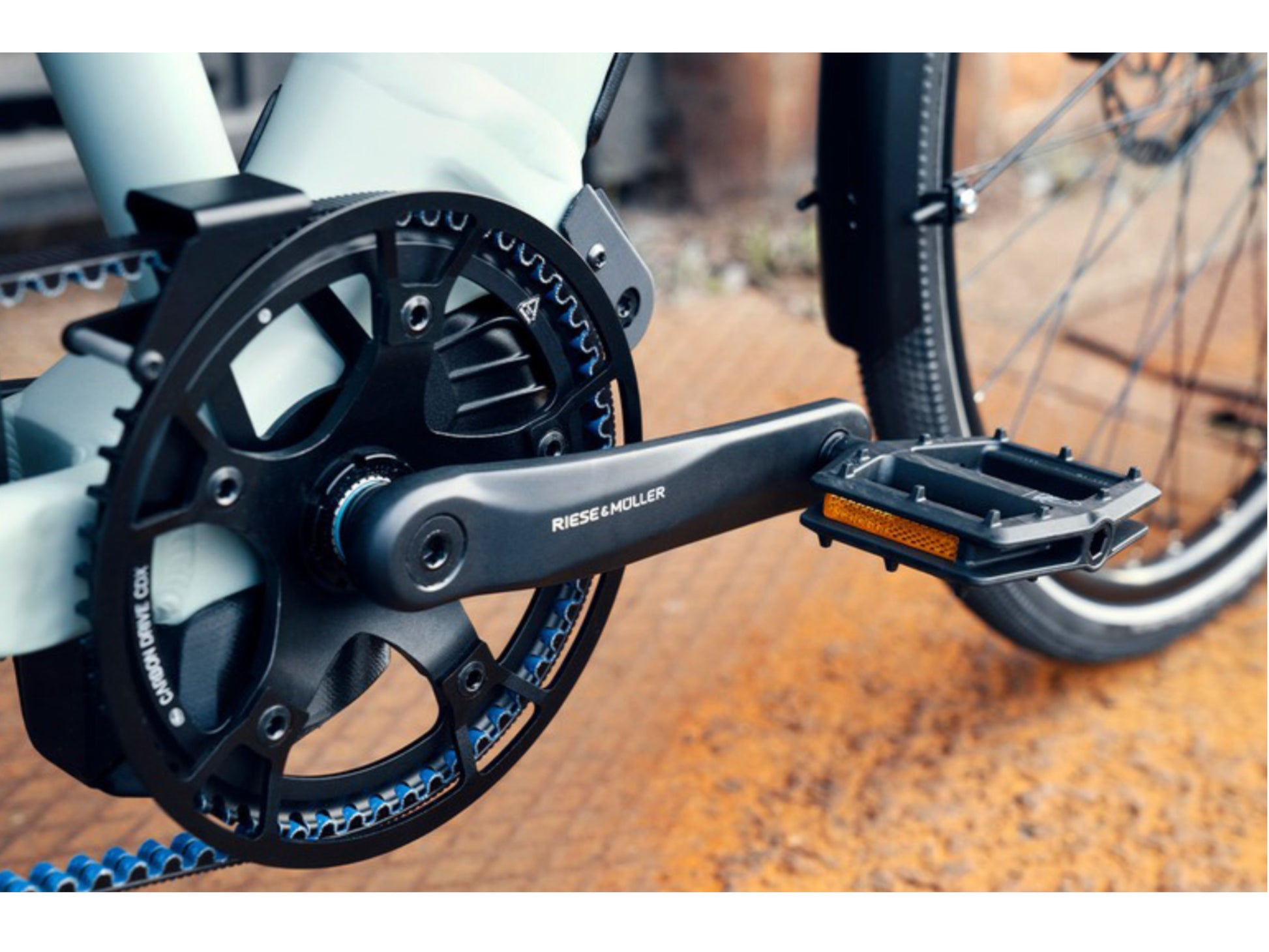

  Crankset	FSA/Riese & Müller, 170 mm
  Chain Ring	55T, for Gates drive belt CDX
  Chain Guard	Belt guard
  Rims	Mach1 650, 28"
  Front Hub	Novatec Disc 32H

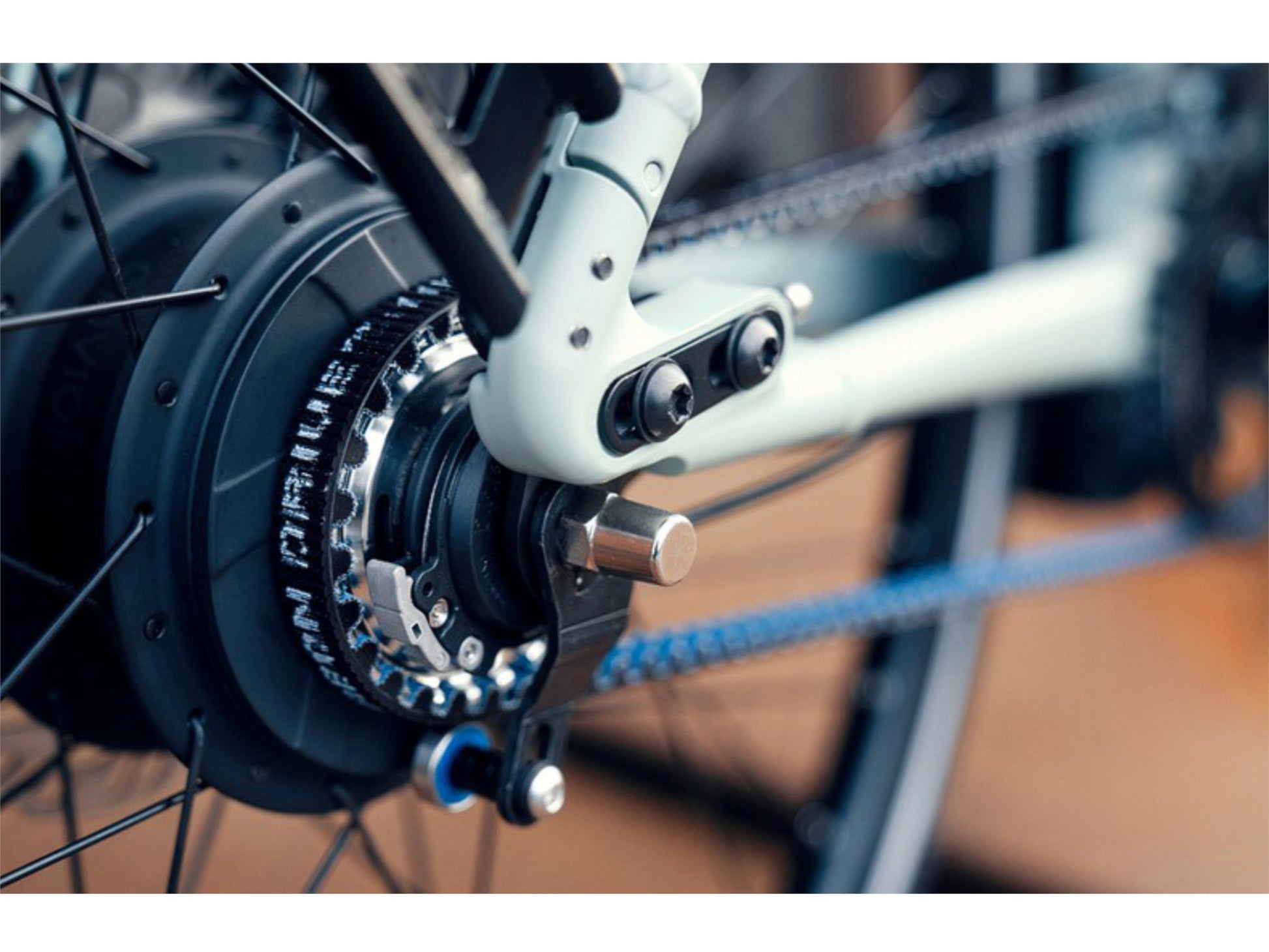

  Rear Hub	Enviolo 380, 36H
  Front Tire	Schwalbe G-One 40-622
  Rear Tire	Schwalbe G-One 40-622

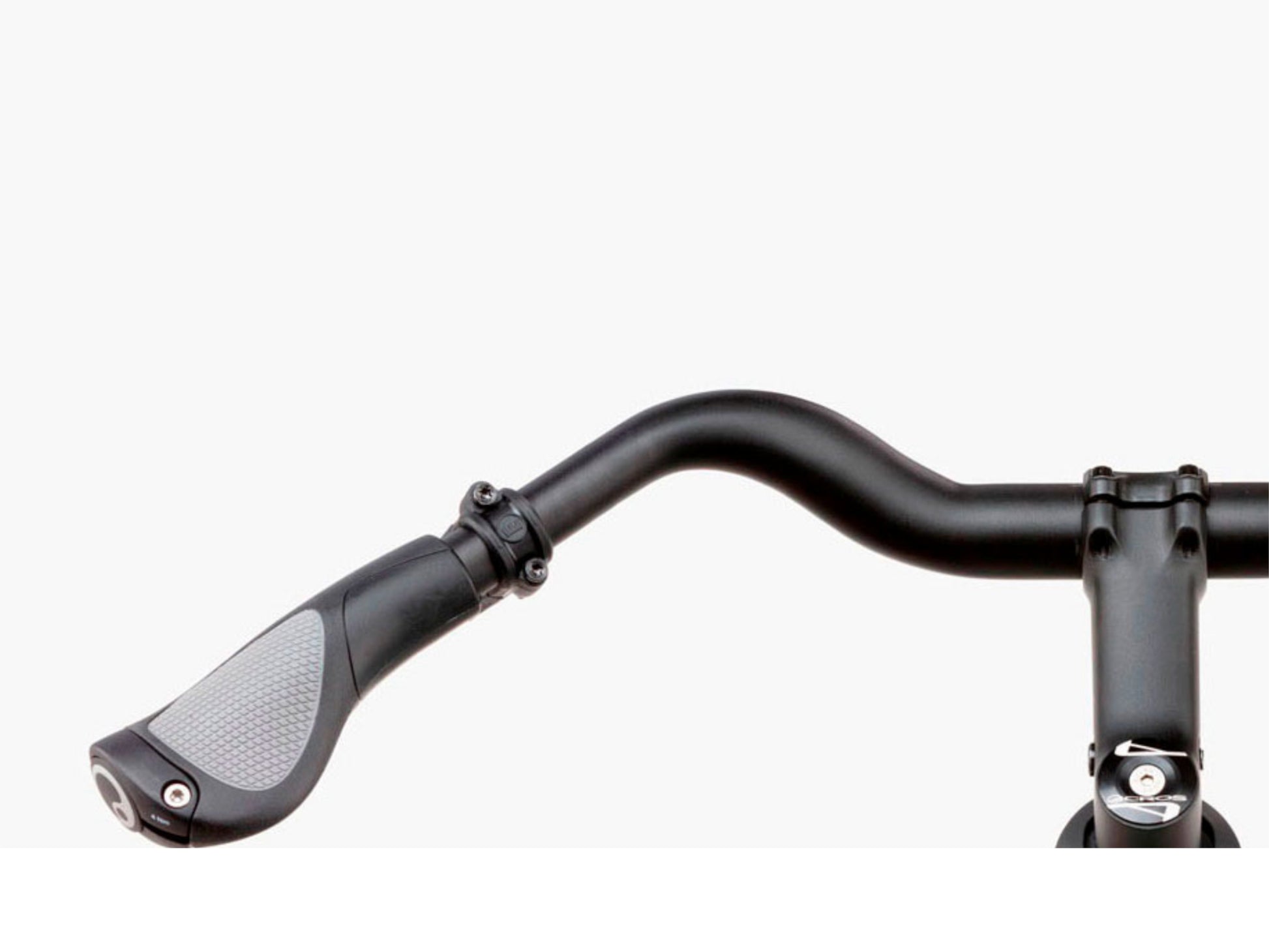

  Handlebar	Satori Horizon, 31,8 mm, 9°, B=620 mm; Satori Noirette Plus, 31,8 mm, Alu*
  Stem	Satori Stealth 6, 90 mm, +/-7°
  Headset	Acros IntegrationX, block lock
  Grips	Ergon ergonomic
  Saddle	Selle Royal Shadow
  Seatpost	Satori Trident; Satori Elegance-LT OV 34,9 x 405mm*

• Pedals	VP R&M Custom

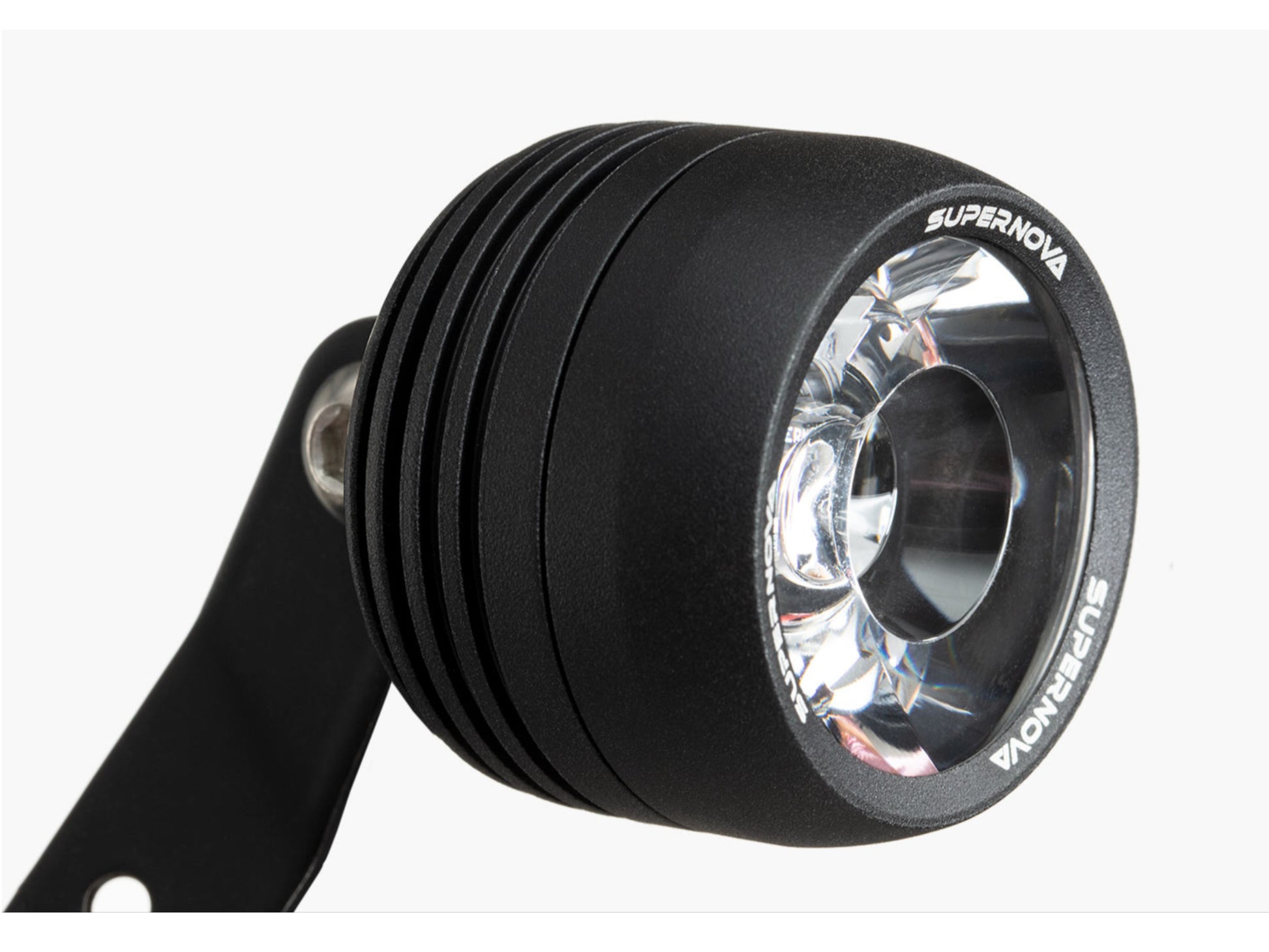

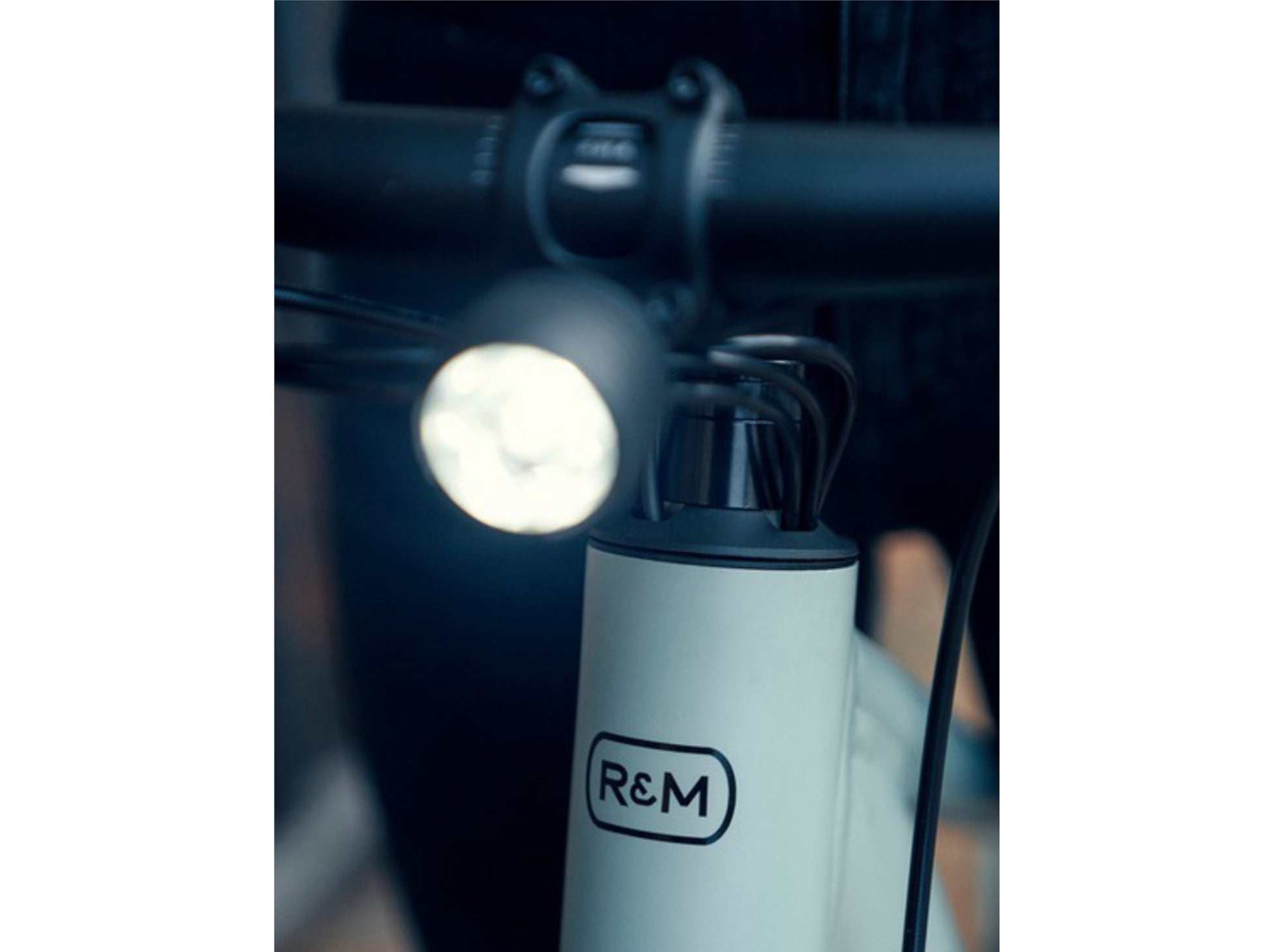

  Front Light	Supernova M99
  Rear Light	Supernova M99, integrated plate illumination and brake light; Supernova M99, integrated brake light*
  Kickstand	Ursus R78 King 2 Kickstand

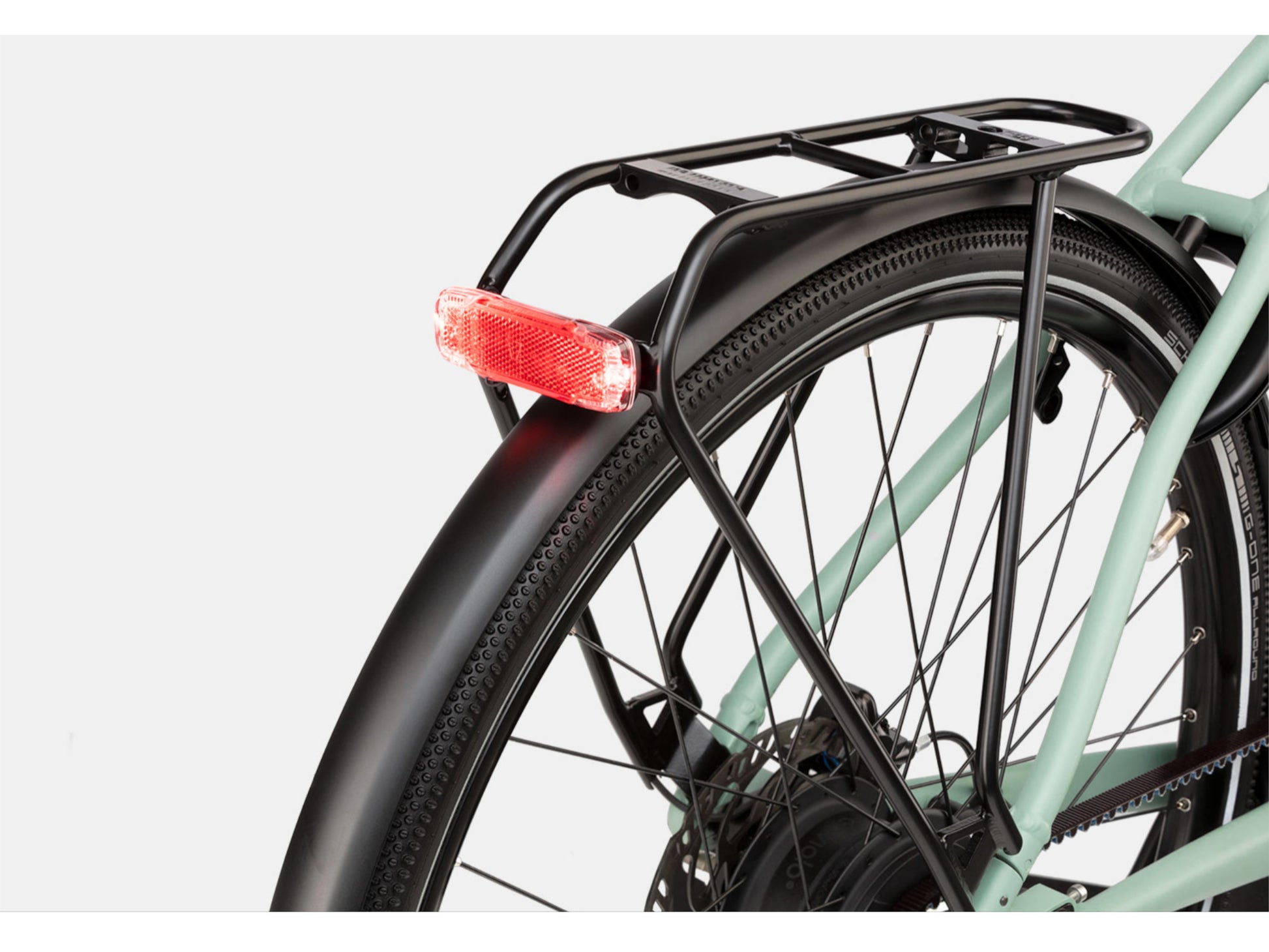

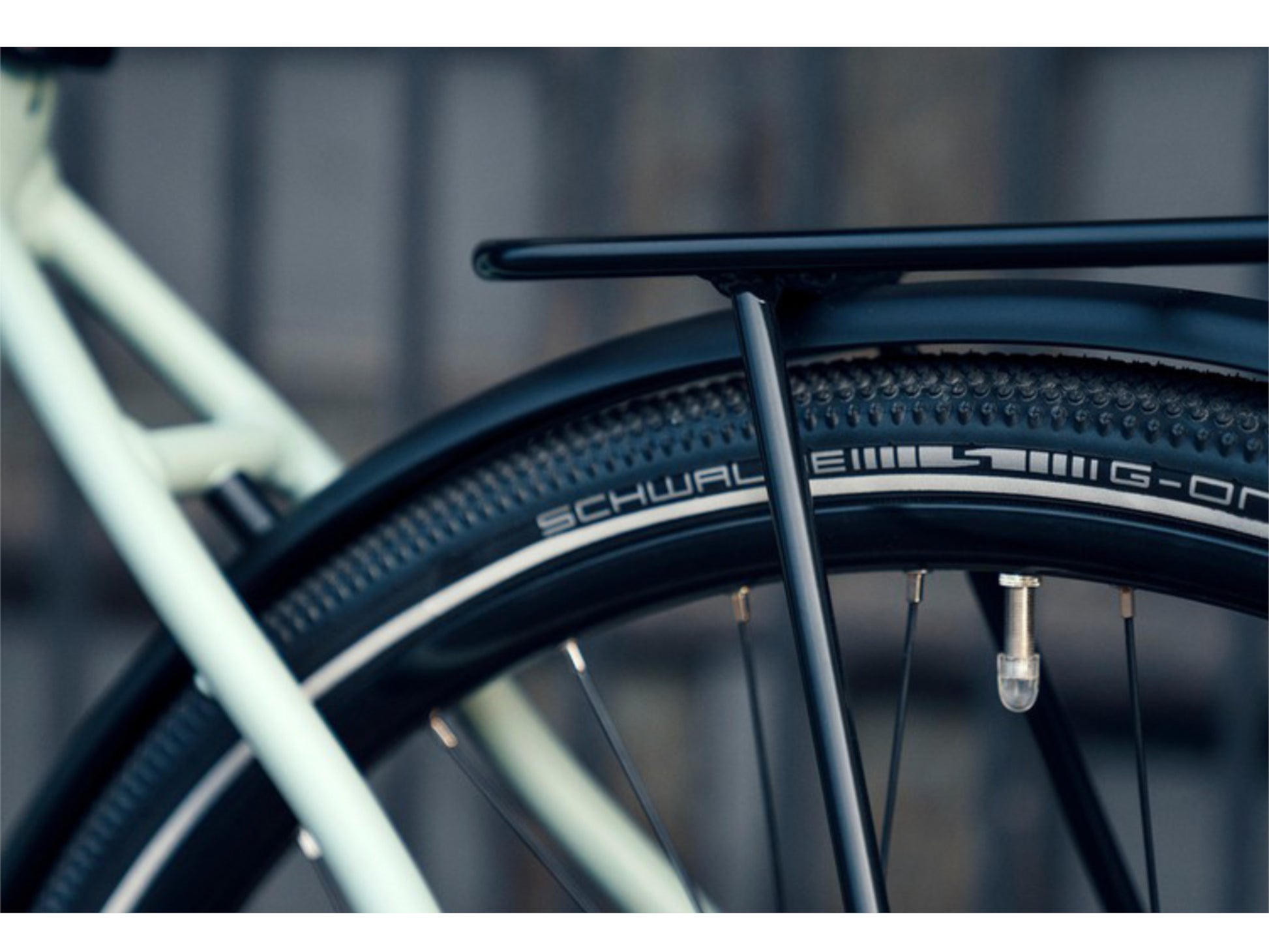

  Rear Carrier	Riese & Müller, Racktime
  Fenders	SKS A45
  Bell	Supernova horn

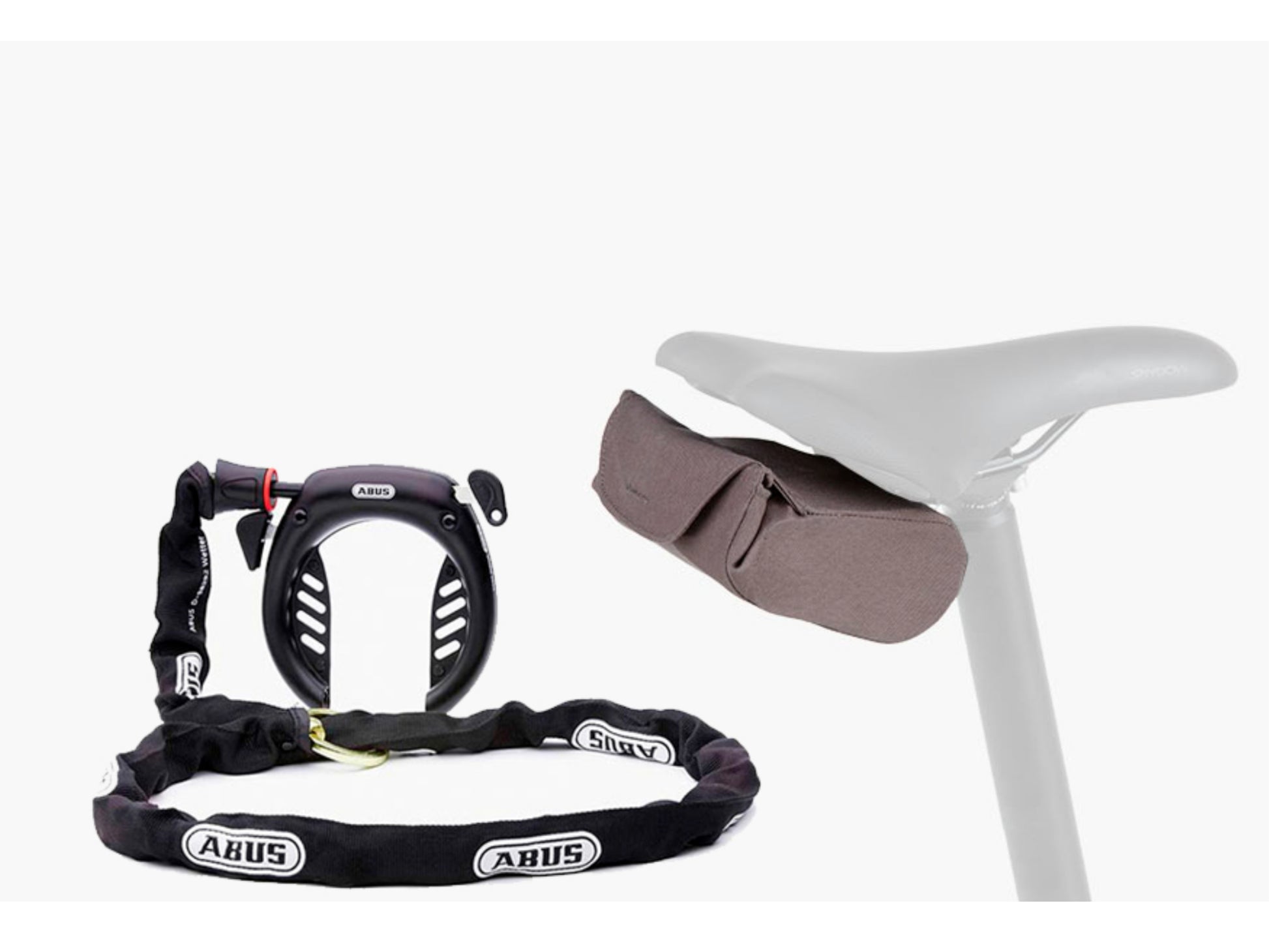

  Lock	ABUS Shield*; ABUS Shield X+*
  Mirror	Busch & Müller Cycle Star; Humpert ergotec M-99 E4, CNC*

•


  	45	53
  Height	5'3" - 5'9"	5'7" - 6'1"
  Top tube length [cm]	54	57
  Reach [cm]	36	38,5
  Stack [cm]	62,5	64
  Head tube angle [°]	69	70
  Seat tube angle [°]	74	74
  Trail [mm]	88	82
  Wheelbase [cm]	108,5	110,5
  Bottom bracket height [cm]	27,5	27,5
  Stand-over height [cm]	74,5	76
  Chainstay length [cm]	47	47
  Overall length [cm]	178	179,5
  Wheel size ['']	28	28
  Head tube length [mm]	140	150
  Front suspension travel [mm]	63	63
  Rear dropout width [mm]	135	135
  Gear ratio [m]	2,53-9,60	2,53-9,60
  Weight [kg]	24,5	24,8
  Weight [lbs]	54	54.68
  Gross vehicle weight rating [kg]	140	140
  Weight rating: Rear Luggage rack [kg]	20	20
  Weight rating: Handlebar bag/basket [kg]	5	5
  Childseat compatibility	Yes	Yes
  Trailer compatibility: Single wheel/single attachment point	Yes	Yes
  Trailer compatibility: Two wheel/single attachment point	Yes	Yes
  Compatibility: Tagalong trailer bike	Yes	Yes
