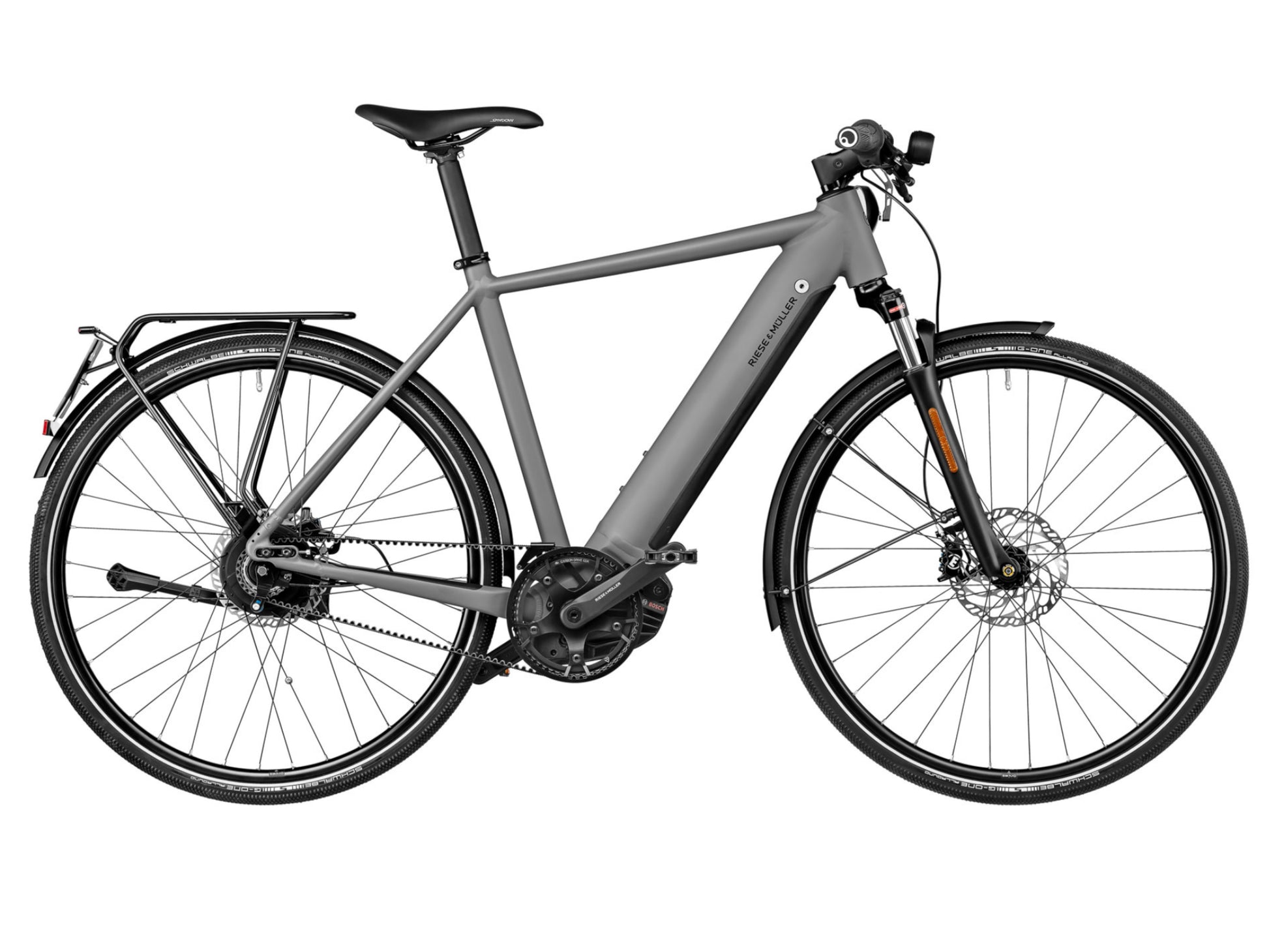

Riese and Muller Roadster Vario HS

The Full Scoop on the Riese and Muller Roadster Vario HS

• Description
• Motor System
• Components
• Extras
• Geometry

•

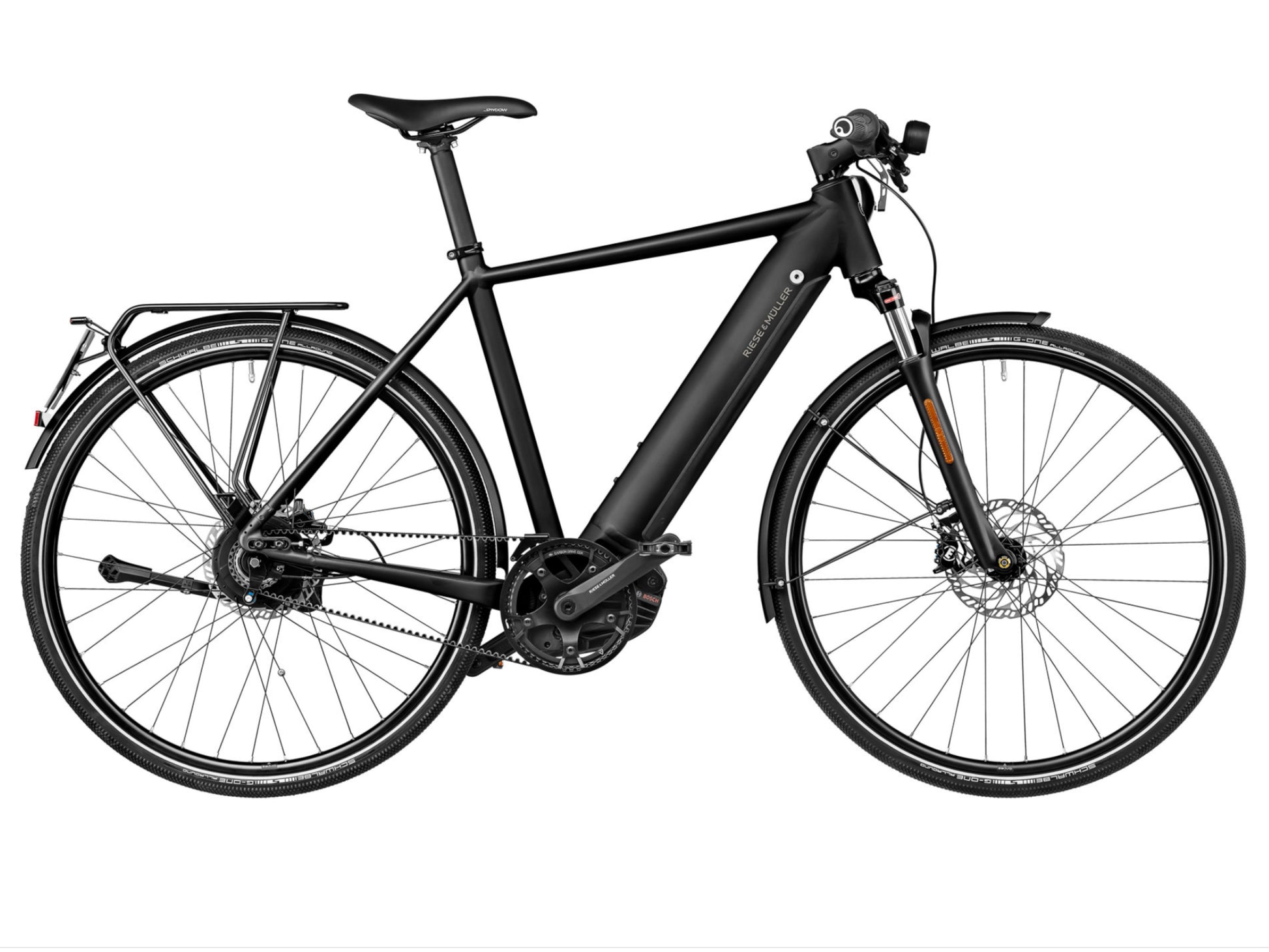

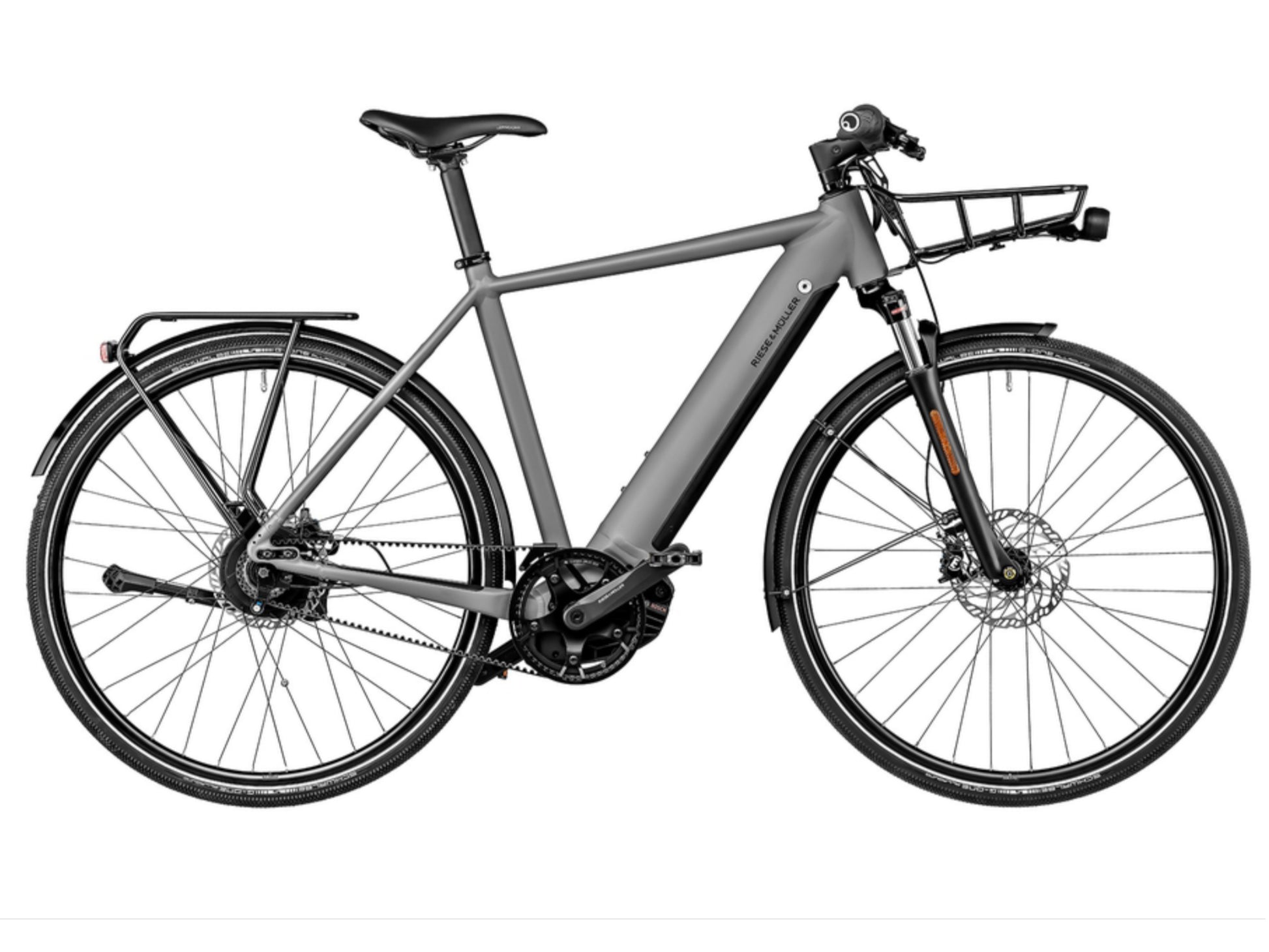

  Sporty lightness paired with a linear design: the Roadster takes you to your destination fast and rewards you for every detour with even more riding enjoyment with its up to 625 Wh of battery capacity. Its optimum weight distribution also makes it extremely agile and safe to handle. The smooth-running Schwalbe G-One tires let you fully enjoy the speed. This sportiness, combined with comfortable features, makes the Roadster the ideal urban bike.

• Components subject to manufacturer changes

• Motor	Bosch Performance Line Speed (Gen4)
  Battery	Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh*

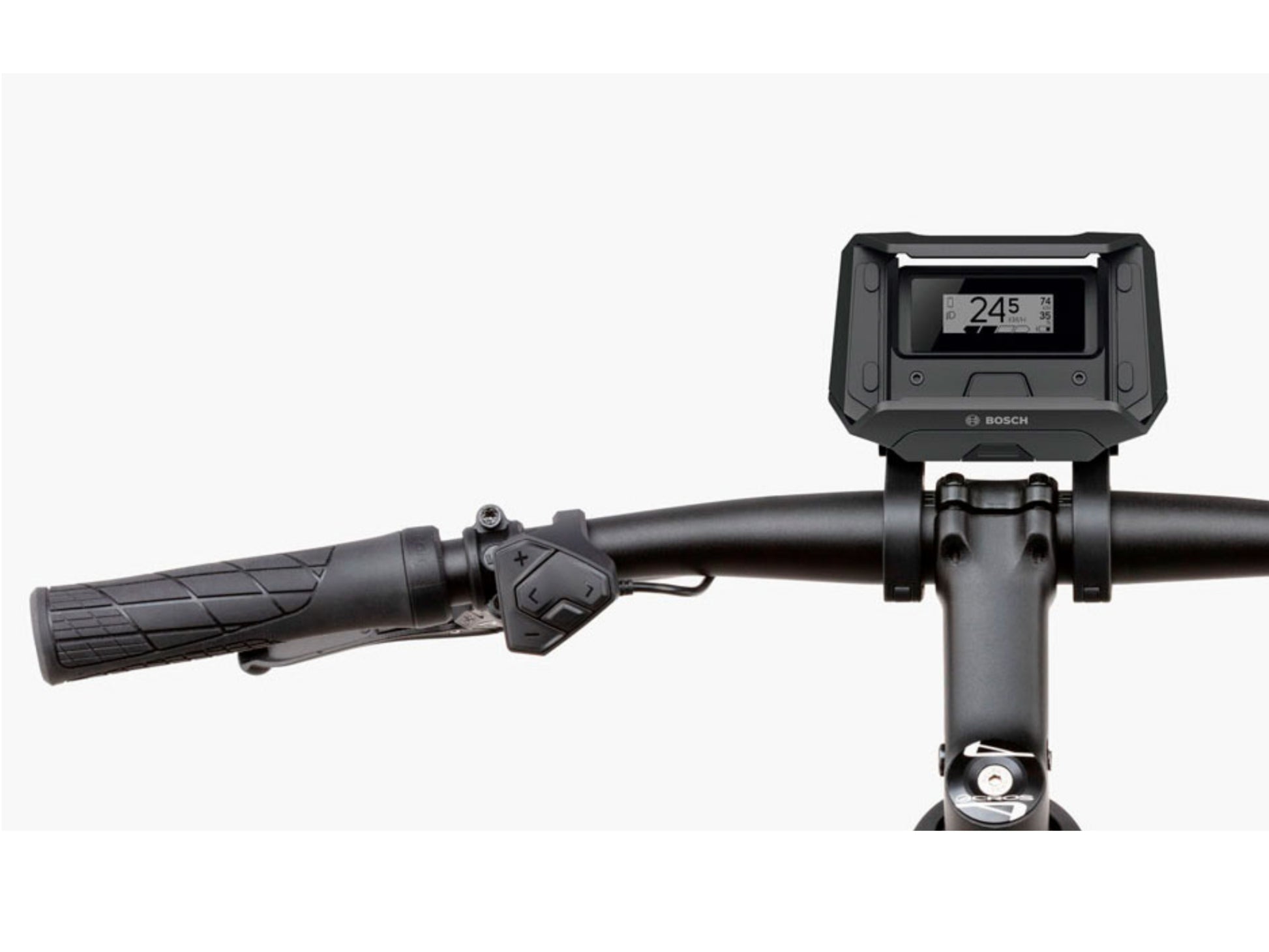

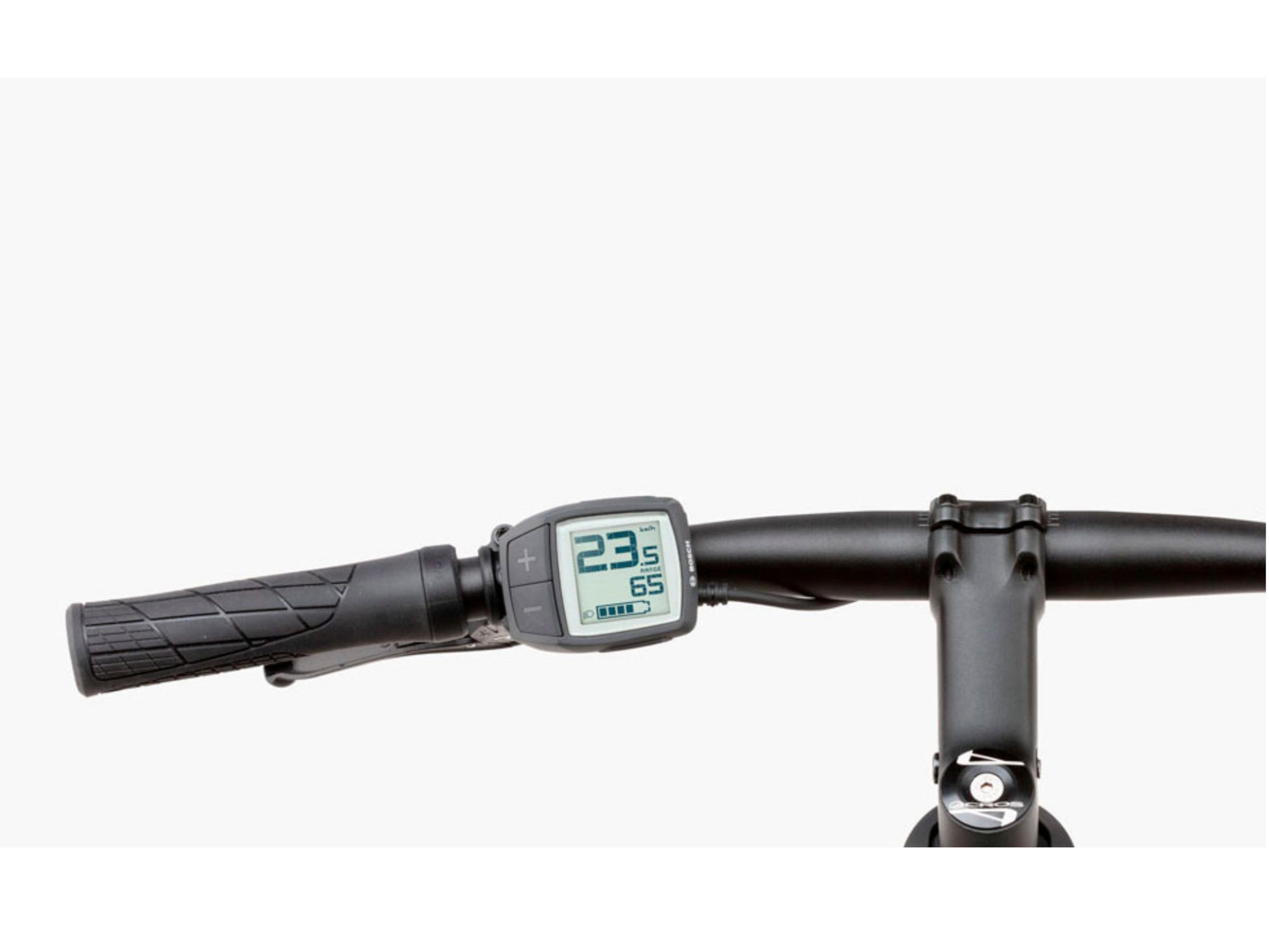

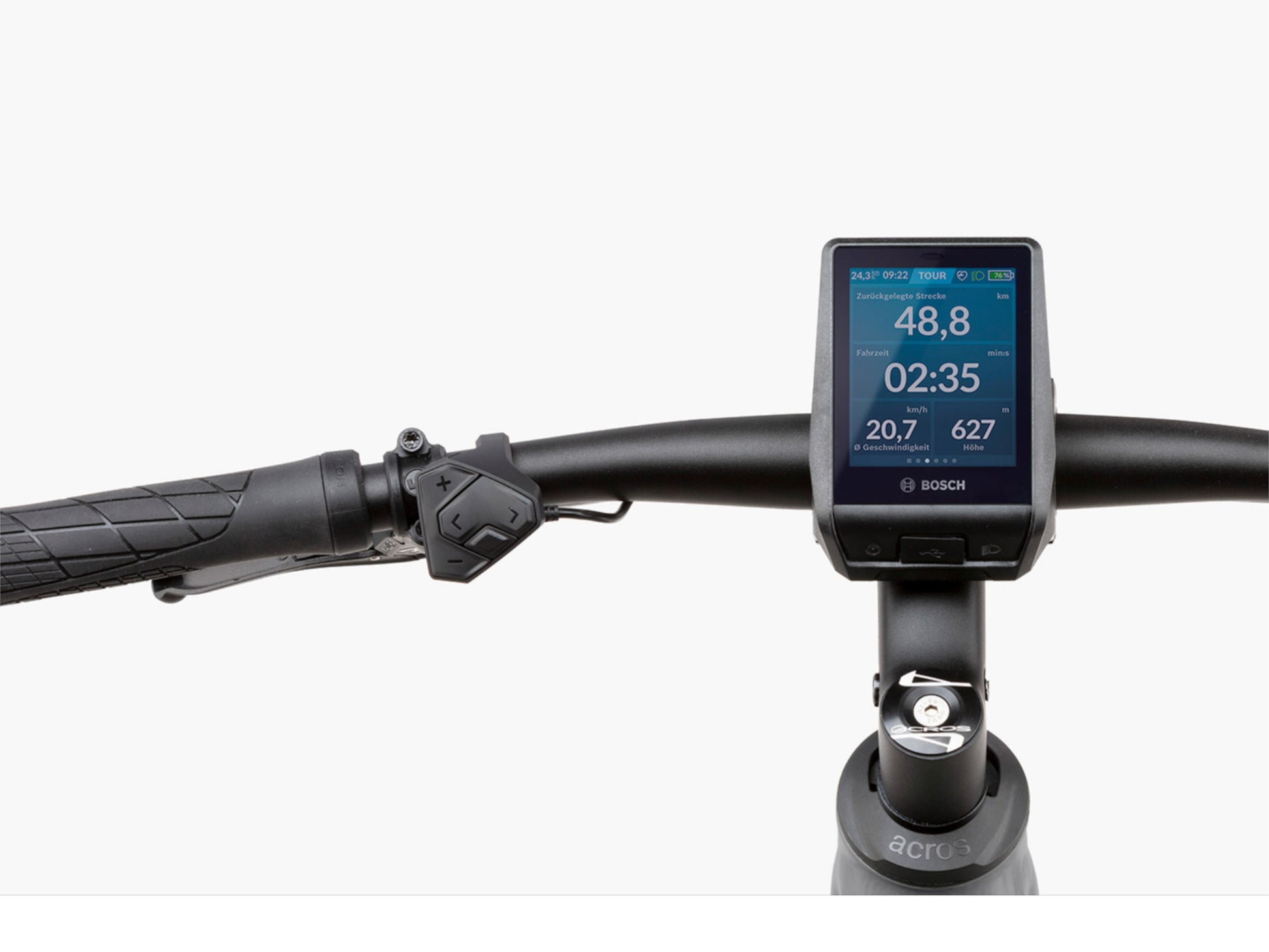

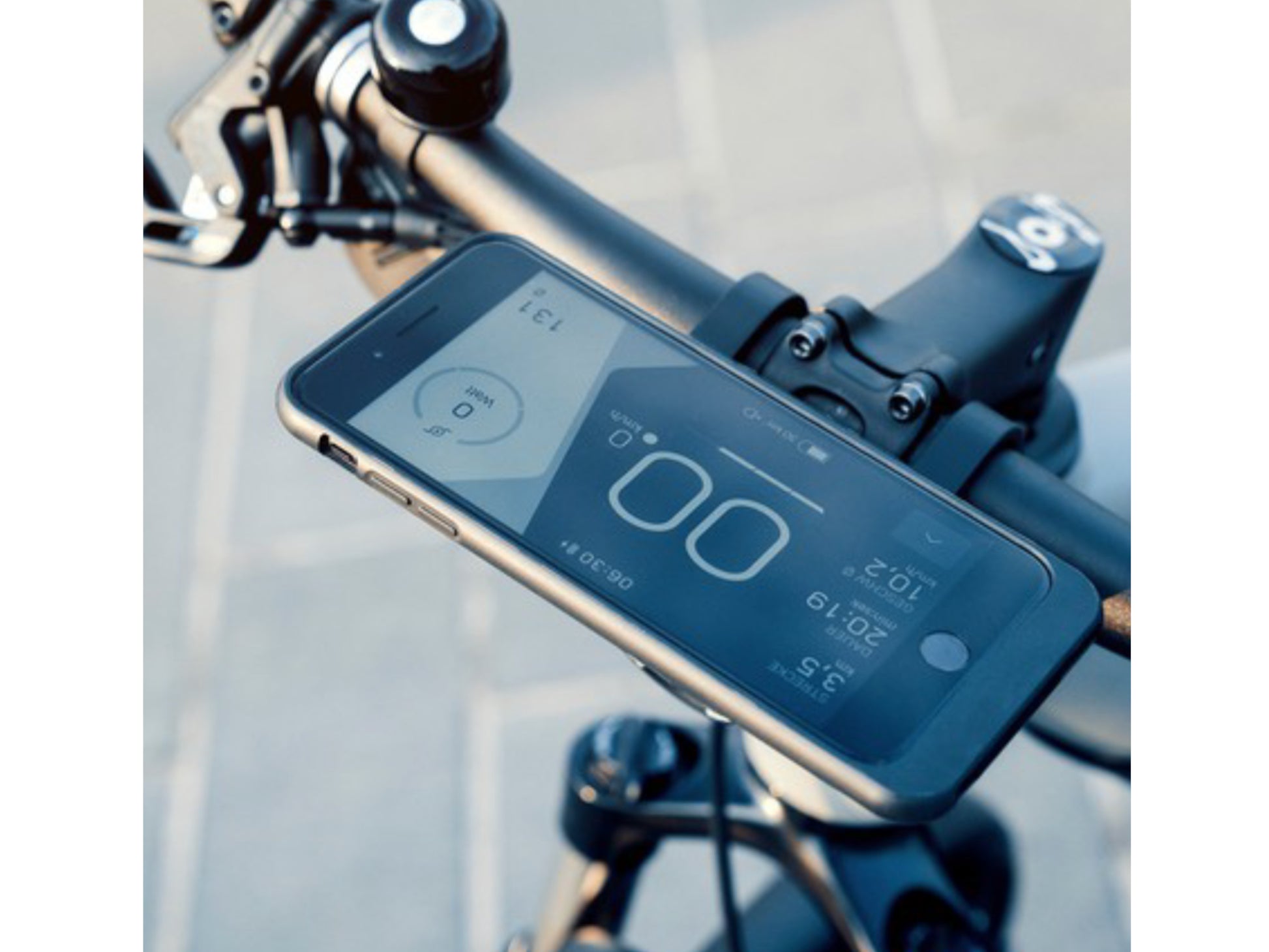

  Display	Bosch Nyon, Purion, Smartphone hub
  Charger	Bosch 4a

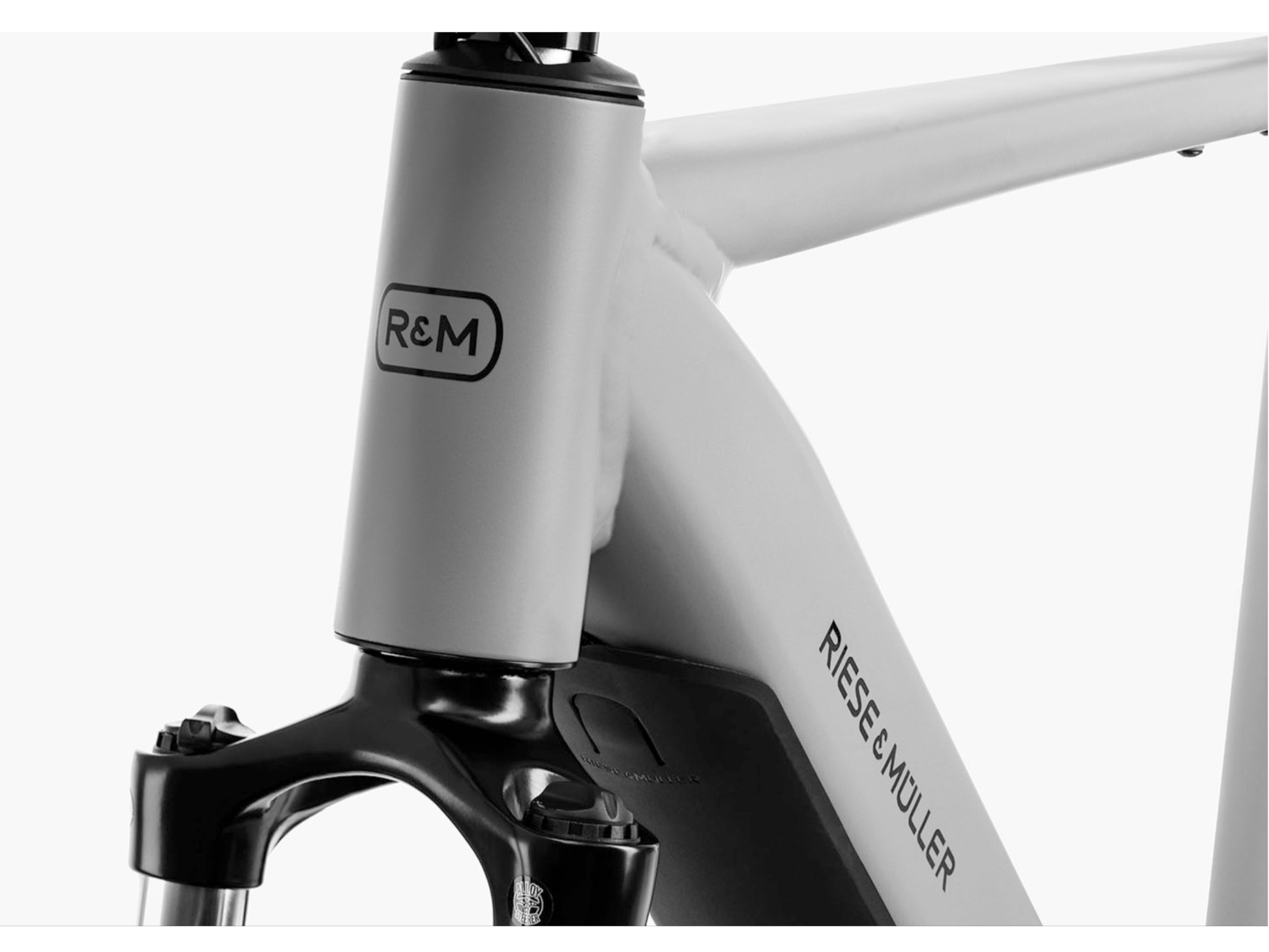

• Frame	black matt*; grey matt*
  Fork	Suntour NCX 28", Tapered
  Rear Shock	Not applicable
  Front Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Derailleur/ Pinion	24T, for Gates drive belt
  Shift Levers	Enviolo grip shift, continuous
  Chain	Gates drive belt CDX
  Cassette	Spec not provided
  Crankset	FSA/Riese & Müller, 170 mm
  Chain Ring	55T, for Gates drive belt CDX
  Chain Guard	Belt guard
  Rims	Mach 1 650, 28"
  Front Hub	Novatec Disc 32H
  Rear Hub	Enviolo 380, 36H
  Front Tire	Schwalbe G-One 40-622 Reflex
  Rear Tire	Schwalbe G-One 40-622 Reflex

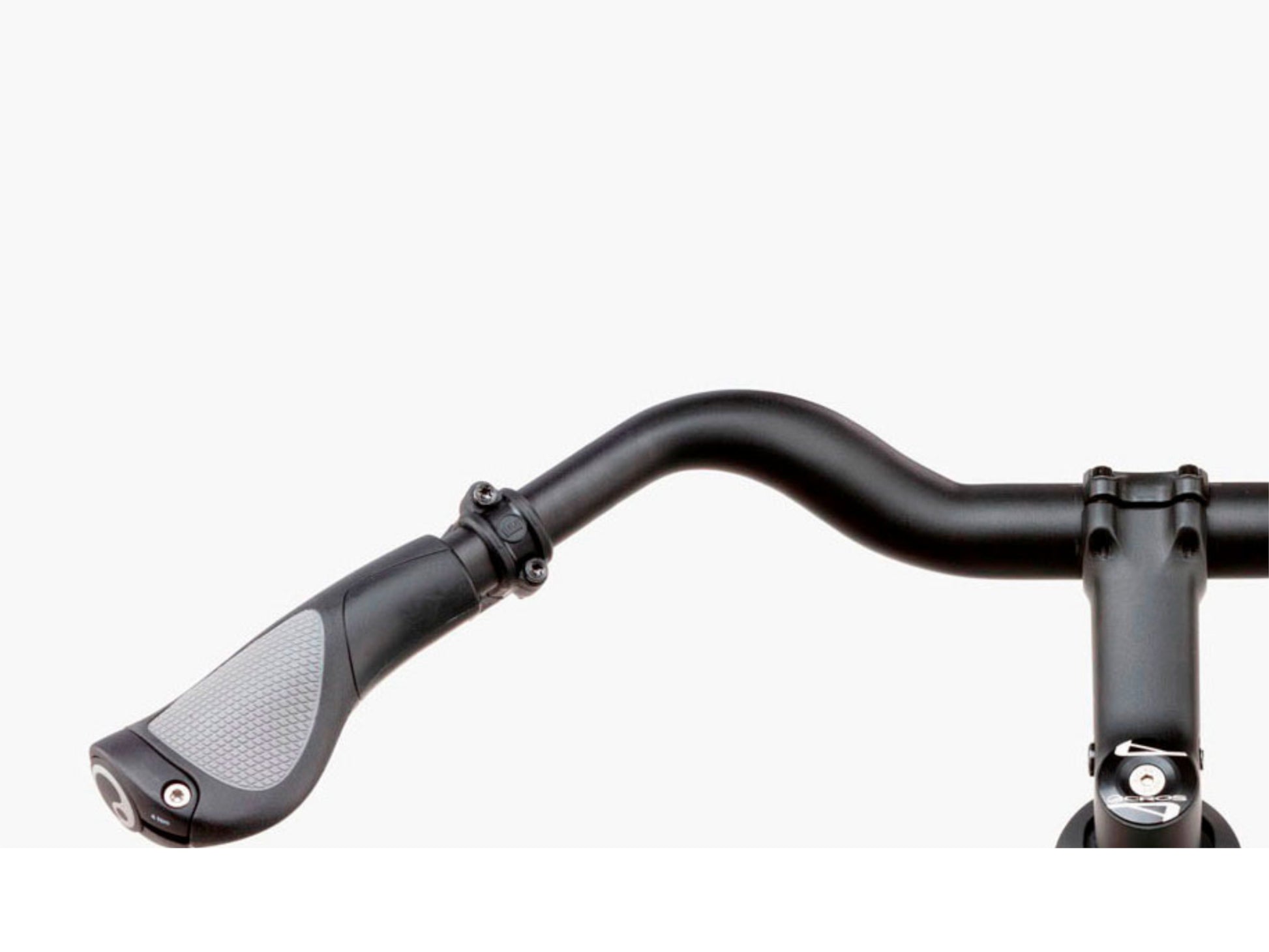

  Handlebar	Satori Noirette Plus 25,4mm, Alu*
  Stem	Humpert ergotec Barracuda Evo, 90 mm, 20°; Satori R&M Custom, cable integration, adjustable angle, Alu*
  Headset	Acros AZX-221, block lock; Acros IntegrationX AZX-221, block lock
  Grips	Ergon economic
  Saddle	Selle Royal Shadow
  Seatpost	Satori Trident: Satori Elegance- LT OV

• Pedals	VP R&M Custom

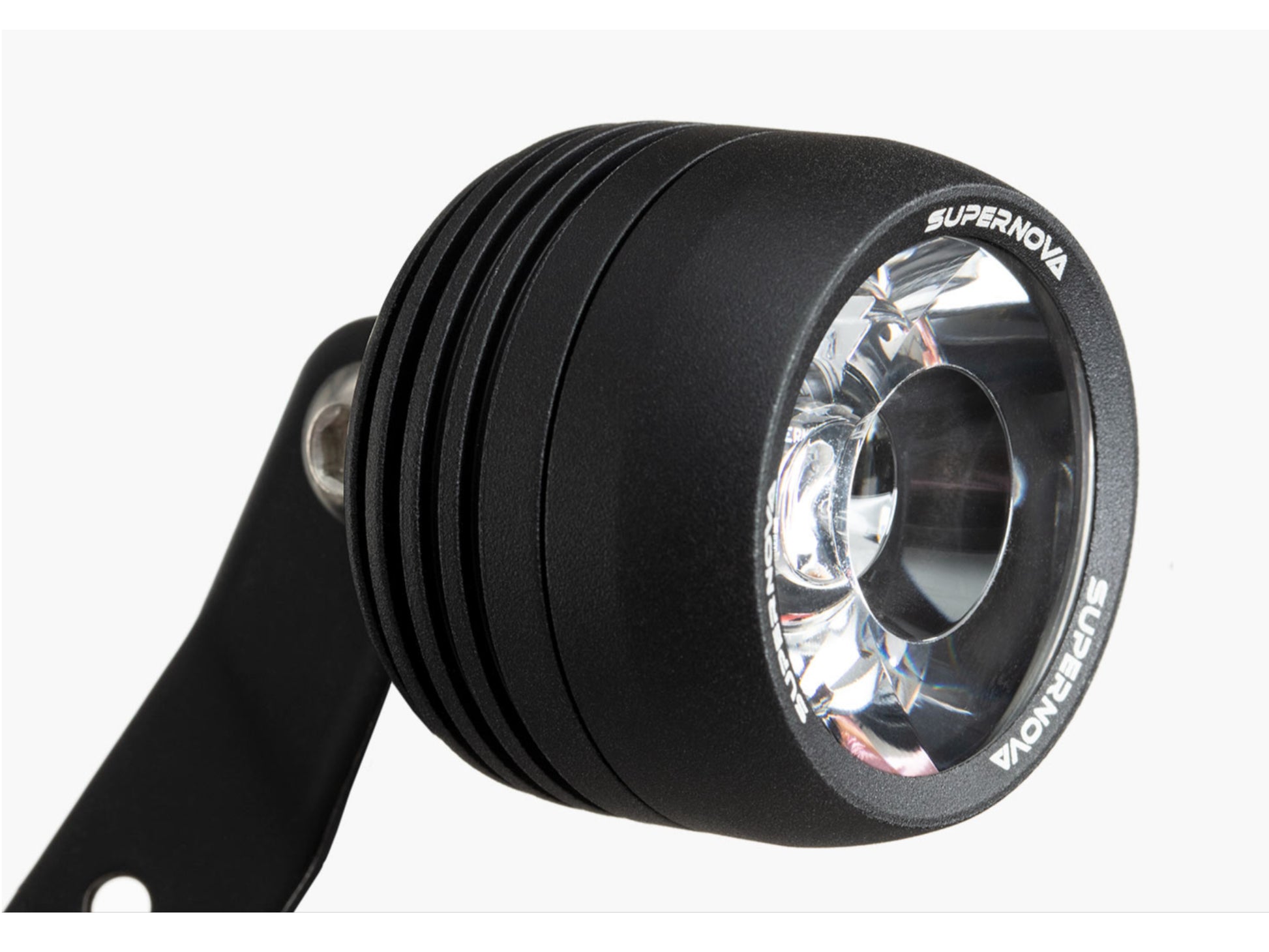

  Front Light	Supernova M99 Mini Pro-25
  Rear Light	Supernova M99, integrated plate illumination and brake light; Supernova M99, integrated brake light*
  Kickstand	Ursus R78 King 2 Kickstand

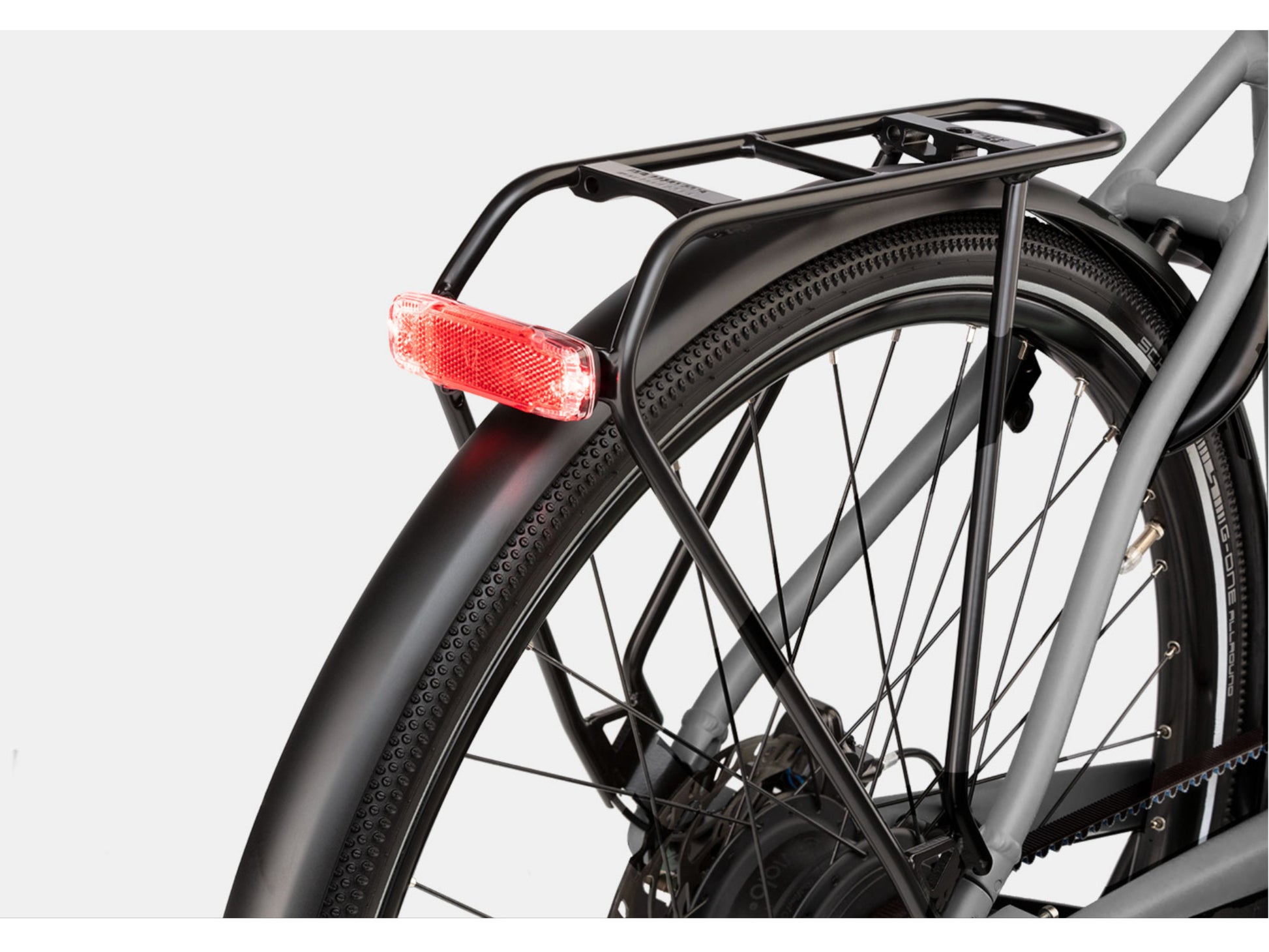

  Rear Carrier	Riese & Müller; Racktime
  Fenders	SKS A45
  Bell	Supernova Horn

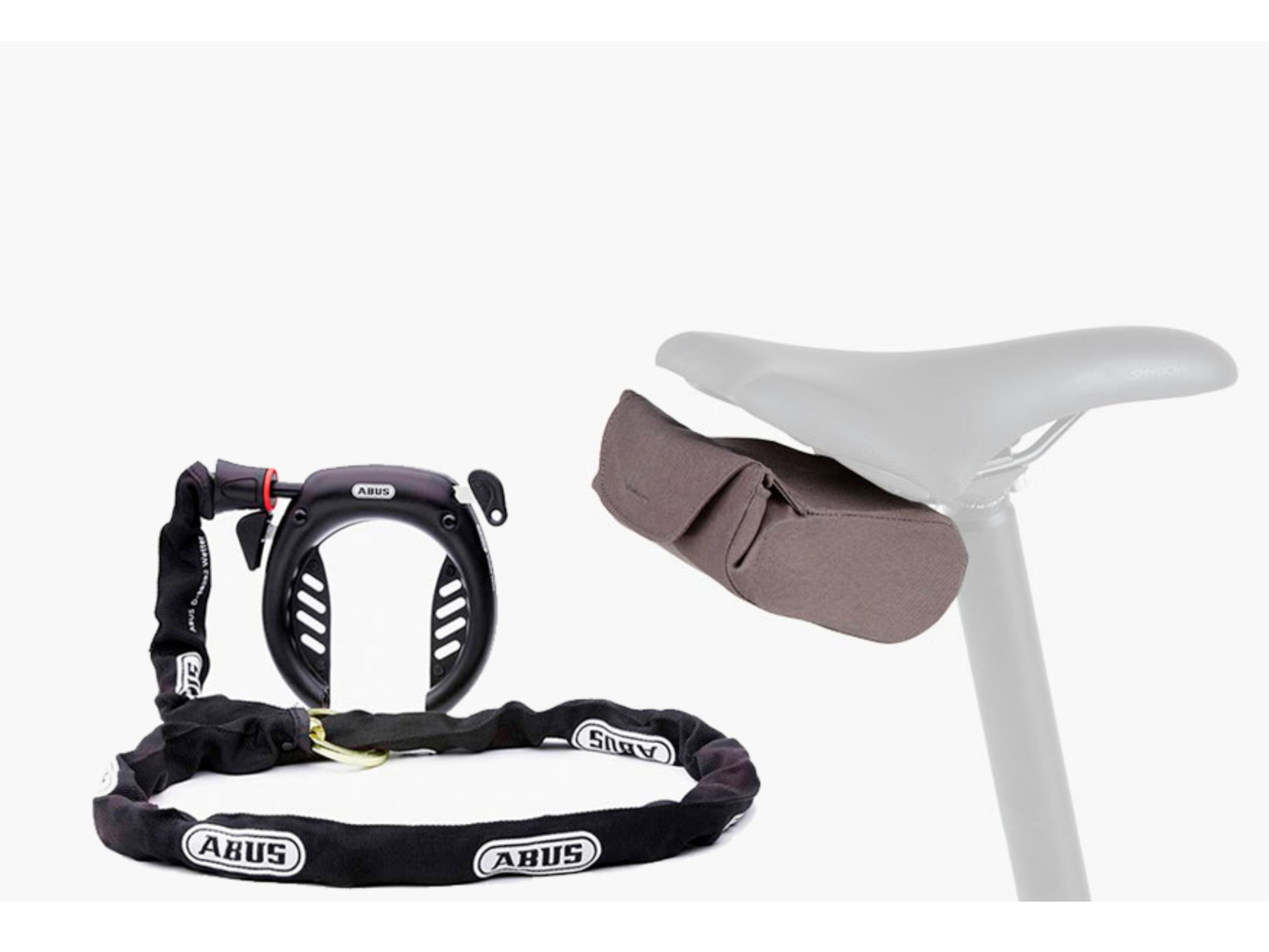

  Lock	ABUS Shield X+
  Mirror	Busch & Müller Cycle Star; Humpert ergotec M-99 E4, CNC*

•


  	51	56	61
  Height	5'5" - 5'11"	5'9" - 6'1"	5'11" - 6'7"
  Top tube length [cm]	54	57	61
  Reach [cm]	36	39	42,5
  Stack [cm]	62,5	63	64
  Head tube angle [°]	69	70	70
  Seat tube angle [°]	74	74	74
  Trail [mm]	88	82	82
  Wheelbase [cm]	108,5	110	114,5
  Bottom bracket height [cm]	27,5	27,5	27,5
  Stand-over height [cm]	83	84,5	86,5
  Chainstay length [cm]	47	47	47
  Overall length [cm]	178	179,5	184
  Wheel size ['']	28	28	28
  Head tube length [mm]	140	140	150
  Front suspension travel [mm]	63	63	63
  Rear dropout width [mm]	135	135	135
  Gear ratio [m]	2,53-9,60	2,53-9,60	2,53-9,60
  Weight [kg]	24,7	24,9	25,1
  Weight [lbs]	54.5	55	55
  Gross vehicle weight rating [kg]	140	140	140
  Weight rating: Rear Luggage rack [kg]	20	20	20
  Weight rating: Handlebar bag/basket [kg]	5	5	5
  Childseat compatibility	Yes	Yes	Yes
  Trailer compatibility: Single wheel/single attachment point	Yes	Yes	Yes
  Trailer compatibility: Two wheel/single attachment point	Yes	Yes	Yes
  Compatibility: Tagalong trailer bike	Yes	Yes	Yes
