Riese and Muller Supercharger GT Vario

The Full Scoop on the Riese and Muller Supercharger GT Vario

• Description
• Motor System
• Components
• Extras
• Geometry

•
  The Supercharger GT Vario will take you there – no matter how far the destination. Whether a daily commute with only occasional battery charging, extended trips or spontaneous extra outings: the Supercharger delivers maximum freedom.

  You don’t hang around when you have your destination firmly in your sights. And especially not because of minor inconveniences, like charging breaks. That’s the precise reason why Riese and Muller developed the new Supercharger GT Vario. It simply wants to ride, ride and ride some more with its latest generation of powerful Bosch motors, comfortable equipment designed for long trips and the DualBattery with its incredible 1,000 Wh. And preferably ride fast, far and without long breaks. At the same time, giving you as much freedom as you want from an eBike.

  Components subject to manufacturer changes.

  * May differ depending on the availability in your country, design or configuration of the model. The specification table indicates all available components for this model – not just the basic equipment. Some of the options listed are only available for a surcharge.

• Motor	Performance Line CX (Gen4)
  Battery	Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh ( 2x )*; Bosch PowerTube 500 Vertical, 36 V, 13,4 Ah/500Wh

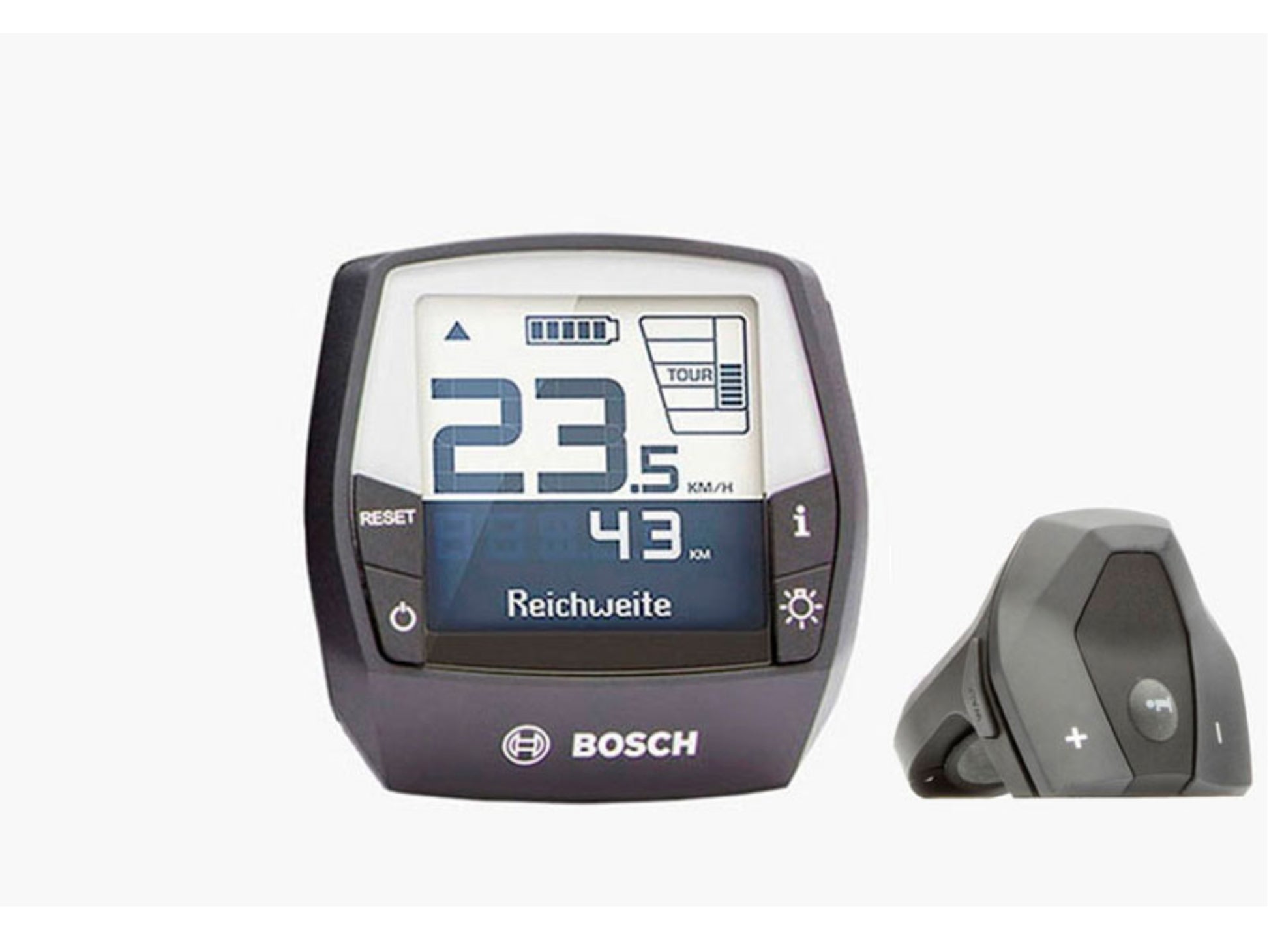

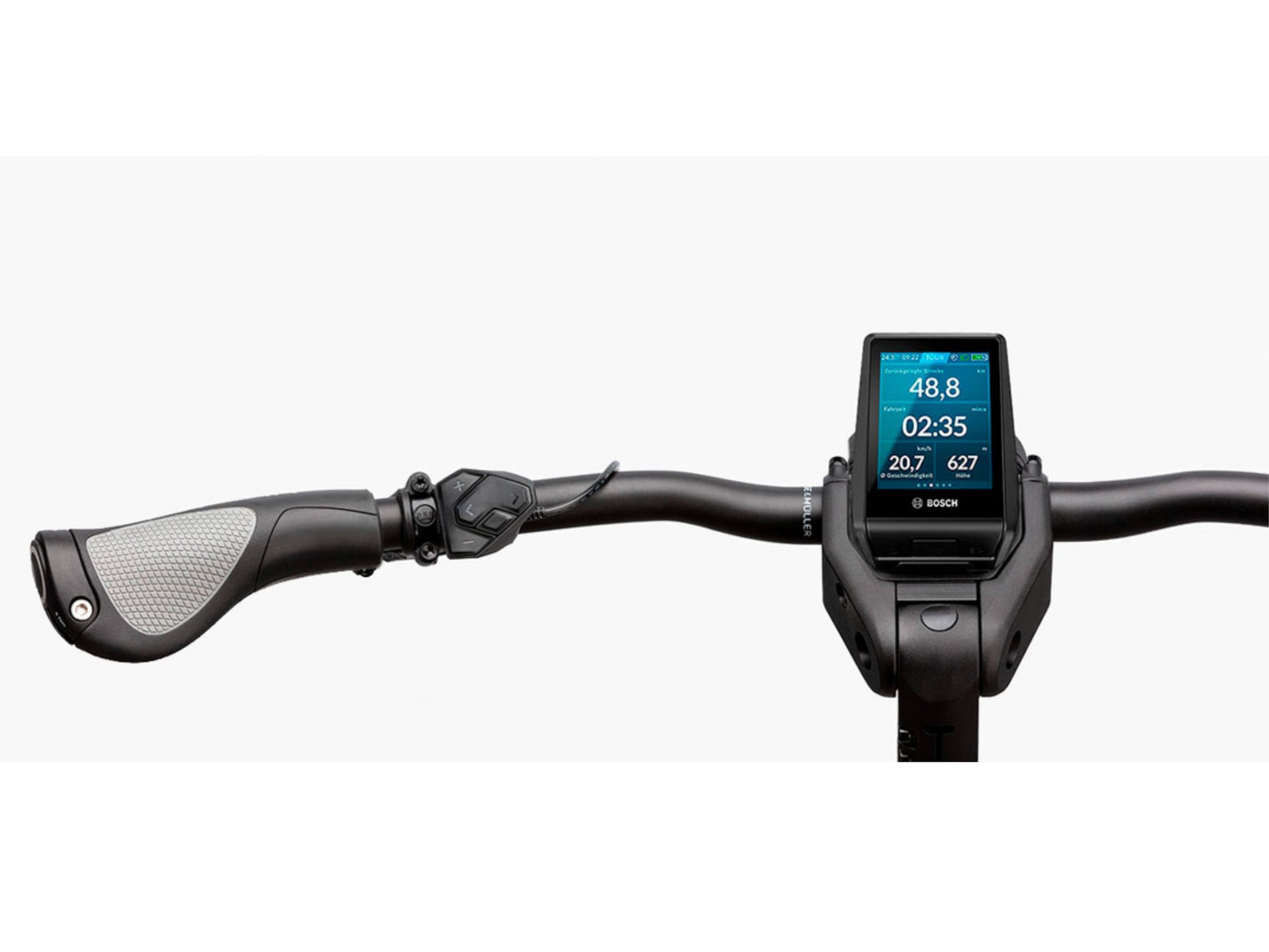

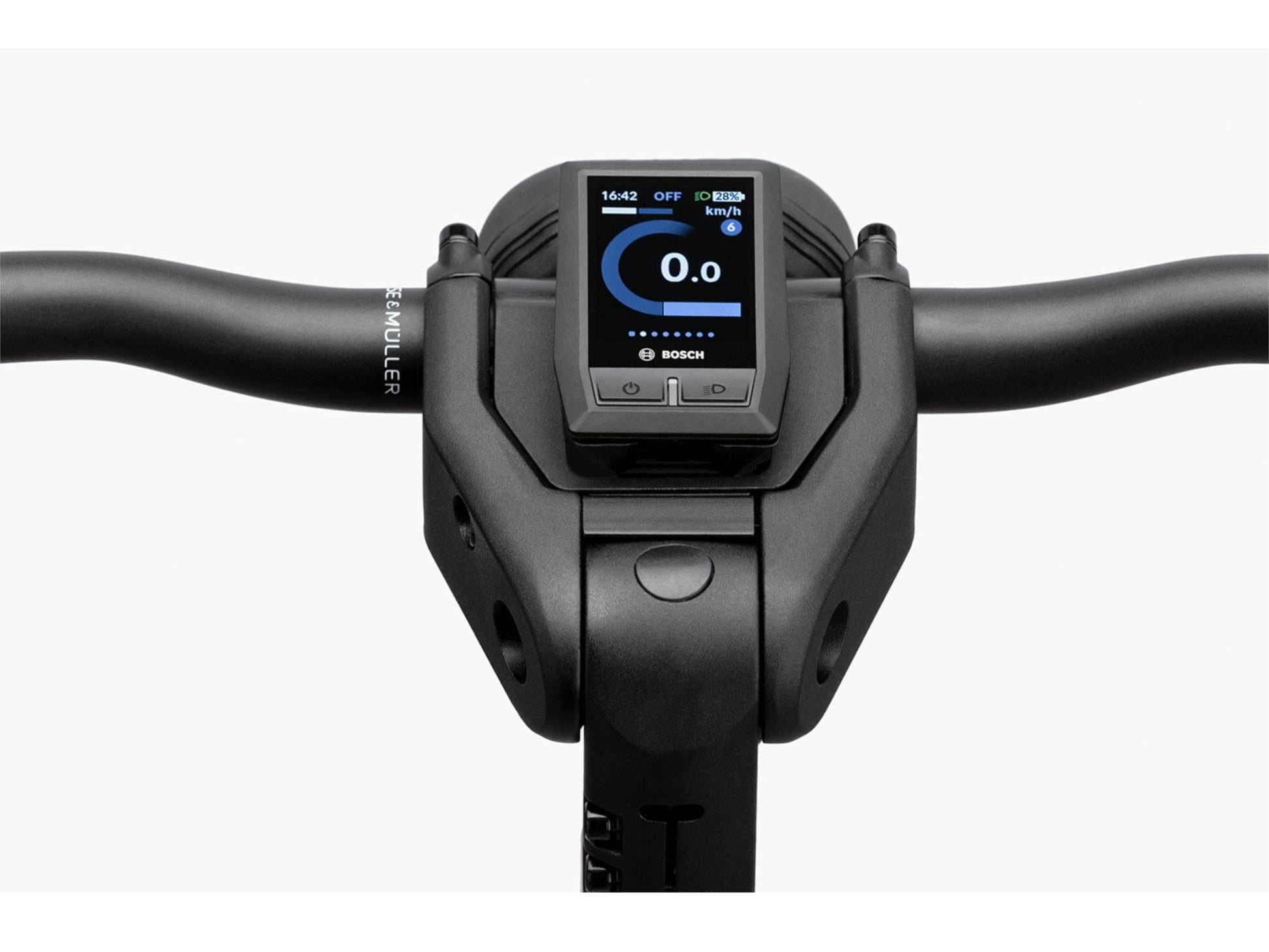

  Display	Bosch Intuvia; Bosch Nyon*; Bosch Kiox*
  Charger	Bosch 4a

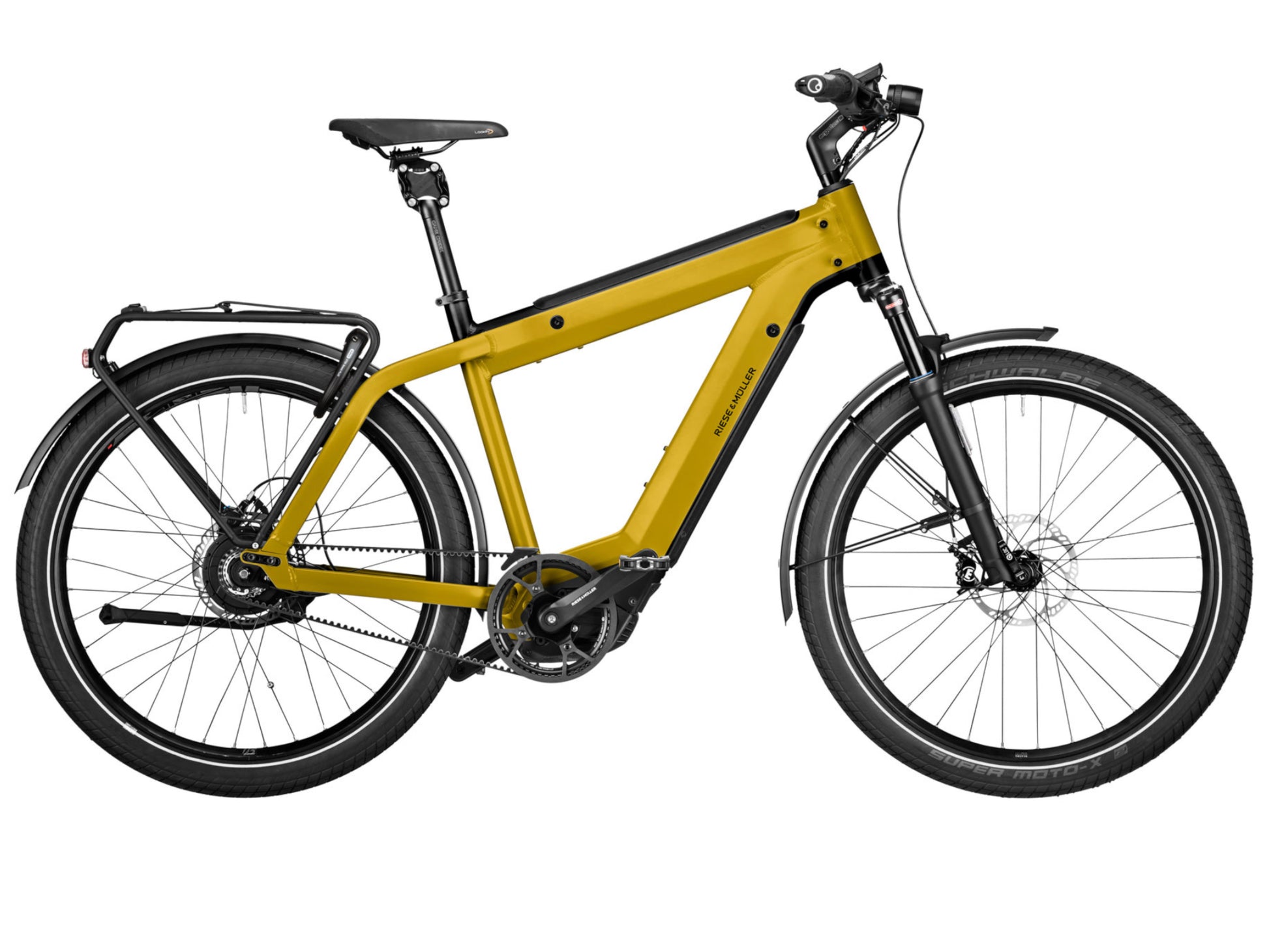

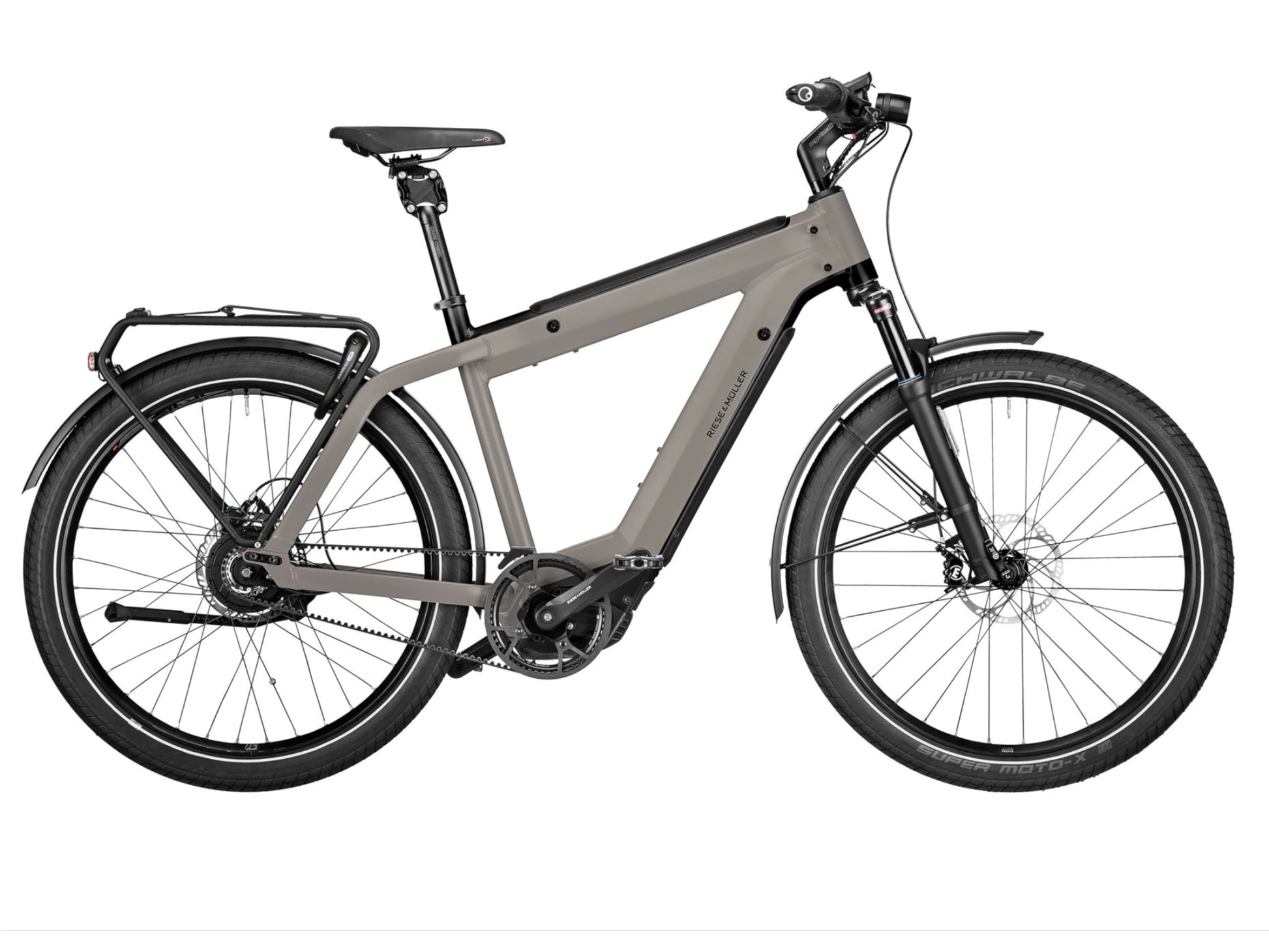

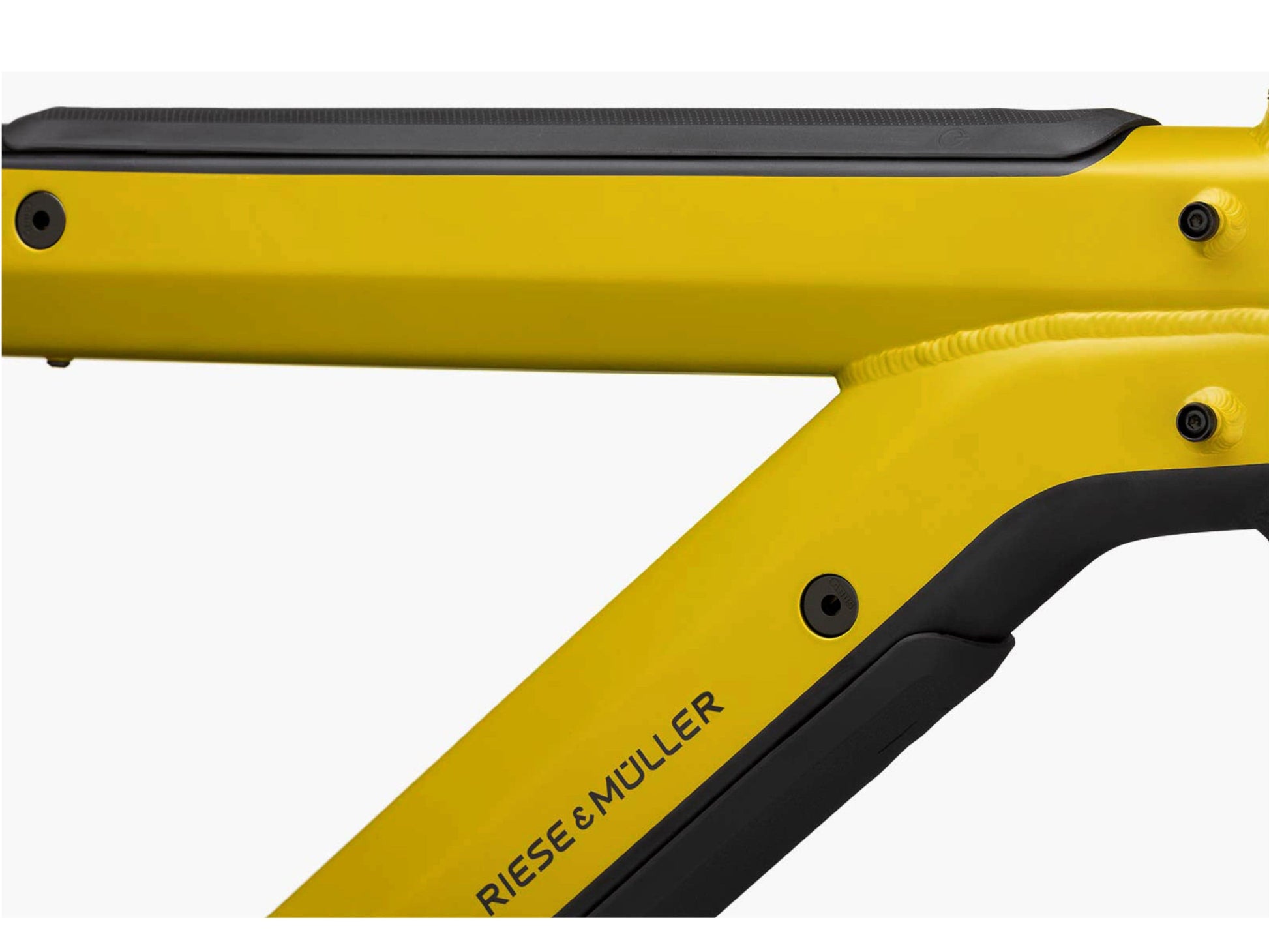

• Frame	curry matt*; silver matt*
  Fork	Marzocchi Bomber Z2, Air, tapered, 100mm
  Rear Shock	Not applicable
  Front Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Derailleur/Pinion	24T, for Gates drive belt CDX
  Shift Levers	Enviolo grip shift Twist Display Pure, continuous
  Chain	Gates drive belt CDX
  Cassette	Spec not provided
  Crankset	FSA/Riese & Müller, 170 mm
  Chain Ring	55T, for Gates drive belt CDX
  Chain Guard	Belt Guard
  Rims	Rodi Tryp35 27,5"
  Front Hub	Novatec Boost, QR, 32H
  Rear Hub	Enviolo 380, 36H

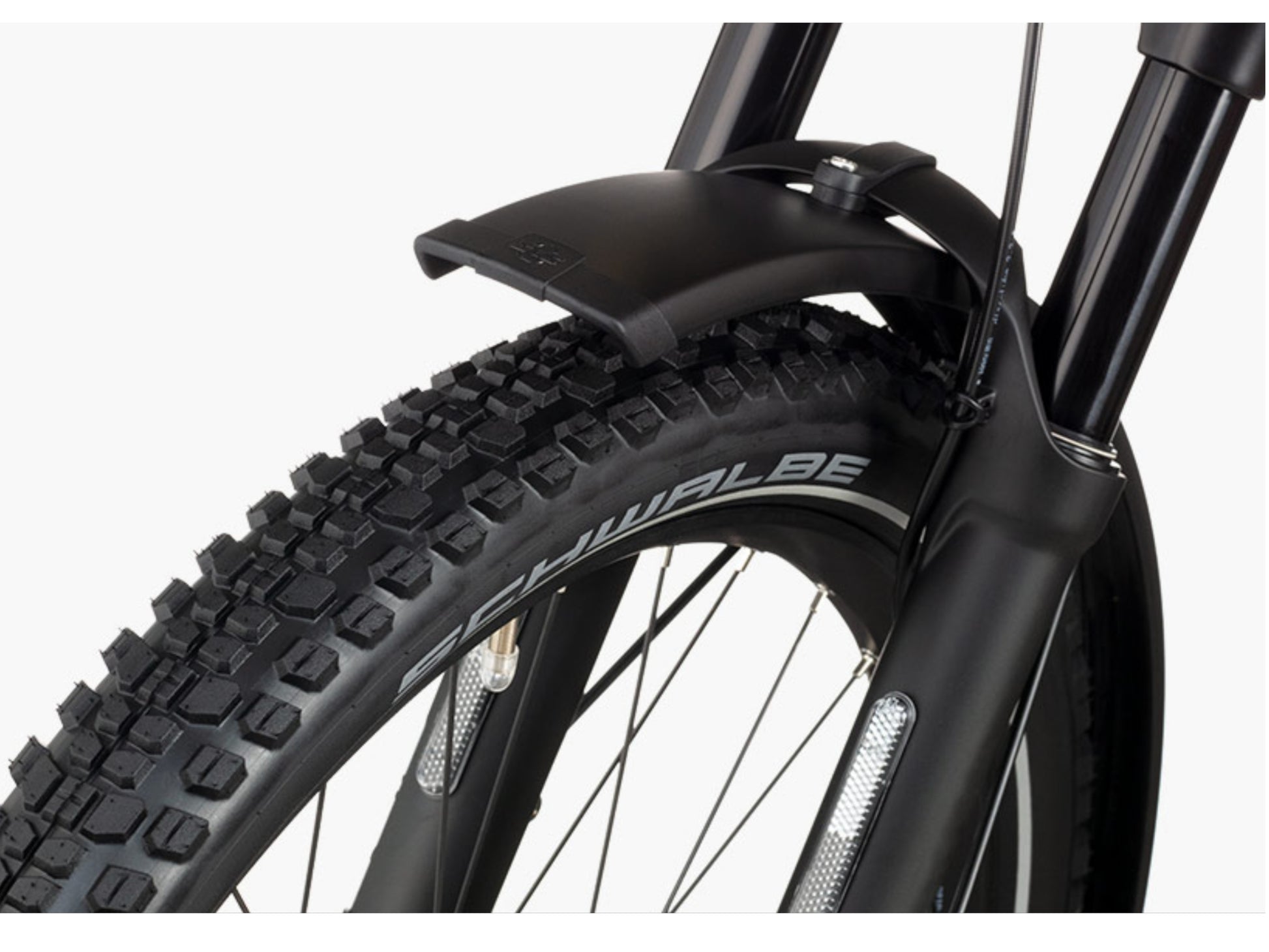

  Front Tire	Schwalbe Johnny Watts 60-584; Schwalbe Super Moto-X 62-584 Reflex
  Rear Tire	Schwalbe Johnny Watts 60-584; Schwalbe Super Moto-X 62-584 Reflex
  Handlebar	Humpert ergotec Ergo XXL, 31,8 mm; Humpert ergotec Trekking, 31,8 mm, Alu*; Satori R&M Custom Komfort, 25,4 mm, Alu*; Satori R&M Custom, 25,4mm, Alu*

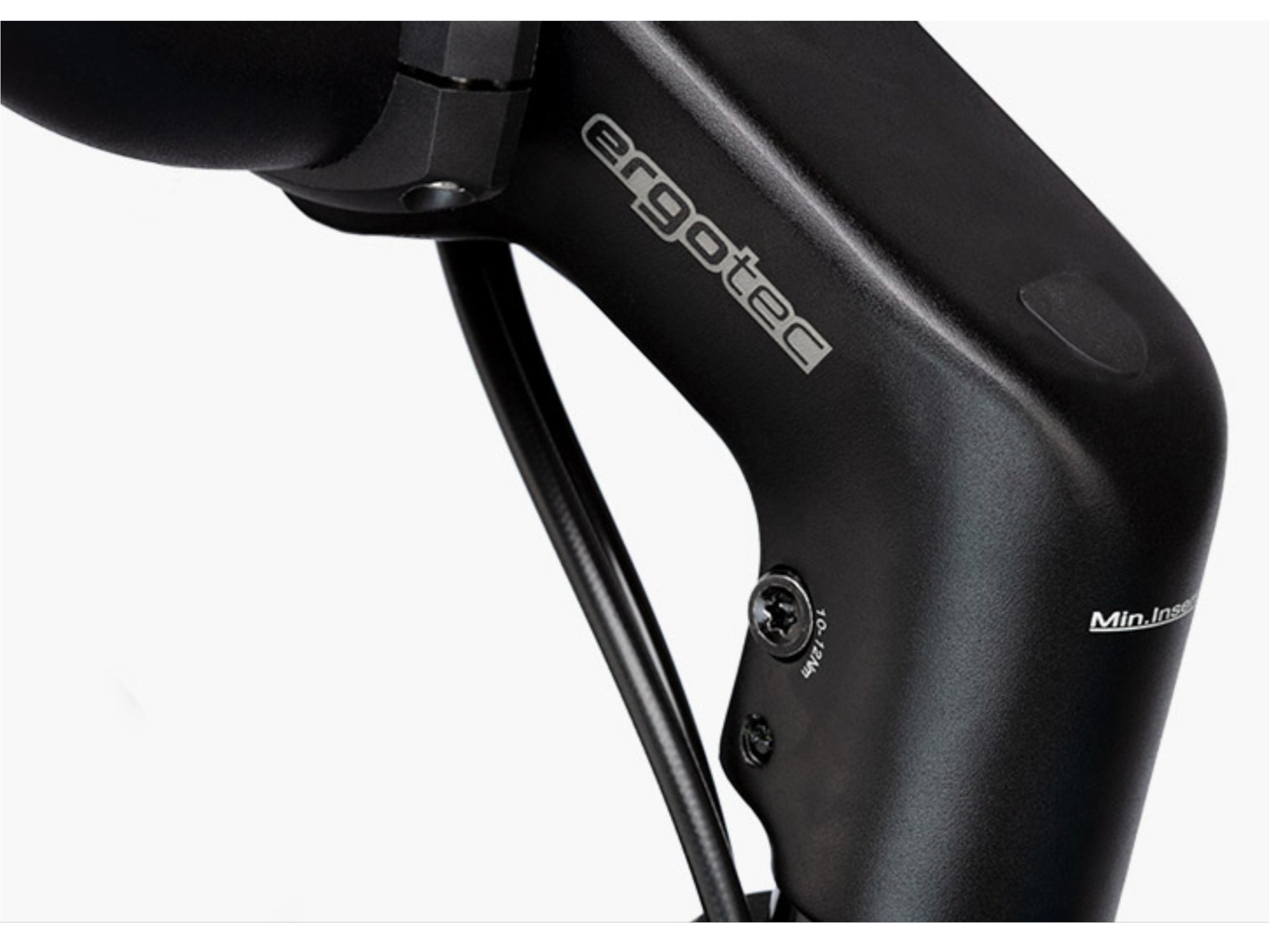

  Stem	Humpert ergotec Barracuda Evo, 90 mm, 20°; Satori R&M Custom, cable integration, adjustable angle, Alu*
  Headset	Acros IntegrationX, block lock
  Grips	Herrmans Grips Line
  Saddle	Selle Royal New Lookin Evo R&M; Selle Royal New Lookin Female Evo R&M*
  Seatpost	Cane Creek New Thudbuster ST

• Pedals	VP R&M Custom

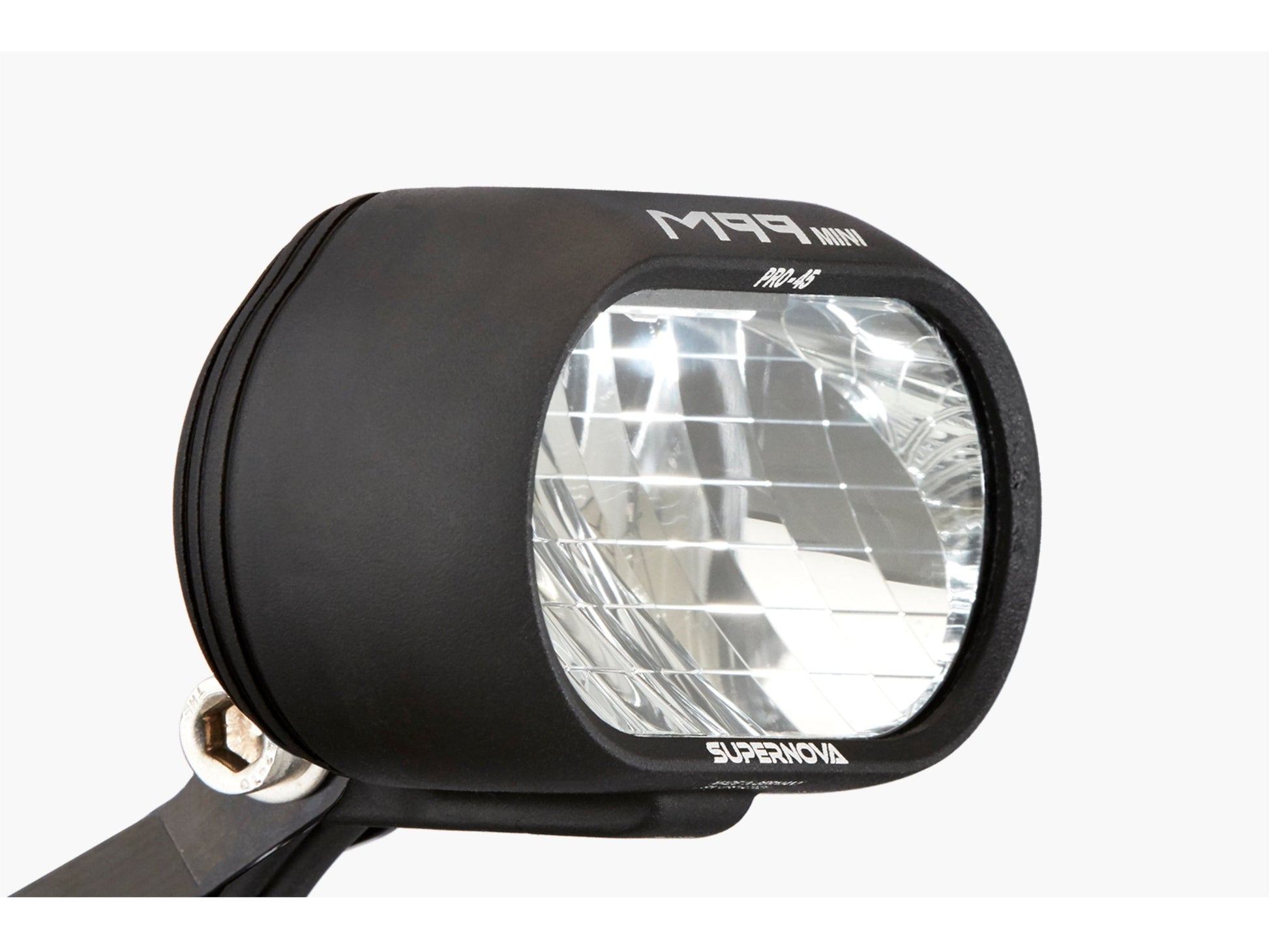

  Front Light	Supernova Mini 2 Pro

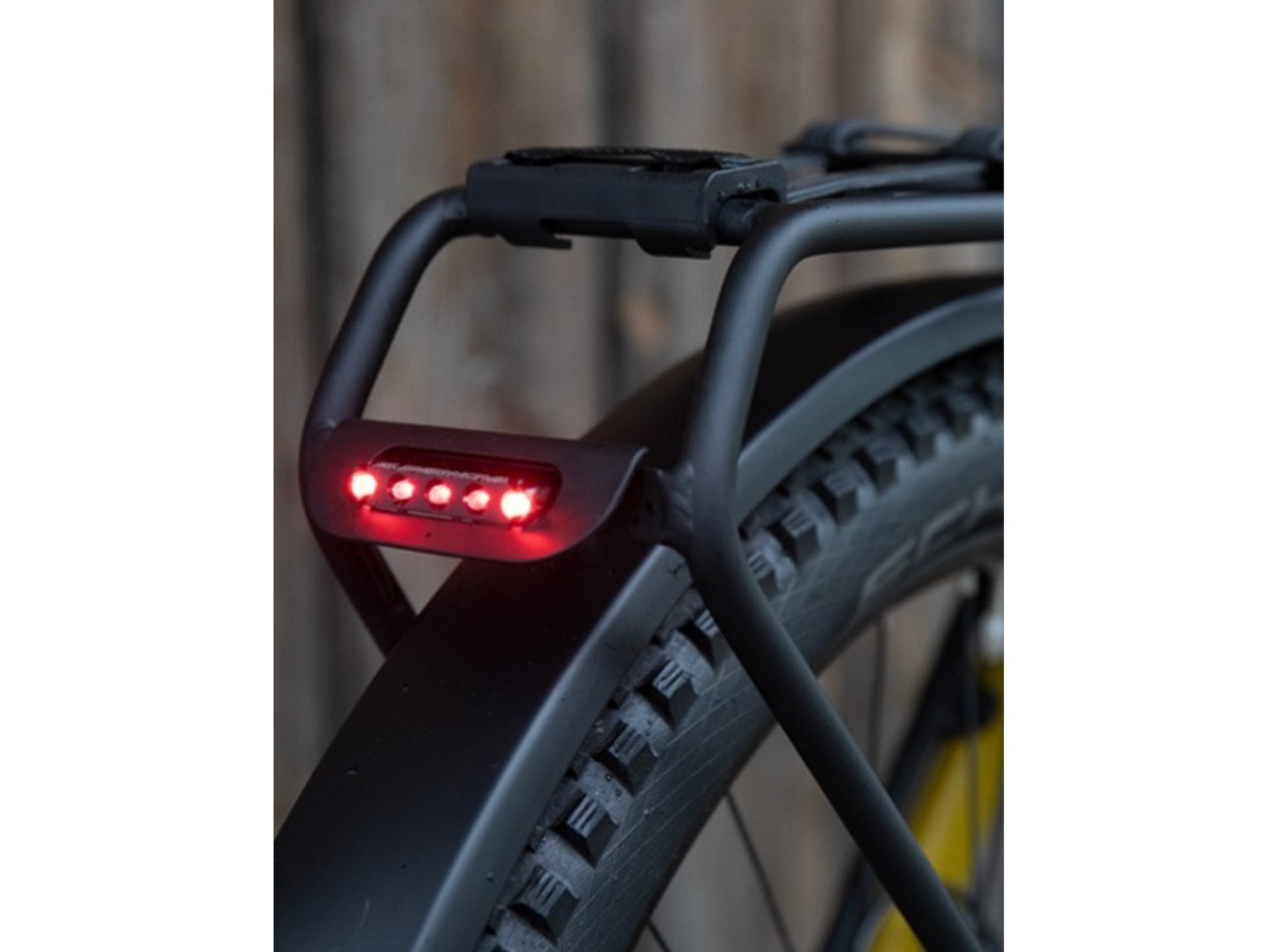

  Rear Light	Busch & Müller Toplight 2C LED
  Kickstand	Ursus Power 94 Kickstand; Ursus Power 94 Kickstand*

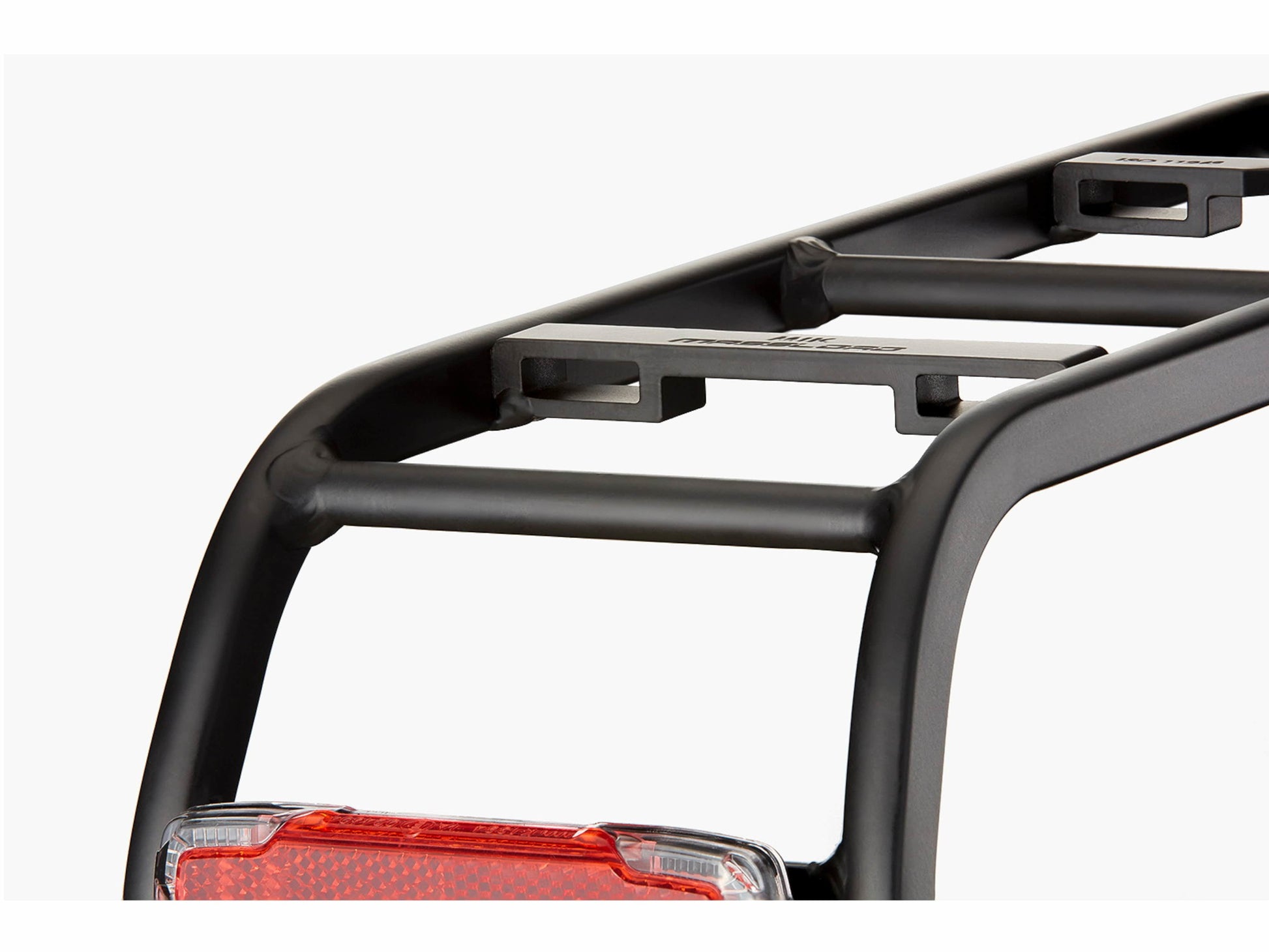

  Rear Carrier	Riese & Müller, MIK
  Fenders	SKS A69R
  Bell	Billy

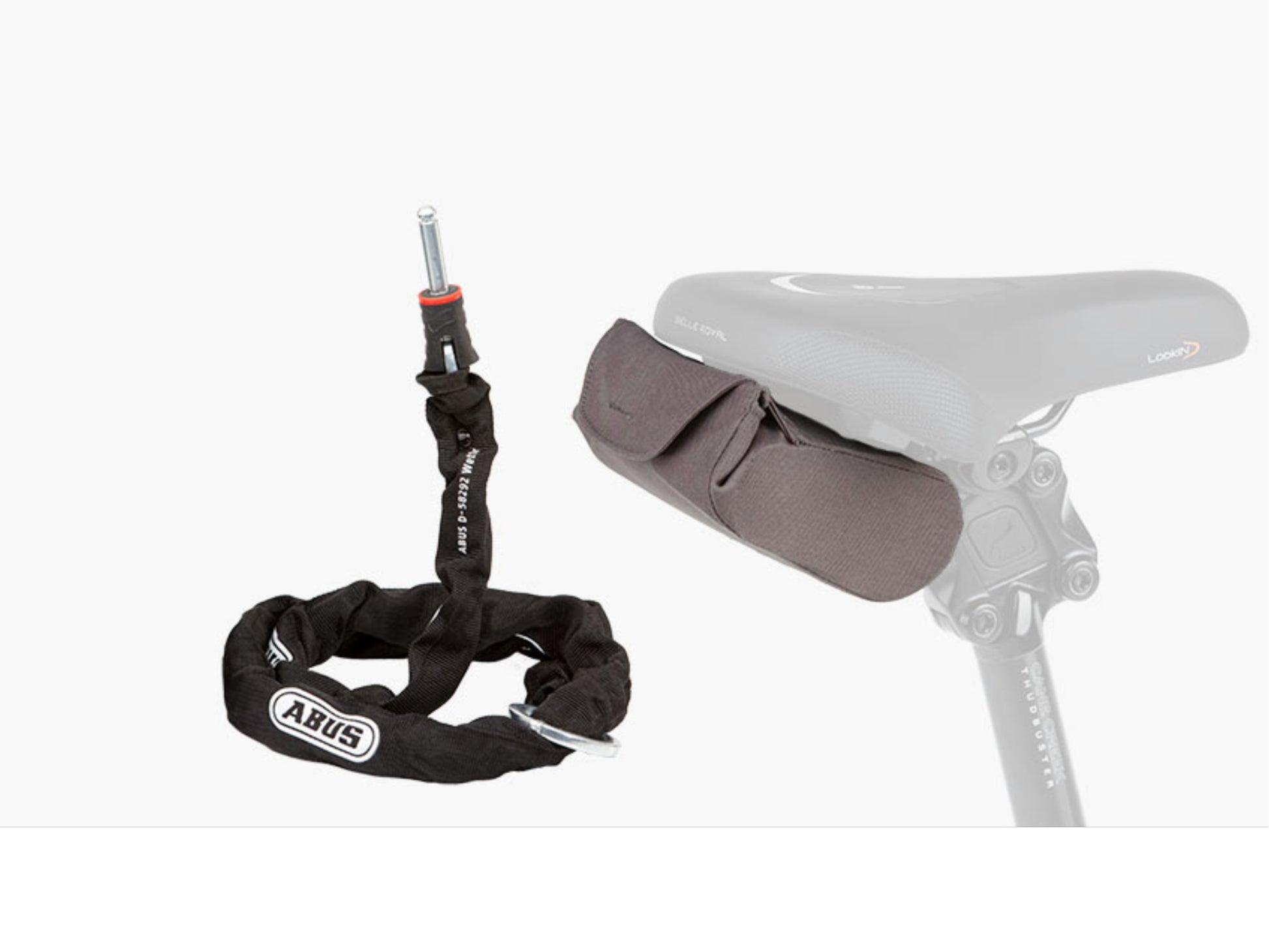

  Lock	ABUS Shield X+

•


  	46	49	53	56
  Height	5'3" - 5'9"	5'7" - 6'1"	5'11" - 6'6"	6'6" - 6'9"
  Top tube length [cm]	59	62	65	67
  Reach [cm]	39	42	45	46,5
  Stack [cm]	67	67	67	68,5
  Head tube angle [°]	68	68	68	68
  Seat tube angle [°]	74	74	74	74
  Trail [mm]	96	96	96	96
  Wheelbase [cm]	115,5	118,5	121,5	124
  Bottom bracket height [cm]	28	28	28	28
  Top tube height [cm]	74	76,5	78,5	78,5
  Stand-over height [cm]	84	84	84,5	85
  Chainstay length [cm]	48	48	48	48
  Overall length [cm]	186,5	189,5	192,5	195
  Wheel size ['']	27,5	27,5	27,5	27,5
  Head tube length [mm]	150	150	150	165
  Front suspension travel [mm]	100	100	100	100
  Rear dropout width [mm]	135	135	135	135
  Gear ratio [m]	2,51-9,54	2,51-9,54	2,51-9,54	2,51-9,54
  Weight [kg]	31,7	31,8	31,9	29,2
  Weight [lbs]	70	70	70	71
  Gross vehicle weight rating [kg]	140	140	140	140
  Gross vehicle weight rating/heavy duty [kg]	160	160	160	160
  Weight rating: Luggage rack [kg]	27,5	27,5	27,5	27,5
  Weight rating: Handlebar bag/basket [kg]	5	5	5	5
  Childseat compatibility	Yes	Yes	Yes	Yes
  Trailer compatibility: Single wheel/single attachment point	Yes	Yes	Yes	Yes
  Trailer compatibility: Two wheel/single attachment point	Yes	Yes	Yes	Yes
  Compatibility: Tagalong trailer bike	Yes	Yes	Yes	Yes
