Riese and Muller Superdelite GT Rohloff HS

PLEASE NOTE: Riese & Muller bikes can be purchased locally from Fly Rides at either our San Diego or Los Angeles store. We are also happy to ship these bikes to addresses that are at least 100 miles away from another Riese & Muller dealer. Call or text us at 619-344-0211 to build your dream bike and discuss deliverability!

Sizing Guide



The Full Scoop on the Riese and Muller Superdelite GT Rohloff HS


  • Power for long rides, comfortable riding enjoyment and state-of-the-art safety technology – the Superdelite is the E-Bike that lets you undertake much more than everyday riding. Its full-suspension Control Technology chassis coupled with a battery capacity of 1,125 Wh and the Bosch Performance Line CX motor take you wherever you want to go. And much further besides.

    Components subject to manufacturer changes.

    * May differ depending on the availability in your country, design or configuration of the model. The specification table indicates all available components for this model – not just the basic equipment. Some of the options listed are only available for a surcharge.

  • Motor Performance Line Speed (Gen4)
    Battery Bosch PowerTube 500 Vertical, 36 V, 13,4 Ah/500Wh; Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh
    Display Bosch Intuvia; Bosch Nyon*; Bosch Kiox*
    Charger Spec not provided
  • Frame Spec not provided
    Fork Marzocchi Bomber Z2, Air, tapered, 100mm; Fox Float 34 Performance, Air, 100mm, Boost*; Fox Float Rhythm, Air, 140mm, Boost*; Suntour Aion, Air, tapered, 140mm, Boost*
    Rear Shock Suntour RS-19 190x40; Fox Float DPS Performance 190x40*; Fox Float DPS Performance 210x50*; Suntour RS-19 210x50*
    Front Brake Magura MT4, disc brake; Magura MT5, disc brake
    Rear Brake Magura MT4, disc brake; Magura MT5, disc brake
    Rear Derailleur

    Spec not provided

    Shift Levers Rohloff E14 electronic shifter
    Chain Gates drive belt CDX
    Cassette Spec not provided
    Crankset FSA/Riese & Müller, 170 mm
    Chain Ring 60T, for Gates drive belt CDX
    Chain Guard Riemenschutzring
    Rims Rodi Tryp35 27,5"
    Front Hub Novatec Boost, QR, 32H
    Rear Hub Rohloff Speedhub E14, 14-speed, 36H
    Front Tire Schwalbe Johnny Watts 60-584; Schwalbe Super Moto-X 62-584 Reflex
    Rear Tire

    Schwalbe Johnny Watts 60-584; Schwalbe Super Moto-X 62-584 Reflex

    Handlebar Humpert ergotec Ergo XXL, 31,8 mm*; Humpert ergotec Trekking, 31,8 mm, Alu*; Satori R&M Custom Komfort, 25,4 mm, Alu*; Satori R&M Custom, 25,4mm, Alu*
    Stem Humpert ergotec Barracuda Evo, 90 mm, 20°; Satori R&M Custom, cable integration, adjustable angle, Alu*
    Headset Acros IntegrationX, block lock
    Grips Ergon ergonomic
    Saddle Selle Royal New Lookin Evo R&M; FIZIK Monte MG*; Selle Royal New Lookin Female Evo R&M*
    Seatpost Satori Trident; Dropper Post X-Fusion Manic 100*
  • Pedals VP R&M Custom
    Front Light Supernova M99
    Rear Light Supernova M99, integrated brake light*; Supernova M99, integrated plate illumination and brake light
    Kickstand Pletscher Comp 40 Flex

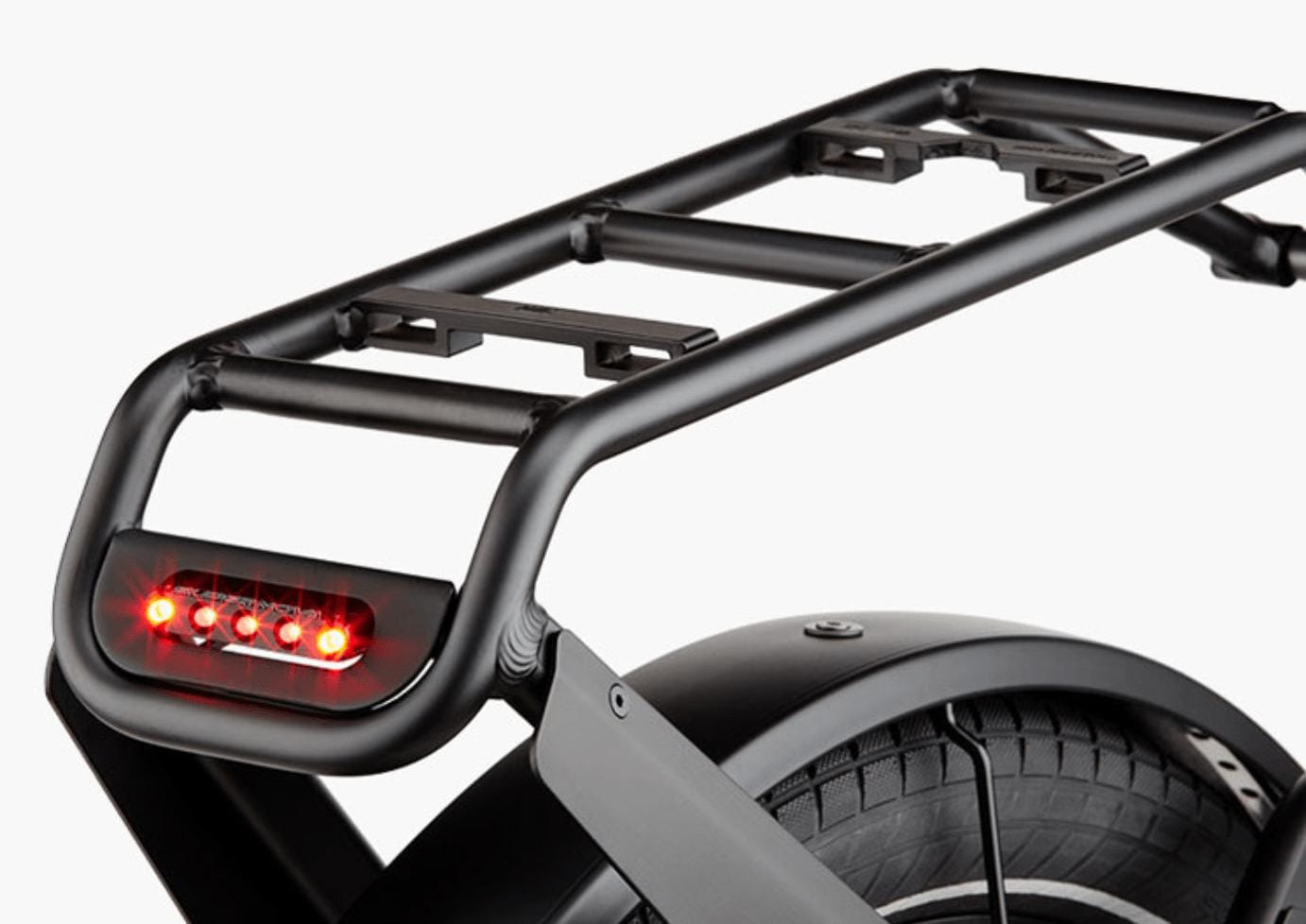

    Rear Carrier Riese & Müller
    Fenders SKS A69R; SKS A65R*
    Bell Supernova horn
    Lock Abus Bordo 6000/90cm black
    Mirror Busch & Müller Cycle Star; Humpert ergotec M-99 E4, CNC*
  • 47cm Height = 1.60 - 1.75 m (5'2" - 5'7")
    51cm Height = 1.70 - 1.85 m (5'5' - 6'0")
    56cm Height = 1.80 - 2.00 m (5'9" - 6'5")

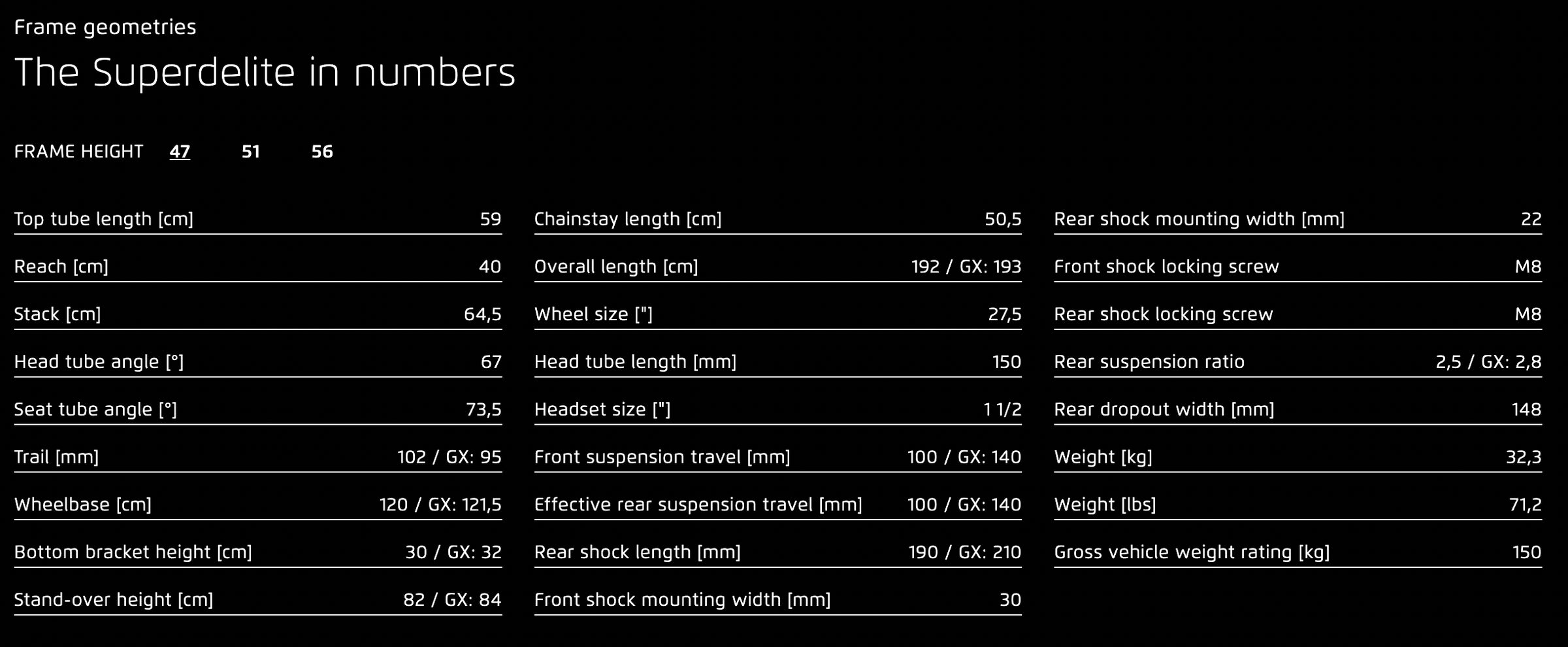

    Top tube length [cm]
    59/62/65
    Reach [cm] 40/43/46
    Stack [cm]
    64,5/63,5/64,5
    Seat tube angle [°]
    73,5
    Trail [mm]
    95 / GX: 102
    Wheelbase [cm]
    120 / GX: 121,5 | 123 / GX: 124,5 | 126 / GX: 127,5
    Bottom bracket height [cm]
    30 / GX: 32
    Wheelbase [cm]
    120 / GX: 121,5 | 123 / GX: 124,5 | 126 / GX: 127,5
    Stand-over height [cm]
    82 / GX: 84 | 81,5 / GX: 83,5 | 82,5 / GX: 84,5
    Overall length [cm]
    192 / GX: 193 | 195 / GX: 196 | 198 / GX: 199
    Head tube length [mm]
    150 | 140 | 150
    Weight [lbs]
    70,8 | 71,2 | 71,6
    Weight rating: Luggage rack [kg]
    20
