Riese and Muller Superdelite GT Vario

The Full Scoop on the Riese and Muller Superdelite GT Vario

• Description
• Motor System
• Components
• Extras
• Geometry

•
  Power for long rides, comfortable riding enjoyment and state-of-the-art safety technology – the Superdelite is the E-Bike that lets you undertake much more than everyday riding. Its full-suspension Control Technology chassis coupled with a battery capacity of 1,125 Wh and the Bosch Performance Line CX motor take you wherever you want to go. And much further besides.

  Components subject to manufacturer changes.

  * May differ depending on the availability in your country, design or configuration of the model. The specification table indicates all available components for this model – not just the basic equipment. Some of the options listed are only available for a surcharge.

• Motor	Performance Line CX (Gen4)
  Battery	Bosch PowerTube 500 Vertical, 36 V, 13,4 Ah/500Wh; Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh
  Display	Bosch Intuvia; Bosch Nyon*; Bosch Kiox*
  Charger	Bosch 4a

• Frame	tundra grey matt*; warm silver matt*
  Fork	Marzocchi Bomber Z2, Air, tapered, 100mm; Fox Float 34 Performance, Air, 100mm, Boost*; Fox Float Rhythm, Air, 140mm, Boost*; Suntour Aion, Air, tapered, 140mm, Boost*
  Rear Shock	Suntour RS-19 190x40; Fox Float DPS Performance 190x40*; Fox Float DPS Performance 210x50*; Suntour RS-19 210x50*
  Front Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Derailleur / Pinion	24T, for Gates drive belt CDX
  Shift Levers	Rohloff E14 electronic shifter
  Chain	Gates drive belt CDX
  Cassette	Spec not provided
  Crankset	FSA/Riese & Müller, 170 mm
  Chain Ring	55T, for Gates drive belt CDX
  Chain Guard	Belt Guard
  Rims	Rodi Tryp35 27,5"
  Front Hub	Novatec Boost, QR, 32H
  Rear Hub	Rohloff Speedhub E14, 14-speed, 36H
  Front Tire	Schwalbe Johnny Watts 60-584; Schwalbe Super Moto-X 62-584 Reflex
  Rear Tire	Schwalbe Johnny Watts 60-584; Schwalbe Super Moto-X 62-584 Reflex
  Handlebar	Humpert ergotec Ergo XXL, 31,8 mm*; Humpert ergotec Trekking, 31,8 mm, Alu*; Satori R&M Custom Komfort, 25,4 mm, Alu*; Satori R&M Custom, 25,4mm, Alu*
  Stem	Humpert ergotec Barracuda Evo, 90 mm, 20°; Satori R&M Custom, cable integration, adjustable angle, Alu*
  Headset	Acros IntegrationX, block lock
  Grips	Ergon ergonomic
  Saddle	Selle Royal New Lookin Evo R&M; FIZIK Monte MG*; Selle Royal New Lookin Female Evo R&M*
  Seatpost	Satori Trident; Dropper Post X-Fusion Manic 100*

• Pedals	VP R&M Custom
  Front Light	Supernova M99 Mini Pro-25
  Rear Light	Supernova M99, integrated brake light
  Kickstand	Pletscher Comp 40 Flex

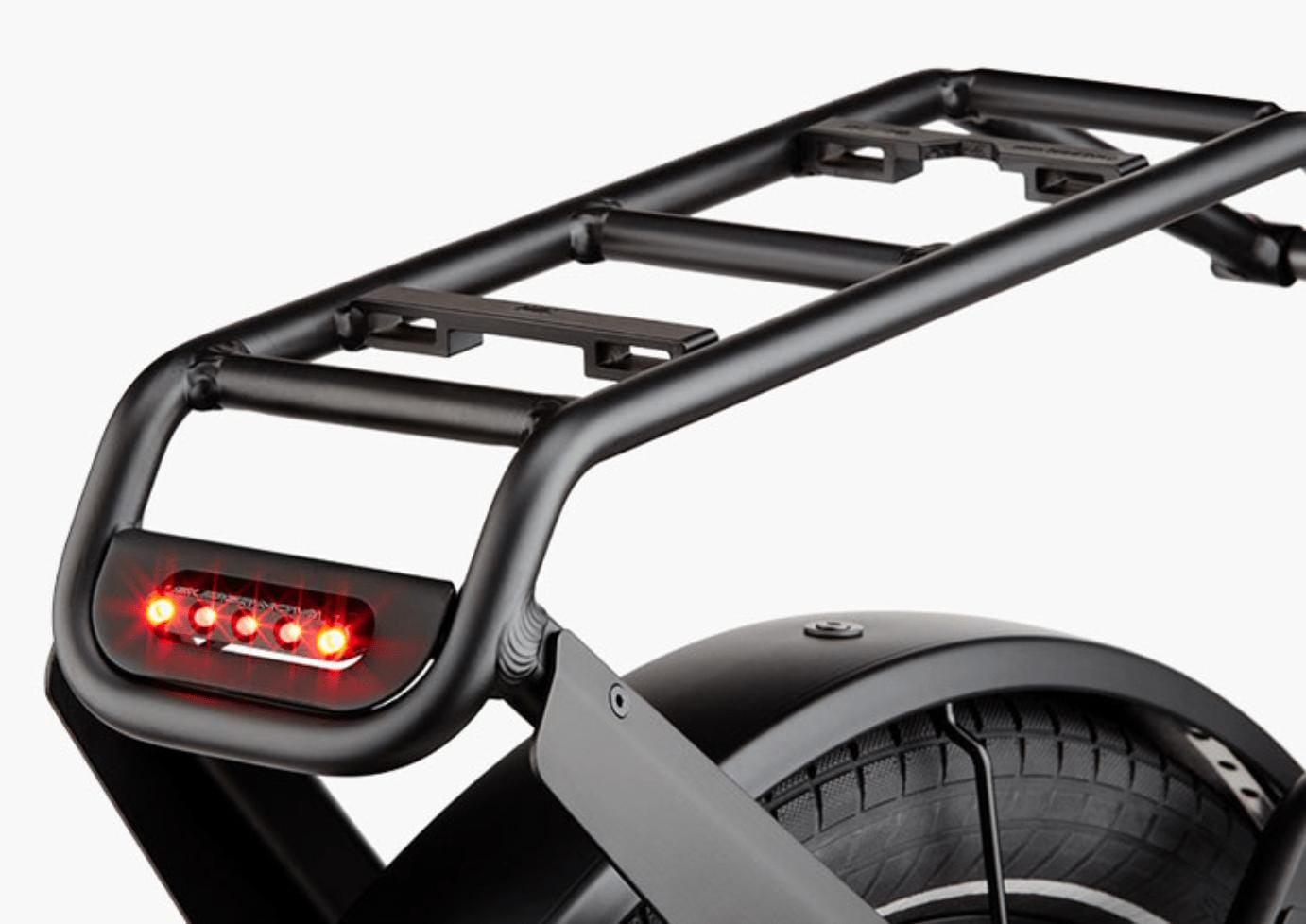

  Rear Carrier	Riese & Müller
  Fenders	SKS A69R; SKS A65R*
  Bell	Billy

• 47cm	Height = 1.60 - 1.75 m (5'2" - 5'7")
  51cm	Height = 1.70 - 1.85 m (5'5' - 6'0")
  56cm	Height = 1.80 - 2.00 m (5'9" - 6'5")
  Top tube length [cm]	59/62/65
  Reach [cm]	40/43/46
  Stack [cm]	64,5/63,5/64,5
  Seat tube angle [°]	73,5
  Trail [mm]	95 / GX: 102
  Wheelbase [cm]	120 / GX: 121,5 | 123 / GX: 124,5 | 126 / GX: 127,5
  Bottom bracket height [cm]	30 / GX: 32
  Wheelbase [cm]	120 / GX: 121,5 | 123 / GX: 124,5 | 126 / GX: 127,5
  Stand-over height [cm]	82 / GX: 84 | 81,5 / GX: 83,5 | 82,5 / GX: 84,5
  Overall length [cm]	192 / GX: 193 | 195 / GX: 196 | 198 / GX: 199
  Head tube length [mm]	150 | 140 | 150
  Weight [lbs]	70,8 | 71,2 | 71,6
  Weight rating: Luggage rack [kg]	20
