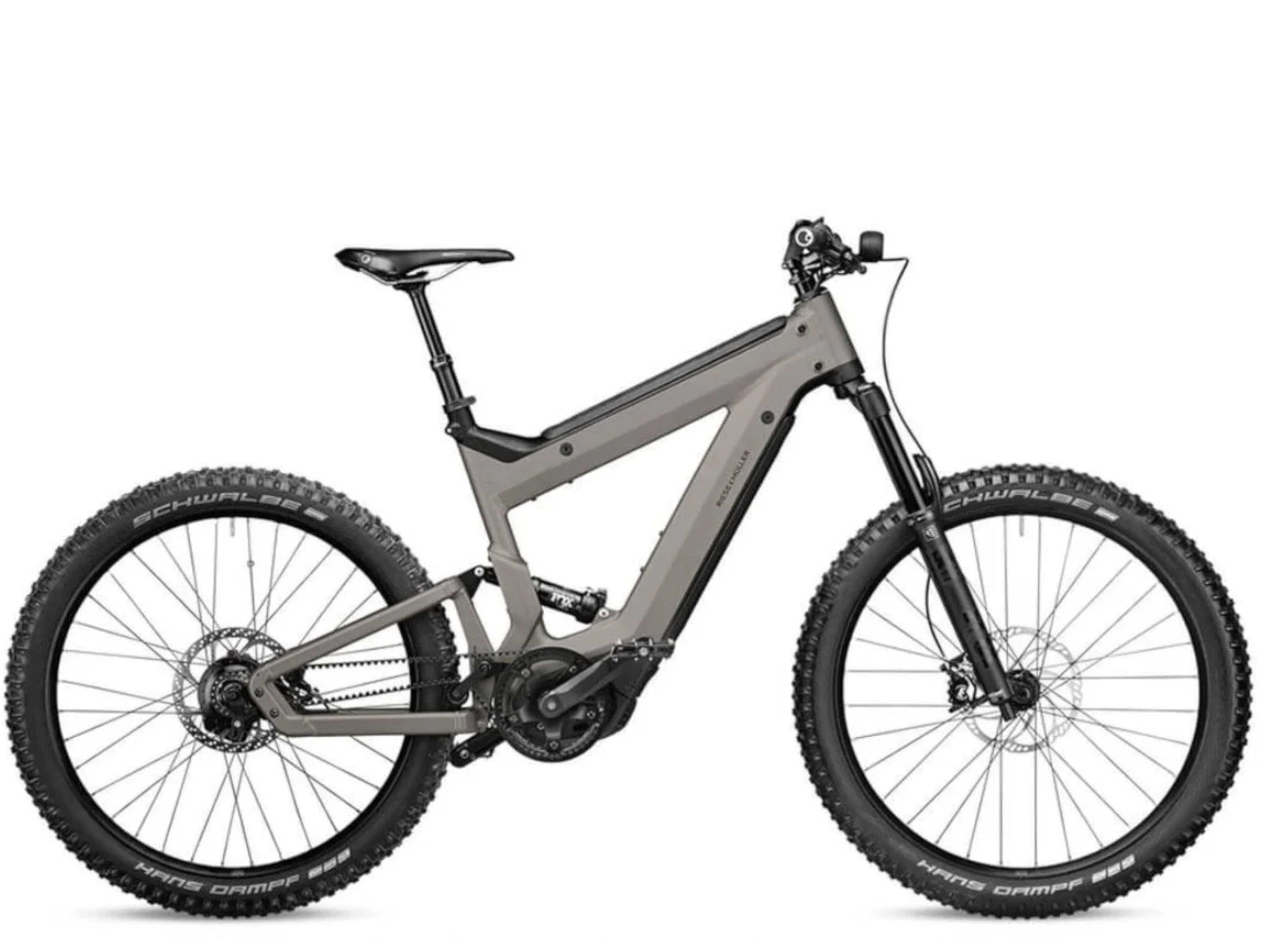

Riese and Muller Superdelite Mountain Touring

The Full Scoop on the Riese and Muller Superdelite Mountain Touring

• Description
• Motor System
• Components
• Extras
• Geometry

• Ultimate riding enjoyment and maximum safety – the Riese and Muller Superdelite Mountain Touring is just made for long off-road trips. 1,125 Wh of fully integrated power are effectively transferred to all terrains, whether you’re riding up high mountains or steep trails. The Bosch Performance Line CX motor and Control Technology with full suspension clear the way right to the top.

  Twice the power from within

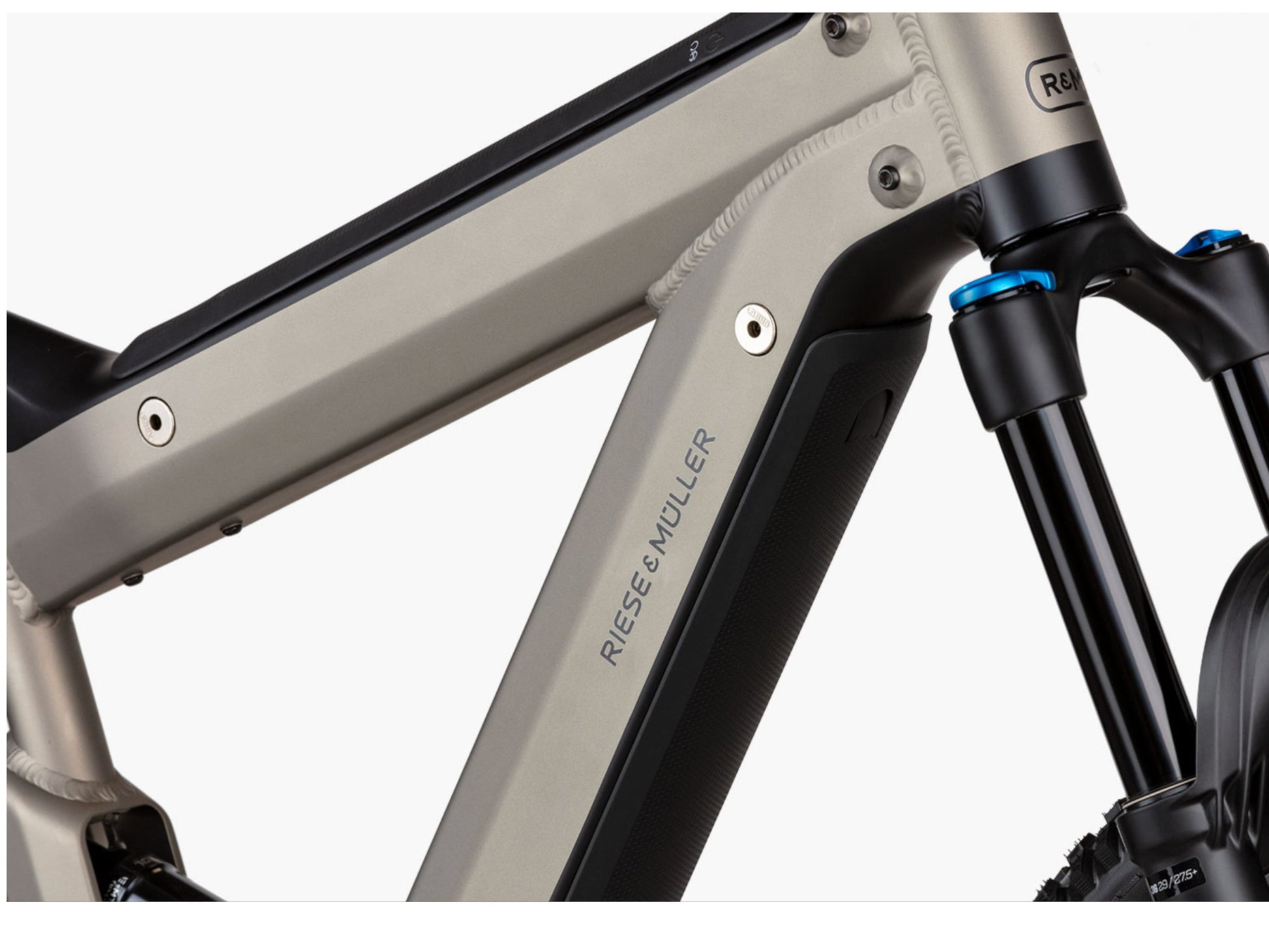

  With the DualBattery 1125, the Riese and Muller Superdelite Mountain Touring takes you to your destination and beyond. A long range and fewer charging breaks are ensured by its 500 Wh battery in the top tube, combined with a 625 Wh battery in the down tube. Both batteries are fully integrated and hardly affect the balance thanks to their sophisticated positioning: the bike’s sporty riding behaviour takes centre stage, while the two batteries can be easily removed at any time.

  Faster up, steeper down

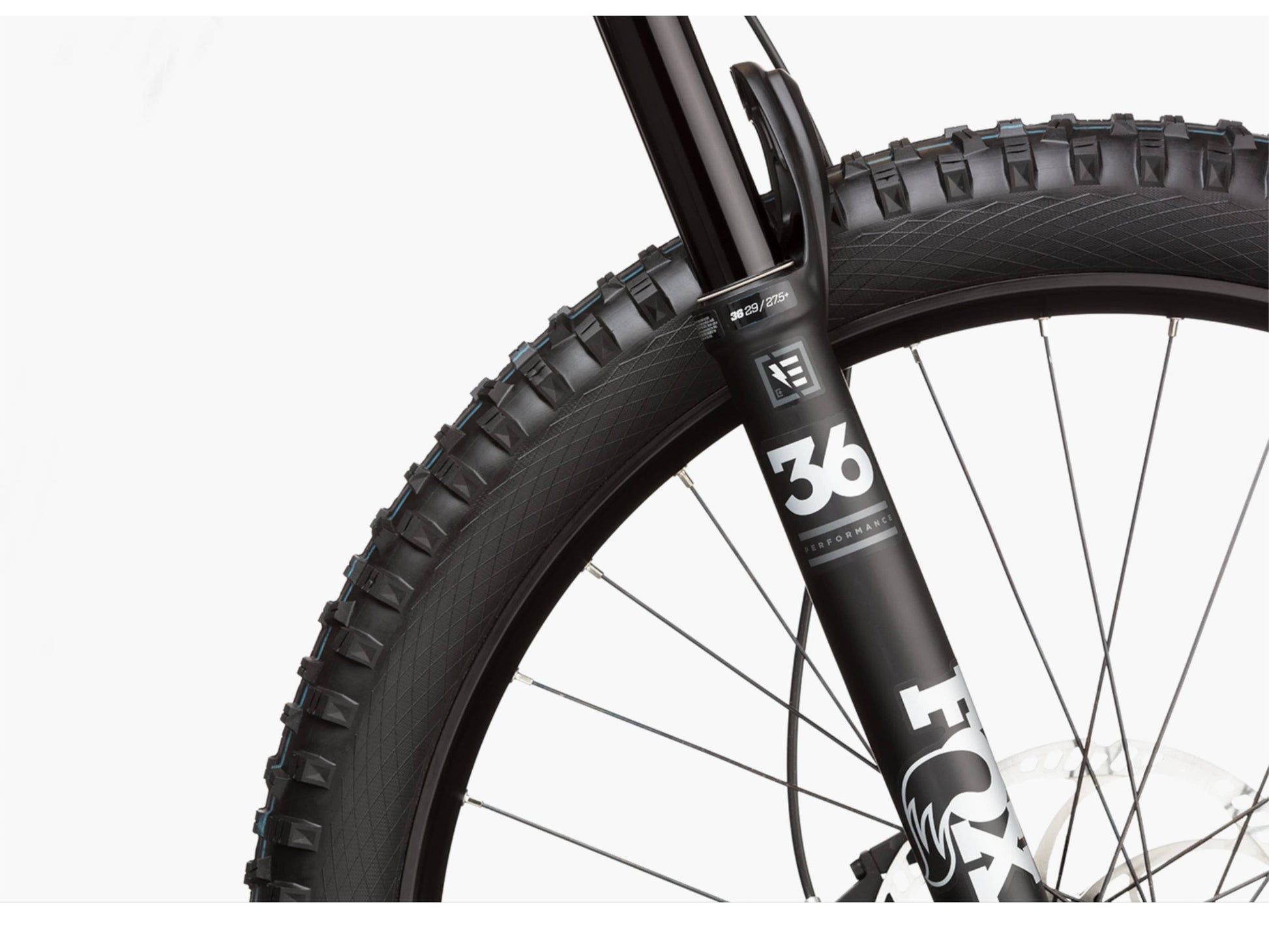

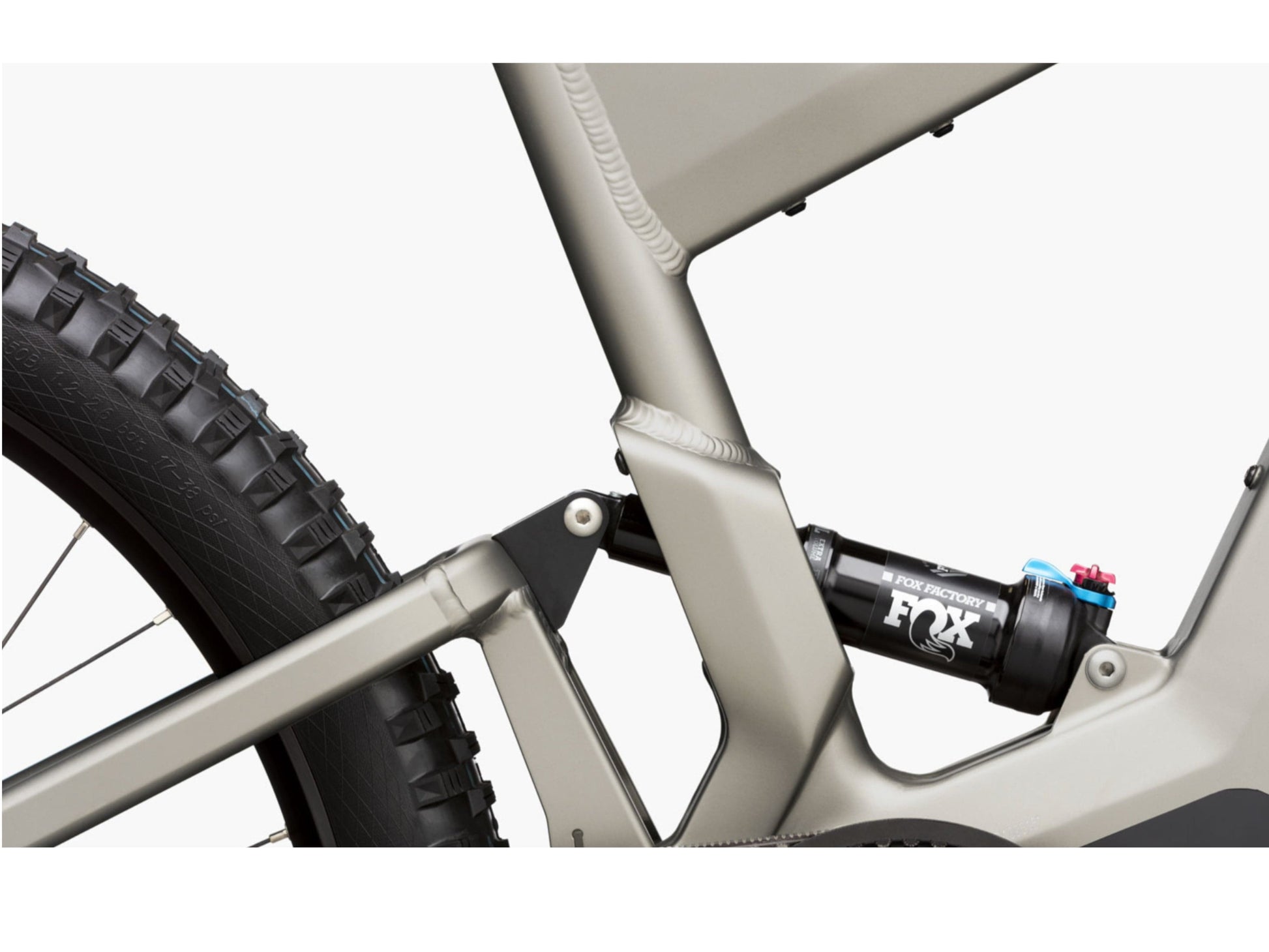

  The Riese and Muller Superdelite Mountain Touring's high-end off-road equipment, combined with the sporty frame geometry, is designed for steep trails,rocky climbs and the ultimate riding challenges. The Fox Float Performance Boost air suspension fork with 150 mm travel and Fox Float DPS Performance shock absorber smooth the way. The solid tire studs of the Schwalbe Nobby Nic tires ensure exceptionally good grip on any surface and in any riding situation.

  Abus Bordo 6000
  With the 90 cm folding lock, your E-Bike can be securely fastened to virtually anything. The articulated design offers superb security and a low weight of just 1120 g. If you want to continue your journey, it can be compactly folded up and stowed in the bracket provided for this purpose.

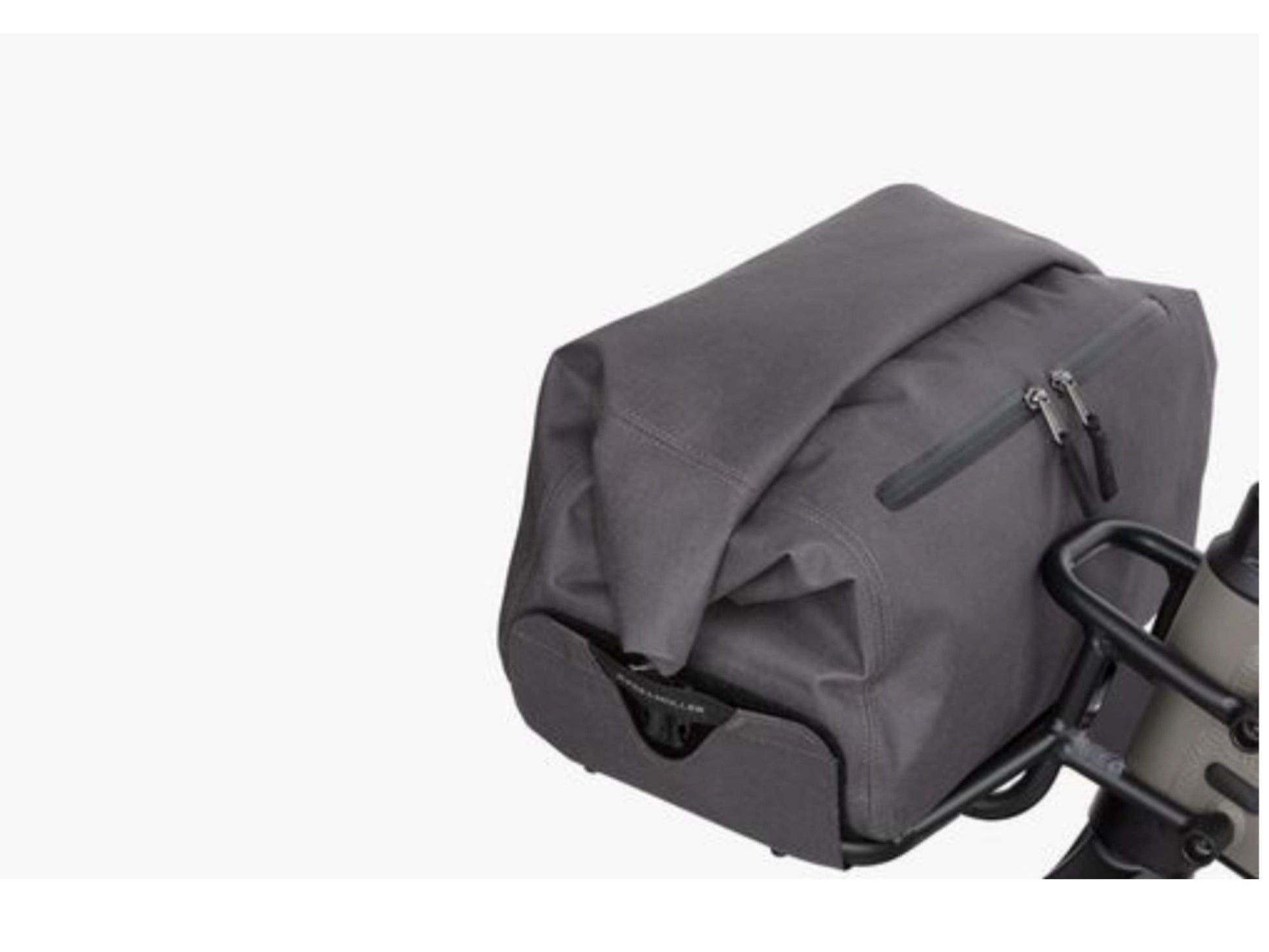

  Front carrier with bag
  Keep on the move and still have everything with you. You can secure up to 5 kg of luggage on the front carrier, which is fixed to the frame and hence benefits from the bike’s full suspension, perfectly protecting your cargo from knocks and bumps. The bag offers space for a volume of up to 18 litres. Thanks to the zipper and roll closure, your transported goods are perfectly protected from dirt and rain. The bag can be removed quickly and easily and becomes a shoulder bag using the strap supplied. You can safely store smaller items in the two outer pockets equipped with waterproof zippers.

  Components subject to manufacturer changes.

  * May differ depending on the availability in your country, design or configuration of the model. The specification table indicates all available components for this model – not just the basic equipment. Some of the options listed are only available for a surcharge.

• Motor	Performance Line CX (Gen4)
  Battery	Bosch PowerTube 500 Vertical, 36 V, 13,4 Ah/500Wh; Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh

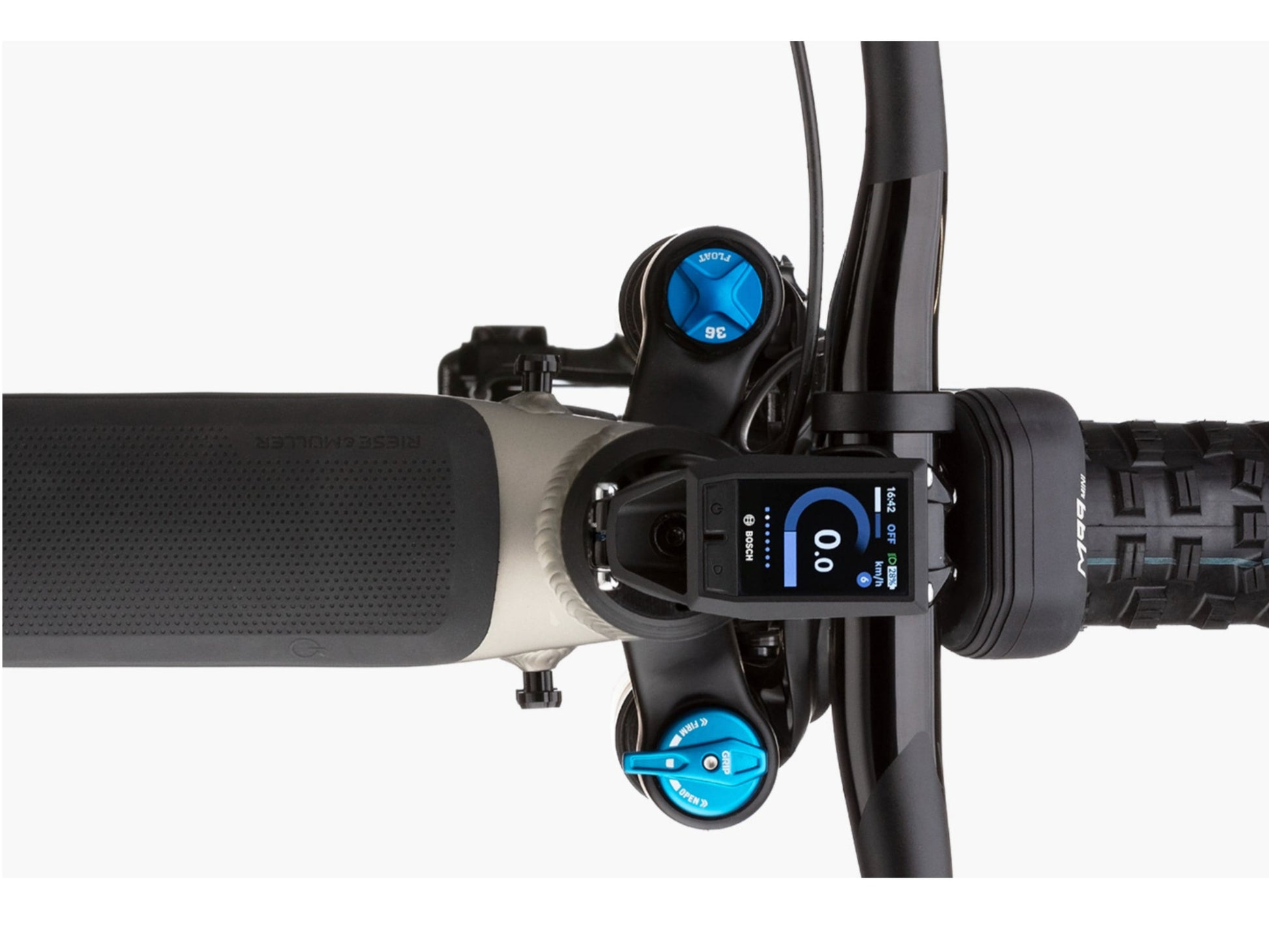

  Display	Bosch Intuvia; Bosch Nyon*; Bosch Kiox*
  Charger	Spec not provided

• Frame	Spec not provided
  Fork	Fox Float 36 Performance, Air, 150mm, Boost
  Rear Shock	Fox Float DPS Performance 210x50
  Front Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Derailleur	Spec not provided
  Shift Levers	Shimano SLX, 12-speed
  Chain	KMC X12 ( 125x )
  Cassette	Sunrace 12-speed, 11-50

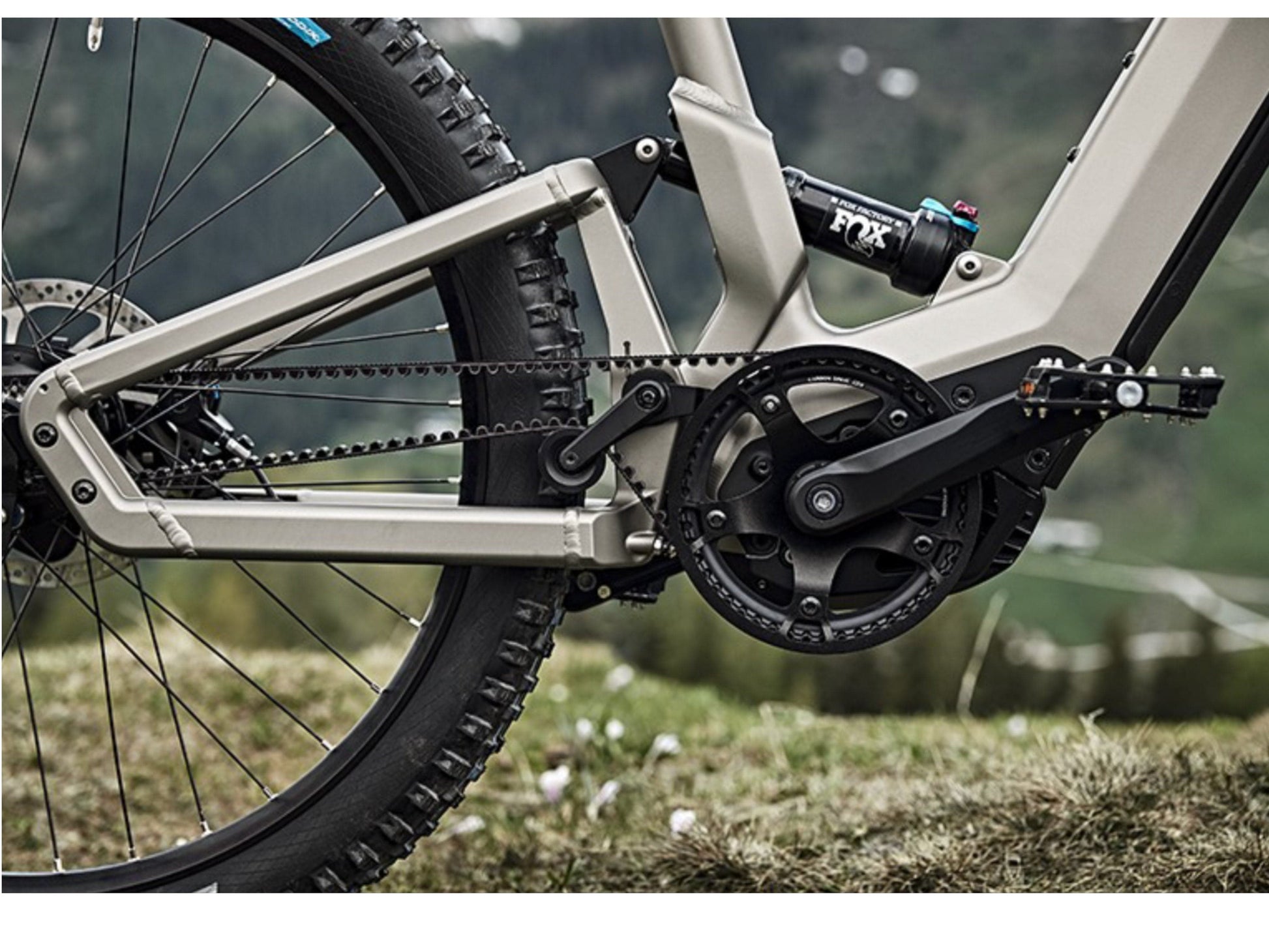

  Crankset	FSA/Riese & Müller, 170 mm
  Chain Ring	38T
  Chain Guard	Chain guard ring
  Rims	Rodi Tryp35 27,5"
  Front Hub	Novatec Boost, QR, 32H
  Rear Hub	Novatec Boost, QR, 36H
  Front Tire	Schwalbe Nobby Nic Evo 65-584; Schwalbe Nobby Nic Evo 70-584
  Rear Tire	Schwalbe Nobby Nic Evo 65-584; Schwalbe Nobby Nic Evo 70-584
  Handlebar	FSA Afterburner, 31,8 mm
  Stem	FSA Afterburner, 6°, 60mm
  Headset	Acros IntegrationX, block lock
  Grips	Ergon GA20 black
  Saddle	FIZIK Monte MG
  Seatpost	Dropper Post X-Fusion Manic 100

• Pedals	VP-531 Flat Pedal, Alu

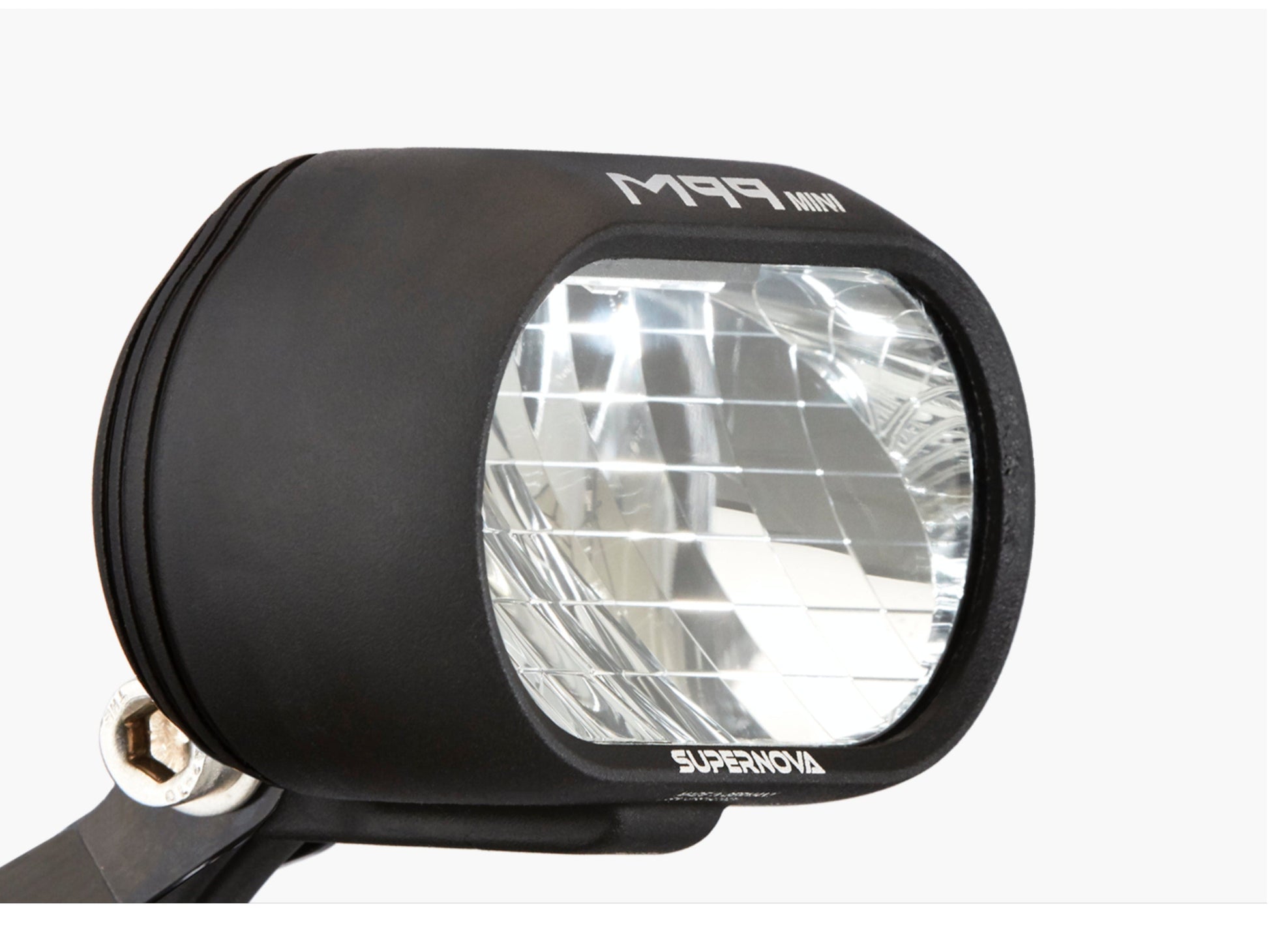

  Front Light	Supernova M99
  Rear Light	Supernova E3 E-Bike; Supernova E3 E-Bike Tail Light 2
  Kickstand	Not applicable
  Rear Carrier	Riese & Müller; Riese & Müller*
  Fenders	Not applicable
  Bell	Billy
  Lock	Abus Bordo X+ 6000/90cm black*
  Mirror	Not applicable

• 47cm	Height = 1.60 - 1.75 m (5'2" - 5'7")
  51cm	Height = 1.70 - 1.85 m (5'5' - 6'0")
  56cm	Height = 1.80 - 2.00 m (5'9" - 6'5")
  Top tube length [cm]	59/62/65
  Reach [cm]	39,5/42,5/45,5
  Stack [cm]	64,5/63,5/64,5
  Seat tube angle [°]	73
  Trail [mm]	105 / 103 / 103
  Wheelbase [cm]	12,5 / 125,5 / 128,5
  Bottom bracket height [cm]	33,5
  Wheelbase [cm]	122,5 / 125,5 / 128,5
  Stand-over height [cm]	84 / 83,5 / 84,5
  Overall length [cm]	194 / 197 / 200
  Head tube length [mm]	150 / 140 / 150
  Gross vehicle weight rating [kg]	140
  Weight rating: Luggage rack [kg]	20
