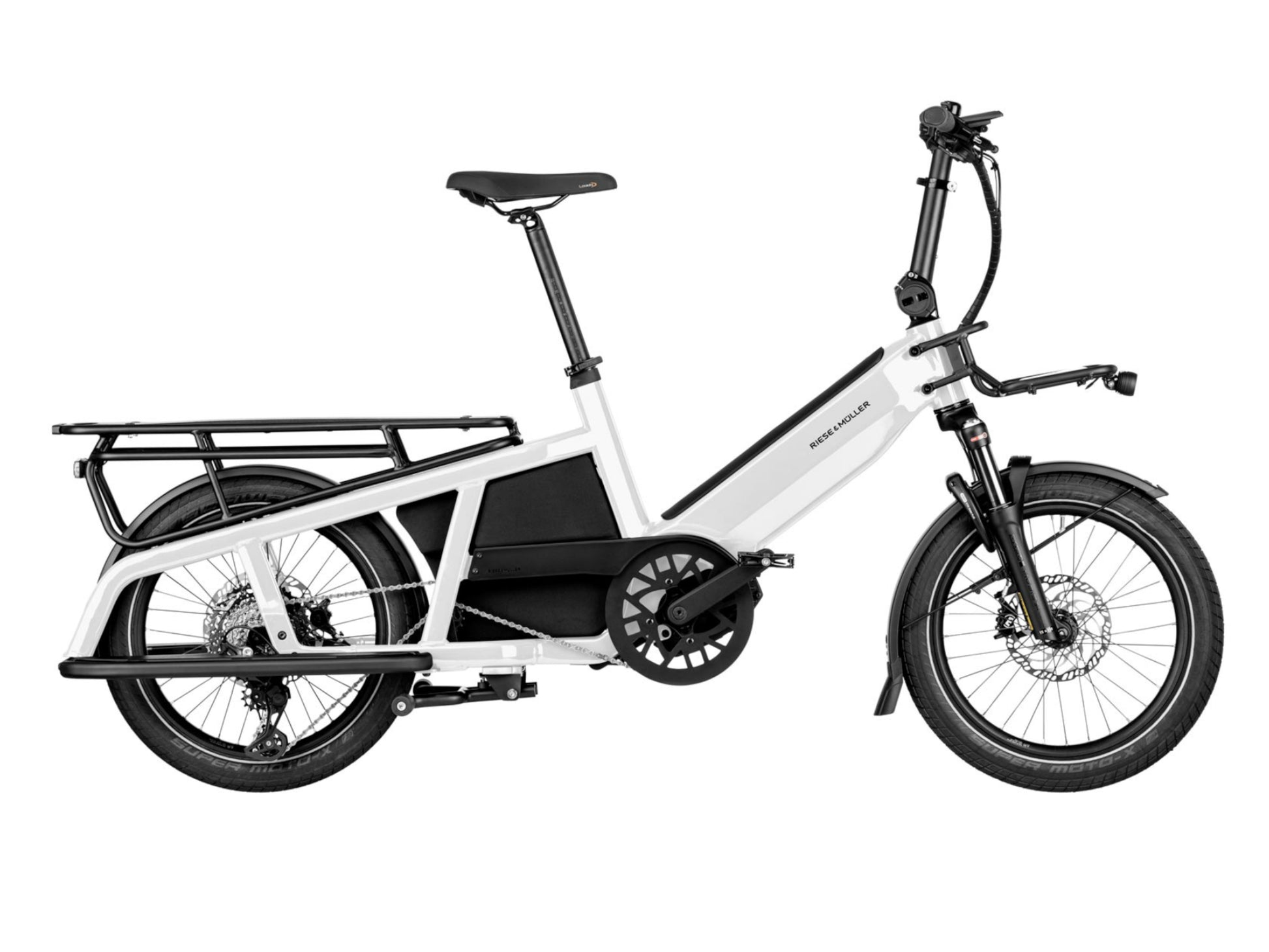

Riese & Muller Multitinker Touring

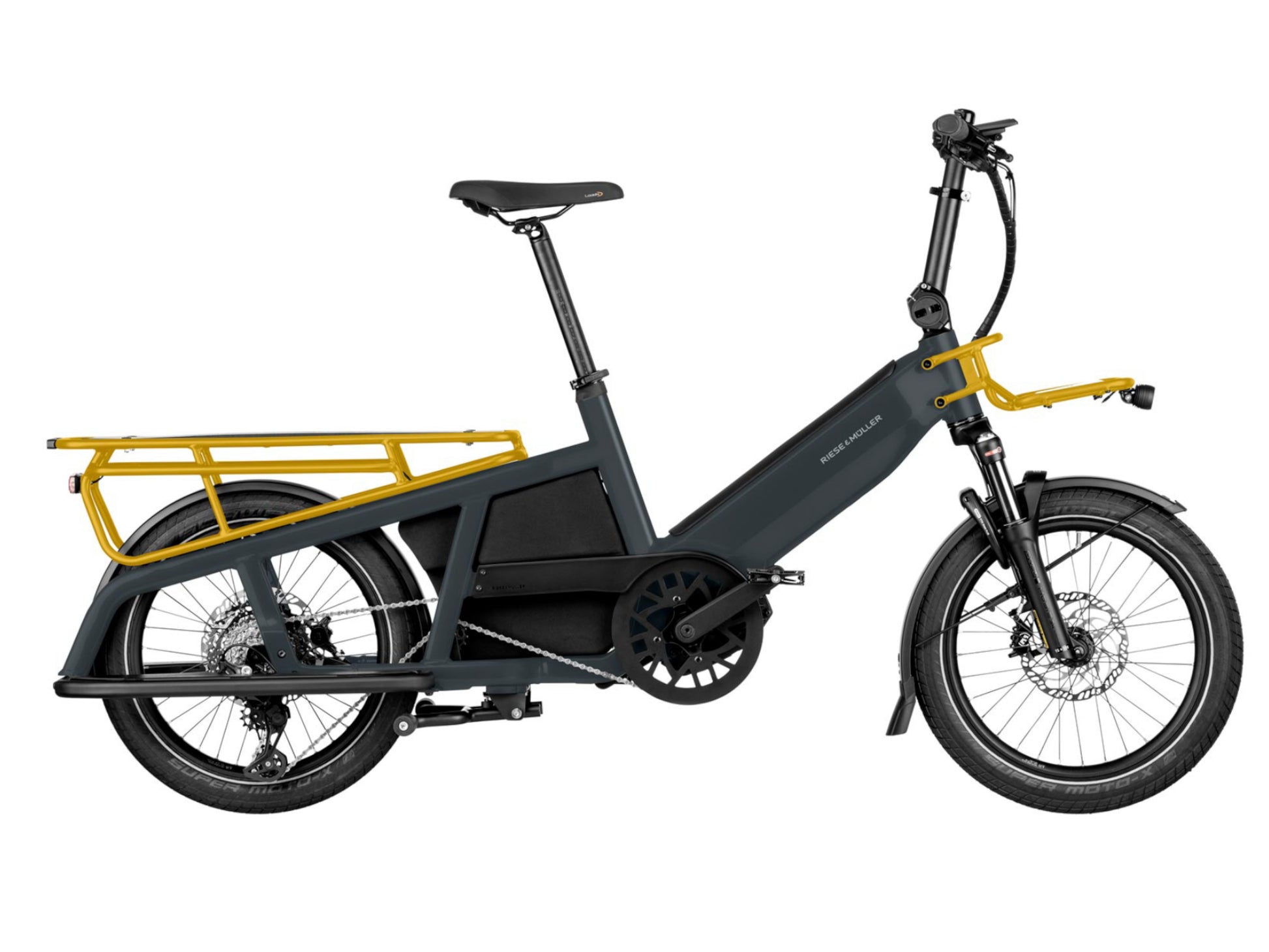

The Full Scoop on the Riese & Muller Multitinker Touring

*images will differ from actual model combination

• Description
• Motor System
• Components
• Extras
• Geometry

•
  The Riese & Muller Multitinker  is the ideal car replacement in the city: transport two children, a large weekly shop or goods of all kinds safely and effortlessly to your destination with the urban E-Bike. The low centre of gravity ensures stable riding behaviour, while the compact length saves space. And you won’t have to leave anything behind, thanks to ingenious details, such as its 20-inch wheels, integrated frame bag and interface for attaching a trailer.




• Motor	Bosch Performance Line CX (Smart system)

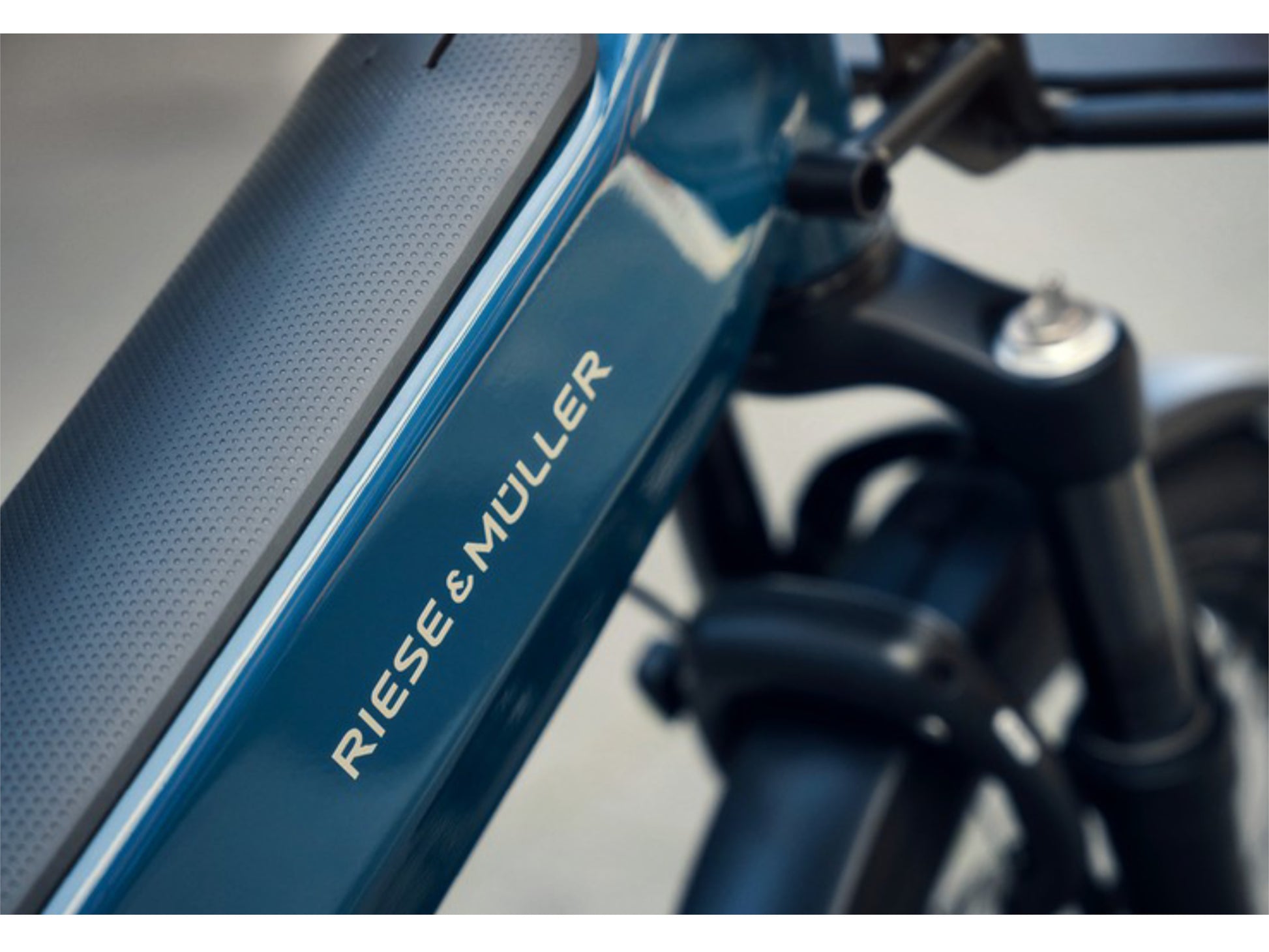

  Battery	Akku Bosch PowerTube 625 Horizontal

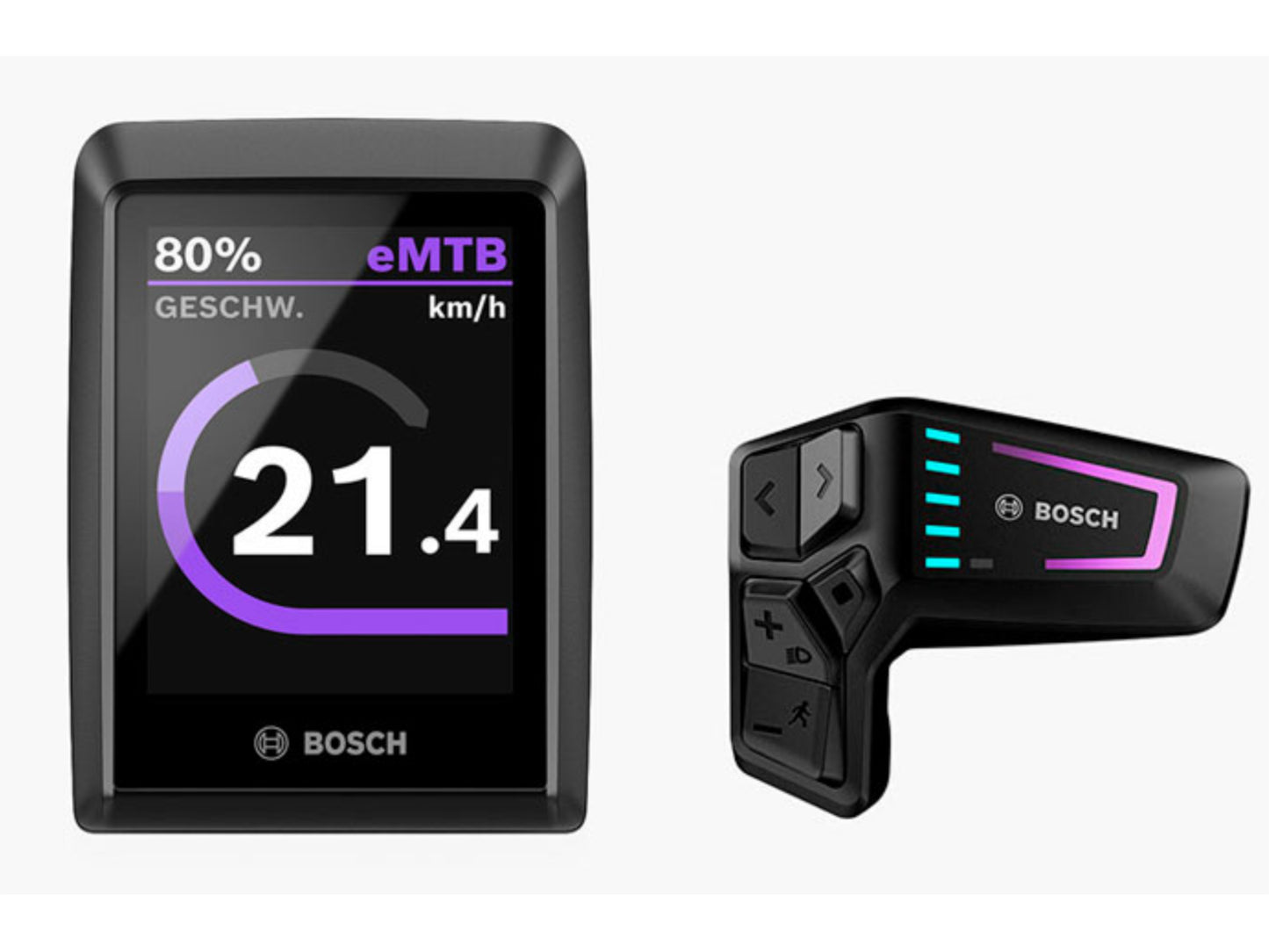

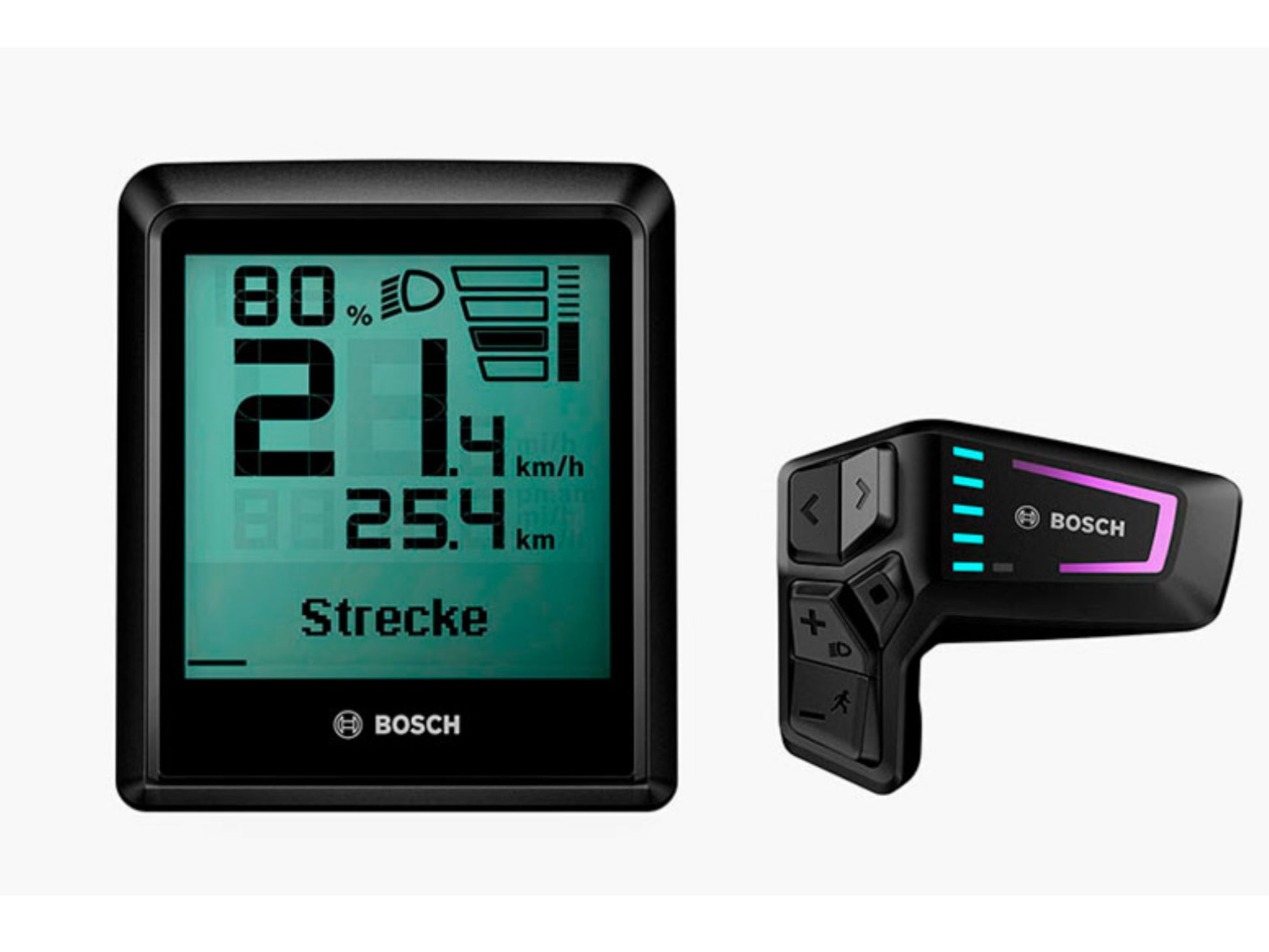

  Display	Bosch Kiox 300; Intuvia 100
  Charger	Spec not provided

•


  Frame	pearl white/black matt*; petrol/black matt*; utility grey/black matt*; utility grey/curry matt*
  Fork	Suntour Mobie A34 CGO Boost, 20", 80mm
  Rear Shock	Not applicable
  Front Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Derailleur/Pinion	Shimano Deore 10-S Linkglide
  Shift Levers	Shimano Deore 10-S Linkglide
  Chain	KMC X11 ( 137x )
  Cassette	Shimano Deore 10-S 11-43 Linkglide
  Crankset	Riese & Müller, 170mm
  Chain Ring	56T
  Chain Guard	Chain guard
  Rims	Mach1 Trucky30 20" CNC
  Front Hub	Novatec Disc 32H
  Rear Hub	Novatec Boost, QR, 36H

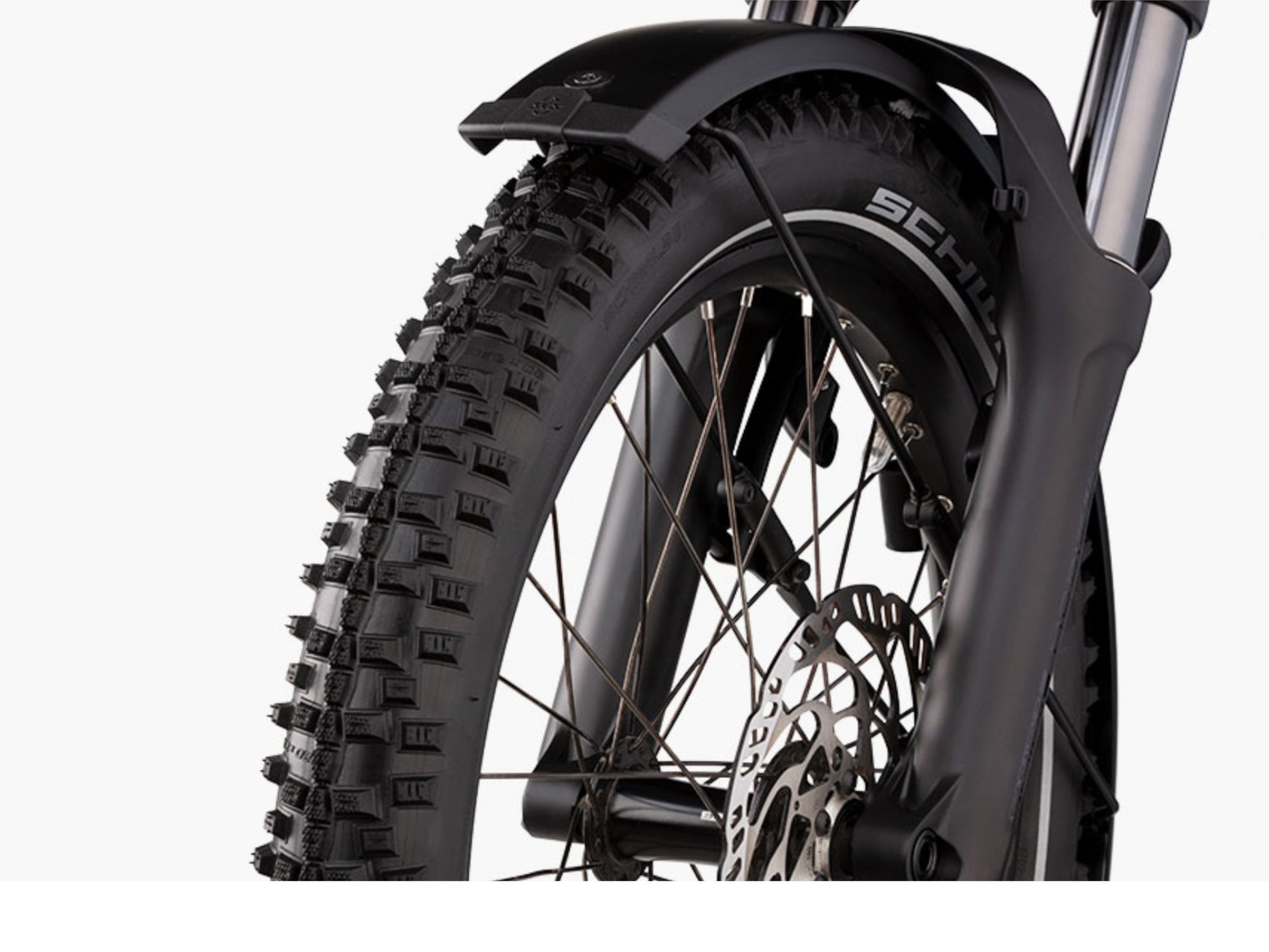

  Front Tire	Schwalbe Super Moto-X 62-406; Reifen 20" SmartSamPlus 60-406 ECE-R75*
  Rear Tire	Schwalbe Super Moto-X 62-406; Reifen 20" SmartSamPlus 60-406 ECE-R75*
  Handlebar	Satori Horizon, 31.8mm 9*, B=620mm

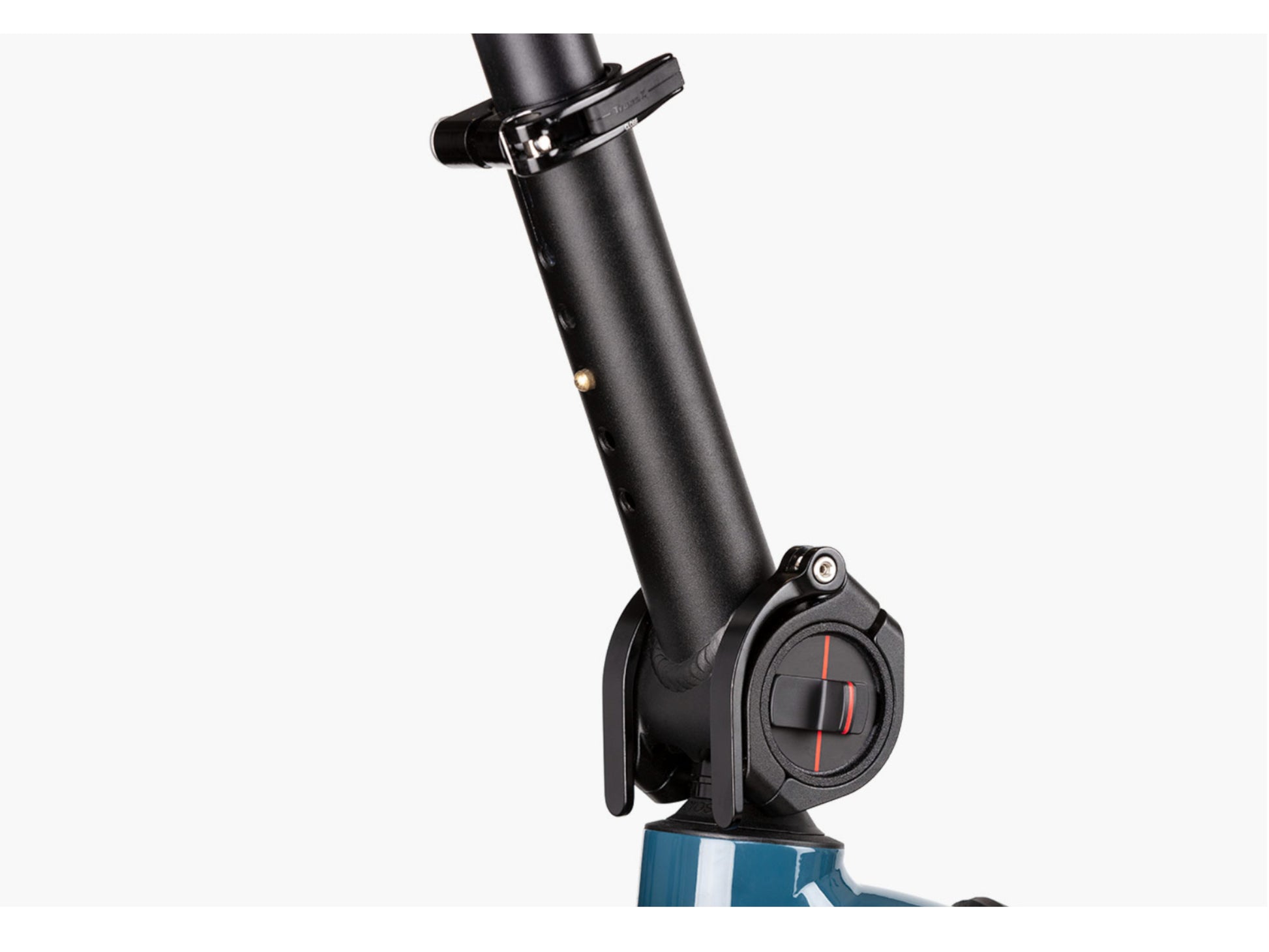

  Stem	Riese & Müller, adjustable height and angle
  Headset	TH No. 9, semi-integrated
  Grips	Herrmans Grips Line; Hermans Grips ( 2x )
  Saddle	Selle Royal New Lookin Male Eco
  Seatpost	JJD/Riese & Müller, Alu, 34,9 x 430mm;

• Pedals	VP R&M Custom
  Front Light	Supernova mini 2 Pro
  Rear Light	Busch & Müller Toplight 2C LED
  Kickstand	Spec not provided
  Rear Carrier	Riese & Müller
  Fenders	SKS A69R
  Bell	Billy

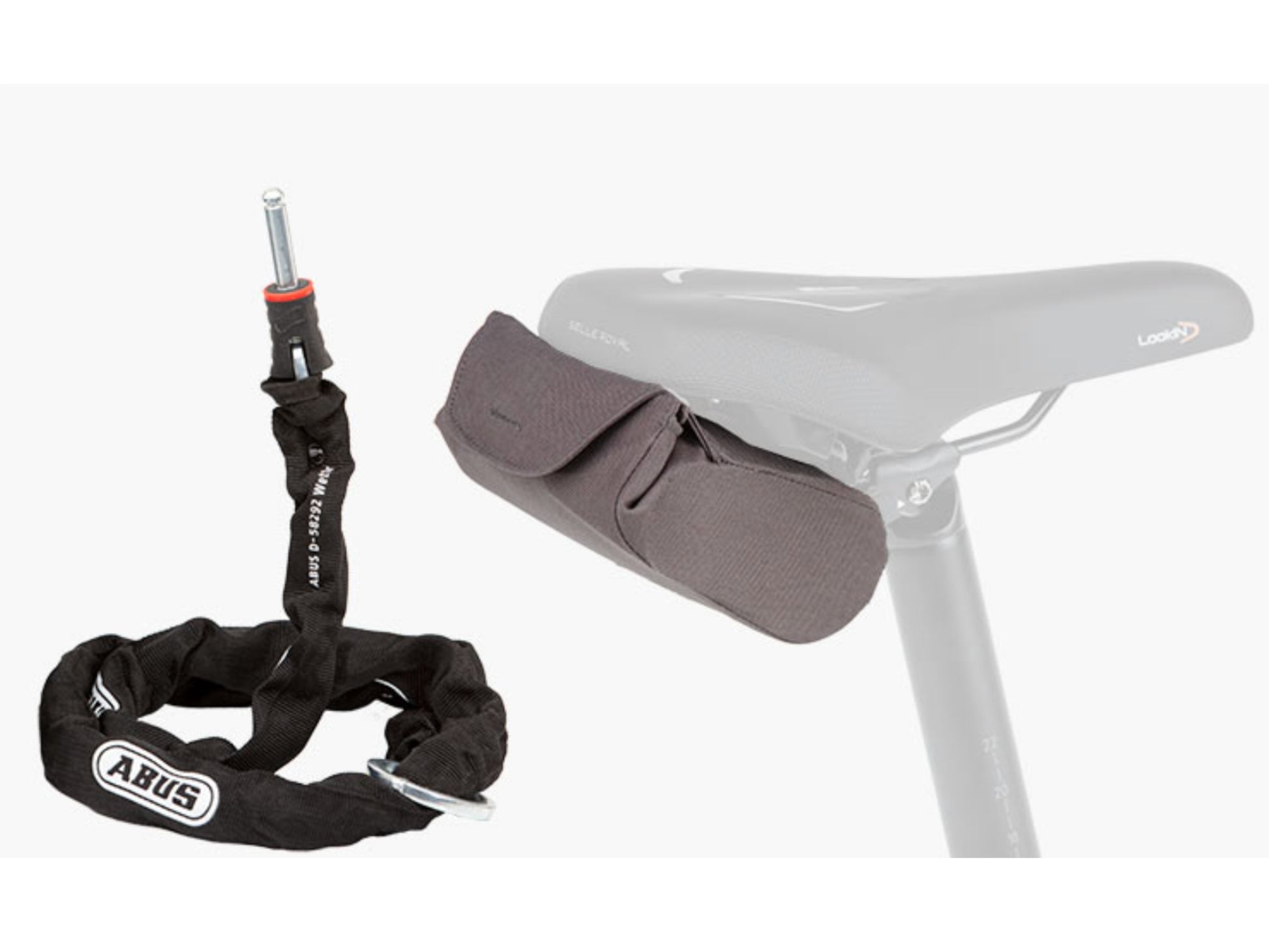

  Lock	ABUS Shield X+
  Mirror	Not applicable

• ONE SIZE	1.50 m (4'9") to 1.95 m (6'4")
  Top tube length [cm]	58.2
  Head tube angle [°]	72
  Seat tube angle [°]	72
  Trail [mm]	91
  Wheelbase [cm]	130.5
  Bottom bracket height [cm]	28.5
  Top tube height [cm]	46.4
  Overall length [cm]	188.7
  Head tube length [mm]	140
  Gross vehicle weight rating [kg]	200
  Weight rating: Luggage rack [kg]	65
