Riese & Muller Nevo4 GT Touring

The Full Scoop on the Riese & Muller Nevo4 GT Touring

• Description
• Motor System
• Components
• Extras
• Geometry

•

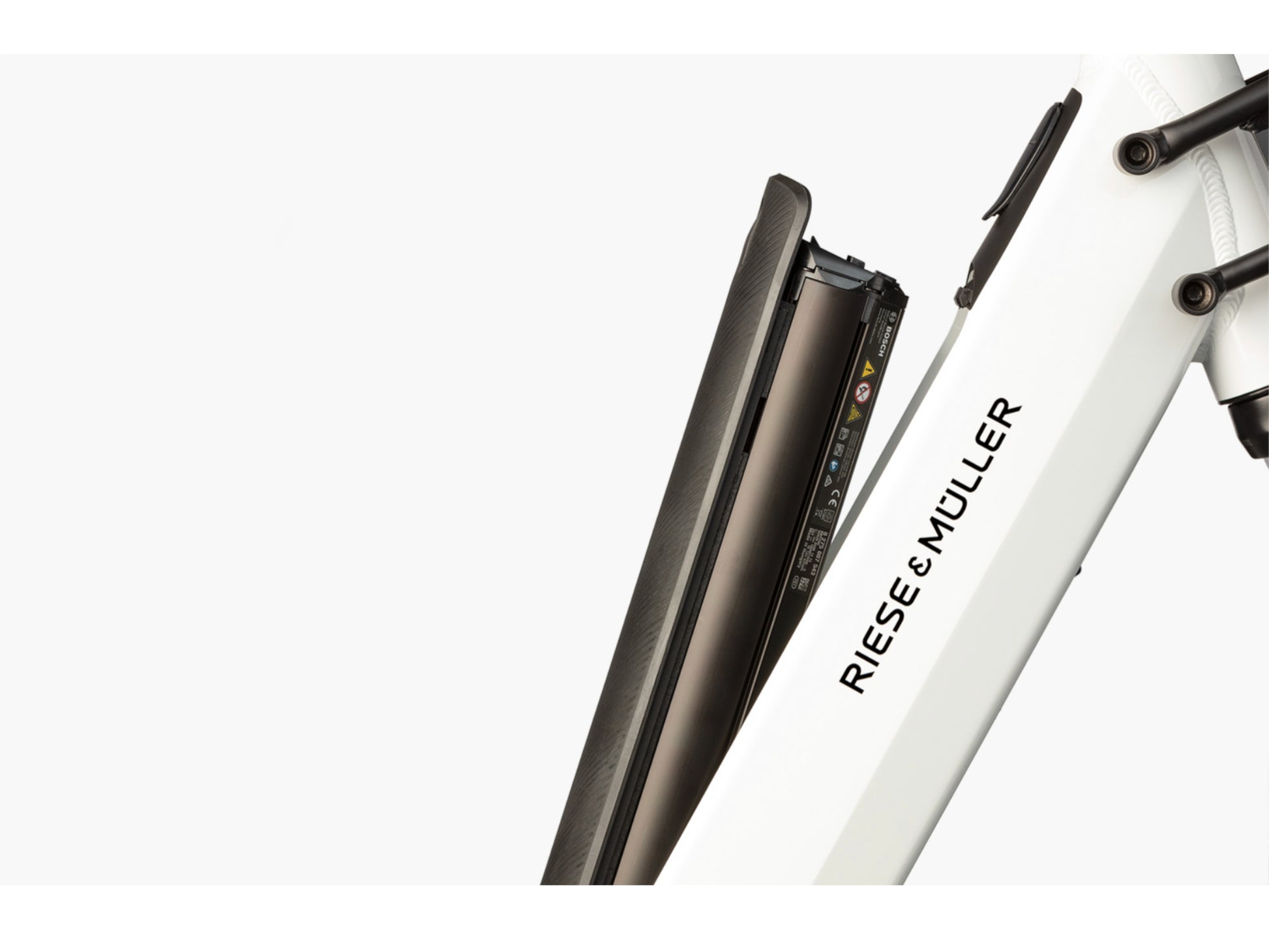

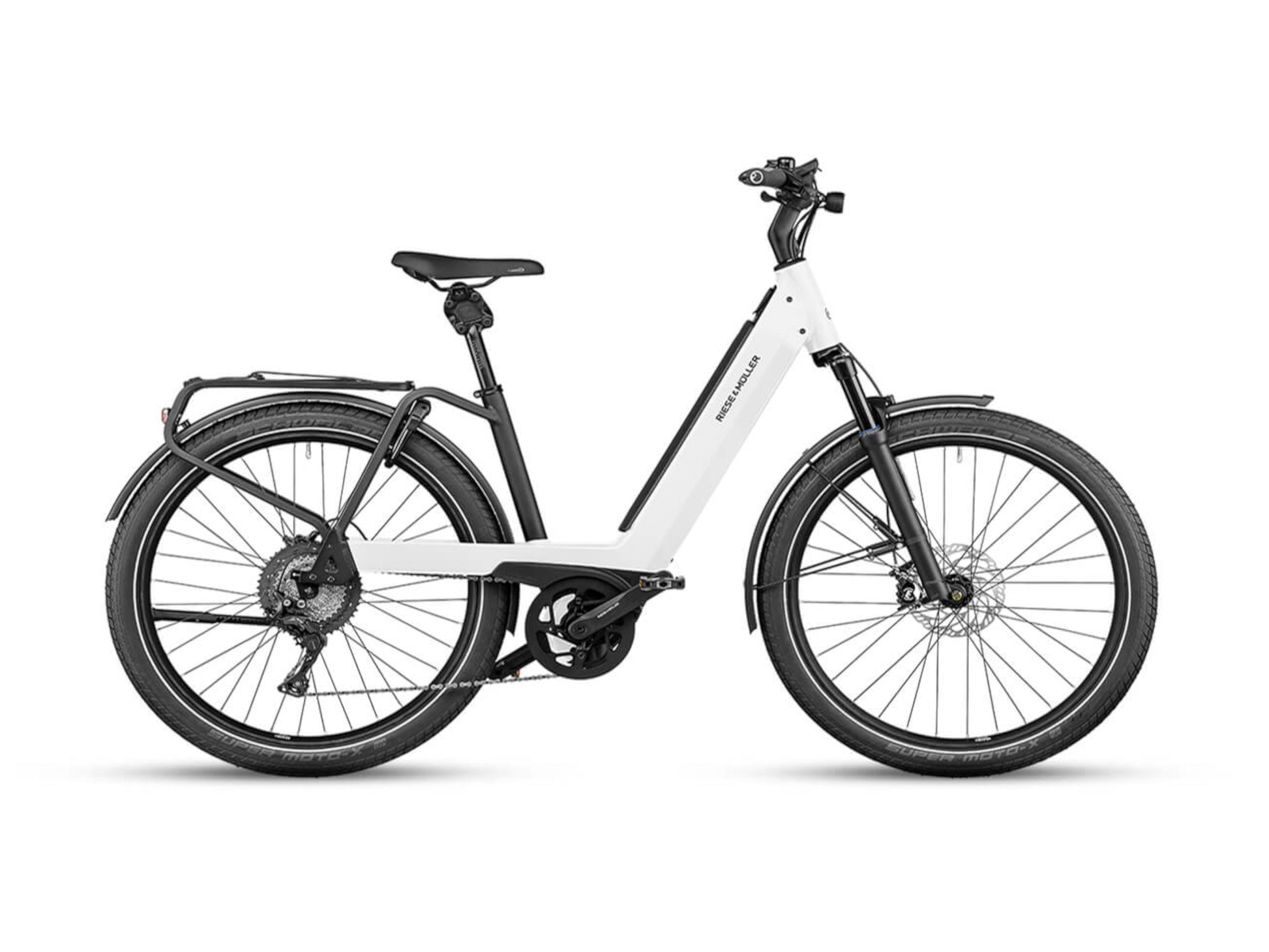

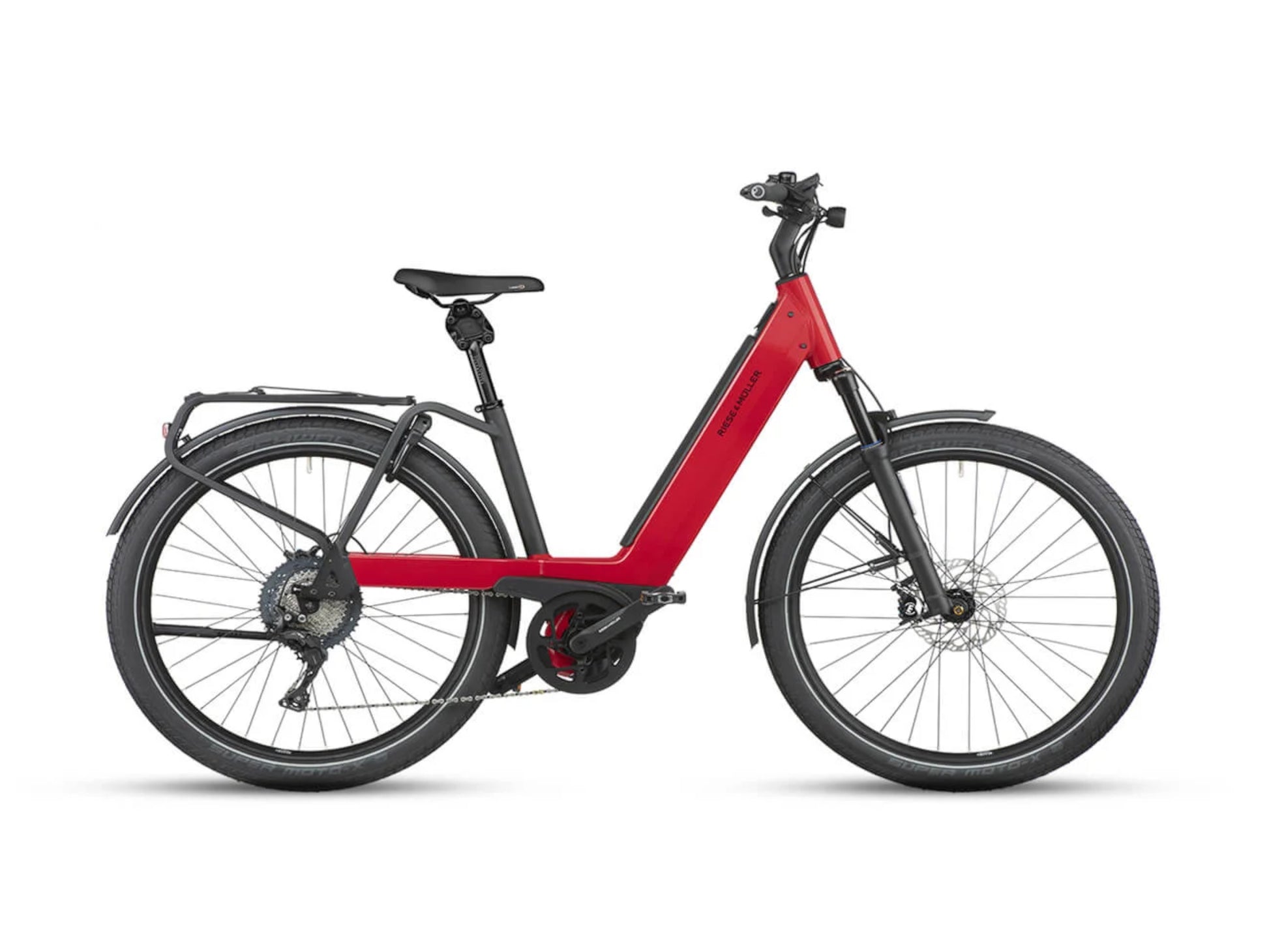

  The Riese & Muller Nevo GT Touring.Super sporty. Super comfortable. Its distinctive design, coupled with its integrated battery and powerful drive, make the Riese & Muller Nevo GT Touring a real gem for everyday use. It impresses with its high level of riding comfort and pleasant handling thanks to its low step-through. Even longer outings are a piece of cake, thanks to the optional DualBattery boasting up to 1,125 Wh.

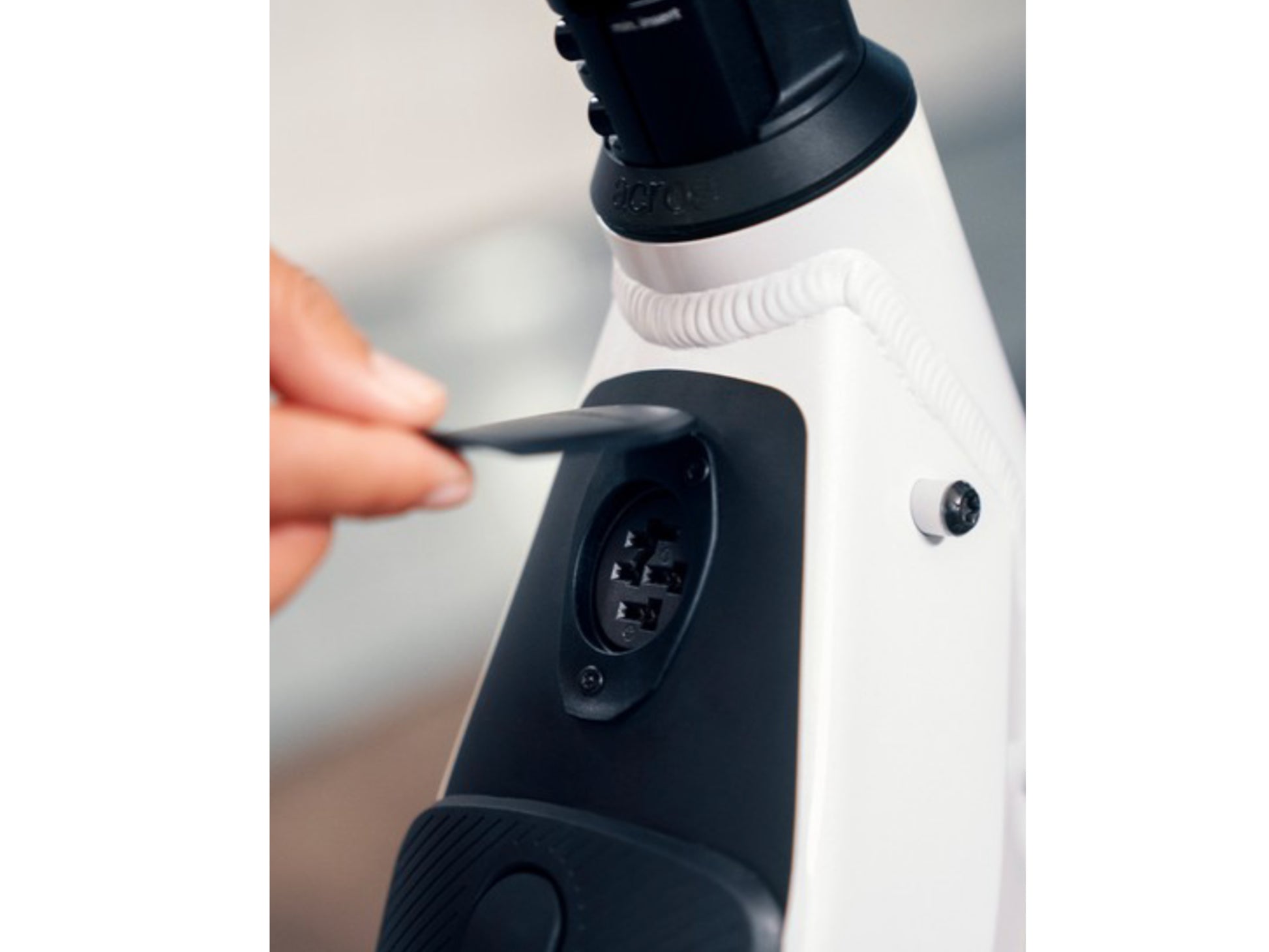

  Whether you’re riding, charging or locking the Nevo GT Touring up – it gives you a totally comfortable experience. The Bosch Performance Line CX motor with 85 Nm ensures sporty acceleration, while the suspension seatpost provides for a pleasant ride.

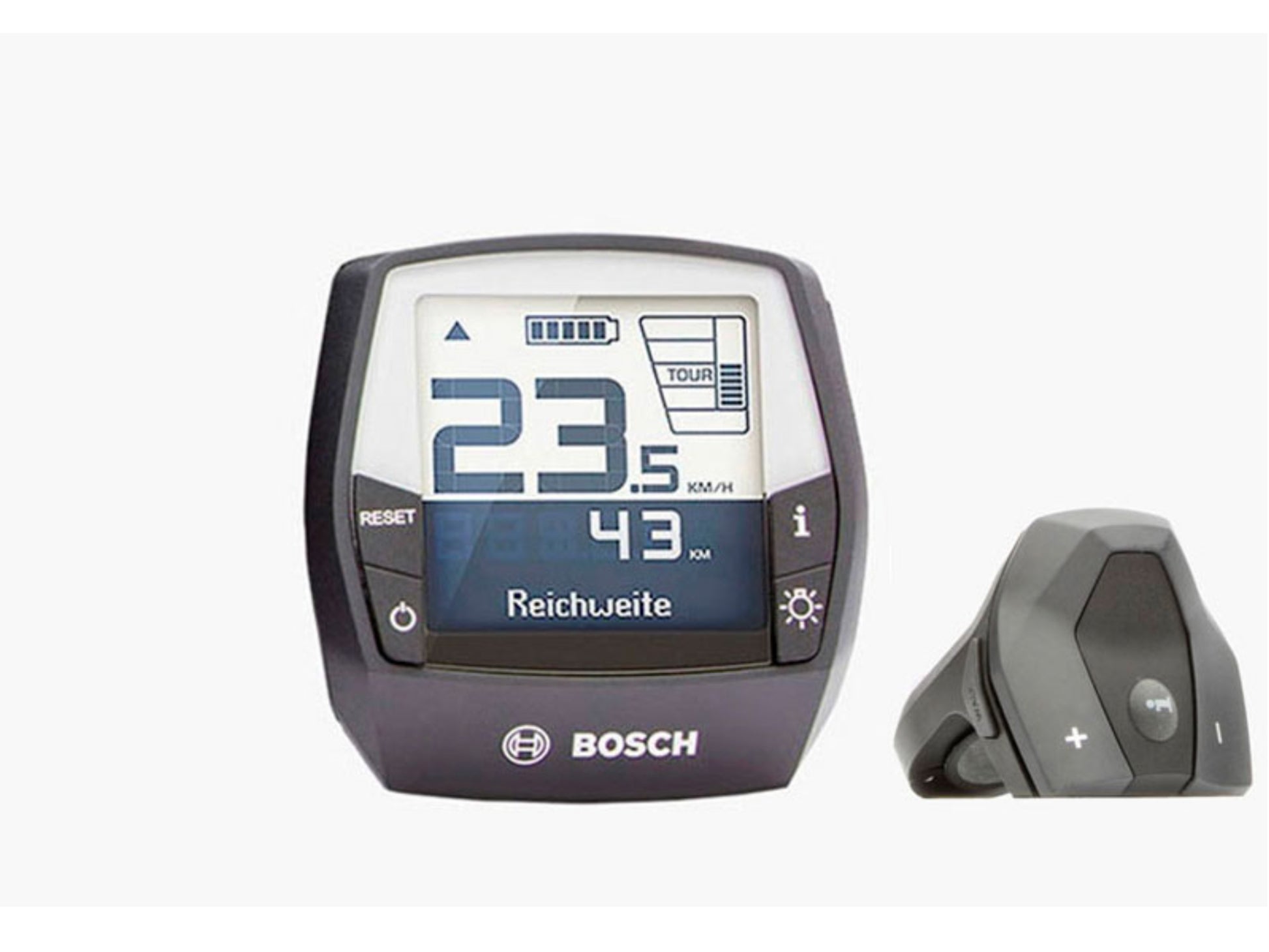

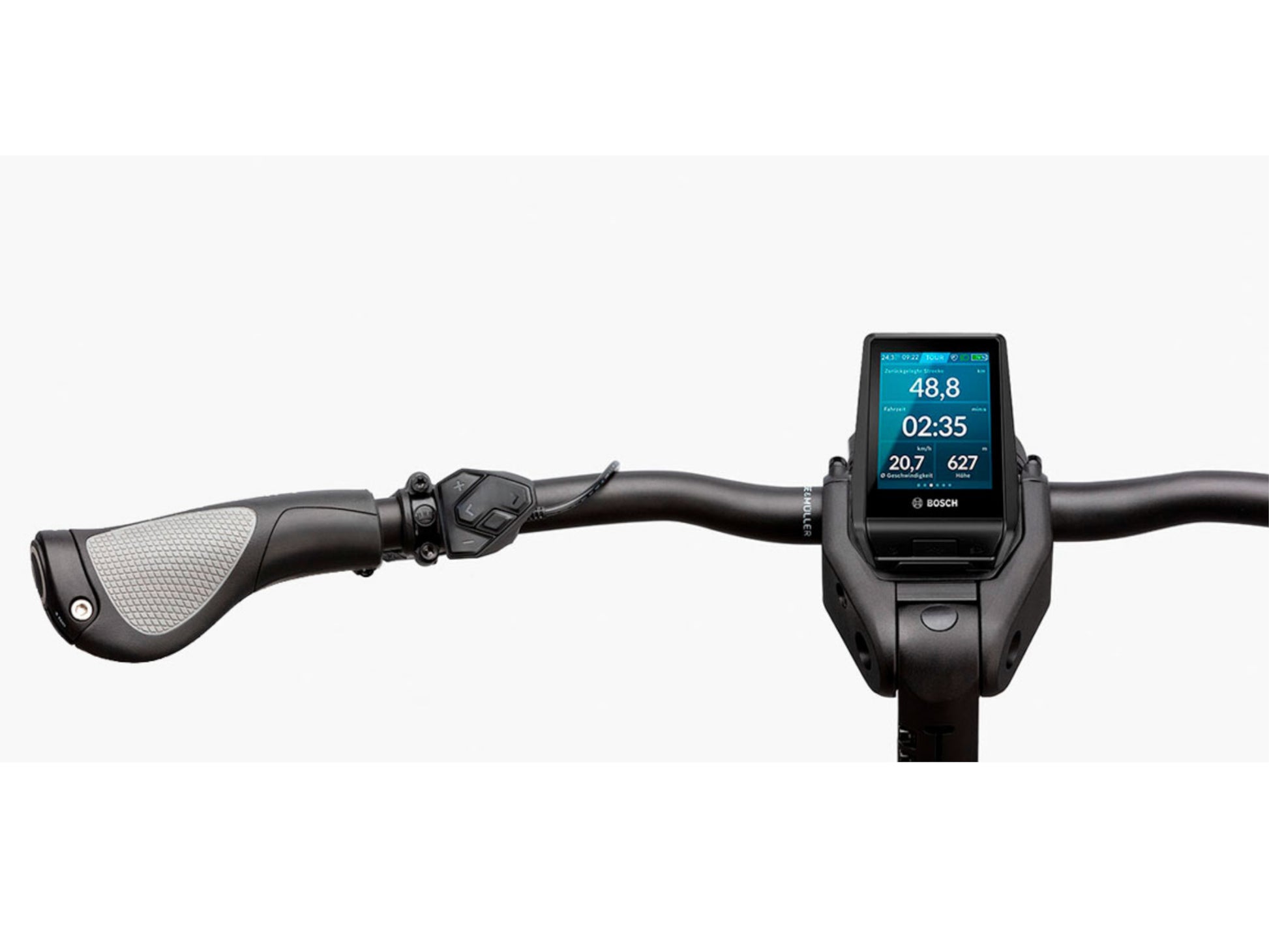

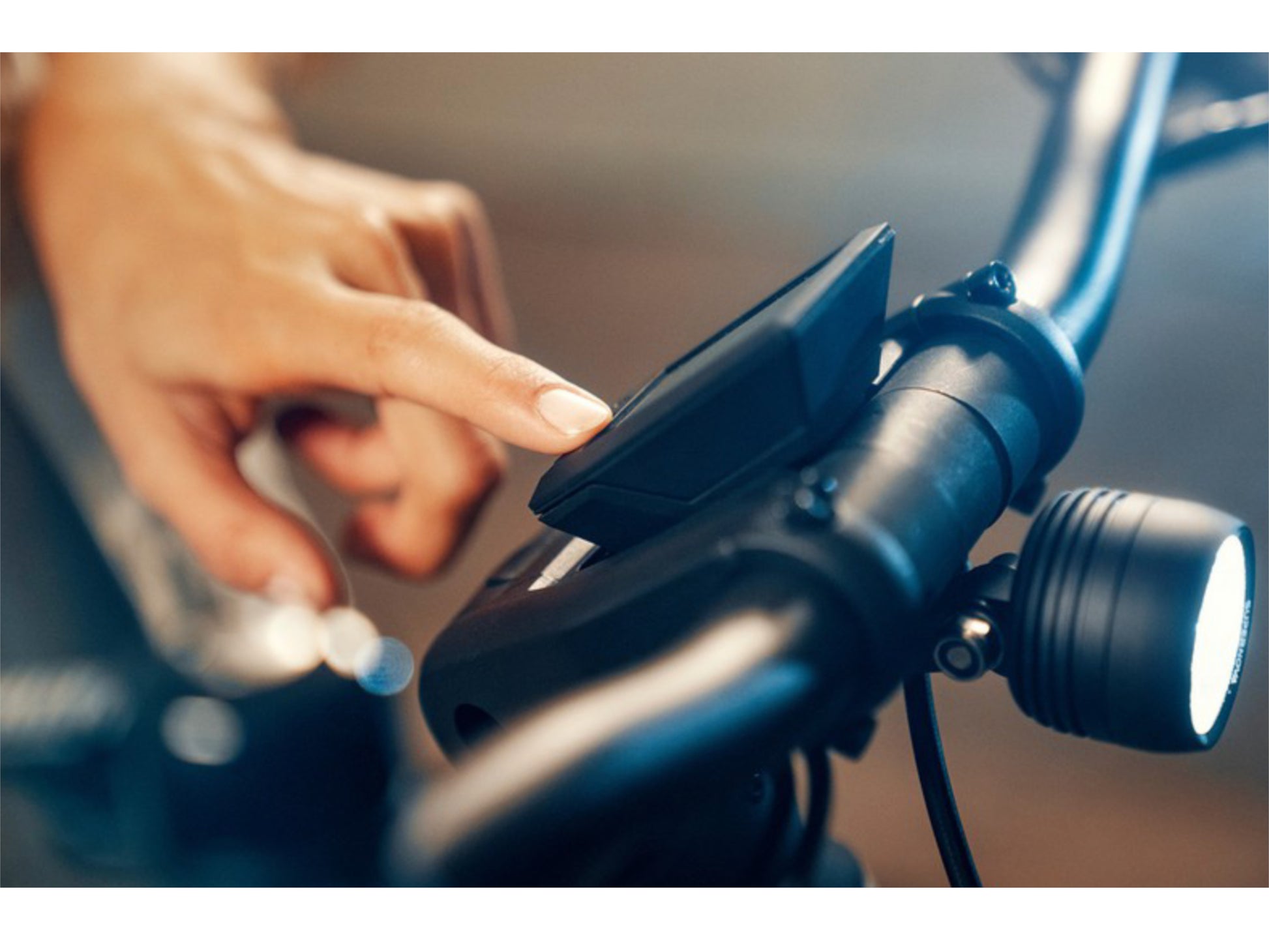

  All three on Nevo GT Touring's display options are perfectly integrated in the handlebar and feature clean cable routing. The angle-adjustable stem of the cockpit can be adapted for a comfortable or sportier sitting position. But the standard equipment with Intuvia display also offers a tidy appearance.

  Components subject to manufacturer changes.

  * May differ depending on the availability in your country, design or configuration of the model. The specification table indicates all available components for this model – not just the basic equipment. Some of the options listed are only available for a surcharge.

• Motor	Performance Line  CX (Gen4)
  Battery	Bosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh*; Bosch PowerTube 500 Horizontal, 36 V, 13,4 Ah/500Wh*; Bosch PowerTube 625 Horizontal, 36 V, 13,4 Ah/625Wh*

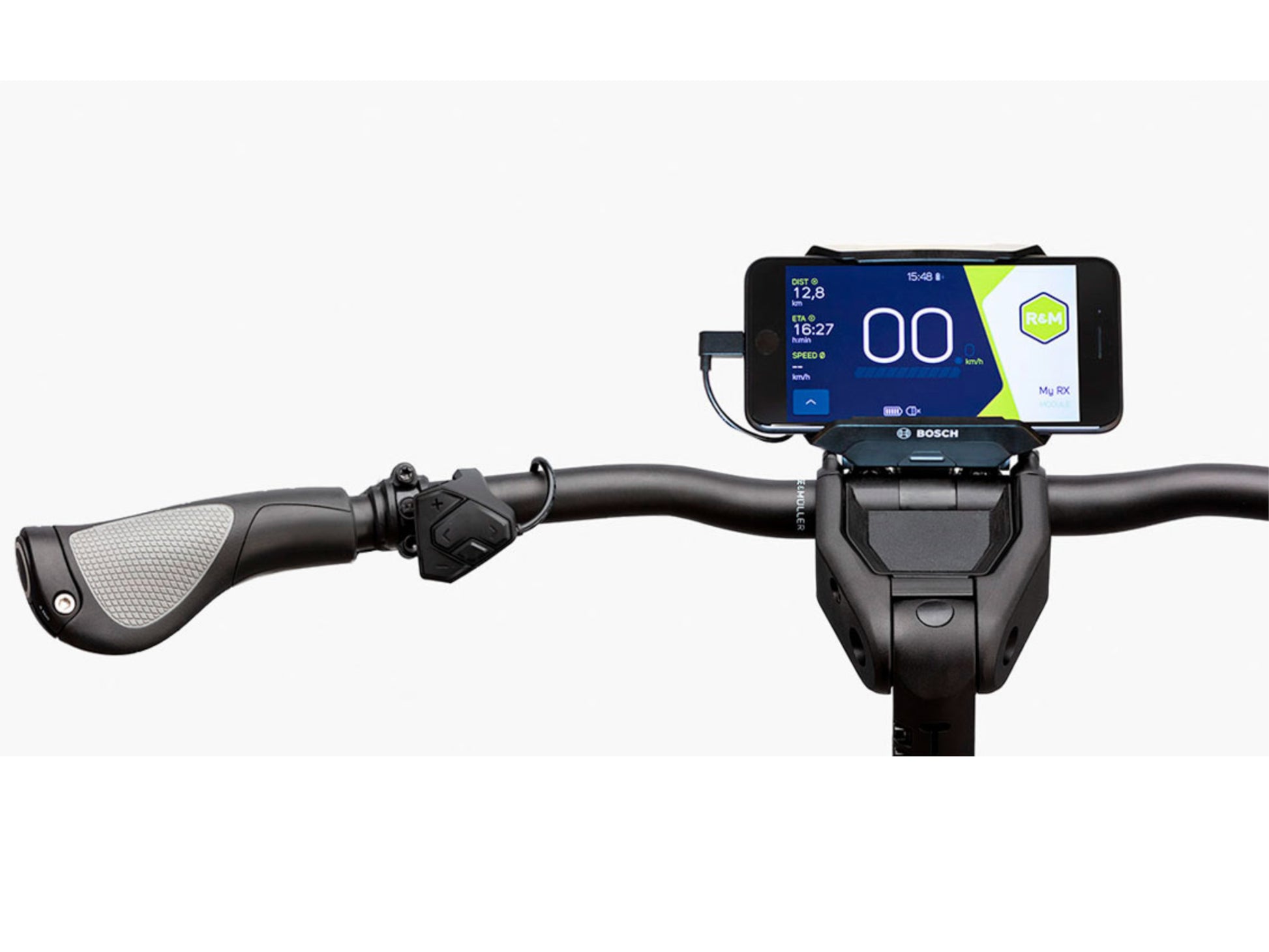

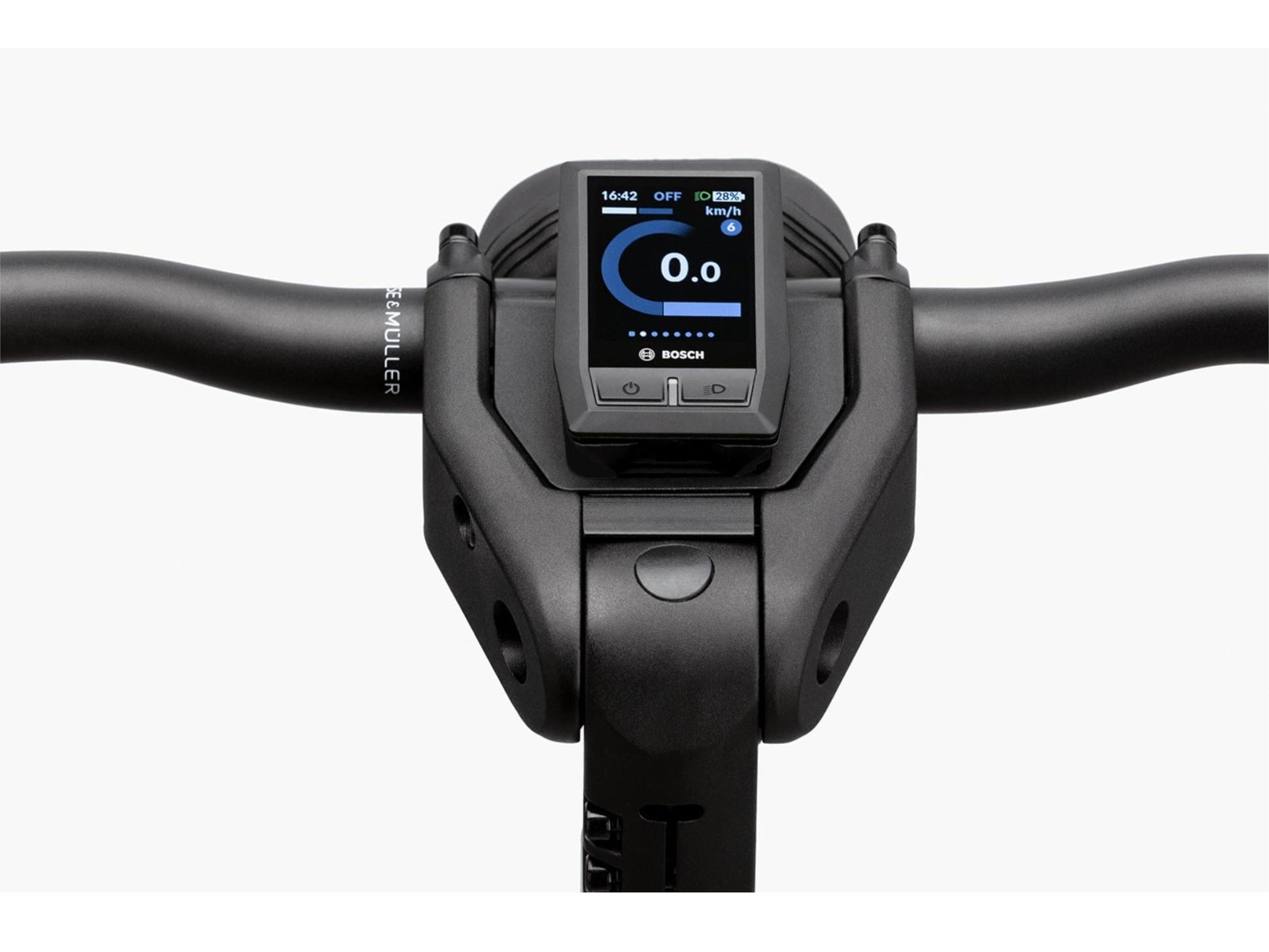

  Display	Bosch Intuvia; Bosch Nyon*; Bosch Kiox* Smartphone hub*
  Charger	Spec not provided

• Frame	Spec not provided
  Fork	Suntour Aion, Air, tapered, 100mm; Suntour XCR32 27,5", Air, tapered, black*
  Rear Shock	Not applicable
  Front Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Derailleur	Shimano Deore 10-S Linkglide
  Shift Levers	Shimano Deore 10-S Linkglide
  Chain	KMC X11 ( 123x ); KMC X11 ( 121x )*
  Cassette	Shimano Deore 10-S 11-43 Linkglide

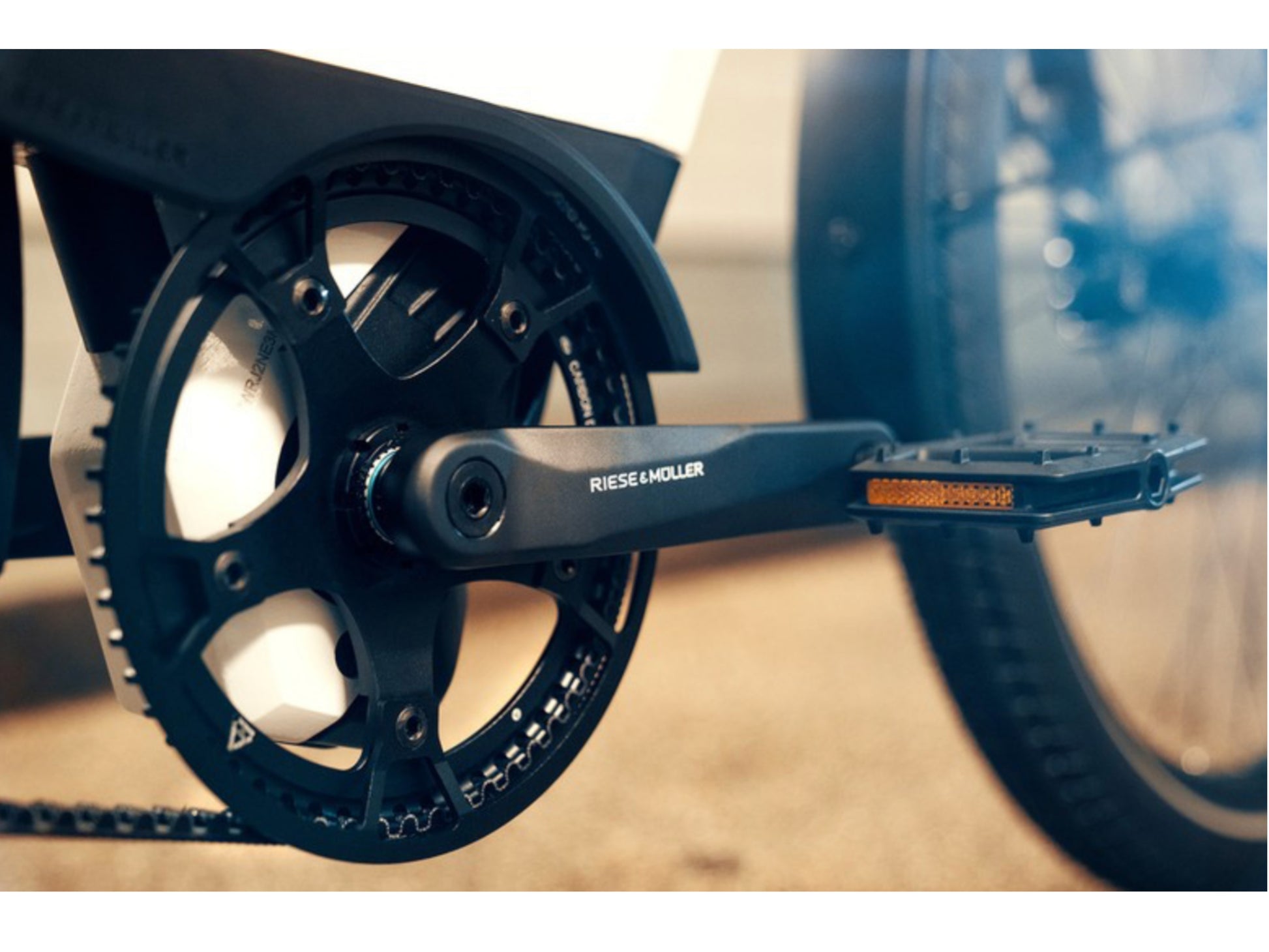

  Crankset	FSA/Riese & Müller, 170 mm
  Chain Ring	42T; 48T*
  Chain Guard	Chain guard ring
  Rims	Rodi Tryp35 27,5"; Mach1 650, 26"*
  Front Hub	Novatec Disc 32H
  Rear Hub	Shimano Deore Disc, 36H

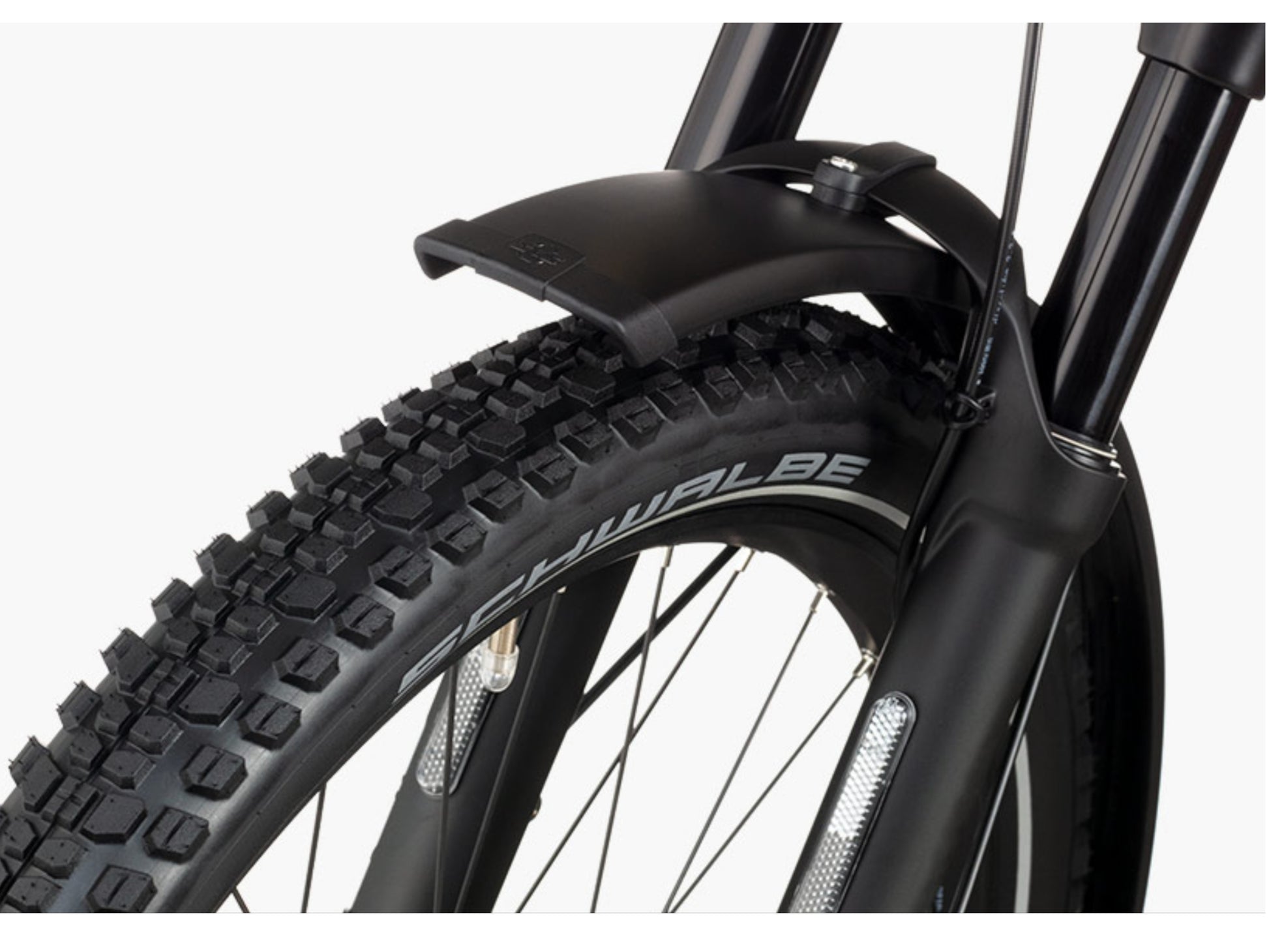

  Front Tire	Schwalbe Super Moto-X 62-584 Reflex; Schwalbe Big Ben Plus 55-559 Reflex*; Schwalbe Johnny Watts 60-584*; Schwalbe Smart Sam Plus 57-559 Reflex*
  Rear Tire	Schwalbe Super Moto-X 62-584 Reflex; Schwalbe Big Ben Plus 55-559 Reflex*; Schwalbe Johnny Watts 60-584*; Schwalbe Smart Sam Plus 57-559 Reflex*
  Handlebar	Humpert ergotec Ergo XXL, 31,8 mm; Humpert ergotec Trekking, 31,8 mm, Alu*; Satori R&M Custom Komfort, 25,4 mm, Alu*; Satori R&M Custom, 25,4mm, Alu*

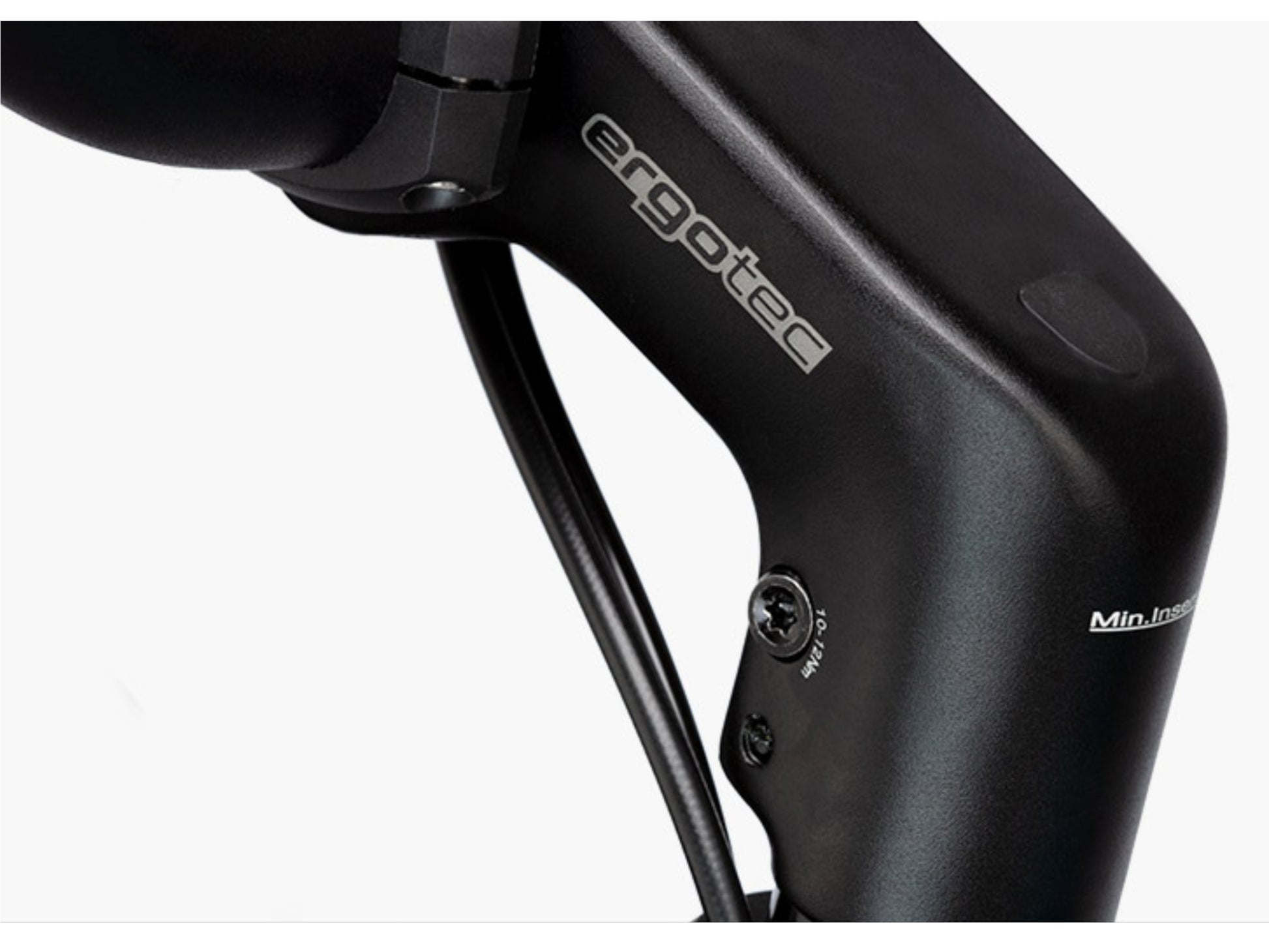

  Stem	Humpert ergotec Barracuda Evo, 90 mm, 20°; Satori R&M Custom, cable integration, adjustable angle, Alu*
  Headset	Acros IntegrationX, block lock
  Grips	Ergon ergonomic
  Saddle	Selle Royal New Lookin Evo R&M; Selle Royal New Lookin Female Evo R&M*; Selle Royal Nuvola*
  Seatpost	Cane Creek New Thudbuster ST

• Pedals	VP R&M Custom; VP-658, oversized spindle *

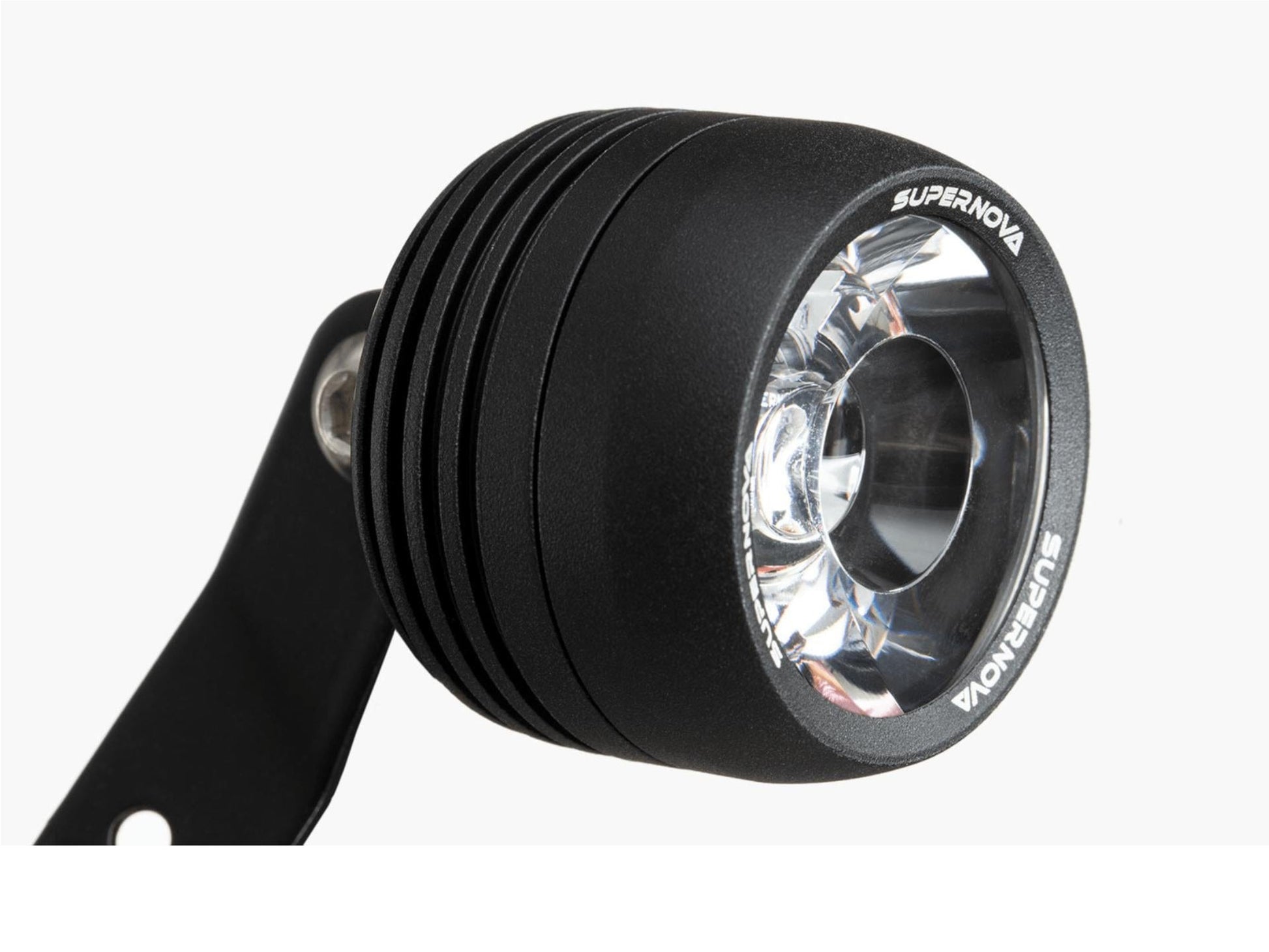

  Front Light	Supernova mini 2 Pro
  Rear Light	Busch & Müller Toplight 2C LED
  Kickstand	Ursus R78 King 2 Kickstand
  Rear Carrier	Riese & Müller, MIK
  Fenders	SKS A69R
  Bell	Billy

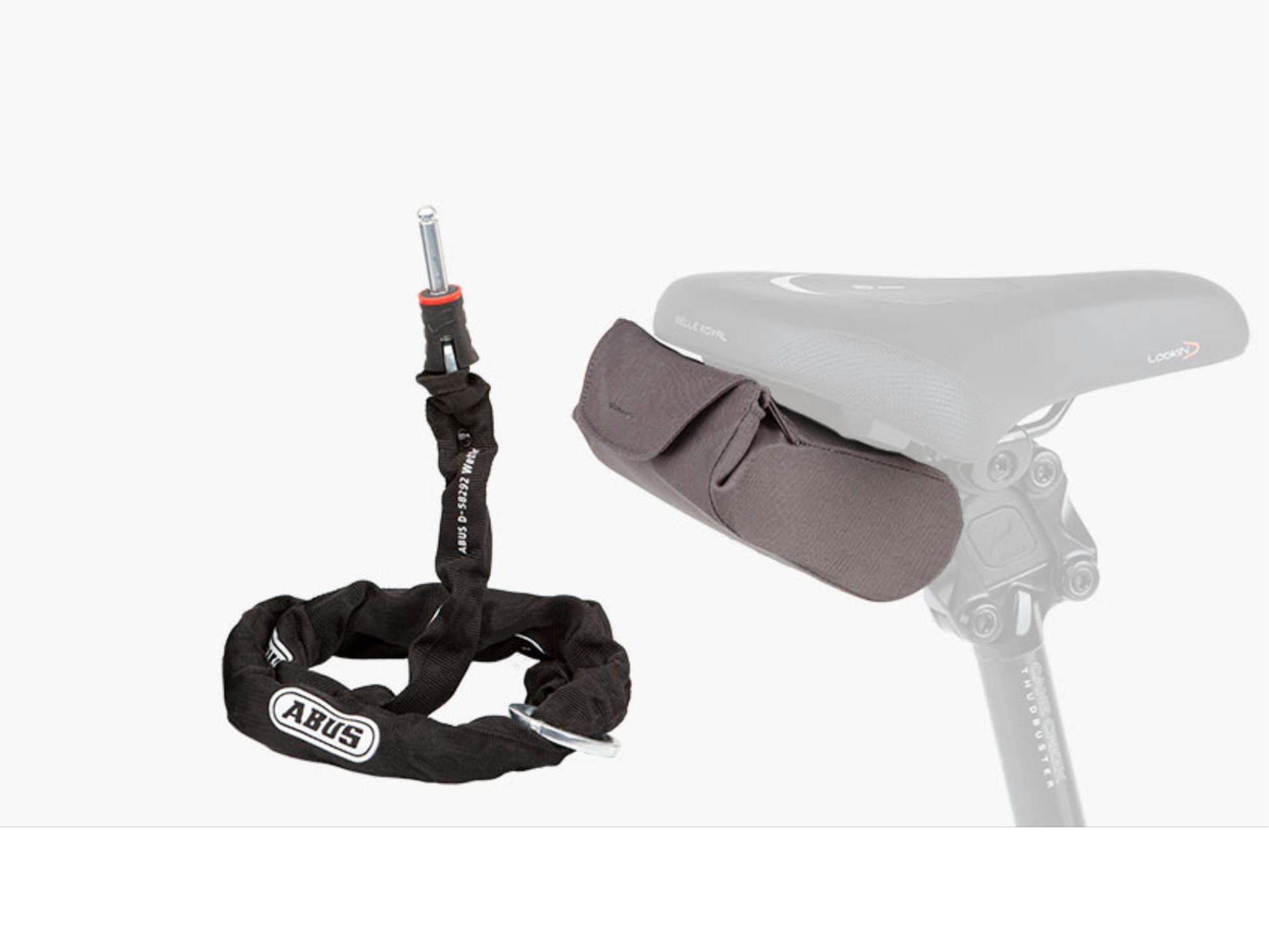

  Lock	ABUS Shield; ABUS Shield X+*

•


  	43	47	51	56
  Height	5'1" - 5'7"	5'5" - 5'10"	5'7" - 6'0"	5'10" - 6'4"
  Top tube length [cm]	56	60	62	64
  Reach [cm]	34,5	37	39	41
  Stack [cm]	64,5	69,5	69,5	69,5
  Head tube angle [°]	68,5	68	68,5	68,5
  Seat tube angle [°]	74	74	74	74
  Trail [mm]	87	96	93	93
  Wheelbase [cm]	107	114,5	115,5	117,5
  Bottom bracket height [cm]	27,5	27,5	27,5	27,5
  Stand-over height [cm]	43,5	43,5	43,5	43,5
  Chainstay length [cm]	45	48	48	48
  Overall length [cm]	174	185,5	186,5	188,5
  Wheel size ['']	26	27,5	27,5	27,5
  Head tube length [mm]	170	170	170	170
  Front suspension travel [mm]	80	100	100	100
  Rear dropout width [mm]	135	135	135	135
  Gear ratio [m]	2,16-9,03	2,00-8,36	2,00-8,36	2,00-8,36
  Weight [kg]	27,9	28	28,1	28,2
  Weight [lbs]	62	62	62	62
  Gross vehicle weight rating [kg]	140	140	140	140
  Weight rating: Luggage rack [kg]	20	27,5	27,5	27,5
  Weight rating: Handlebar bag/basket [kg]	5	5	5	5
  Childseat compatibility	Yes	Yes	Yes	Yes
  Trailer compatibility: Single wheel/single attachment point	Yes	Yes	Yes	Yes
  Trailer compatibility: Two wheel/single attachment point	Yes	Yes	Yes	Yes
  Compatibility: Tagalong trailer bike	Yes	Yes	Yes	Yes
