Scott Aspect eRide 940

Sizing Guide

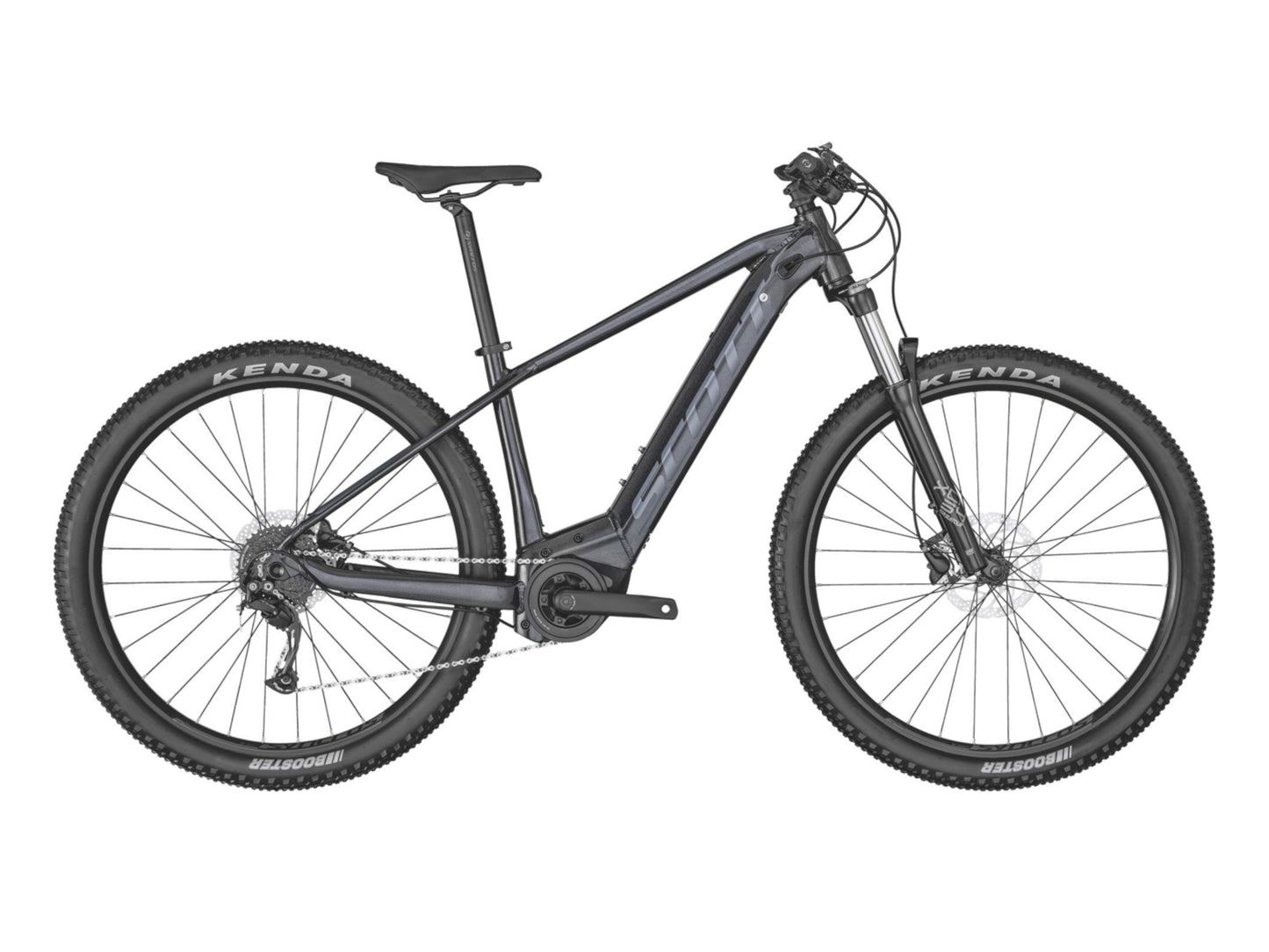

The Full Scoop on the Scott Aspect eRide 940

  • The SCOTT Aspect eRIDE 940 features proven electric assist technology in a comfortable off-road package. With an integrated battery, and powered by a 500wh Bosch drive system, the Aspect eRIDE will give you hours of trail riding energy. Rack and fender available.

  • Motor Bosch Active Line Plus
    EU: 25kmh / INT: 20mph

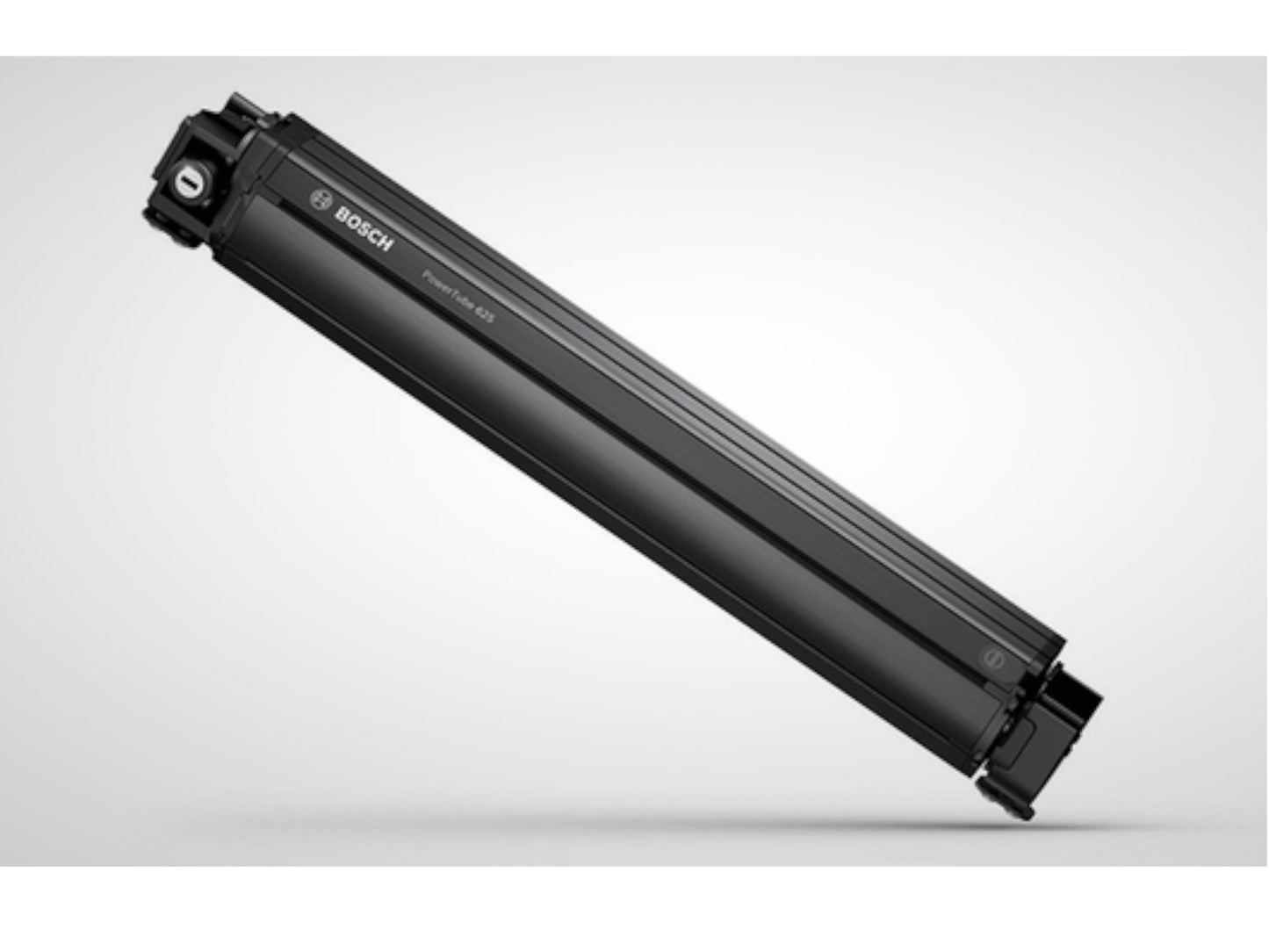

    Battery PowerTube 500Wh
    Display Bosch Purion
    Charger 2A Charger
  • Frame Alloy Frame, Integrated cable
    Fork SR Suntour XCM34 Coil
    15x110mm QR axle / Tapered Steerer
    Remote Lockout / 120mm travel
    Rear Shock Not applicable
    Front Brake Shimano BR-MT200 Disc / SM-RT30 CL 180mm
    Rear Brake Shimano BR-MT200 Disc / RT-EM300 CL 180mm
    Rear Derailleur

     Shimano RD-M3100 / 9 Speed

    Shift Levers Shimano SL-M2000
    Chain KMC e9S
    Cassette Shimano CS-HG200-9 ACERA 11-36
    Crankset FSA CK-220 / 165mm
    Chain Ring FSA WB437 32T w/CG
    Chain Guard Spec not provided
    Rims Syncros X18 / 32H / 30mm / Pin Joint
    Front Hub Shimano HB-MT400-B CL / 15x110mm
    Rear Hub Shimano FH-MT400-B CL / Boost 12x148mm
    Front Tire Kenda Booster 29x2.6" / 30TPI
    Rear Tire

    Kenda Booster 29x2.6" / 30TPI

    Handlebar Syncros 3.0 720mm / 31.8mm / 9° / 12mm rise
    Syncros Comfort lock-on grips
    Stem Syncros 3.0 / 7° / Black
    Headset Syncros OE / Tapered 1.5"-1 1/8"
    semi integ. OD 50/62mm / ID 44/56mm
    Grips Spec not provided
    Saddle Syncros ER2.5
    Seatpost Syncros 3.0 / 31.6mm
  • Pedals Not applicable
    Front Light Not applicable
    Rear Light Not applicable
    Kickstand Not applicable
    Rear Carrier Not applicable
    Fenders Not applicable
    Bell Not applicable
    Lock Not applicable
    Mirror Not applicable
  • S M L XL
    HEAD TUBE ANGLE A 67.5 ° 67.5 ° 67.5 ° 67.5 °
    HEAD TUBE LENGTH B 4.3 IN 4.7 IN 5.1 IN 5.5 IN
    TOP TUBE HORIZONTAL C 22.8 IN 23.6 IN 24.4 IN 25.2 IN
    STANDOVER HEIGHT D 31 IN 31.9 IN 33 IN 33.6 IN
    BB OFFSET E 2.2 IN 2.2 IN 2.2 IN 2.2 IN
    BB HEIGHT F 12.6 IN 12.6 IN 12.6 IN 12.6 IN
    WHEEL BASE G 45.7 IN 46.5 IN 47.3 IN 48.1 IN
    BB CENTER TO TOPTUBE CENTER H - - - -
    BB CENTER TO TOP OF SEATTUBE I 15.7 IN 17.3 IN 18.9 IN 20.5 IN
    SEAT ANGLE J 75.2 ° 75 ° 74.9 ° 74.7 °
    CHAINSTAY K 18.9 IN 18.9 IN 18.9 IN 18.9 IN
    REACH L 15.7 IN 17.3 IN 18.9 IN 20.5 IN
    STACK M 25.0 IN 25.4 IN 25.7 IN 26.1 IN
    TRAIL O 3.6 IN 3.8 IN 3.8 IN 3.8 IN
