Scott Patron eRide 920

Sizing Guide

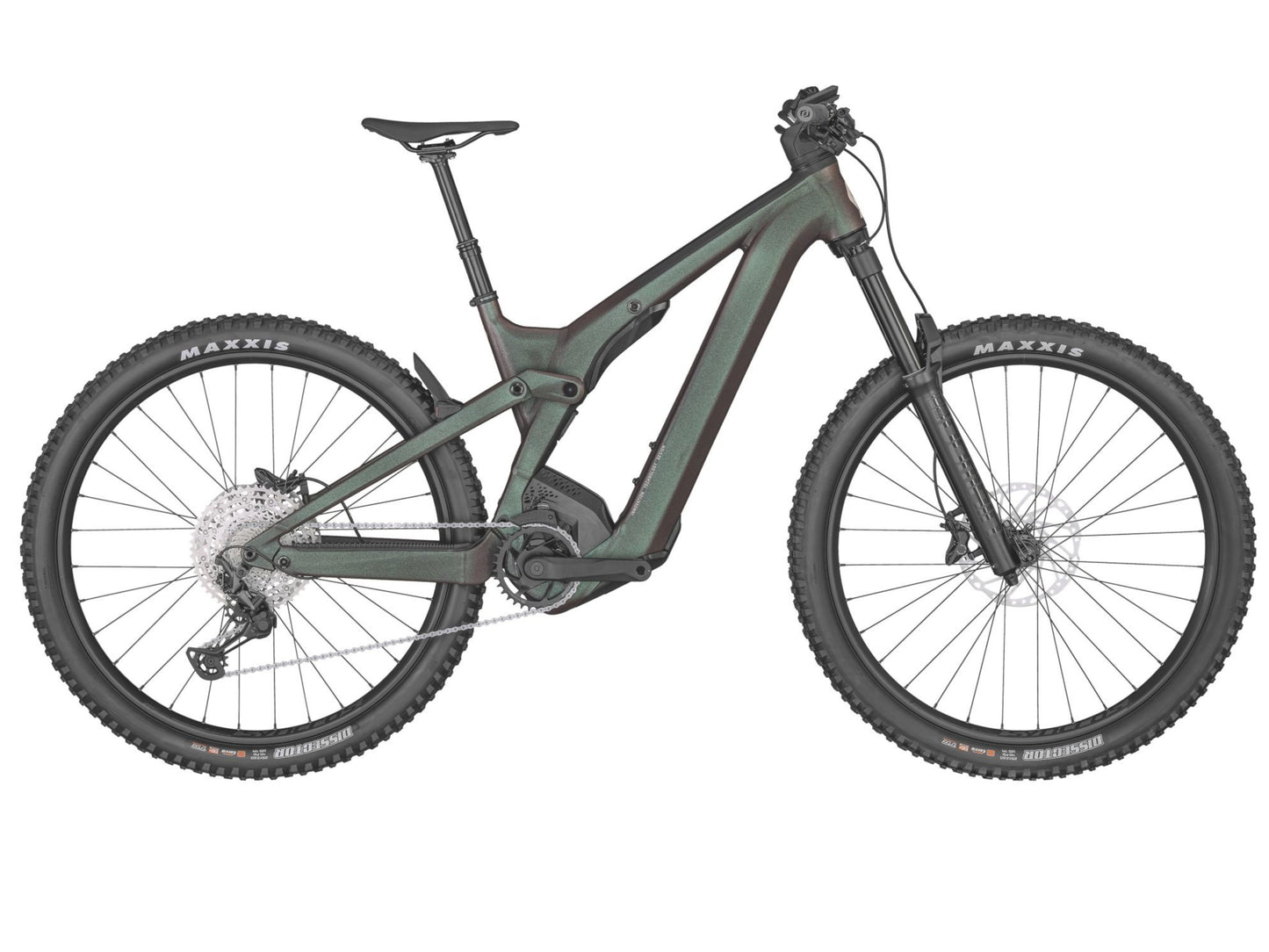

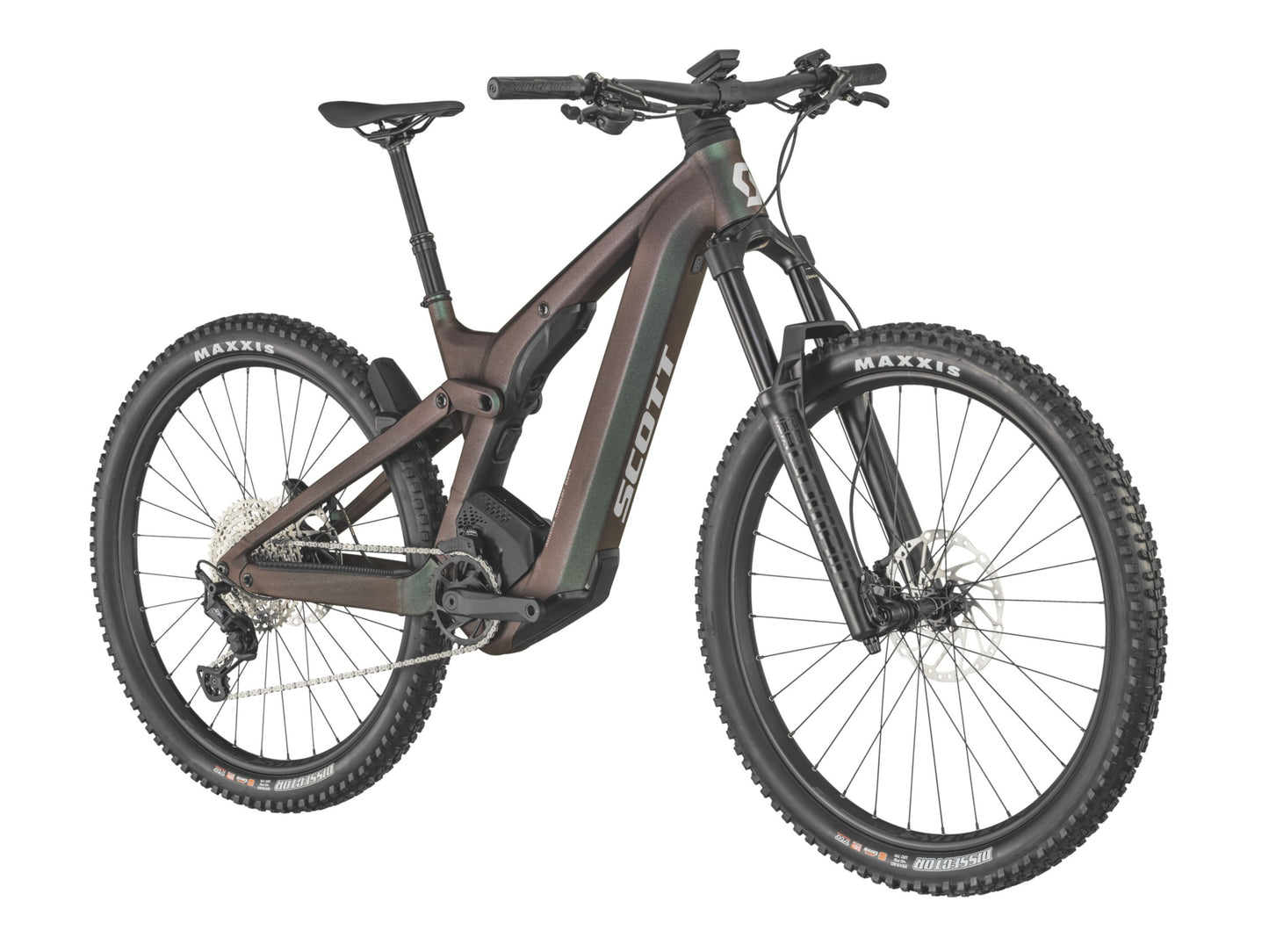

The Full Scoop on the Scott Patron eRide 920


  • The all-new Patron eRIDE 920 designed for all day trail riding. Supreme integration and progressive geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a stellar experience up and down the mountain, time and time again. Patron eRIDE - boss the trails.

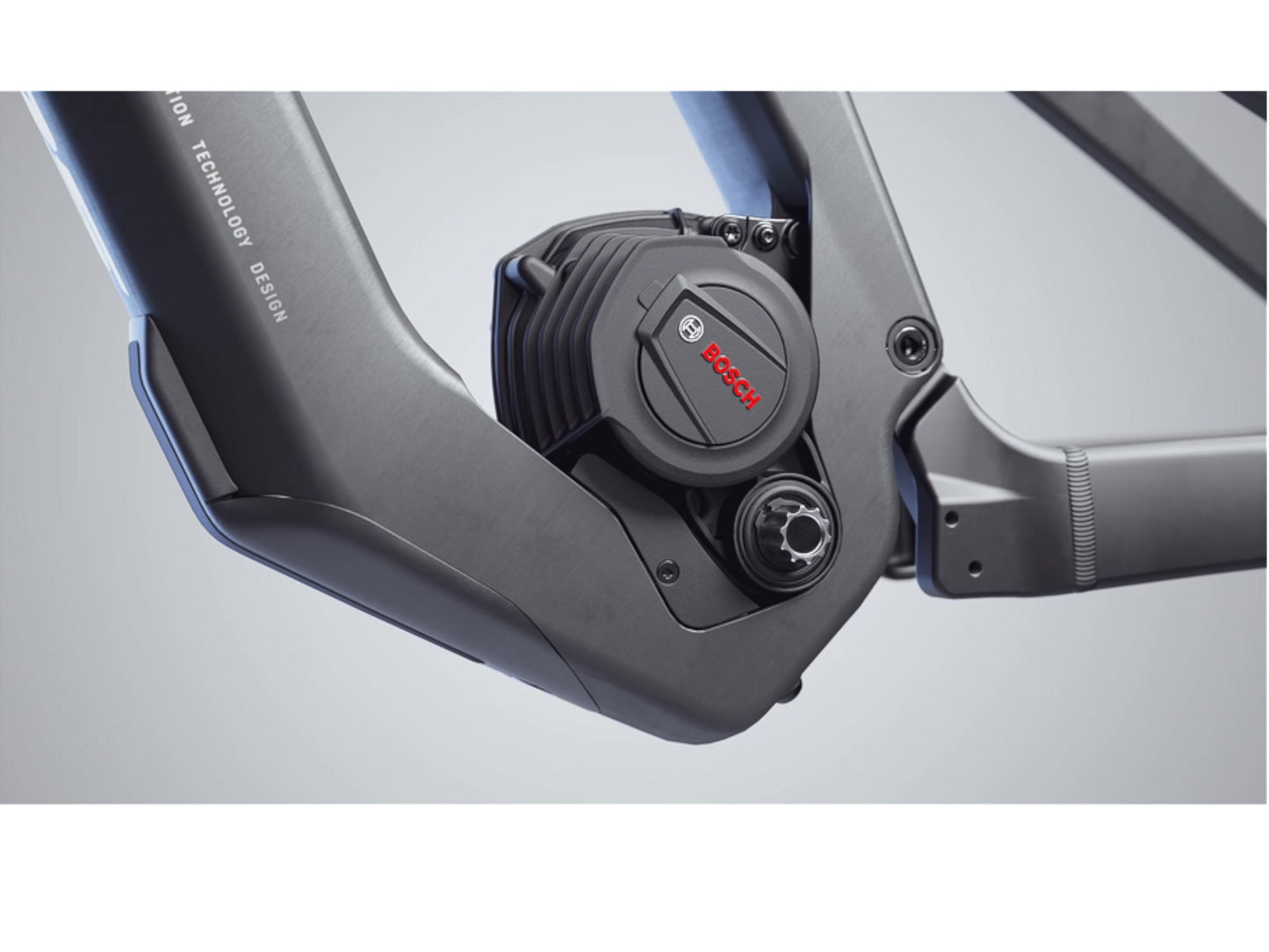

  • Motor Bosch Performance CX
    EU: 25kmh / INT: 20mph
    Battery PowerTube 750Wh
    Display Bosch LED Remote & Kiox 300
    Charger 4A Charger

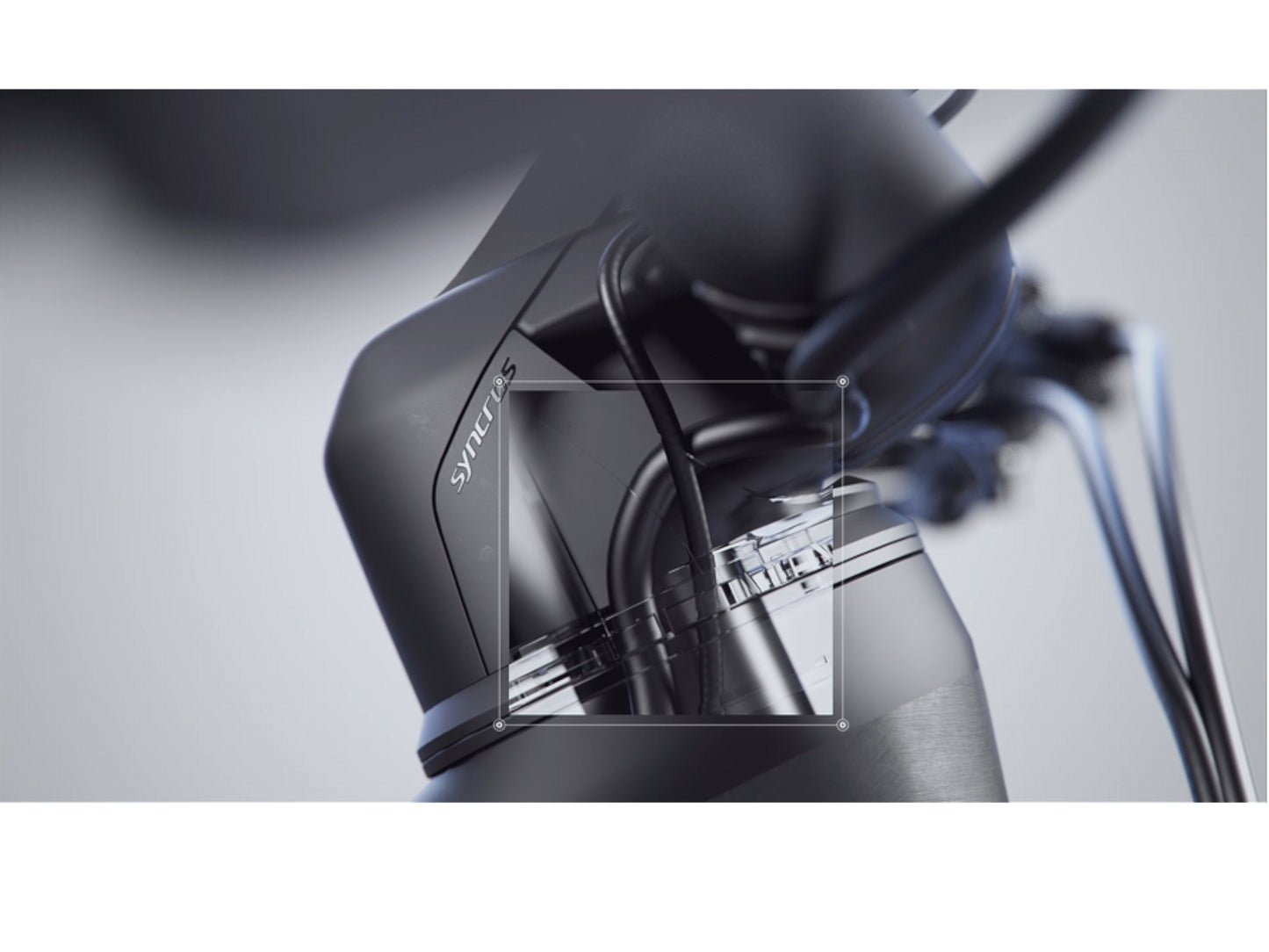

  • Frame Alloy Frame & Link, Integrated cable
    Fork RockShox Domain Air
    15x110mm QR axle / 1.8" Tapered Steerer
    Reb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike
    Rear Shock FOX Float EVOL eRIDE Trunnion
    3 modes / Lockout-Trail-Descend
    DPS / Reb. Adj.
    Travel 160mm / 205x60mm
    Front Brake Shimano BR-MT520 4 Piston
    Rear Brake Shimano BR-MT520 4 Piston
    Rear Derailleur

     Shimano XT 12 speed

    Shift Levers Shimano SL-M6100
    Chain Shimano CN-M6100
    Cassette Shimano CS-M6100 / 10-51 T
    Crankset FSA CK-745 165mm / 34T
    Chain Ring FSA WB604 / 34T / DM / Steel
    Chain Guard Spec not provided
    Rims Syncros MD30 / 32H / 30mm / Pin Joint
    Tubeless ready
    Front Hub Formula CL-811 / 15x110mm
    Rear Hub Formula ECT-1481 / Boost 148x12mm
    Front Tire Maxxis Dissector 29x2.6"
    120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra
    Rear Tire

     Maxxis Dissector 29x2.6"
    120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra

    Handlebar Syncros Hixon 1.5 / Alloy 7050D.B.
    12mm rise / 9° / 780mm
    Syncros Pro lock-on grips
    Stem Syncros AM2.0/ 6061 Alloy
    31.8mm / 4° / 1 1/8
    Headset Acros / 1.8"
    ZS66 OD74 / integr. Cable
    Grips Spec not provided
    Saddle Syncros Tofino 1.5 Regular
    Titanium rails
    Seatpost Syncros Duncan Dropper Post 2.5
    31.6mm / S size 125mm / M & L size 150mm / XL size 170mm
  • Pedals Not applicable
    Front Light Not applicable
    Rear Light Not applicable
    Kickstand Not applicable
    Rear Carrier Not applicable
    Fenders Not applicable
    Bell Not applicable
    Lock Not applicable
    Mirror Not applicable
  • S M L XL
    HEAD TUBE ANGLE A 64.5 ° 65.0 ° 65.0 ° 65.0 °
    HEAD TUBE LENGTH B 4.7 IN 4.9 IN 5.3 IN 5.7 IN
    TOP TUBE HORIZONTAL C 22.8 IN 23.4 IN 24.6 IN 25.8 IN
    STANDOVER HEIGHT D 30.2 IN 30.2 IN 30.2 IN 30.2 IN
    BB OFFSET E -1.2 IN -1.2 IN -1.2 IN -1.2 IN
    BB HEIGHT F 13.7 IN 13.7 IN 13.7 IN 13.7 IN
    WHEEL BASE G 48.1 IN 48.5 IN 49.8 IN 51.0 IN
    BB CENTER TO TOPTUBE CENTER H - - - -
    BB CENTER TO TOP OF SEATTUBE I 16.2 IN 17.3 IN 18.5 IN 19.7 IN
    SEAT ANGLE J 77.0 ° 76.9 ° 76.9 ° 76.8 °
    CHAINSTAY K 17.9 IN 17.9 IN 17.9 IN 17.9 IN
    REACH L 17.0 IN 17.6 IN 18.6 IN 19.7 IN
    STACK M 25.0 IN 25.3 IN 25.6 IN 26.0 IN
    STEM LENGTH N 2.0 IN 2.0 IN 2.4 IN 2.4 IN
    TRAIL O 5.2 IN 5.1 IN 5.1 IN 5.1 IN
    FORK LENGTH P 22.3 IN 22.3 IN 22.3 IN 22.3 IN
    MAXIMUM SEATPOST INSERTION Q 9.6 IN 10.4 IN 11.8 IN 12.6 IN
    CRANK LENGTH R 6.5 IN 6.5 IN 6.5 IN 6.5 IN
