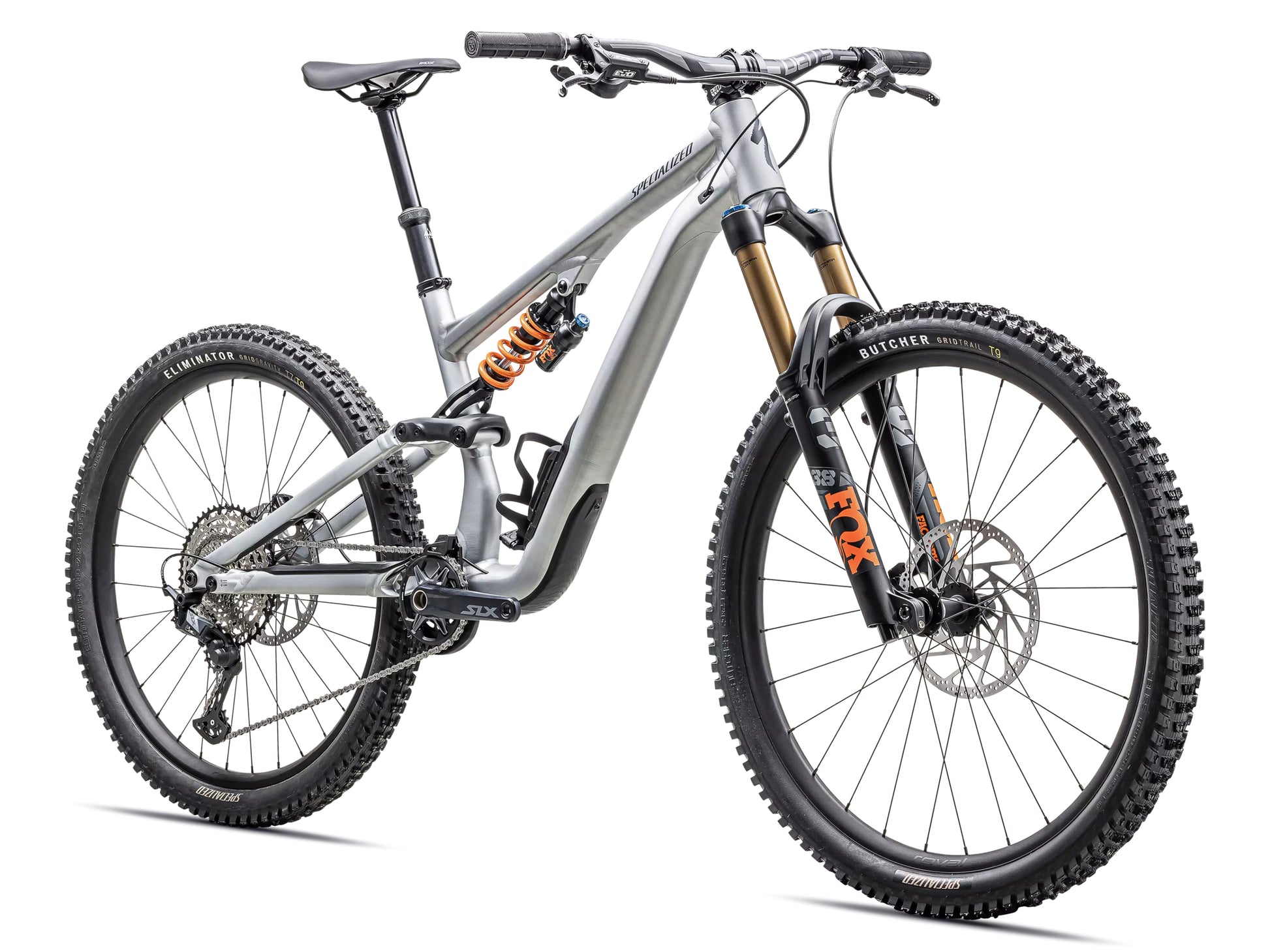

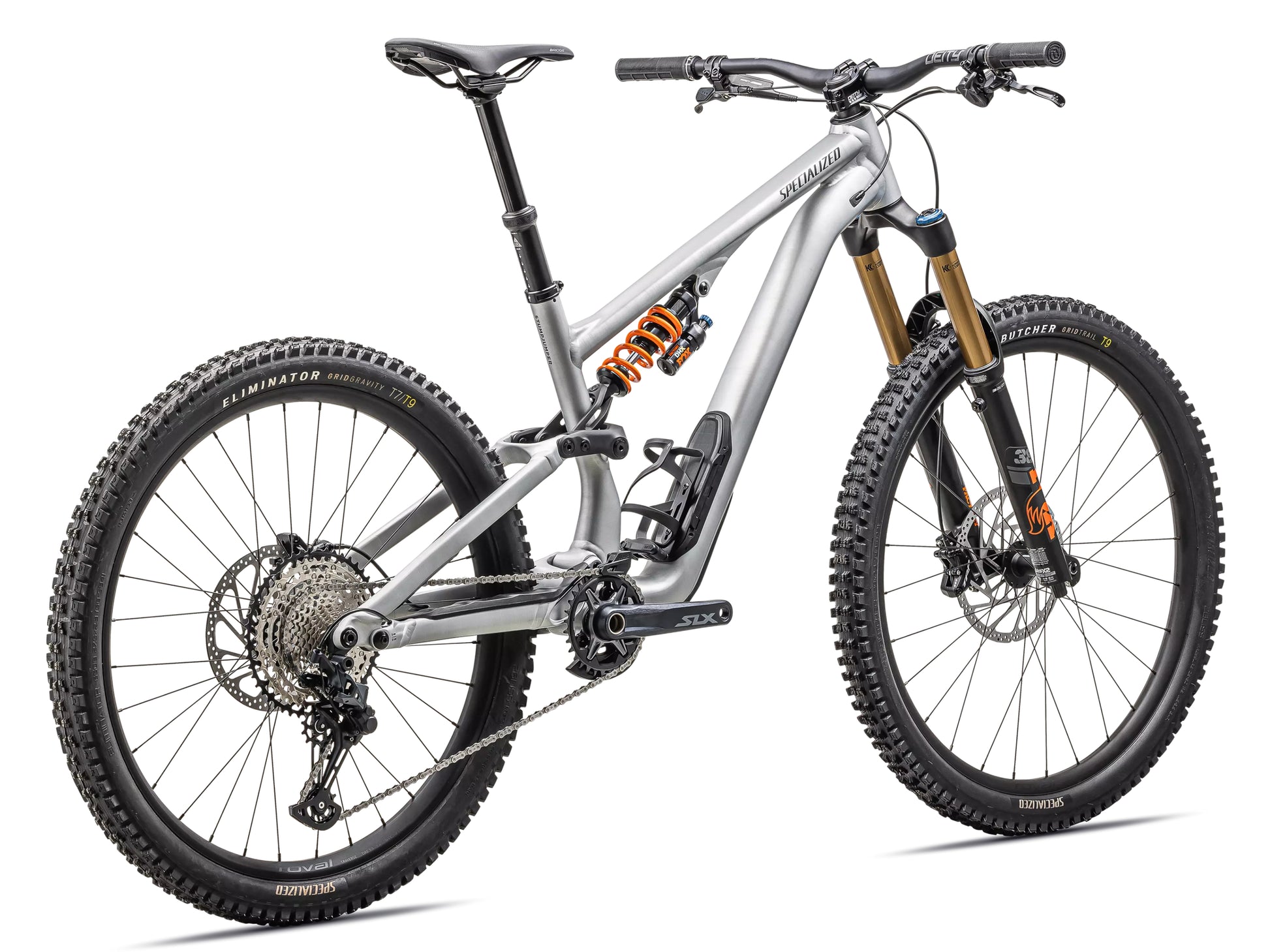

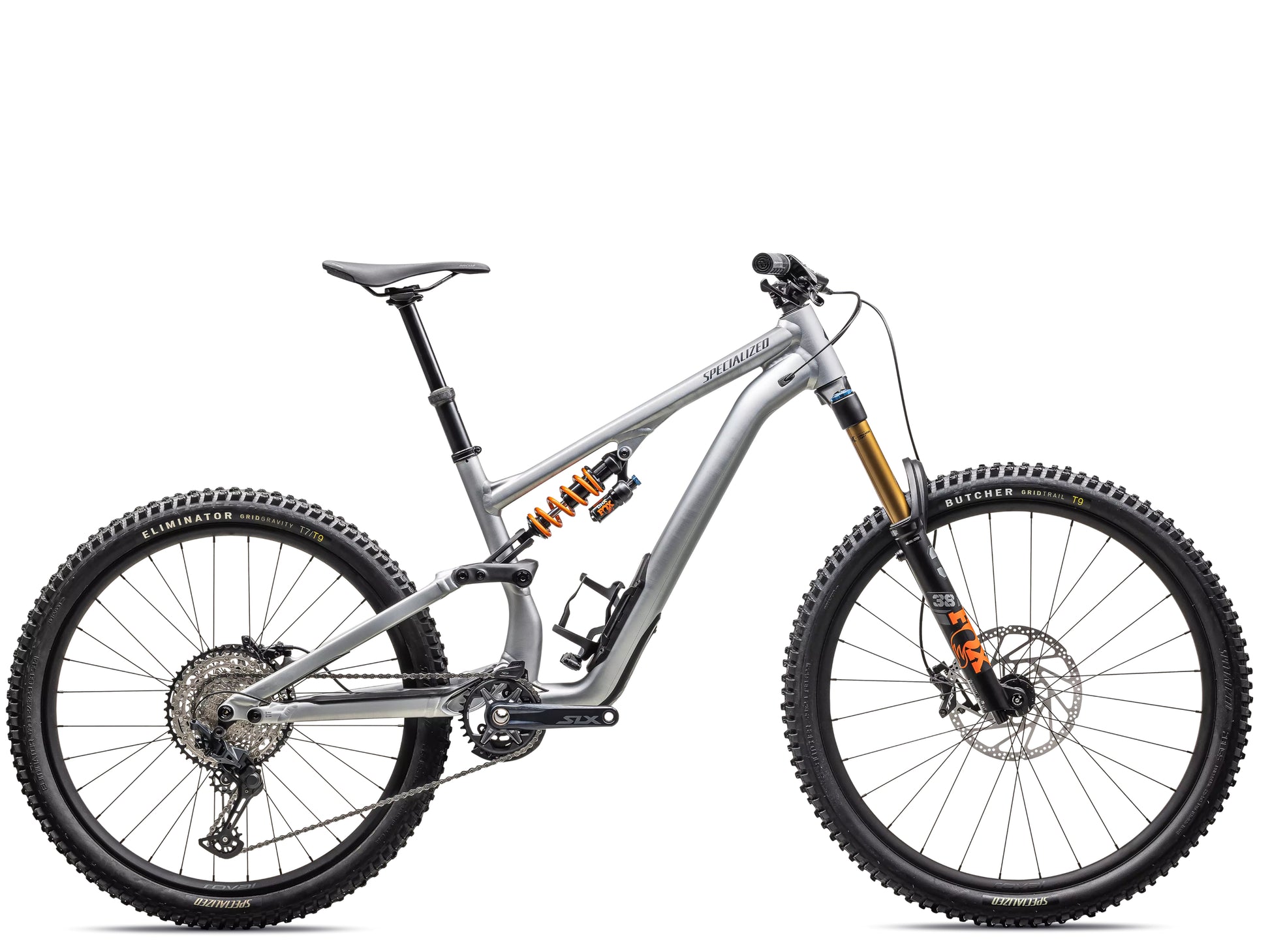

Specialized Stumpjumper 15 Fox Coil Alloy
Specialized Stumpjumper 15 Fox Coil Alloy







The Full Scoop on the Specialized Stumpjumper 15 Fox Coil Alloy
The Stumpjumper 15 just scored “Best in Test” from Enduro Magazine , and for good reason. It’s built to handle anything the trail throws your way. Add in its perfectly balanced feel and all-terrain versatility, and you’ve got one bike that truly does it all—no limits, just pure ride-anywhere freedom.
Frame | M5 alloy chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel |
Fork | FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel |

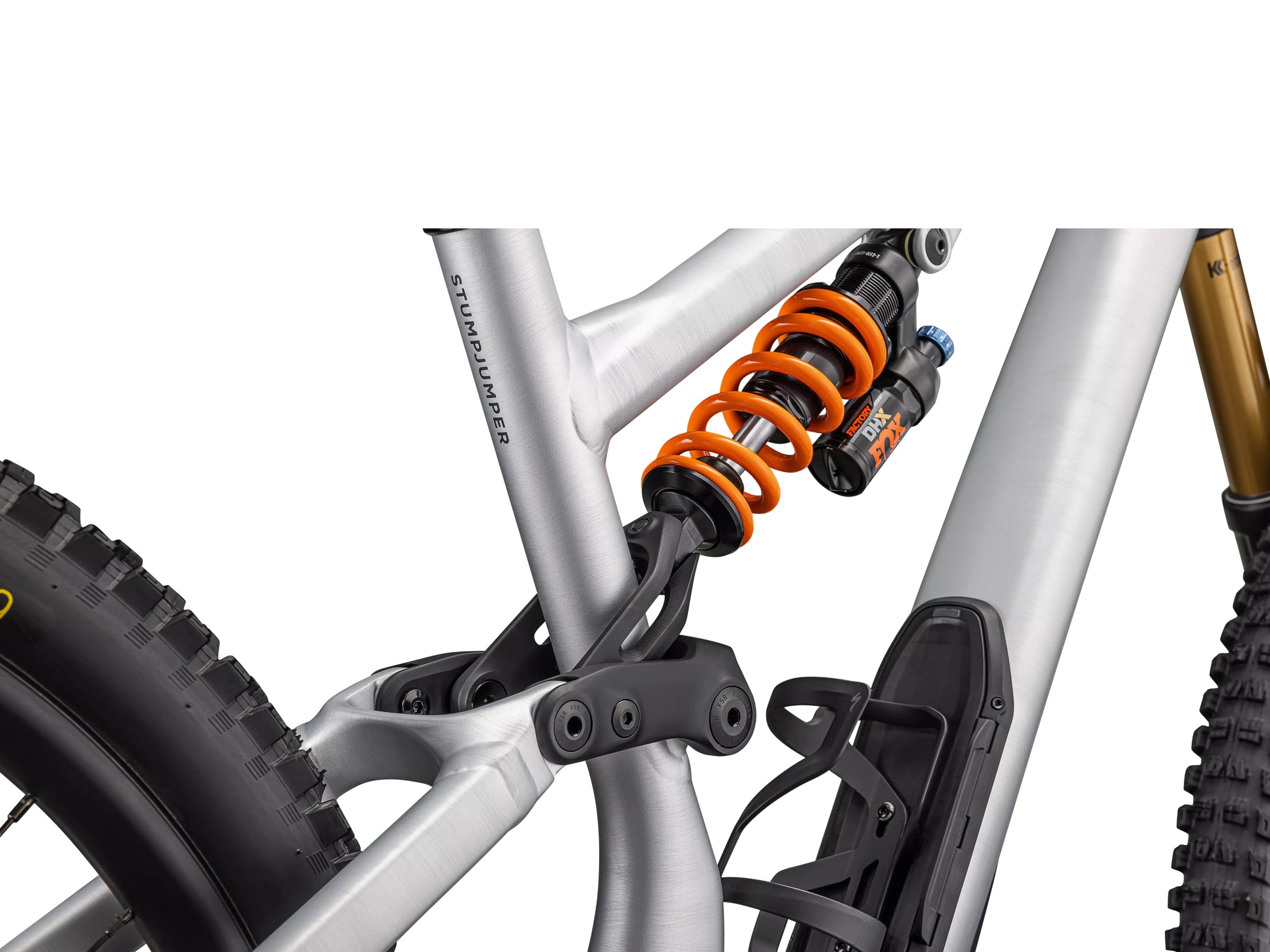

Rear Shock | FOX DHX Factory, Ride Dynamics Trail Tune, 210x55mm, S2: 400lbs, S3: 450lbs, S4: 500bs, S5: 550lbs, S6: 600lbs |
Front Brake | TRP DH-R EVO, 4-piston caliper, hydraulic disc, 220mm |
Rear Brake | TRP DH-R EVO, 4-piston caliper, hydraulic disc, 203mm |
Rear Derailleur | Shimano SLX, M7100, SGS, 12-speed |
Shift Levers | Shimano SLX, M7100, 12spd |
Chain | Shimano SLX, M7100, 12-speed |
Cassette | Shimano SLX, CS-M7100, 12-speed, 10-51t |
Crankset | Shimano SLX, M7120, 32T ring, 55mm chainline, S2-S3:165mm, S4-S6: 170mm |
Chain Ring | Spec not provided |
Chain Guard | Spec not provided |
Rims | Roval Traverse, hookless alloy, 30mm inner width, tubeless ready, Front: 29, Rear: 27.5 |
Front Hub | DT Swiss 370, 15x110mm, 28h |
Rear Hub | SDT Swiss 370, 12x148mm, 32h |
Front Tire | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
Rear Tire | Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 2Bliss Ready, 27.5x2.3" |

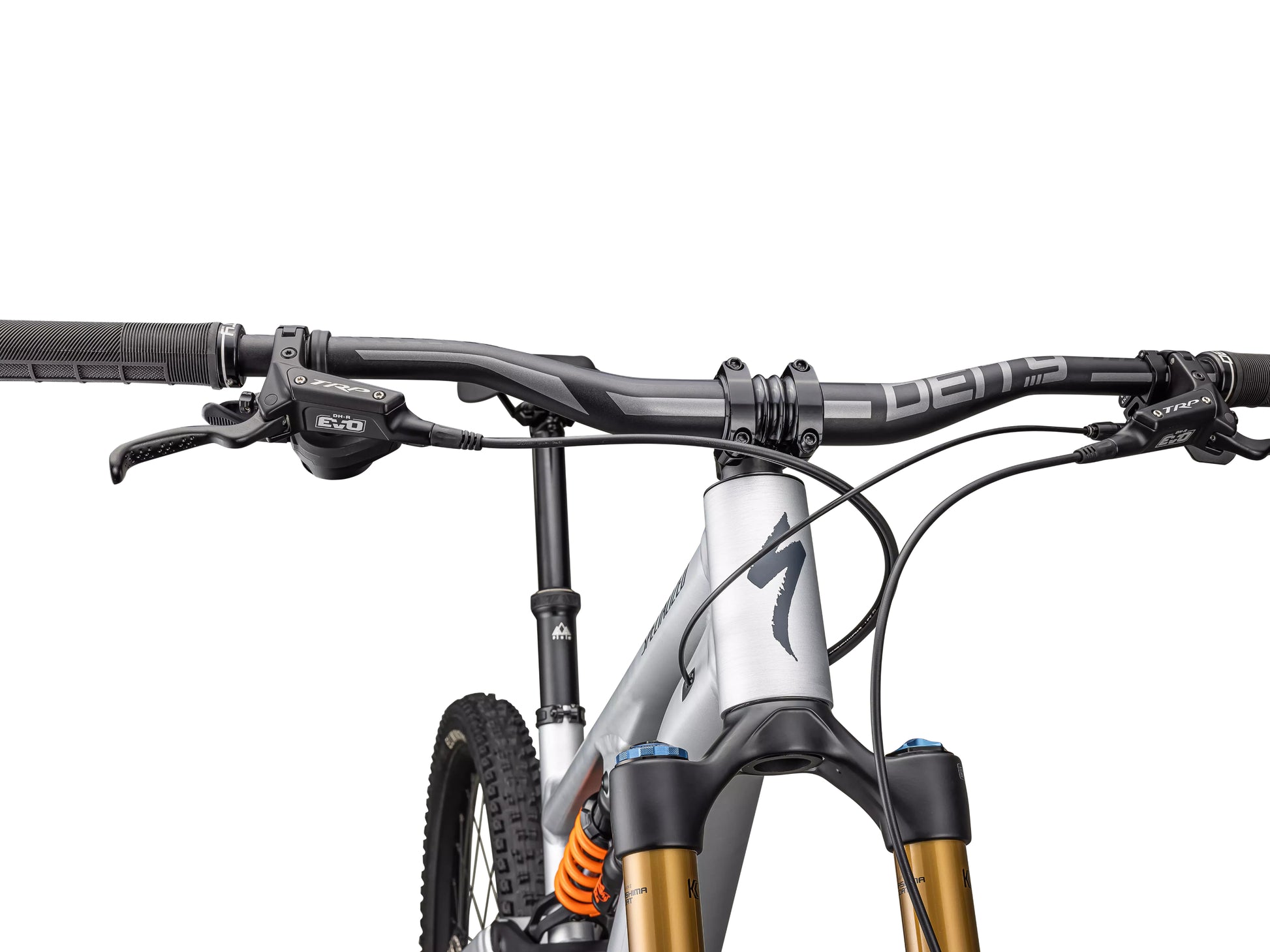

Handlebar | Deity, Racepoint, 5-degree upsweep, 9-degree backsweep, 810 width, S2: 25mm rise: S3-S6: 38mm rise |
Stem | Deity, 35mm clamp, 35mm length |
Headset | Spec not provided |
Grips | Deity, Knuckleduster, Black |
Saddle | Bridge Comp, Hollow Cr-mo rails, S1-S2: 155mm, S3-S6: 143mm |
Seatpost | PNW Loam OE Dropper, tool-less travel adjust, Range lever, 34.9, S2: 150mm, S3: 170mm, S4-S6: 200mm |
Pedals | Not applicable |
Front Light | Not applicable |
Rear Light | Not applicable |
Kickstand | Not applicable |
Rear Carrier | Not applicable |
Fenders | Not applicable |
Bell | Not applicable |
Lock | Not applicable |
Mirror | Not applicable |


The Full Scoop on the Specialized Stumpjumper 15 Fox Coil Alloy
Description
The Stumpjumper 15 just scored “Best in Test” from Enduro Magazine , and for good reason. It’s built to handle anything the trail throws your way. Add in its perfectly balanced feel and all-terrain versatility, and you’ve got one bike that truly does it all—no limits, just pure ride-anywhere freedom.
Components
Frame | M5 alloy chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel |
Fork | FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel |
Rear Shock | FOX DHX Factory, Ride Dynamics Trail Tune, 210x55mm, S2: 400lbs, S3: 450lbs, S4: 500bs, S5: 550lbs, S6: 600lbs |
Front Brake | TRP DH-R EVO, 4-piston caliper, hydraulic disc, 220mm |
Rear Brake | TRP DH-R EVO, 4-piston caliper, hydraulic disc, 203mm |
Rear Derailleur | Shimano SLX, M7100, SGS, 12-speed |
Shift Levers | Shimano SLX, M7100, 12spd |
Chain | Shimano SLX, M7100, 12-speed |
Cassette | Shimano SLX, CS-M7100, 12-speed, 10-51t |
Crankset | Shimano SLX, M7120, 32T ring, 55mm chainline, S2-S3:165mm, S4-S6: 170mm |
Chain Ring | Spec not provided |
Chain Guard | Spec not provided |
Rims | Roval Traverse, hookless alloy, 30mm inner width, tubeless ready, Front: 29, Rear: 27.5 |
Front Hub | DT Swiss 370, 15x110mm, 28h |
Rear Hub | SDT Swiss 370, 12x148mm, 32h |
Front Tire | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
Rear Tire | Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 2Bliss Ready, 27.5x2.3" |
Handlebar | Deity, Racepoint, 5-degree upsweep, 9-degree backsweep, 810 width, S2: 25mm rise: S3-S6: 38mm rise |
Stem | Deity, 35mm clamp, 35mm length |
Headset | Spec not provided |
Grips | Deity, Knuckleduster, Black |
Saddle | Bridge Comp, Hollow Cr-mo rails, S1-S2: 155mm, S3-S6: 143mm |
Seatpost | PNW Loam OE Dropper, tool-less travel adjust, Range lever, 34.9, S2: 150mm, S3: 170mm, S4-S6: 200mm |
Extras
Pedals | Not applicable |
Front Light | Not applicable |
Rear Light | Not applicable |
Kickstand | Not applicable |
Rear Carrier | Not applicable |
Fenders | Not applicable |
Bell | Not applicable |
Lock | Not applicable |
Mirror | Not applicable |

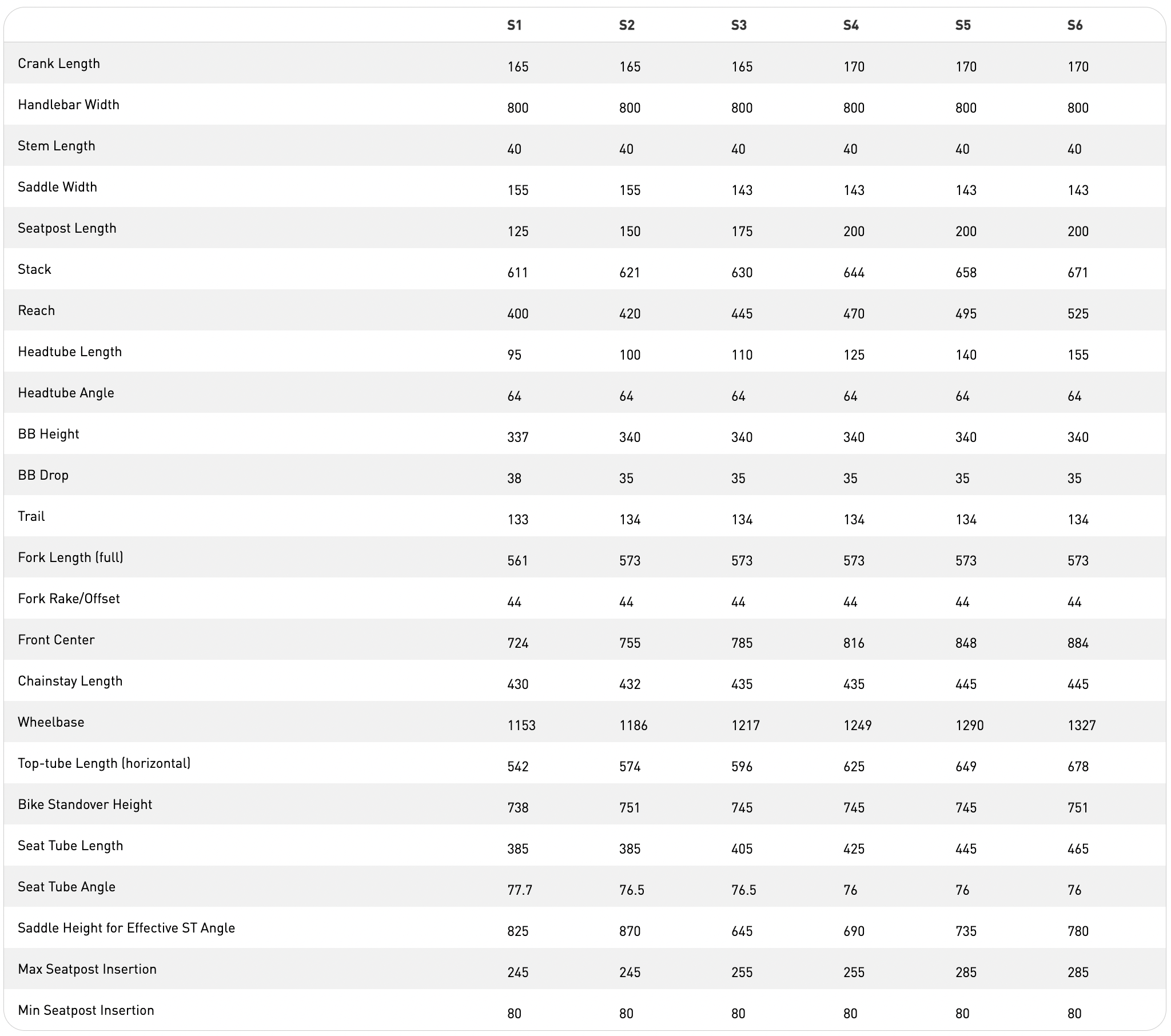

Geometry
