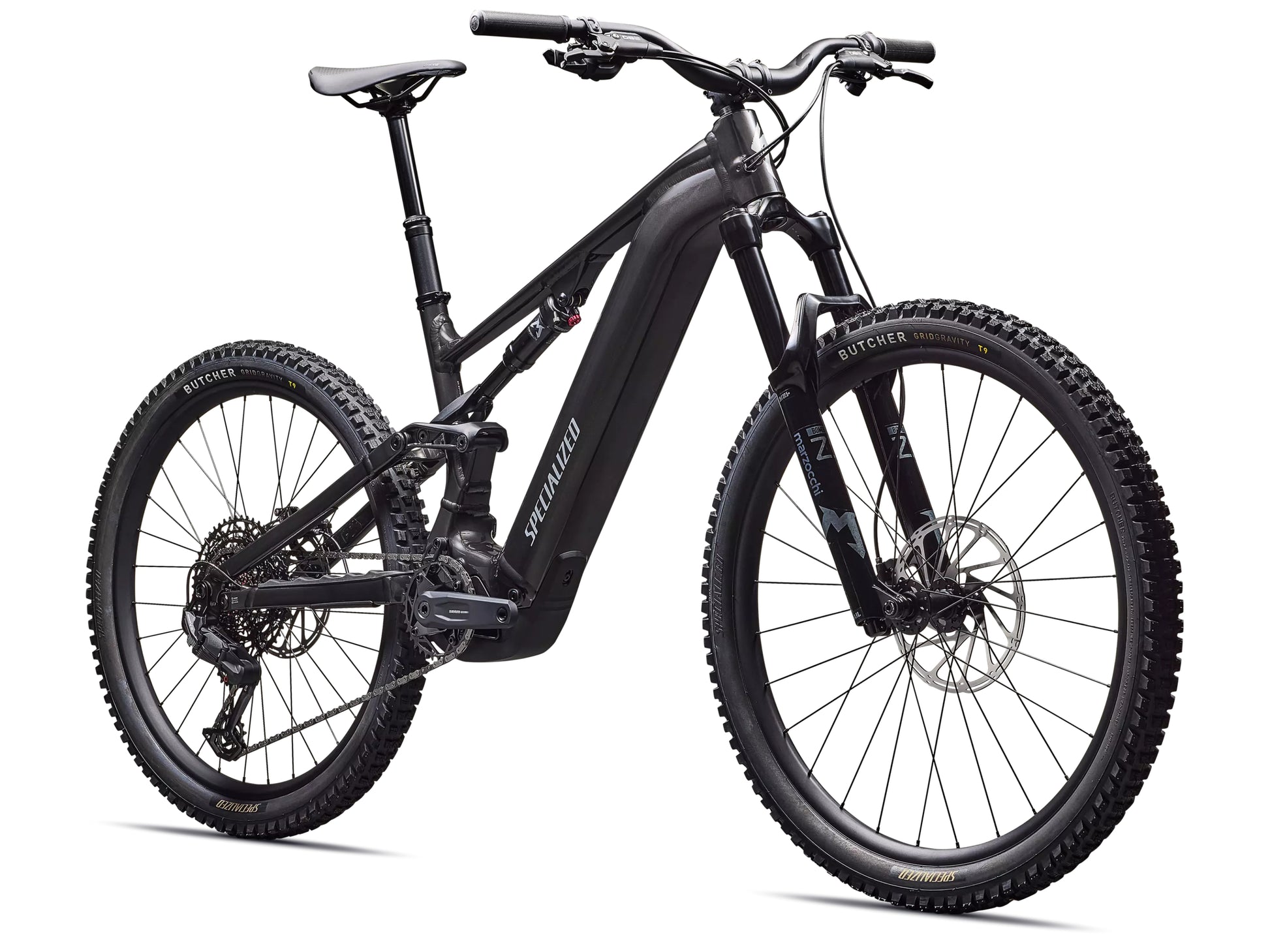

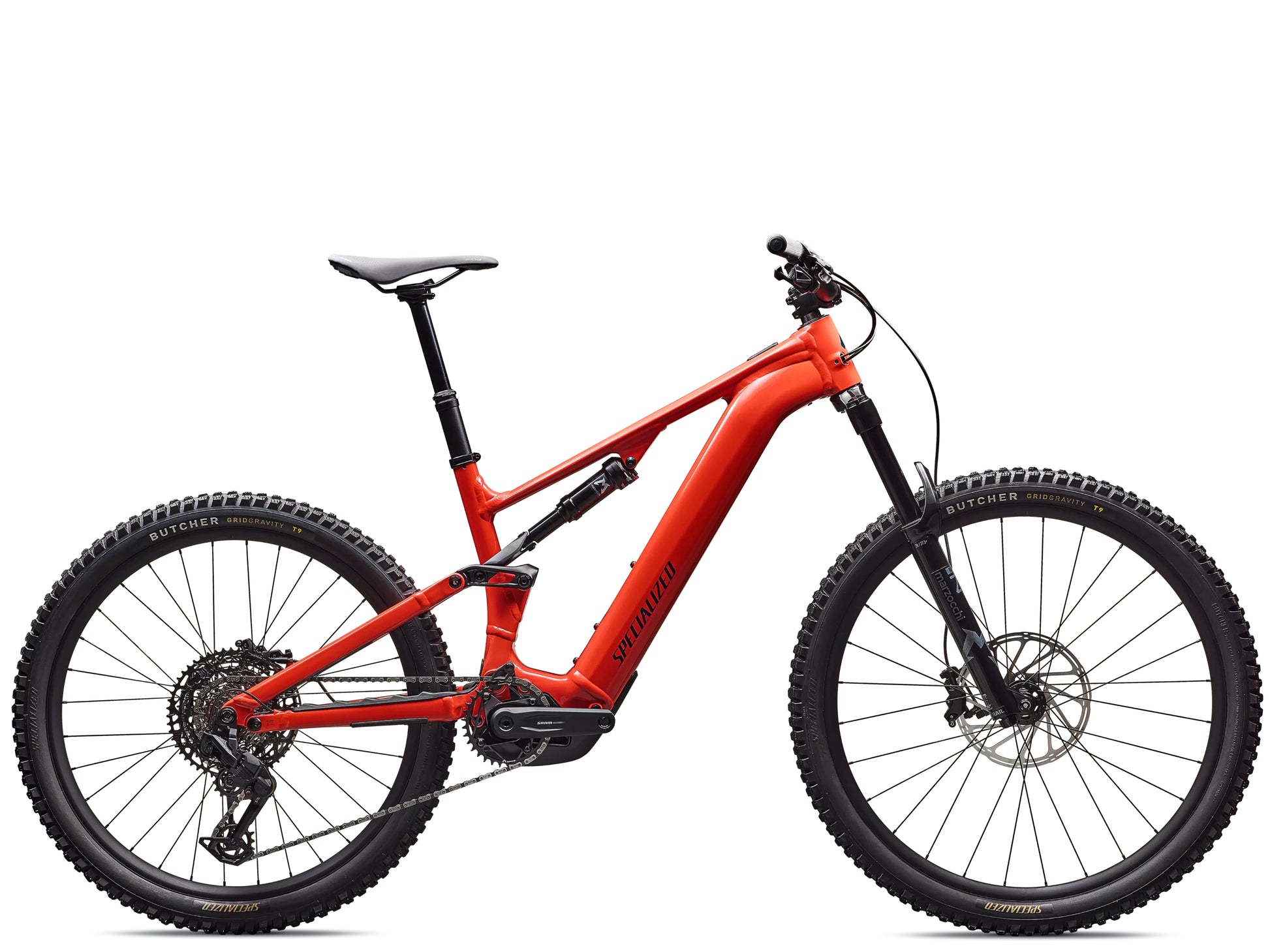

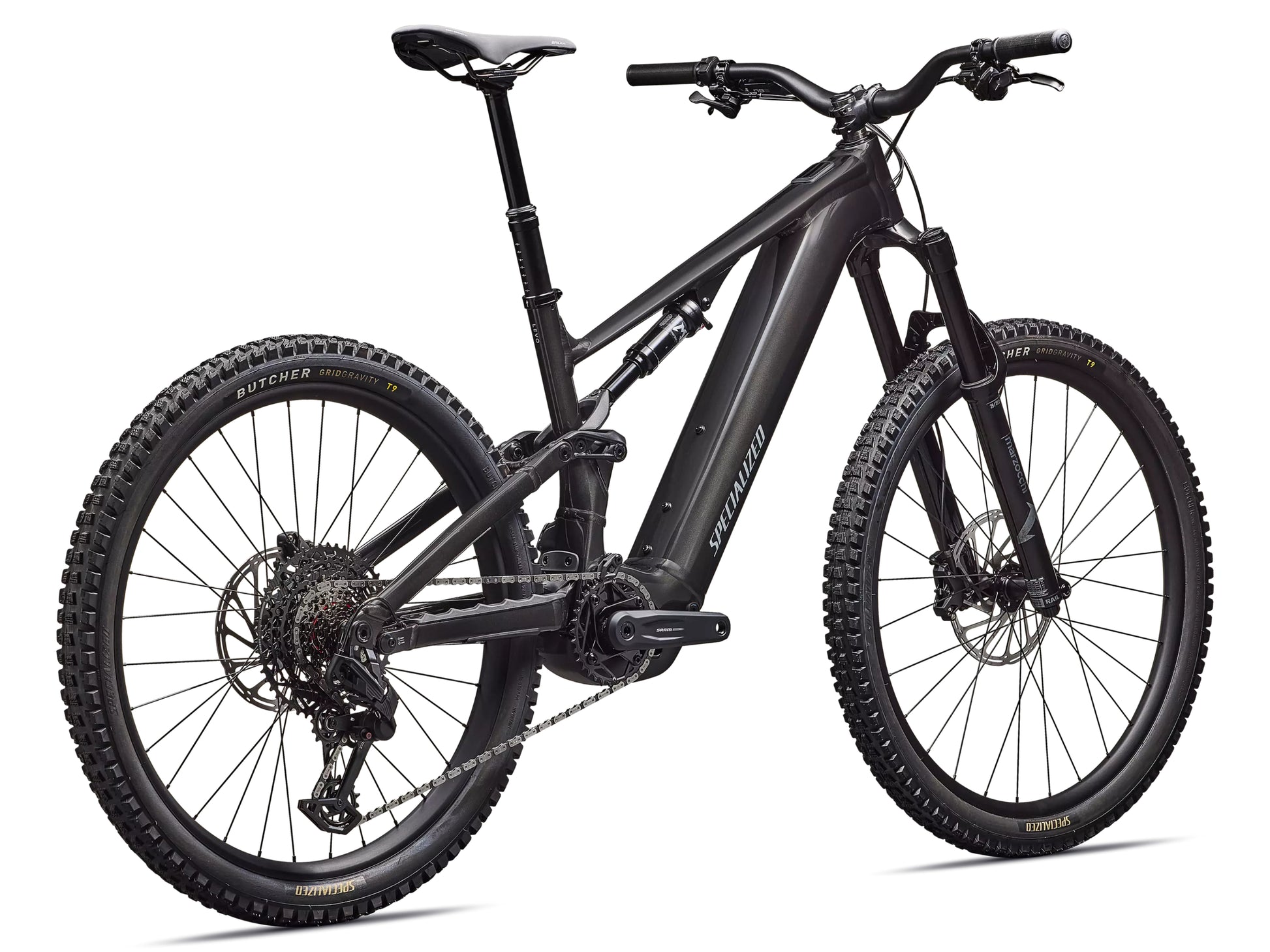

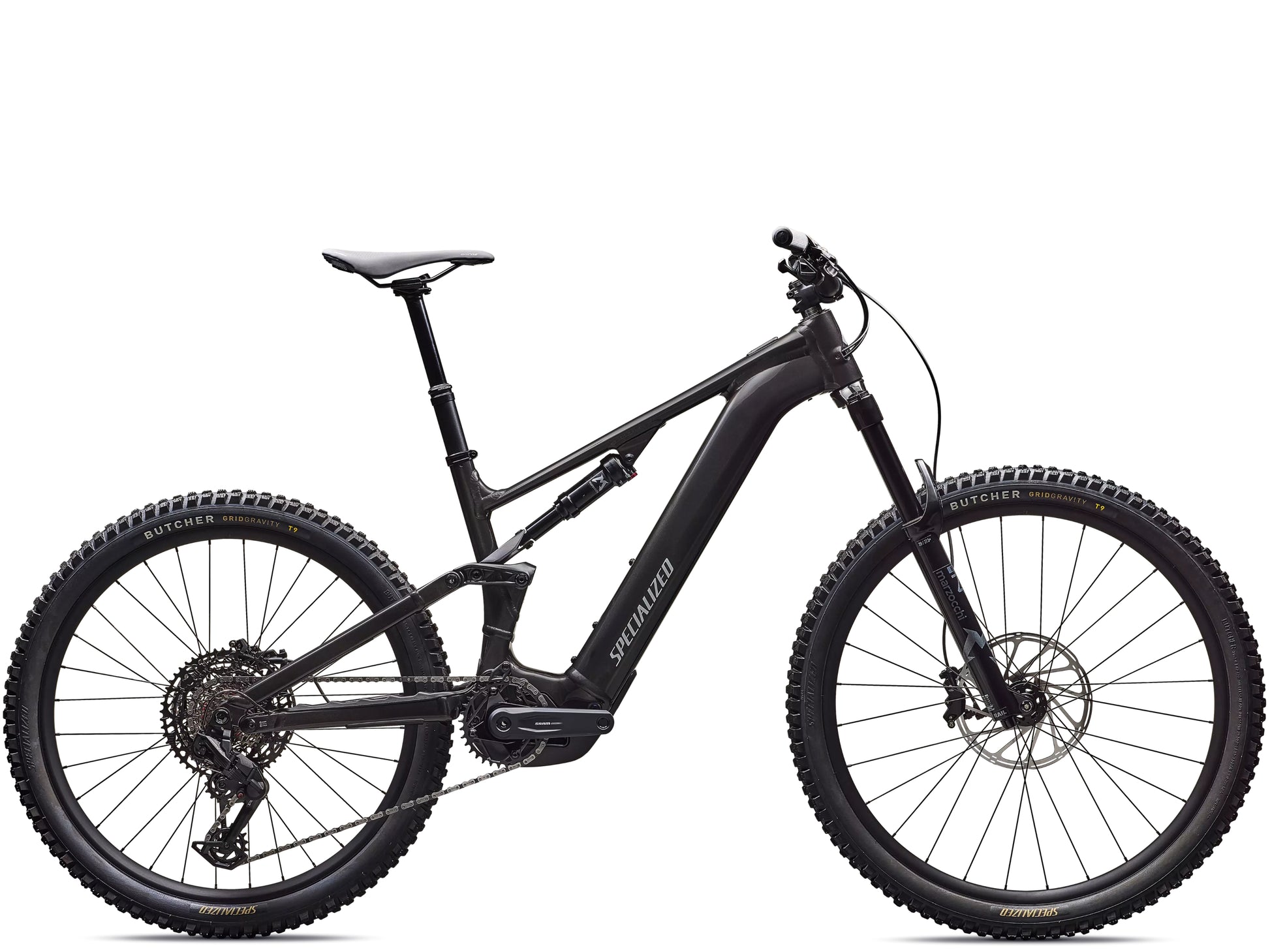

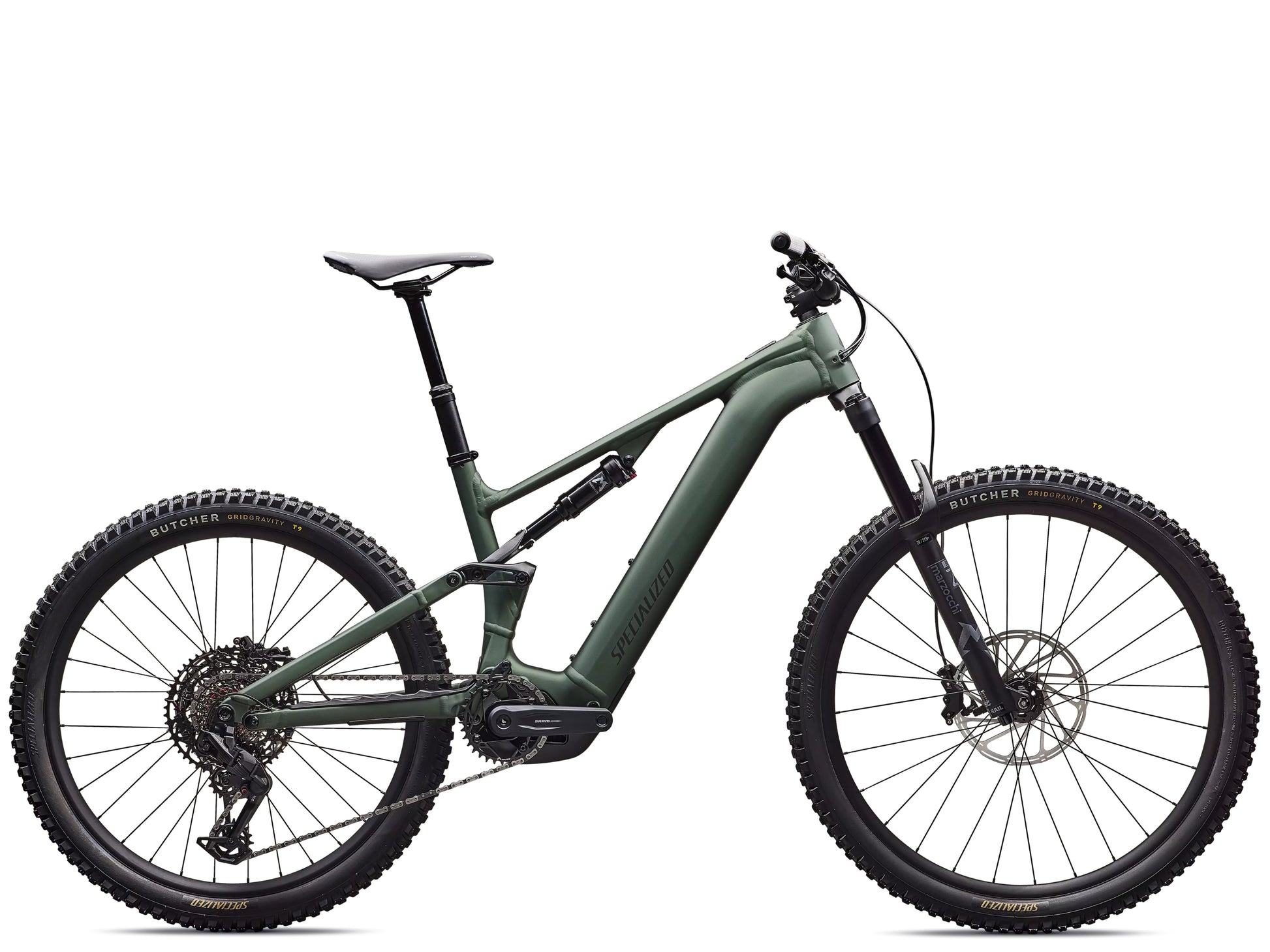

Specialized Turbo Levo 4 Alloy
Specialized Turbo Levo 4 Alloy
Regular price
$5,795.00
Sale price
$5,795.00
Regular price
$0.00
Unit price
per
Shipping calculated at checkout.
The Full Scoop on the Specialized Turbo Levo 4 Alloy
The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
The Specialized Turbo Levo offers the most advanced eMTB frame, motor and battery technology. The Turbo Levo's M5 alloy chassis, the smoothest and most powerful motor available, brings to market the most value-packed drivetrain, suspension and brake components available.
*Components subject to manufacturer changes.
*Specialized current models can be delivered with our white glove, fully built delivery option, or can be picked up in store. Closeout models (pre 2025) can be shipped

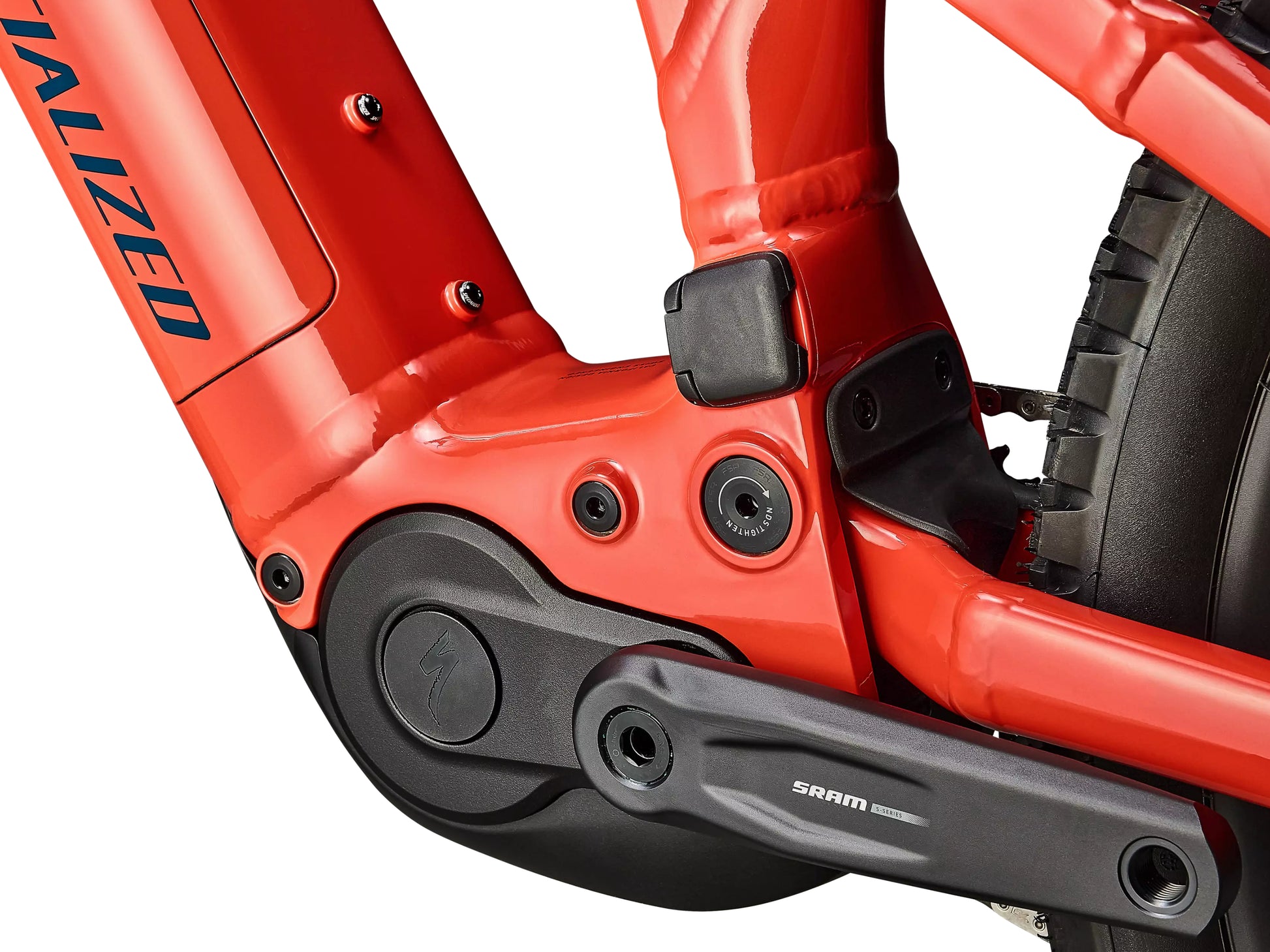

| Motor | All New Specialized 3.1 Motor, 101Nm torque, 666Nm power |
| Battery | 840Wh battery |

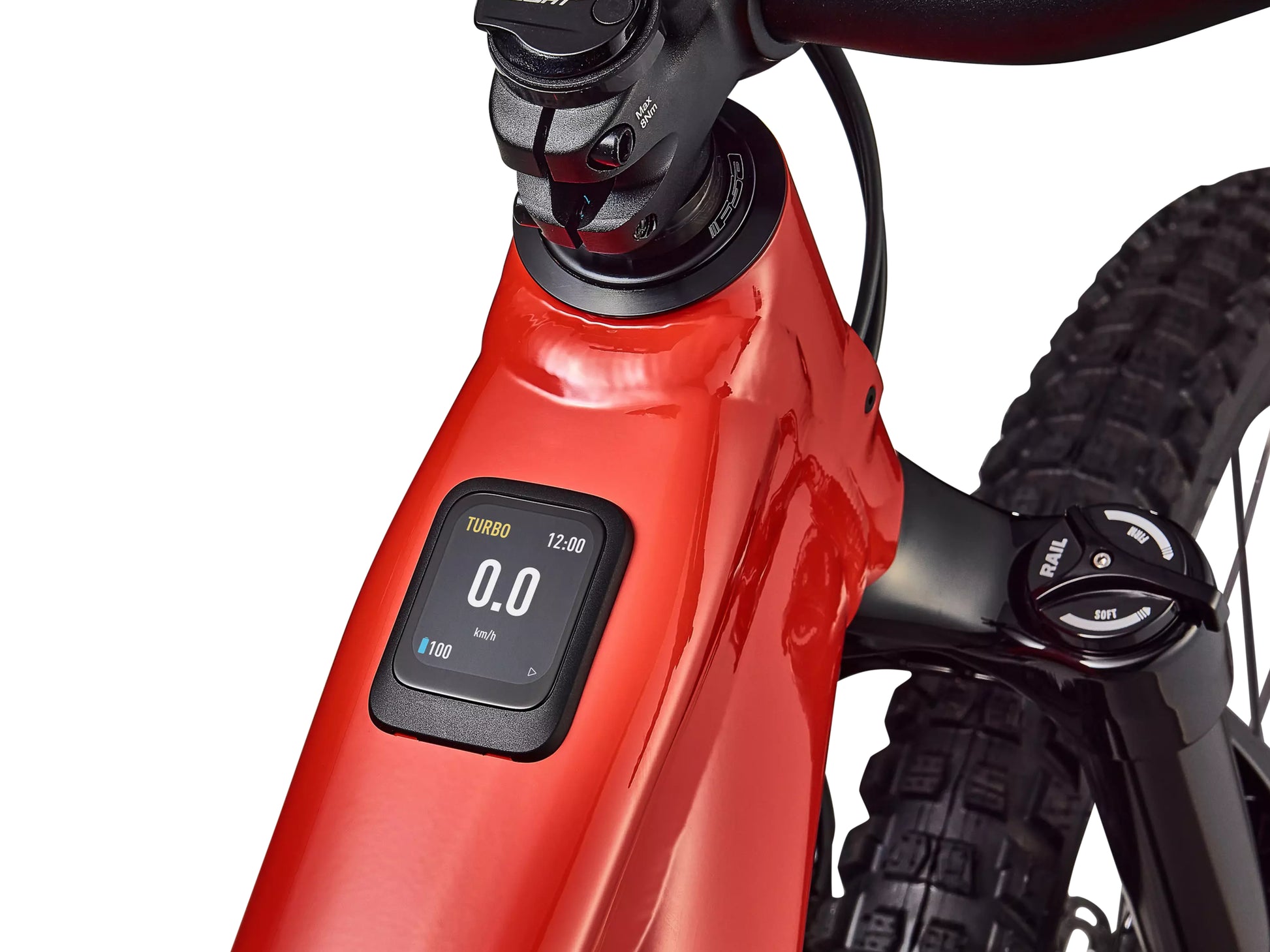

| Display | All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app |
| Charger | Specialized 4amp charger |
| Frame | All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm |
| Fork | Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression |

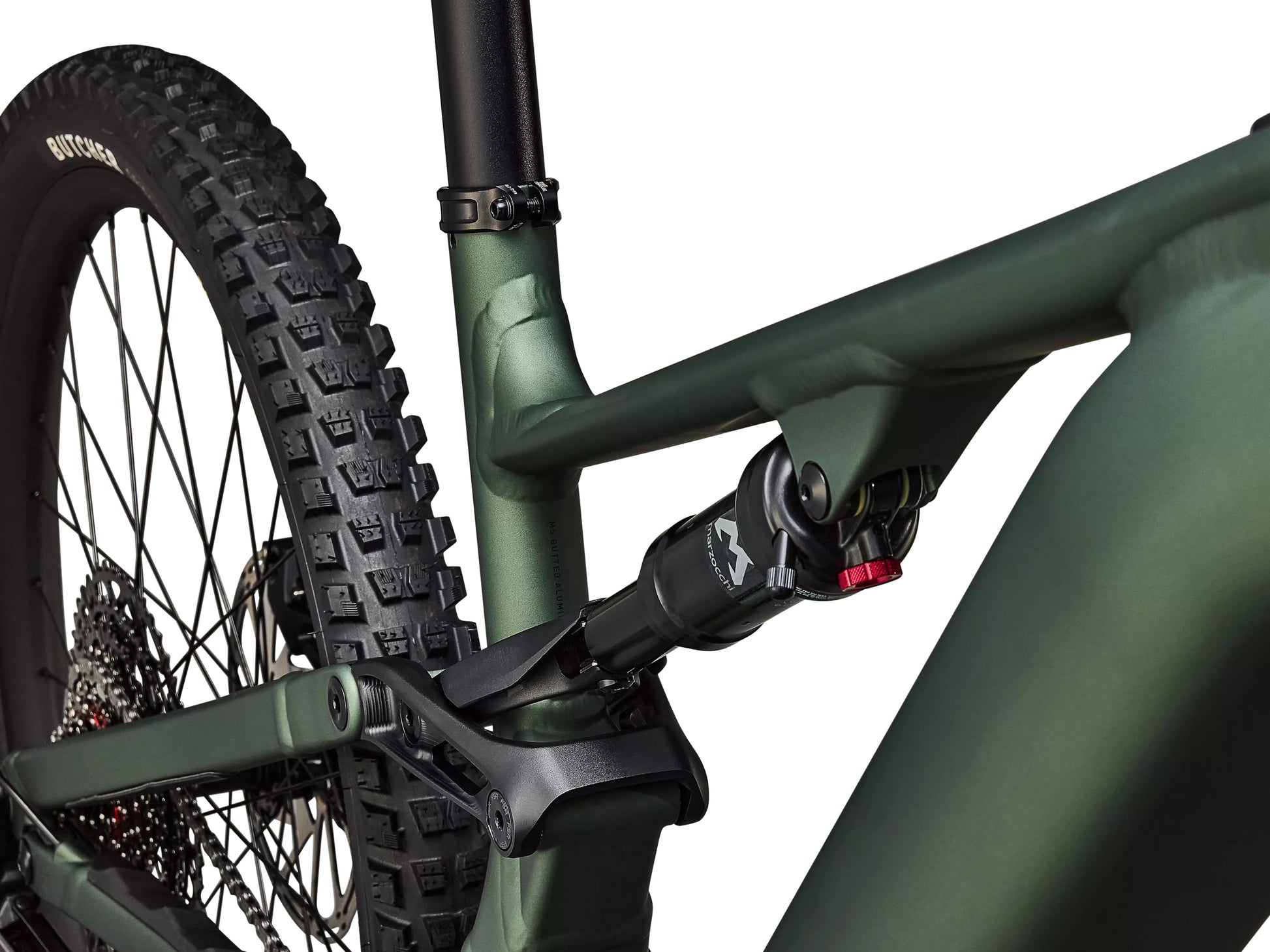

| Rear Shock | *Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm |
| Front Brake | SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor |
| Rear Brake | SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor |
| Rear Derailleur | SRAM Eagle 70 T-Type |
| Shift Levers | SRAM 70 trigger, 12-speed, single click |
| Chain | SRAM Eagle 70 T-Type Flattop Chain |
| Cassette | XS-1270, 12-speed, 10-52t |
| Crankset | SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm |
| Chain Ring | SRAM 34t T-Type chainring, 104 BCD, steel |
| Chain Guard | Spec not provided |
| Rims | Specialized 29, hookless alloy, 30mm inner width, tubeless ready |
| Front Hub | Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h |
| Rear Hub | Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
| Front Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4" |
| Rear Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4" |

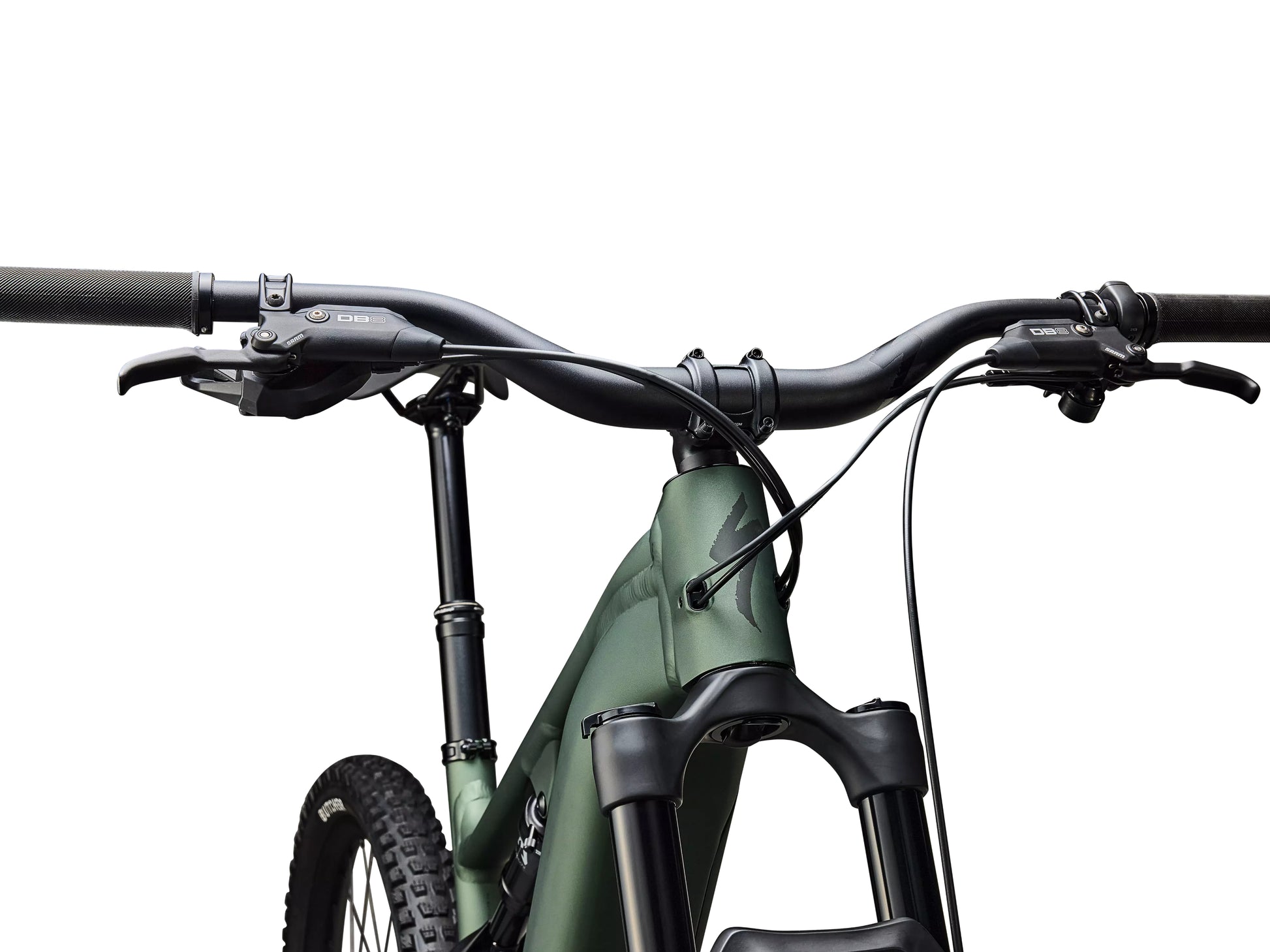

| Handlebar | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width |
| Stem | Alloy Trail Stem, 35mm bar bore |
| Headset | Spec not provided |
| Grips | Specialized Trail Grips |
| Saddle | Body Geometry Bridge Saddle, steel rails |
| Seatpost | TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on the Specialized Turbo Levo 4 Alloy
The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
The Specialized Turbo Levo offers the most advanced eMTB frame, motor and battery technology. The Turbo Levo's M5 alloy chassis, the smoothest and most powerful motor available, brings to market the most value-packed drivetrain, suspension and brake components available.
*Components subject to manufacturer changes.
*Specialized current models can be delivered with our white glove, fully built delivery option, or can be picked up in store. Closeout models (pre 2025) can be shipped
Motor System
| Motor | All New Specialized 3.1 Motor, 101Nm torque, 666Nm power |
| Battery | 840Wh battery |
| Display | All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app |
| Charger | Specialized 4amp charger |
Components
| Frame | All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm |
| Fork | Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression |
| Rear Shock | *Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm |
| Front Brake | SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor |
| Rear Brake | SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor |
| Rear Derailleur | SRAM Eagle 70 T-Type |
| Shift Levers | SRAM 70 trigger, 12-speed, single click |
| Chain | SRAM Eagle 70 T-Type Flattop Chain |
| Cassette | XS-1270, 12-speed, 10-52t |
| Crankset | SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm |
| Chain Ring | SRAM 34t T-Type chainring, 104 BCD, steel |
| Chain Guard | Spec not provided |
| Rims | Specialized 29, hookless alloy, 30mm inner width, tubeless ready |
| Front Hub | Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h |
| Rear Hub | Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
| Front Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4" |
| Rear Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4" |
| Handlebar | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width |
| Stem | Alloy Trail Stem, 35mm bar bore |
| Headset | Spec not provided |
| Grips | Specialized Trail Grips |
| Saddle | Body Geometry Bridge Saddle, steel rails |
| Seatpost | TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
