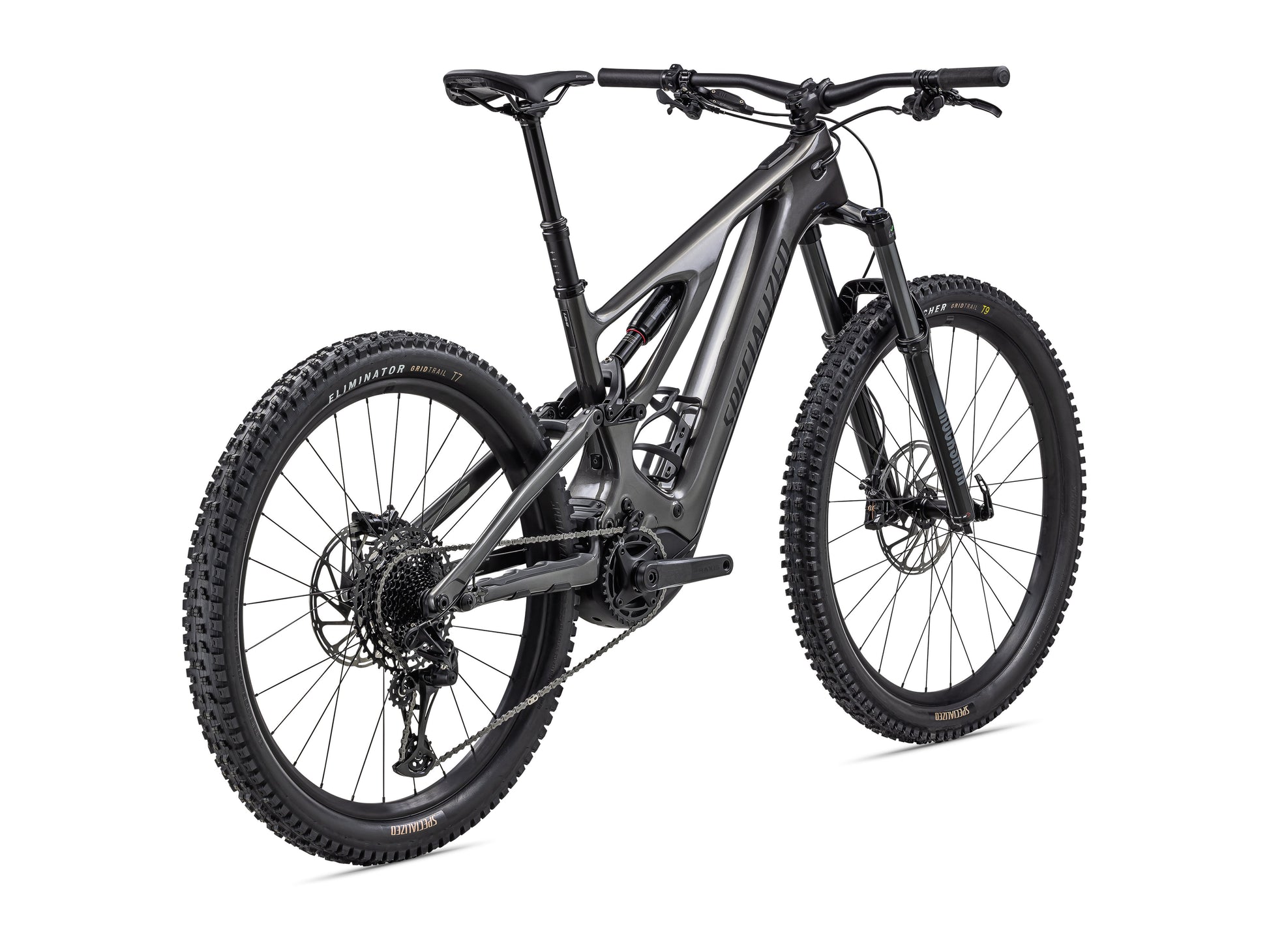

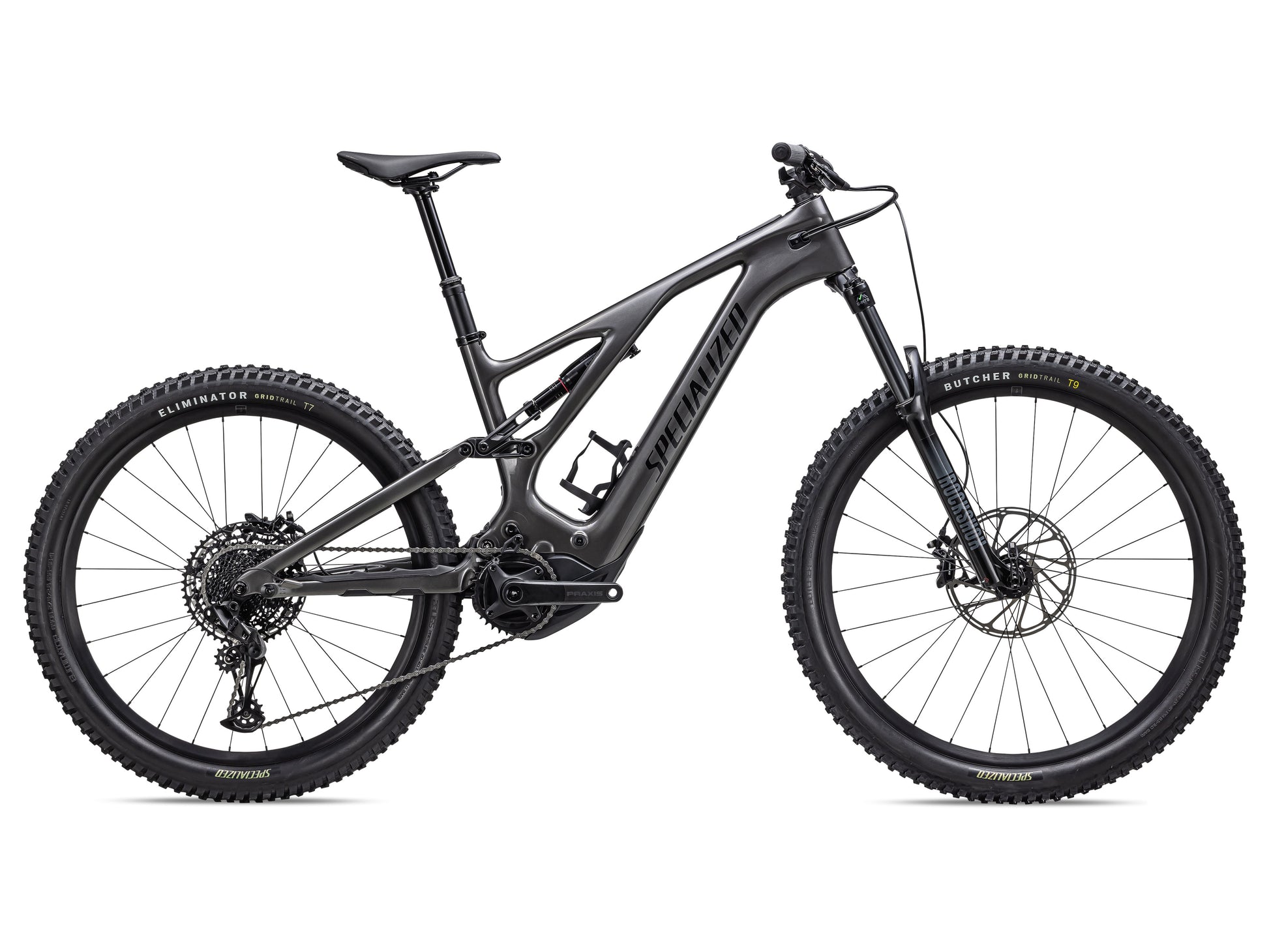

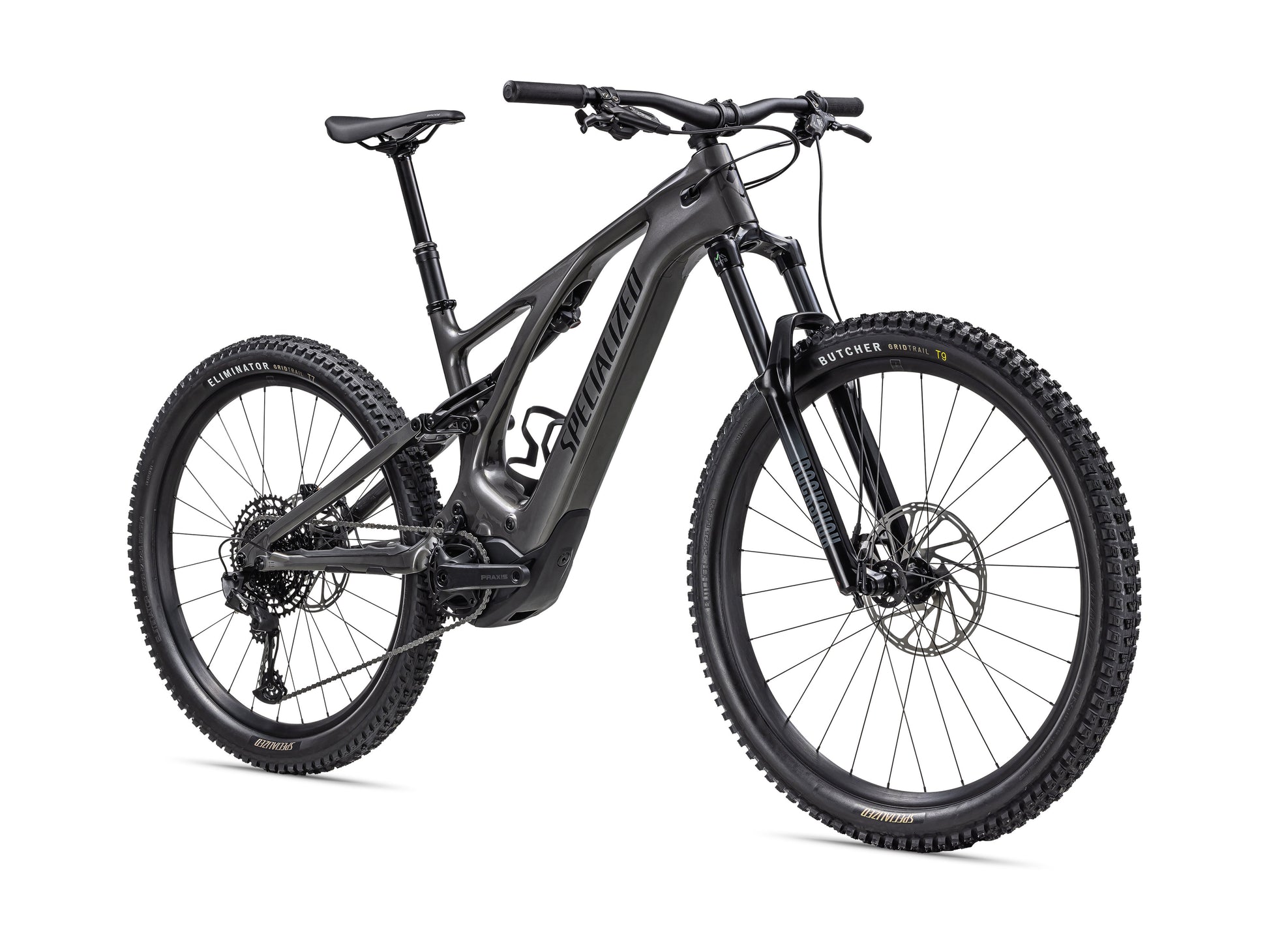

Specialized Turbo Levo Carbon

$4,999.00

$4,999.00 ~~$6,800.00~~

Model Year 2023

Size S6

Color Smoke / black

Product variants

Quantity

Bike Sizing Guide

View full details

The Full Scoop on the Specialized Turbo Levo Carbon

More climbing, more descending, more miles, more fun. The Turbo Levo Carbon delivers more of everything that you love about trail riding.

FRAME SIZE	S1	S2	S3	S4	S5	S6
Seat tube length	385mm	385mm	405mm	425mm	445mm	465mm
Top tube length	560mm	582mm	604mm	631mm	659mm	691mm
Bottom bracket drop	-34mm	-29mm	-29mm	-29mm	-29mm	-29mm
Bottom bracket height	343mm	348mm	348mm	348mm	348mm	348mm
Chainstay length	433mm	432mm	432mm	432mm	432mm	432mm
Seat tube angle	75.8°	75.8°	75.8°	75.8°	75.8°	75.8°
Head tube angle	64.6°	64.6°	64.6°	64.6°	64.6°	64.6°
Fork Offset	42mm	42mm	42mm	42mm	42mm	42mm
Wheelbase	1158mm	1184mm	1208mm	1238mm	1267mm	1301mm
Head tube length	95mm	100mm	110mm	120mm	130mm	140mm
Reach	405mm	425mm	445mm	470mm	495mm	525mm
Stack	609mm	617mm	626mm	635mm	645mm	654mm

The Full Scoop on the Specialized Turbo Levo Carbon

Description

More climbing, more descending, more miles, more fun. The Turbo Levo Carbon delivers more of everything that you love about trail riding.

Motor System

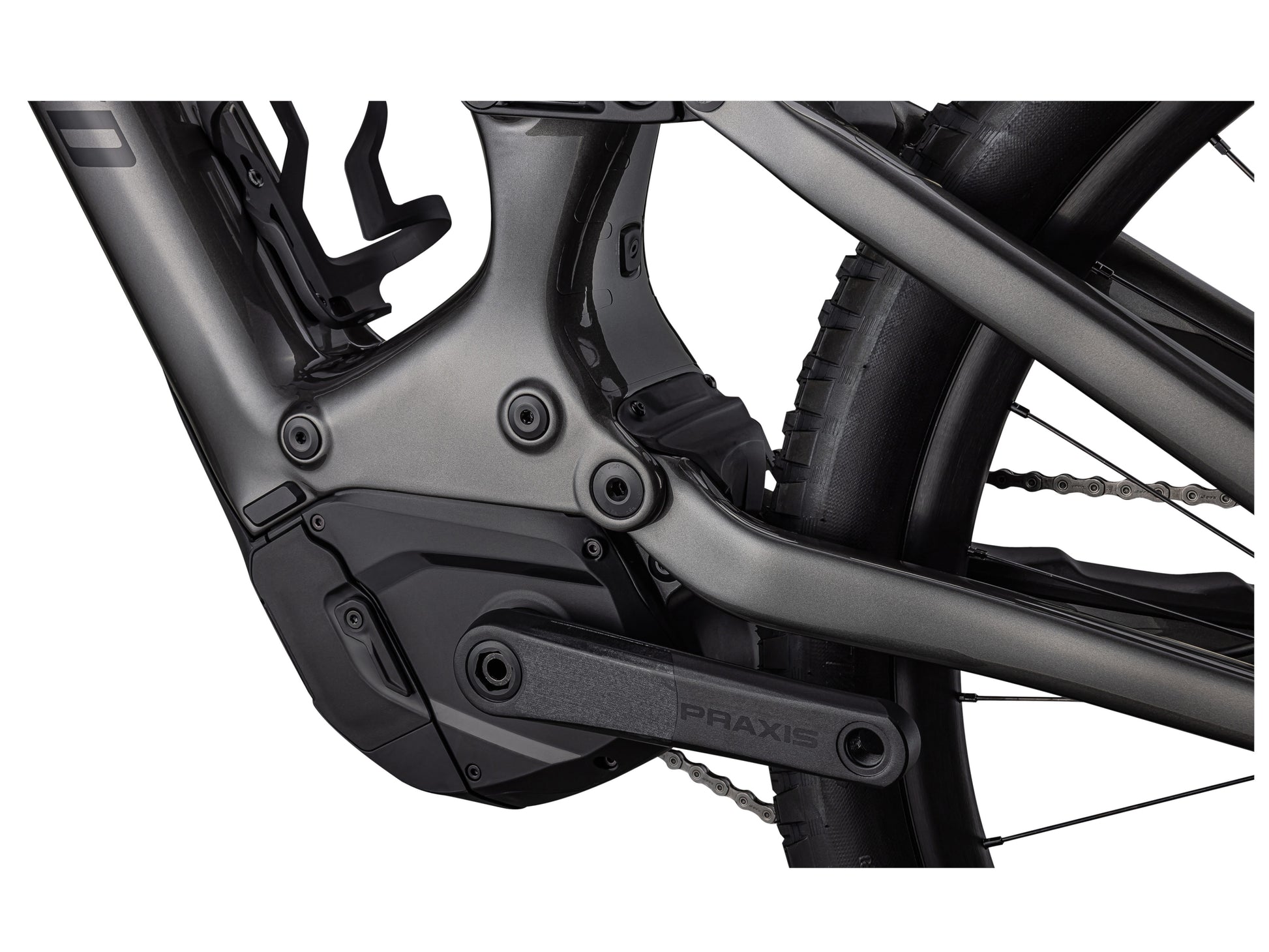

Motor	Specialized 2.2 Custom Rx Trail Tuned Motor
Battery	Specialized M3-700, Integrated battery, 700Wh

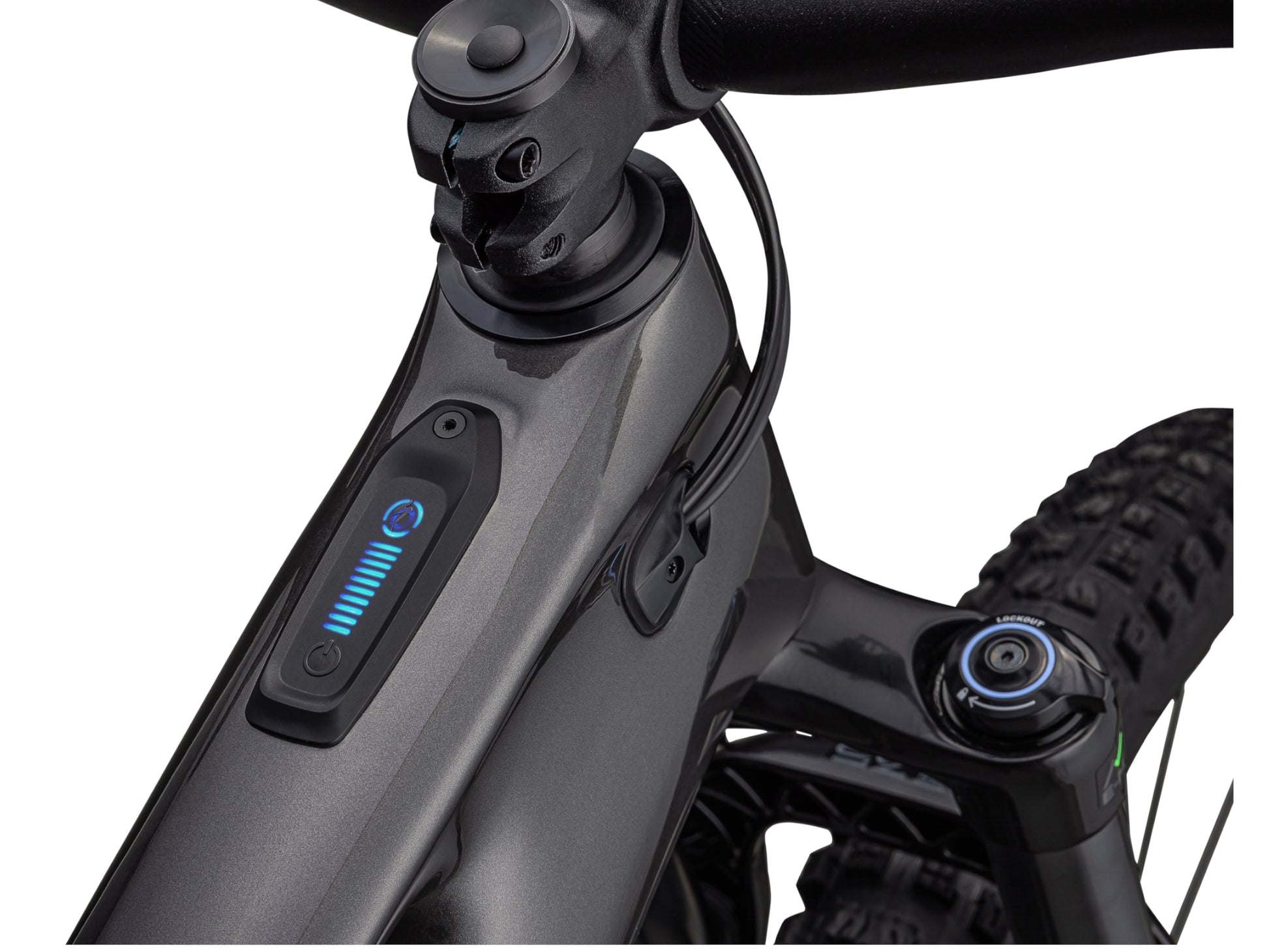

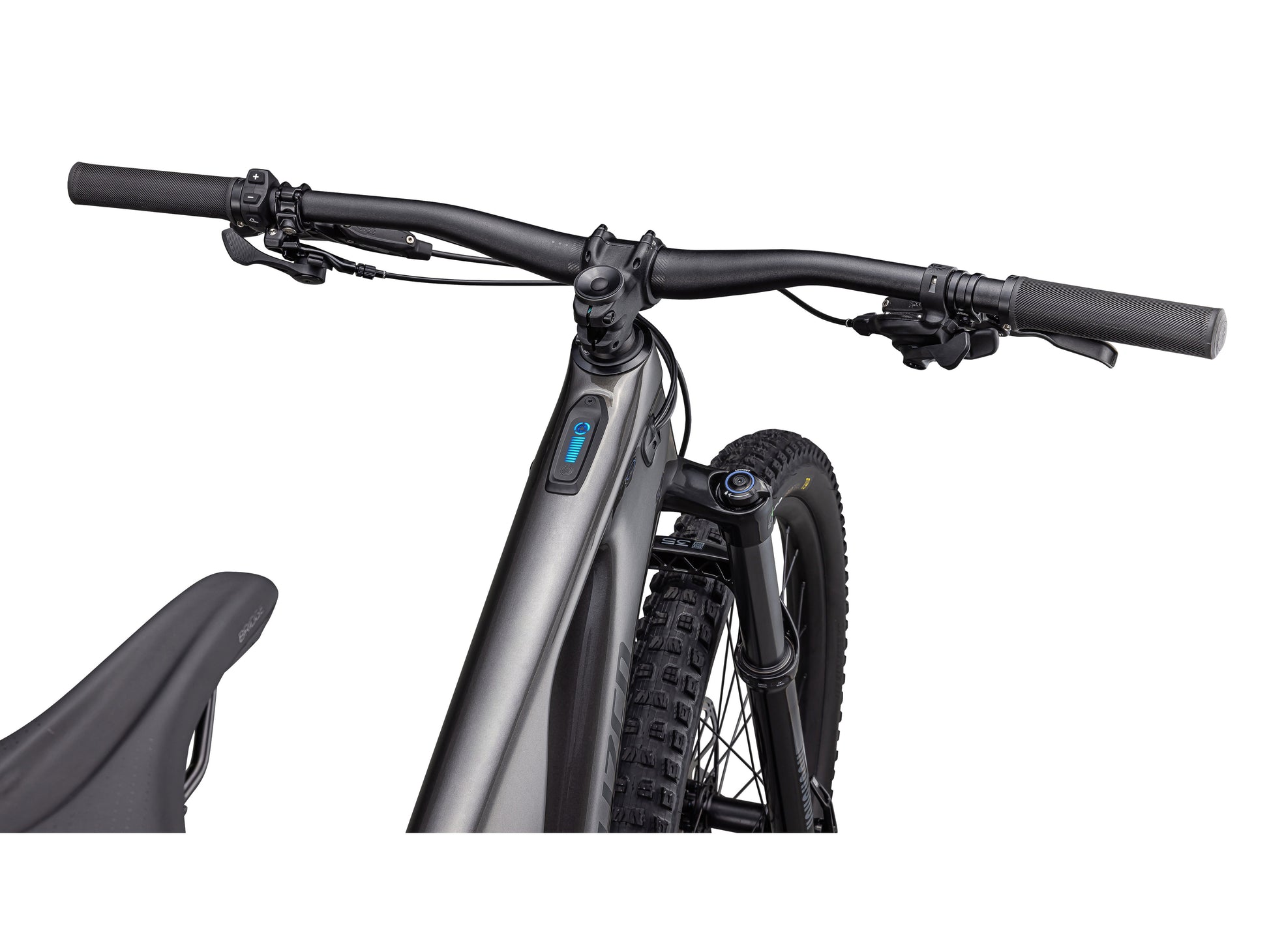

Display/Remote	Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
Charger	Custom charger, 42V4A w/ Rosenberger plug, 100-240V

Components

Frame	FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot

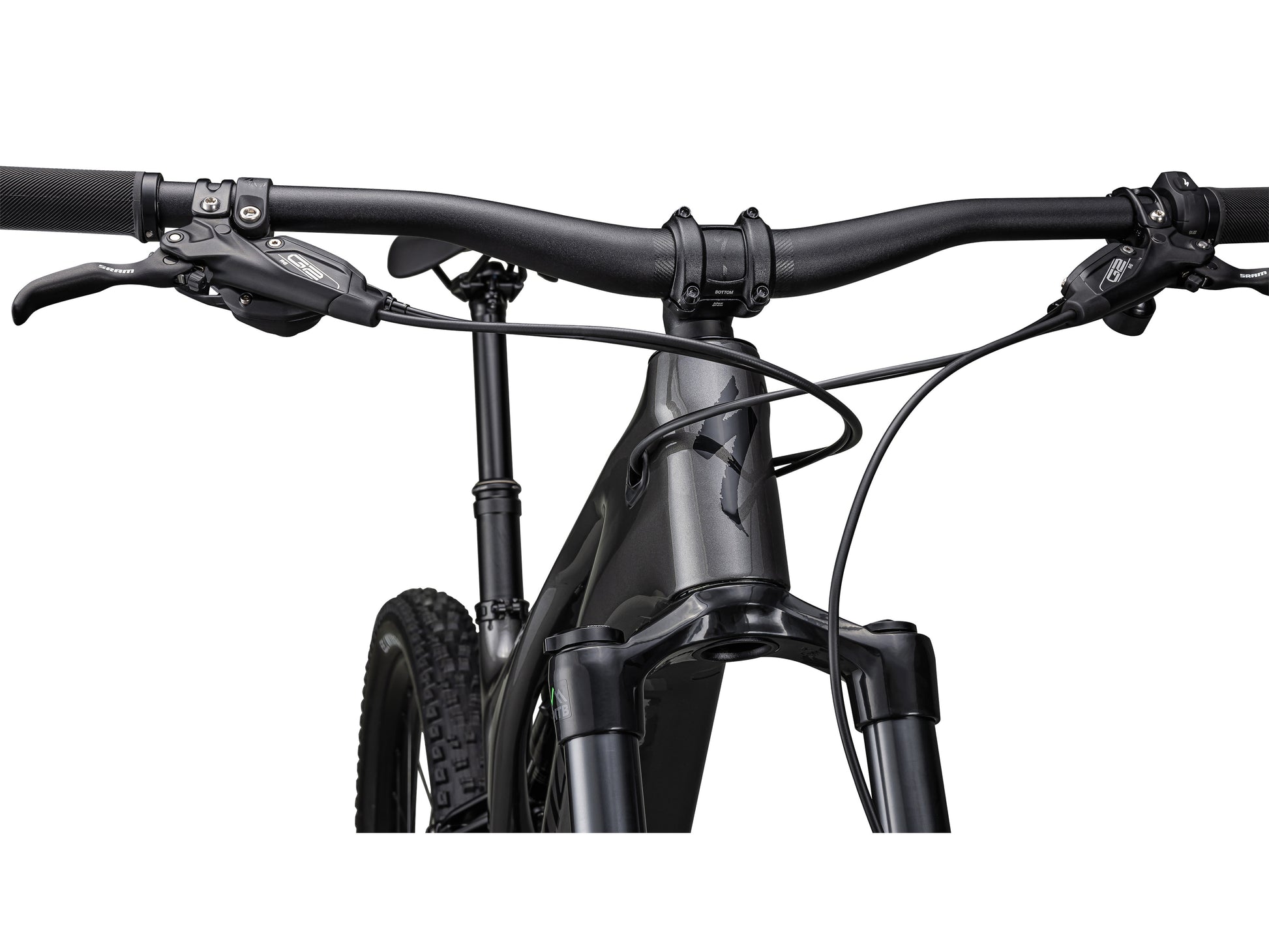

Fork	Rockshox 35 Silver 29, Turnkey damper, S1: 150mm travel, S2-S6: 160mm travel

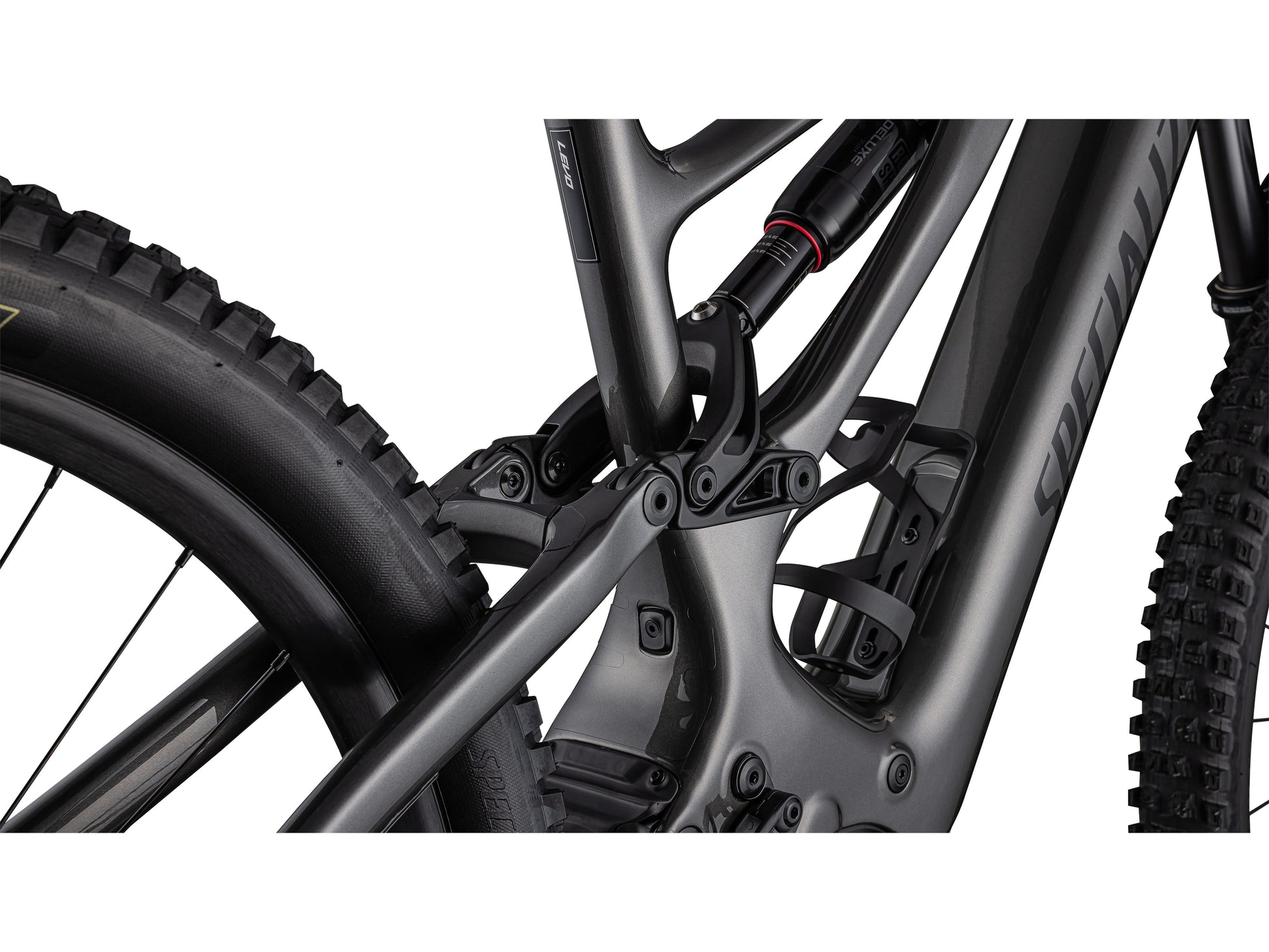

Rear Shock	RockShox Deluxe Select R, rebound adjust, S1: 52.5x210mm, S2-S6: 55x210mm
Front Brake	SRAM Guide RE, S1-S3: 200mm, S4-S6: 220mm
Rear Brake	SRAM Guide RE, 200mm
Rear Derailleur	SRAM GX Eagle, 12-speed
Shift Levers	SRAM SL SX Eagle, 12-speed
Chain	SRAM NX Eagle, 12-speed
Cassette	SRAM NX Eagle, 12-speed, 11-50t
Crankset	Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm
Chain Ring	SRAM X-Sync Eagle, 104 BCD, 34t, steel
Chain Guard	Not applicable
Rims	Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Front Hub	Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear Hub	Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Front Tire	Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Rear Tire	Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 29x2.6"
Handlebars	Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Stem	Alloy Trail Stem, 35mm bar bore
Headset	Spec not provided
Grips	Deity Grips
Saddle	Body Geometry Bridge Saddle, steel rails
Seatpost	TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm

Extras

Pedals	Not applicable
Front Light	Not applicable
Rear Light	Not applicable
Kickstand	Not applicable
Rear Carrier	Not applicable
Fenders	Not applicable
Bell	Not applicable
Lock	Not applicable
Mirror	Not applicable

Geometry

FRAME SIZE	S1	S2	S3	S4	S5	S6
Seat tube length	385mm	385mm	405mm	425mm	445mm	465mm
Top tube length	560mm	582mm	604mm	631mm	659mm	691mm
Bottom bracket drop	-34mm	-29mm	-29mm	-29mm	-29mm	-29mm
Bottom bracket height	343mm	348mm	348mm	348mm	348mm	348mm
Chainstay length	433mm	432mm	432mm	432mm	432mm	432mm
Seat tube angle	75.8°	75.8°	75.8°	75.8°	75.8°	75.8°
Head tube angle	64.6°	64.6°	64.6°	64.6°	64.6°	64.6°
Fork Offset	42mm	42mm	42mm	42mm	42mm	42mm
Wheelbase	1158mm	1184mm	1208mm	1238mm	1267mm	1301mm
Head tube length	95mm	100mm	110mm	120mm	130mm	140mm
Reach	405mm	425mm	445mm	470mm	495mm	525mm
Stack	609mm	617mm	626mm	635mm	645mm	654mm
