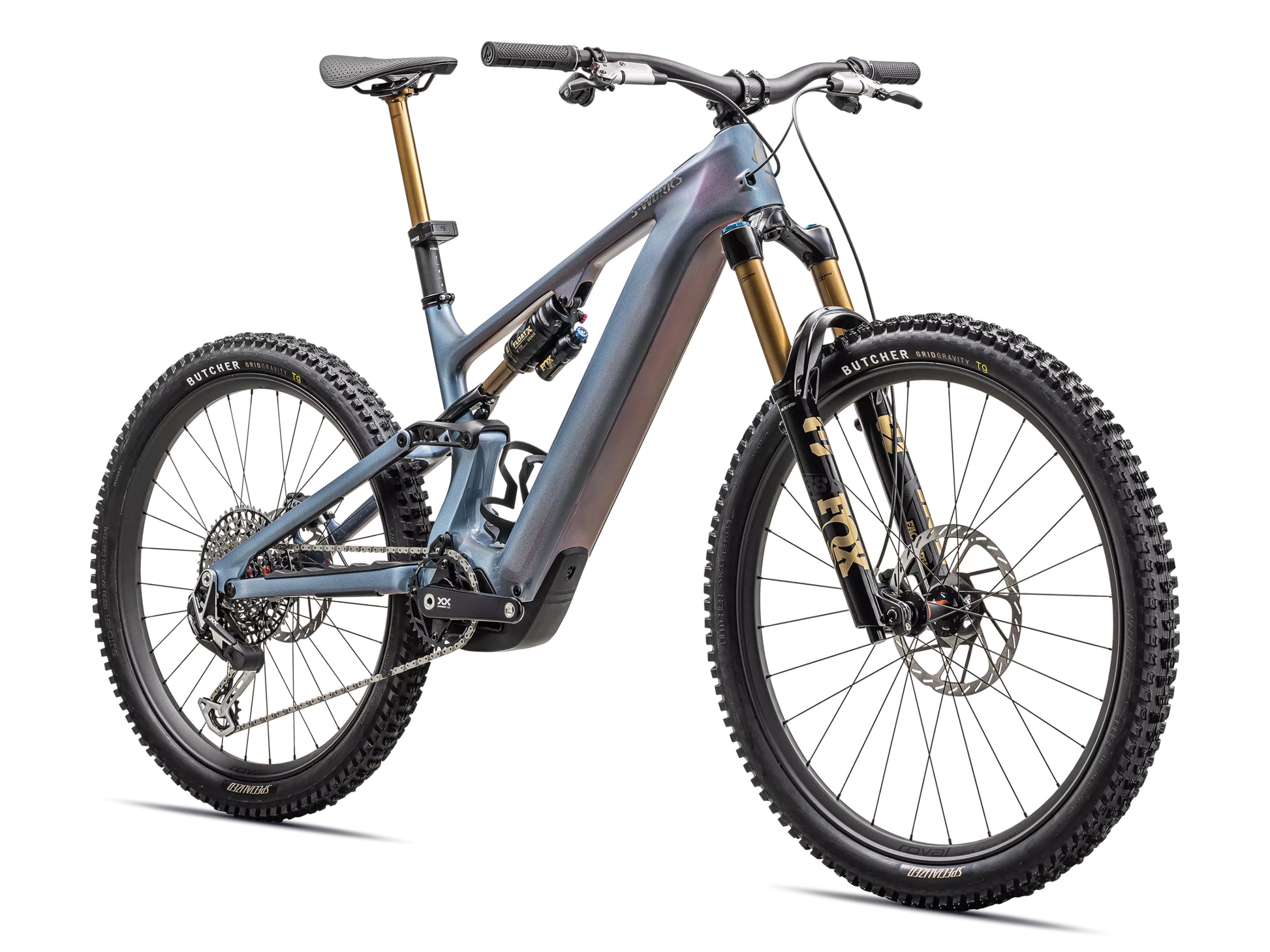

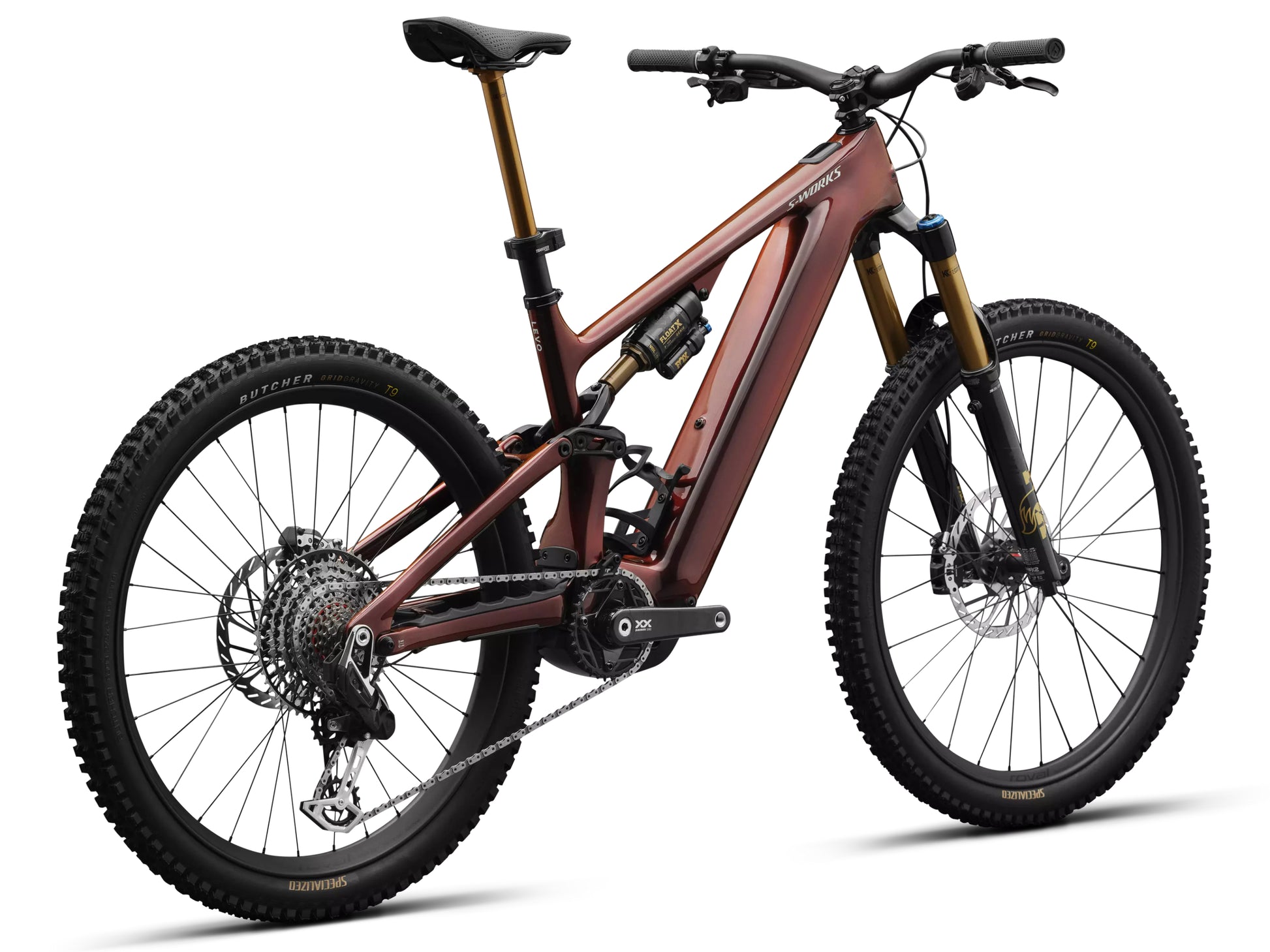

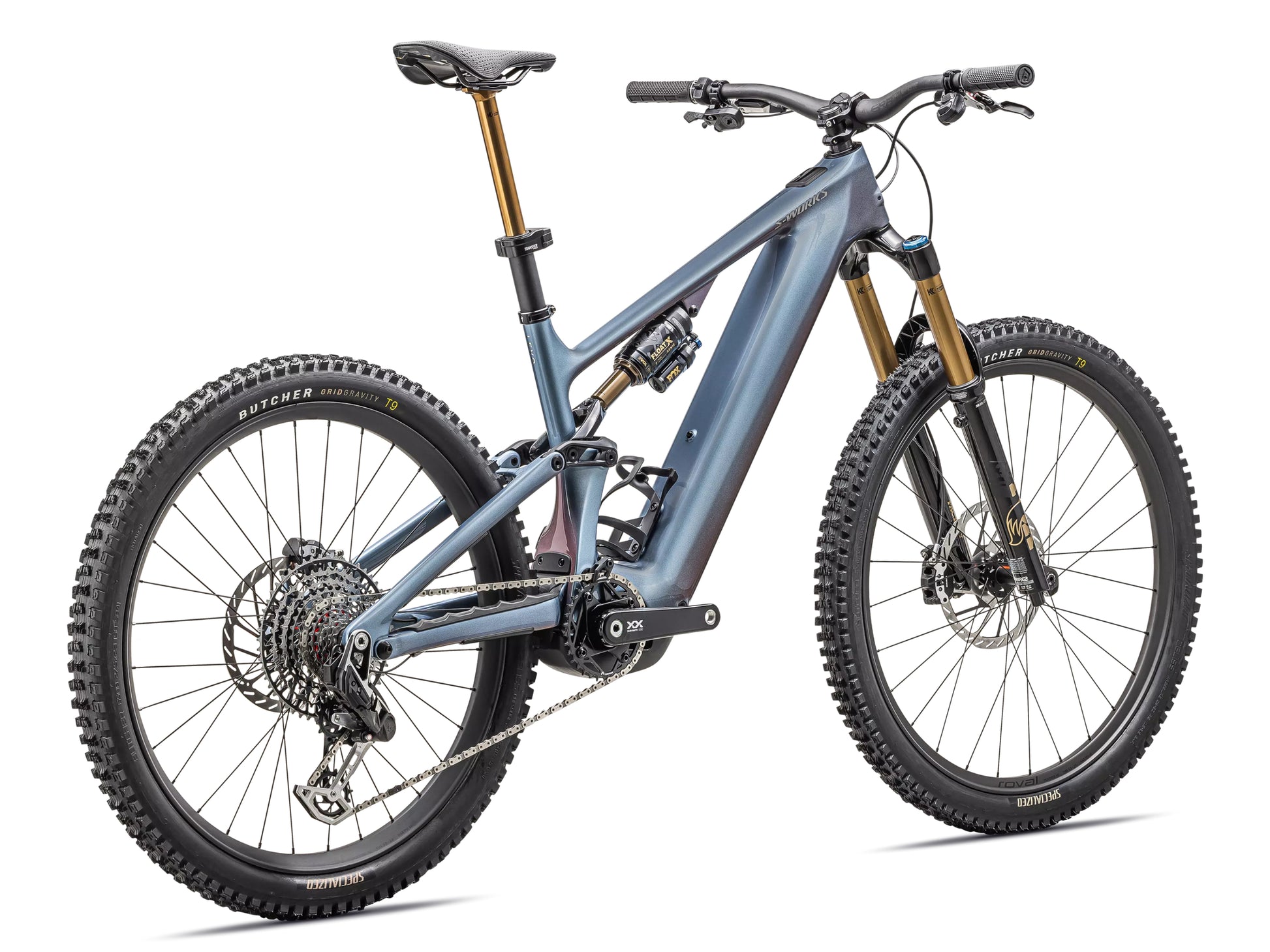

Specialized S-Works Turbo Levo 4
Specialized S-Works Turbo Levo 4
Regular price
$13,495.00
Sale price
$13,495.00
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Full Scoop on Specialized S-Works Turbo Levo 4

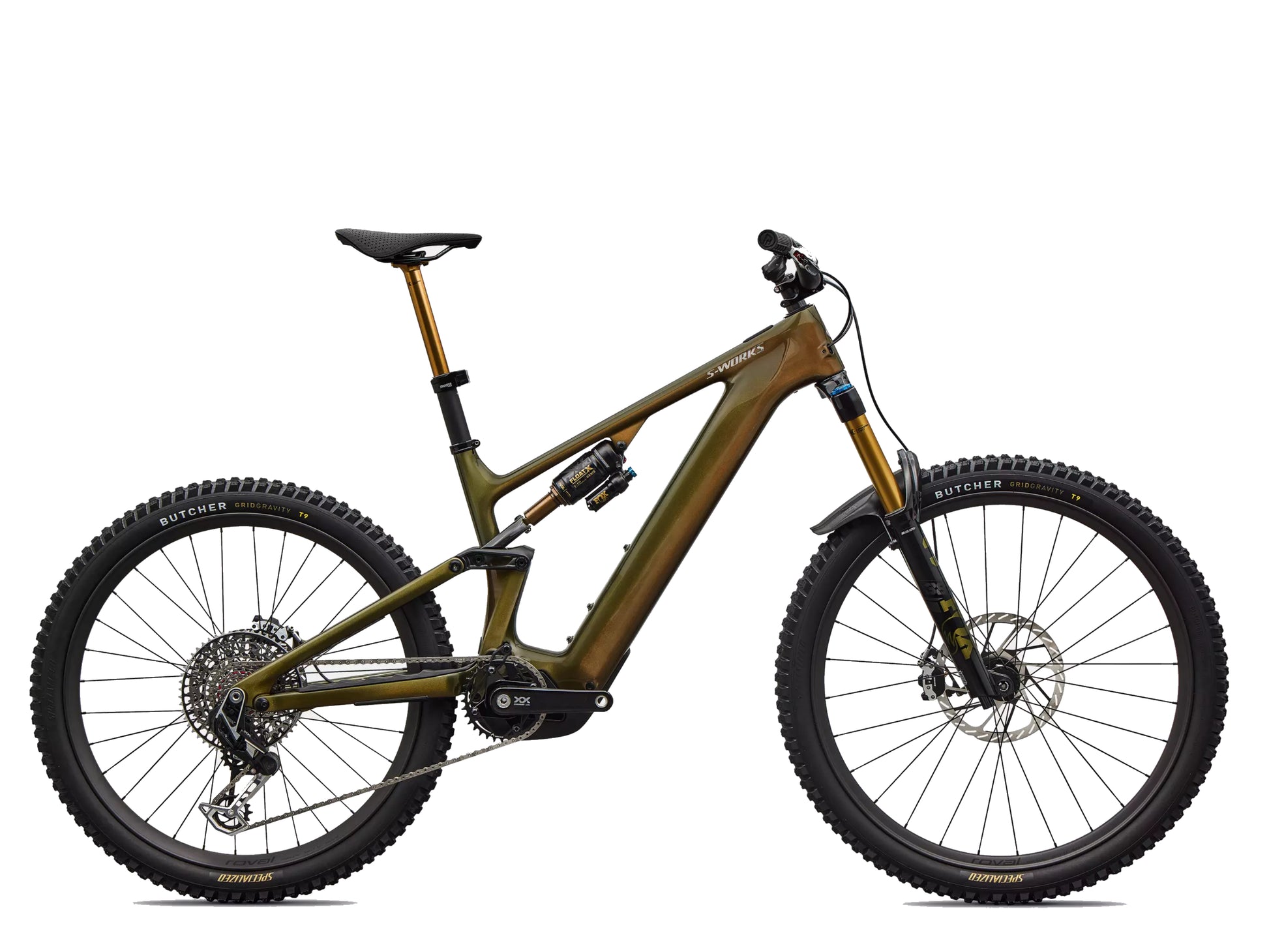

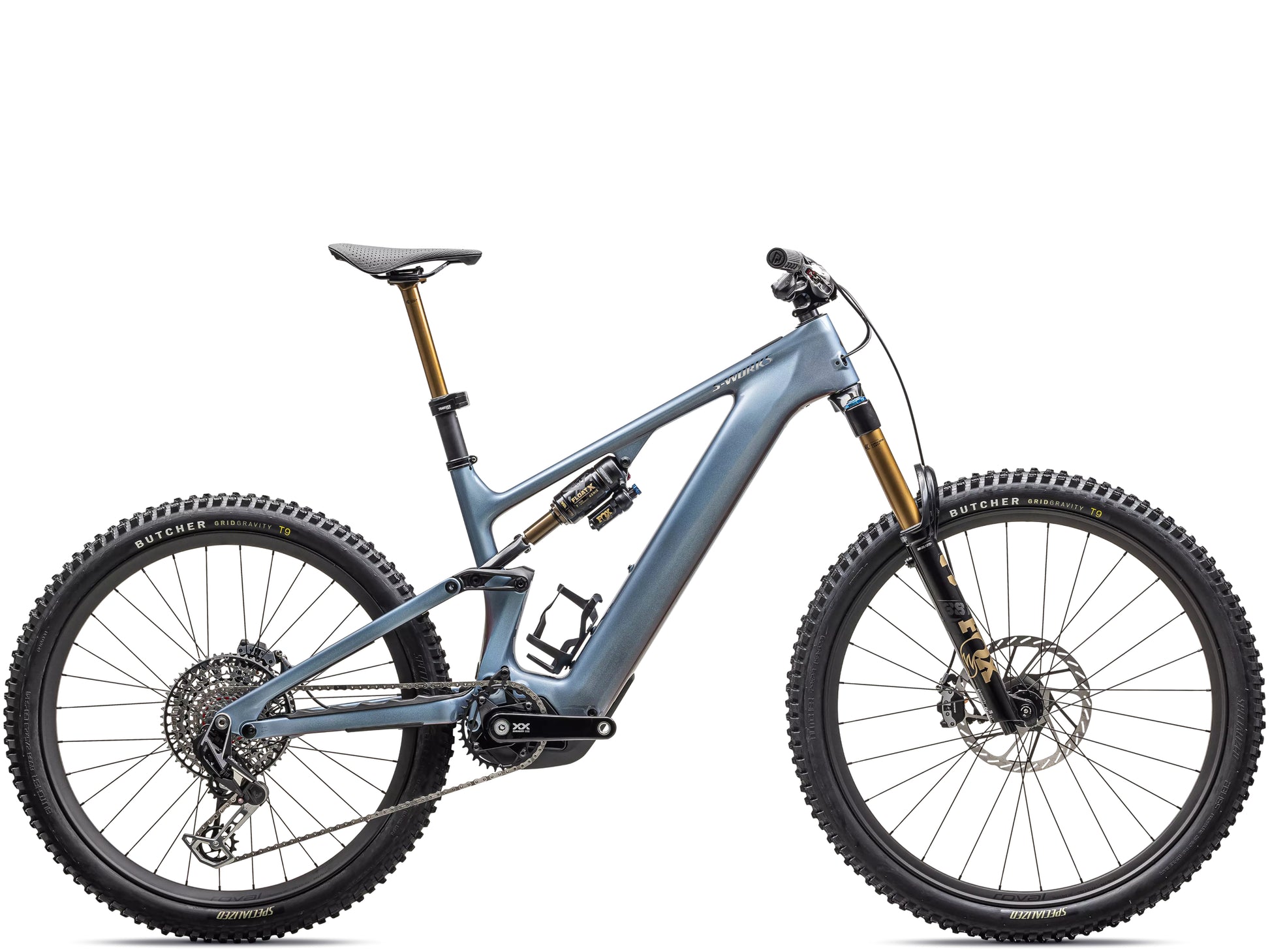

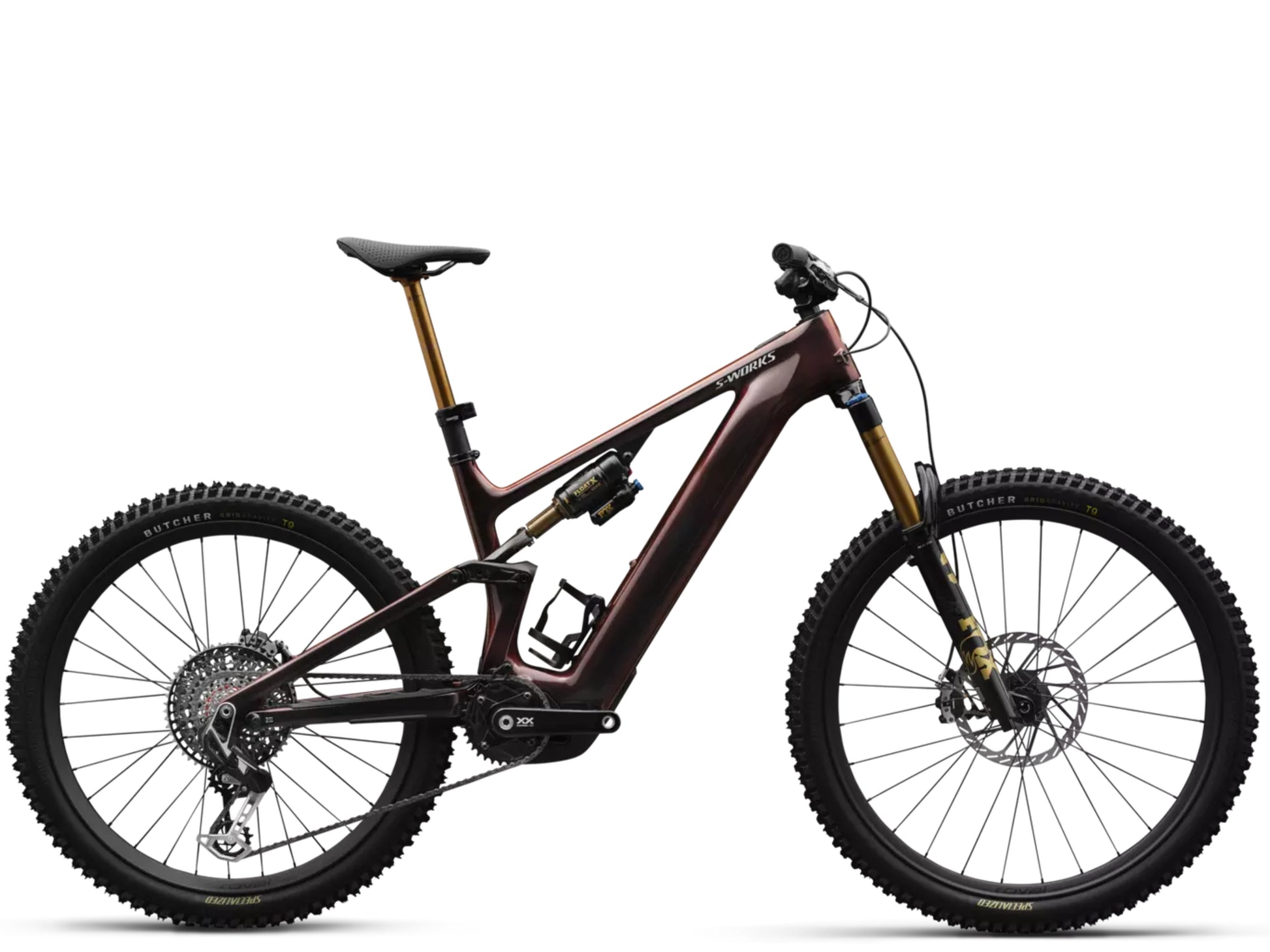

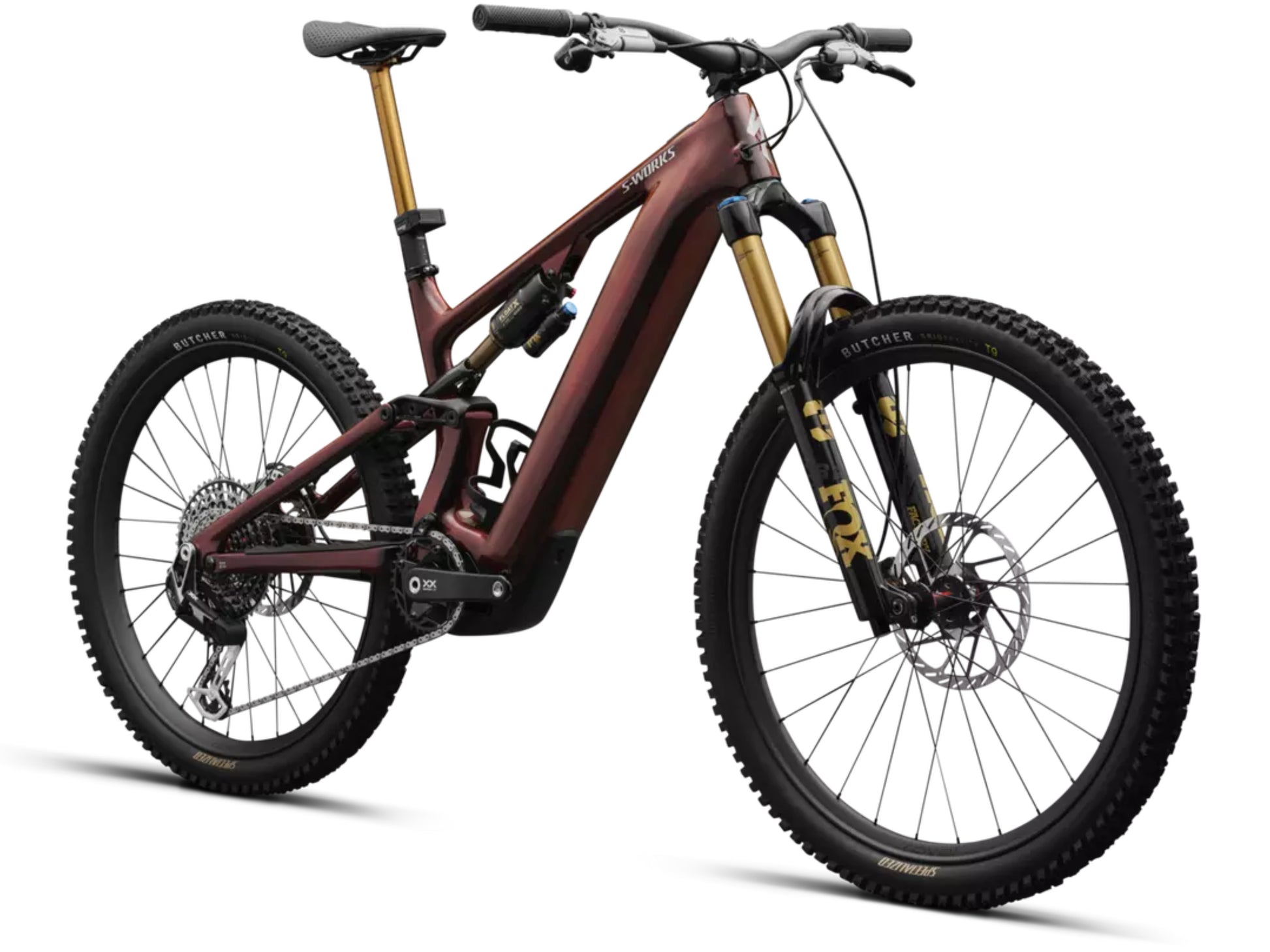

The Specialized S-Works Turbo Levo is by far the most stoke-inducing eMTB in the Turbo Levo line. When nothing but the best will do, the top-shelf Specialized S-Works Turbo Levo is the answer. A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs.
*Components subject to manufacturer changes

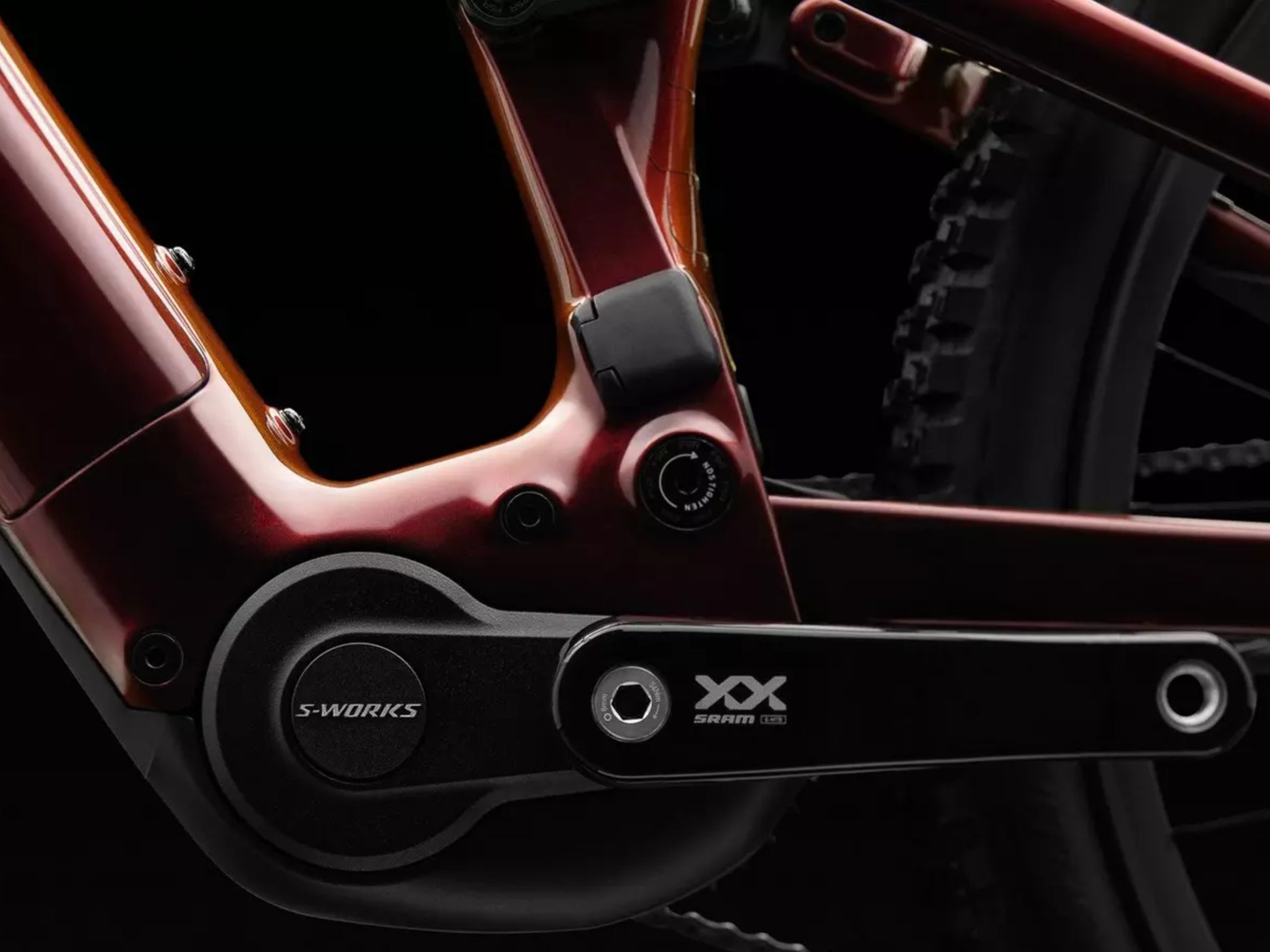

| Motor | All New Specialized 3.1 S-Works motor, 111Nm torque, 720W power |
| Battery | 840wh battery |
| Display / Remote | All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app |
| Charger | Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80% |
| Frame | All new S-Works Levo 4 frame with carbon shock extension, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm |
| Fork | FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel |

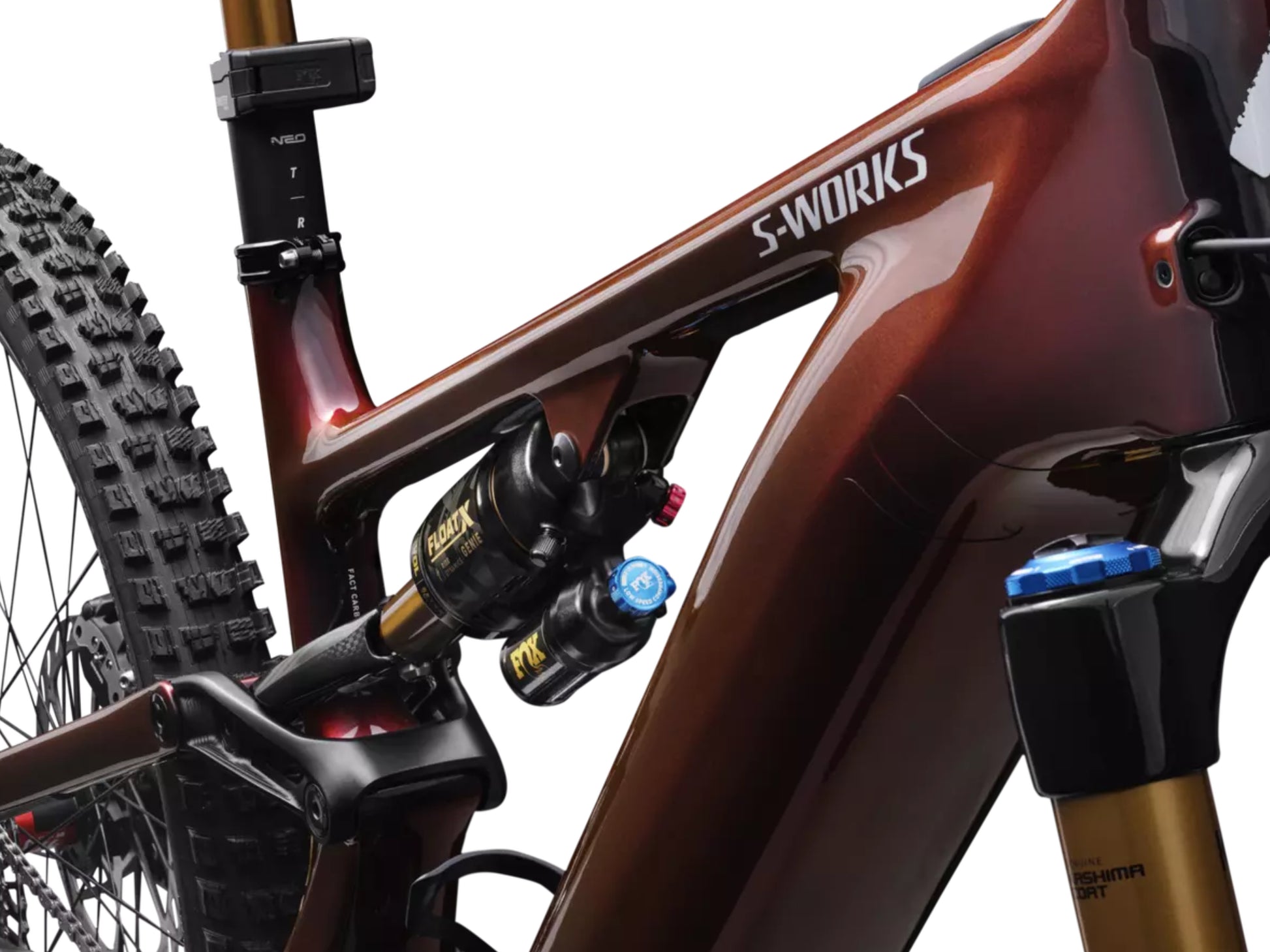

| Rear Shock | FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm |
| Front Brake | SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor |
| Rear Brake | SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor |
| Rear Derailleur | SRAM XX Eagle Transmission Derailleur |
| Shift Levers | SRAM AXS POD ULTIMATE with Discrete clamp |
| Chain | SRAM XX EagleTransmission Flattop Chain |
| Cassette | SRAM XX Eagle Transmission Cassette, 12spd, 10-52t |
| Crankset | SRAM XX Carbon crank, 55mm Chainline, ISIS interface, 160mm |
| Chain Ring | SRAM 34t T-Type chainring, 104 BCD, steel |
| Chain Guard | Not applicable |
| Front wheel | Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 15x110mm, 28h |
| Rear wheel | Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 12x148mm, 32h |
| Front Hub | Not applicable |
| Rear Hub | Not applicable |
| Front Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
| Rear Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3" |
| Handlebars | RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm |
| Stem | Industry 9 Mountain stem, 35mm clamp, 40mm length |
| Headset | Spec not provided |
| Grips | Deity Lockjaw grips |
| Saddle | Specialized Power Pro Mirror w/hollow Ti rails |
| Seatpost | FOX Transfer NEO Factory, 34.9, S2: 150mm, S3: 175mm, S4-S6: 200mm |
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |
The Full Scoop on Specialized S-Works Turbo Levo 4
Description
The Specialized S-Works Turbo Levo is by far the most stoke-inducing eMTB in the Turbo Levo line. When nothing but the best will do, the top-shelf Specialized S-Works Turbo Levo is the answer. A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs.
*Components subject to manufacturer changes
Motor System
| Motor | All New Specialized 3.1 S-Works motor, 111Nm torque, 720W power |
| Battery | 840wh battery |
| Display / Remote | All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app |
| Charger | Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80% |
Components
| Frame | All new S-Works Levo 4 frame with carbon shock extension, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm |

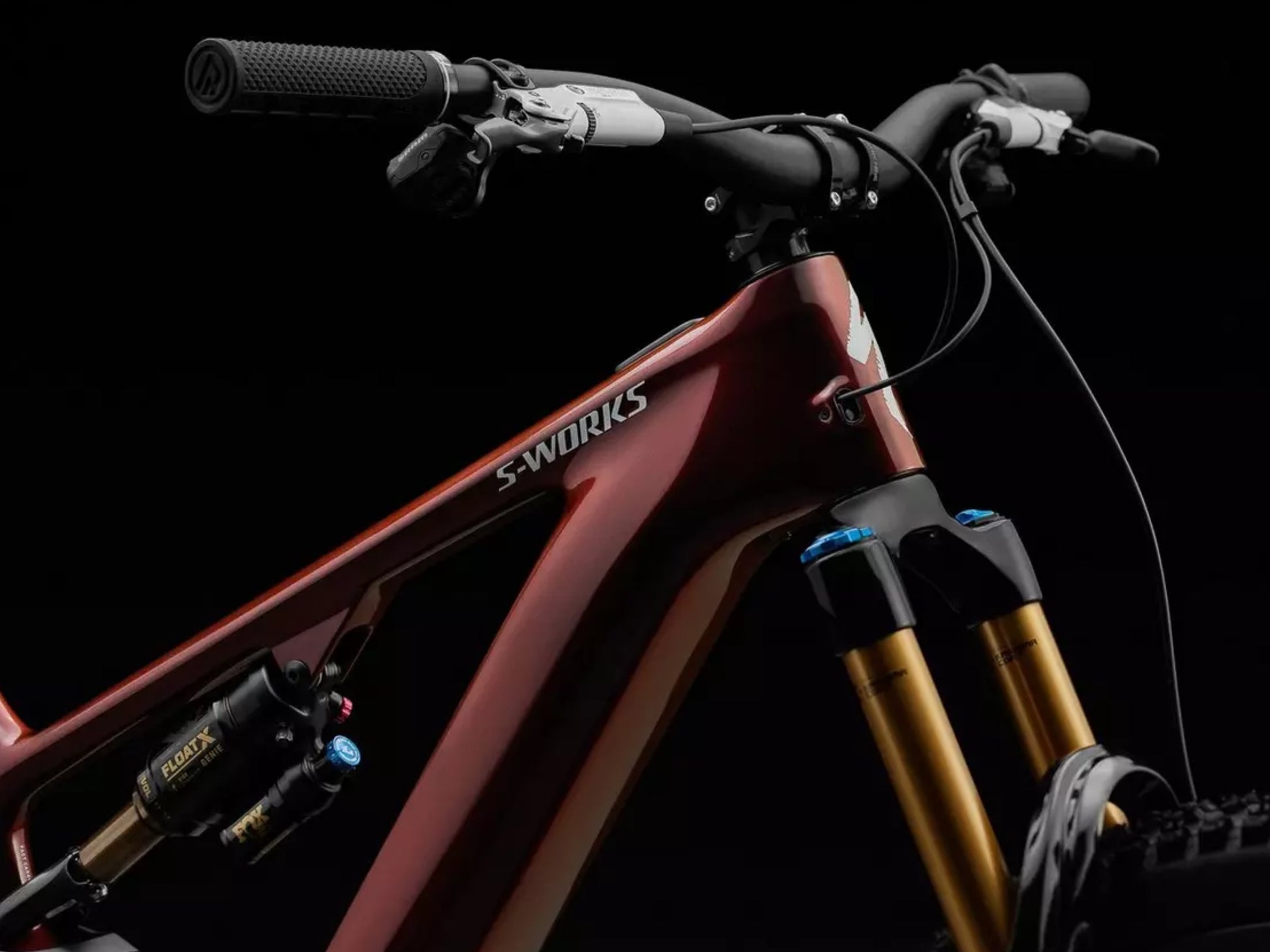

| Fork | FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel |
| Rear Shock | FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm |
| Front Brake | SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor |
| Rear Brake | SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor |
| Rear Derailleur | SRAM XX Eagle Transmission Derailleur |
| Shift Levers | SRAM AXS POD ULTIMATE with Discrete clamp |
| Chain | SRAM XX EagleTransmission Flattop Chain |
| Cassette | SRAM XX Eagle Transmission Cassette, 12spd, 10-52t |
| Crankset | SRAM XX Carbon crank, 55mm Chainline, ISIS interface, 160mm |
| Chain Ring | SRAM 34t T-Type chainring, 104 BCD, steel |
| Chain Guard | Not applicable |
| Front wheel | Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 15x110mm, 28h |
| Rear wheel | Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 12x148mm, 32h |
| Front Hub | Not applicable |
| Rear Hub | Not applicable |
| Front Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
| Rear Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3" |

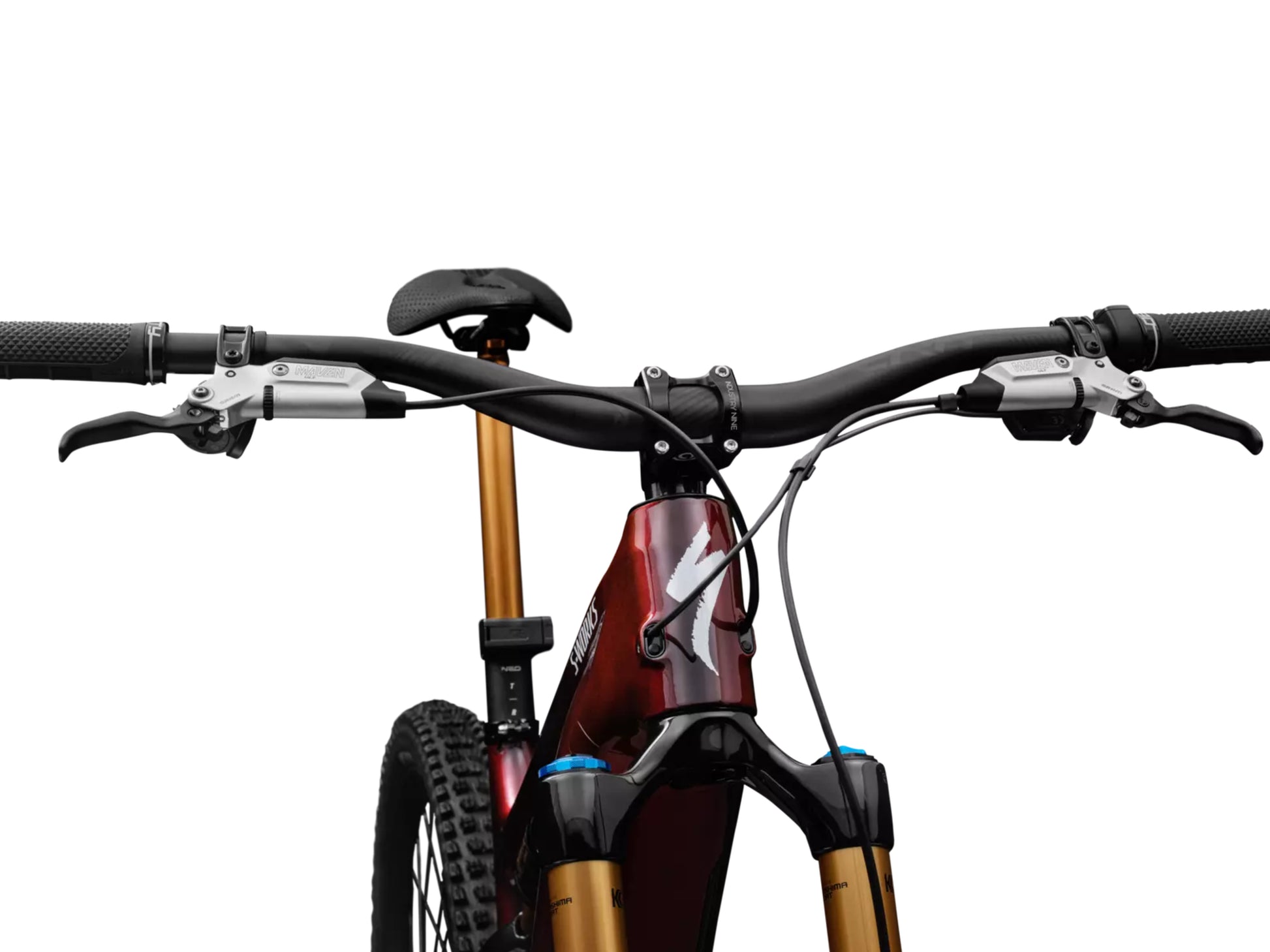

| Handlebars | RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm |
| Stem | Industry 9 Mountain stem, 35mm clamp, 40mm length |
| Headset | Spec not provided |
| Grips | Deity Lockjaw grips |
| Saddle | Specialized Power Pro Mirror w/hollow Ti rails |
| Seatpost | FOX Transfer NEO Factory, 34.9, S2: 150mm, S3: 175mm, S4-S6: 200mm |
Extras
| Pedals | Not applicable |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Not applicable |
| Lock | Not applicable |
| Mirror | Not applicable |

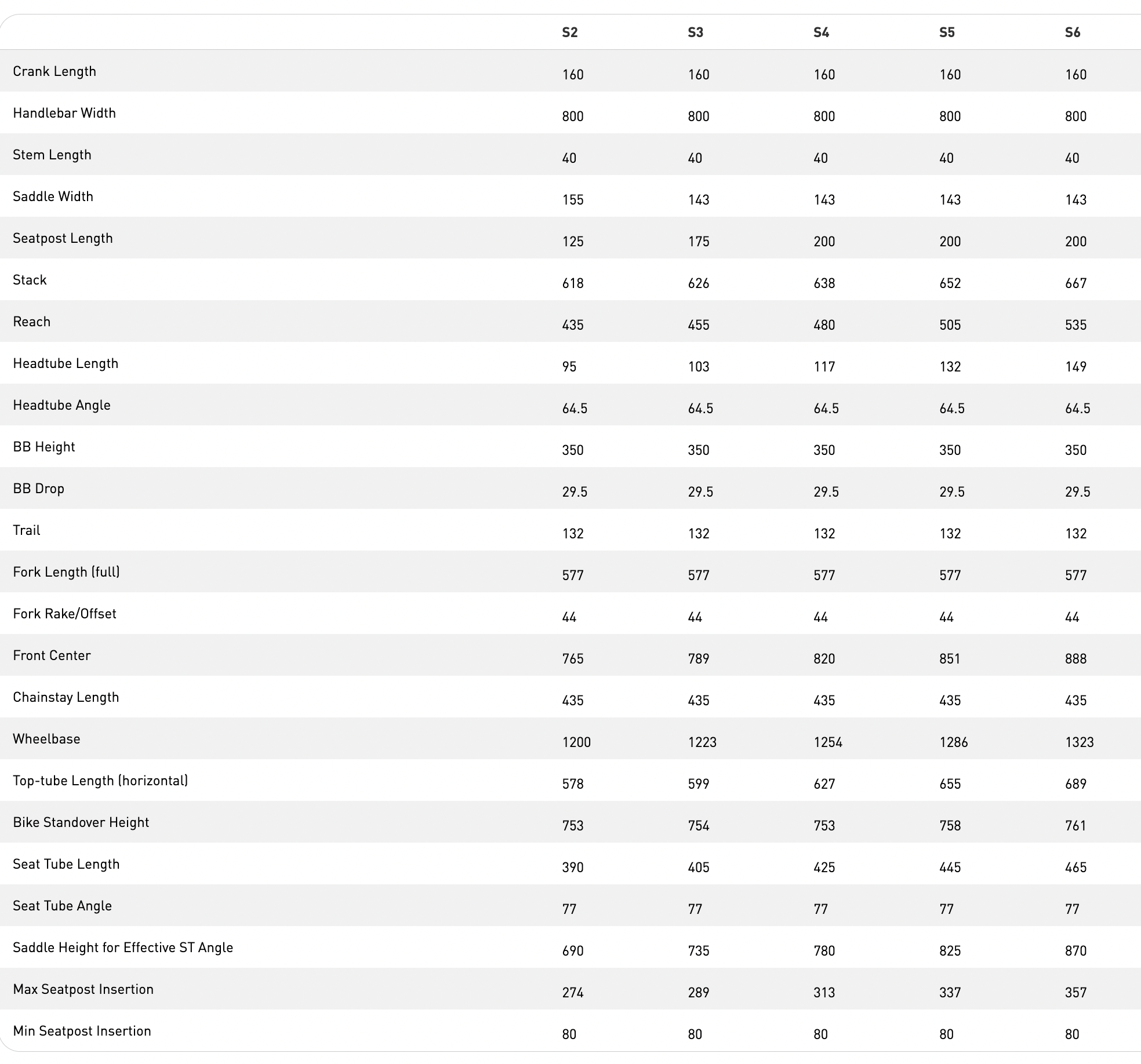

Geometry
