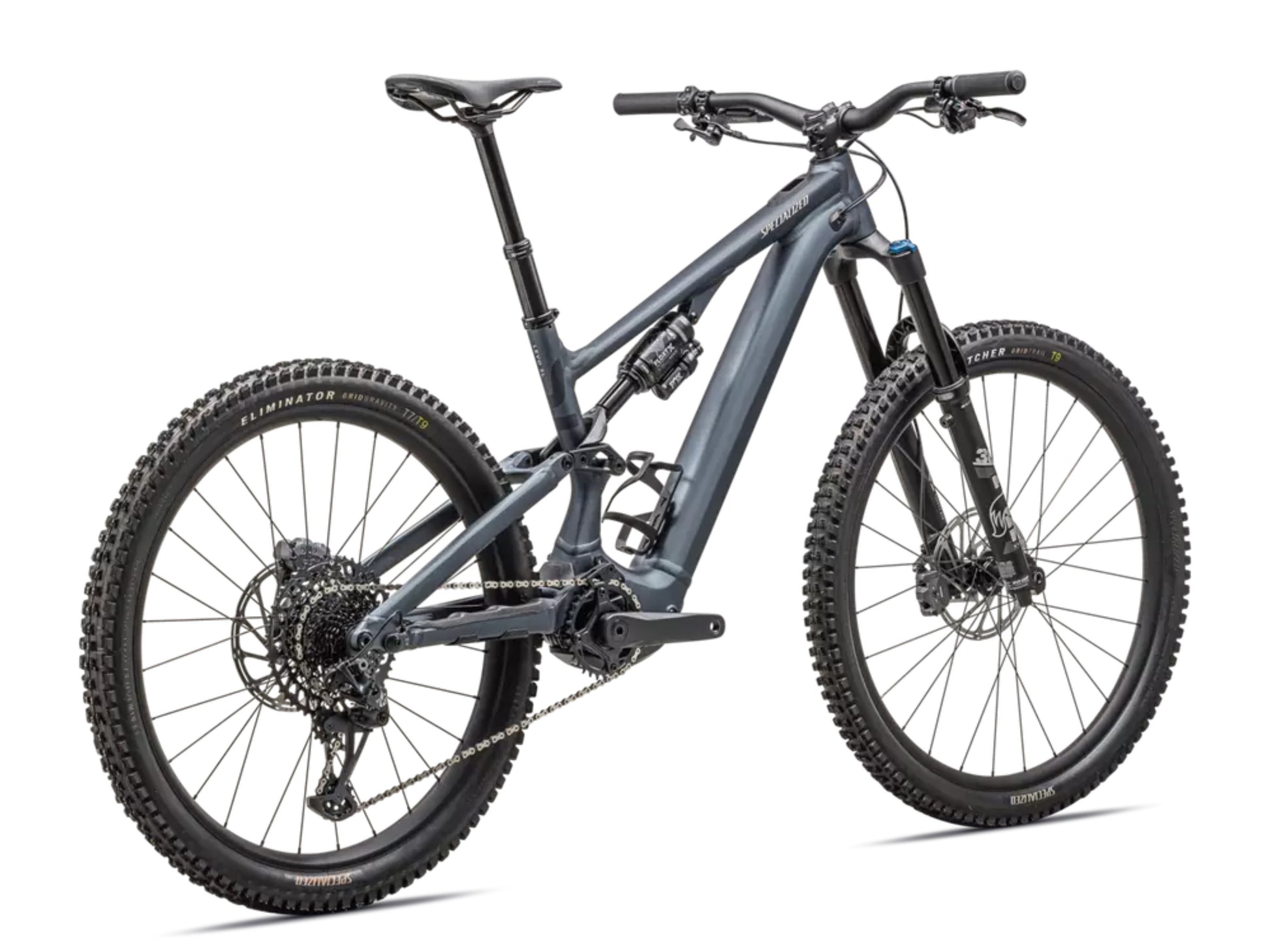

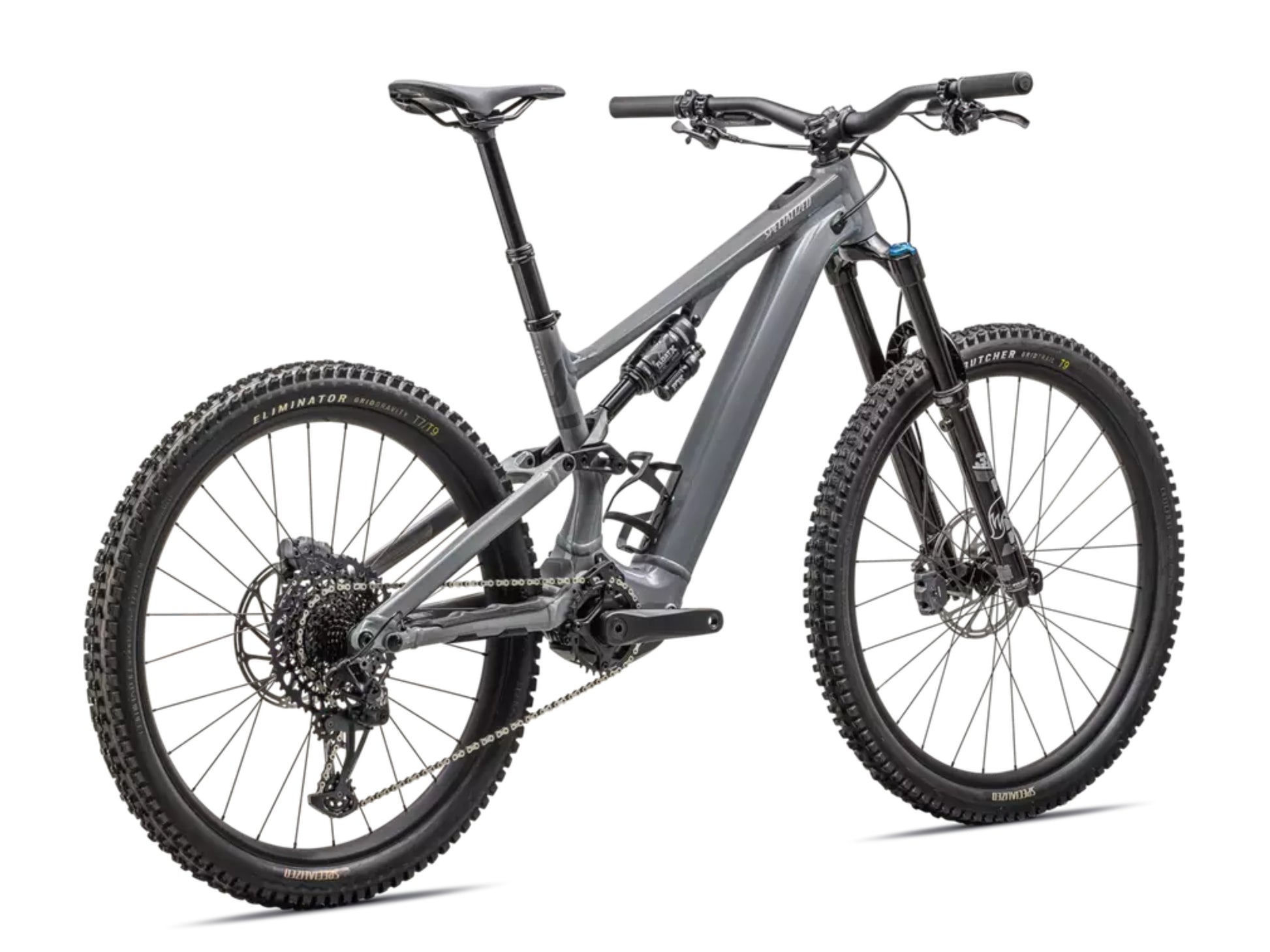

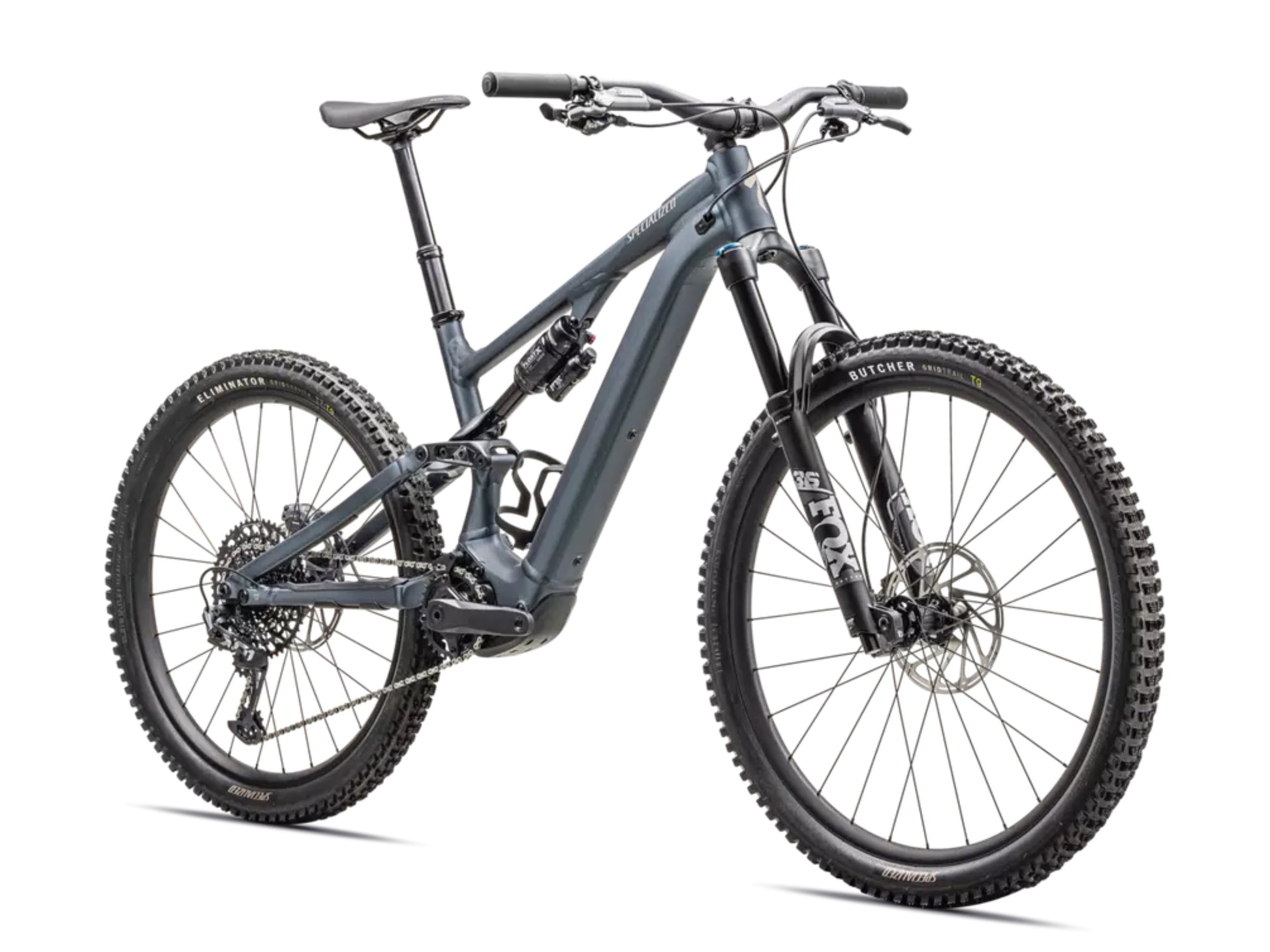

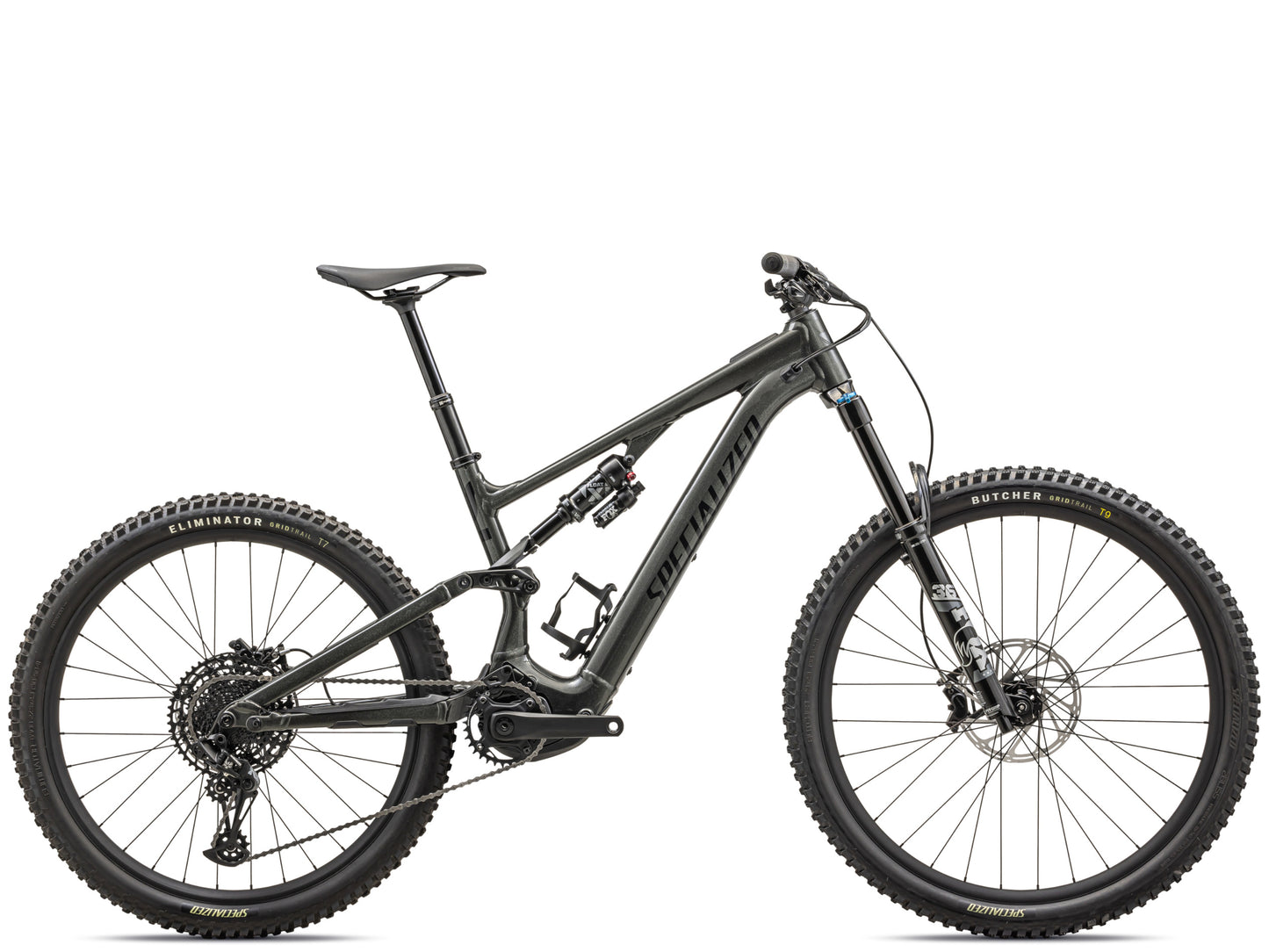

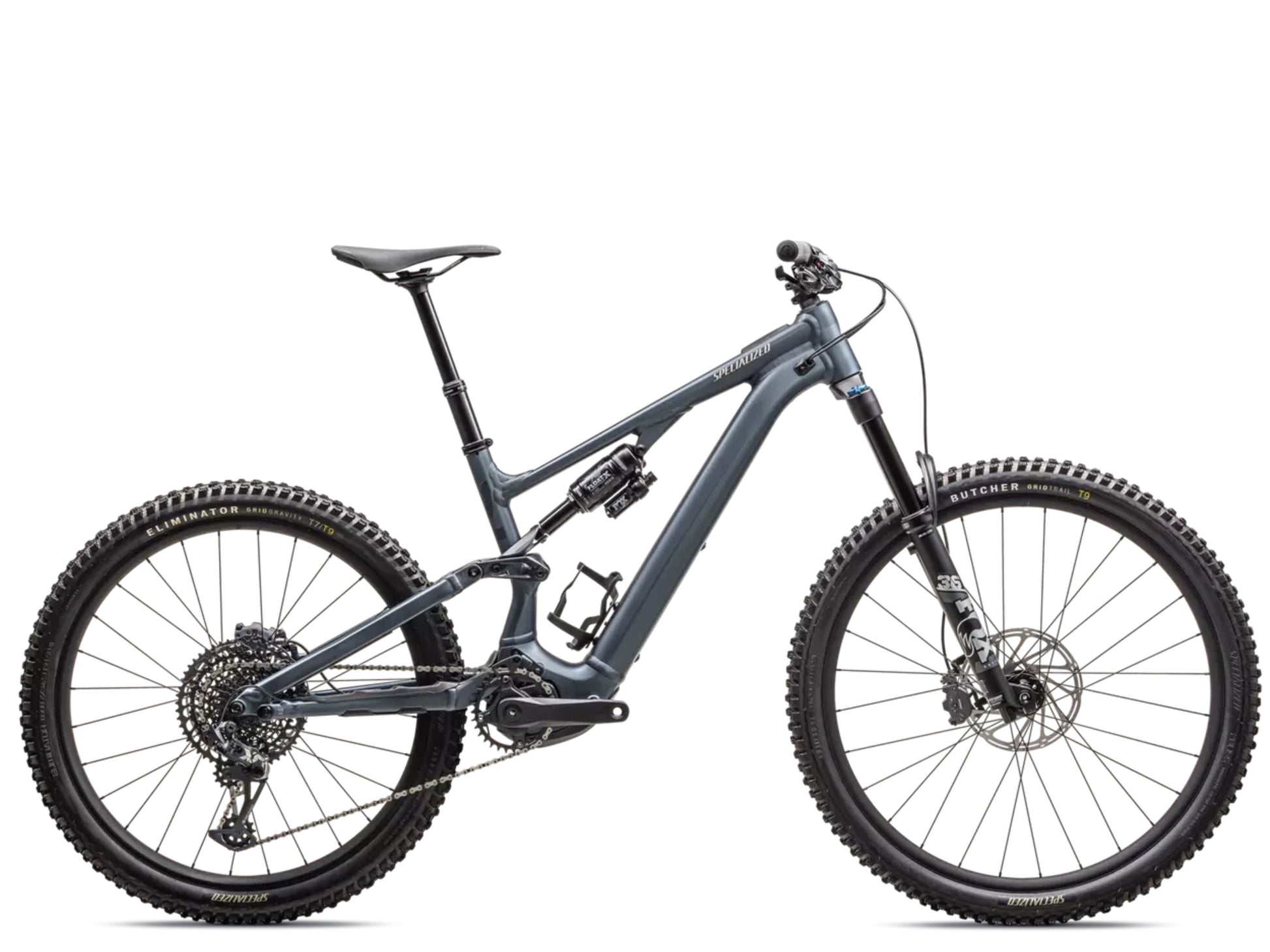

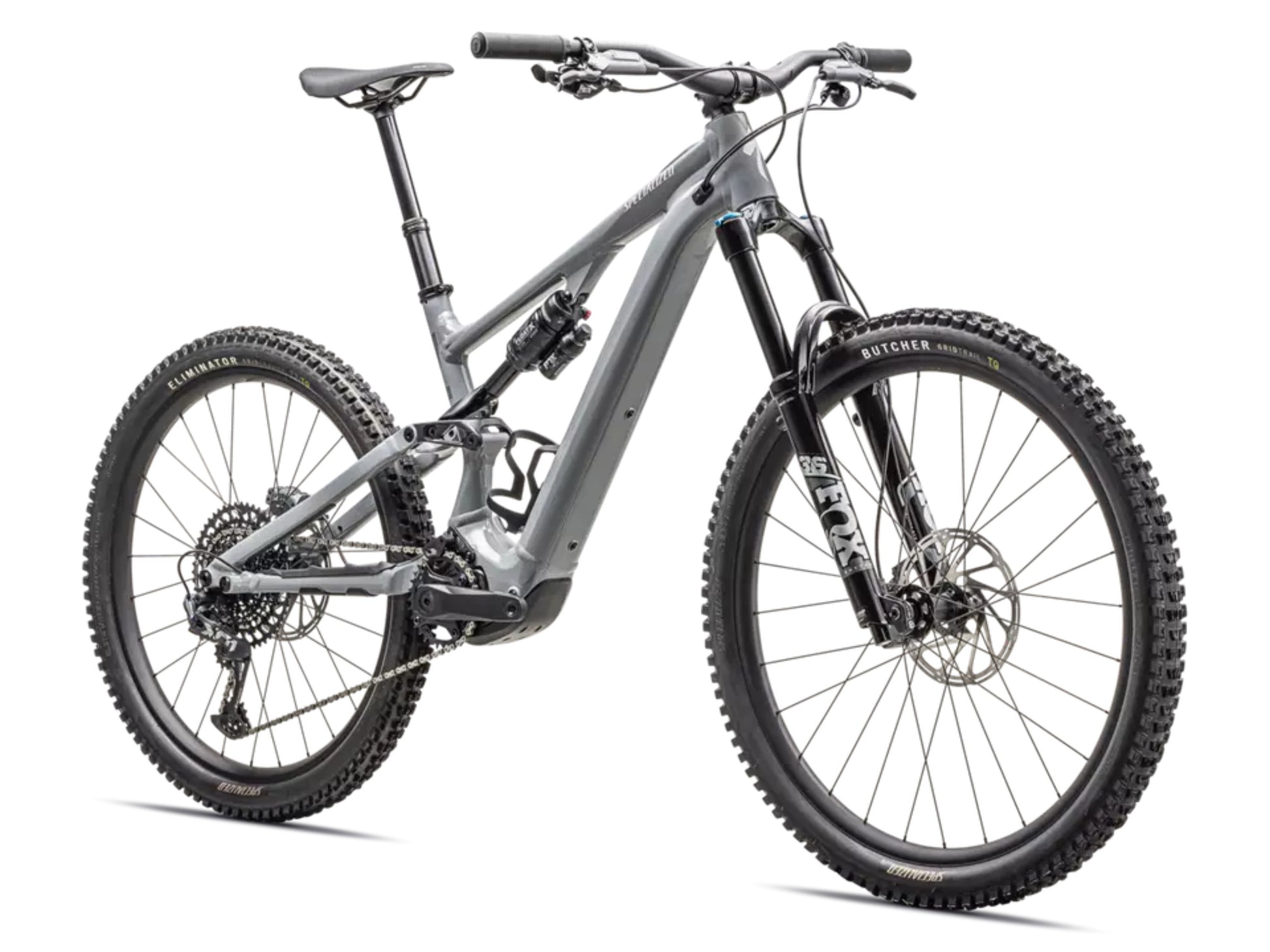

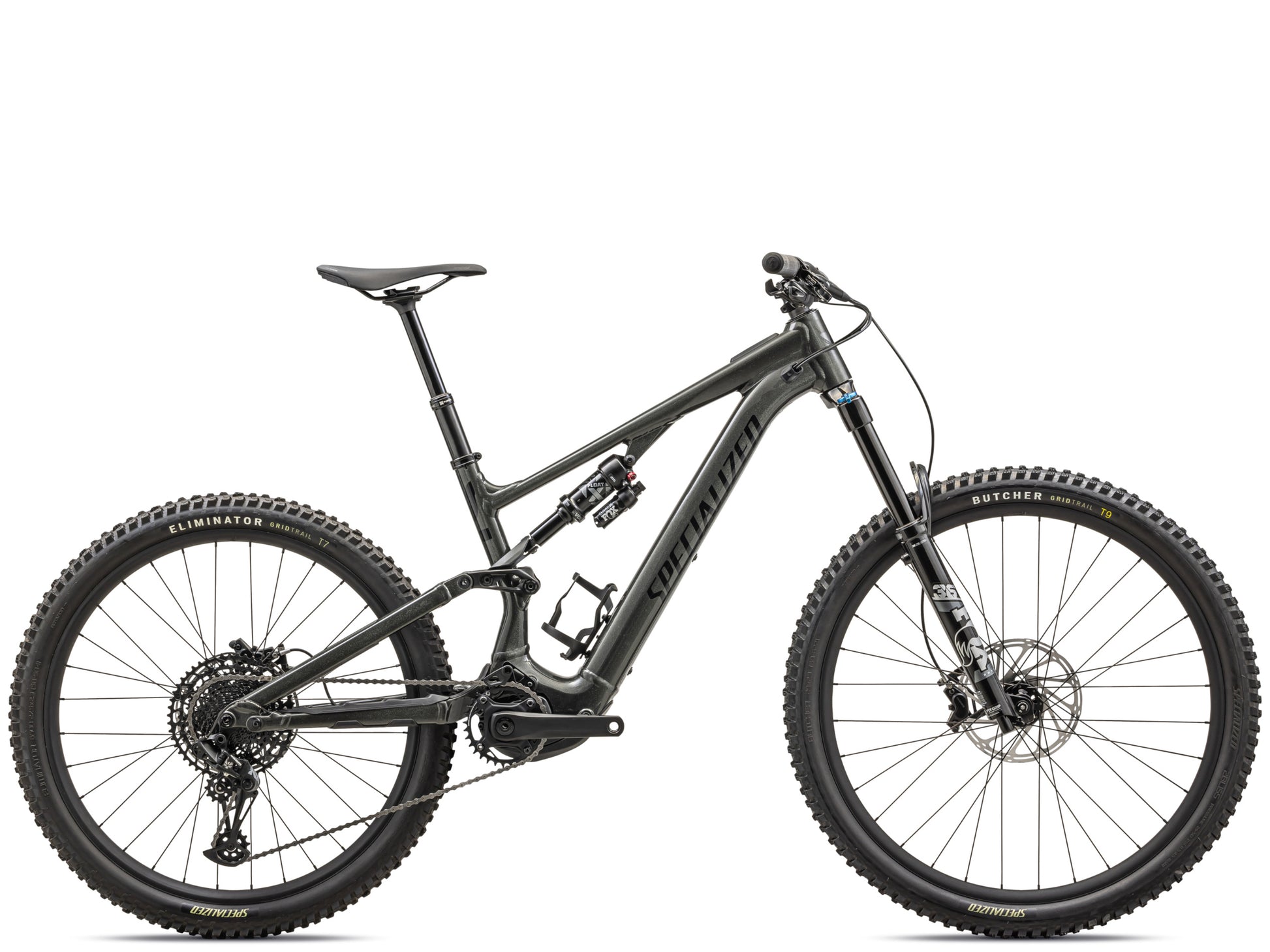

Specialized Turbo Levo SL Comp

The Full Scoop on the Specialized Turbo Levo SL Comp

*Specialized models can be delivered with our white glove, fully built delivery option, or can be picked up in store.

• Description
• Motor System
• Components
• Extras
• Geometry

•
  Levo SL is a new, lightweight breed of eMTB that harnesses the quick and lively ride of the iconic Stumpjumper--but adds just enough power to introduce a whole new dimension of kick-ass. Thanks to a clever component selection, the Levo SL Comp brings all of that rad down to an equally-rad price point.

• Components subject to manufacturer changes

• Motor	Specialized SL 1.1, custom lightweight motor
  Battery	Specialized SL1-320, fully integrated, 320 Wh
  Display	Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®

• Frame	Specialized M5 Premium Aluminum, 29 Trail Geometry, integrated down tube battery, enclosed internal cable, Command Post routing, 148 mm spacing, fully sealed cartridge bearings, 150 mm of travel
  Fork	FOX RHYTHM 34 FLOAT 29, GRIP damper, 51 mm offset, 2-position sweep adjust, 15x110 mm, tapered alloy steerer, 150 mm of travel

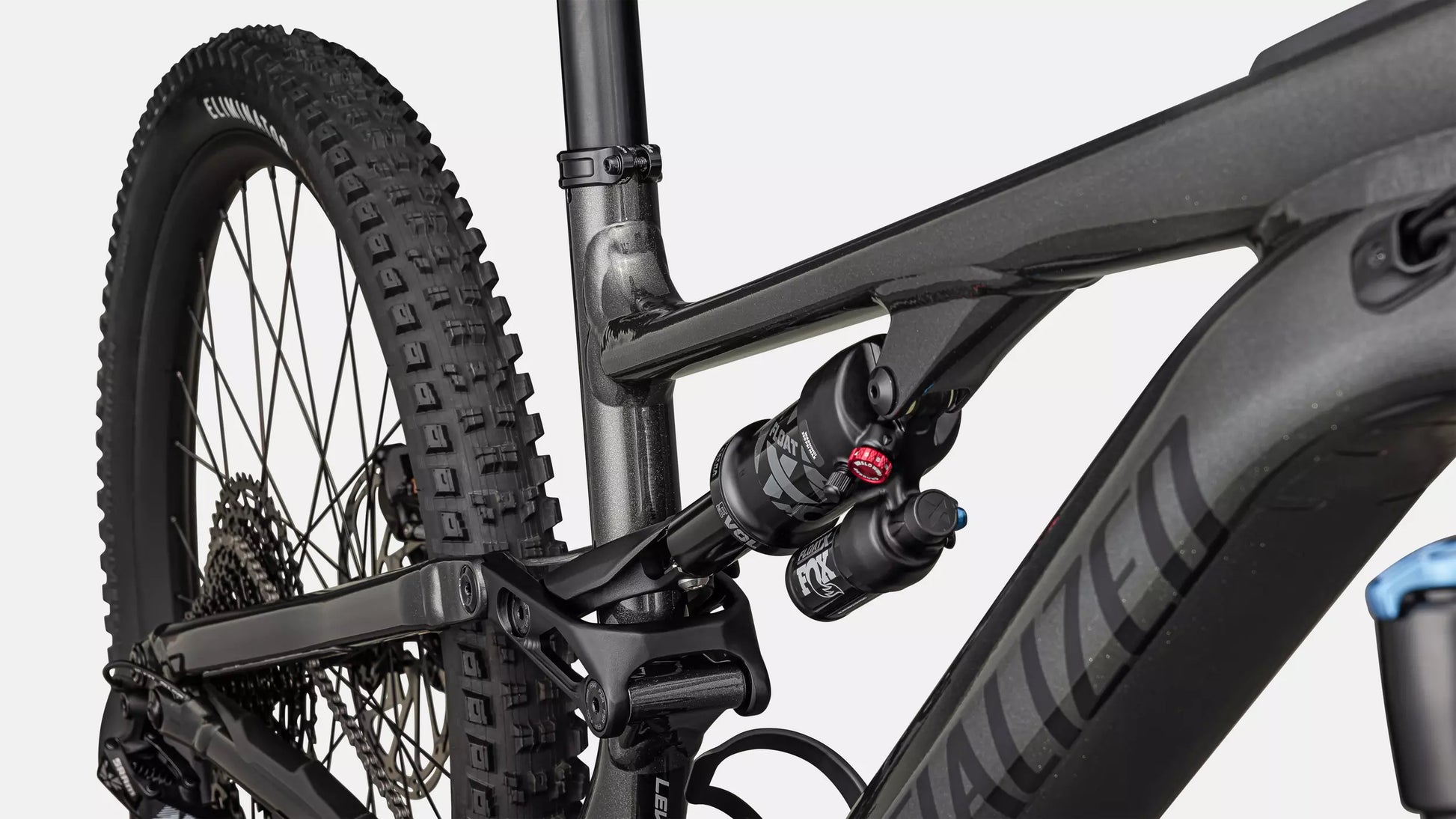

  Rear Shock	FOX FLOAT DPS Performance, 3-position adjustment,  52.5x210 mm, Rx Trail Tune
  Stem	Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise

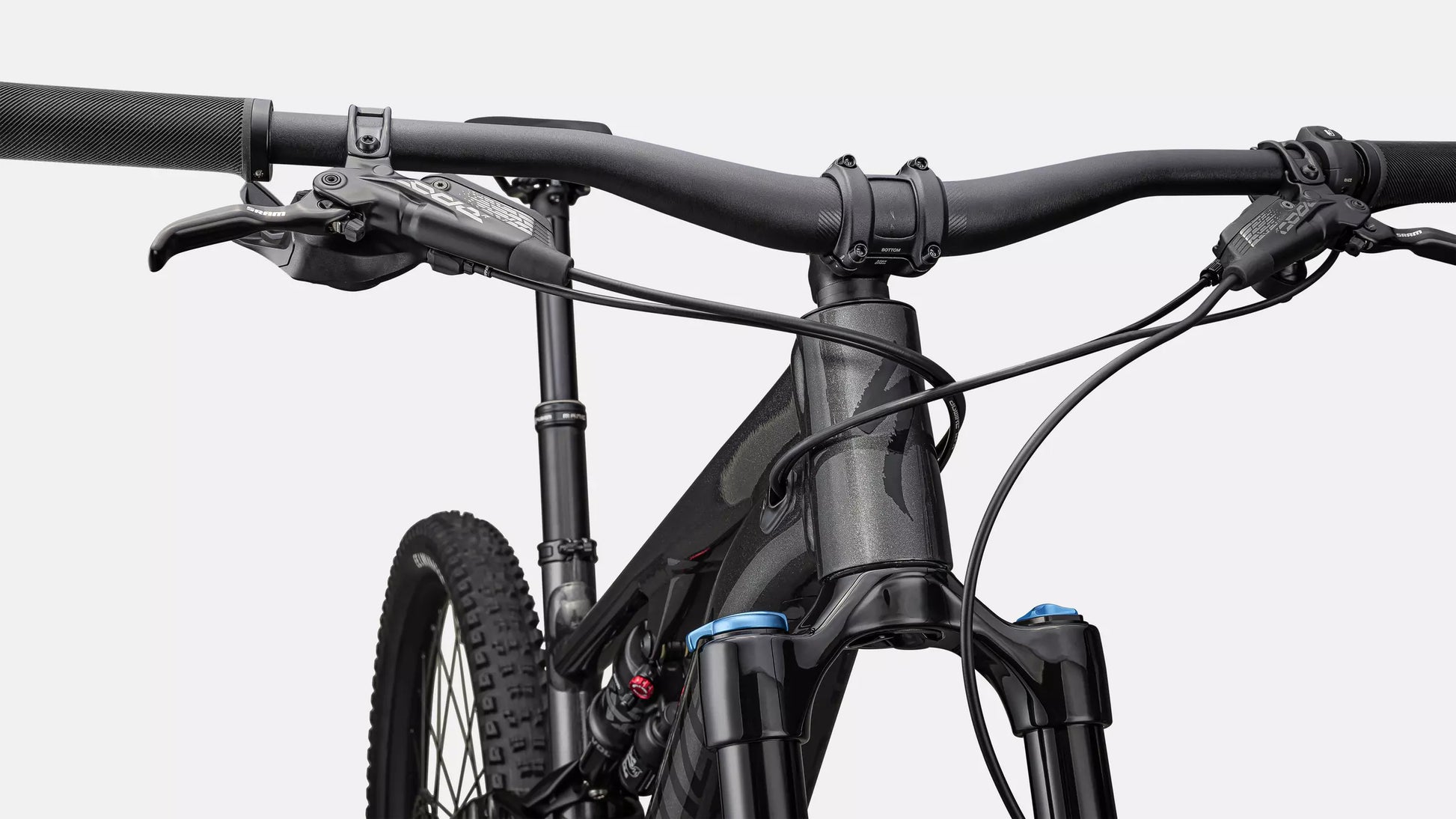

  Handlebars	Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27 mm rise, 780 mm, 31.8 mm clamp
  Brakes	SRAM Guide R, hydraulic disc, 200 mm front, 180 mm rear
  Drivetrain	SRAM NX Eagle, 12-speed
  Shift Levers	SRAM NX Eagle, trigger, 12-speed
  Cassette	SRAM NX Eagle, 12-speed, 11-50t
  Chain	SRAM NX Eagle, 12-speed
  Crankset	Praxis, forged M30, custom offset
  Chainrings	SRAM X-Sync Eagle, 94 BCD, 30T
  Rims	Roval Traverse 29, hookless alloy, 30 mm inner width, tubeless-ready
  Tires	Front: Butcher, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3" Rear:  Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"
  Front Hub	FRONT HUB Specialized, sealed cartridge bearings, 15x110 mm spacing, 28h
  Rear Hub	Specialized Turbo, sealed cartridge bearings, 12x148 mm thru-axle, 28h
  Spokes	DT Swiss
  Saddle	Bridge Comp, Hollow Cr-mo rails, 155/143 mm
  Seatpost	X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9 mm, XS: 100 mm, S: 125 mm, M/L: 150 mm, XL: 170 mm of travel

• Grips

  Specialized Trail Grips

• FRAME SIZE	XS	S	M	L	XL
  HEIGHT RANGE (IN)		5'2" - 5'5"	5'5" - 5'10"	5'10" - 6'1"	6'1" - 6'4"
  HEIGHT RANGE (CM)		158 - 165	165 - 178	178 - 185	185 - 193
  CRANK LENGTH	165 mm	165 mm	165 mm	170 mm	170 mm
  STEM LENGTH	45 mm	45 mm	45 mm	45 mm	45 mm
  SEATPOST LENGTH	325 mm	375 mm	438 mm	438 mm	478 mm
  SADDLE WIDTH	143 mm	155 mm	143 mm	143 mm	143 mm
  HANDLEBAR WIDTH	750 mm	780 mm	780 mm	780 mm	780 mm
  REACH	395 mm	415 mm	435 mm	455 mm	481 mm
  TOP TUBE LENGTH, HORIZONTAL	551 mm	573 mm	595 mm	628 mm	664 mm
  STACK	579 mm	606 mm	606 mm	633 mm	647 mm
  WHEELBASE	1145 mm	1165 mm	1185 mm	1217 mm	1249 mm
  CHAINSTAY LENGTH	437 mm	437 mm	437 mm	437 mm	437 mm
  FRONT CENTER	709 mm	729 mm	749 mm	781 mm	813 mm
  BB DROP	27 mm	27 mm	27 mm	27 mm	27 mm
  BB HEIGHT	347 mm	347 mm	347 mm	347 mm	347 mm
  SEAT TUBE ANGLE	75.6°	75.4°	75.2°	74.7°	74.2°
  HEAD TUBE ANGLE	66°	66°	66°	66°	66°
  SEAT TUBE LENGTH	380 mm	390 mm	410 mm	455 mm	505 mm
  HEAD TUBE LENGTH	95 mm	95 mm	95 mm	125 mm	140 mm
  BIKE STANDOVER HEIGHT	767 mm	771 mm	774 mm	789 mm	789 mm
  FORK RAKE/OFFSET	51 mm	51 mm	51 mm	51 mm	51 mm
  FORK LENGTH, FULL	560 mm	560 mm	560 mm	560 mm	560 mm
  TRAIL	110 mm	110 mm	110 mm	110 mm	100 mm
