The Full Scoop on the Specialized Turbo Levo SL Expert Carbon
Levo SL is a lightweight breed of eMTB that harnesses the quick and lively ride of the Stumpjumper...and adds just enough power to introduce a whole new dimension of kick ass. The Levo SL Expert Carbon features a full carbon frame paired with a light, yet capable component selection for true trail riding. Put it all together and you get the benefits of amplification along with benchmark handling.

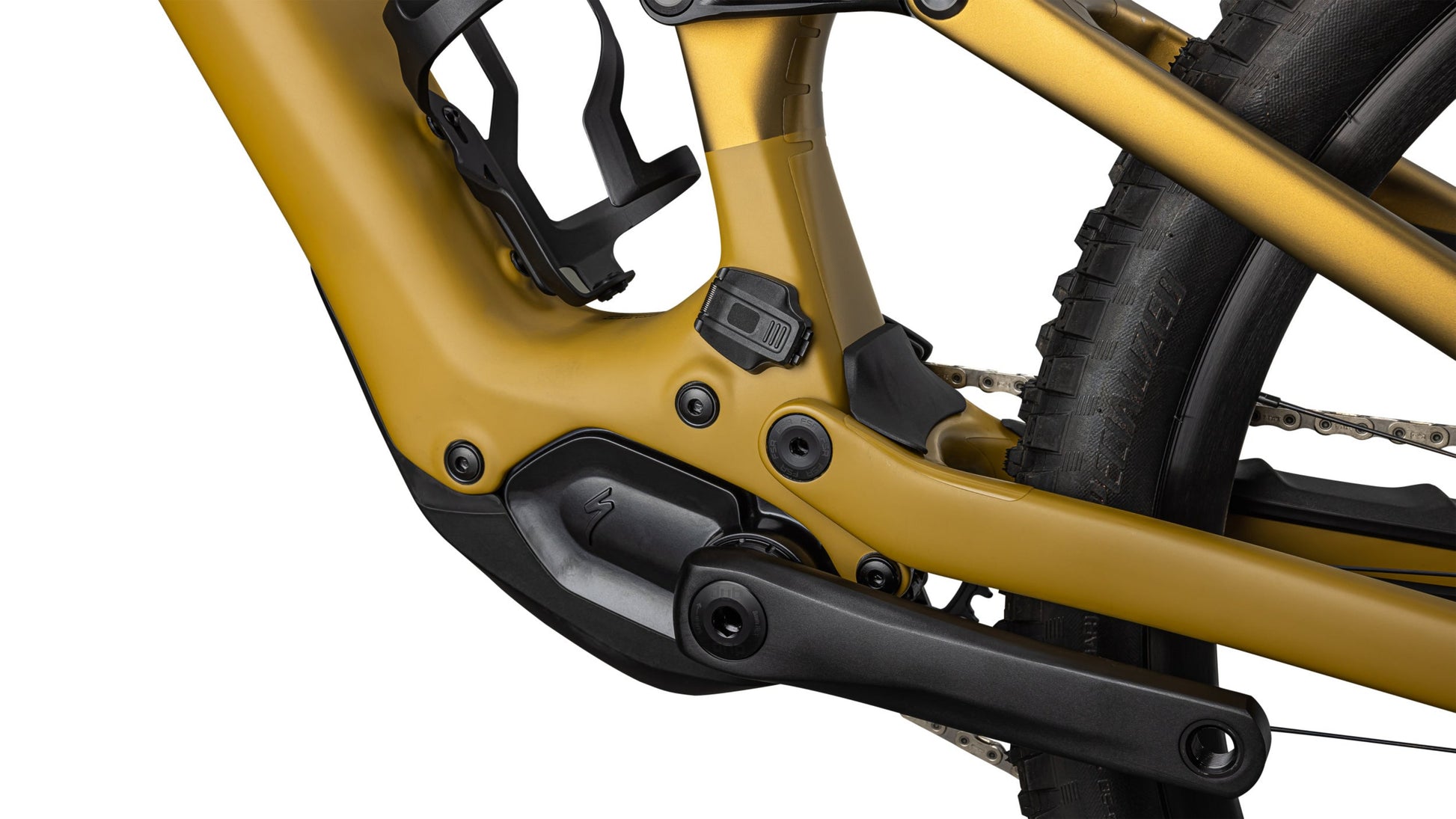

Motor | Specialized 1.2 SL Custom Rx Trail Tuned Motor |
Battery | Specialized SL1-320, fully integrated, 320 Wh |
Display | Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote |
Charger | Custom Charger, 48v System w/ SL system charger plug |
Frame | Levo SL carbon Frame, Fact 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels. |
Fork | Fox 36 Performance Elite, 29", 44mm offset, Grip 2 damper, S1: 150mm, S2-S6:160mm |

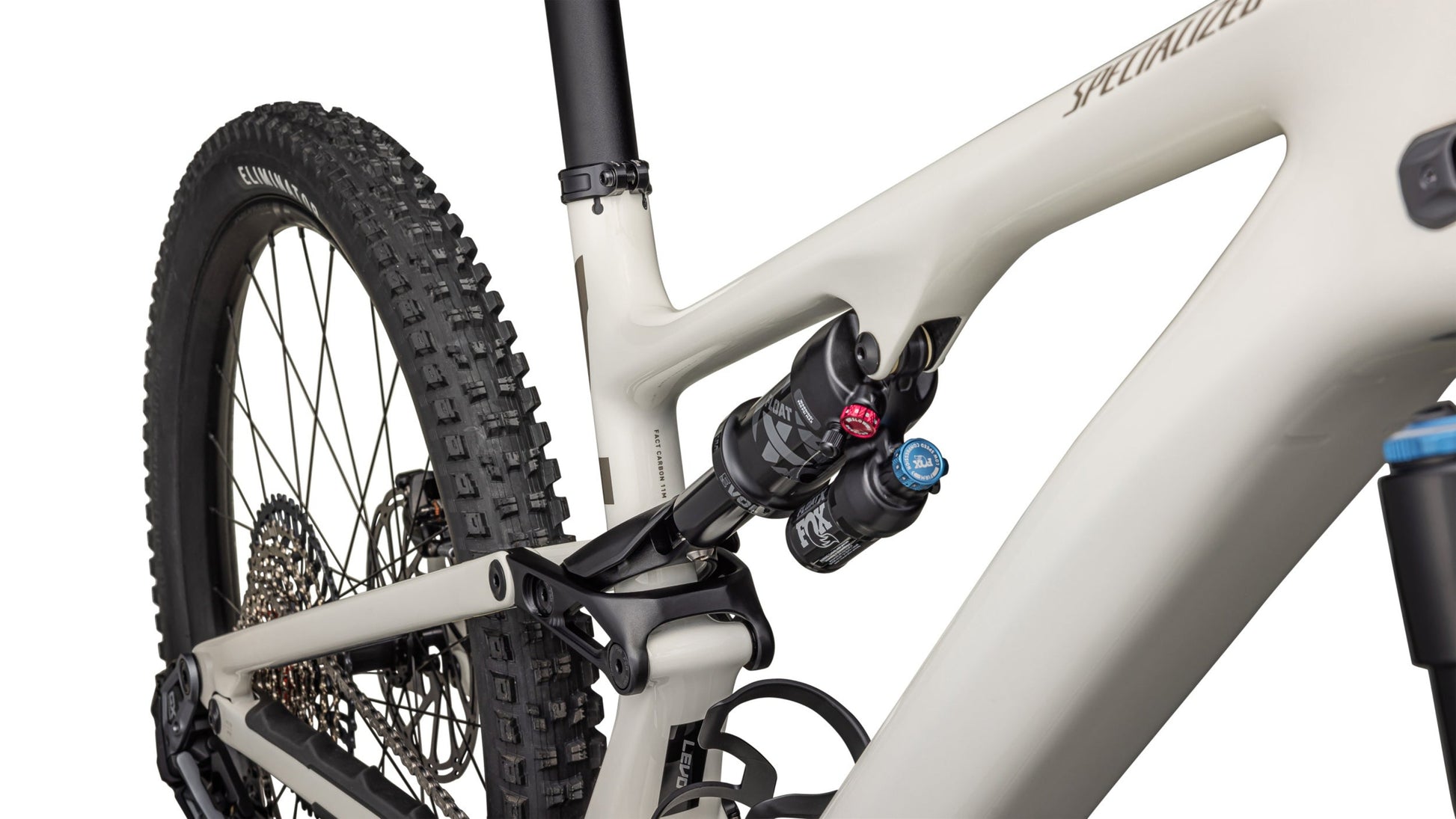

Rear Shock | S2-S6: Fox Float X Performance elite series, 210x55mm, S1: Fox Float DPS Performance elite series, , 210x50mm |
Front Brake | SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm |
Rear Brake | SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm |
Rear Derailleur | SRAM GX Eagle Transmission Derailleur |
Shift Levers | SRAM AXS POD Controller |
Chain | SRAM GX Eagle Transmission Flattop Chain |
Cassette | SRAM GX Eagle Transmission Cassette, 12spd, 10-52t |
Crankset | SRAM Alloy Crankset, Dub interface |
Chain Ring | New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring |
Chain Guard | Not applicable |
Rims | Traverse 27.5 (rear) Traverse 29 (front) |
Front Hub | Not applicable |
Rear Hub | Not applicable |
Front Tire | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
Rear Tire | Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3" |

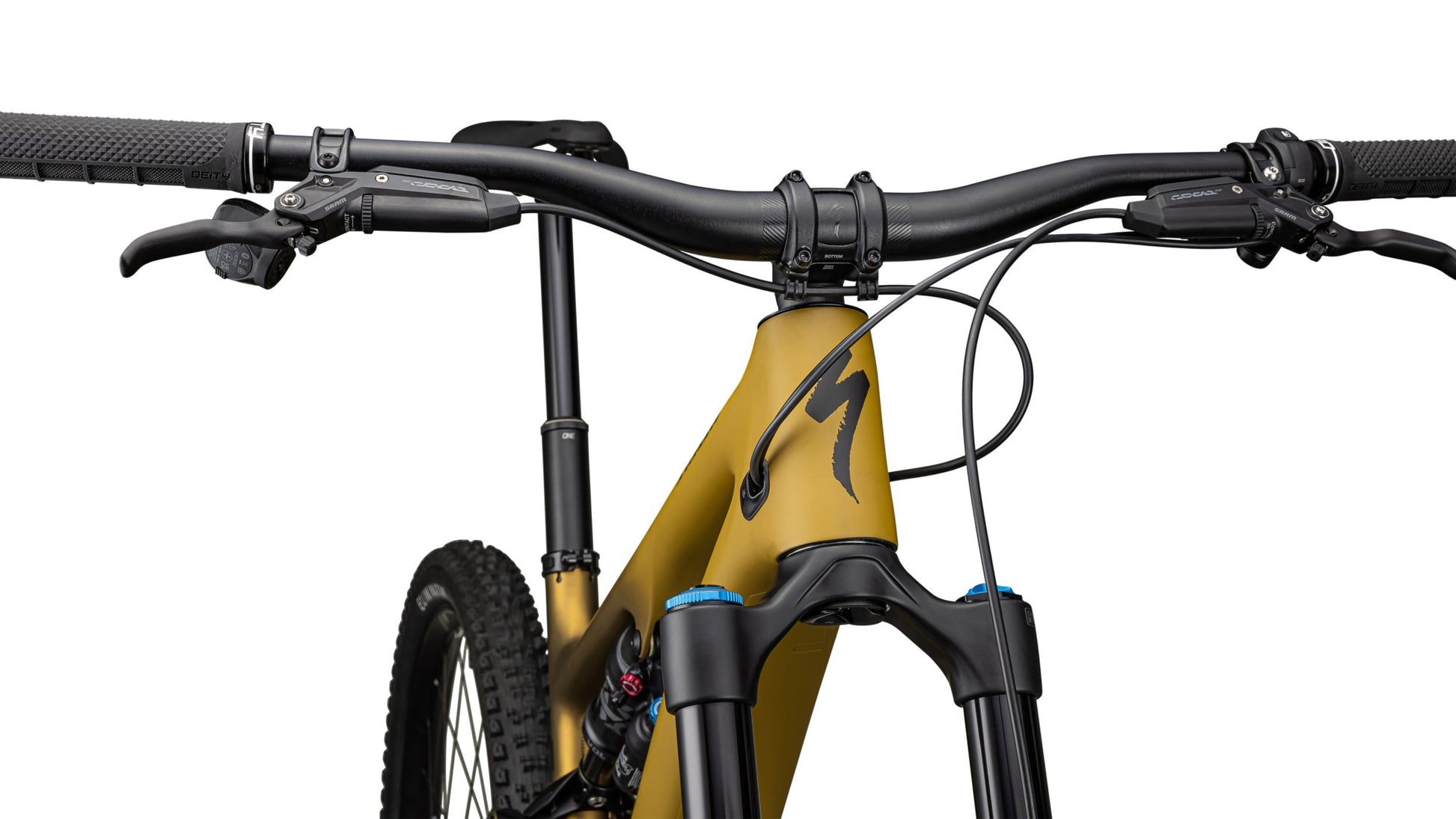

Handlebars | Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp |
Stem | Alloy Trail Stem, 35mm bar bore |
Headset | Spec not provided |
Grips | Deity Grips |
Saddle | Bridge Comp, Hollow Cr-mo rails, 155/143mm |
Seatpost | OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm) |
Pedals | Not applicable |
Front Light | Not applicable |
Rear Light | Not applicable |
Kickstand | Not applicable |
Rear Carrier | Not applicable |
Fenders | Not applicable |
Bell | Not applicable |
Lock | Not applicable |
Mirror | Not applicable |

FRAME SIZE | S1 | S2 | S3 | S4 | S5 | S6 |
---|---|---|---|---|---|---|
Seat tube length | 385mm | 385mm | 405mm | 425mm | 445mm | 465mm |
Top tube length | 560mm | 582mm | 604mm | 631mm | 659mm | 691mm |
Bottom bracket drop | -34mm | -29mm | -29mm | -29mm | -29mm | -29mm |
Bottom bracket height | 343mm | 348mm | 348mm | 348mm | 348mm | 348mm |
Chainstay length | 433mm | 432mm | 432mm | 432mm | 432mm | 432mm |
Seat tube angle | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° |
Head tube angle | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° |
Fork Offset | 42mm | 42mm | 42mm | 42mm | 42mm | 42mm |
Wheelbase | 1158mm | 1184mm | 1208mm | 1238mm | 1267mm | 1301mm |
Head tube length | 95mm | 100mm | 110mm | 120mm | 130mm | 140mm |
Reach | 405mm | 425mm | 445mm | 470mm | 495mm | 525mm |
Stack | 609mm | 617mm | 626mm | 635mm | 645mm | 654mm |
The Full Scoop on the Specialized Turbo Levo SL Expert Carbon
Description
Levo SL is a lightweight breed of eMTB that harnesses the quick and lively ride of the Stumpjumper...and adds just enough power to introduce a whole new dimension of kick ass. The Levo SL Expert Carbon features a full carbon frame paired with a light, yet capable component selection for true trail riding. Put it all together and you get the benefits of amplification along with benchmark handling.
Motor System

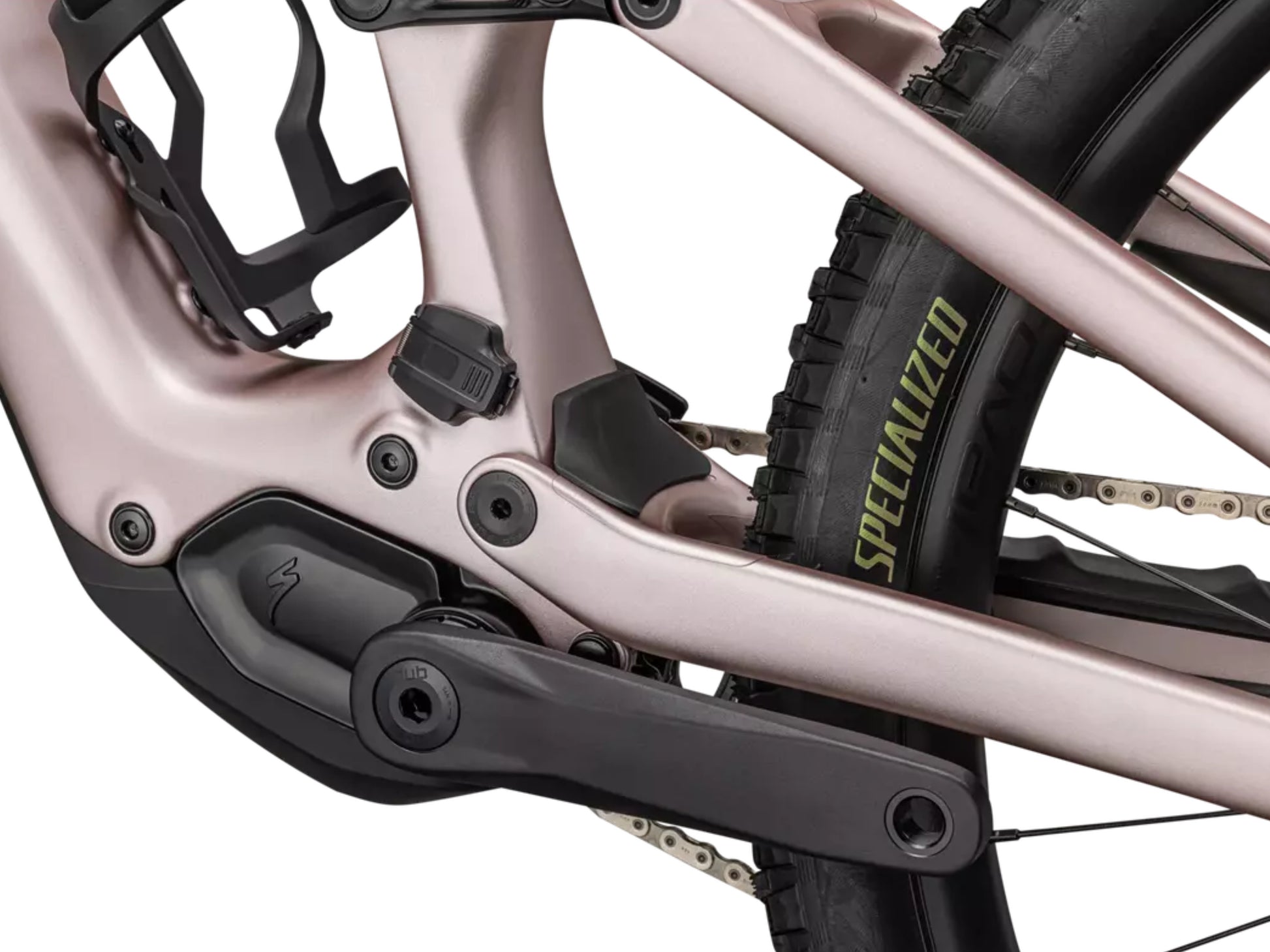

Motor | Specialized 1.2 SL Custom Rx Trail Tuned Motor |
Battery | Specialized SL1-320, fully integrated, 320 Wh |

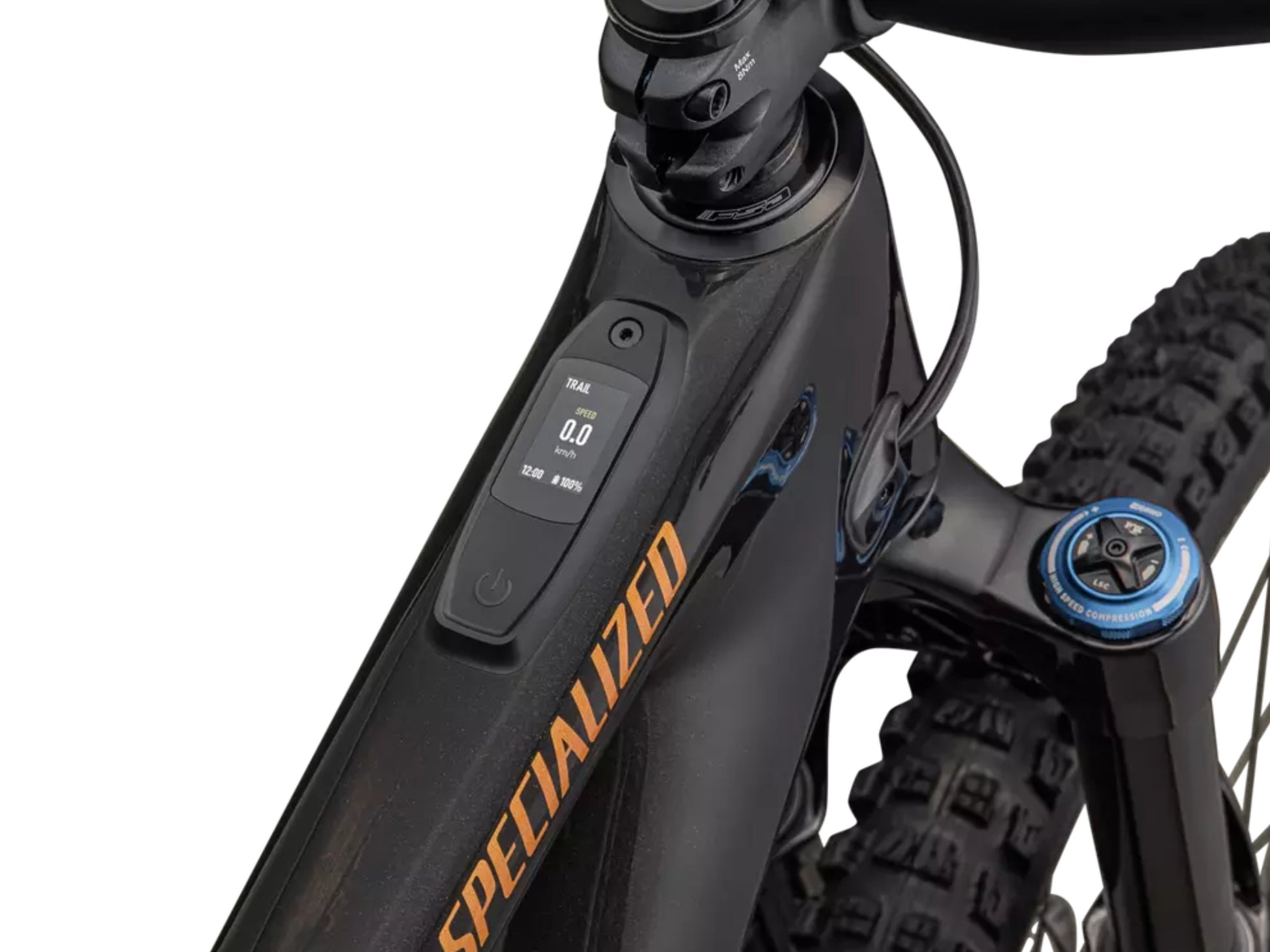

Display | Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote |
Charger | Custom Charger, 48v System w/ SL system charger plug |
Components
Frame | Levo SL carbon Frame, Fact 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels. |
Fork | Fox 36 Performance Elite, 29", 44mm offset, Grip 2 damper, S1: 150mm, S2-S6:160mm |
Rear Shock | S2-S6: Fox Float X Performance elite series, 210x55mm, S1: Fox Float DPS Performance elite series, , 210x50mm |
Front Brake | SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm |
Rear Brake | SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm |
Rear Derailleur | SRAM GX Eagle Transmission Derailleur |
Shift Levers | SRAM AXS POD Controller |
Chain | SRAM GX Eagle Transmission Flattop Chain |
Cassette | SRAM GX Eagle Transmission Cassette, 12spd, 10-52t |
Crankset | SRAM Alloy Crankset, Dub interface |
Chain Ring | New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring |
Chain Guard | Not applicable |
Rims | Traverse 27.5 (rear) Traverse 29 (front) |
Front Hub | Not applicable |
Rear Hub | Not applicable |
Front Tire | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
Rear Tire | Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3" |

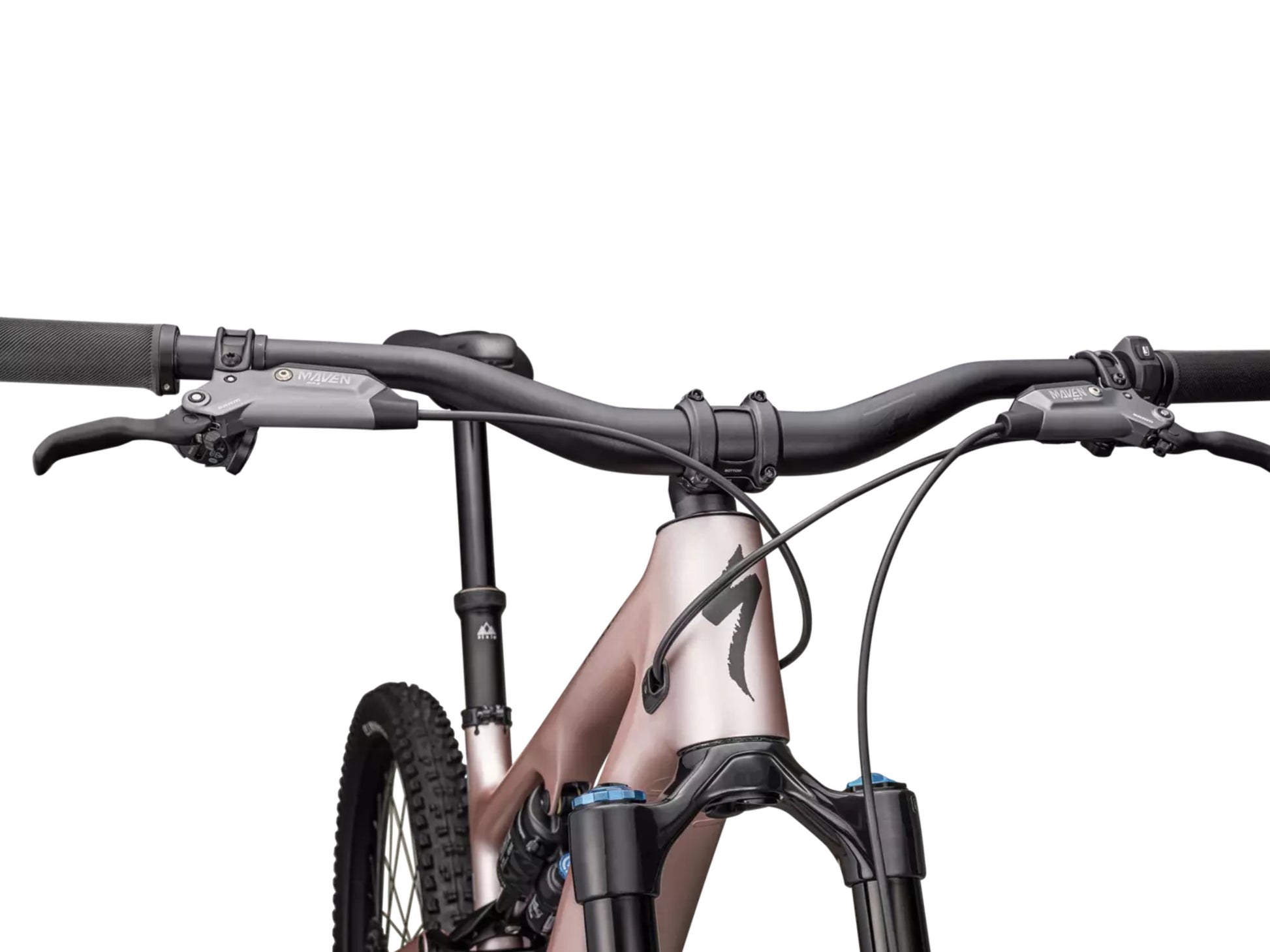

Handlebars | Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp |
Stem | Alloy Trail Stem, 35mm bar bore |
Headset | Spec not provided |
Grips | Deity Grips |
Saddle | Bridge Comp, Hollow Cr-mo rails, 155/143mm |
Seatpost | OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm) |
Extras
Pedals | Not applicable |
Front Light | Not applicable |
Rear Light | Not applicable |
Kickstand | Not applicable |
Rear Carrier | Not applicable |
Fenders | Not applicable |
Bell | Not applicable |
Lock | Not applicable |
Mirror | Not applicable |
Geometry

FRAME SIZE | S1 | S2 | S3 | S4 | S5 | S6 |
---|---|---|---|---|---|---|
Seat tube length | 385mm | 385mm | 405mm | 425mm | 445mm | 465mm |
Top tube length | 560mm | 582mm | 604mm | 631mm | 659mm | 691mm |
Bottom bracket drop | -34mm | -29mm | -29mm | -29mm | -29mm | -29mm |
Bottom bracket height | 343mm | 348mm | 348mm | 348mm | 348mm | 348mm |
Chainstay length | 433mm | 432mm | 432mm | 432mm | 432mm | 432mm |
Seat tube angle | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° | 75.8° |
Head tube angle | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° | 64.6° |
Fork Offset | 42mm | 42mm | 42mm | 42mm | 42mm | 42mm |
Wheelbase | 1158mm | 1184mm | 1208mm | 1238mm | 1267mm | 1301mm |
Head tube length | 95mm | 100mm | 110mm | 120mm | 130mm | 140mm |
Reach | 405mm | 425mm | 445mm | 470mm | 495mm | 525mm |
Stack | 609mm | 617mm | 626mm | 635mm | 645mm | 654mm |
