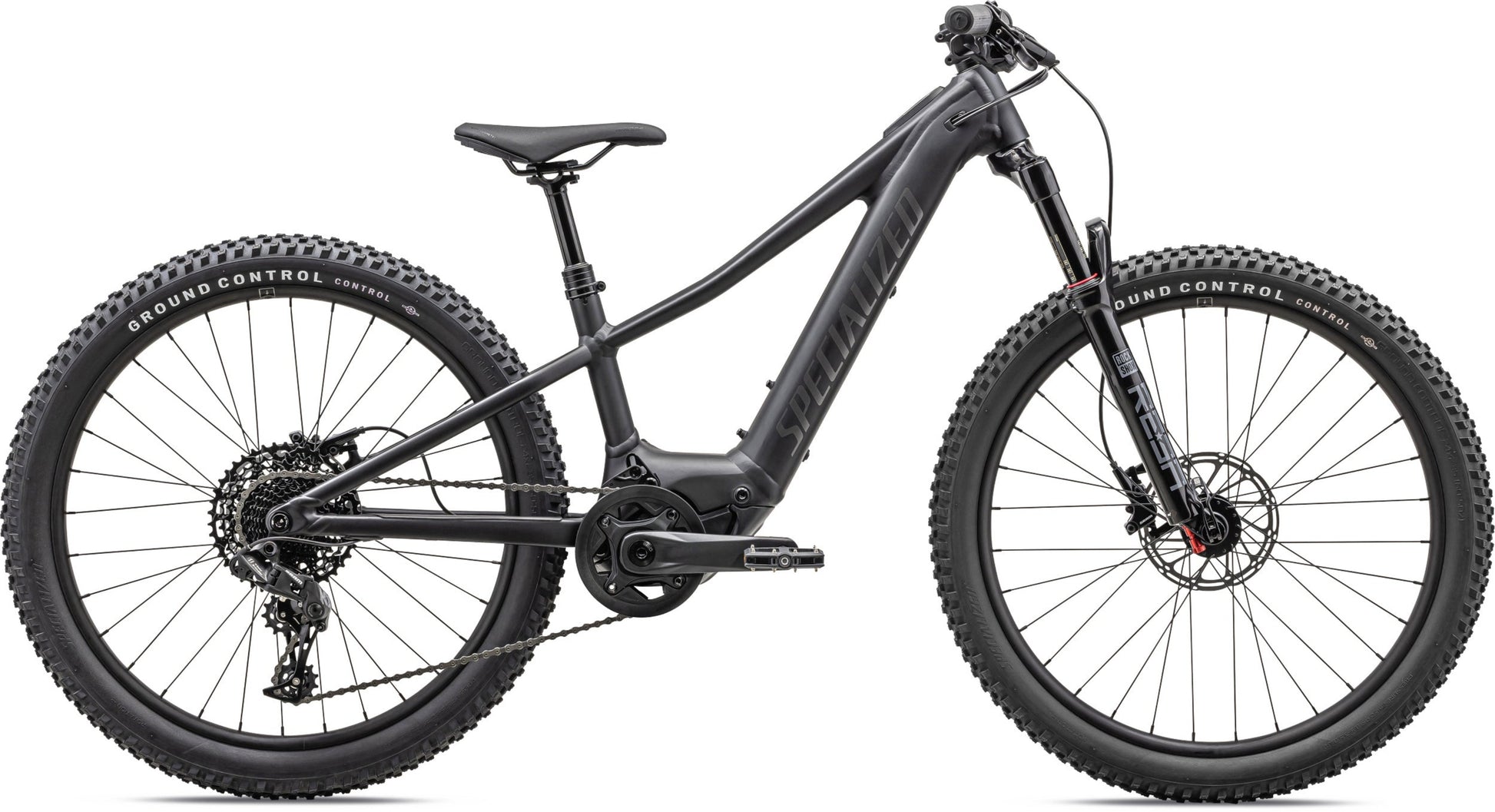

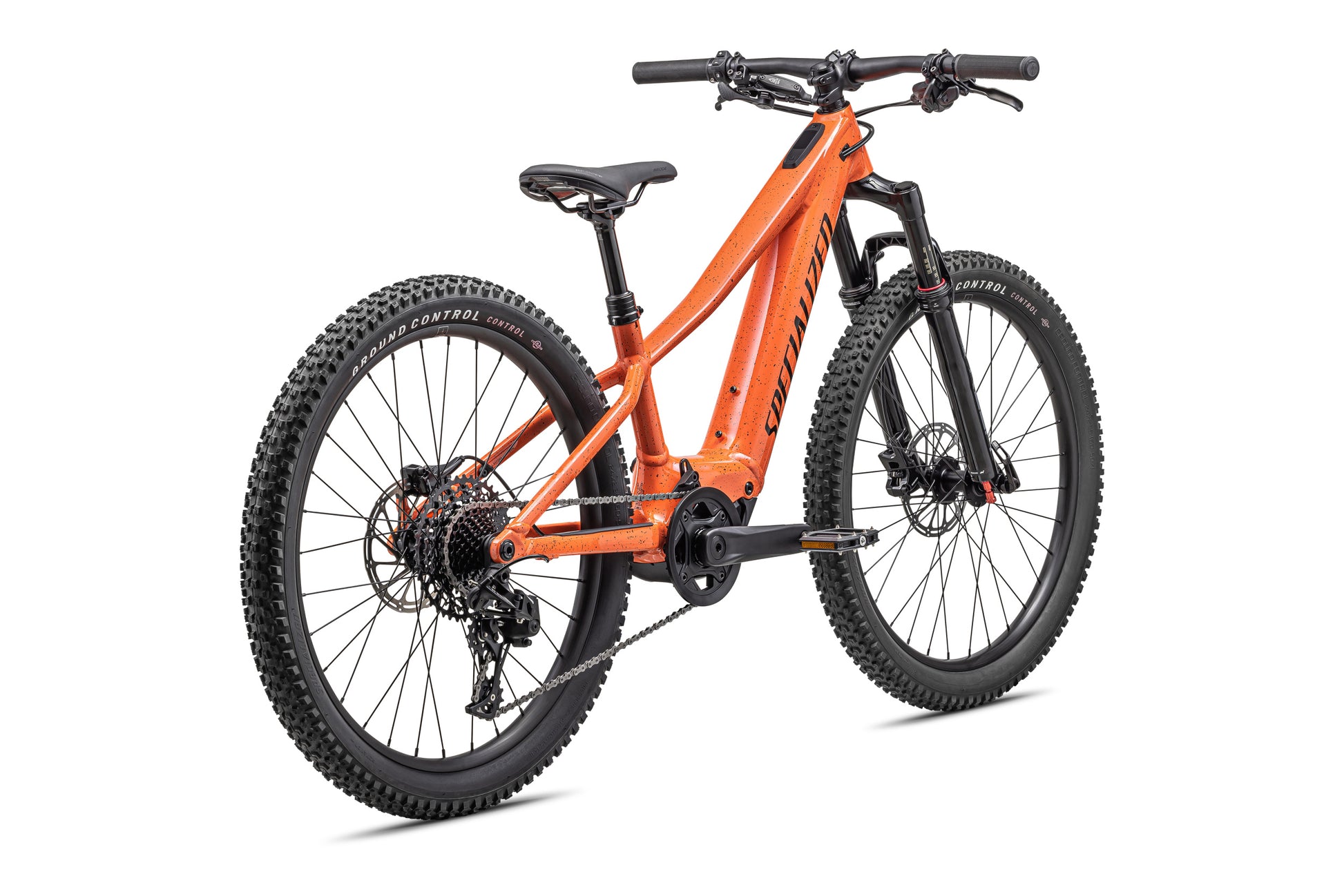

Specialized Turbo Levo SL Kids

The Full Scoop on the Specialized Turbo Levo SL Kids

*Specialized models can be delivered with our white glove, fully built delivery option, or can be picked up in store.

• Description
• Motor System
• Components
• Extras
• Geometry

•

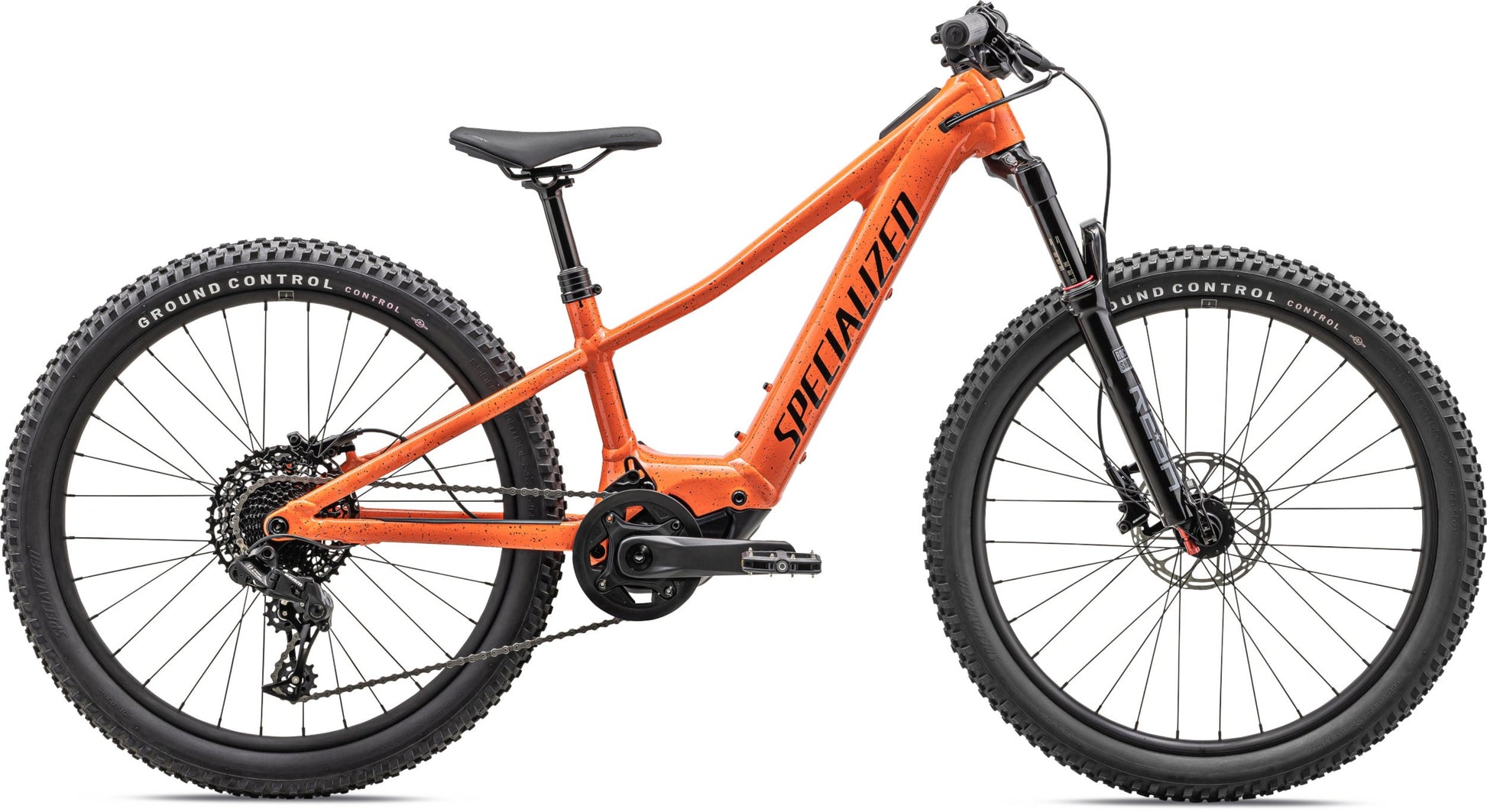

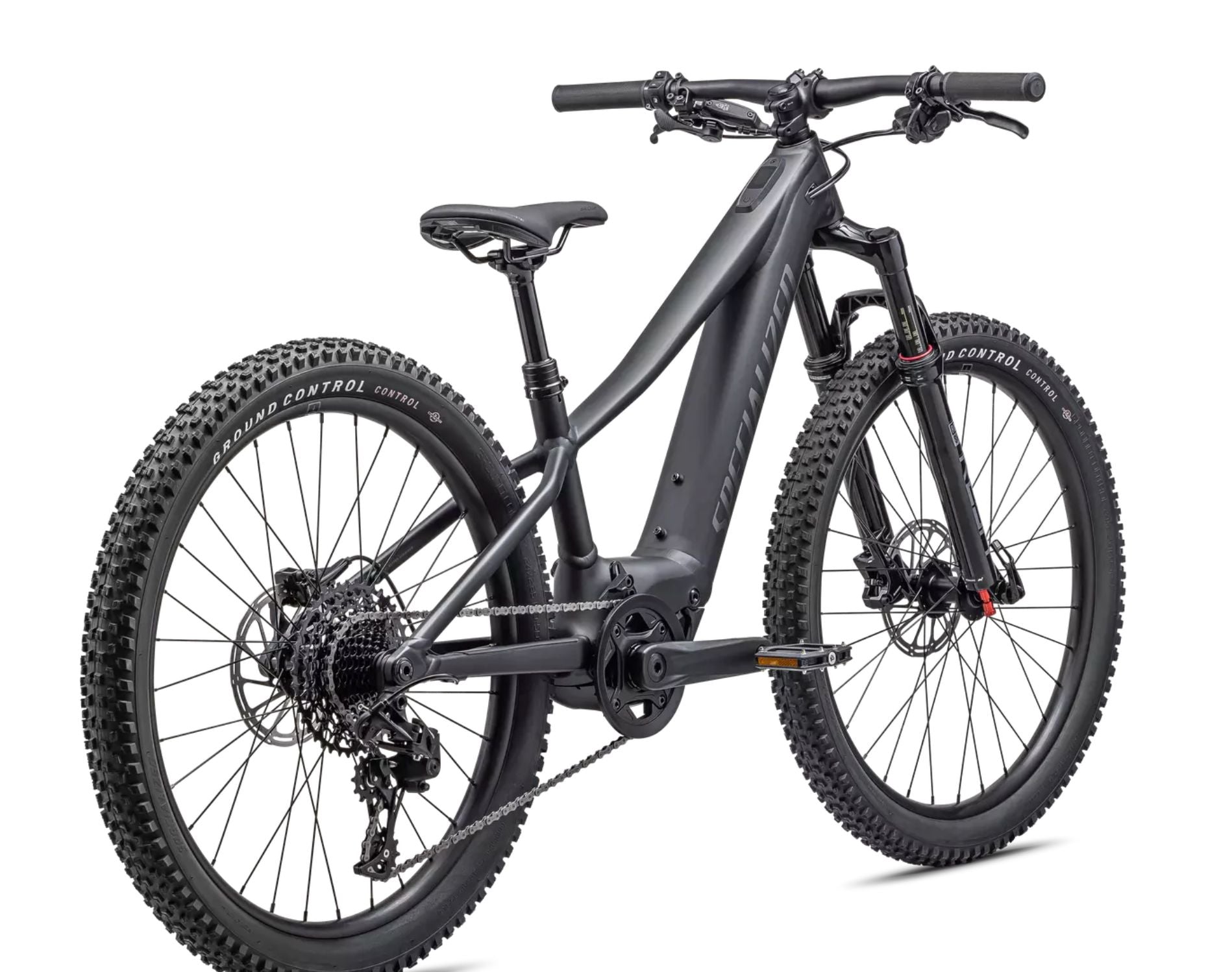

  The new Turbo Levo SL Kids electric bike combines the best of both worlds for enthusiastic guardians and budding riders. Every aspect of the bike has been designed to fit young riders perfectly. The bike's Retül-backed progressive geometry features a low standover for confidence, and ensures long-term fit with a growing child. The Levo SL Kids is built to ride hard, go big, and last the long haul.


• Components subject to manufacturer changes

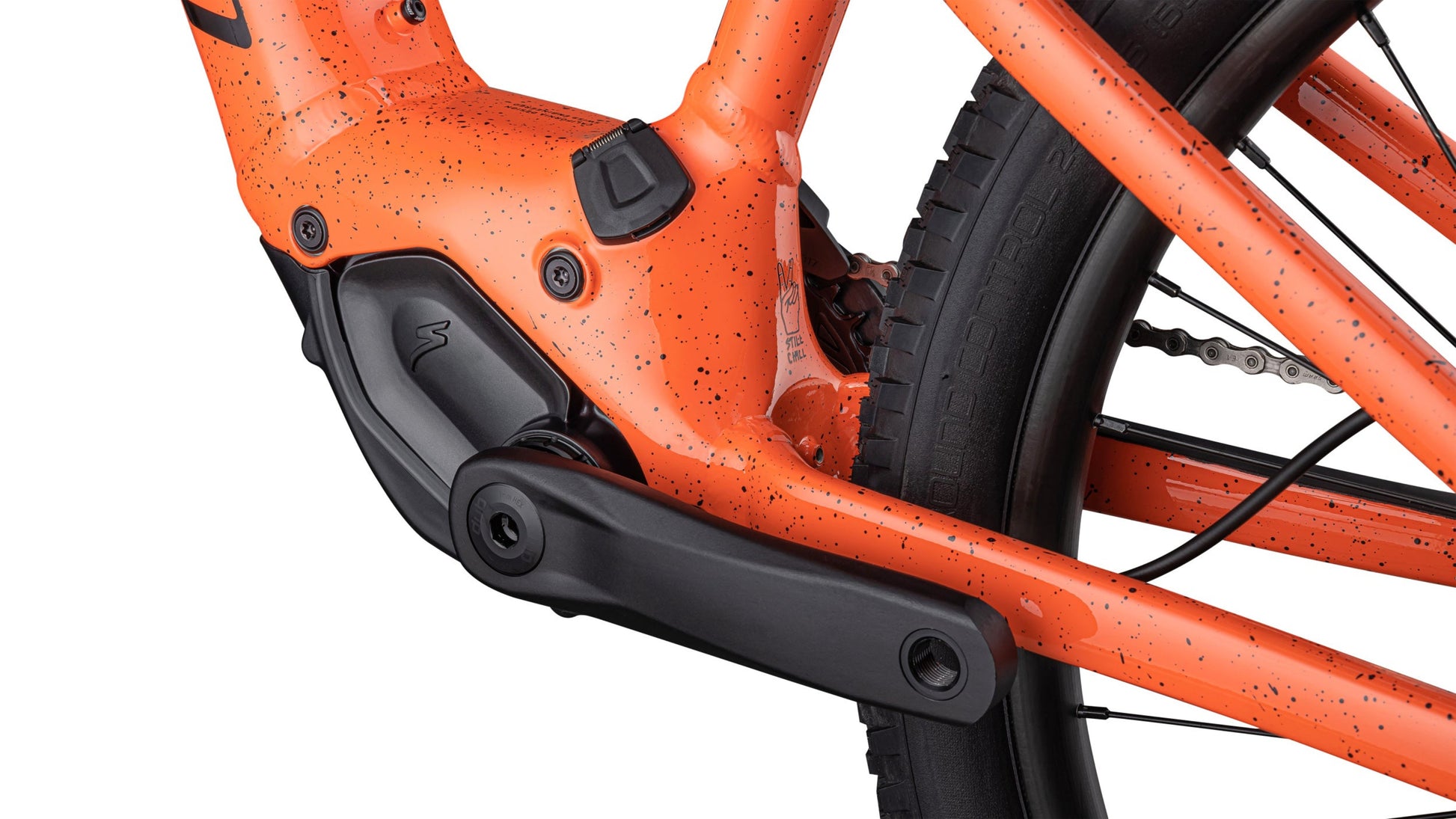

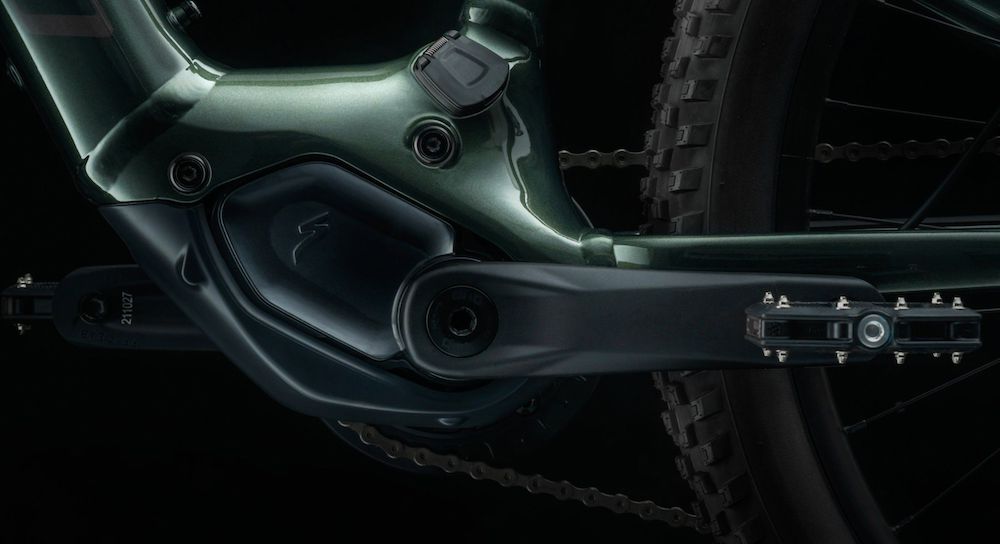

• Motor	Specialized 1.2 SL Custom Rx Trail Tuned Motor
  Battery	Specialized SL1-320, fully integrated, 320 Wh

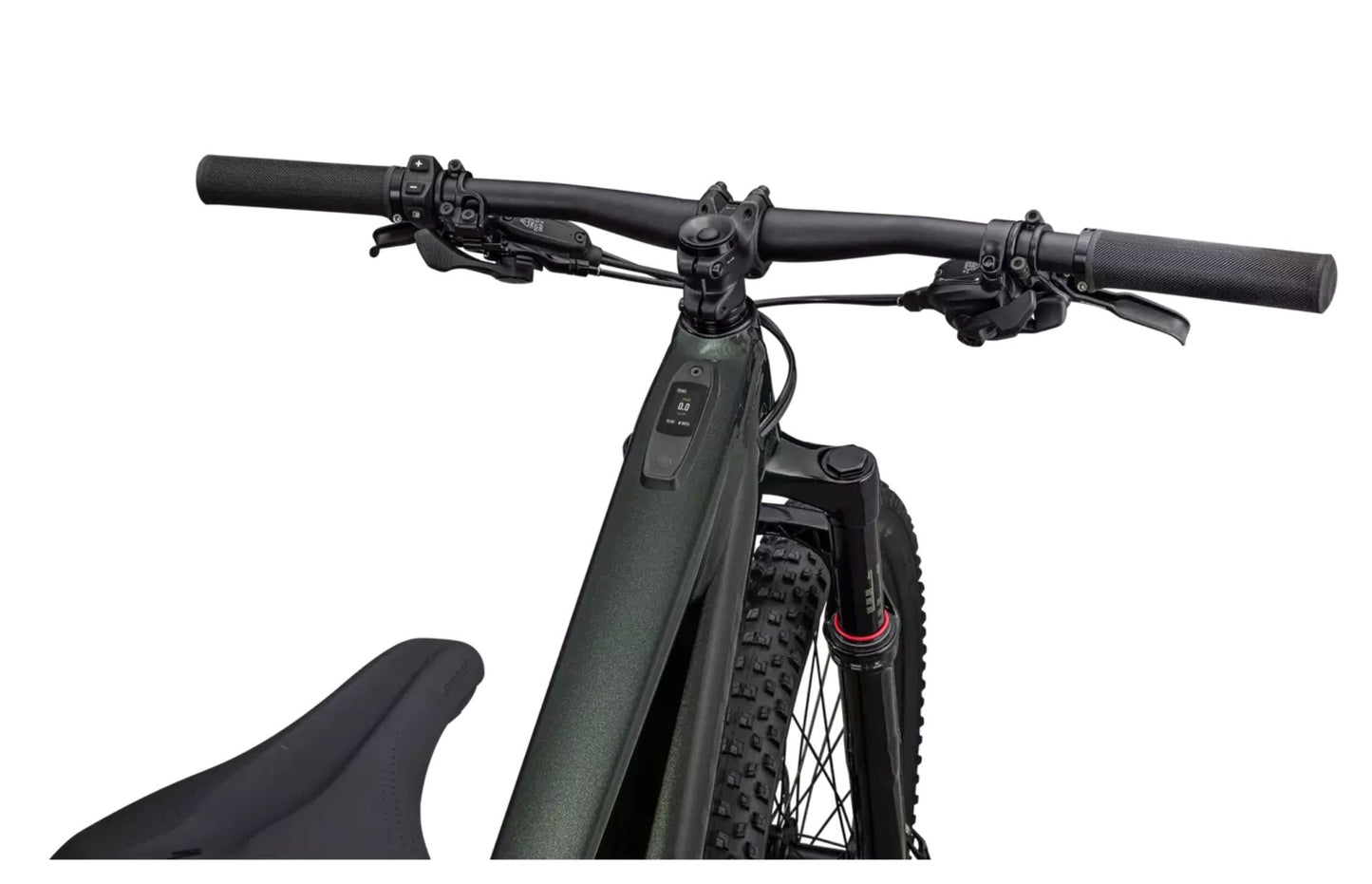

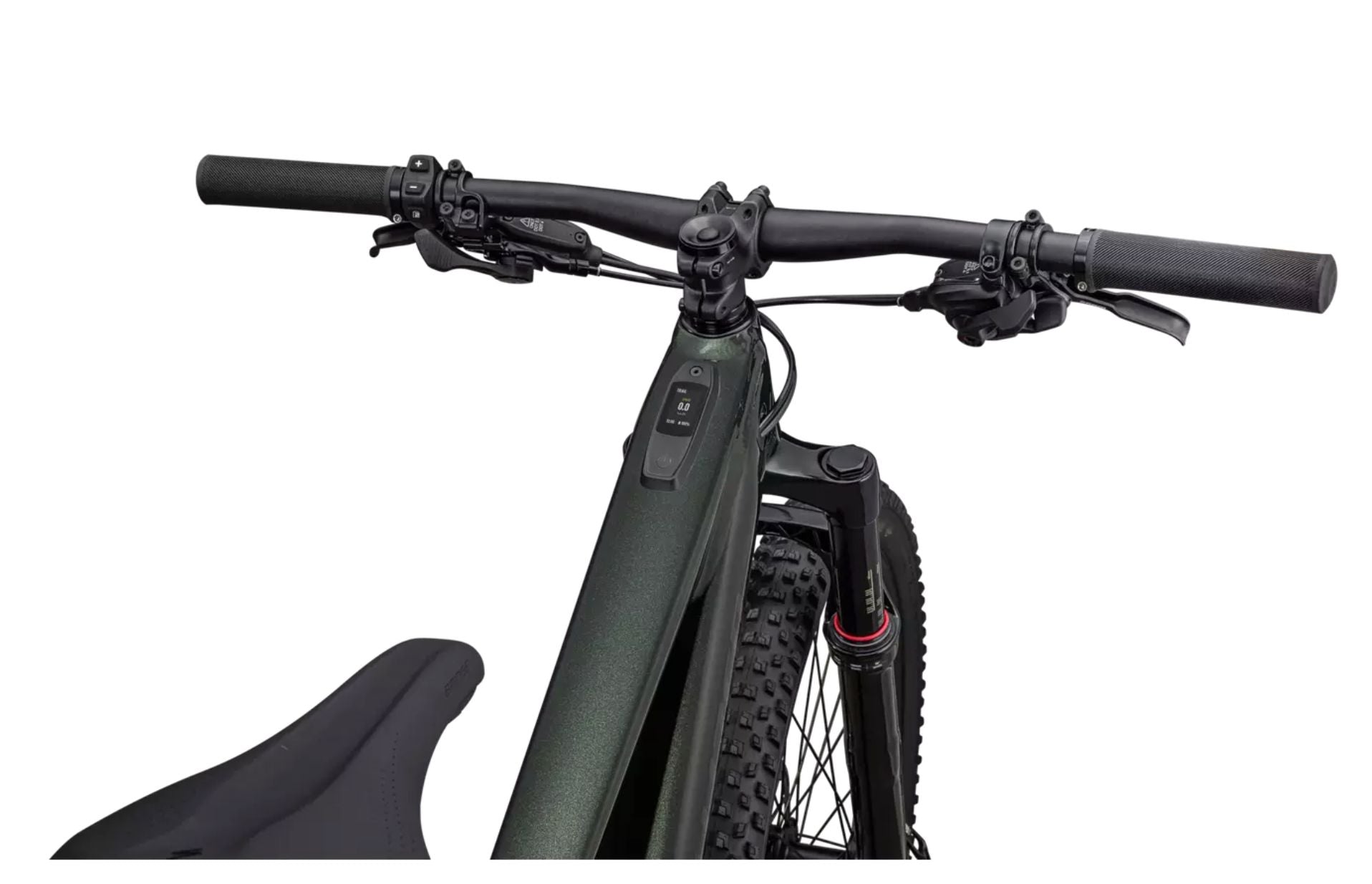

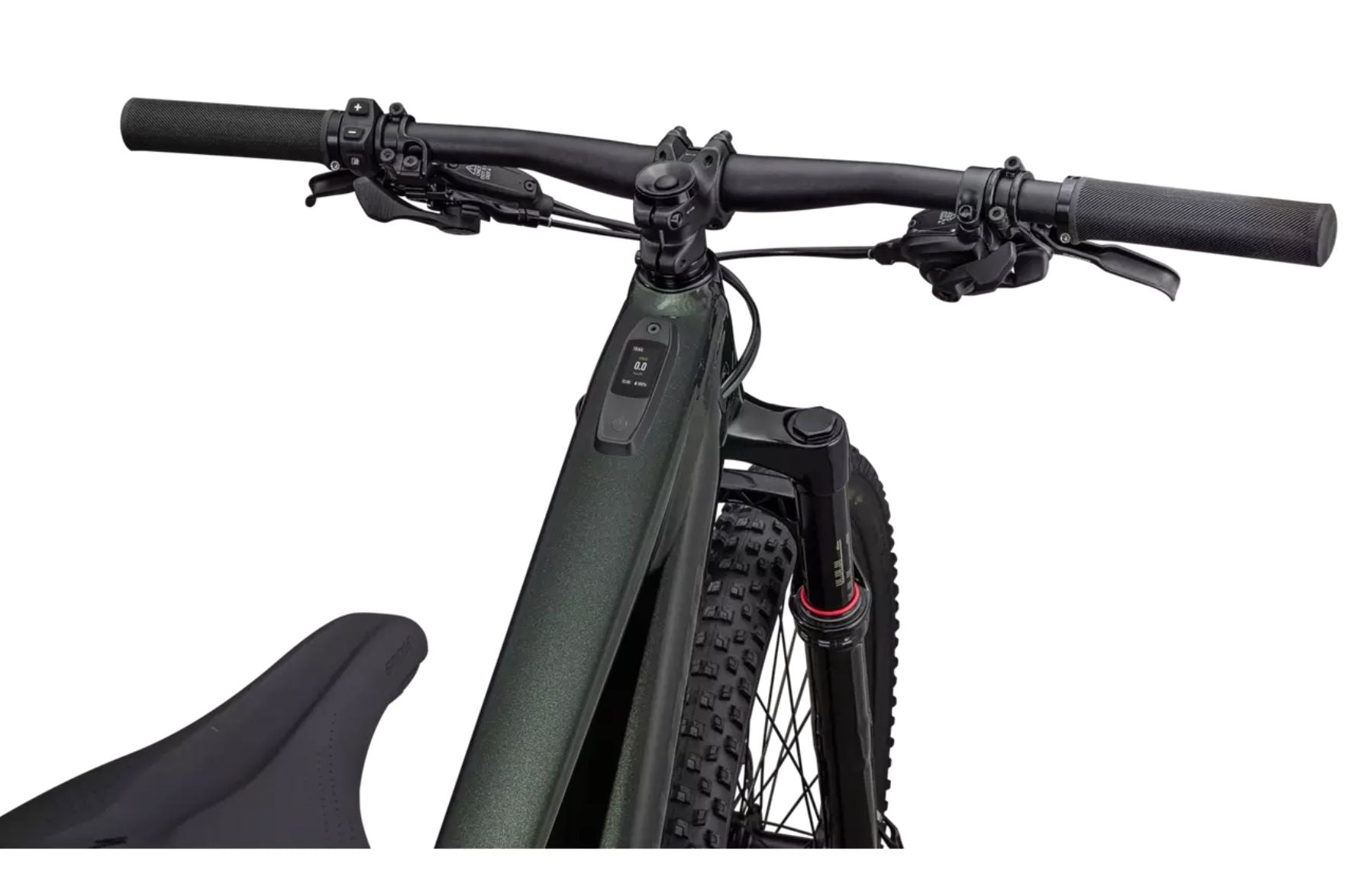

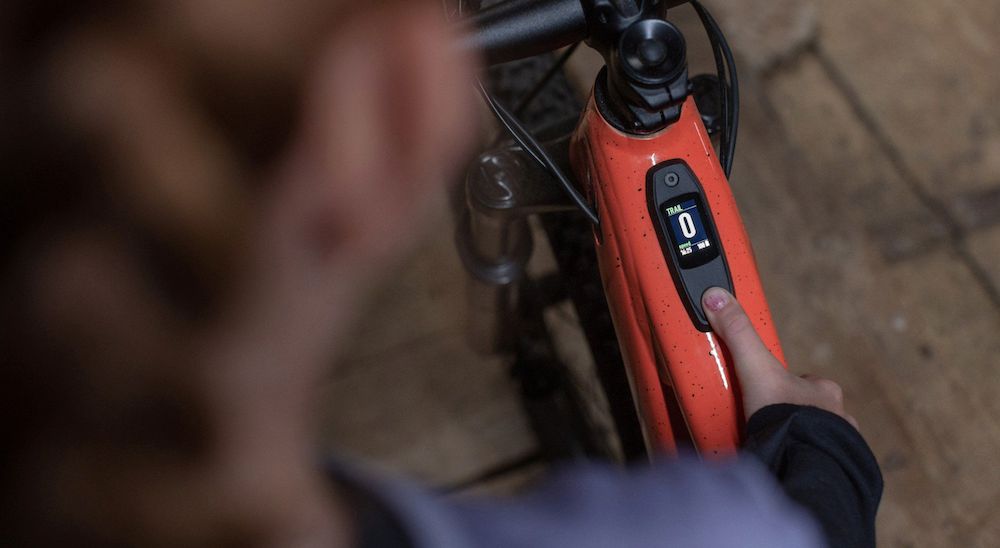

  Display	Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
  Charger	Custom charger, 48V System w/ SL system charger plug

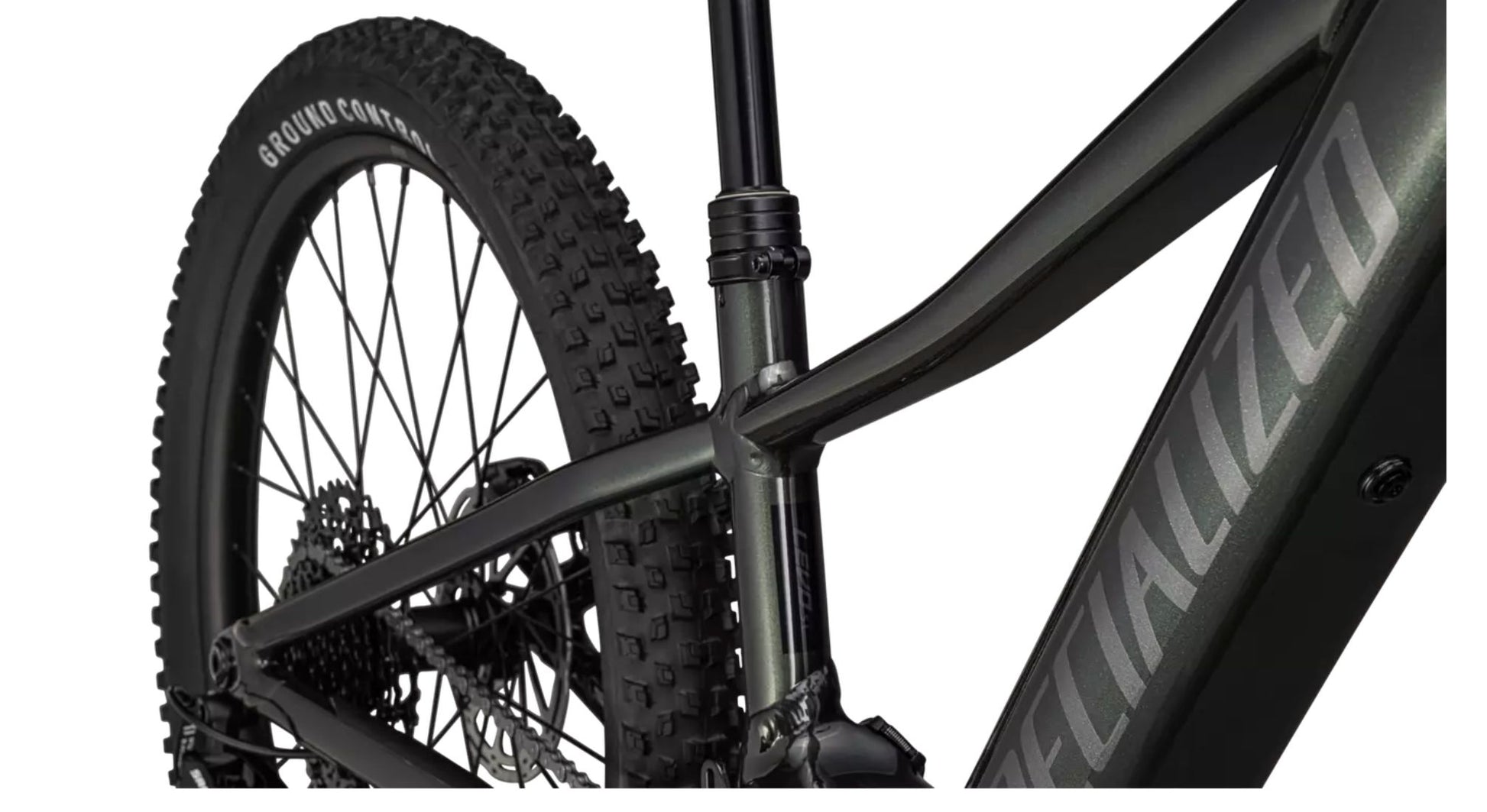

• Frame	Specialized A1 Premium Butted Alloy, 24 Trail Geometry, integrated down tube battery, internal cable routing, 148mm spacing, UDH compatible
  Fork	RockShox Reba 26, 40mm offset, 100mm travel, 15x100mm spacing
  Rear Shock	Not applicable
  Front Brake	SRAM  Level T, Post Mount, 160mm
  Rear Brake	SRAM  Level T, Post Mount, 160mm
  Rear Derailleur	SRAM NX, 11-speed
  Shift Levers	SRAM NX, 11-speed
  Chain	SRAM PC-1110, 11-speed w/ PowerLock
  Cassette	SRAM PG-1130, 11-speed, 11-42t
  Crankset	SRAM X1 155mm
  Chain Ring	SRAM X-Sync Eagle, 104 BCD, 32T
  Chain Guard	Not applicable
  Rims	Specialized Alloy, Tubeless Ready, 25mm internal width, 32h
  Front Hub	Specialized, sealed cartridge bearings, 15x110mm spacing, 32h
  Rear Hub	Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
  Front Tire	Ground Control, Control Casing, 24x2.35"
  Rear Tire	Ground Control, Control Casing, 24x2.35"
  Handlebars	Double-butted alloy, 9-degree backsweep, 31.8mm bar diameter, 660mm width
  Stem	Specialized, Forged alloy, 4-bolt, 6-degree rise, 35mm length
  Headset	Spec not provided
  Grips	Specialized Trail Grips, lock-on
  Saddle	Specialized bridge sport 130 mm
  Seatpost	TranzX Dropper, 30.9mm, 80mm travel, 0mm offset, 315mm length

• Pedals	VP-227, PP Body w/ metal traction pins, Double sealed ball bearings
  Front Light	Not applicable
  Rear Light	Not applicable
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Not applicable
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable

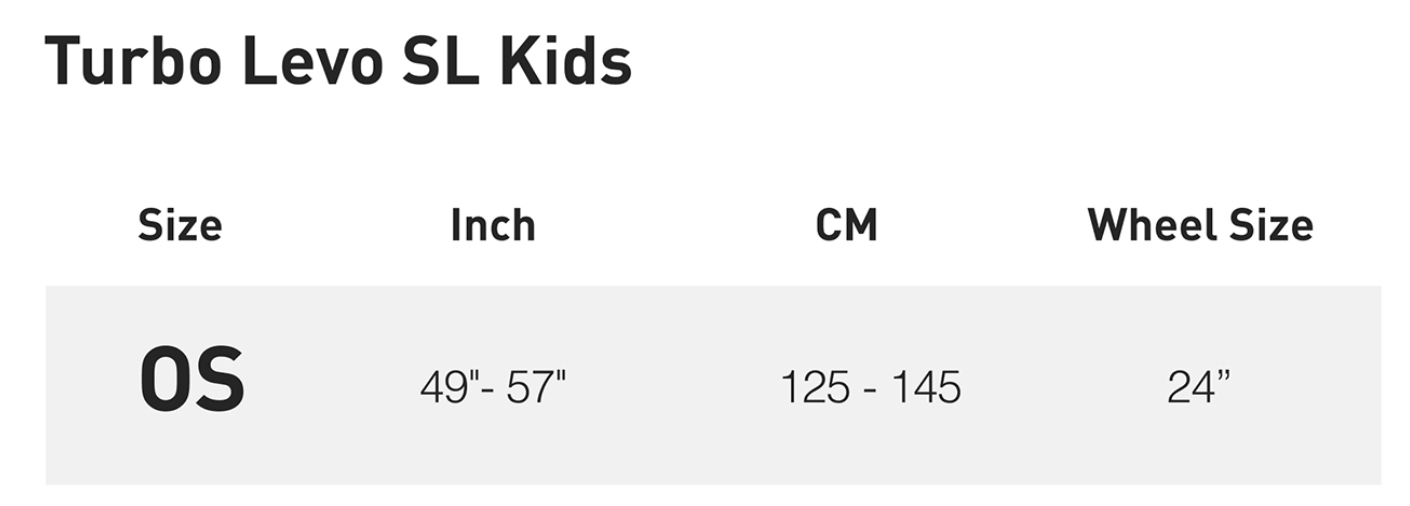

• FRAME SIZE	24"
  HEIGHT RANGE (IN)
  HEIGHT RANGE (CM)
  CRANK LENGTH	155 mm
  STEM LENGTH	35 mm
  SEATPOST LENGTH	315 mm
  SADDLE WIDTH	130 mm
  HANDLEBAR WIDTH	660 mm
  REACH	365 mm
  TOP TUBE LENGTH, HORIZONTAL	497mm
  STACK	491 mm
  WHEELBASE	1053 mm
  CHAINSTAY LENGTH	420 mm
  FRONT CENTER	638 mm
  BB DROP	50 mm
  BB HEIGHT	267.5 mm
  SEAT TUBE ANGLE	75°
  HEAD TUBE ANGLE	66°
  SEAT TUBE LENGTH	300 mm
  HEAD TUBE LENGTH	95 mm
  BIKE STANDOVER HEIGHT	603 mm
  FORK RAKE/OFFSET	40 mm
  FORK LENGTH, FULL	480 mm
  TRAIL	98 mm
