The Full Scoop on the Specialized Turbo Tero 3.0

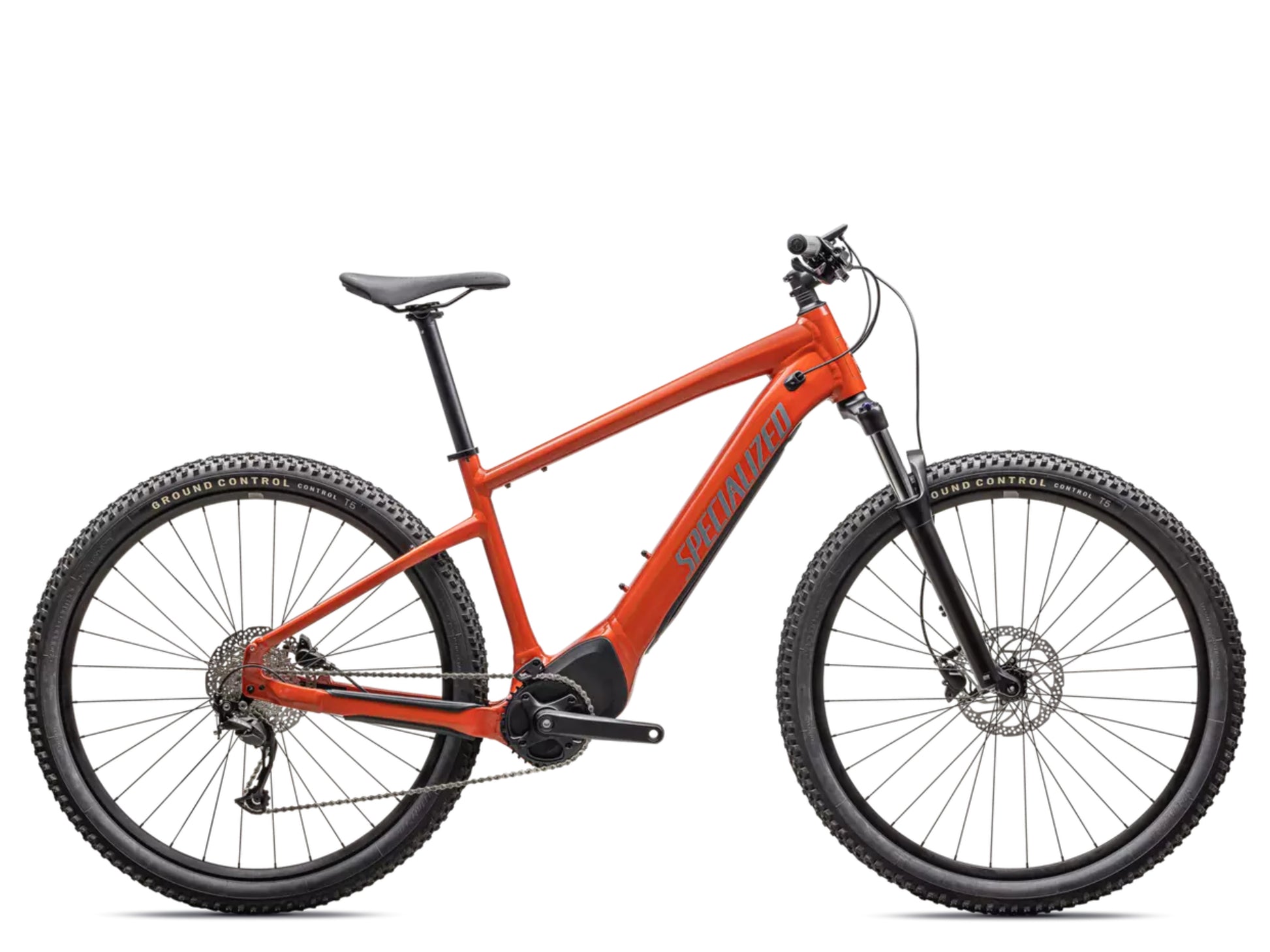

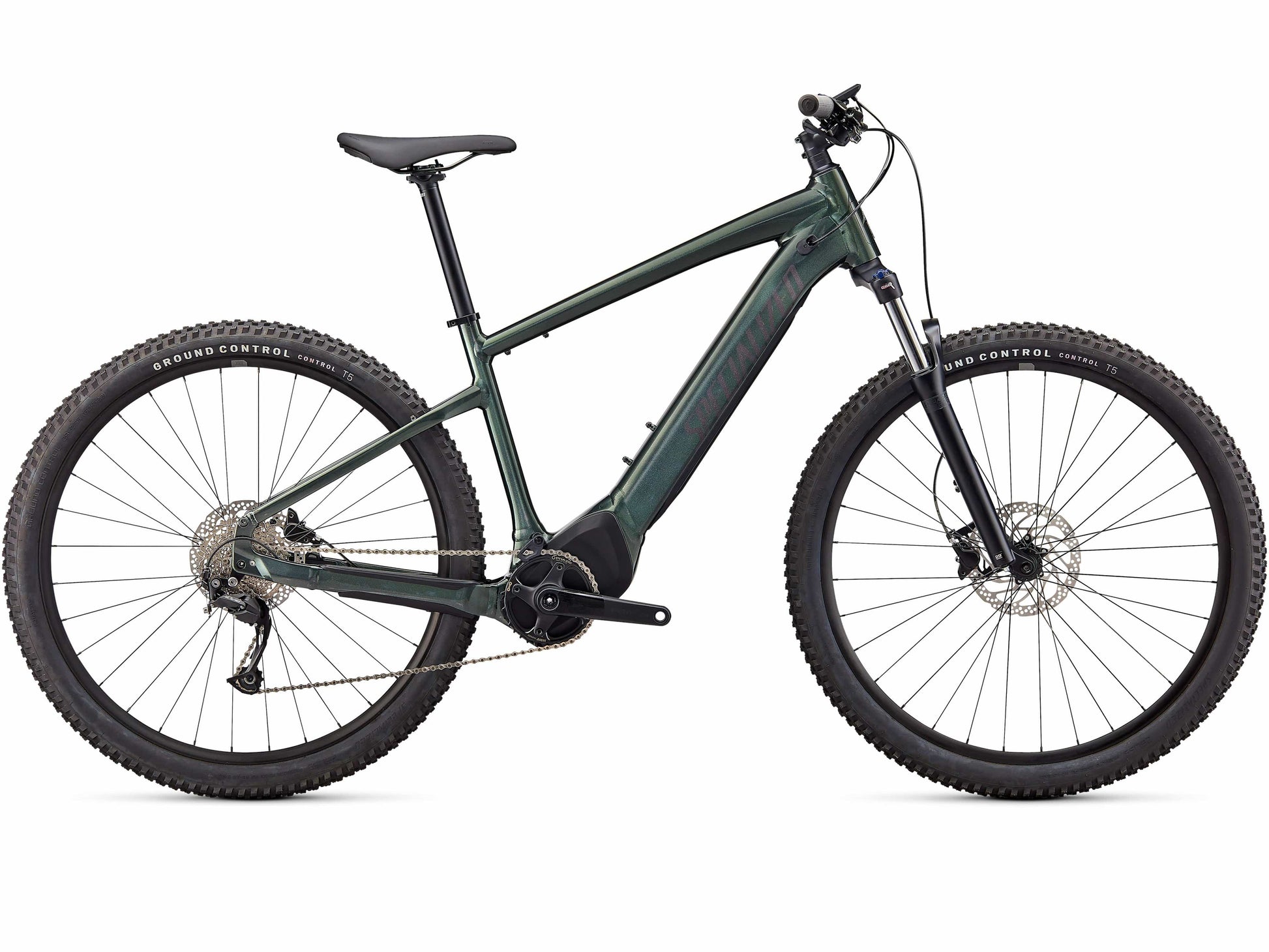

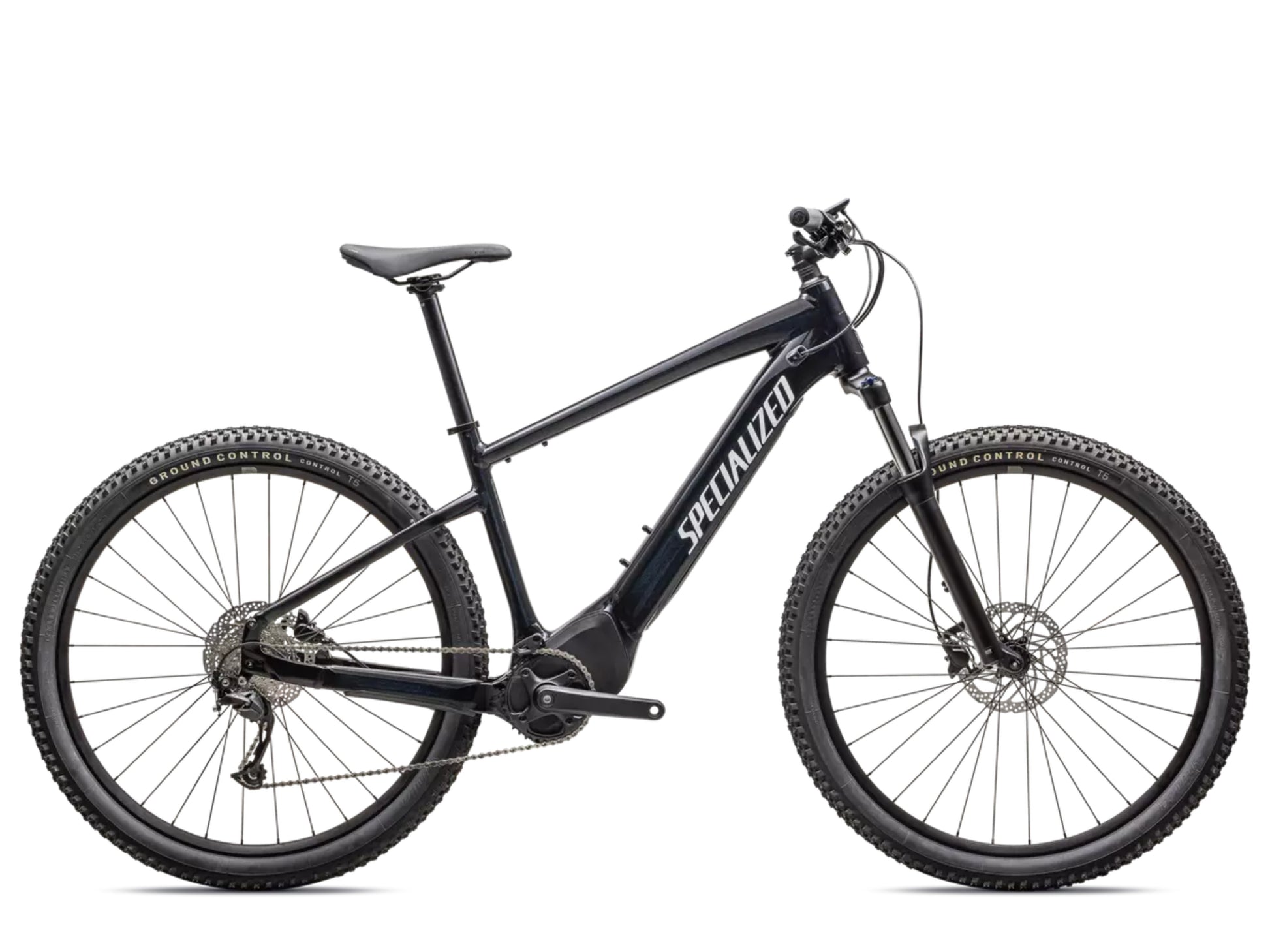

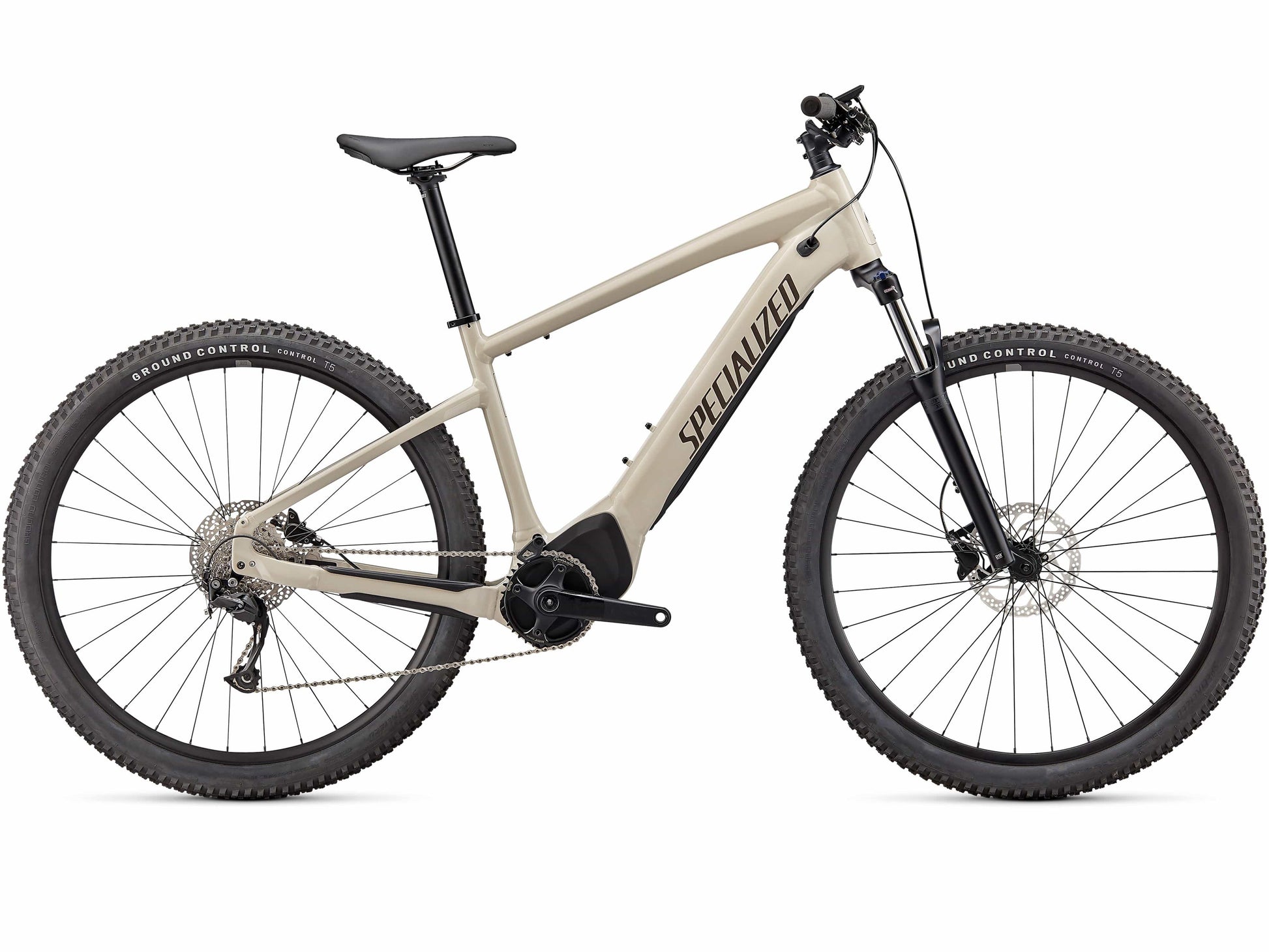

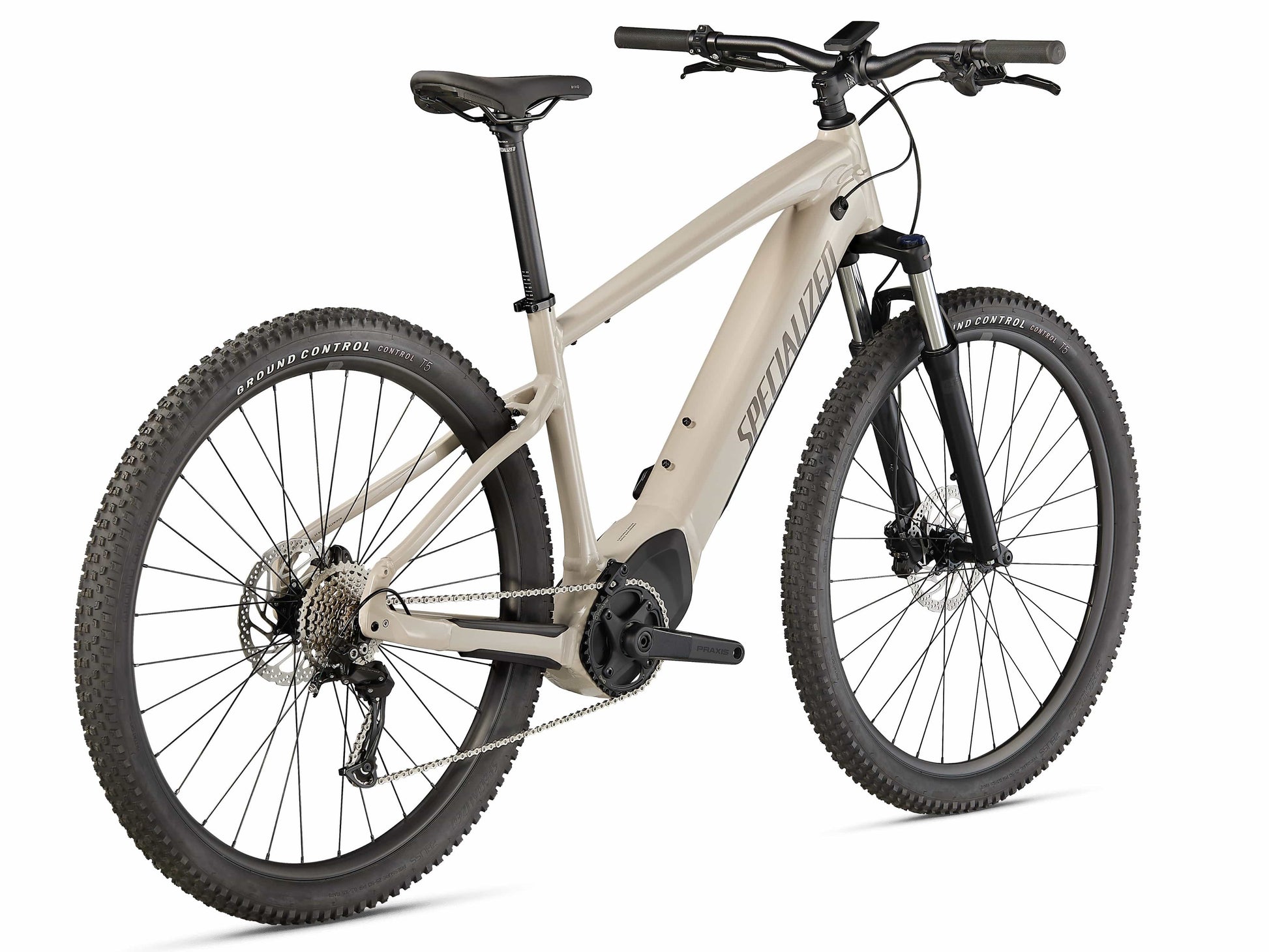

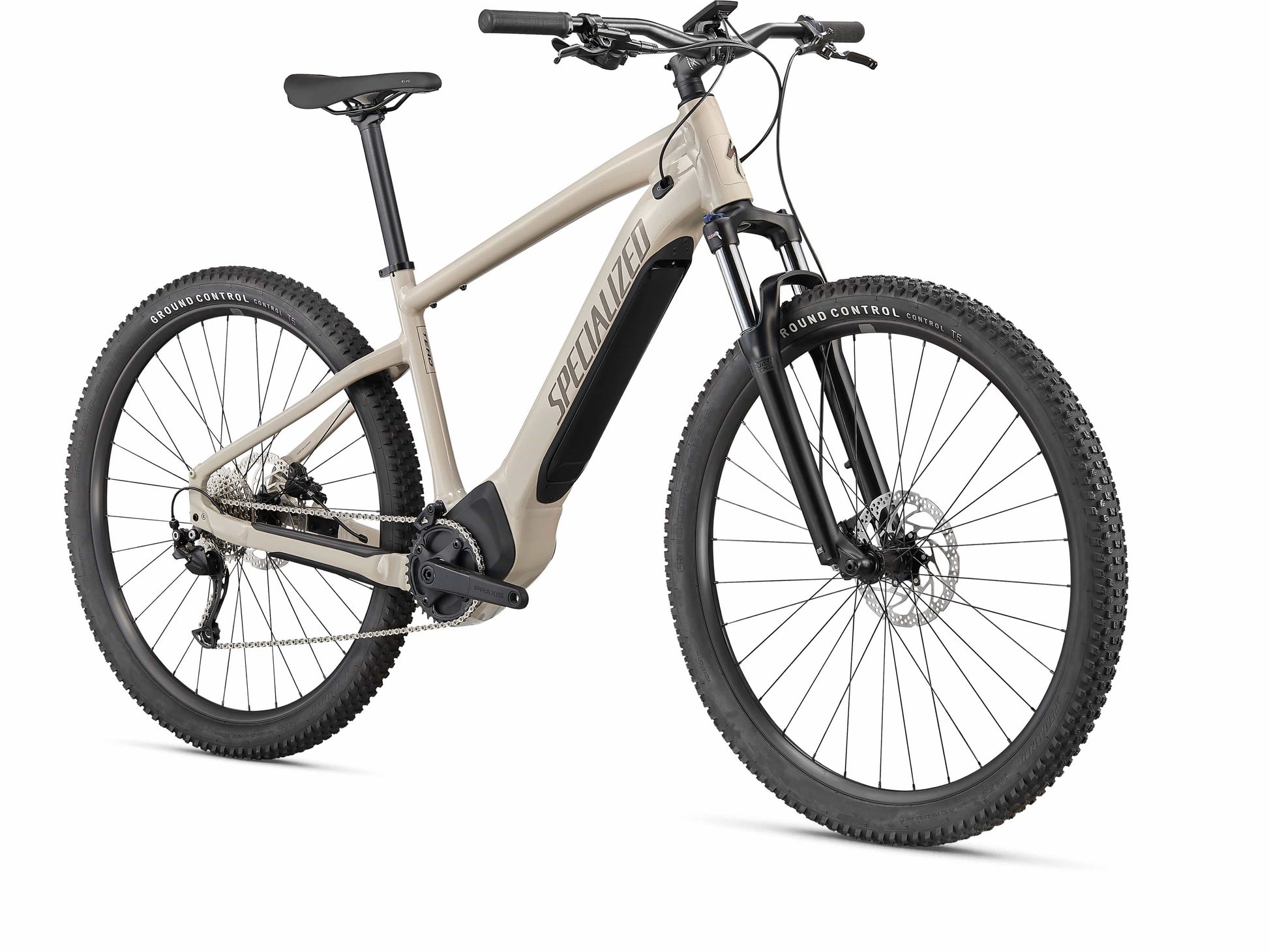

The Specialized Turbo Tero 3.0 is an electric mountain bike equipped for everyday rides. A mountain bike that you can commute on. A commuter you can take touring. A touring bike that you can haul freight with. Whatever you need it to be, for wherever you want to go. A strong, efficient, adaptable bike that is a joy to ride everywhere, from city streets to backcountry trails. Combining rugged mountain bike handling and capability with a Full Power 2.2 motor, Specialized Turbo Tero 3.0 gives your legs and heart an intuitive helping hand, empowering you to ride farther, more confidently, and to explore new landscapes.
*Components subject to manufacture changes.
*Specialized models can be delivered with our white glove, fully built delivery option (available in most of CA, AZ, and NV), or can be picked up in store.

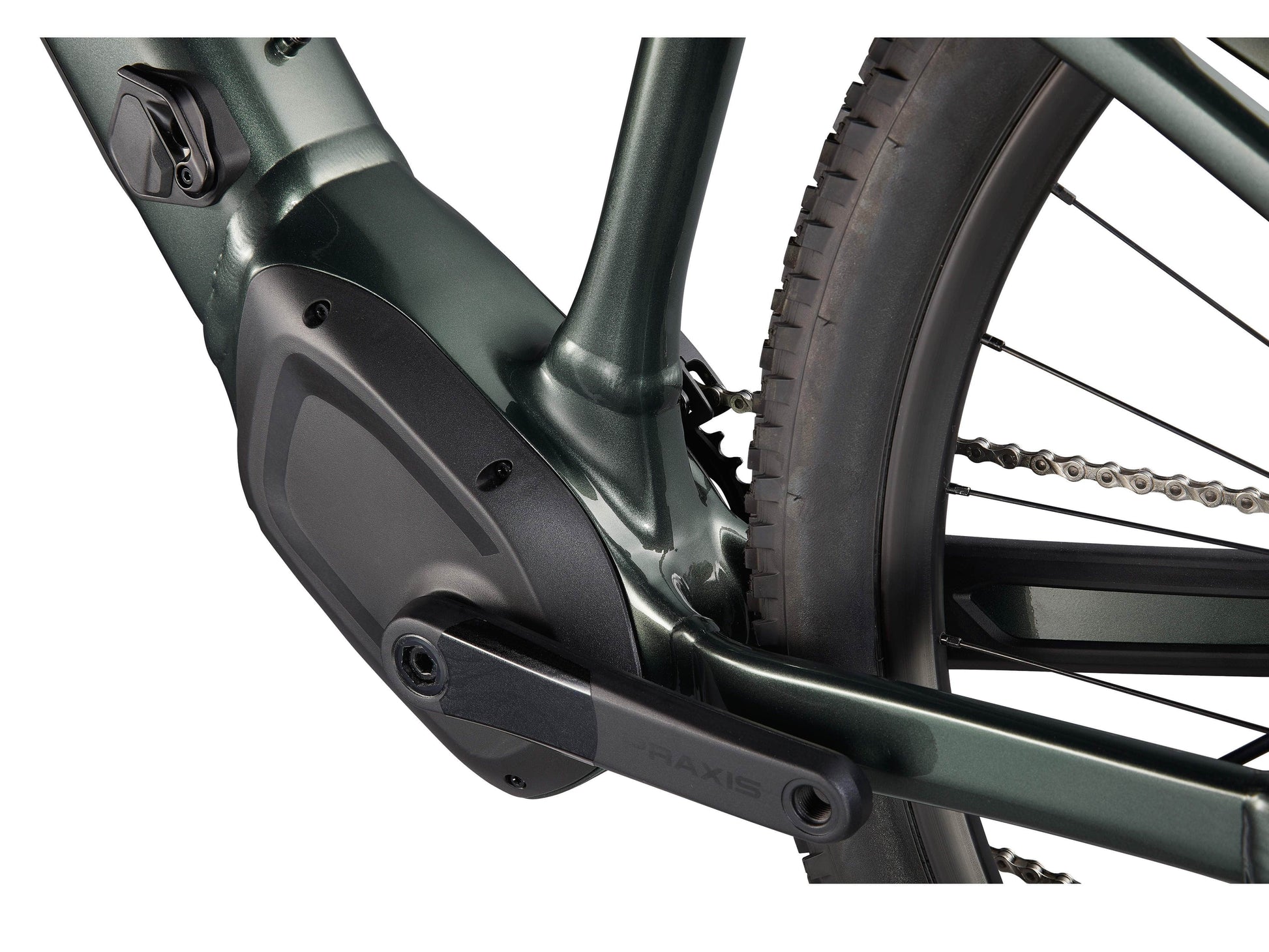

| Motor | Specialized 2.0E, 50Nm torque, custom tuned motor, 250W nominal |
| Battery | Specialized U2-530, alloy casing, state of charge display, 530Wh |
| Display | MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages |
| Charger | Custom charger, 42V4A w/ Rosenberger plug, 100-240V |
| Frame | E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount |
| Fork | SR Suntour XCM32, 110mm travel, lockout |
| Rear Shock | Not applicable |
| Front Brake | Front & Rear: Shimano BR-MT200, hydraulic disc, 180mm |
| Rear Brake | Front & Rear: Shimano BR-MT200, hydraulic disc, 180mm |
| Rear Derailleur | Shimano Alivio, SGS 9-speed |
| Shift Levers | Shimano Alivio, 9-speed w/ Optical Gear Display |
| Chain | KMC e9T, 9-speed w/ Missing Link™ |
| Cassette | Shimano CS-HG400, 9-speed, 11-36t |
| Crankset | Custom alloy forged crankarms |
| Chain Ring | Praxis, 36T, 104BCD |
| Chain Guard | Spec not provided |
| Rims | Stout XC 29, 25mm internal width, disc-specific |
| Front Hub | Shimano MT400, Centerlock, 15x100mm, 32h |
| Rear Hub | Shimano MT400-B, Centerlock, 12x148 Boost, 32h |
| Front Tire | Ground Control, 2Bliss Ready, 29x2.35" |
| Rear Tire | Ground Control, 2Bliss Ready, 29x2.35" |

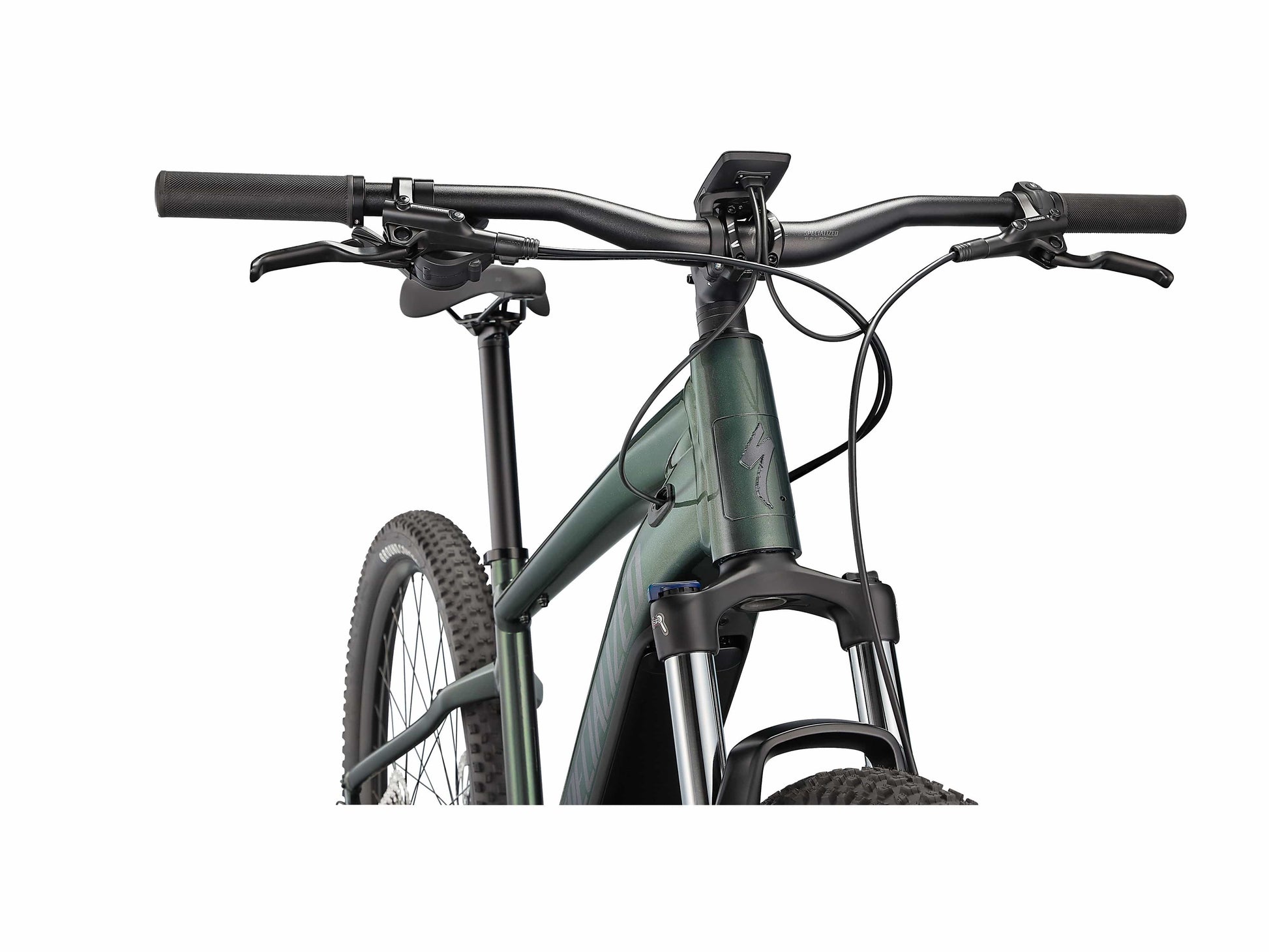

| Handlebar | Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 31.8mm clamp, S 720mm, M-XL 750mm |
| Stem | Stout 3D-forged alloy, 31.8mm, 6-degree rise |
| Headset | Spec not provided |
| Grips | Specialized Trail, Lock-on |
| Saddle | Rivo Sport, steel rails, 155mm |
| Seatpost | Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm |
| Pedals | Specialized platform pedal |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Simple bell |
| Lock | Turbo System Lock - Use the Mission Control app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner. |
| Mirror | Not applicable |
| FRAME SIZE | Small | Medium | Large | X-large |
|---|---|---|---|---|
| Seat tube length | 400mm | 450mm | 460mm | 500mm |
| Top tube length | 589mm | 620mm | 650mm | 680mm |
| Bottom bracket drop | 57mm | 57mm | 57mm | 57mm |
| Bottom bracket height | 313mm | 313mm | 313mm | 313mm |
| Chainstay length | 470.4mm | 470.4mm | 470.4mm | 470.4mm |
| Seat tube angle | 73.9° | 73.4° | 72.9° | 72.4° |
| Head tube angle | 66.4° | 66.4° | 66.4° | 66.4° |
| Fork Offset | 44mm | 44mm | 44mm | 44mm |
| Wheelbase | 1173mm | 1200mm | 1226mm | 1252mm |
| Head tube length | 135mm | 150mm | 165mm | 190mm |
| Reach | 405mm | 426mm | 446mm | 462mm |
| Stack | 637mm | 651mm | 664mm | 687mm |
The Full Scoop on the Specialized Turbo Tero 3.0
The Specialized Turbo Tero 3.0 is an electric mountain bike equipped for everyday rides. A mountain bike that you can commute on. A commuter you can take touring. A touring bike that you can haul freight with. Whatever you need it to be, for wherever you want to go. A strong, efficient, adaptable bike that is a joy to ride everywhere, from city streets to backcountry trails. Combining rugged mountain bike handling and capability with a Full Power 2.2 motor, Specialized Turbo Tero 3.0 gives your legs and heart an intuitive helping hand, empowering you to ride farther, more confidently, and to explore new landscapes.
*Components subject to manufacture changes.
*Specialized models can be delivered with our white glove, fully built delivery option (available in most of CA, AZ, and NV), or can be picked up in store.
Motor System
| Motor | Specialized 2.0E, 50Nm torque, custom tuned motor, 250W nominal |
| Battery | Specialized U2-530, alloy casing, state of charge display, 530Wh |
| Display | MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages |
| Charger | Custom charger, 42V4A w/ Rosenberger plug, 100-240V |
Components
| Frame | E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount |
| Fork | SR Suntour XCM32, 110mm travel, lockout |
| Rear Shock | Not applicable |
| Front Brake | Front & Rear: Shimano BR-MT200, hydraulic disc, 180mm |
| Rear Brake | Front & Rear: Shimano BR-MT200, hydraulic disc, 180mm |
| Rear Derailleur | Shimano Alivio, SGS 9-speed |
| Shift Levers | Shimano Alivio, 9-speed w/ Optical Gear Display |
| Chain | KMC e9T, 9-speed w/ Missing Link™ |
| Cassette | Shimano CS-HG400, 9-speed, 11-36t |
| Crankset | Custom alloy forged crankarms |
| Chain Ring | Praxis, 36T, 104BCD |
| Chain Guard | Spec not provided |
| Rims | Stout XC 29, 25mm internal width, disc-specific |
| Front Hub | Shimano MT400, Centerlock, 15x100mm, 32h |
| Rear Hub | Shimano MT400-B, Centerlock, 12x148 Boost, 32h |
| Front Tire | Ground Control, 2Bliss Ready, 29x2.35" |
| Rear Tire | Ground Control, 2Bliss Ready, 29x2.35" |

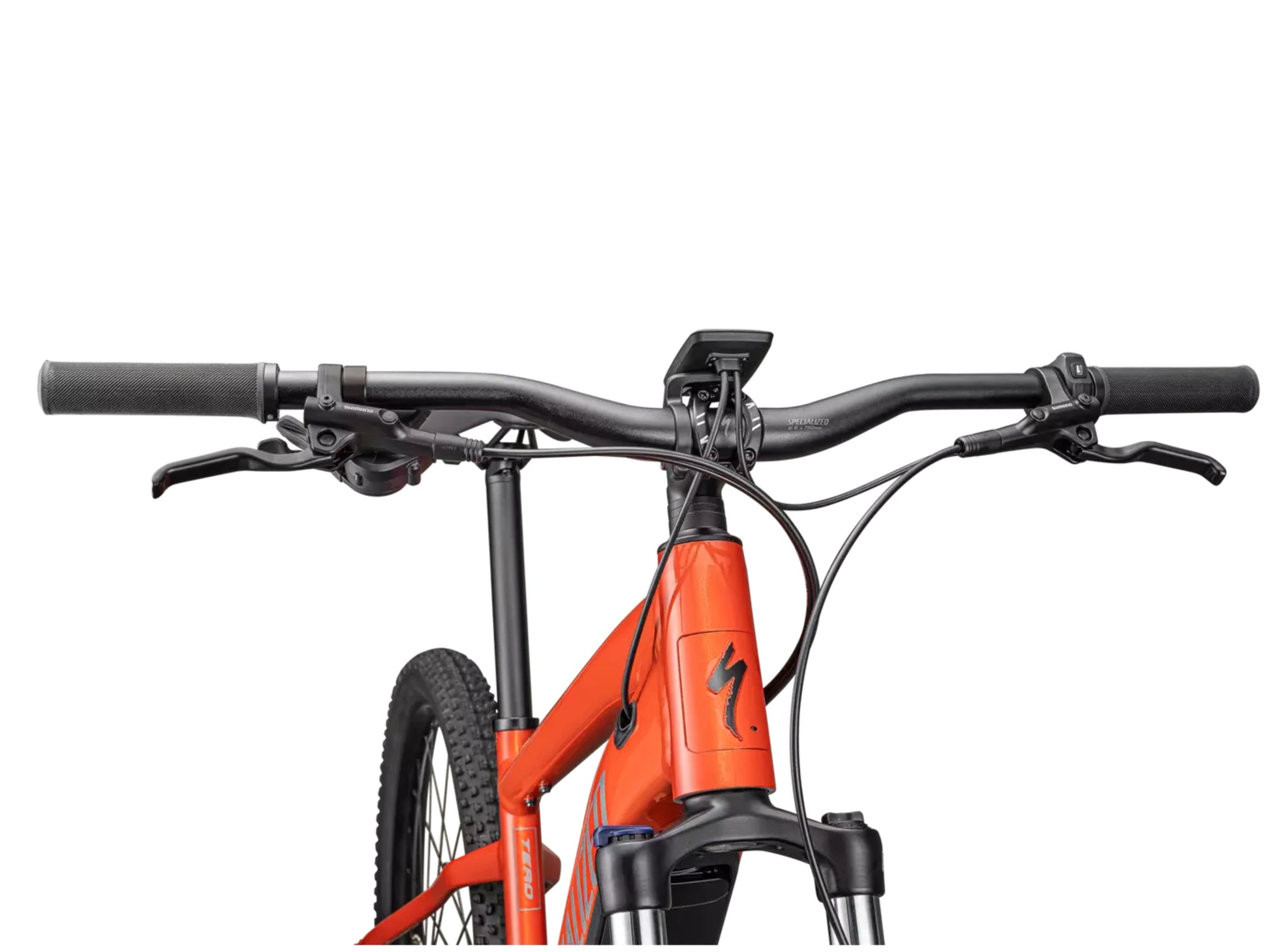

| Handlebar | Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 31.8mm clamp, S 720mm, M-XL 750mm |
| Stem | Stout 3D-forged alloy, 31.8mm, 6-degree rise |
| Headset | Spec not provided |
| Grips | Specialized Trail, Lock-on |
| Saddle | Rivo Sport, steel rails, 155mm |
| Seatpost | Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm |
Extras
| Pedals | Specialized platform pedal |
| Front Light | Not applicable |
| Rear Light | Not applicable |
| Kickstand | Not applicable |
| Rear Carrier | Not applicable |
| Fenders | Not applicable |
| Bell | Simple bell |
| Lock | Turbo System Lock - Use the Mission Control app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner. |
| Mirror | Not applicable |
Geometry
| FRAME SIZE | Small | Medium | Large | X-large |
|---|---|---|---|---|
| Seat tube length | 400mm | 450mm | 460mm | 500mm |
| Top tube length | 589mm | 620mm | 650mm | 680mm |
| Bottom bracket drop | 57mm | 57mm | 57mm | 57mm |
| Bottom bracket height | 313mm | 313mm | 313mm | 313mm |
| Chainstay length | 470.4mm | 470.4mm | 470.4mm | 470.4mm |
| Seat tube angle | 73.9° | 73.4° | 72.9° | 72.4° |
| Head tube angle | 66.4° | 66.4° | 66.4° | 66.4° |
| Fork Offset | 44mm | 44mm | 44mm | 44mm |
| Wheelbase | 1173mm | 1200mm | 1226mm | 1252mm |
| Head tube length | 135mm | 150mm | 165mm | 190mm |
| Reach | 405mm | 426mm | 446mm | 462mm |
| Stack | 637mm | 651mm | 664mm | 687mm |
