Specialized Turbo Tero X 4.0

The Full Scoop on the Specialized Turbo Tero X 4.0

*Specialized models can be delivered with our white glove, fully built delivery option, or can be picked up in store.

• Description
• Motor System
• Components
• Extras
• Geometry

•

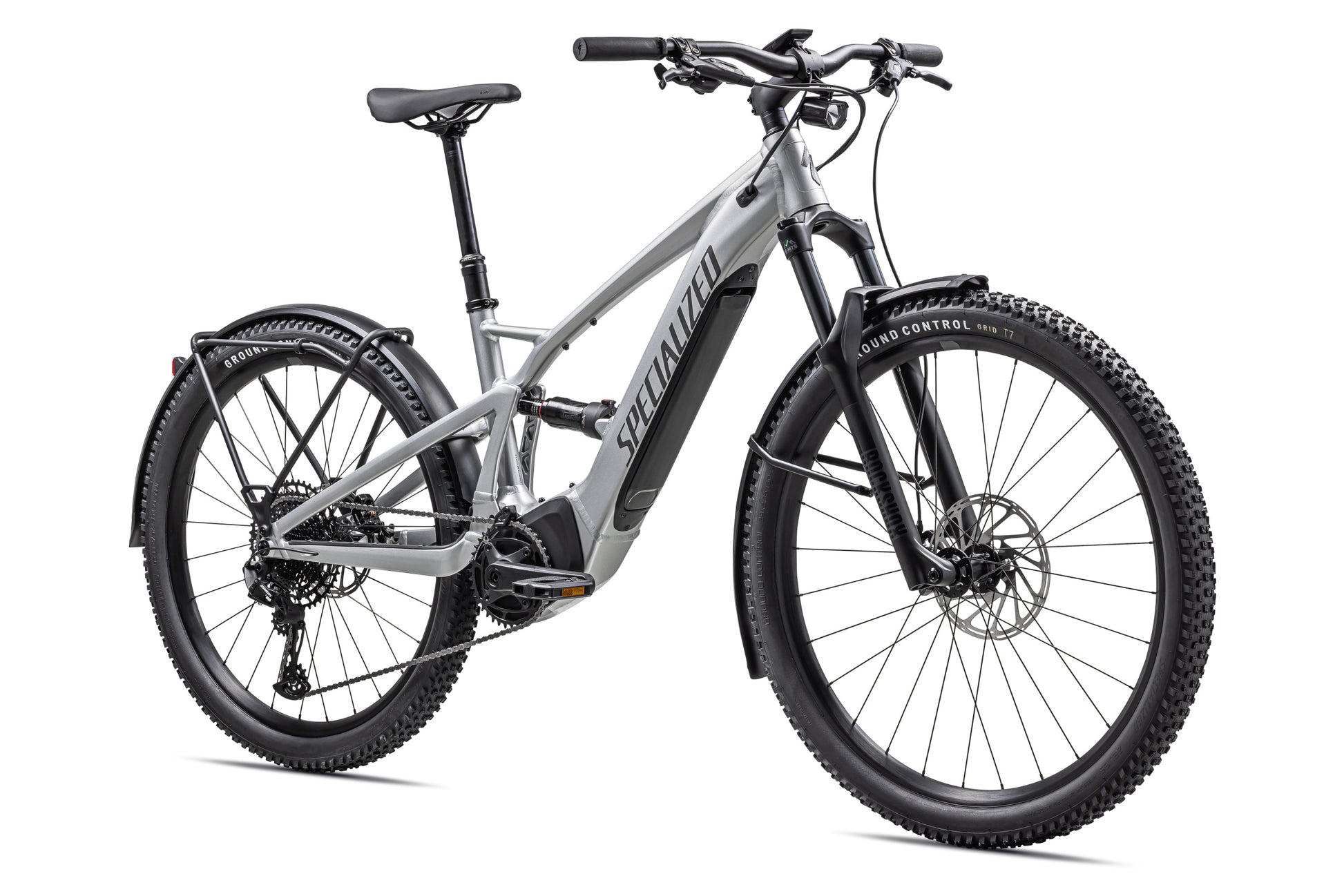

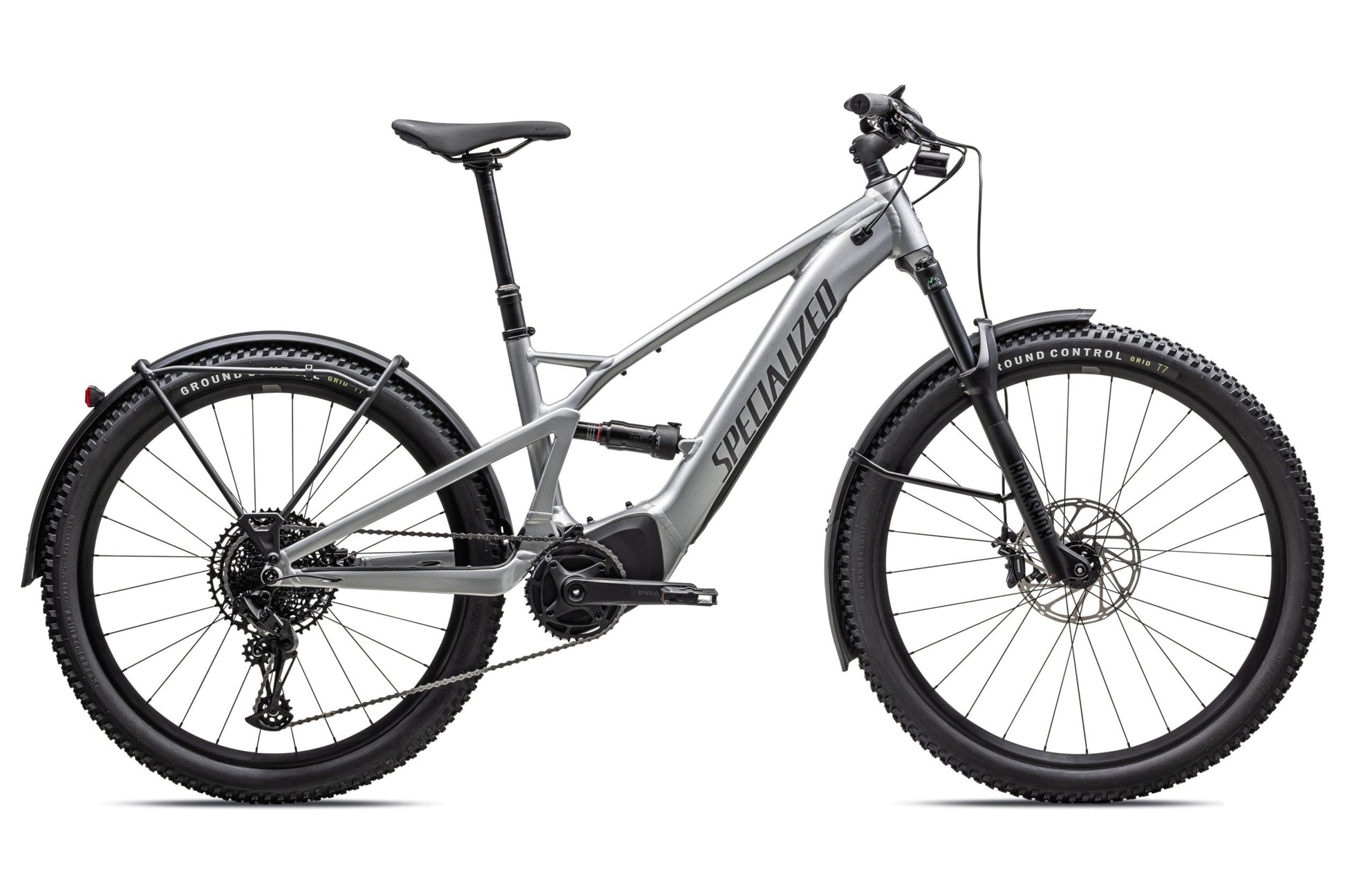

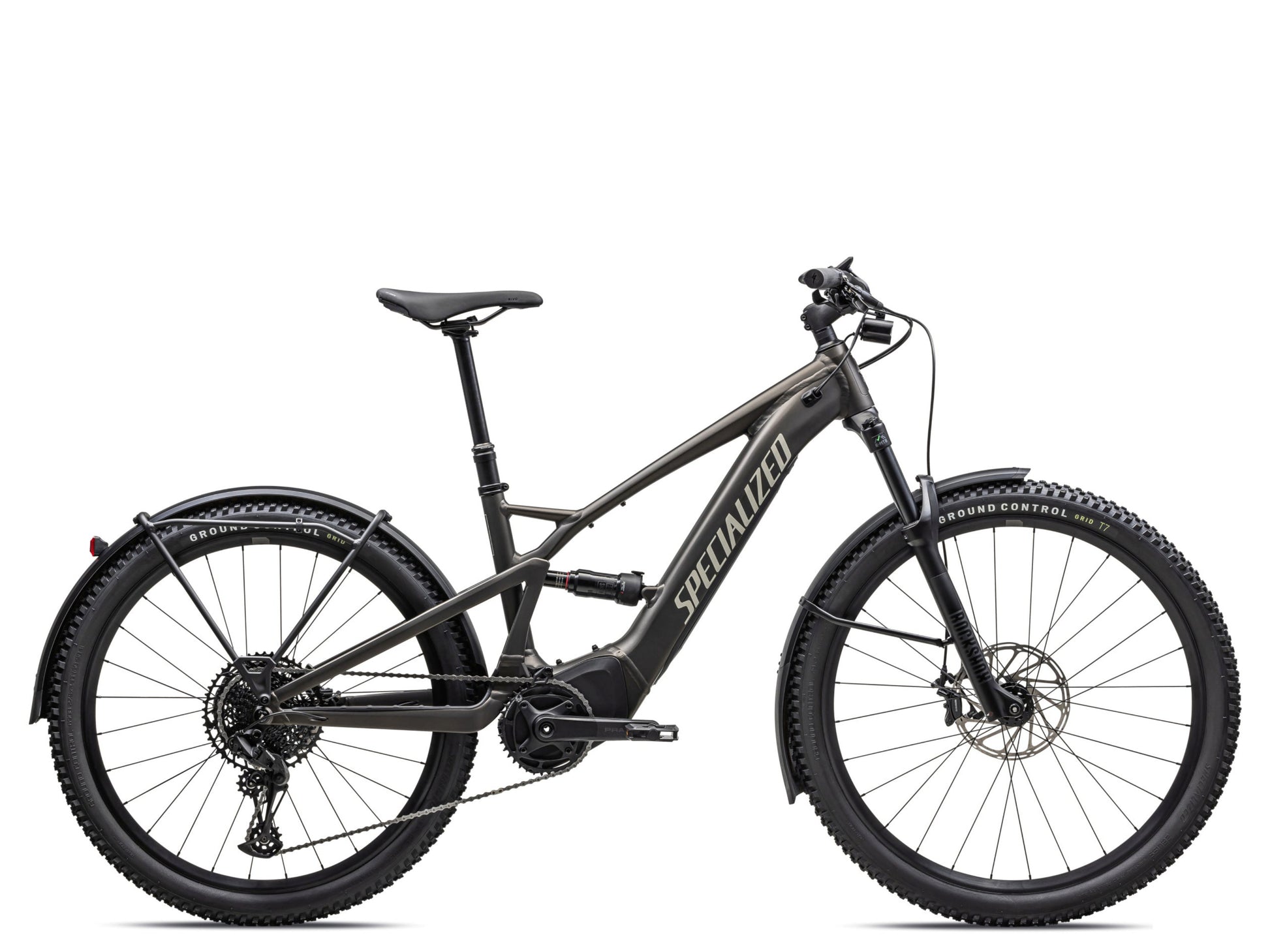

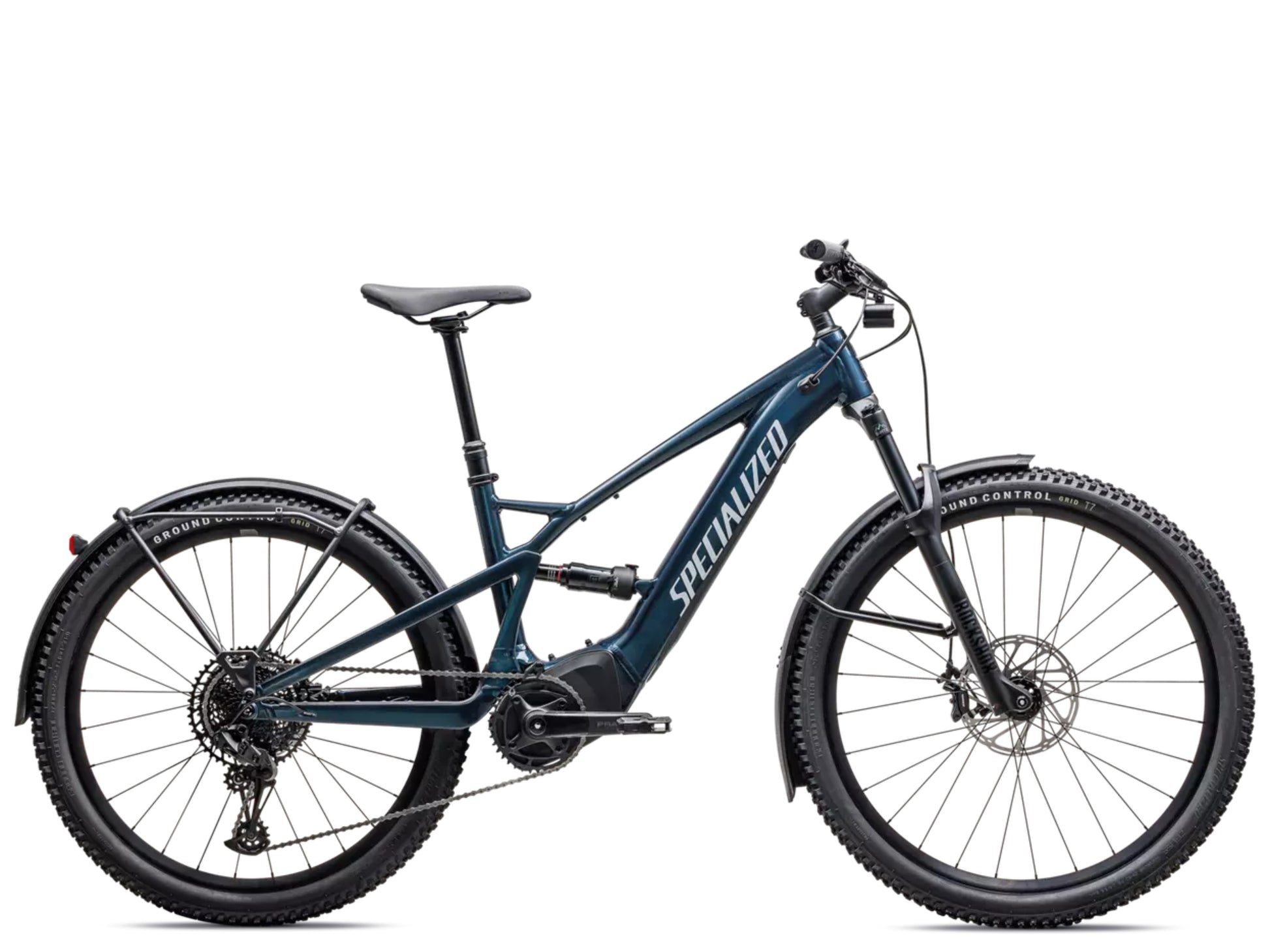

  The Specialized Turbo Tero X 4.0 will take you beyond the horizon. A full-suspension e-bike for back country comfort, the go anywhere, go over anything, everything vehicle. Discover new adventures easier than ever. Fly Rides has the biggest in store collection of Specialized electric bikes in Southern California. Why? Because electric bikes is what we do! Come check out the full lineup today!

  Check out the full lineup of Specialized electric bikes here!

  Components subject to manufacturer changes

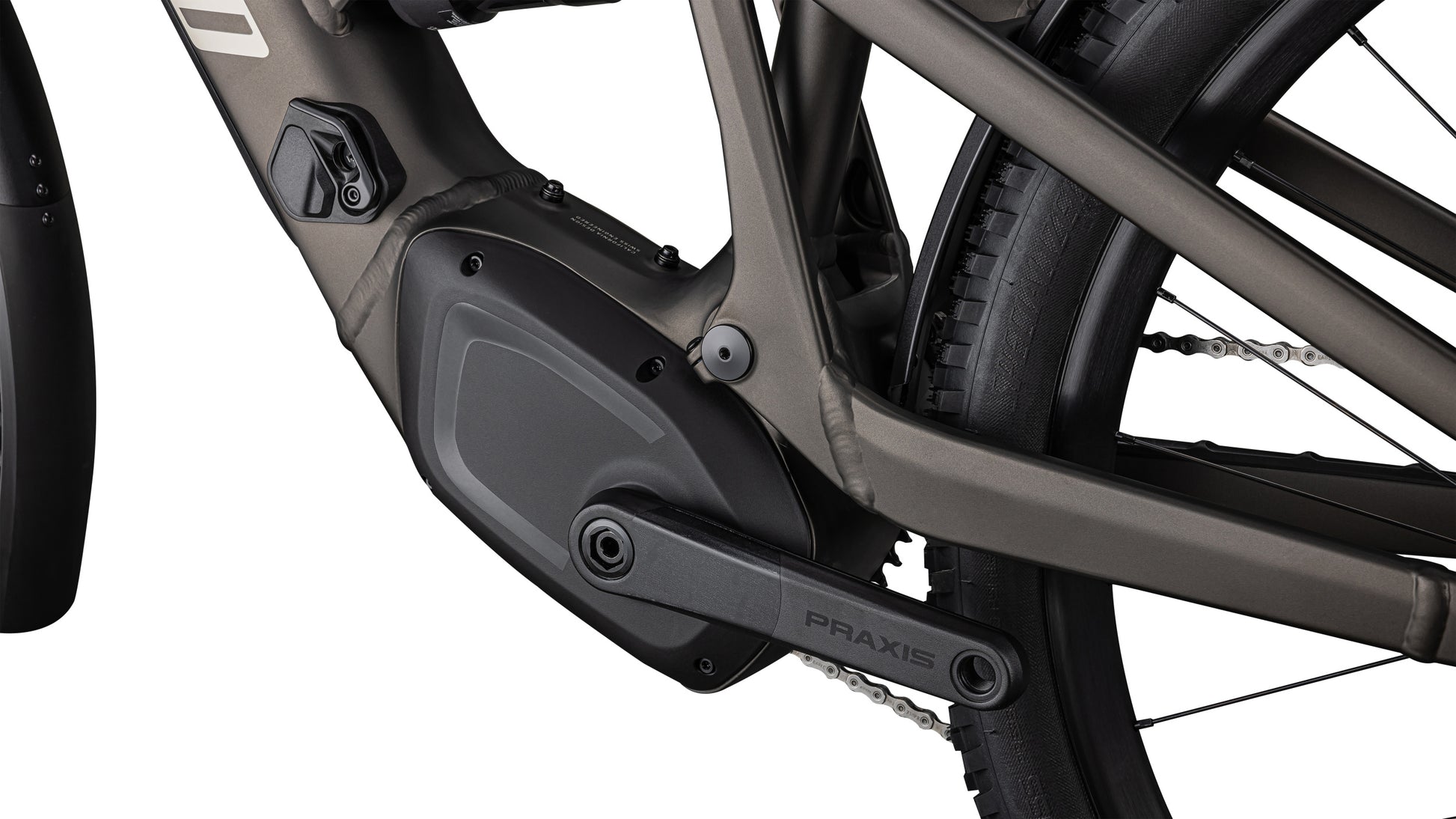

• Motor	Specialized 2.0E, 50Nm torque, custom tuned motor, 250W nominal
  Battery	Specialized U2-530 alloy casing, state of charge display, 530Wh
  Display	MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
  Charger	Custom charger, 42V4A w/ Rosenberger plug, 100-240V

• Frame	E5 Aluminum, full suspension, mullet style for M-XL, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount
  Fork	RockShox Recon Silver RL, lockout, 130mm, fender mounts
  Rear Shock	RockShox Deluxe Select R, rebound adjust, 45x190mm
  Front Brake	Sram G2 RE, E-MTB specific brake, 4-piston caliper, hydraulic, 200mm rotor
  Rear Brake	Sram G2 RE, E-MTB specific brake, 4-piston caliper, hydraulic, 180mm rotor
  Rear Derailleur	SRAM SX Eagle, 12-speed
  Shift Levers	SRAM SL SX Eagle, 12-speed
  Chain	SRAM NX Eagle, 12-speed
  Cassette	SRAM PG-1210 Eagle, 12-speed, 11-50t
  Crankset	Praxis forged M30, custom offset
  Chain Ring	Sram X-Sync Eagle, 104BCD, 38T, EMTB specific, steel
  Chain Guard	Spec not provided
  Rims	Roval Traverse, hookless alloy, 30mm inner width, tubeless ready
  Front Hub	Specialized alloy, disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 28h
  Rear Hub	Specialized alloy, disc, sealed cardridge bearings, 6-bolt, 12x148mm thru-axle, 28h
  Front Tire	Ground Control Grid T7, 2Bliss ready, S: 27.5x2.35, M-XL: 29x2.35
  Rear Tire	Ground Control Grid T7, 2Bliss Ready, 27.5x2.35
  Handlebar	Specialized Trail, 6061 Alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 31.8mm clamp, S: 720mm, M-XL: 750mm
  Stem	Specialized Stealth Stem, alloy, 14 deg, 31.8mm,  integrated TCD mount
  Headset	Spec not provided
  Grips	Specialized Body Geometry Contour, lock-on
  Saddle	Bridge Sport, steel rails, 155mm
  Seatpost	TranzX Dropper, infinite adjustable, two-bolt head, bottom mount cable routing, Handlebar remote, 34.9mm, S: 150mm, M: 170mm, L/XL: 200mm

• Pedals	Specialized Commuter w/ grip tape & reflectors

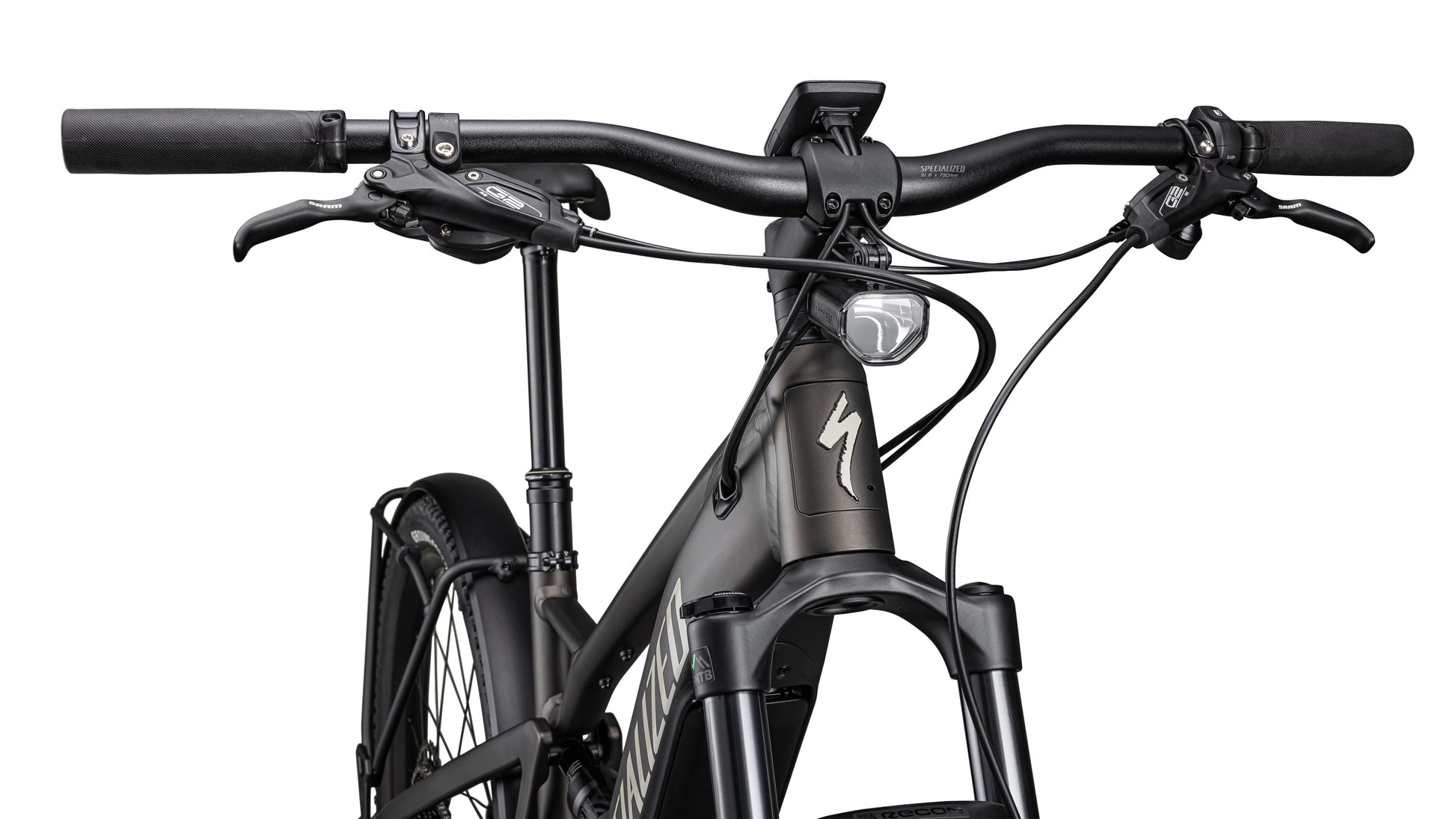

  Front Light	Lezyne EBIKE CLASSIC STVZO E600, 500 Lumen, 12V, Stem mounted
  Rear Light	Lezyne EBIKE FENDER REAR STVZO, wide light spread, 12V
  Kickstand	Specialized kickstand, 40mm mount
  Rear Carrier	Specialized Pannier-rack, alloy tubing, max. 20kg load
  Fenders	Specialized DRYTECH fenders, 65mm width, stainless steel fenderstays
  Bell	Sinple Bell
  Lock	Turbo System Lock - Use the Mission Control app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.
  Mirror	Not applicable

• Size S M L XL BB Drop 41 41 41 41 BB Height 335 335 335 335 Bike Standover Height 726 726 740 740 Chainstay Length 460 460 460 460 Crank Length 165 170 170 170 Fork Length, Full 521 540 540 540 Fork Rake/Offset 37 42 42 42 Front Center 735 770 799 824 Handlebar Width 720 750 750 750 Head Tube Angle 67 67 67 67 Head Tube Length 135 115 135 150 Reach 439 468 490 509 Saddle Width 155 155 155 155 Seat Tube Angle 78 78 77  77 Seat Tube Length 380 400 420 440 Seatpost Length 380 400 420 440 Stack 610 626 644 658 Stem Length 75 75 75 75 Toptube Length (horizontal) 570 602 637 666 Trail 115 118 118 118 Wheelbase 1195 1228 1258 1282
