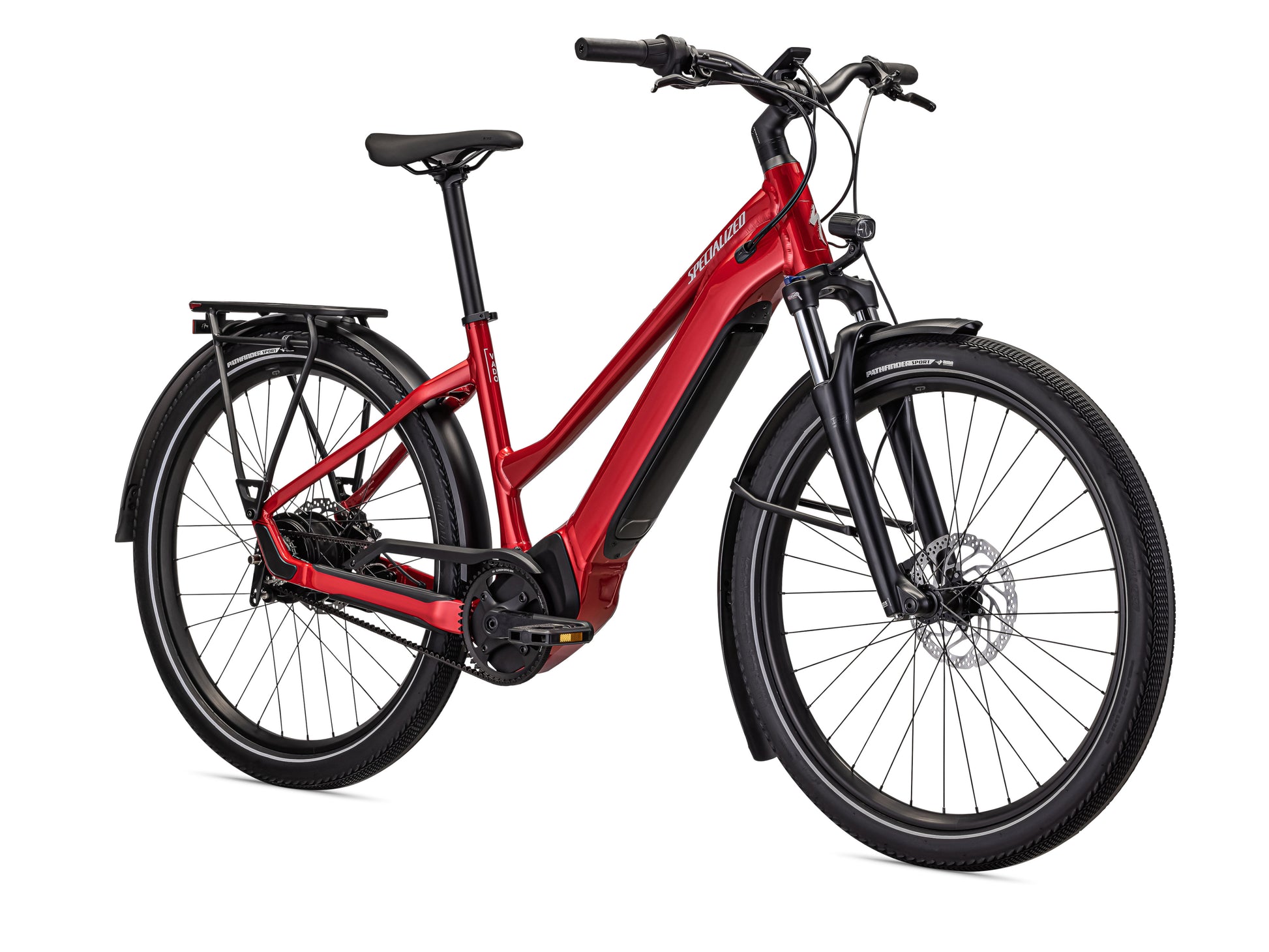

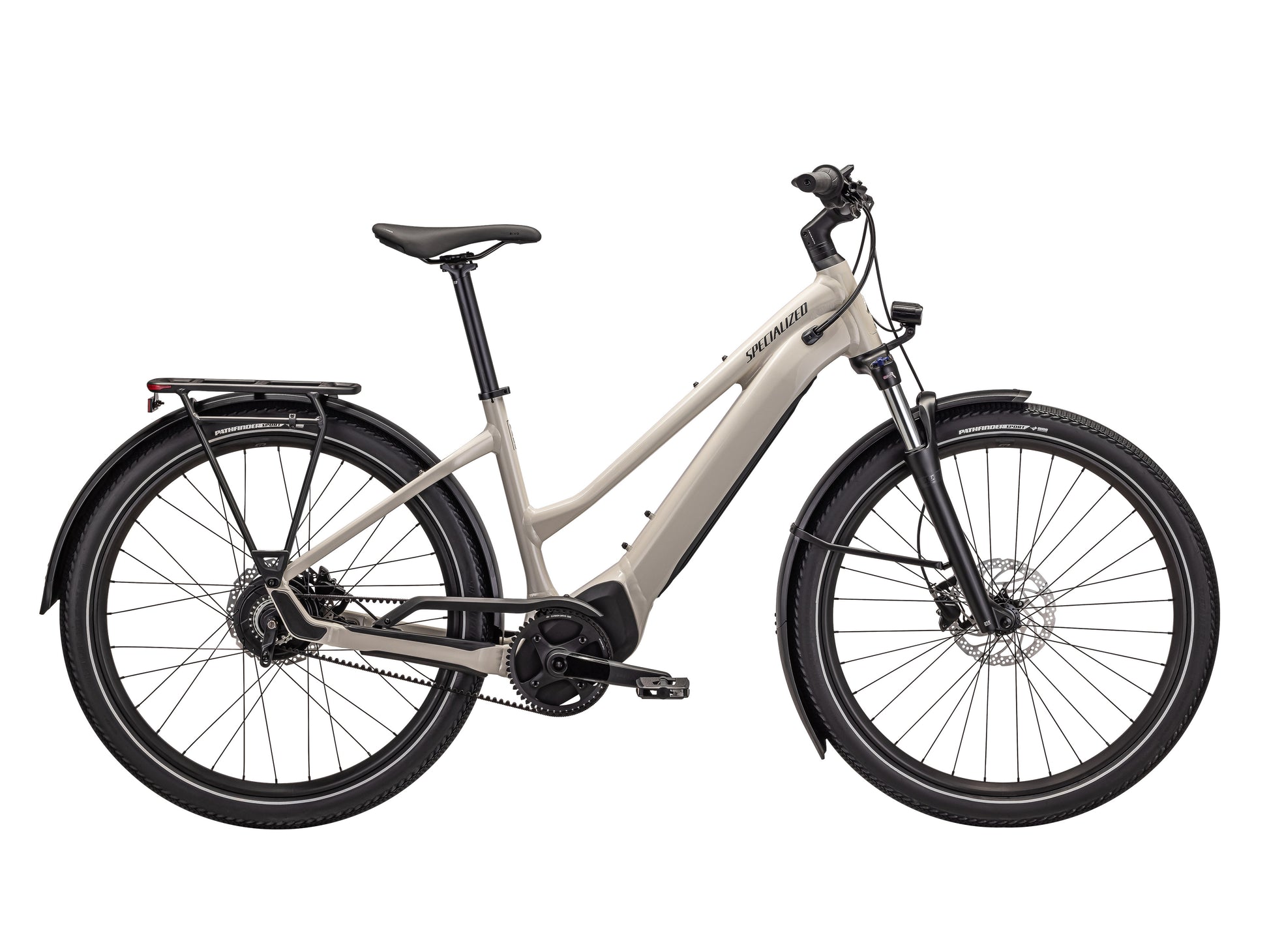

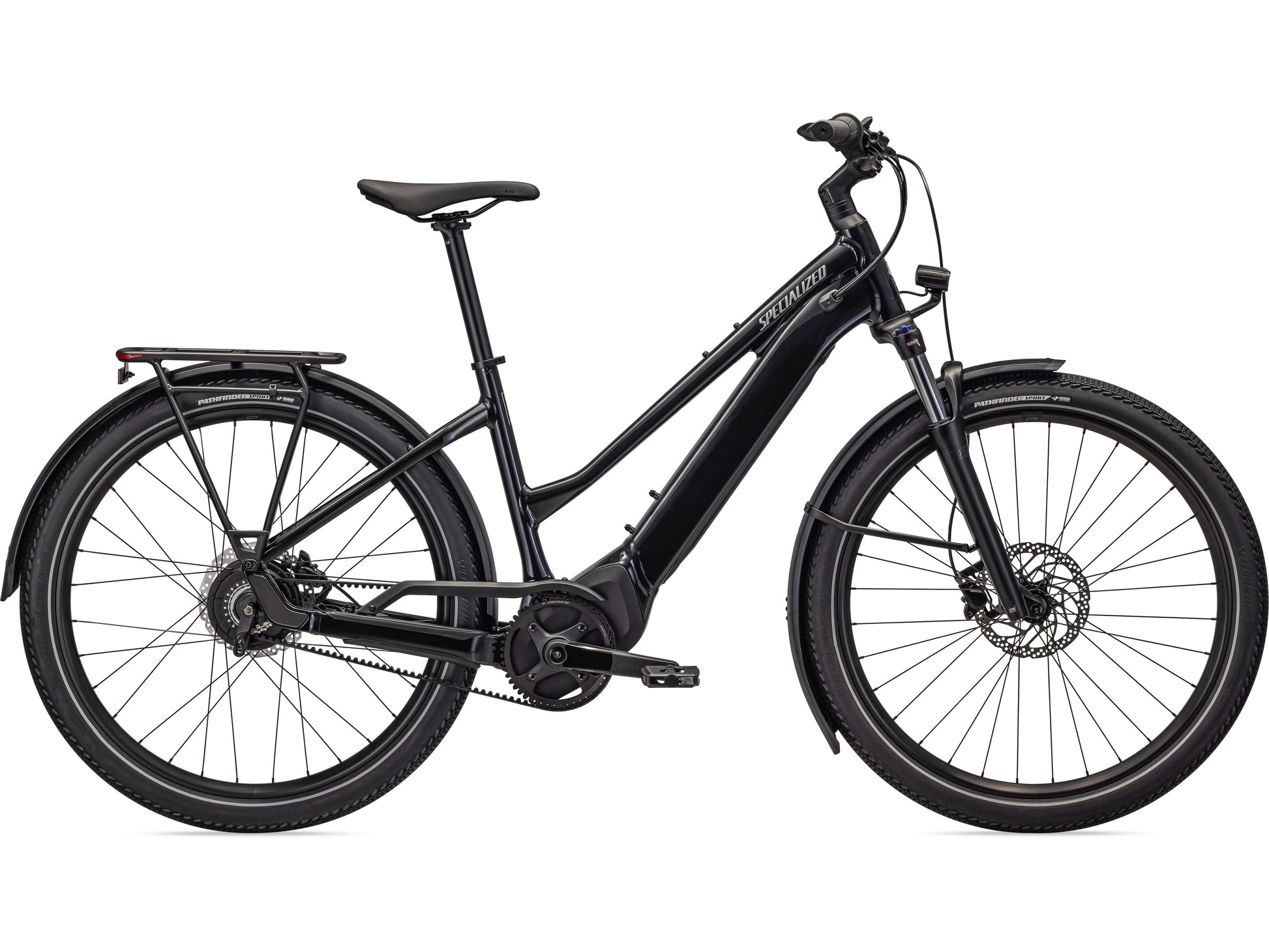

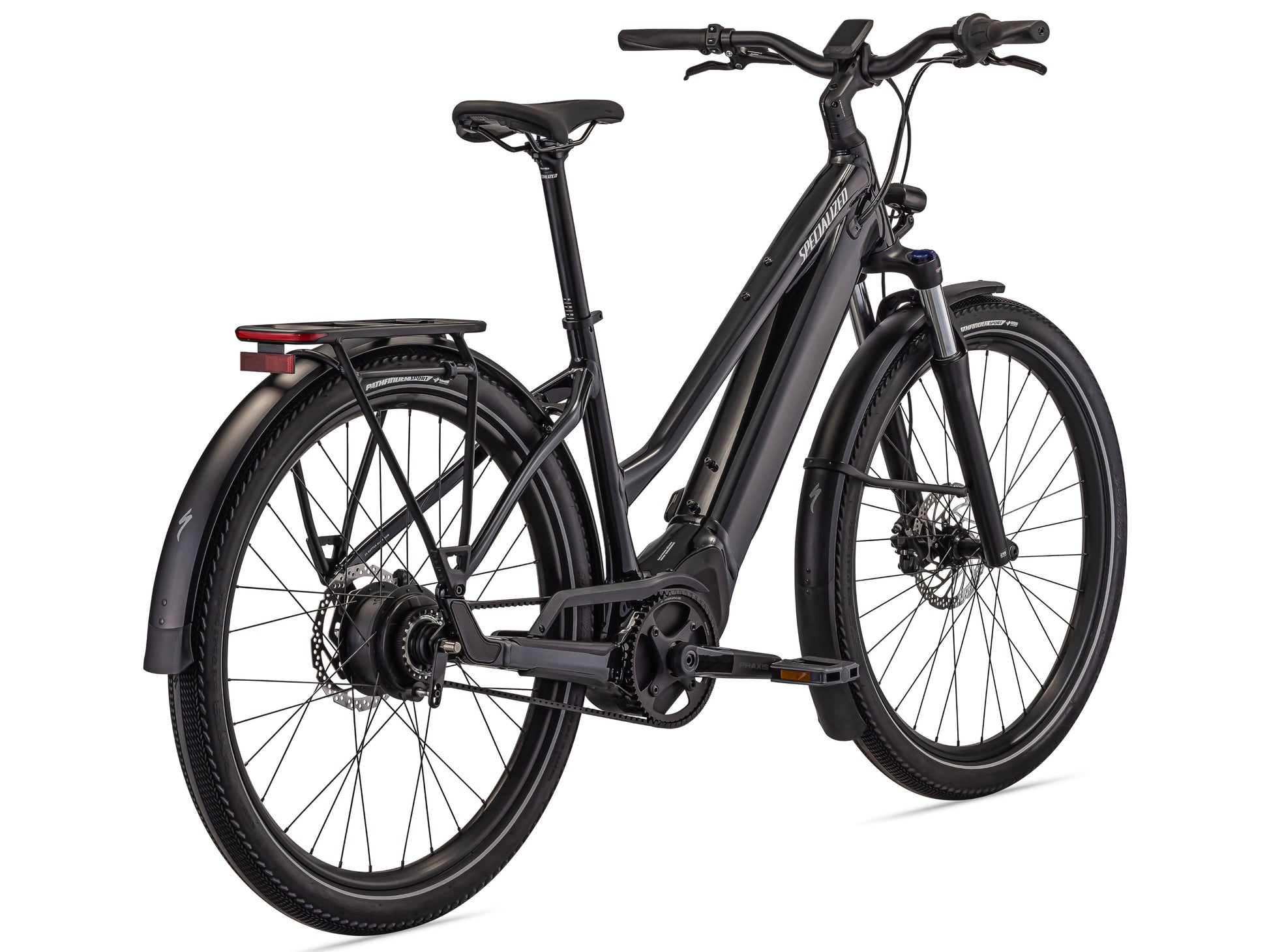

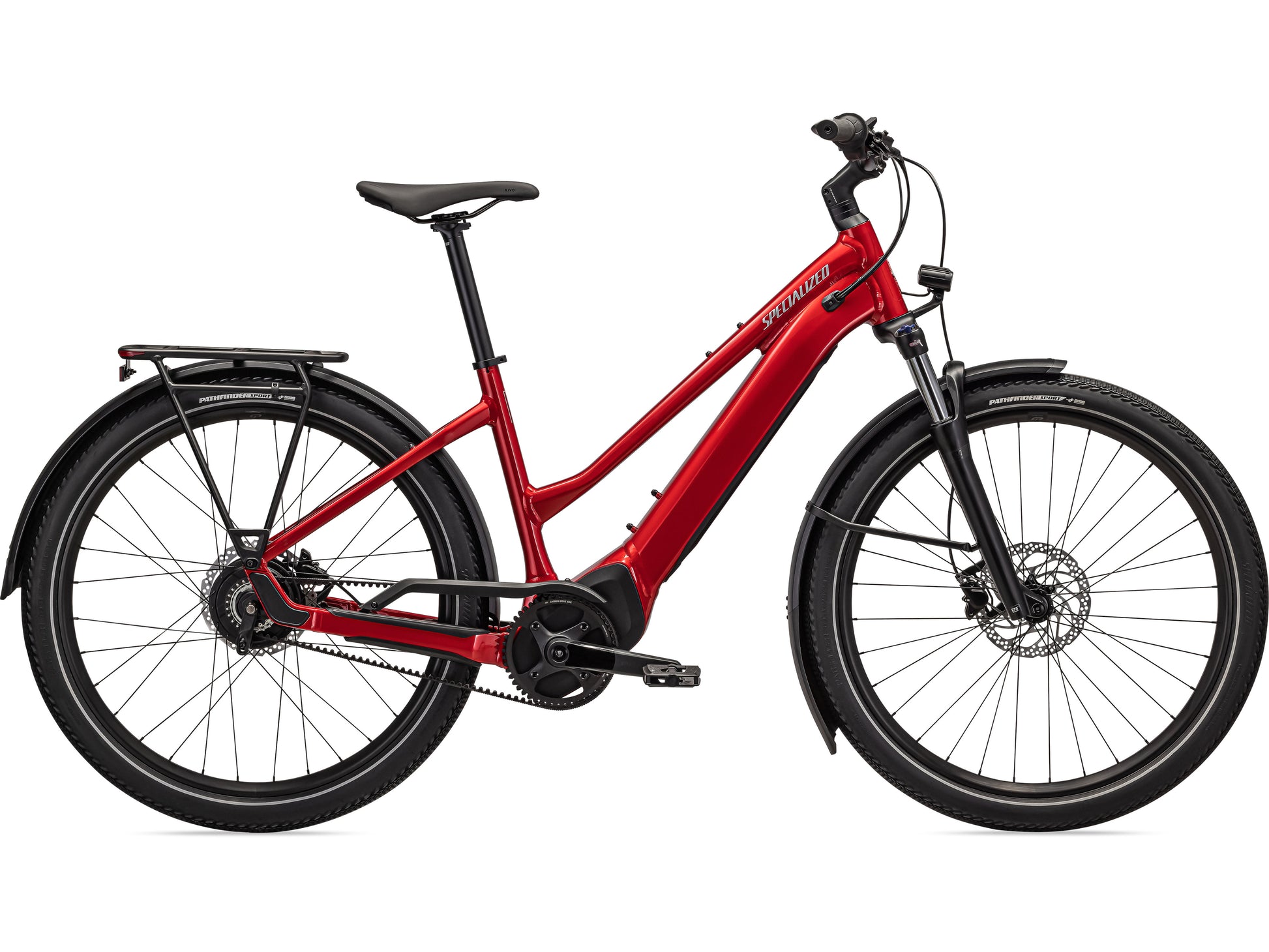

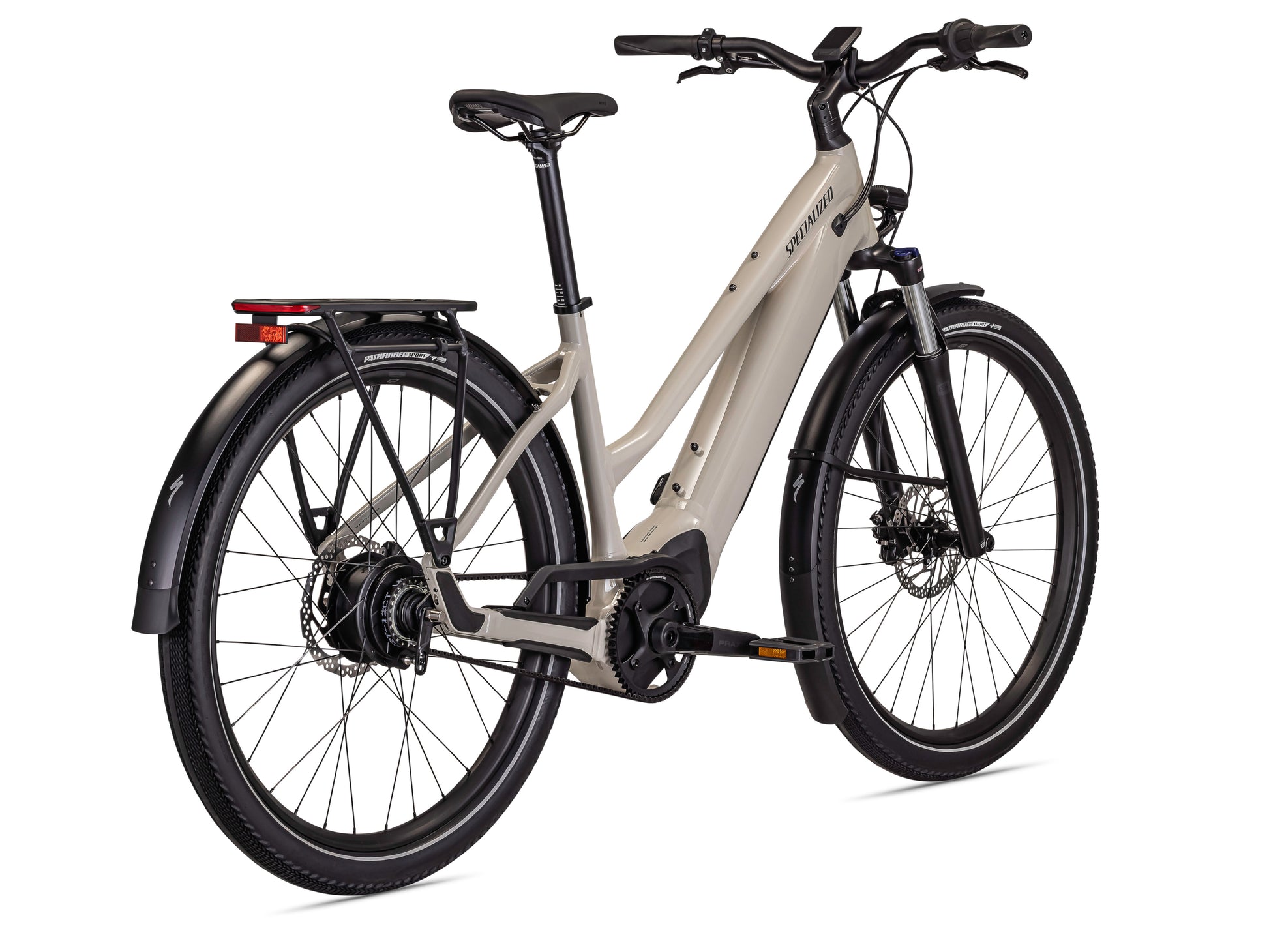

Specialized Turbo Vado 3.0 IGH Step-through

The Full Scoop on the Specialized Turbo Vado 3.0 IGH Step-through

*Specialized models can be delivered with our white glove, fully built delivery option, or can be picked up in store.

• Description
• Motor System
• Components
• Extras
• Geometry

•
  The Specialized Turbo Vado 3.0 IGH Step-through is the vehicle for everything from your daily commutes to fast workouts to longer-than-planned adventures—an electric bike for life. The smoothest-riding e-Bike experience yet, Turbo Vado 3.0 IGH Step-through is designed to boldly take on the ever-changing landscape you’ll encounter as a daily rider, carry whatever you need it to, and keep you riding more often.

  The Turbo Vado 3.0 IGH Step-through's Redesigned geometry puts you in the best position for everything from workouts to commutes while comfortably keeping your eyes on busy roads. We took learnings from the speed a road rider seeks and the maneuverability a mountain bike rider needs. The rider's position on the Vado instills confidence and, at the same time, optimizes the rider's ability to efficiently power from A to B.

• Components subject to manufacturer changes

• Motor	Specialized 2.0E, 50Nm torque, custom tuned motor, 250W nominal
  Battery	Specialized U2-530, alloy casing, state of charge display, 530Wh

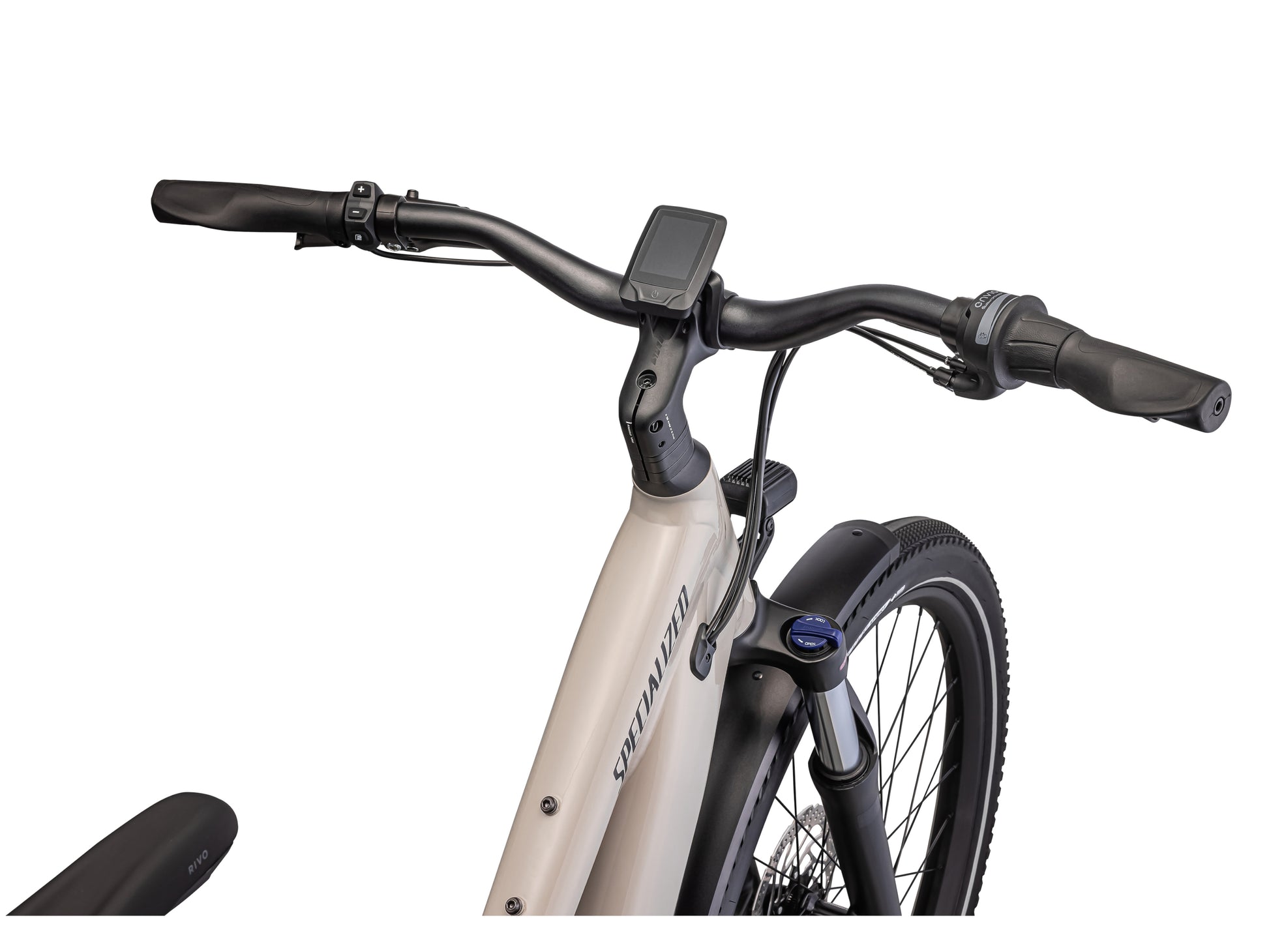

  Display	MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
  Charger	Custom charger, 42V4A w/ Rosenberger plug, 100-240V

•


  Frame	E5 Aluminum, bottom bracket motor mount, fully integrated &lockable downtube battery, internal cable routing, lock and front rack mount, sliding dropout
  Fork	SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount
  Rear Shock	Not applicable
  Front Brake	Shimano BR-MT200, hydraulic disc, 180mm Centerlock
  Rear Brake	Shimano BR-MT200, hydraulic disc, 180mm 6-bolt
  Rear Derailleur	enviolo CVP Multi-Turn
  Shift Levers	enviolo Twist Display Pure
  Chain	Gates Carbon Drive CDX 122t belt, black
  Cassette	Gates Carbon Drive CDC 24t sprocket, silver
  Crankset	Custom alloy forged crankarms
  Chain Ring	Gates Carbon Drive CDC 50T chainring, black
  Chain Guard	custom chaincover
  Rims	650b disc, double-wall alloy, pinned, 32h
  Front Hub	Shimano MT400, Centerlock, 15x100mm, 32h
  Rear Hub	enviolo CITY, 310% range, 6-bolt, 10x135mm, 32h
  Front Tire	Pathfinder Sport Reflect, 650Bx2.3
  Rear Tire	Pathfinder Sport Reflect, 650Bx2.3

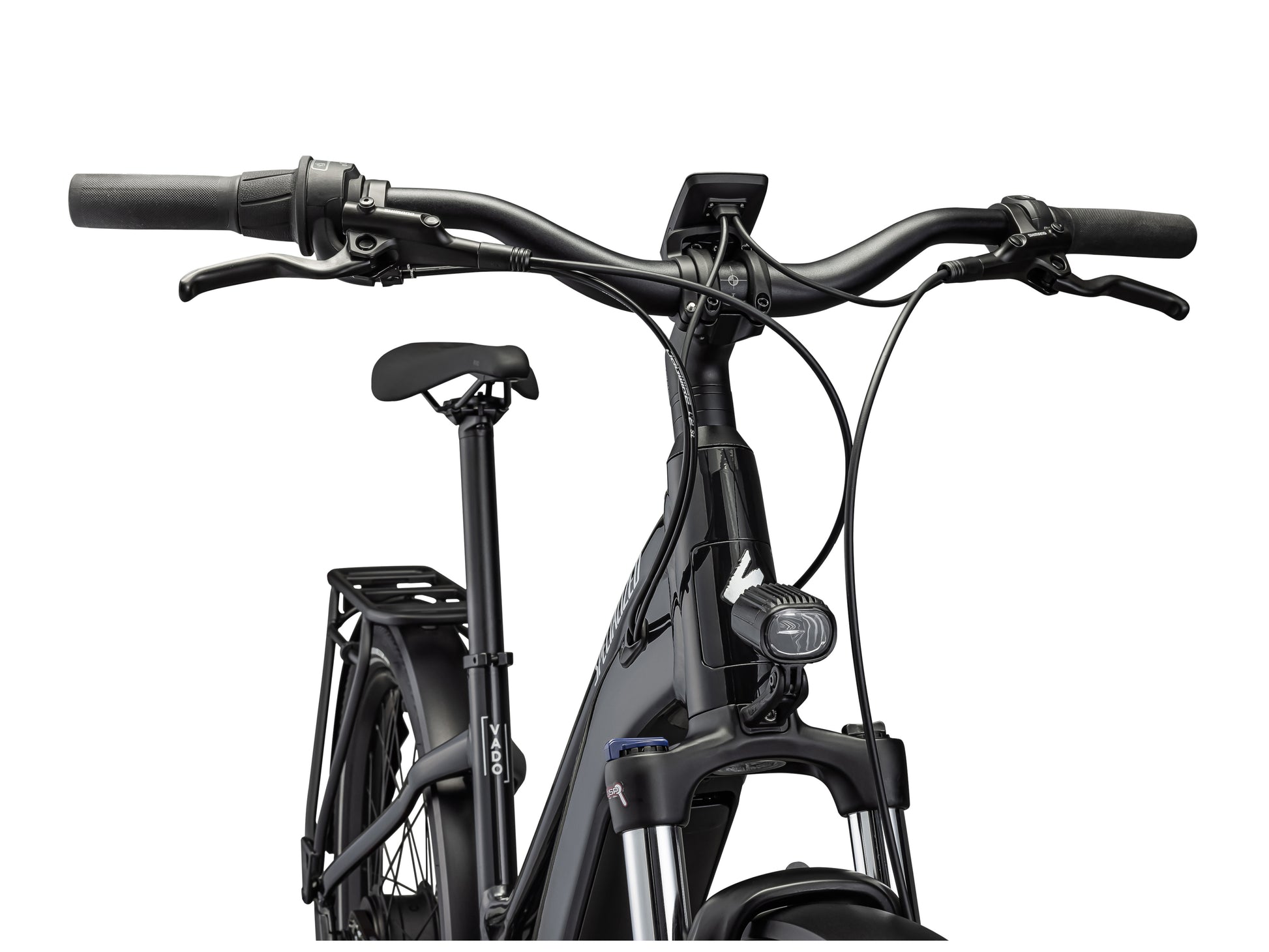

  Handlebar	Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
  Stem	Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
  Headset	Spec not provided
  Grips	Specialized Body Geometry Contour, lock-on
  Saddle	Rivo Sport, steel rails, 155mm
  Seatpost	Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm

• Pedals	Specialized Commuter w/ grip tape & reflectors
  Front Light	Lezyne EBIKE MINI STVZO E65, 210 Lumen, 12V
  Rear Light	Spanninga Commuter Glow XE, 12V
  Kickstand	Specialized kickstand, 40mm mount

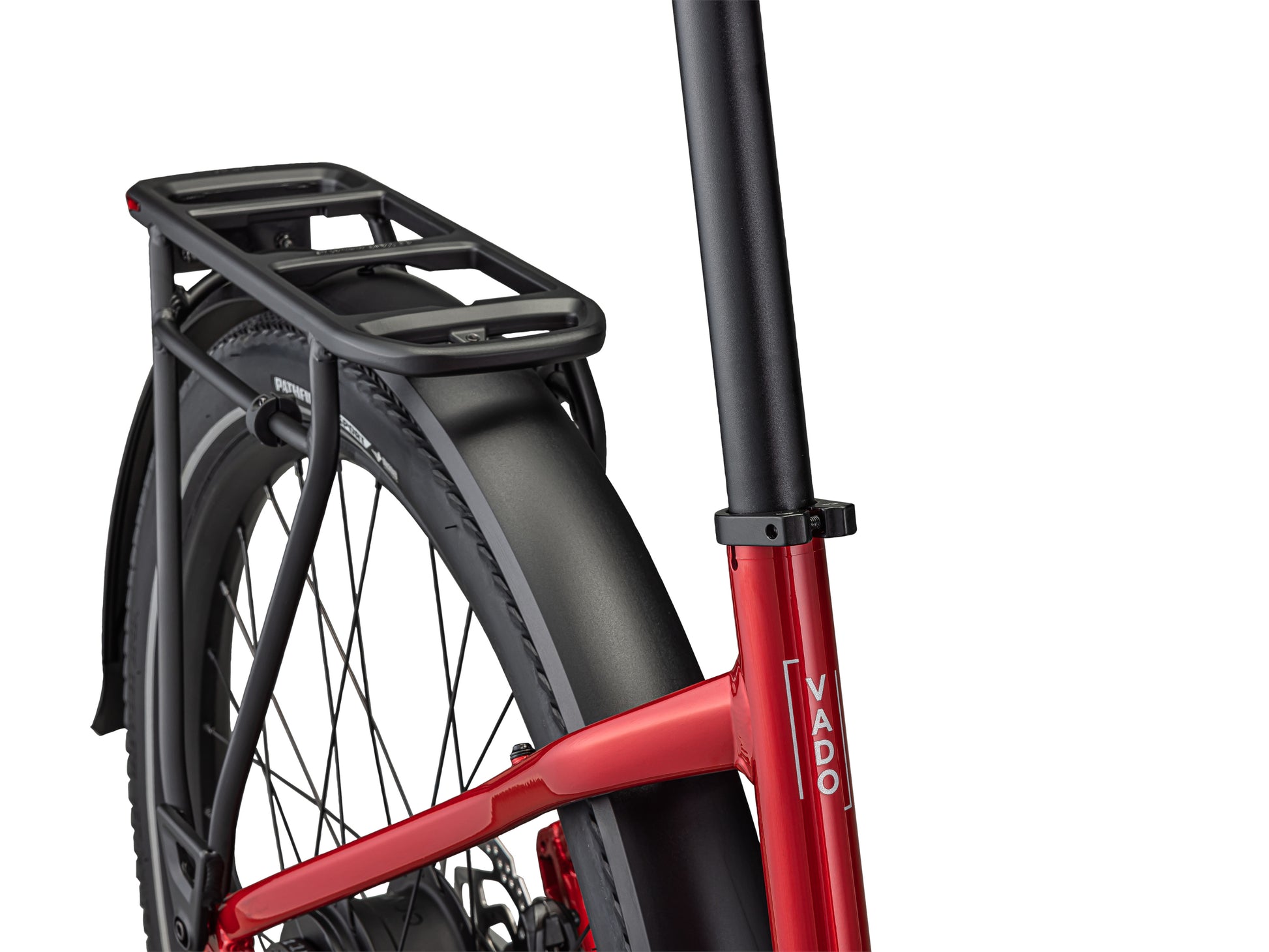

  Rear Carrier	Specialized rack, MIK HD inteface, built-in pannier mounts, 27kg max load
  Fenders	Specialized DRYTECH fenders, 65mm width, aluminum fenderstay
  Bell	Simple bell
  Lock	Turbo System Lock - Use the Mission Control app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.
  Mirror	Not applicable

• Size S M L XL BB Drop 70mm 70mm 70mm 70mm BB Height 285 285 285 285 Bike Standover Height 618 617 617 626 Chainstay Length 470 470 470 470 Crank Length 170mm 170mm 170mm 170mm Fork Length 480 480 480 480 Fork Rake 44 44 44 44 Front Center 699 724 750 777 Handlebar Width 680mm 680mm 680mm 680mm Head Tube Angle 68 68 68 68 Head Tube Length 135 150 165 190 Reach 423 444 464 481 Saddle Width 155mm 155mm 155mm 155mm Seat Tube Angle 75.5 75 74.5 74 Seat Tube Length, BB Center to Top Vertical 400 450 460 500 Seatpost Length 300mm 400mm 400mm 400mm Stack 625 639 652 676 Stem Length 60mm 60mm 75mm 75mm Toptube Length 585 615 645 675 Trail 96 96 96 96 Wheelbase 1160 1186 1212 1239
