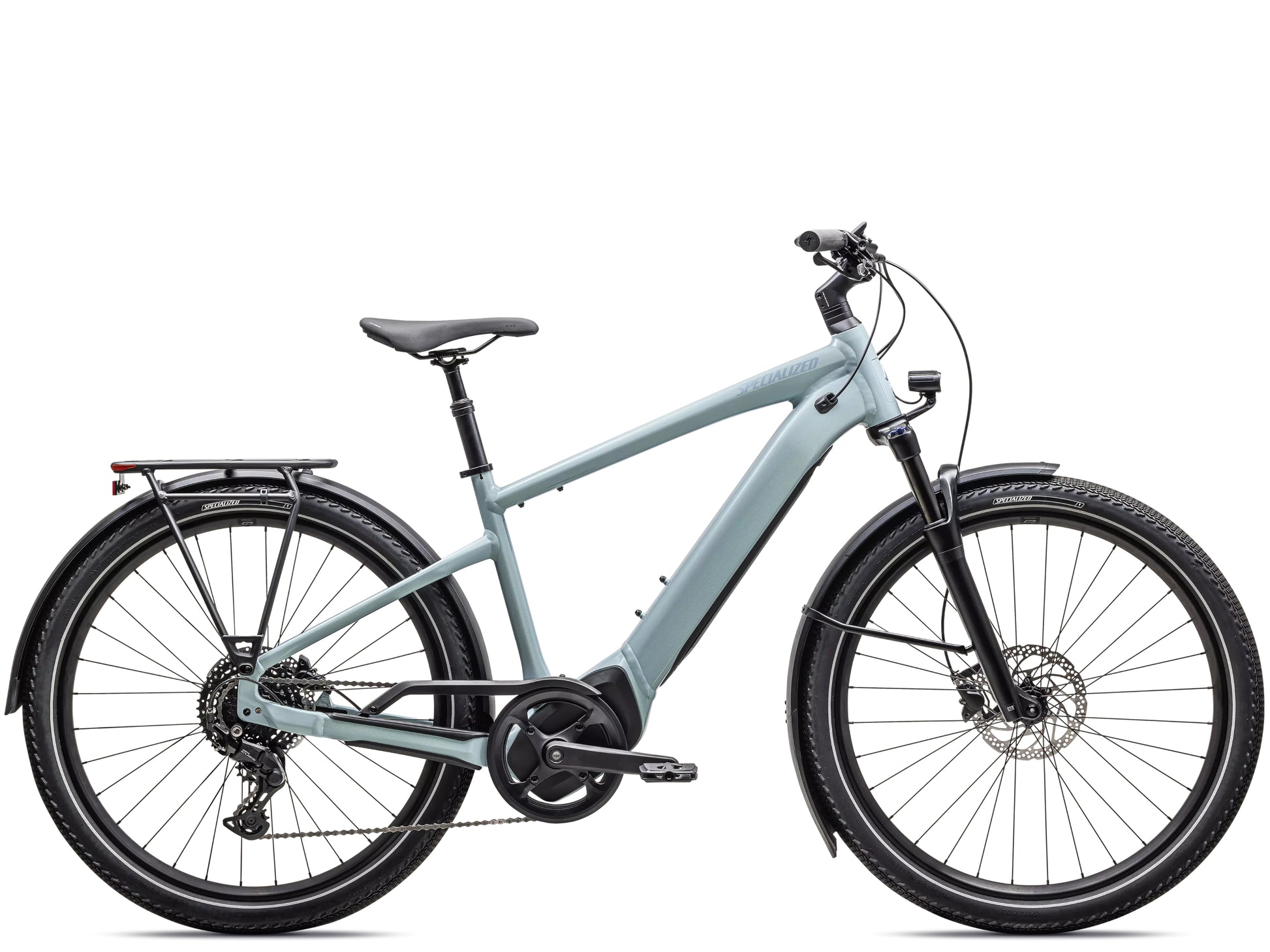

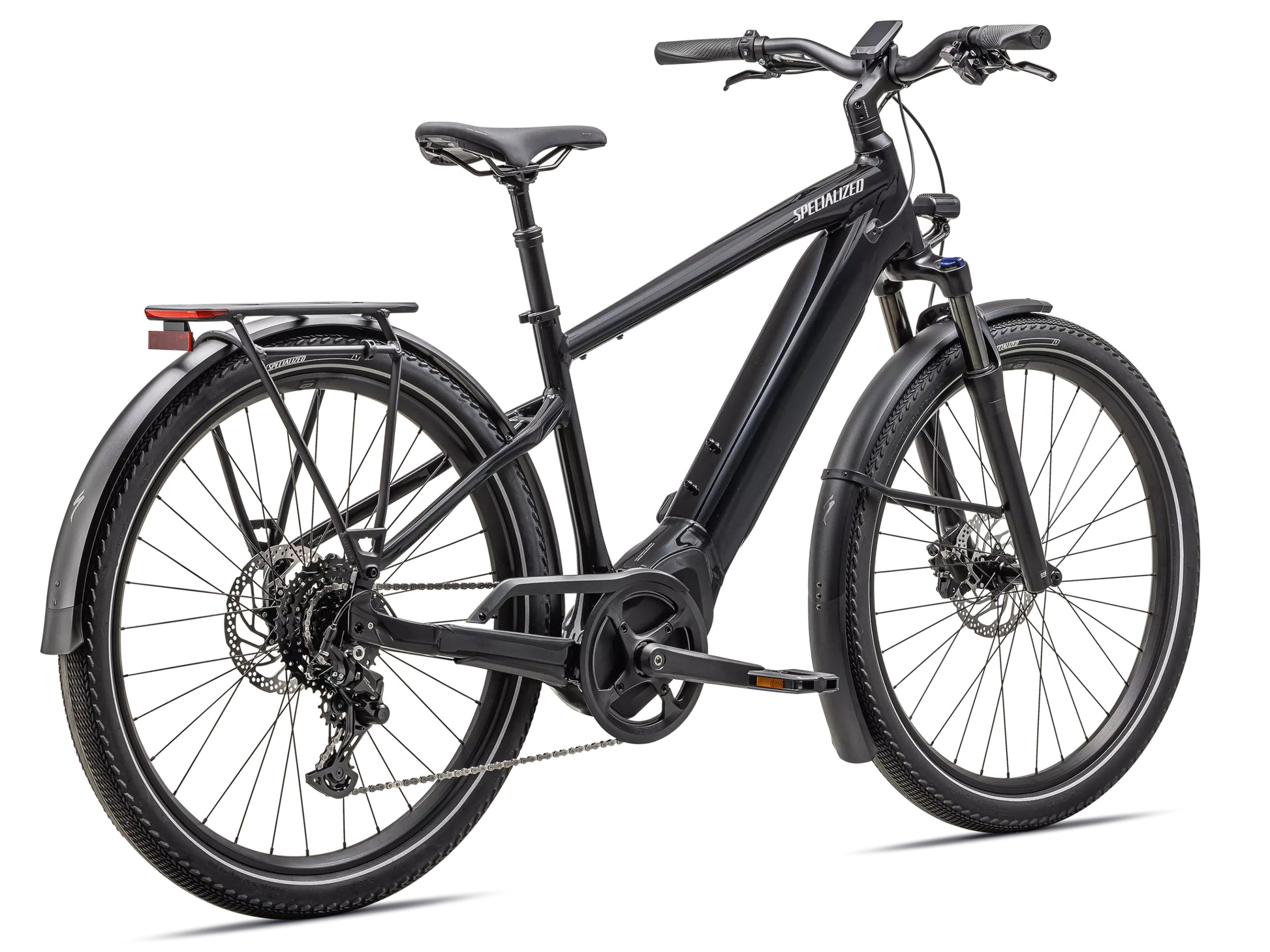

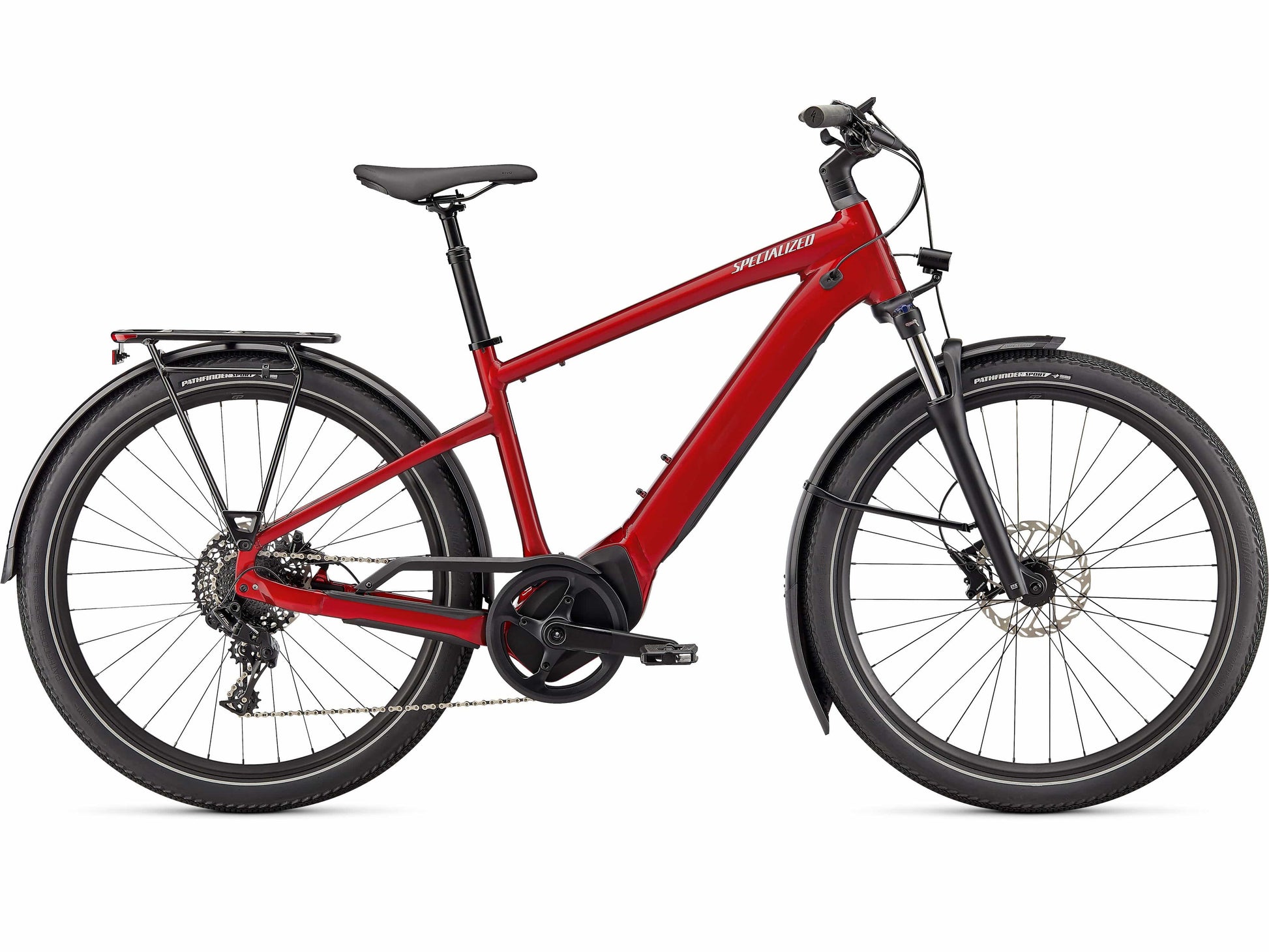

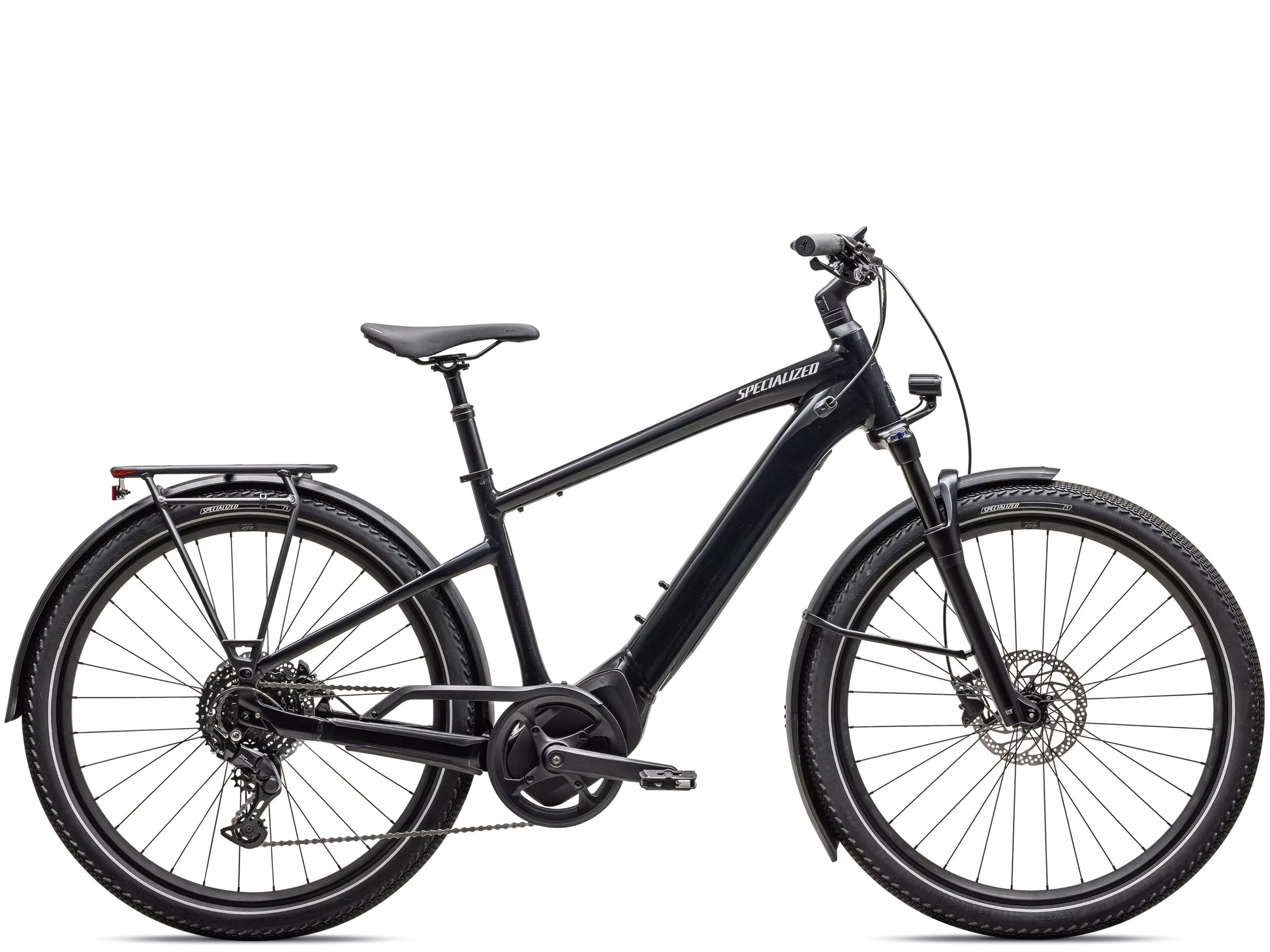

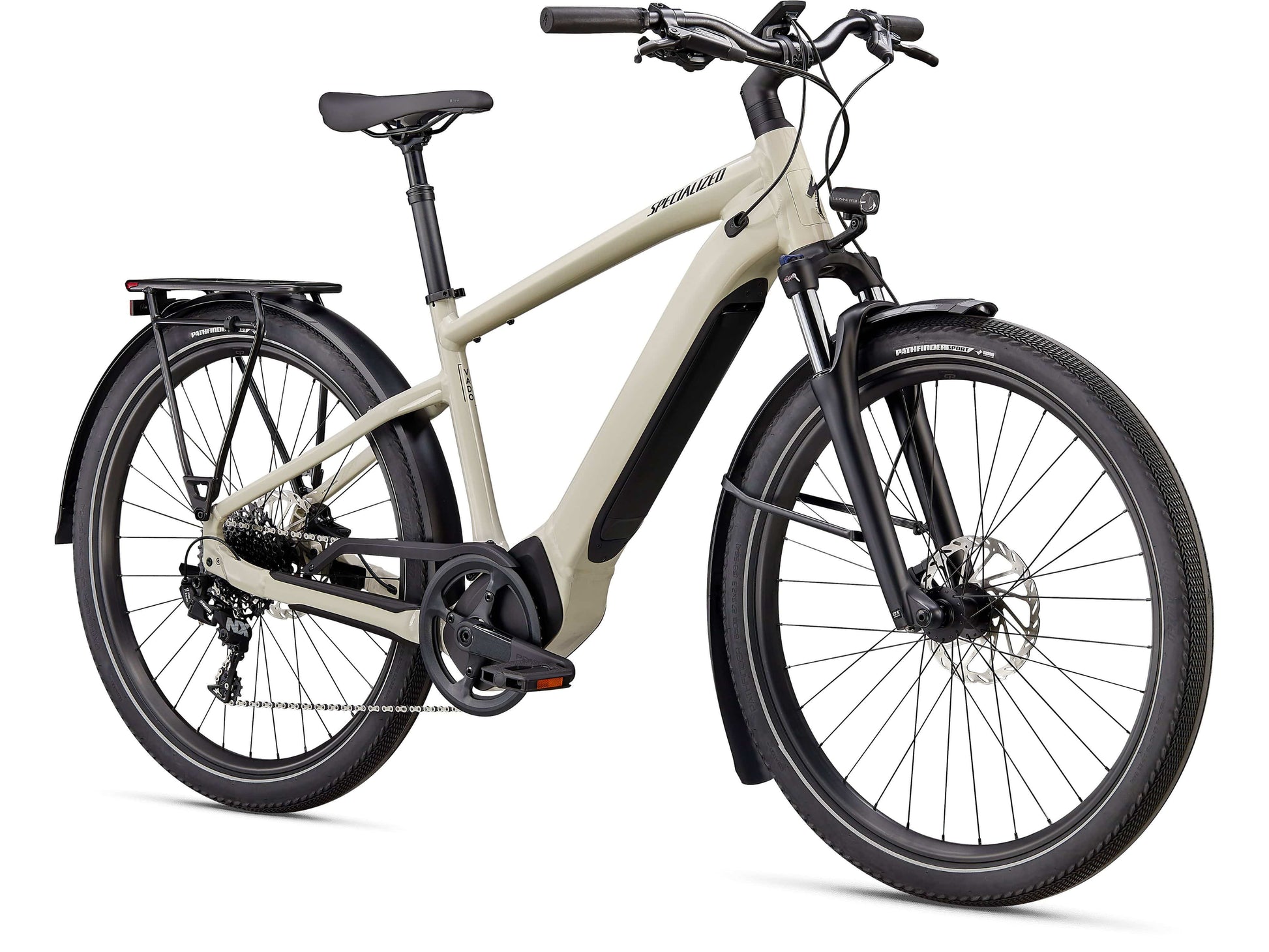

Specialized Turbo Vado 4.0
Specialized Turbo Vado 4.0
Regular price
$2,749.00
Sale price
$2,749.00
Regular price
$4,000.00
Unit price
per
Shipping calculated at checkout.
The Full Scoop on the Specialized Turbo Vado 4.0
Vado is the bike for everything from daily commutes to fast workouts to longer-than-planned adventures—an electric bike for life. The smoothest-riding e-Bike experience yet, Vado is designed to boldly take on the ever-changing landscape you’ll encounter as a daily rider, carry whatever you need it to, and keep you riding more often. The geometry provides the best position for everything from workouts to commutes while comfortably keeping your eyes on busy roads. The Vado encompasses the speed a road rider seeks and the maneuverability a mountain bike rider needs. The rider's position on the Vado instills confidence and, at the same time, optimizes the rider's ability to efficiently get from A to B.

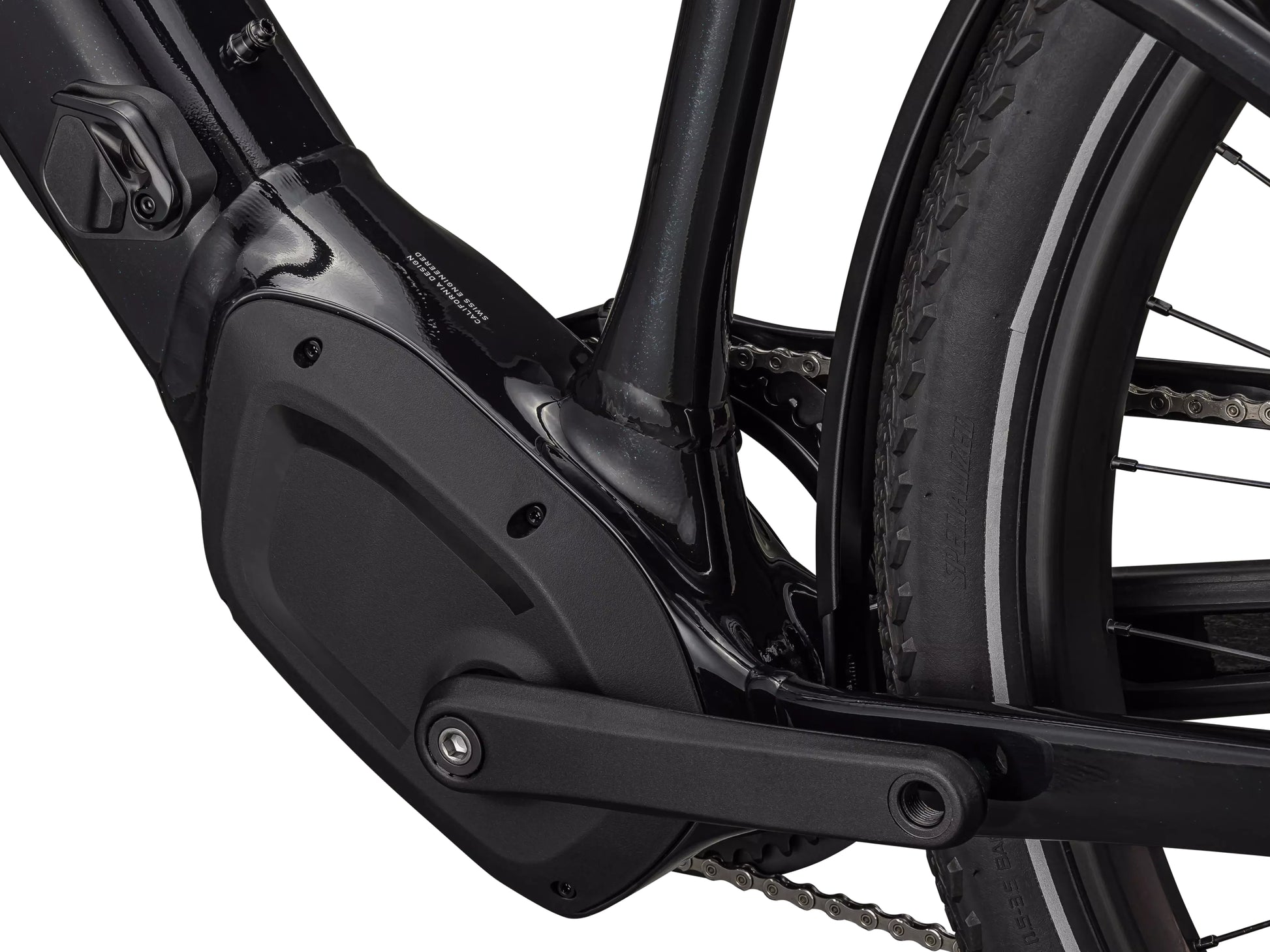

| Motor | Specialized 2.0, 70Nm torque, custom tuned motor, 250W nominal |
| Battery | Specialized U2-710, alloy casing, state of charge display, 710Wh |
| Display | MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages |
| Charger | Custom charger, 42V4A w/ Rosenberger plug, 100-240V |
| Frame | E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount, sliding drop out |
| Fork | SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount |
| Rear Shock | Not applicable |
| Front Brake | (2025) Shimano BR-MT200, hydraulic disc, 180mm (2023) SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt |
| Rear Brake | (2025) Shimano BR-MT200, hydraulic disc, 180mm (2023) SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt |
| Rear Derailleur | (2025) Shimano, RD-U4000, CUES, Gs 9-Speed, Top Normal, Shadow Design, Direct Attachment (2023) SRAM NX, 11-speed |
| Shift Levers | (2025) Shimano, SL-U4000-9R, CUES, Right, 9-Speed Rapidfire, W/ Optical Gear Display (2023) SRAM NX, 11-speed trigger |
| Chain | (2025) Shimano LG500 (2023) KMC e11S, 11-speed w/ Missing Link™ |
| Cassette | (2025) Shimano, CS-LG300-9, CUES, 9-Speed, 11-41T (2023) SRAM PG-1130, 11-speed, 11-42t |
| Crankset | Custom alloy forged crankarms |
| Chain Ring | (2025) 48T (2023)Praxis, 48T, 104BCD |
| Chain Guard | Custom chaincover |
| Rims | 650b disc, double-wall alloy, pinned, 32h |
| Front Hub | (2025) Shimano Center Lock Disc 32H, 15mm Thru Type Axle, 100mm (2023) Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x100mm thru-axle, 32h |
| Rear Hub | (2025) Shimano Freehub, Center Lock Disc, 8-11-Speed 12mm Thru Type Axle, 32H, 148mm (2023) Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 12x148mm thru-axle, 32h |
| Front Tire | Pathfinder Sport Reflect, 650Bx2.3 |
| Rear Tire | Pathfinder Sport Reflect, 650Bx2.3 |

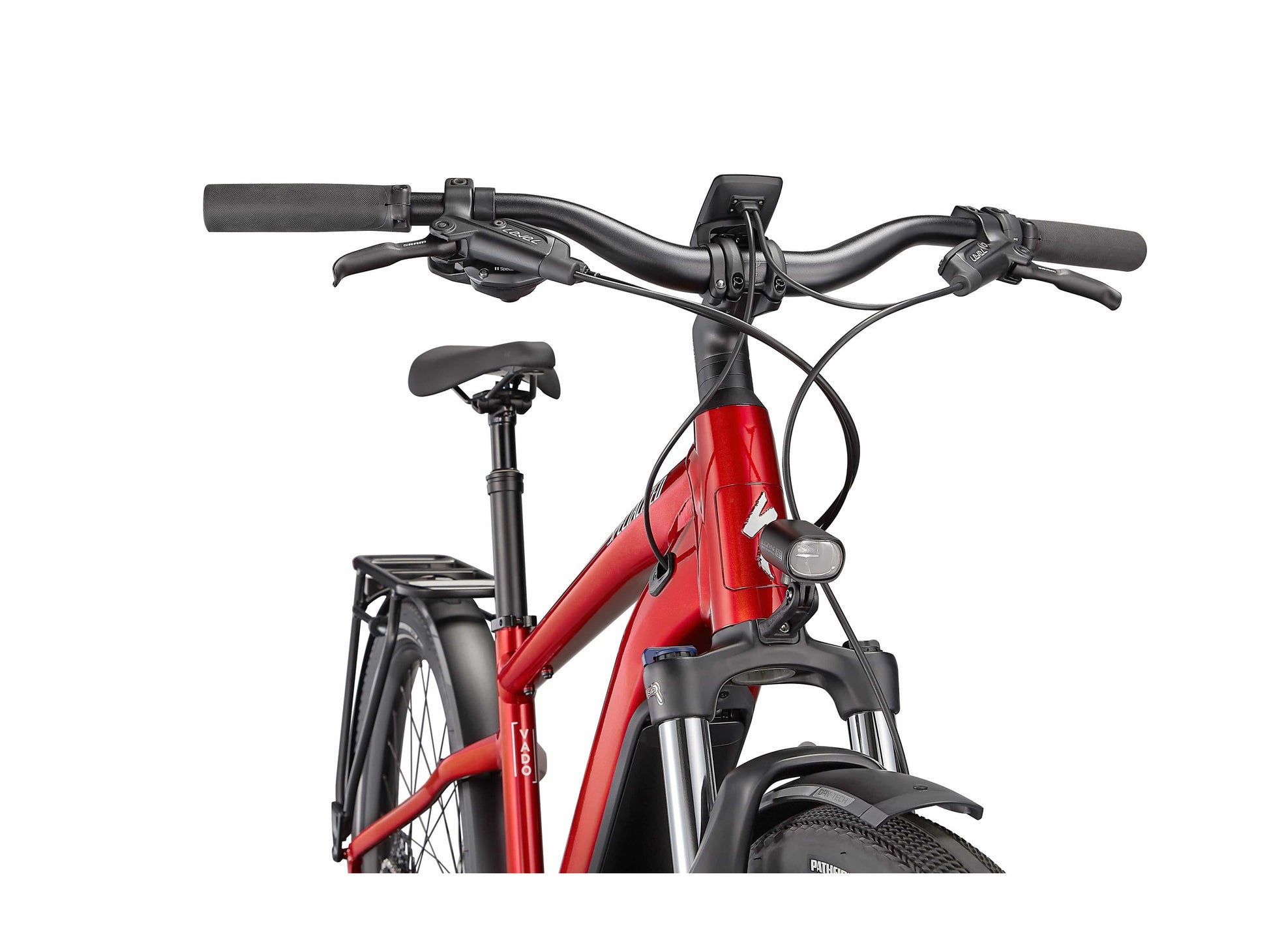

| Handlebar | Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm |
| Stem | Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp |
| Headset | Spec not provided |
| Grips | Specialized Body Geometry Contour, lock-on |
| Saddle | (2025) Bridge Sport, Steel rails, 155mm (2023) Rivo Sport, steel rails, 155mm |
| Seatpost | Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve |
| Pedals | Specialized Commuter w/ grip tape & reflectors |
| Front Light | (2025) Lezyne, Ebike Mini Stvzo E300+, 300 Lumen, 160Cm Wire, With Reflector (2023) Lezyne Ebike Hecto E65, 210 Lumen, 12V |
| Rear Light | (2025) Spanninga, Stvzo, Commuter Glow With Brake XEr (2023) Spanninga Commuter Glow XE, 12V |
| Kickstand | Specialized kickstand, 40mm mount |

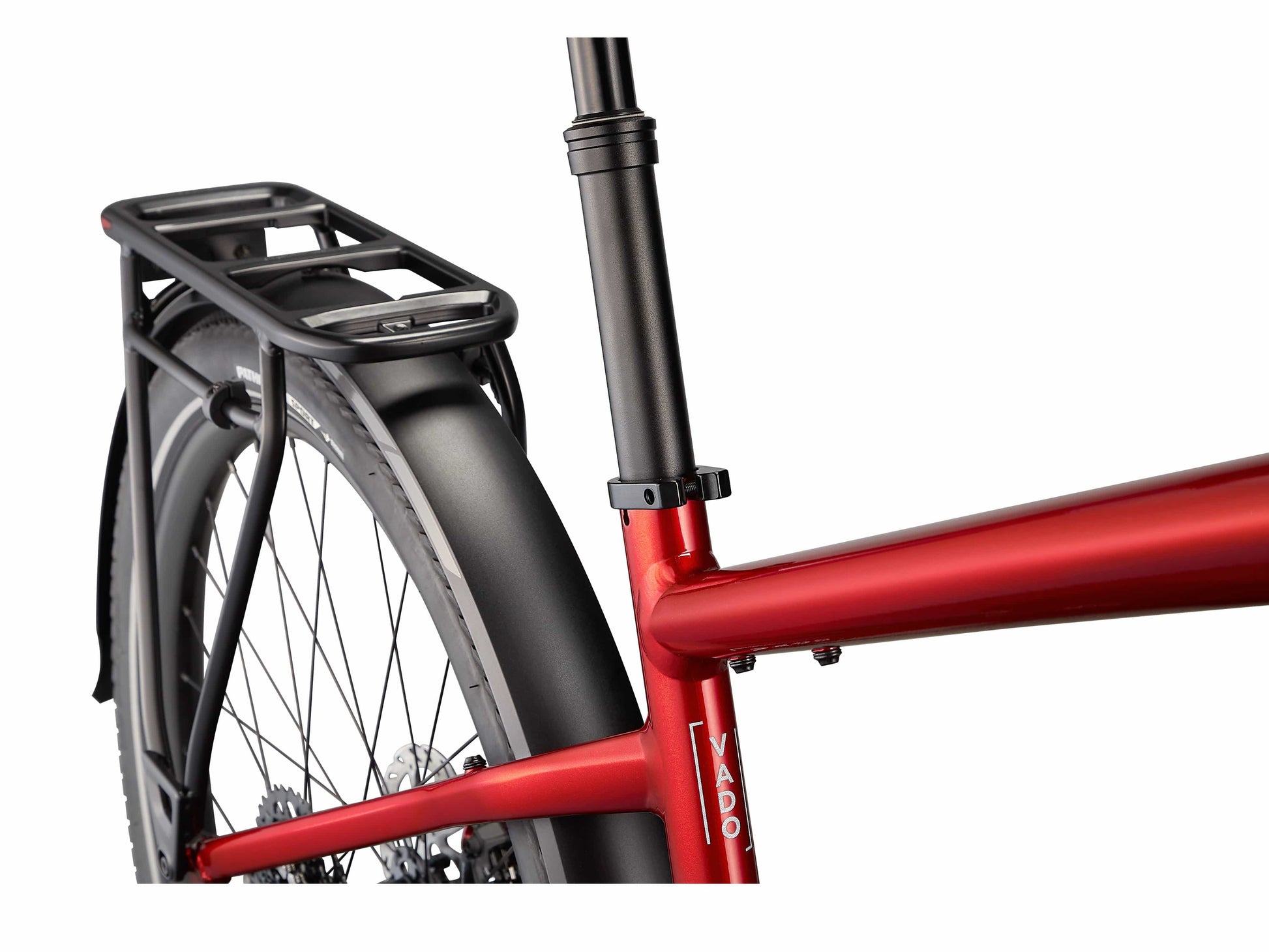

| Rear Carrier | Specialized rack, MIK HD inteface, built-in pannier mounts, 27kg max load |
| Fenders | Specialized DRYTECH fenders, 65mm width, aluminum fenderstay |
| Bell | Simple bell |
| Lock | Turbo System Lock - Use the Mission Control app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner. |
| Mirror | Not applicable |
| FRAME SIZE | Small | Medium | Large | X-large |
|---|---|---|---|---|
| BB Drop | 70mm | 70mm | 70mm | 70mm |
| BB Height | 285mm | 285mm | 285mm | 285mm |
| Bike Standover Height | 735mm | 771mm | 771mm | 805mm |
| Chainstay Length | 470mm | 470mm | 470mm | 470mm |
| Crank Length | 170mm | 170mm | 170mm | 170mm |
| Fork Length | 480mm | 480mm | 480mm | 480mm |
| Fork Rake | 44mm | 44mm | 44mm | 44mm |
| Front Center | 699mm | 724mm | 750mm | 777mm |
| Handlebar Width | 680mm | 680mm | 680mm | 680mm |
| Head Tube Angle | 68 | 68 | 68 | 68 |
| Head Tube Length | 135mm | 150mm | 165mm | 190mm |
| Reach | 423mm | 444mm | 464mm | 481mm |
| Saddle Width | 155mm | 155mm | 155mm | 155mm |
| Seat Tube Angle | 75.5 | 75 | 74.5 | 74 |
| Seat Tube Length, BB Center to Top Vertical | 400mm | 450mm | 460mm | 500mm |
| Seatpost Length | 300mm | 400mm | 400mm | 400mm |
| Stack | 625mm | 639mm | 652mm | 676mm |
| Stem Length | 60mm | 60mm | 75mm | 75mm |
| Toptube Length | 585mm | 615mm | 645mm | 675mm |
| Trail | 96mm | 96mm | 96mm | 96mm |
| Wheelbase | 1160mm | 1186mm | 1212mm | 1239mm |
The Full Scoop on the Specialized Turbo Vado 4.0
Vado is the bike for everything from daily commutes to fast workouts to longer-than-planned adventures—an electric bike for life. The smoothest-riding e-Bike experience yet, Vado is designed to boldly take on the ever-changing landscape you’ll encounter as a daily rider, carry whatever you need it to, and keep you riding more often. The geometry provides the best position for everything from workouts to commutes while comfortably keeping your eyes on busy roads. The Vado encompasses the speed a road rider seeks and the maneuverability a mountain bike rider needs. The rider's position on the Vado instills confidence and, at the same time, optimizes the rider's ability to efficiently get from A to B.
Motor System
| Motor | Specialized 2.0, 70Nm torque, custom tuned motor, 250W nominal |
| Battery | Specialized U2-710, alloy casing, state of charge display, 710Wh |
| Display | MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages |
| Charger | Custom charger, 42V4A w/ Rosenberger plug, 100-240V |
Components
| Frame | E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount, sliding drop out |
| Fork | SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount |
| Rear Shock | Not applicable |
| Front Brake | (2025) Shimano BR-MT200, hydraulic disc, 180mm (2023) SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt |
| Rear Brake | (2025) Shimano BR-MT200, hydraulic disc, 180mm (2023) SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt |
| Rear Derailleur | (2025) Shimano, RD-U4000, CUES, Gs 9-Speed, Top Normal, Shadow Design, Direct Attachment (2023) SRAM NX, 11-speed |
| Shift Levers | (2025) Shimano, SL-U4000-9R, CUES, Right, 9-Speed Rapidfire, W/ Optical Gear Display (2023) SRAM NX, 11-speed trigger |
| Chain | (2025) Shimano LG500 (2023) KMC e11S, 11-speed w/ Missing Link™ |
| Cassette | (2025) Shimano, CS-LG300-9, CUES, 9-Speed, 11-41T (2023) SRAM PG-1130, 11-speed, 11-42t |
| Crankset | Custom alloy forged crankarms |
| Chain Ring | (2025) 48T (2023)Praxis, 48T, 104BCD |
| Chain Guard | Custom chaincover |
| Rims | 650b disc, double-wall alloy, pinned, 32h |
| Front Hub | (2025) Shimano Center Lock Disc 32H, 15mm Thru Type Axle, 100mm (2023) Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x100mm thru-axle, 32h |
| Rear Hub | (2025) Shimano Freehub, Center Lock Disc, 8-11-Speed 12mm Thru Type Axle, 32H, 148mm (2023) Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 12x148mm thru-axle, 32h |
| Front Tire | Pathfinder Sport Reflect, 650Bx2.3 |
| Rear Tire | Pathfinder Sport Reflect, 650Bx2.3 |
| Handlebar | Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm |
| Stem | Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp |
| Headset | Spec not provided |
| Grips | Specialized Body Geometry Contour, lock-on |
| Saddle | (2025) Bridge Sport, Steel rails, 155mm (2023) Rivo Sport, steel rails, 155mm |
| Seatpost | Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve |
Extras
| Pedals | Specialized Commuter w/ grip tape & reflectors |
| Front Light | (2025) Lezyne, Ebike Mini Stvzo E300+, 300 Lumen, 160Cm Wire, With Reflector (2023) Lezyne Ebike Hecto E65, 210 Lumen, 12V |
| Rear Light | (2025) Spanninga, Stvzo, Commuter Glow With Brake XEr (2023) Spanninga Commuter Glow XE, 12V |
| Kickstand | Specialized kickstand, 40mm mount |
| Rear Carrier | Specialized rack, MIK HD inteface, built-in pannier mounts, 27kg max load |
| Fenders | Specialized DRYTECH fenders, 65mm width, aluminum fenderstay |
| Bell | Simple bell |
| Lock | Turbo System Lock - Use the Mission Control app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner. |
| Mirror | Not applicable |
Geometry
| FRAME SIZE | Small | Medium | Large | X-large |
|---|---|---|---|---|
| BB Drop | 70mm | 70mm | 70mm | 70mm |
| BB Height | 285mm | 285mm | 285mm | 285mm |
| Bike Standover Height | 735mm | 771mm | 771mm | 805mm |
| Chainstay Length | 470mm | 470mm | 470mm | 470mm |
| Crank Length | 170mm | 170mm | 170mm | 170mm |
| Fork Length | 480mm | 480mm | 480mm | 480mm |
| Fork Rake | 44mm | 44mm | 44mm | 44mm |
| Front Center | 699mm | 724mm | 750mm | 777mm |
| Handlebar Width | 680mm | 680mm | 680mm | 680mm |
| Head Tube Angle | 68 | 68 | 68 | 68 |
| Head Tube Length | 135mm | 150mm | 165mm | 190mm |
| Reach | 423mm | 444mm | 464mm | 481mm |
| Saddle Width | 155mm | 155mm | 155mm | 155mm |
| Seat Tube Angle | 75.5 | 75 | 74.5 | 74 |
| Seat Tube Length, BB Center to Top Vertical | 400mm | 450mm | 460mm | 500mm |
| Seatpost Length | 300mm | 400mm | 400mm | 400mm |
| Stack | 625mm | 639mm | 652mm | 676mm |
| Stem Length | 60mm | 60mm | 75mm | 75mm |
| Toptube Length | 585mm | 615mm | 645mm | 675mm |
| Trail | 96mm | 96mm | 96mm | 96mm |
| Wheelbase | 1160mm | 1186mm | 1212mm | 1239mm |
