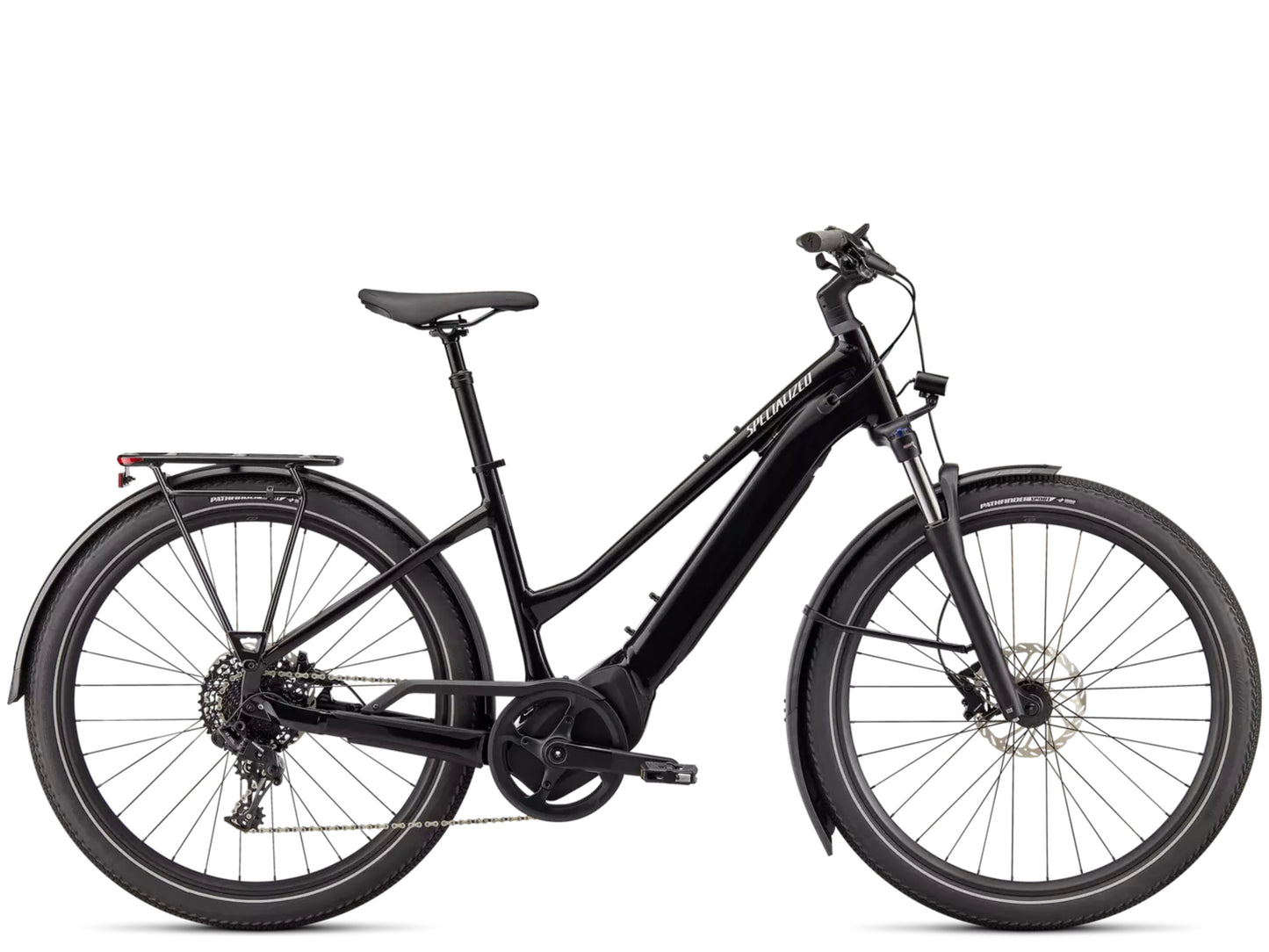

Specialized Turbo Vado 4.0 Step Through

The Full Scoop on the Specialized Turbo Vado 4.0 Step Through

*Specialized models can be delivered with our white glove, fully built delivery option, or can be picked up in store.

• Description
• Motor System
• Components
• Extras
• Geometry

•
  Vado is the bike for everything from daily commutes to fast workouts to longer-than-planned adventures—an electric bike for life. The smoothest-riding e-Bike experience yet, Vado is designed to boldly take on the ever-changing landscape you’ll encounter as a daily rider, carry whatever you need it to, and keep you riding more often. The geometry provides the best position for everything from workouts to commutes while comfortably keeping your eyes on busy roads. The Vado encompasses the speed a road rider seeks and the maneuverability a mountain bike rider needs. The rider's position on the Vado instills confidence and, at the same time, optimizes the rider's ability to efficiently get from A to B.

• Components subject to manufacture changes

• Motor	Specialized 2.0, 70Nm torque, custom tuned motor, 250W nominal
  Battery	Specialized U2-710, alloy casing, state of charge display, 710Wh
  Display	MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
  Charger	Custom charger, 42V4A w/ Rosenberger plug, 100-240V

• Frame	E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount
  Fork	SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount
  Rear Shock	Not applicable
  Front Brake	SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt
  Rear Brake	SRAM Level, 2-piston caliper, hydraulic disc, 180mm 6-bolt
  Rear Derailleur	SRAM NX, 11-speed
  Shift Levers	SRAM NX, 11-speed trigger
  Chain	KMC e11S, 11-speed w/ Missing Link™
  Cassette	SRAM PG-1130, 11-speed, 11-42t
  Crankset	Custom alloy forged crankarms
  Chain Ring	Praxis, 48T, 104BCD
  Chain Guard	Custom chaincover
  Rims	650b disc, double-wall alloy, pinned, 32h
  Front Hub	Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x100mm thru-axle, 32h
  Rear Hub	Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 12x148mm thru-axle, 32h
  Front Tire	Pathfinder Sport Reflect, 650Bx2.3
  Rear Tire	Pathfinder Sport Reflect, 650Bx2.3
  Handlebar	Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
  Stem	Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
  Headset	Spec not provided
  Grips	Specialized Body Geometry Contour, lock-on
  Saddle	Rivo Sport, steel rails, 155mm
  Seatpost	Spring suspension, alloy, 40mm travel, 30.9mm, 2-bolt clamp, 34.9mm sleeve

• Pedals	Specialized Commuter w/ grip tape & reflectors
  Front Light	Lezyne Ebike Hecto E65, 210 Lumen, 12V
  Rear Light	Spanninga Commuter Glow XE, 12V
  Kickstand	Specialized kickstand, 40mm mount
  Rear Carrier	Specialized rack, MIK HD inteface, built-in pannier mounts, 27kg max load
  Fenders	Specialized DRYTECH fenders, 65mm width, aluminum fenderstay
  Bell	Simple bell
  Lock	Turbo System Lock - Use the Mission Control app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.
  Mirror	Not applicable

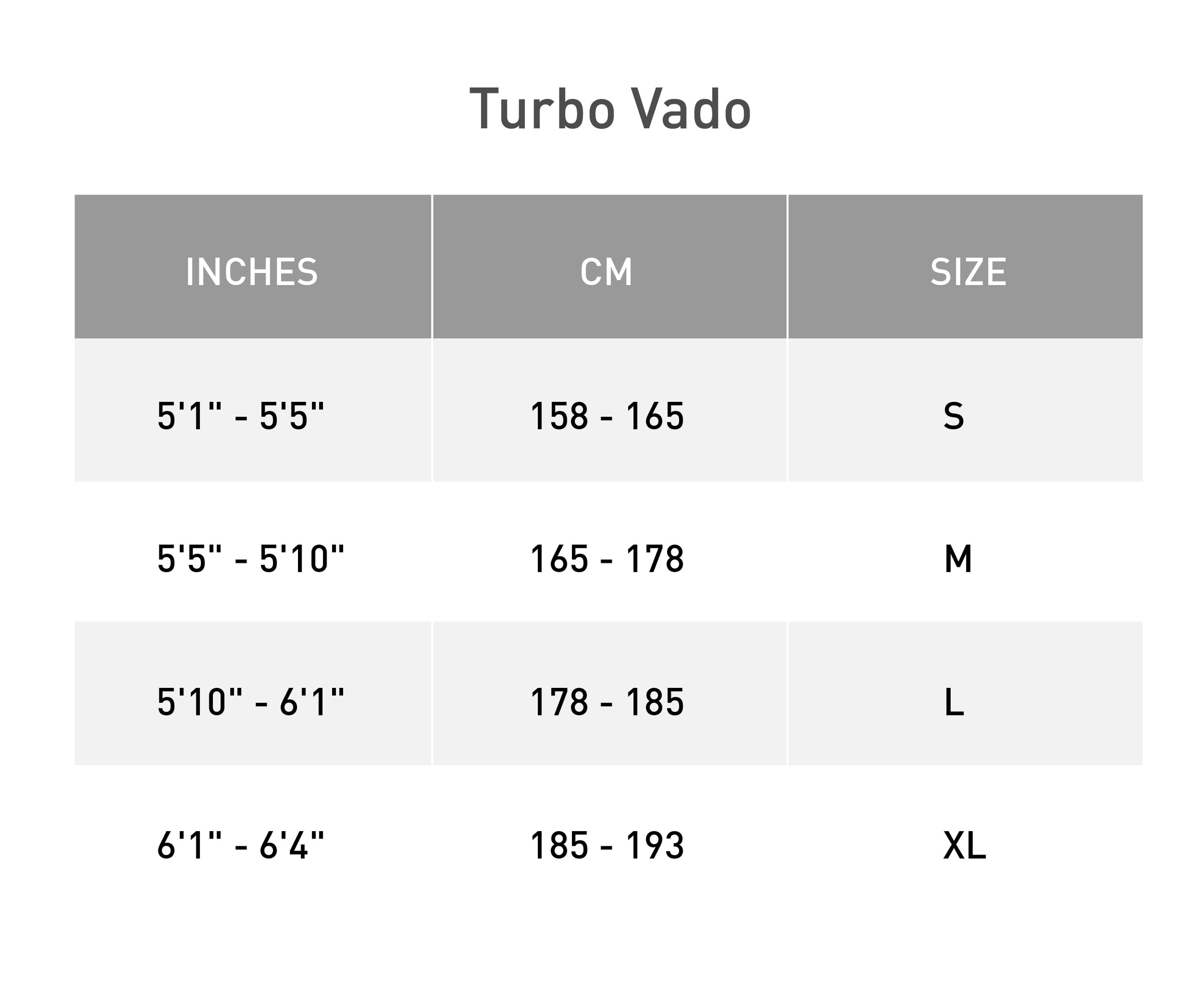

• Size Guide
