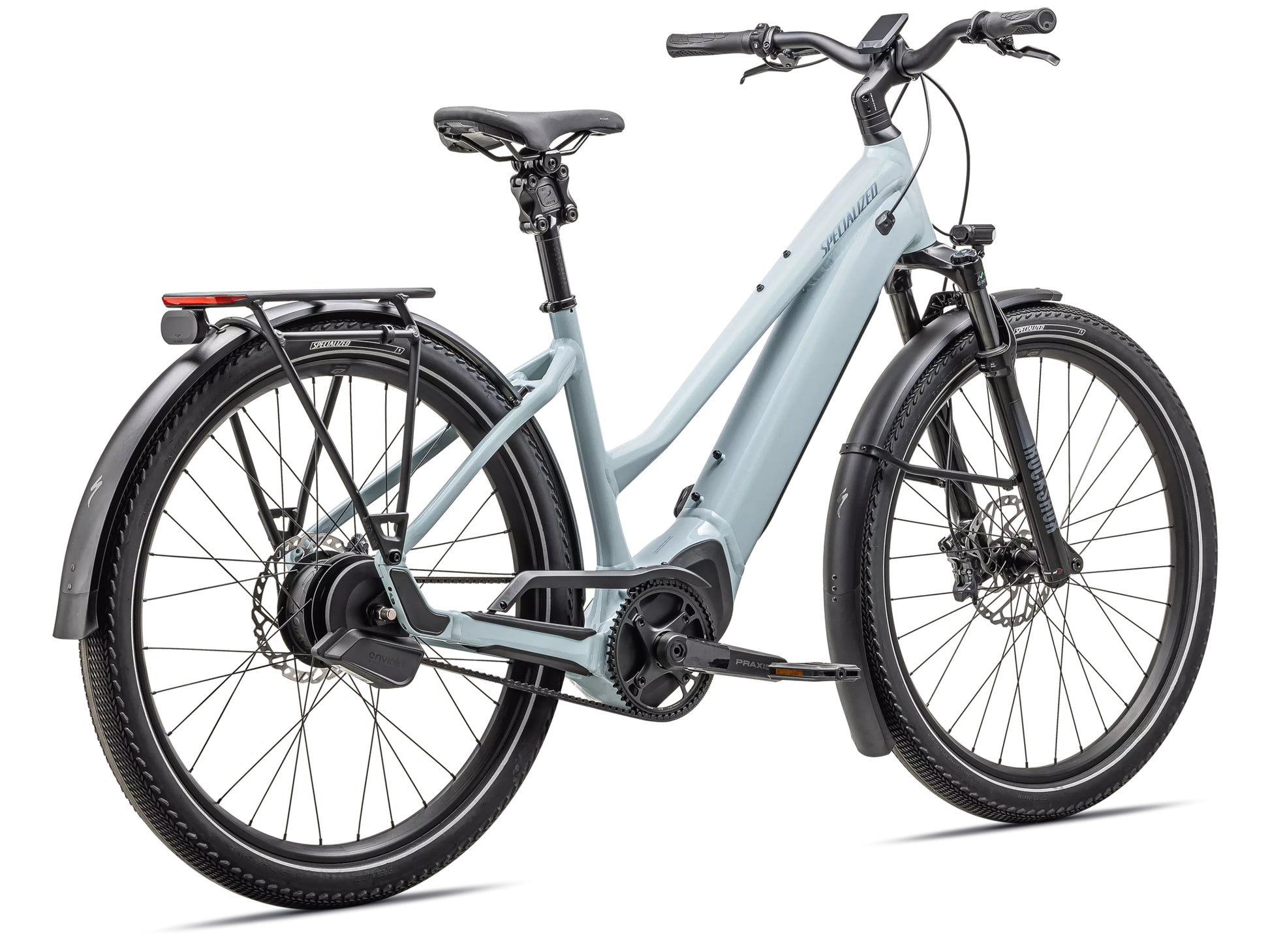

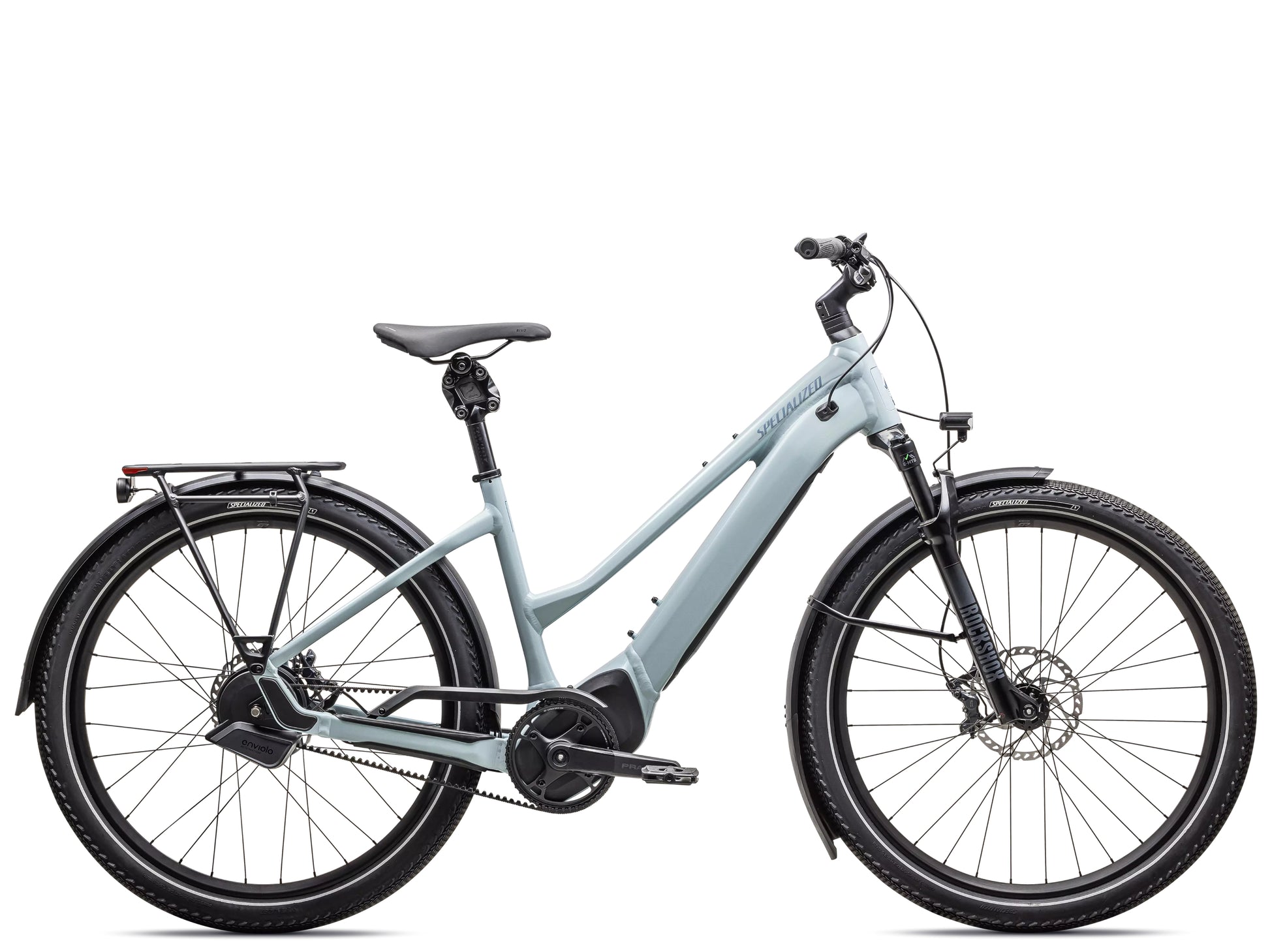

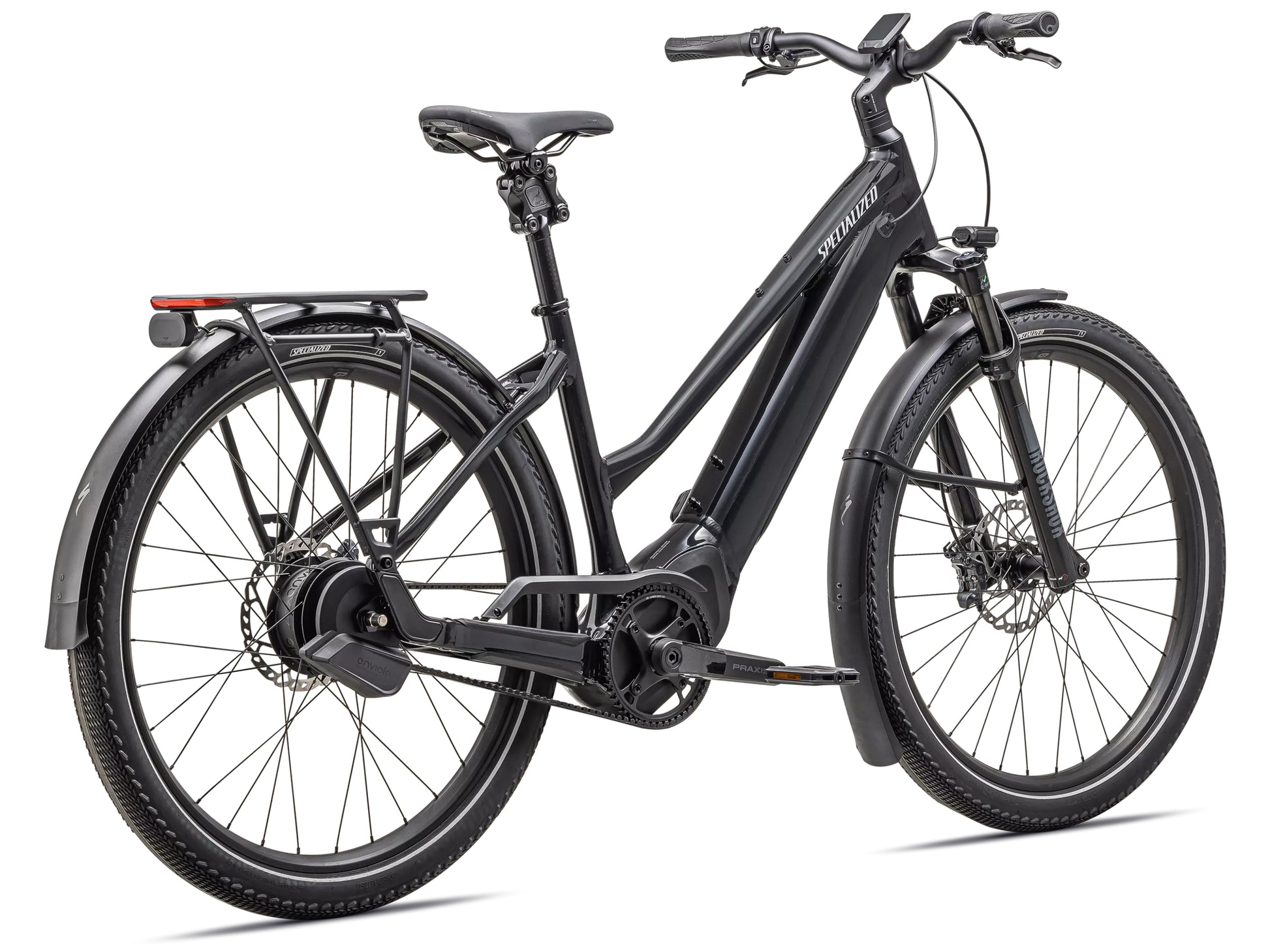

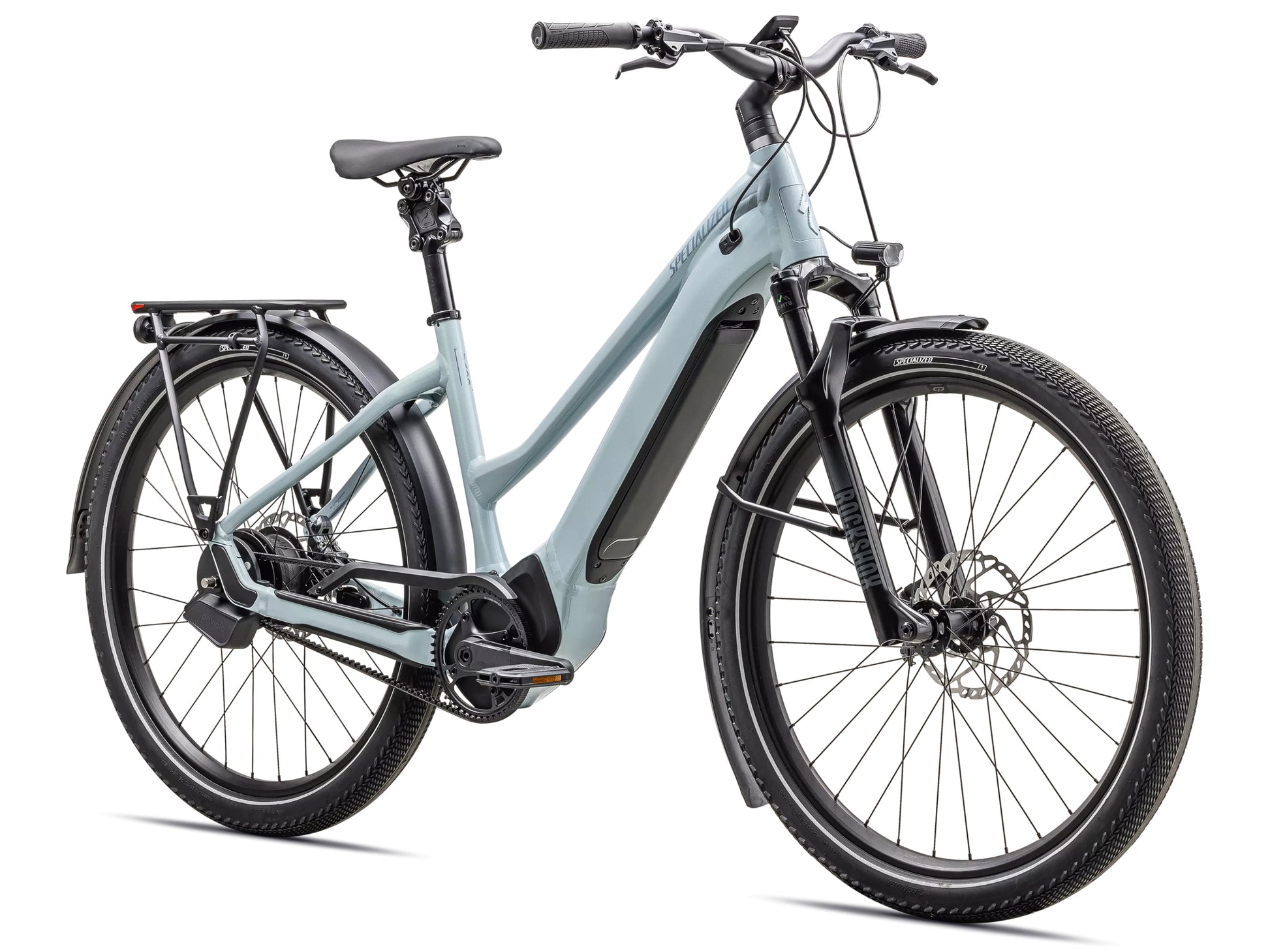

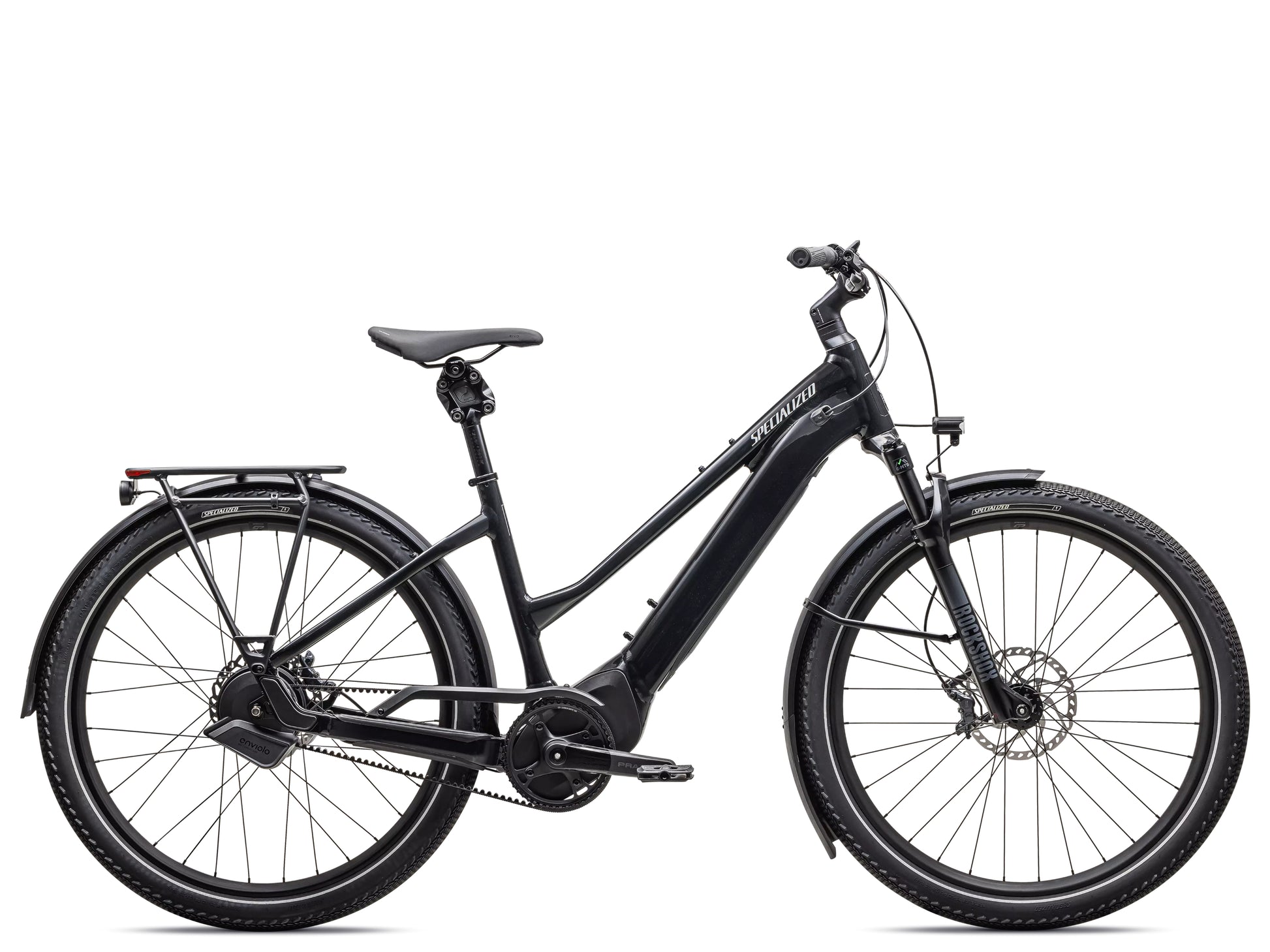

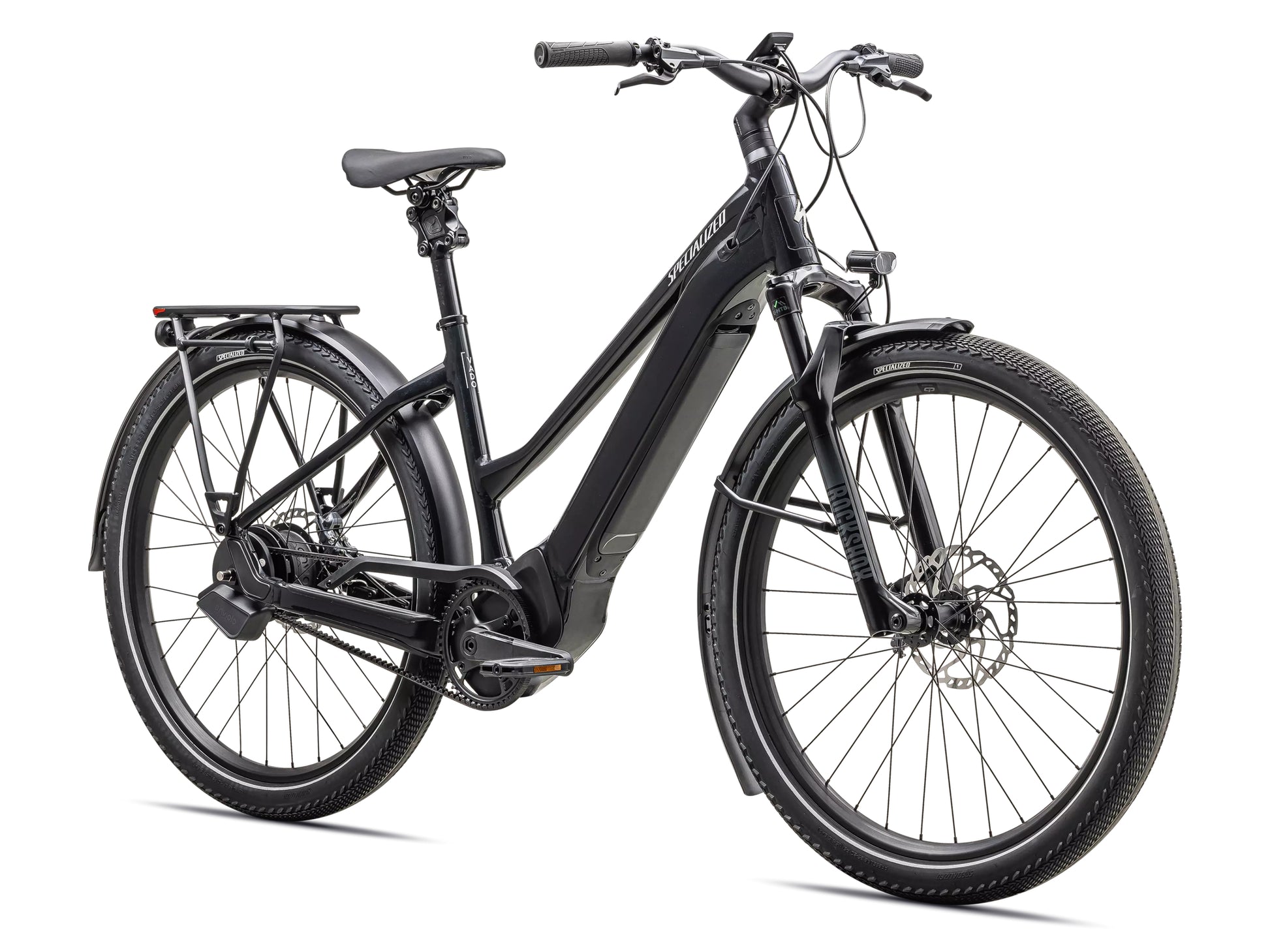

The Full Scoop on the Specialized Turbo Vado 5.0 IGH Step Through
The Specialized Turbo Vado 5.0 Internal Geared Hub "IGH" is the bike for everything from daily commutes to fast workouts to longer-than-planned adventures—an electric bike for life. The smoothest-riding e-Bike experience yet, Vado is designed to boldly take on the ever-changing landscape you’ll encounter as a daily rider, carry whatever you need it to, and keep you riding more often.
Specialized Turbo Vado 5.0 IGH's redesigned geometry puts you in the best position for everything from workouts to commutes while comfortably keeping your eyes on busy roads. Specialized considered the speed a road rider seeks and the maneuverability a mountain bike rider needs. The rider's position on the Vado instills confidence and, at the same time, optimizes the rider's ability to efficiently power from A to B.
| Motor | Specialized 2.2, 90Nm torque, custom tuned motor, 250W nominal |
| Battery | Specialized U2-710, alloy casing, state of charge display, 710Wh, UL |
| Display | MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages |
| Charger | Custom charger, 42V4A w/ Rosenberger plug, 100-240V |
| Frame | E5 Aluminum, bottom bracket motor mount, fully integrated &lockable downtube battery, internal cable routing, lock and front rack mount, sliding dropout |
| Fork | Rockshox Recon Silver RL, 80mm travel, Motion-Control, fender-mounts |
| Rear Shock | Not applicable |
| Front Brake | Shimano 4 pistons, CUES, BL-U8000, Br-U8020, Sm-Ma-F180P/P2 |
| Rear Brake | Shimano 4 pistons, CUES,BL-U8000, Br-U8020 |
| Rear Derailleur | Automatic Hub Interface, AHI-PRO-40T-OE-1, enviolo Netherlands,17NM, 40T Spline Compatible |
| Shift Levers | Spec not provided |
| Chain | Gates Carbon Drive CDX 122t belt, black |
| Cassette | Gates Carbon Drive CDX 22t sprocket, silver |
| Crankset | Custom alloy forged crankarms, 170mm |
| Chain Ring | Gates Carbon Drive CDX 50T chainring, black |
| Chain Guard | Custom chaincover |
| Rims | 650b disc, double-wall alloy, pinned, 32h |
| Front Hub | Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h |
| Rear Hub | Enviolo Heavy Duty, 380% range, 6-bolt, 10x135mm, 32h |
| Front Tire | Pathfinder Sport Reflect, 650Bx2.3 |
| Rear Tire | Pathfinder Sport Reflect, 650Bx2.3 |
| Handlebar | Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm |
| Stem | Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp |
| Headset | Spec not provided |
| Grips | ERGON, GA30-S Custom, 134.8mm Length |
| Saddle | Bridge Sport, Steel rails, 155mm |
| Seatpost | Cane Creek, Thudbuster St 30.9 mm |
| Pedals | Specialized Commuter w/ grip tape & reflectors |
| Front Light | LEZYNE Power StVZO E500+, 500 Lumens |
| Rear Light | Spanninga, Stvzo, Commuter Glow With Brake XEr |
| Kickstand | Specialized kickstand, 40mm mount |
| Rear Carrier | Specialized rack, MIK HD inteface, built-in pannier mounts, 27kg max load |
| Fenders | Specialized DRYTECH fenders, 65mm width, aluminum fenderstay |
| Bell | Specialized brass bell |
| Lock | Turbo System Lock |
| Mirror | Not applicable |
The Full Scoop on the Specialized Turbo Vado 5.0 IGH Step Through
The Specialized Turbo Vado 5.0 Internal Geared Hub "IGH" is the bike for everything from daily commutes to fast workouts to longer-than-planned adventures—an electric bike for life. The smoothest-riding e-Bike experience yet, Vado is designed to boldly take on the ever-changing landscape you’ll encounter as a daily rider, carry whatever you need it to, and keep you riding more often.
Specialized Turbo Vado 5.0 IGH's redesigned geometry puts you in the best position for everything from workouts to commutes while comfortably keeping your eyes on busy roads. Specialized considered the speed a road rider seeks and the maneuverability a mountain bike rider needs. The rider's position on the Vado instills confidence and, at the same time, optimizes the rider's ability to efficiently power from A to B.
Motor System

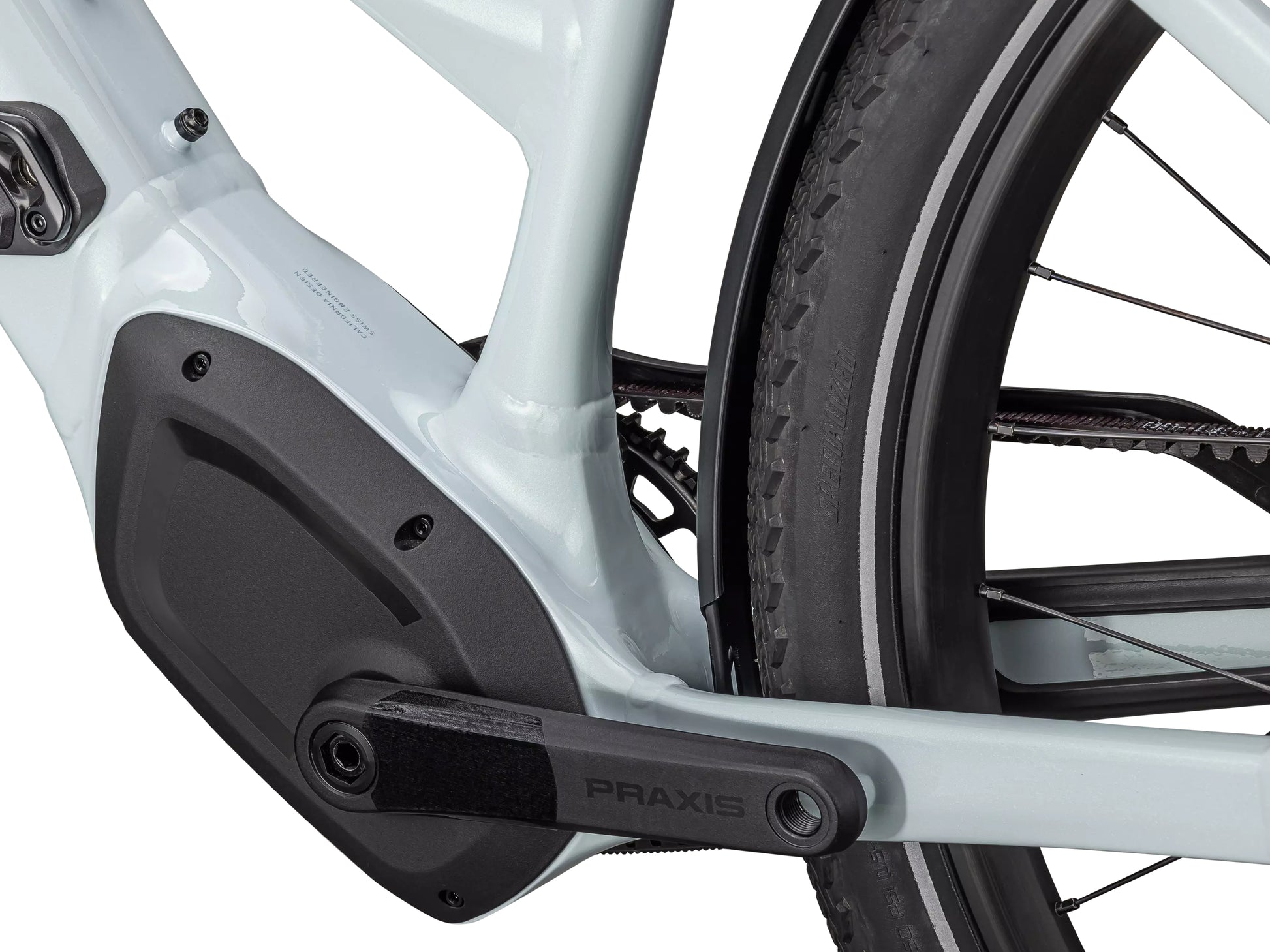

| Motor | Specialized 2.2, 90Nm torque, custom tuned motor, 250W nominal |
| Battery | Specialized U2-710, alloy casing, state of charge display, 710Wh, UL |

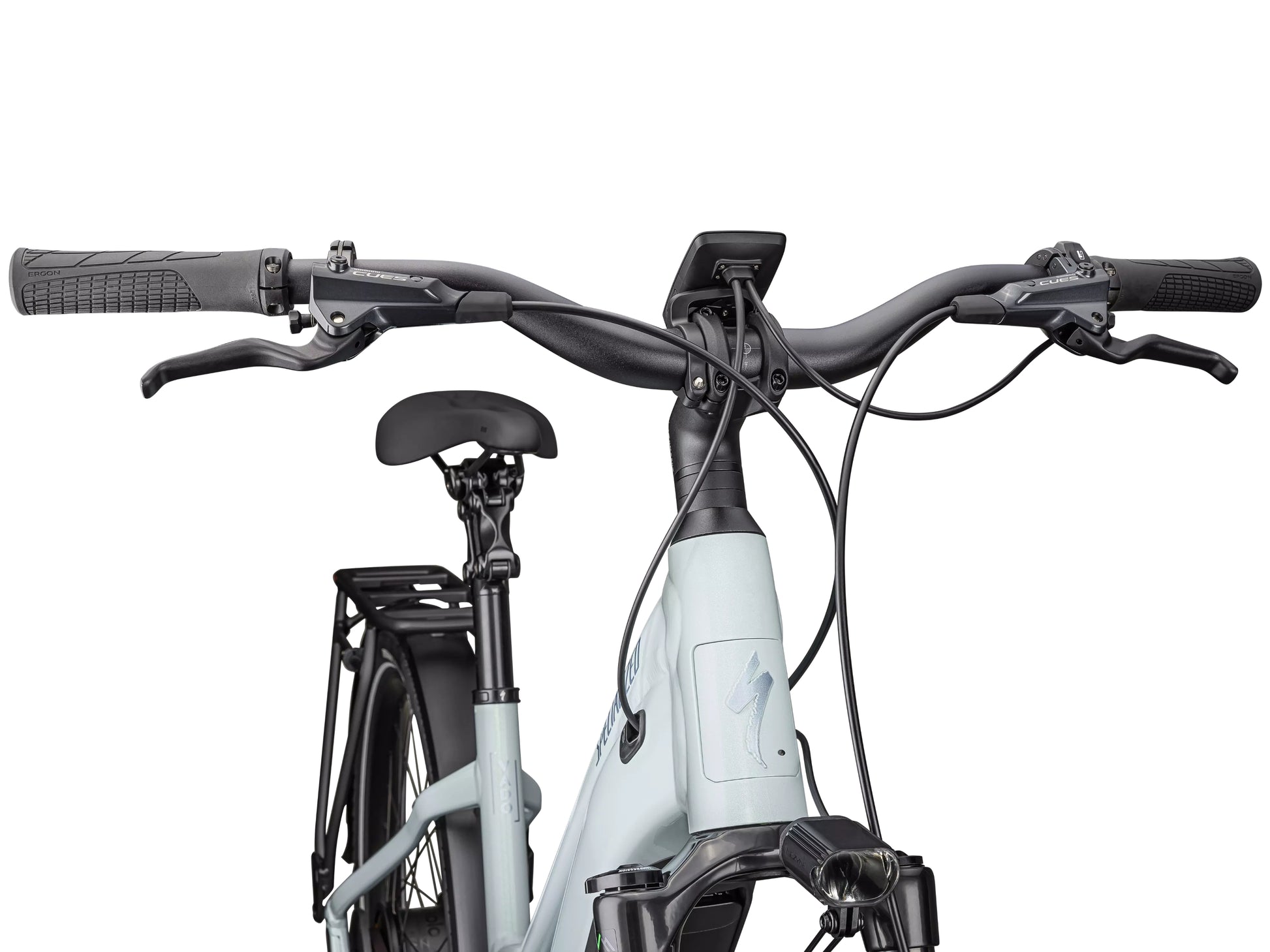

| Display | MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages |
| Charger | Custom charger, 42V4A w/ Rosenberger plug, 100-240V |
Components
| Frame | E5 Aluminum, bottom bracket motor mount, fully integrated &lockable downtube battery, internal cable routing, lock and front rack mount, sliding dropout |
| Fork | Rockshox Recon Silver RL, 80mm travel, Motion-Control, fender-mounts |
| Rear Shock | Not applicable |
| Front Brake | Shimano 4 pistons, CUES, BL-U8000, Br-U8020, Sm-Ma-F180P/P2 |
| Rear Brake | Shimano 4 pistons, CUES,BL-U8000, Br-U8020 |
| Rear Derailleur | Automatic Hub Interface, AHI-PRO-40T-OE-1, enviolo Netherlands,17NM, 40T Spline Compatible |
| Shift Levers | Spec not provided |
| Chain | Gates Carbon Drive CDX 122t belt, black |
| Cassette | Gates Carbon Drive CDX 22t sprocket, silver |
| Crankset | Custom alloy forged crankarms, 170mm |
| Chain Ring | Gates Carbon Drive CDX 50T chainring, black |
| Chain Guard | Custom chaincover |
| Rims | 650b disc, double-wall alloy, pinned, 32h |
| Front Hub | Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h |
| Rear Hub | Enviolo Heavy Duty, 380% range, 6-bolt, 10x135mm, 32h |
| Front Tire | Pathfinder Sport Reflect, 650Bx2.3 |
| Rear Tire | Pathfinder Sport Reflect, 650Bx2.3 |
| Handlebar | Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm |
| Stem | Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp |
| Headset | Spec not provided |
| Grips | ERGON, GA30-S Custom, 134.8mm Length |
| Saddle | Bridge Sport, Steel rails, 155mm |
| Seatpost | Cane Creek, Thudbuster St 30.9 mm |
Extras
| Pedals | Specialized Commuter w/ grip tape & reflectors |
| Front Light | LEZYNE Power StVZO E500+, 500 Lumens |
| Rear Light | Spanninga, Stvzo, Commuter Glow With Brake XEr |
| Kickstand | Specialized kickstand, 40mm mount |
| Rear Carrier | Specialized rack, MIK HD inteface, built-in pannier mounts, 27kg max load |
| Fenders | Specialized DRYTECH fenders, 65mm width, aluminum fenderstay |
| Bell | Specialized brass bell |
| Lock | Turbo System Lock |
| Mirror | Not applicable |
Geometry
