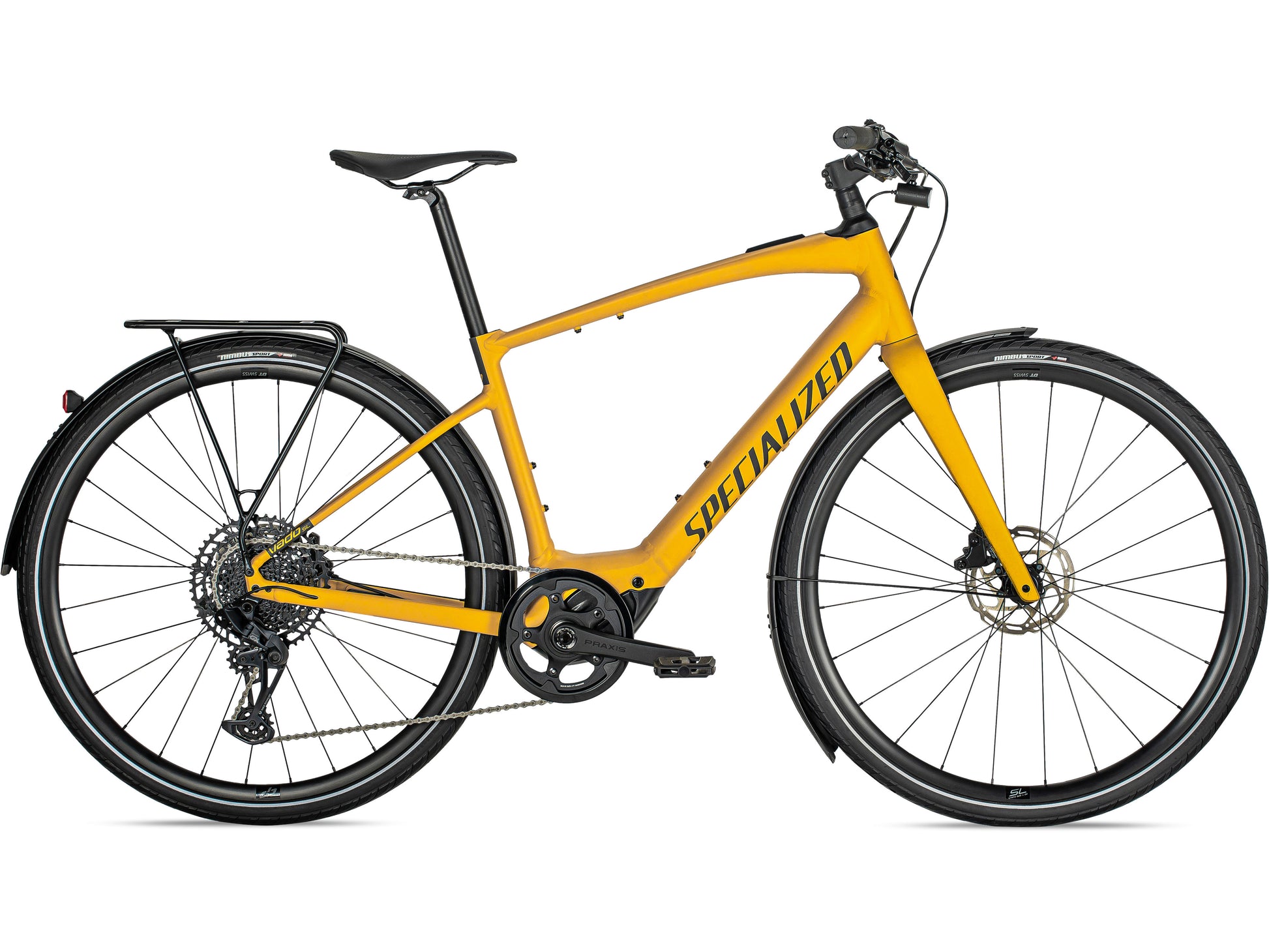

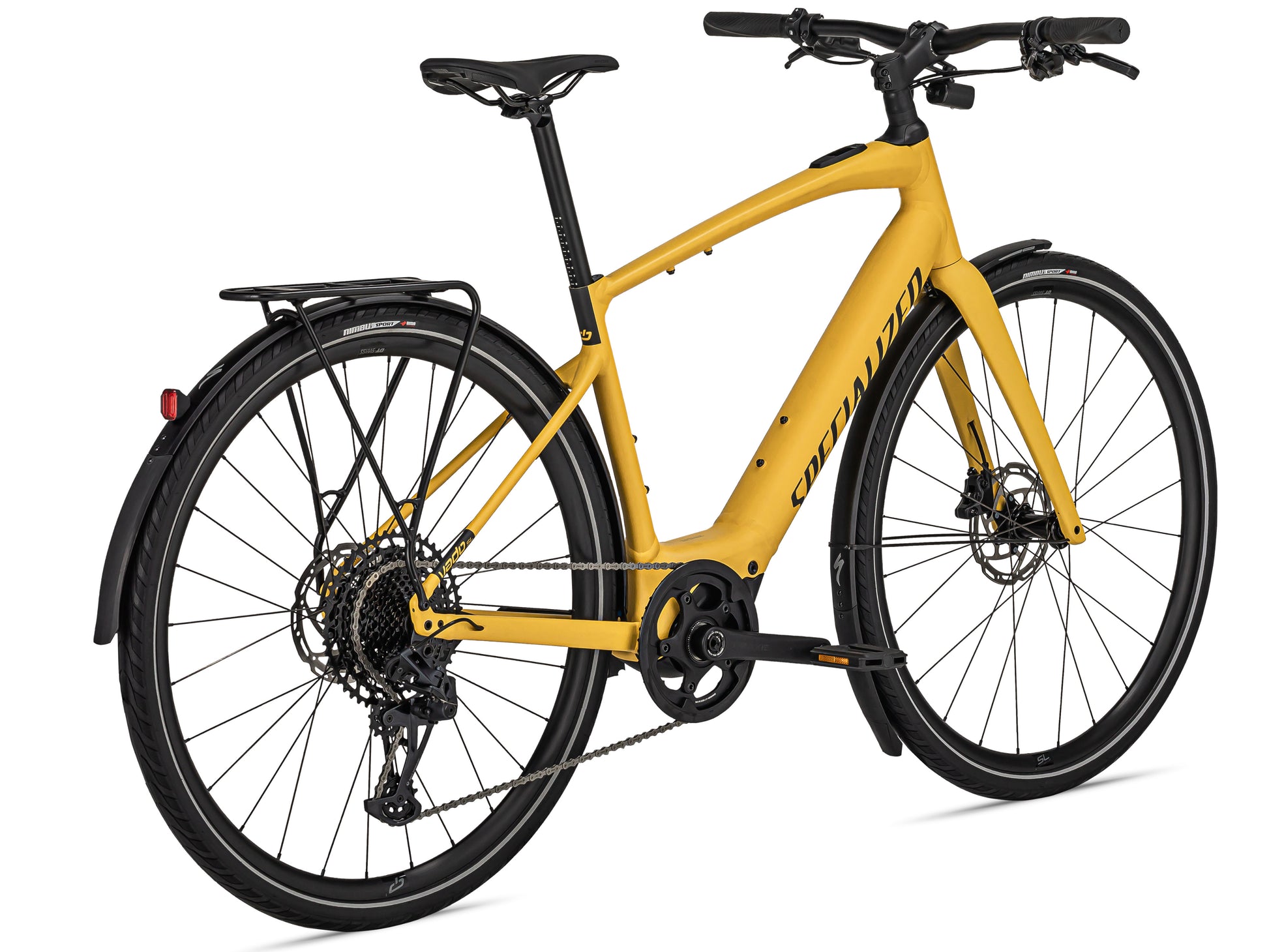

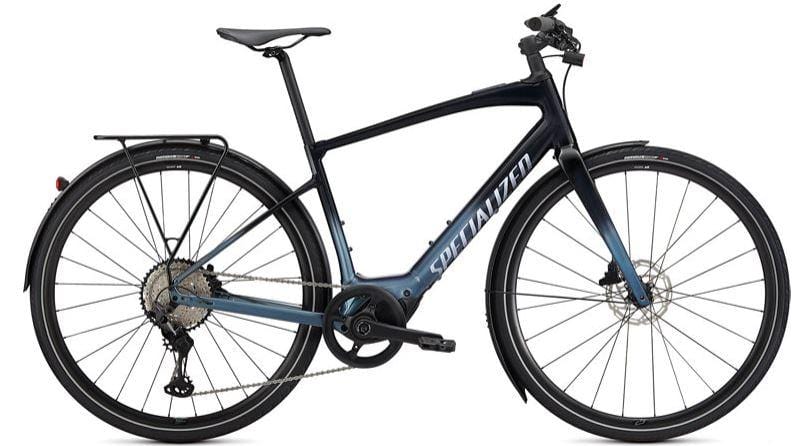

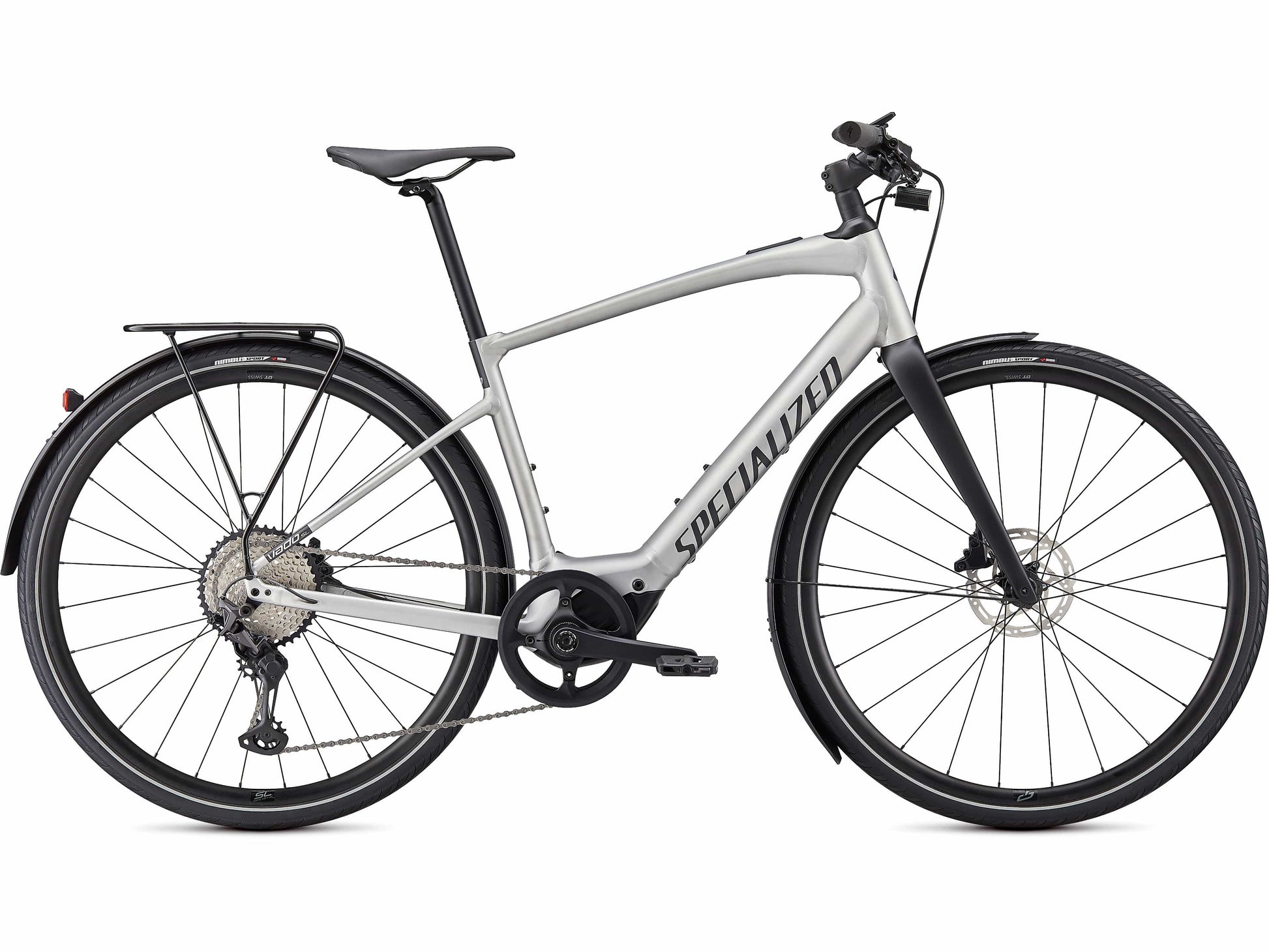

Specialized Turbo Vado SL 5.0 EQ

The Full Scoop on the Specialized Turbo Vado SL 5.0 EQ

*Specialized models can be delivered with our white glove, fully built delivery option, or can be picked up in store.

• Description
• Motor System
• Components
• Extras
• Geometry

•
  Vado: it means "I go." SL: it means "Super Light." It means cruising past traffic at up to 28 mph and arriving faster to work than your coworkers, all while still having time to stop for coffee. It also means riding your bike way more often than you ever thought you would. Explore, get fit, do your thing: Vado SL eliminates the barriers that had your old bike collecting dust. At 40% lighter than the average e-Bike, that means carrying Vado SL up a flight of stairs, lifting it onto the train or bus, or dropping it onto a bike rack without breaking a sweat and without throwing out your back. SL means livable. Vado SL delivers the defining combination of weight, power, range, and ride quality, giving you the confidence to ride more often and to places that you never imagined you would. With up to 80 miles of range from the internal 320 Wh battery and an optional range extender. At 40% lighter than the average e-bike, another 40 miles of power, Vado SL lets you enjoy the ride, without worrying about the range.

• Components subject to manufacturer changes

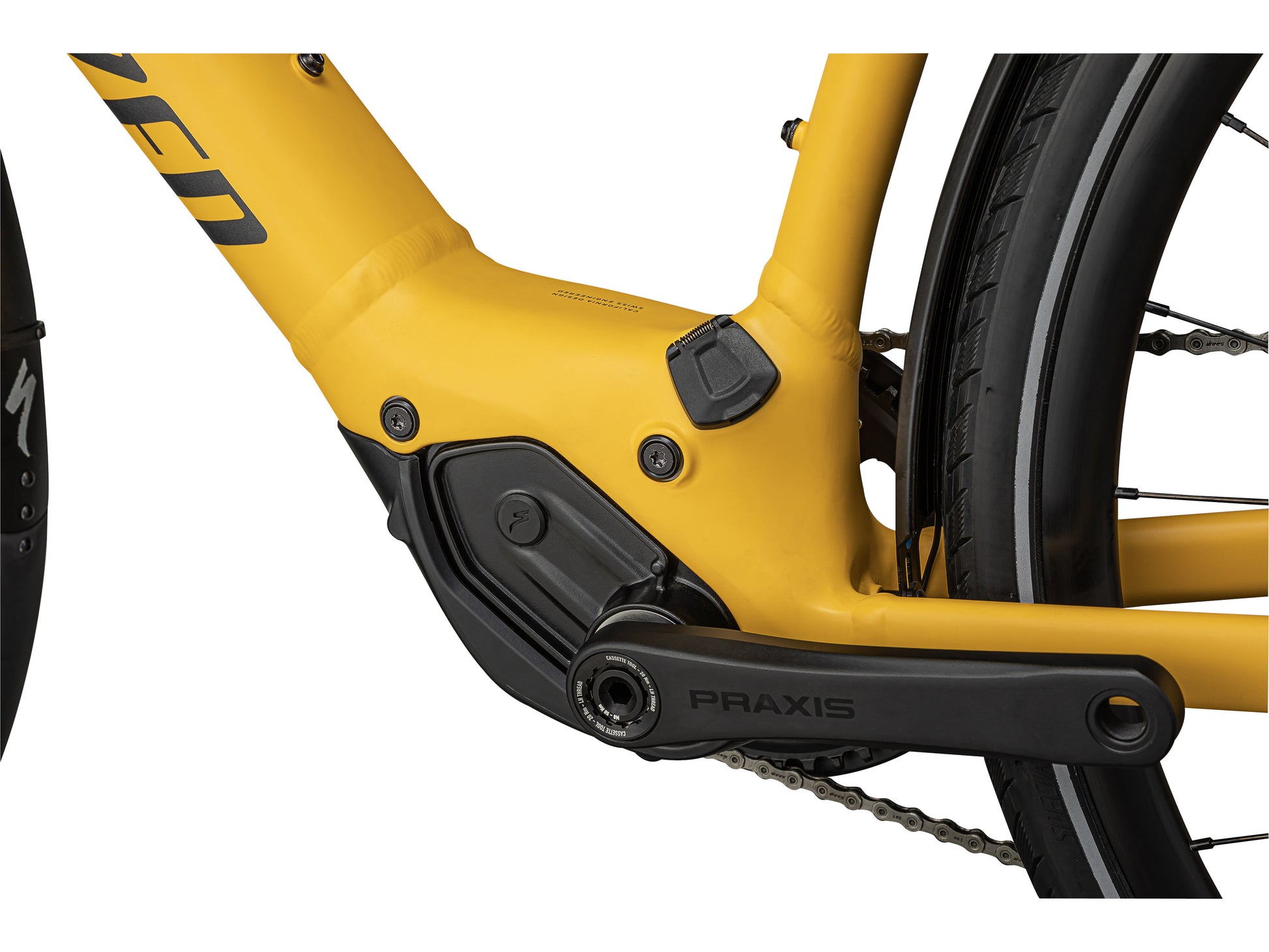

• Motor	Specialized SL 1.1, custom lightweight motor
  Battery	Specialized SL1-320, fully integrated, 320 Wh

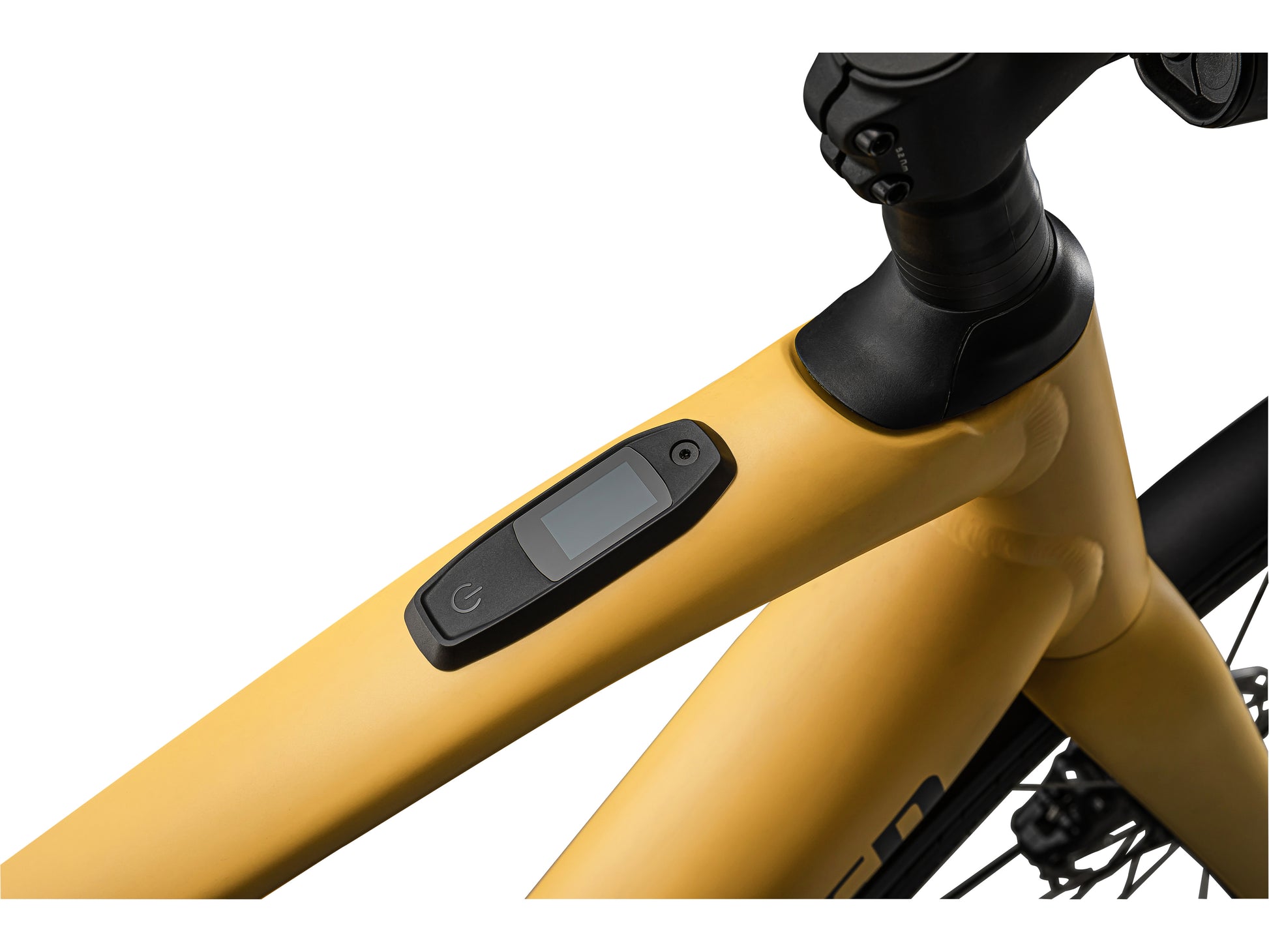

  Display	Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, TCD computer

• Frame	E5 Aluminum, Fitness/Transportation Geometry, bottom bracket motor mount, fully integrated down tube battery, internal cable routing, fender/rack mounts, Smooth Welds, reflective graphics
  Fork	Future Shock 1.5, Boost™ 12x110 mm thru-axle, flat mount disc, carbon fork
  Brakes	Tektro HD-R510, hydraulic disc, 160 mm
  Drivetrain	Shimano XT, Shadow Plus, SGS Cage, 12-speed
  Shifter	Shimano SLX, Rapidfire Plus, 12-speed, w/o OGD

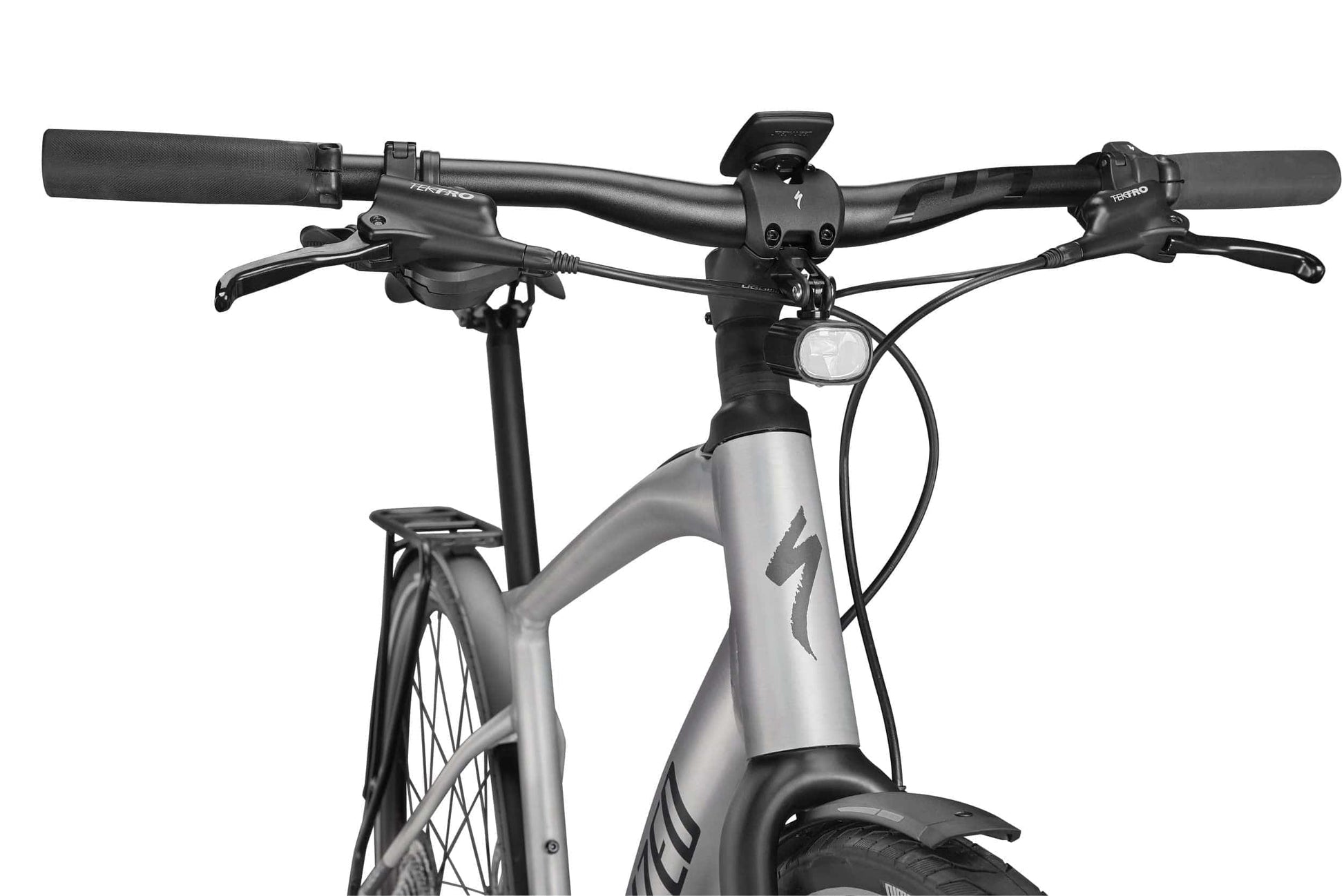

  Handlebars	Stout Mini Rise, alloy, 14-degree backsweep, 15 mm rise, 31.8 mm
  Tires	Specialized Pathfinder Sport, 700x38c
  Rims	DT Swiss R500 disc, 22mm internal width, 23 mm internal depth
  Crankset	Praxis, Forged alloy M30, custom offset
  Chain Ring	Praxis, 44t, 104BCD
  Cassette	Shimano SLX, Hyperglide+, 12spd, 11-45t
  Chain	Shimano SLX, 12-speed, w/Quick Link
  Stem	Specialized Stealth Stem, alloy, 14 deg, 31.8 mm, integrated TCD-W mount
  Saddle	Bridge Sport, hollow cr-mo rails, 155/143 mm
  Seatpost	Specialized, alloy, single-bolt, 21 mm offset, 27.2 mm

• Grips	Specialized Body Geometry Targa, lock-on
  Headlight	Lezyne Ebike Power STVZO E115, 310 Lumens, 12 V
  Taillight	Specialized integrated saddle mount, LED Technology, 12 V
  Kickstand	Specialized kickstand, 40 mm mount
  Rack	Turbo SL Rack, Closed Platform, direct fender mount, Racktime-compatible, 33lbs
  Fenders	Specialized DryTech, Aluminum
  Bell	Simple bell

•


  FRAME SIZE	S	M	L	XL
  RIDER HEIGHT (in)	5'1" - 5'5"	5'5" - 5'10"	5'10" - 6'1"	6'1" - 6'4"
  RIDER HEIGHT (cm)	150 - 165	165 - 178	178 - 185	185 - 193
  CRANK LENGTH	170 mm	172.5 mm	172.5 mm	175 mm
  STEM LENGTH	60 mm	75 mm	75 mm	90 mm
  SEATPOST LENGTH	350 mm	350 mm	350 mm	350 mm
  SADDLE WIDTH	155 mm	155 mm	155 mm	155 mm
  HANDLEBAR WIDTH	680 mm	680 mm	680 mm	680 mm
  REACH	378 mm	401 mm	415 mm	424 mm
  STACK	595 mm	626 mm	660 mm	696 mm
  WHEELBASE	1062 mm	1091 mm	1110 mm	1126 mm
  BIKE STAND-OVER HEIGHT	770 mm	790 mm	815 mm	840 mm
  HEAD-TUBE LENGTH	185 mm	217 mm	250 mm	285 mm
  FRONT-CENTER	626 mm	655 mm	675 mm	690 mm
  FORK RAKE/OFFSET	50 mm	50 mm	50 mm	50 mm
  HEAD-TUBE ANGLE	70°	70.5°	71°	71.5°
  TRAIL	71 mm	67 mm	64 mm	61 mm
  B-B HEIGHT	270 mm	270 mm	270 mm	270 mm
  CHAIN-STAY LENGTH	445 mm	445 mm	445 mm	445 mm
  FORK LENGTH (FULL)	390 mm	390 mm	390 mm	390 mm
  SEAT-TUBE ANGLE	73.5°	73.5°	73.5°	73.5°
  B-B DROP	70 mm	70 mm	70 mm	70 mm
  SEAT-TUBE LENGTH	415 mm	446.5 mm	494.5 mm	535 mm
  TOP-TUBE LENGTH (HORIZONTAL)	554 mm	587 mm	610 mm	630 mm
