The Full Scoop on the Tern GSD P00

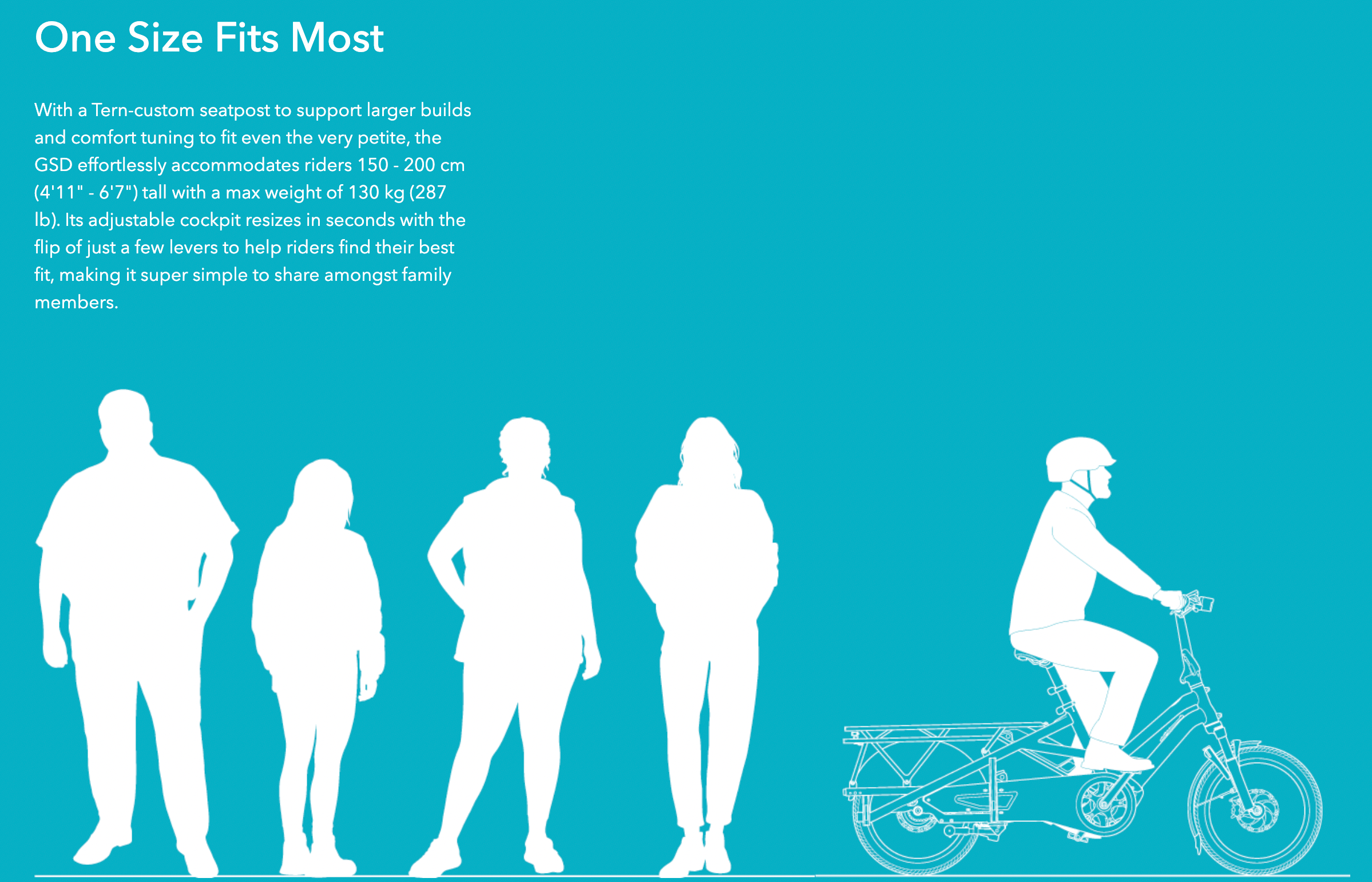

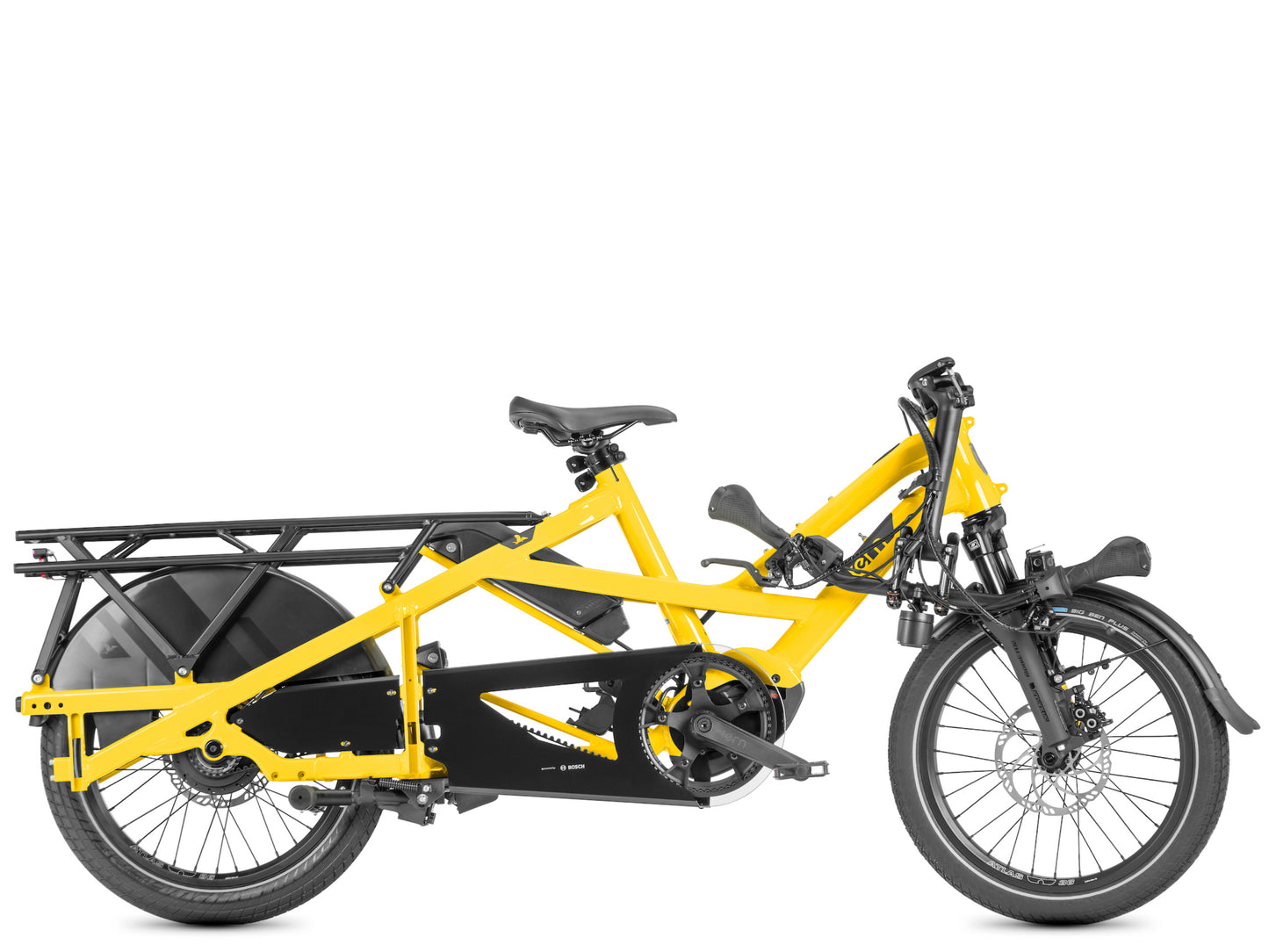

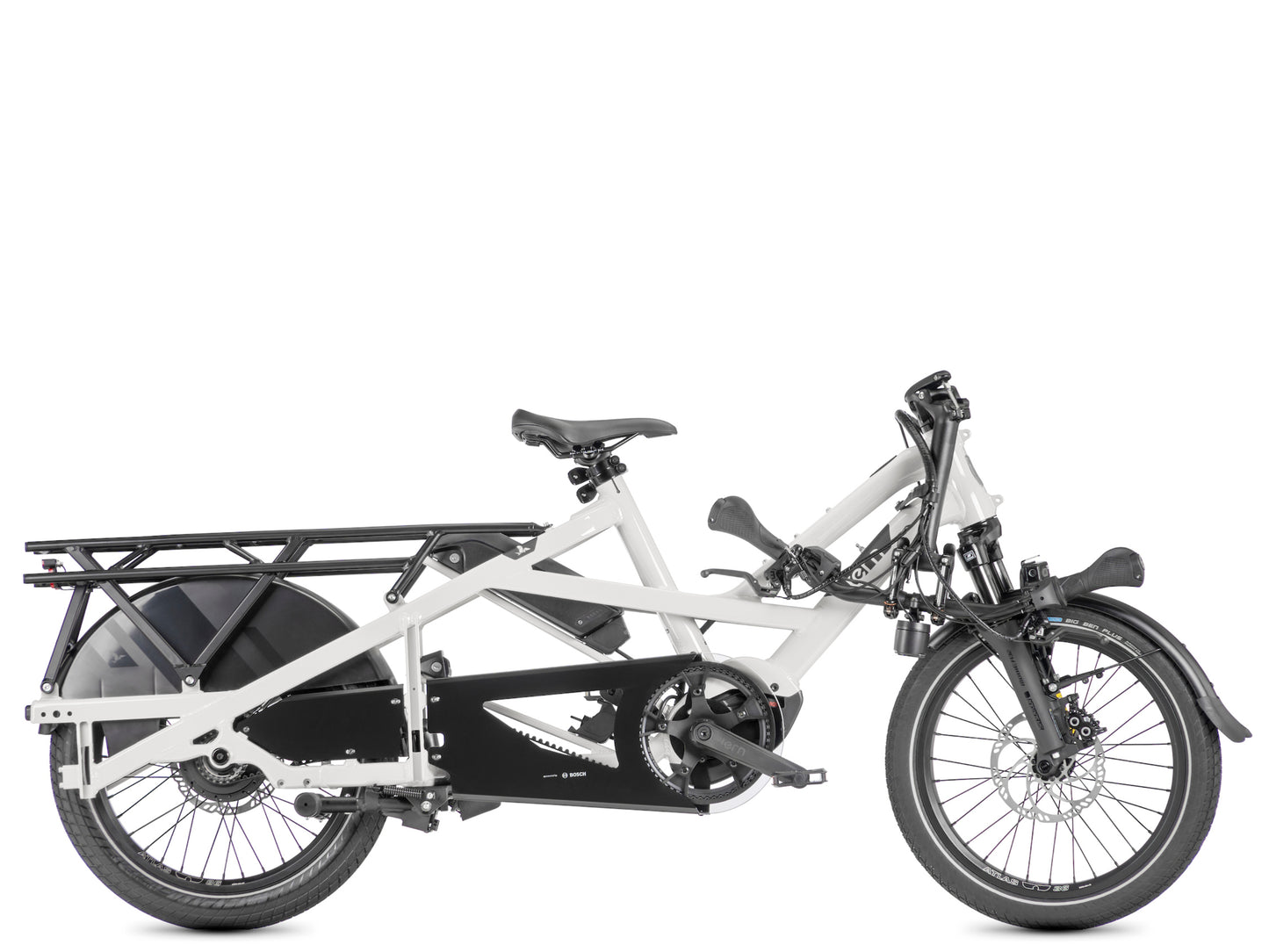

With a 463 lb Maximum Gross Vehicle Weight, the Tern GSD P00 is ready to replace your car. It'll let you carry two kids plus groceries, or a whole lot of cargo—but it's the same length as a regular bike. Built-in dual-battery technology lets you ride all day, while space-saving features like FlatFold and Vertical Parking make the Tern GSD P00 incredibly easy to own and use. The Tern GSD P00 has an adjustable cockpit that resizes in seconds and without tools to fit riders 4’11” – 6’7”, so you can easily share it with your family. The updated frame geometry with a slacker seat tube angle and higher handlebars also means the GSD doesn’t just fit—it’s more comfortable too.
*Components subject to manufacturer changes
* MANY optional accessories
| Motor | Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 20 mph (US) |
| Battery | Bosch 500 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 500 Wh max capacity |
| Display | Bosch Purion |
| Charger | 100-240V, 4A (US) |
| Frame | Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg |
| Fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 34 mm stanchions, Thru-axle, DIN 79010 certified: 210 kg |
| Rear Shock | Not applicable |
| Front Brake | Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads |
| Rear Brake | Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads |
| Rear Derailleur | Not applicable |
| Shift Levers | Enviolo, Twist |
| Chain | Gates Carbon Drive CDX belt |
| Cassette | Gates CDX, precision CNC machined cog |
| Crankset | Tern GSD, Gates CDX CNC machined beltring |
| Chain Ring | Spec not provided |
| Chain Guard | Tern GSD, full chain cover |
| Rims | Tern Atlas, ultra wide 36 mm, dual reinforced joint |
| Front Hub | Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings |
| Rear Hub | Enviolo Heavy Duty, 380% continuously variable range, Boost |
| Front Tire | Schwalbe Big Ben Plus, Green Guard puncture protection, Reflex |
| Rear Tire | Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex |
| Handlebar | Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Headset | Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated |
| Grips | Ergon |
| Saddle | Tern GSD, by Velo |
| Seatpost | Tern VLT (Very Large Telescope) with LightAction levers |
| Pedals | Urban with non-slip surface, sealed bearings |
| Front Light | Ignis Headlight, Ultra wide low beam |
| Rear Light | RearStop Brake Light, Always on |
| Kickstand | Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology |
| Rear Carrier | Atlas G, 220 lb capacity |
| Fenders | F: Aluminum R: GSD wheel guard |
| Bell | Pitch Plus, brass |
| Lock | ABUS or AXA, keyed-alike with Bosch battery |
| Mirror | Not applicable |
The Full Scoop on the Tern GSD P00
Description
With a 463 lb Maximum Gross Vehicle Weight, the Tern GSD P00 is ready to replace your car. It'll let you carry two kids plus groceries, or a whole lot of cargo—but it's the same length as a regular bike. Built-in dual-battery technology lets you ride all day, while space-saving features like FlatFold and Vertical Parking make the Tern GSD P00 incredibly easy to own and use. The Tern GSD P00 has an adjustable cockpit that resizes in seconds and without tools to fit riders 4’11” – 6’7”, so you can easily share it with your family. The updated frame geometry with a slacker seat tube angle and higher handlebars also means the GSD doesn’t just fit—it’s more comfortable too.
*Components subject to manufacturer changes
* MANY optional accessories
Motor System
| Motor | Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 20 mph (US) |
| Battery | Bosch 500 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 500 Wh max capacity |
| Display | Bosch Purion |
| Charger | 100-240V, 4A (US) |
Components
| Frame | Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg |
| Fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 34 mm stanchions, Thru-axle, DIN 79010 certified: 210 kg |
| Rear Shock | Not applicable |
| Front Brake | Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads |
| Rear Brake | Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads |
| Rear Derailleur | Not applicable |
| Shift Levers | Enviolo, Twist |
| Chain | Gates Carbon Drive CDX belt |
| Cassette | Gates CDX, precision CNC machined cog |
| Crankset | Tern GSD, Gates CDX CNC machined beltring |
| Chain Ring | Spec not provided |
| Chain Guard | Tern GSD, full chain cover |
| Rims | Tern Atlas, ultra wide 36 mm, dual reinforced joint |
| Front Hub | Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings |
| Rear Hub | Enviolo Heavy Duty, 380% continuously variable range, Boost |
| Front Tire | Schwalbe Big Ben Plus, Green Guard puncture protection, Reflex |
| Rear Tire | Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex |
| Handlebar | Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Headset | Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated |
| Grips | Ergon |
| Saddle | Tern GSD, by Velo |
| Seatpost | Tern VLT (Very Large Telescope) with LightAction levers |
Extras
| Pedals | Urban with non-slip surface, sealed bearings |
| Front Light | Ignis Headlight, Ultra wide low beam |
| Rear Light | RearStop Brake Light, Always on |
| Kickstand | Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology |
| Rear Carrier | Atlas G, 220 lb capacity |
| Fenders | F: Aluminum R: GSD wheel guard |
| Bell | Pitch Plus, brass |
| Lock | ABUS or AXA, keyed-alike with Bosch battery |
| Mirror | Not applicable |
Geometry
