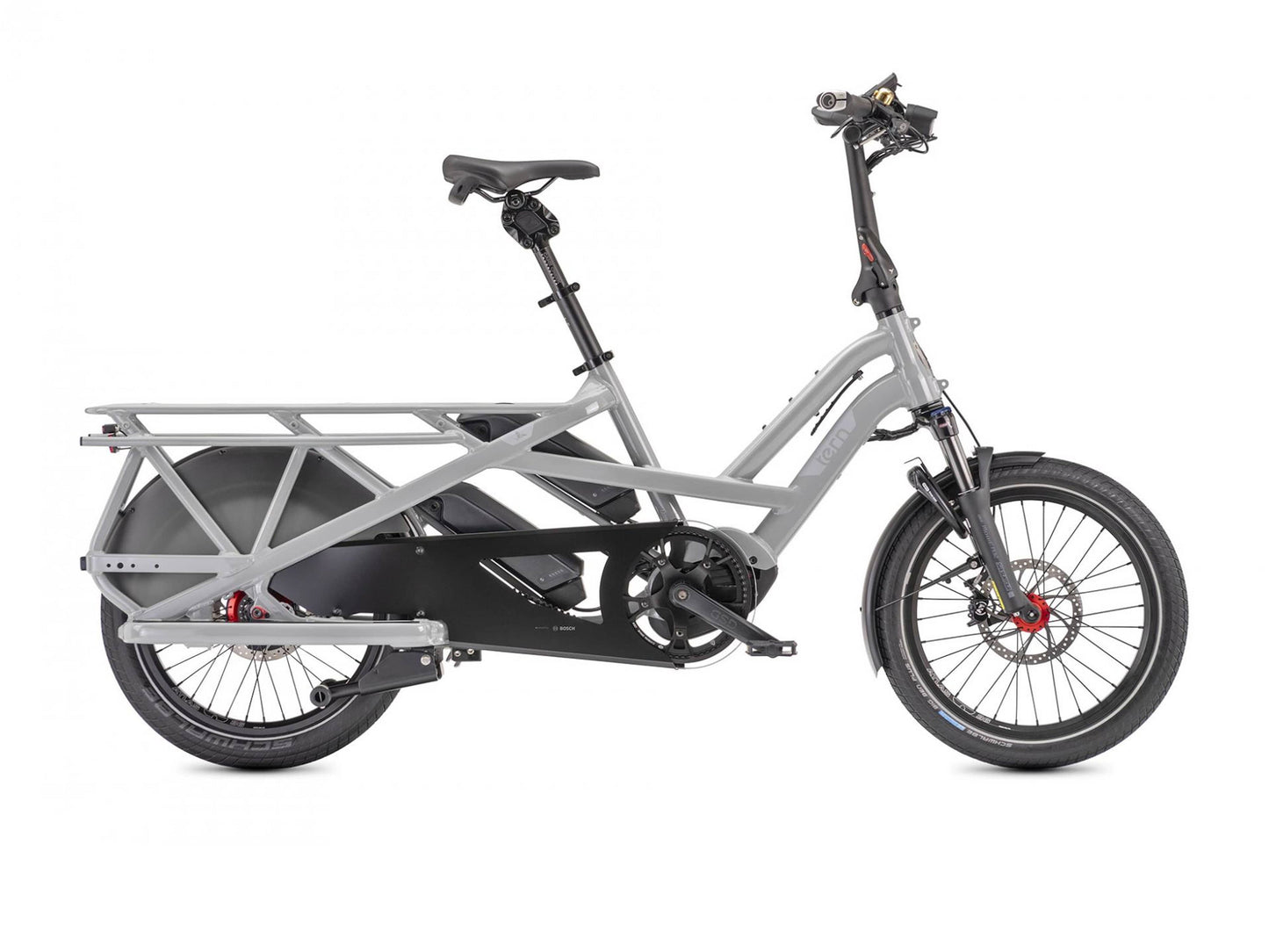

The Full Scoop on the Tern GSD R14

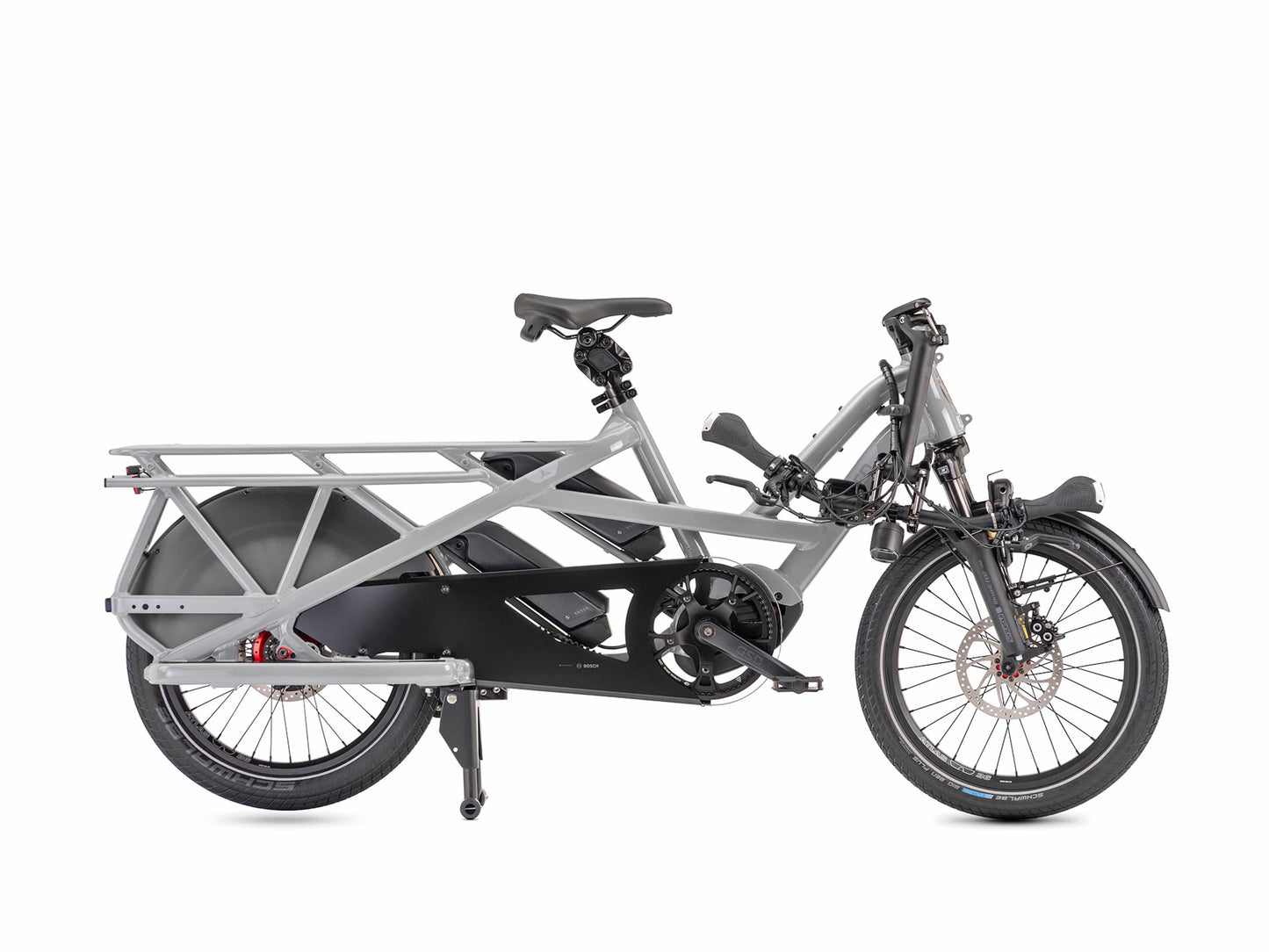

With a 440 lb Maximum Gross Vehicle Weight, the Tern GSD R14 is ready to replace your car. It'll let you carry two kids plus groceries, or a whole lot of cargo—but it's the same length as a regular bike. Built-in dual-battery technology lets you ride all day, while space-saving features like FlatFold and Vertical Parking make the Tern GSD R14 incredibly easy to own and use. The GSD has an adjustable cockpit that resizes in seconds and without tools to fit riders 4’11” – 6’5”, so you can easily share it with your family. The updated frame geometry with a slacker seat tube angle and higher handlebars also means the Tern GSD R14 doesn’t just fit—it’s more comfortable too.
*Components subject to manufacturer changes
* MANY optional accessories
| Motor | Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) |
| Battery | Bosch Dual Battery system, 1000Wh |
| Display | Bosch Intuvia, Rohloff integrated shifting w/ auto downshift |
| Charger | 220V, 4A (EU); 100-240V, 4A (US) |
| Frame | Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg |
| Fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg |
| Rear Shock | Not applicable |
| Front Brake | Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads |
| Rear Brake | Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads |
| Rear Derailleur | Spec not provided |
| Shift Levers | Rohloff E14, e-shift 14 spd |
| Chain | Gates Carbon Drive CDX belt |
| Cassette | Gates CDX, precision CNC machined cog |
| Crankset | Tern GSD custom, Gates CDX CNC machined |
| Chain Ring | Spec not provided |
| Chain Guard | Tern Custom, full chain cover |
| Rims | Tern Atlas, ultra wide 36 mm, dual reinforce |
| Front Hub | Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing |
| Rear Hub | Rohloff E14, 526% range, Boost |
| Front Tire | Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex |
| Rear Tire | Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex |
| Handlebar | Tern Sweep, 6061-AL, Tern Andros adapted |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Headset | Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated |
| Grips | Ergon |
| Saddle | Tern GSD by Velo, with rear handle |
| Seatpost | Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm |
| Pedals | Urban with non-slip surface,sealed bearings |
| Front Light | Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam |
| Rear Light | RearStop Brake Light, Always on brake light |
| Kickstand | Atlas Lockstand, w/ remote unlock, patented technology |
| Rear Carrier | Frame integrated, heavy duty design |
| Fenders | Integrated Wheel Guard, AL6061, w/ Side Skirt |
| Bell | Pitch Plus, brass |
| Lock | ABUS, keyed-alike with Bosch battery |
| Mirror | Not applicable |
The Full Scoop on the Tern GSD R14
With a 440 lb Maximum Gross Vehicle Weight, the Tern GSD R14 is ready to replace your car. It'll let you carry two kids plus groceries, or a whole lot of cargo—but it's the same length as a regular bike. Built-in dual-battery technology lets you ride all day, while space-saving features like FlatFold and Vertical Parking make the Tern GSD R14 incredibly easy to own and use. The GSD has an adjustable cockpit that resizes in seconds and without tools to fit riders 4’11” – 6’5”, so you can easily share it with your family. The updated frame geometry with a slacker seat tube angle and higher handlebars also means the Tern GSD R14 doesn’t just fit—it’s more comfortable too.
*Components subject to manufacturer changes
* MANY optional accessories
Motor System

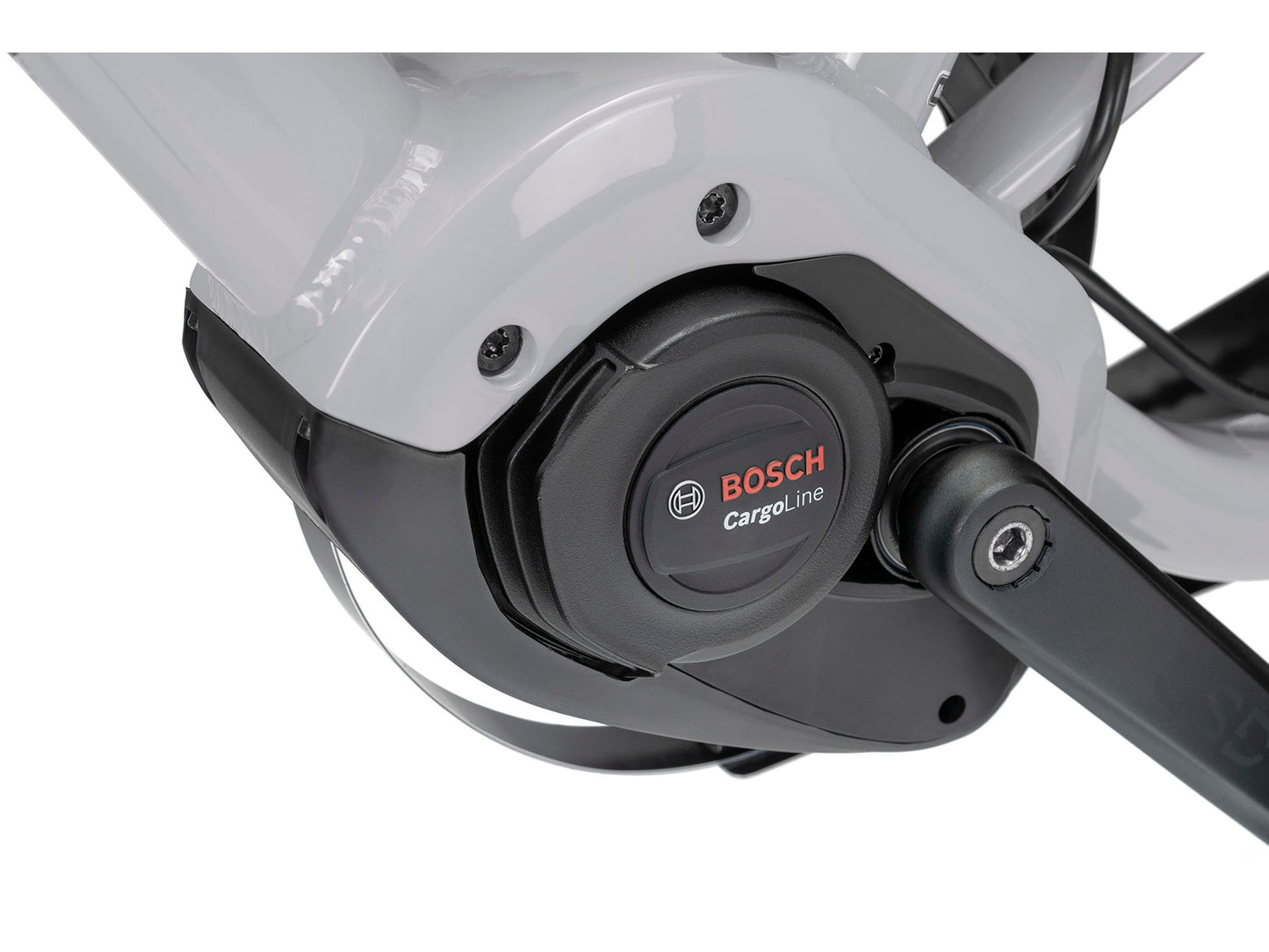

| Motor | Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US) |
| Battery | Bosch Dual Battery system, 1000Wh |
| Display | Bosch Intuvia, Rohloff integrated shifting w/ auto downshift |
| Charger | 220V, 4A (EU); 100-240V, 4A (US) |
Components
| Frame | Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg |

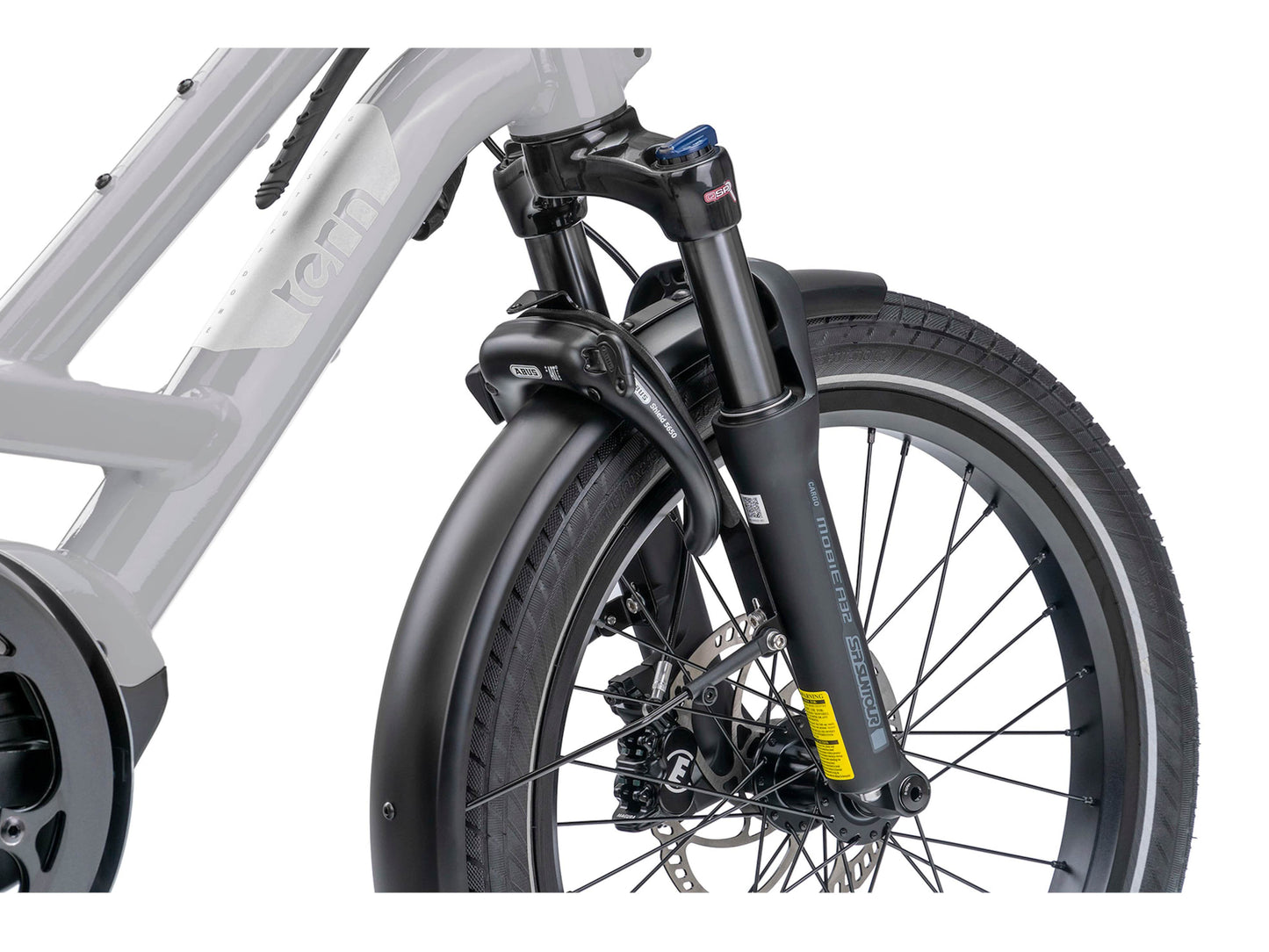

| Fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg |
| Rear Shock | Not applicable |
| Front Brake | Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads |
| Rear Brake | Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads |
| Rear Derailleur | Spec not provided |
| Shift Levers | Rohloff E14, e-shift 14 spd |
| Chain | Gates Carbon Drive CDX belt |
| Cassette | Gates CDX, precision CNC machined cog |
| Crankset | Tern GSD custom, Gates CDX CNC machined |
| Chain Ring | Spec not provided |
| Chain Guard | Tern Custom, full chain cover |
| Rims | Tern Atlas, ultra wide 36 mm, dual reinforce |

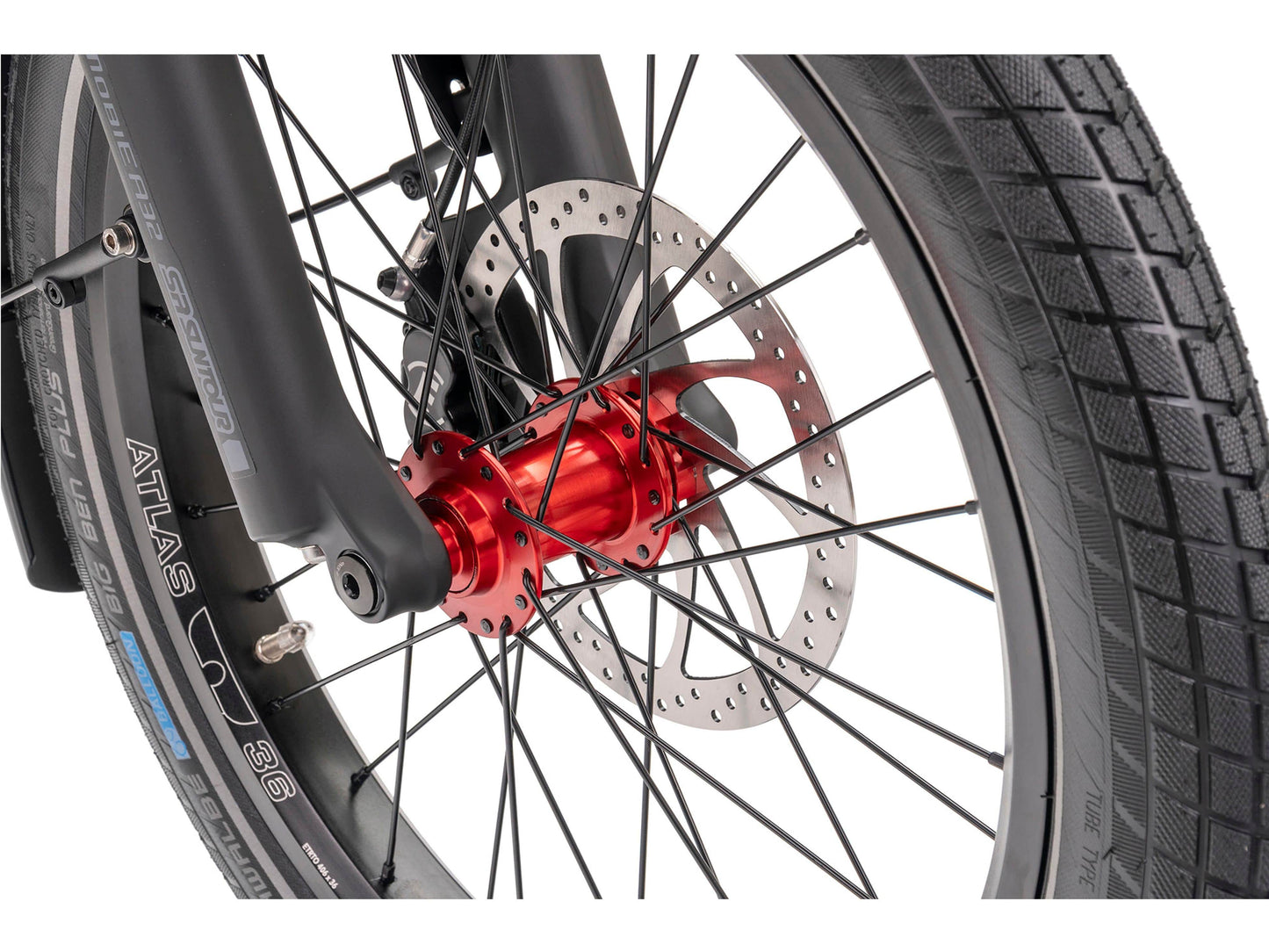

| Front Hub | Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing |

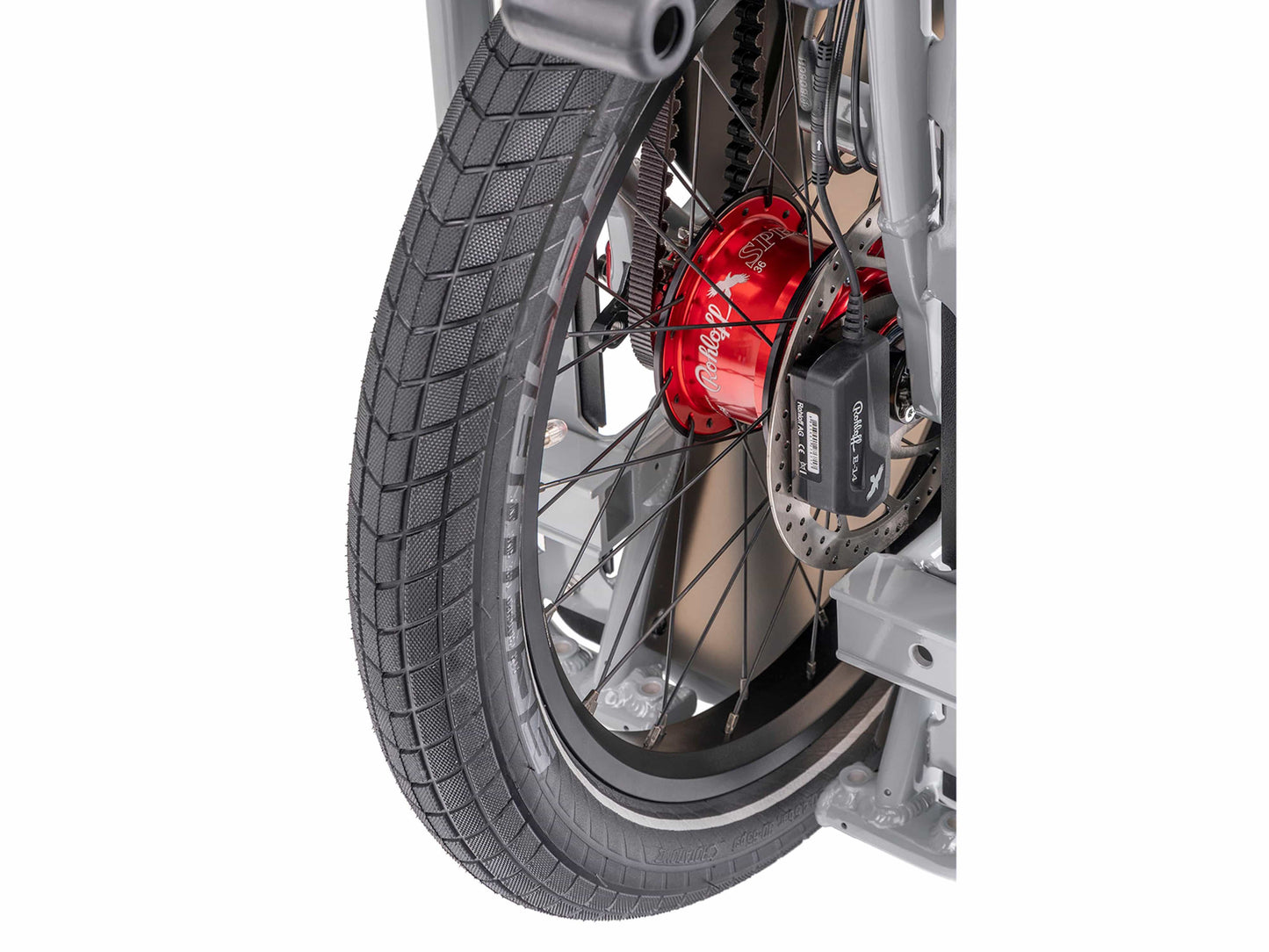

| Rear Hub | Rohloff E14, 526% range, Boost |
| Front Tire | Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex |
| Rear Tire | Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex |
| Handlebar | Tern Sweep, 6061-AL, Tern Andros adapted |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Headset | Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated |
| Grips | Ergon |
| Saddle | Tern GSD by Velo, with rear handle |
| Seatpost | Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm |
Extras
| Pedals | Urban with non-slip surface,sealed bearings |
| Front Light | Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam |
| Rear Light | RearStop Brake Light, Always on brake light |
| Kickstand | Atlas Lockstand, w/ remote unlock, patented technology |

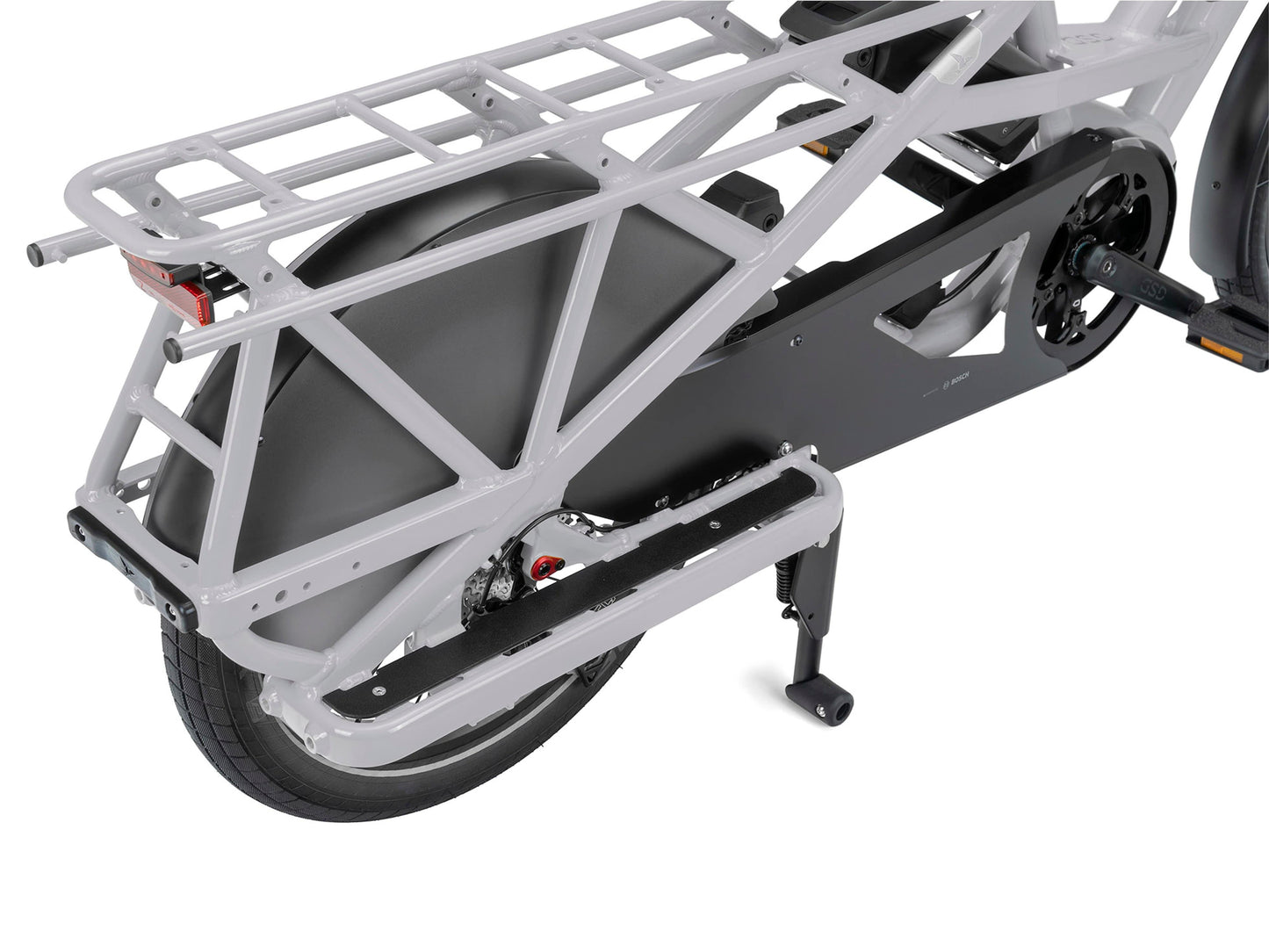

| Rear Carrier | Frame integrated, heavy duty design |
| Fenders | Integrated Wheel Guard, AL6061, w/ Side Skirt |
| Bell | Pitch Plus, brass |
| Lock | ABUS, keyed-alike with Bosch battery |
| Mirror | Not applicable |
Geometry
