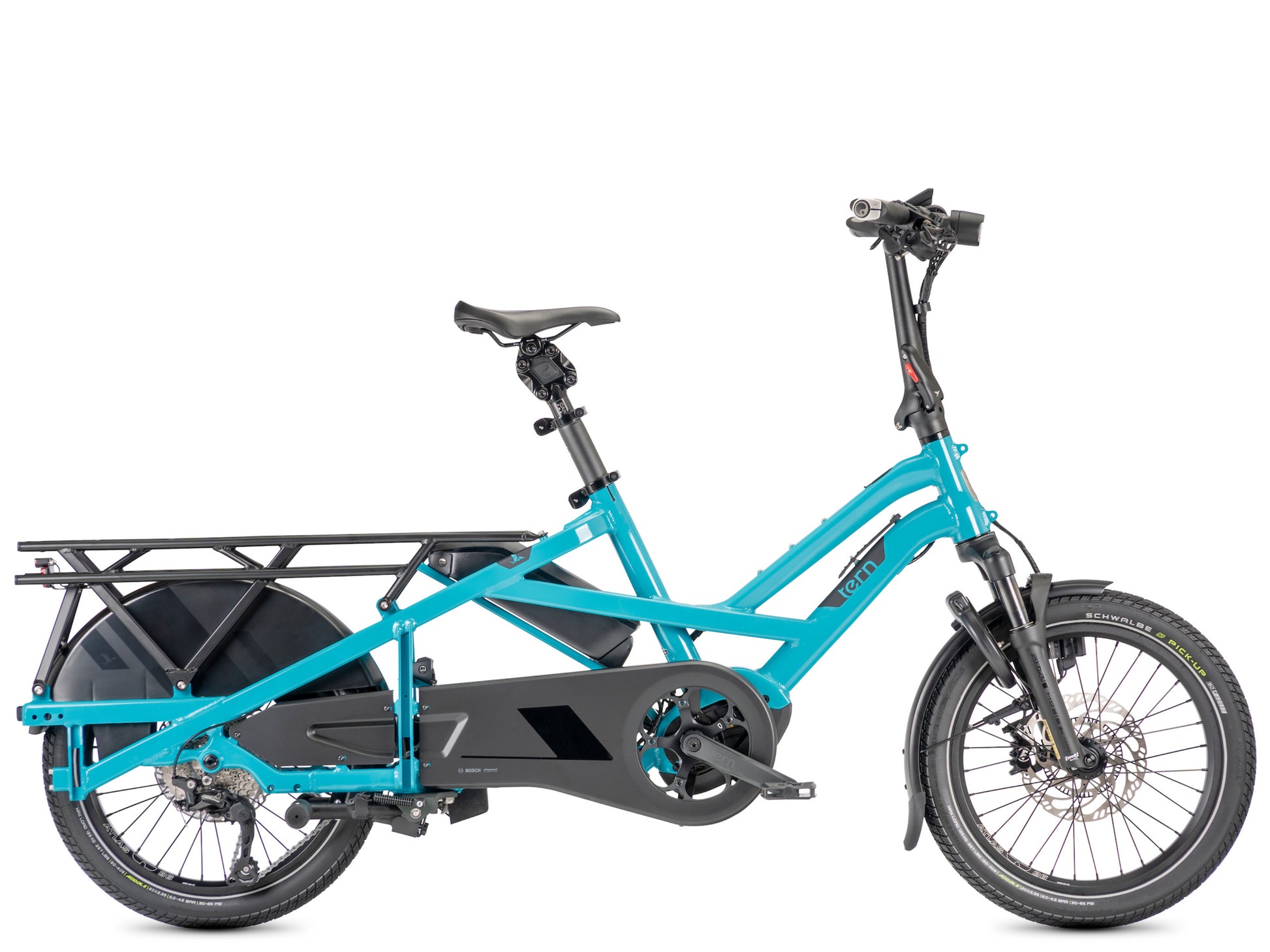

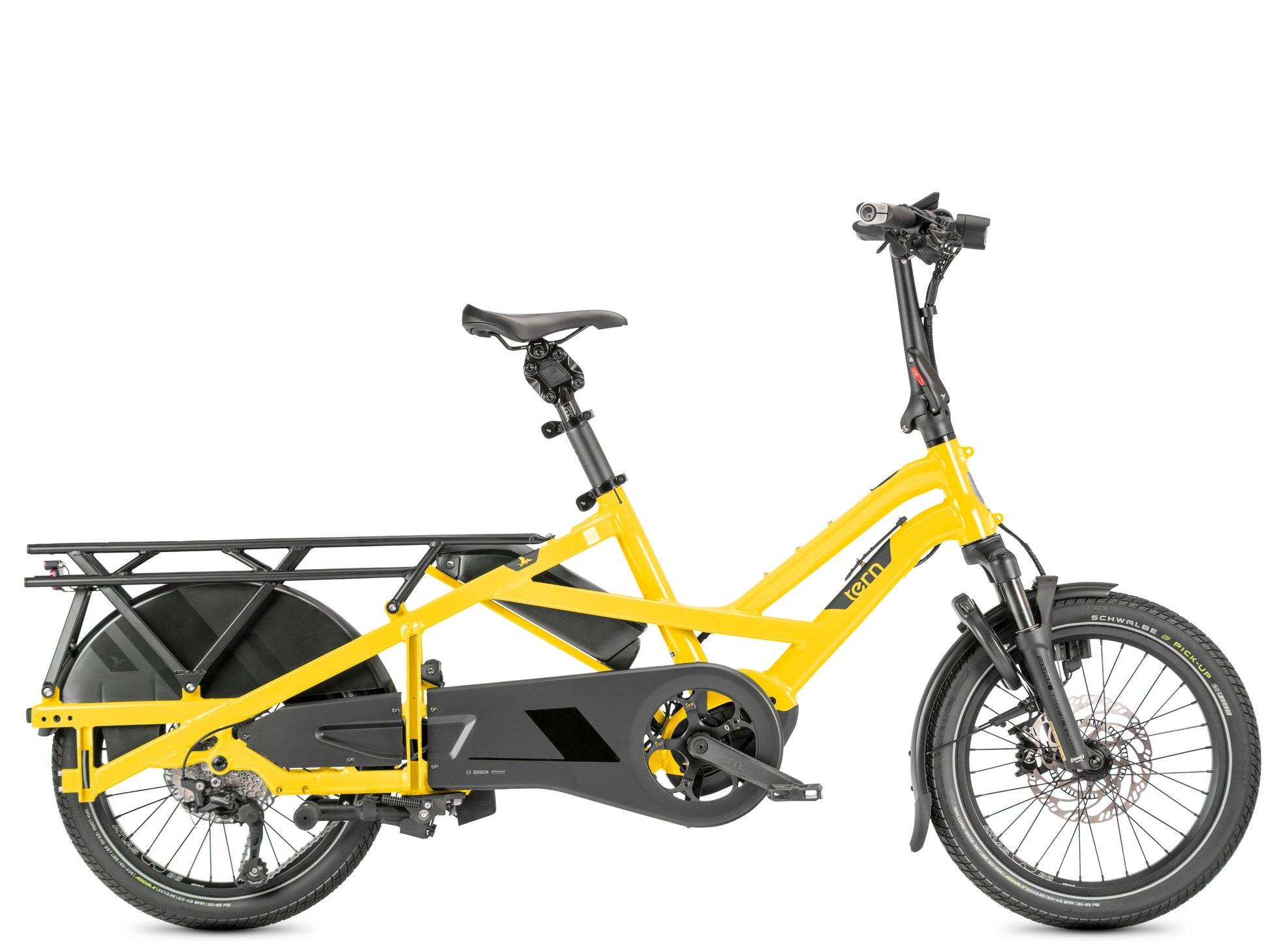

Tern GSD S10

The Full Scoop on the Tern GSD S10

• Description
• Motor System
• Components
• Extras
• Geometry

•

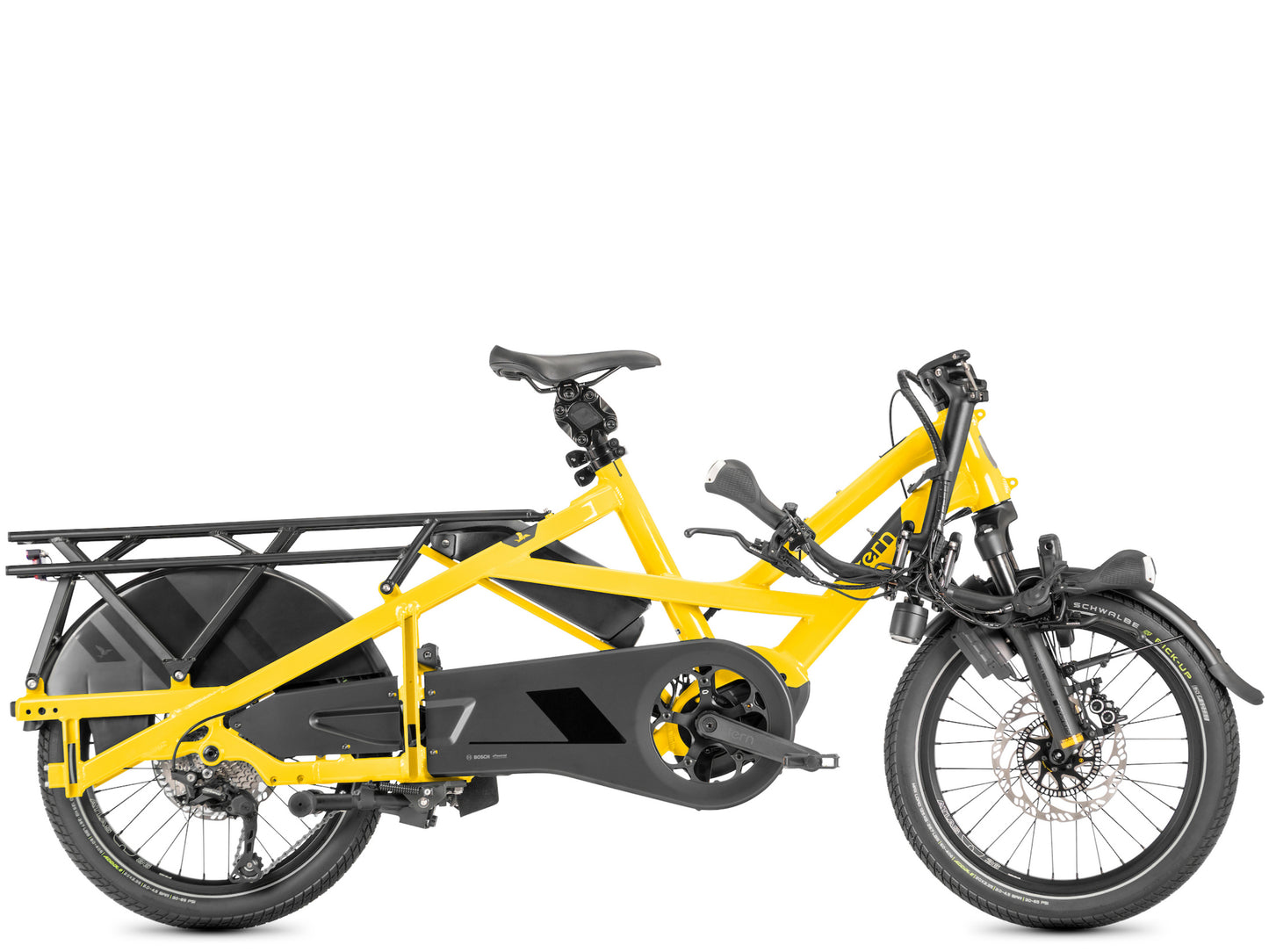

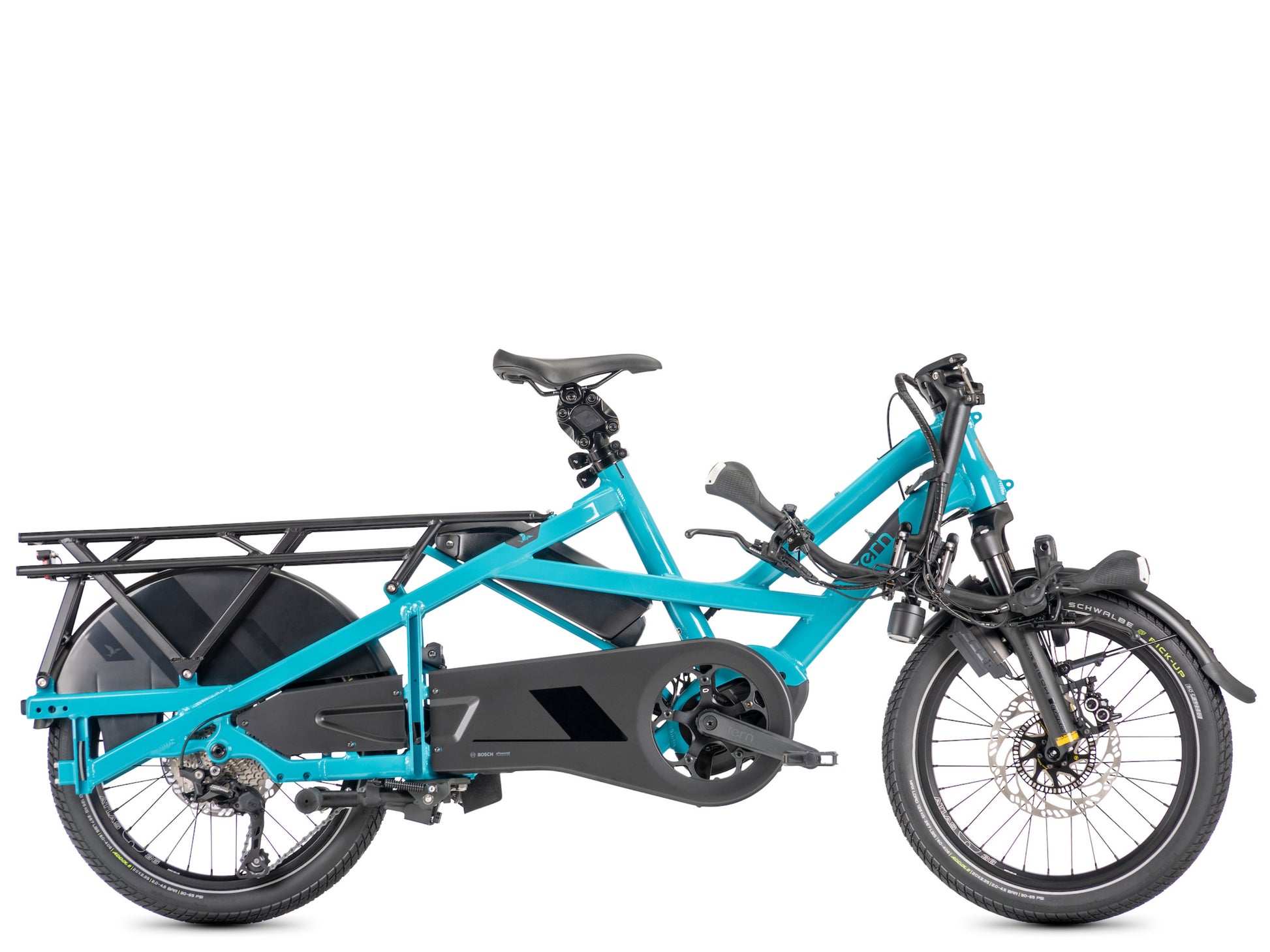

  With a 200 kg (440 lb) Maximum Gross Vehicle Weight, the Tern GSD S10 is ready to replace your car. It'll let you carry two kids plus groceries, or a whole lot of cargo—but it's the same length as a regular bike. Built-in dual-battery technology lets you ride all day, while space-saving features like FlatFold and Vertical Parking make the Tern GSD S10 incredibly easy to own and use. The Tern GSD S10 has an adjustable cockpit that resizes in seconds and without tools to fit riders 150 – 195 cm tall (4’11” – 6’5”), so you can easily share it with your family. The updated frame geometry with a slacker seat tube angle and higher handlebars also means the GSD doesn’t just fit—it’s more comfortable too.

  Components subject to manufacturer changes * MANY optional accessories

• Motor	Bosch Performance, 36 V/250 W, max speed 25 kph (EU); max speed 20 mph (US), max torque 63 Nm
  Battery	Bosch Dual Battery system, 400wh/500wh/900wh
  Display	Bosch Purion
  Charger	Bosch standard

• Frame	Tern GSD, 7005-Al, patented MultiTruss design
  Fork	Tern GSD, 1.5" Taper, Boost Thru-axle, 110 mm, 7005-AL
  Rear Shock	Not applicable
  Front Brake	Magura MT5, 4-piston hydraulic disc, 180 mm rotor
  Rear Brake	Magura MT5, 4-piston hydraulic disc, 180 mm rotor
  Rear Derailleur	Shimano Deore Shadow+
  Shift Levers	Shimano Deore, 1 x 10 spd
  Chain	HAIN: 10 spd, DHT for eBike, GST corrosion resistant coating
  Cassette	Shimano 11-36T, 10 spd
  Crankset	Tern GSD custom, forged 6061-AL DH crankarm
  Chain Ring	Spec not provided
  Chain Guard	SKS Chainblade
  Rims	Tern Atlas, ultra wide 36 mm, dual reinforced joint
  Front Hub	Tern Atlas, Boost thru-axle
  Rear Hub	Tern Atlas, Boost thru-axle, Syntace X-12 standard, ebike reinforced design
  Front Tire	Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
  Rear Tire	Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
  Handlebar	Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm
  Stem	Tern Andros (G2), adjustable, forged construction, patented technology
  Headset	Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
  Grips	Ergon GC10, for swept bar
  Saddle	Tern GSD, with rear handle
  Seatpost	Tern telescope, 34.9mm, 2014-AL

• Pedals	Urban with non-slip surface, corrosion resistant coating
  Front Light	Tern Valo direct, integrated, 41 lux/150 lumens
  Rear Light	Herrmans H-Trace, for e-bike
  Kickstand	Heavy duty double stand, 80kg capacity
  Rear Carrier	Frame integrated, heavy duty design
  Fenders	SplashGuard, stainless hardware
  Bell	Aluminum
  Lock	Not applicable
  Mirror	Not applicable

• Size Guide
