The Full Scoop on the Tern HSD P5i

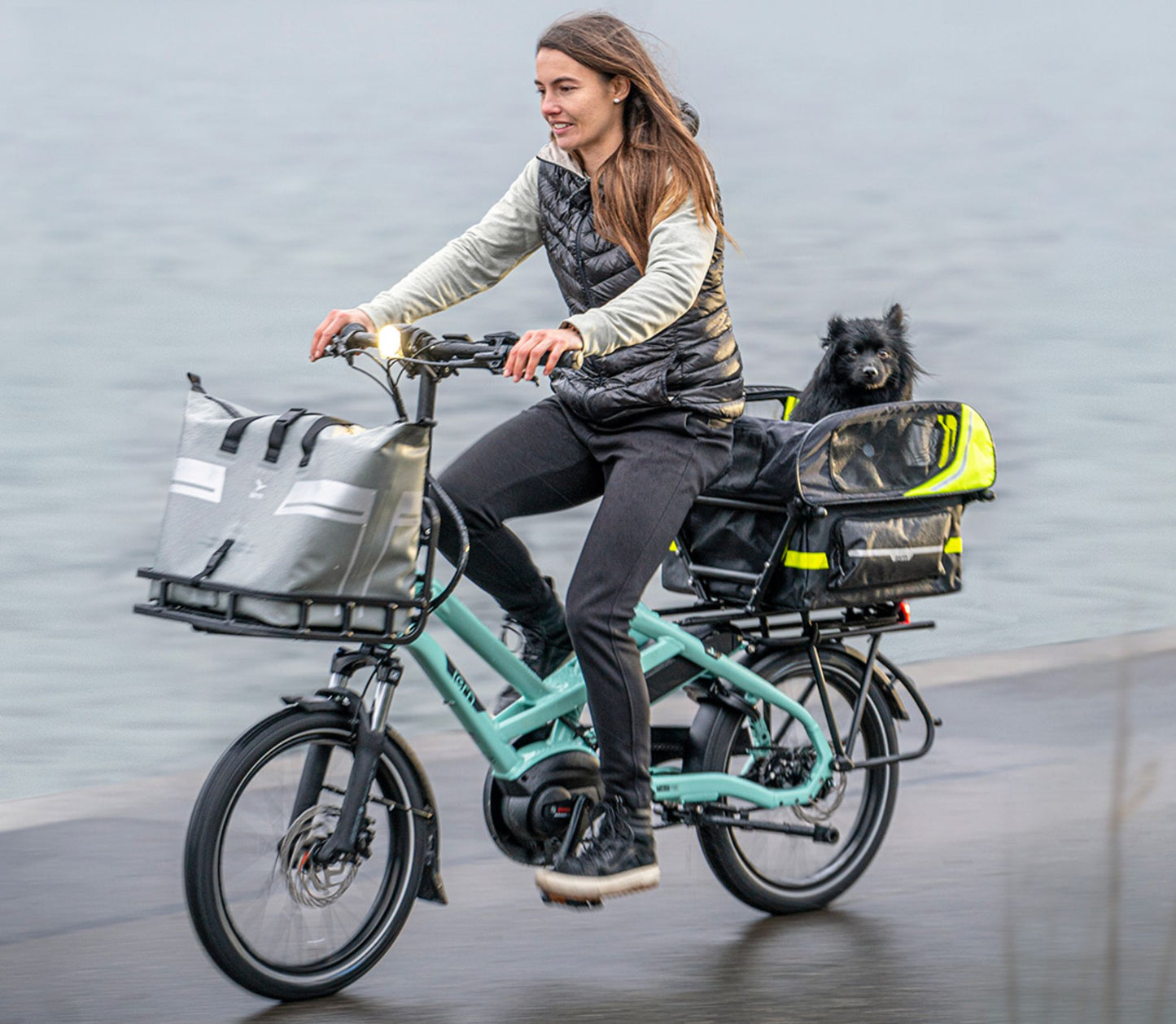

The Tern HSD is mighty but mini: It's easy to handle, easy to share, extremely comfortable to ride, carries a whole lot of cargo—and all of this in a compact design that's shorter than a standard bicycle, yet capable of hauling a max gross vehicle weight of 397 lb. And thanks to best-in-class components, rigorous lab testing, and UL 2849 certification, you can count on having a safe, reliable bike.
*Components subject to manufacture changes.
| Motor | Bosch Performance, 340% Assist, 75 Nm Torque, Class 1 max speed 20 mph (US) |
| Battery | Bosch PowerPack 545 |
| Display | Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock |
| Charger | 100-240V, 4A (US) |
| Frame | Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 370 lbs |
| Fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE tested for 370 lbs |
| Rear Shock | Not applicable |
| Front Brake | Shimano hydraulic disc brakes, 180mm |
| Rear Brake | Shimano hydraulic disc brakes, 160mm |
| Rear Derailleur | Spec not provided |
| Shift Levers | Shimano Nexus INTER-5E |
| Chain | Gates Carbon Drive CDX belt |
| Cassette | Gates CDX, precision CNC machined cog |
| Crankset | Tern HSD custom, Gates CDX CNC machined beltring |
| Chain Ring | Spec not provided |
| Chain Guard | Tern Custom, full chain cover |
| Rims | Tern Atlas H, wide 35 mm |
| Front Hub | Novatec, Thru-axle, sealed bearings |
| Rear Hub | Shimano Nexus INTER-5E |
| Front Tire | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Rear Tire | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Handlebar | Tern Sweep, 6061-AL, Tern Andros adapted |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Headset | Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated |
| Grips | Ergon |
| Saddle | Tern Upright by Velo |
| SeatpostTern Telescope, 34.9/30.9 mm, 2014-AL | SeatpostTern Telescope, 34.9/30.9 mm, 2014-AL |
| Pedals | Urban with non-slip surface |
| Front Light | Tern Valo Direct, 190 lumens |
| Rear Light | Herrmans H-Trace, for eBike |
| Kickstand | Ursus, rear mount |
| Rear Carrier | Atlas H rack, Atlas Rack Mount, 6 point mounting |
| Fenders | SKS, stainless hardware |
| Bell | Pitch Plus, brass |
| Lock | ABUS, keyed-alike with Bosch battery |
| Mirror | Not applicable |
FRAME SIZE:: One Size
WEIGHT::61.5 lb
GEAR INCHES::38 - 99"
FOLDING SIZE::65 × 15.6 × 34.3 in
FOLDING TIME::5 seconds
DISTANCE, SEATPOST TO HANDLEBAR::21.5 - 24.6 in
DISTANCE, SADDLE TO PEDAL::27.6 - 40.4 in
SUGGESTED RIDER HEIGHT::59.1 - 76.8 in
MAX GROSS VEHICLE WEIGHT::396.8 lb
MAX RIDER WEIGHT::264.6 lb
The Full Scoop on the Tern HSD P5i
The Tern HSD is mighty but mini: It's easy to handle, easy to share, extremely comfortable to ride, carries a whole lot of cargo—and all of this in a compact design that's shorter than a standard bicycle, yet capable of hauling a max gross vehicle weight of 397 lb. And thanks to best-in-class components, rigorous lab testing, and UL 2849 certification, you can count on having a safe, reliable bike.
*Components subject to manufacture changes.
Motor System

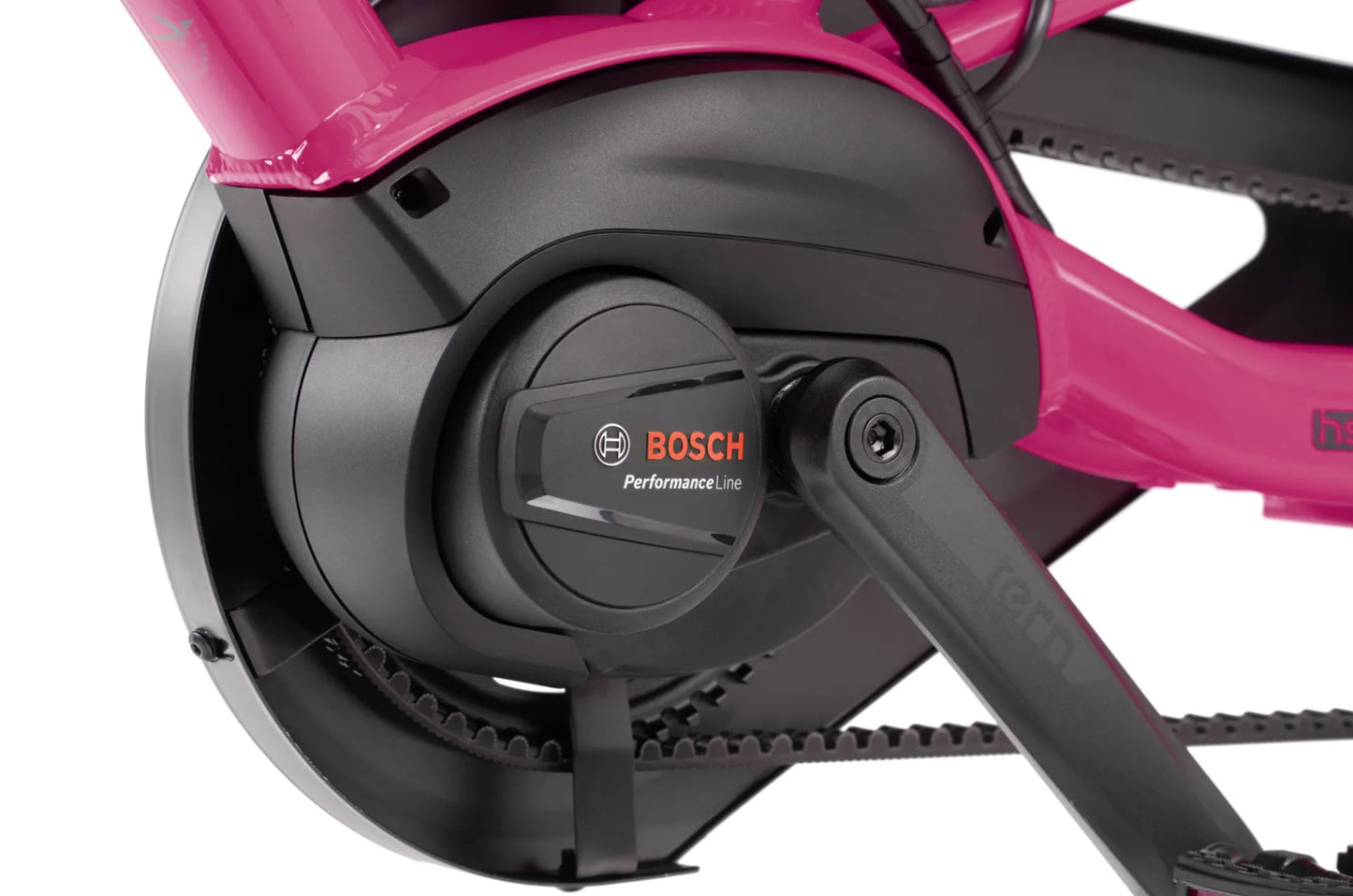

| Motor | Bosch Performance, 340% Assist, 75 Nm Torque, Class 1 max speed 20 mph (US) |
| Battery | Bosch PowerPack 545 |

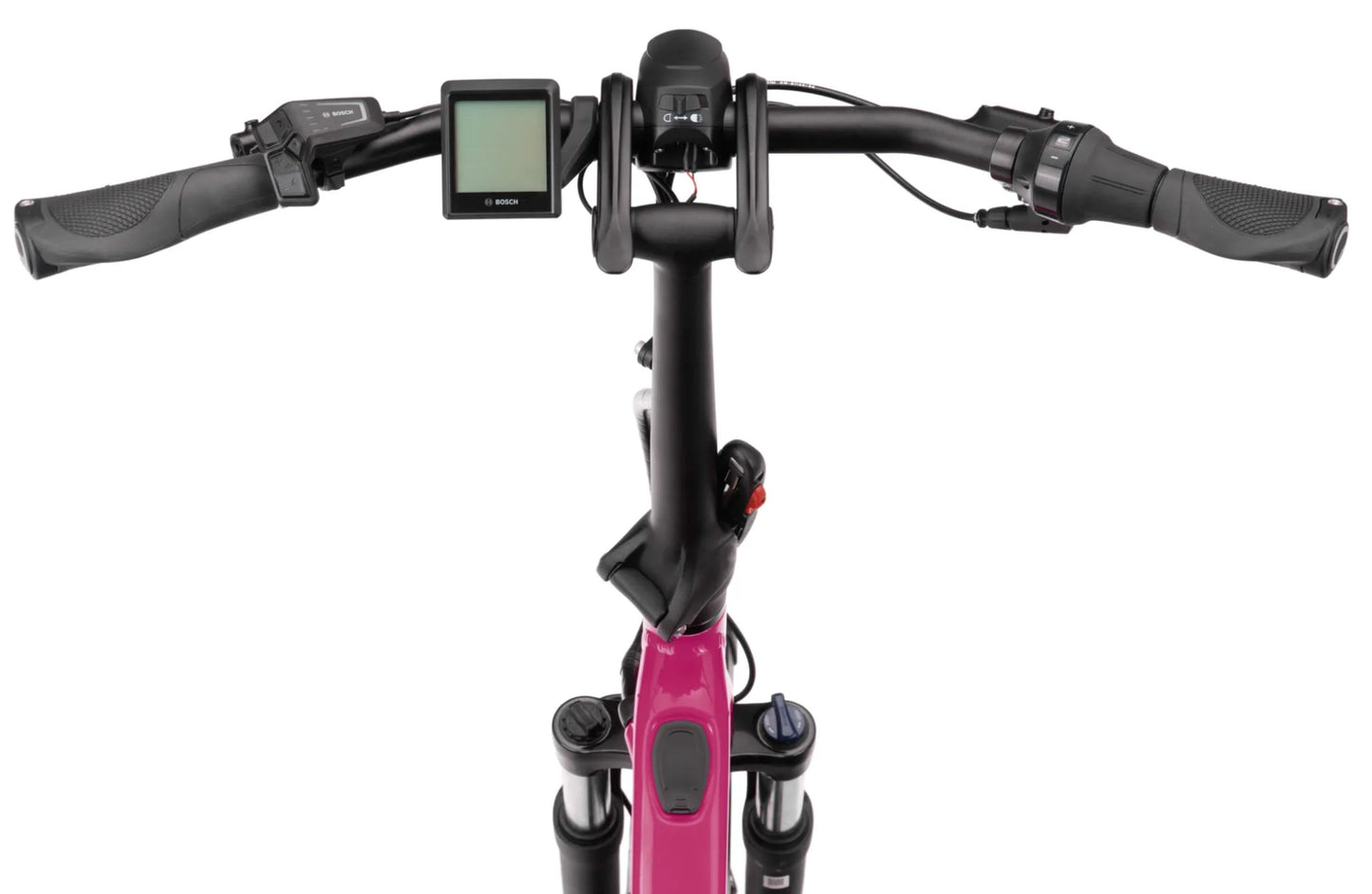

| Display | Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock |
| Charger | 100-240V, 4A (US) |
Components
| Frame | Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 370 lbs |
| Fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE tested for 370 lbs |
| Rear Shock | Not applicable |
| Front Brake | Shimano hydraulic disc brakes, 180mm |
| Rear Brake | Shimano hydraulic disc brakes, 160mm |
| Rear Derailleur | Spec not provided |
| Shift Levers | Shimano Nexus INTER-5E |
| Chain | Gates Carbon Drive CDX belt |
| Cassette | Gates CDX, precision CNC machined cog |
| Crankset | Tern HSD custom, Gates CDX CNC machined beltring |
| Chain Ring | Spec not provided |
| Chain Guard | Tern Custom, full chain cover |
| Rims | Tern Atlas H, wide 35 mm |
| Front Hub | Novatec, Thru-axle, sealed bearings |

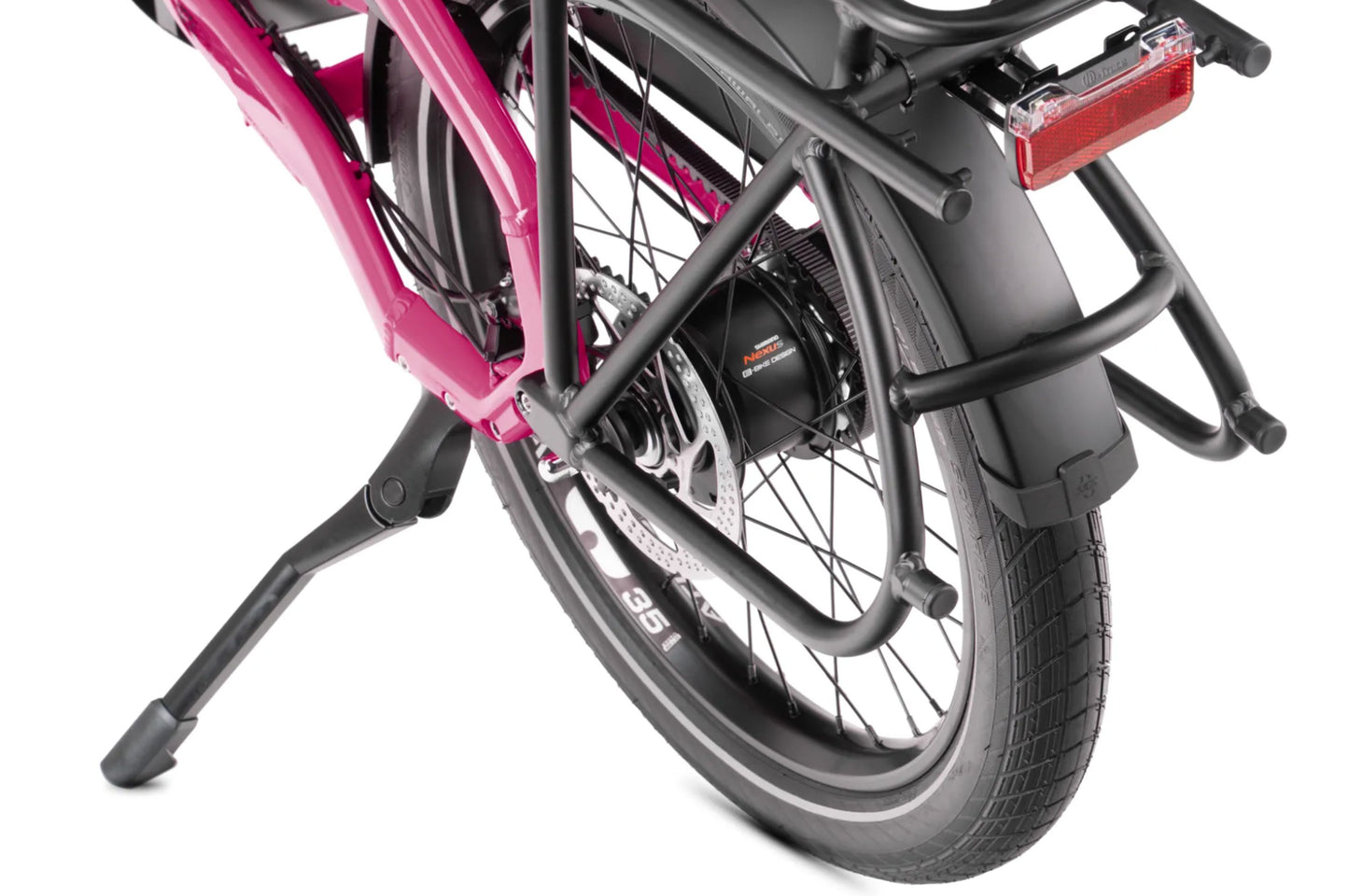

| Rear Hub | Shimano Nexus INTER-5E |
| Front Tire | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Rear Tire | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Handlebar | Tern Sweep, 6061-AL, Tern Andros adapted |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Headset | Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated |
| Grips | Ergon |
| Saddle | Tern Upright by Velo |
| SeatpostTern Telescope, 34.9/30.9 mm, 2014-AL | SeatpostTern Telescope, 34.9/30.9 mm, 2014-AL |
Extras
| Pedals | Urban with non-slip surface |
| Front Light | Tern Valo Direct, 190 lumens |
| Rear Light | Herrmans H-Trace, for eBike |
| Kickstand | Ursus, rear mount |

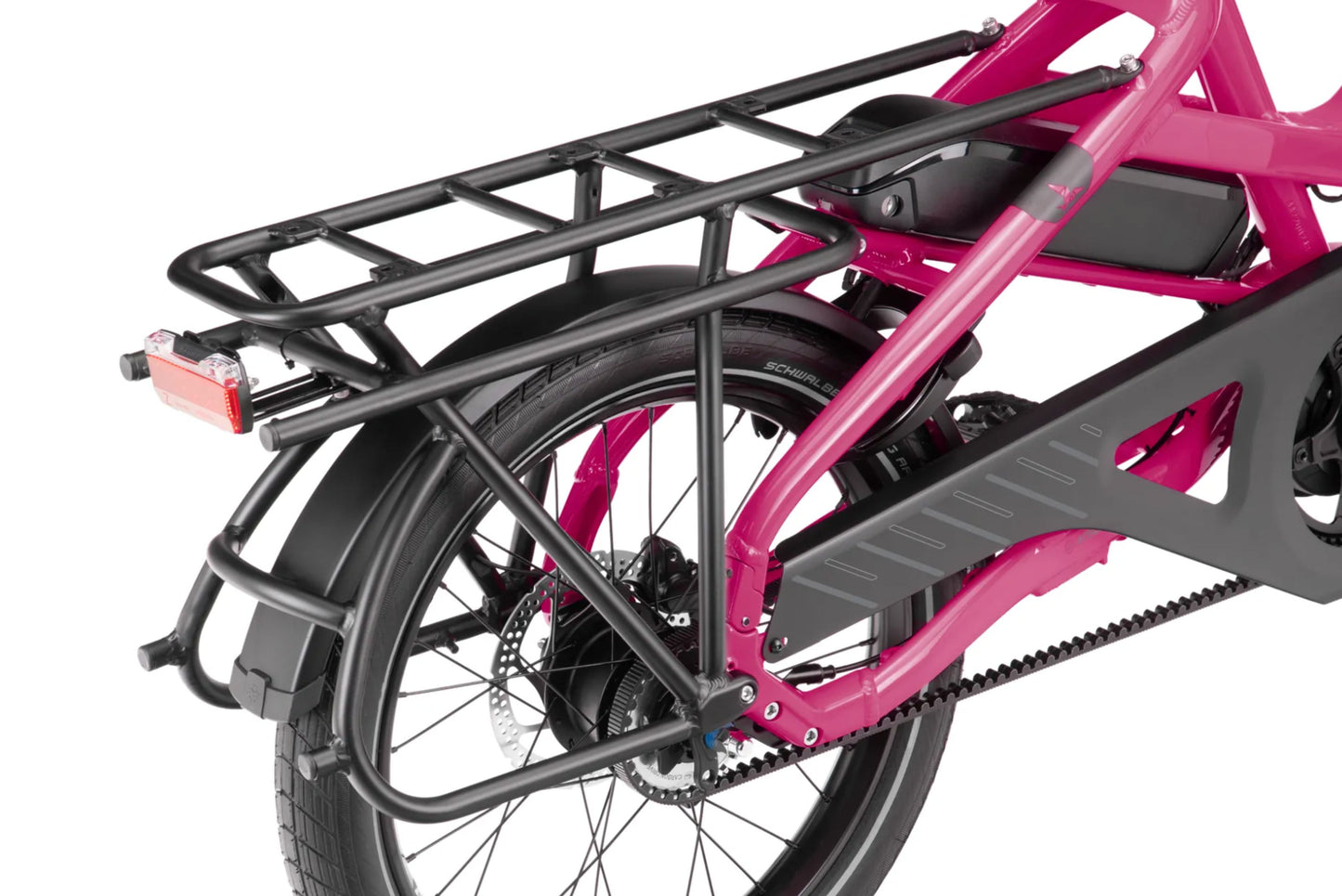

| Rear Carrier | Atlas H rack, Atlas Rack Mount, 6 point mounting |
| Fenders | SKS, stainless hardware |
| Bell | Pitch Plus, brass |
| Lock | ABUS, keyed-alike with Bosch battery |
| Mirror | Not applicable |
Geometry
FRAME SIZE:: One Size
WEIGHT::61.5 lb
GEAR INCHES::38 - 99"

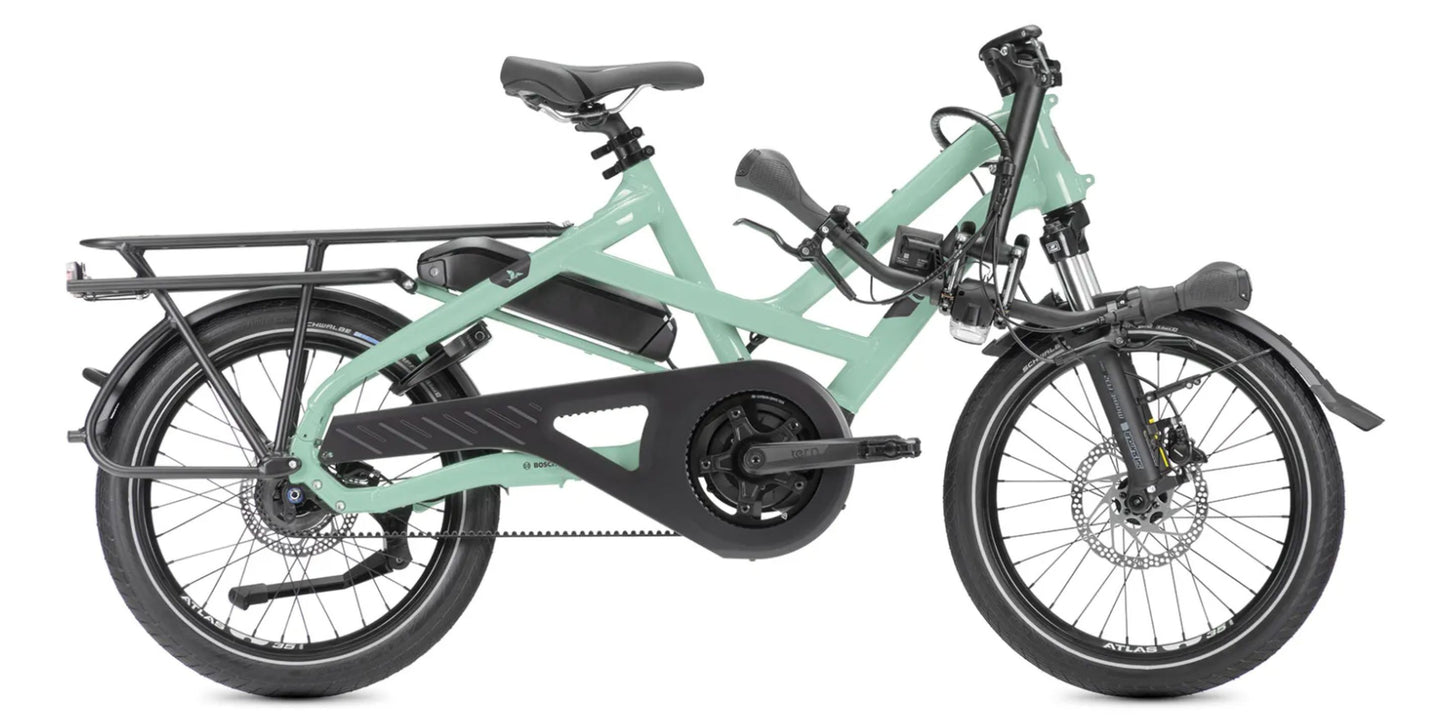

FOLDING SIZE::65 × 15.6 × 34.3 in
FOLDING TIME::5 seconds
DISTANCE, SEATPOST TO HANDLEBAR::21.5 - 24.6 in
DISTANCE, SADDLE TO PEDAL::27.6 - 40.4 in
SUGGESTED RIDER HEIGHT::59.1 - 76.8 in
MAX GROSS VEHICLE WEIGHT::396.8 lb
MAX RIDER WEIGHT::264.6 lb
